Home Offer Lamp types LED lights Number plate lightings 3-in-1 LED license plate frame – license plate light, reversing light and rear fog light RTR 3367

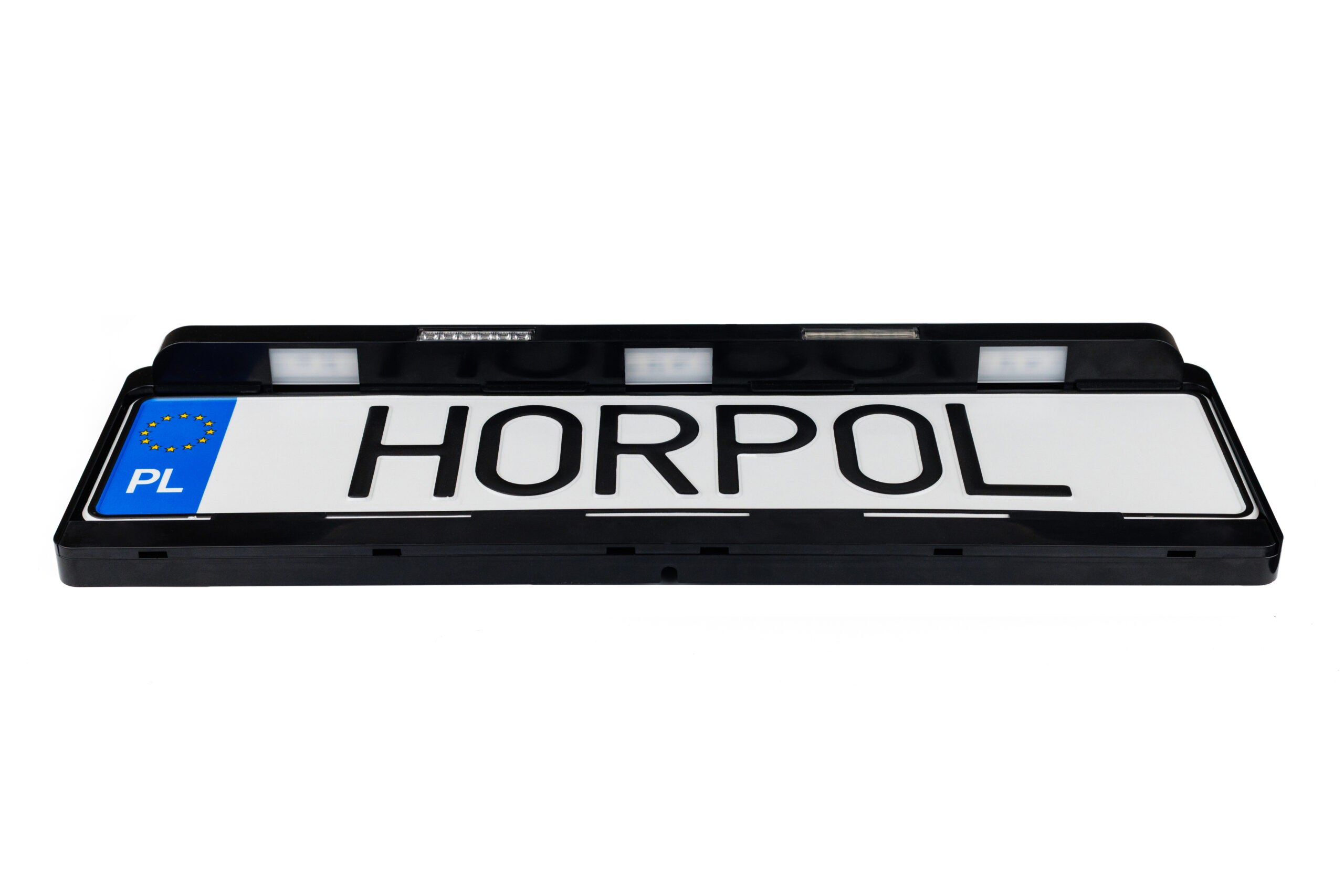

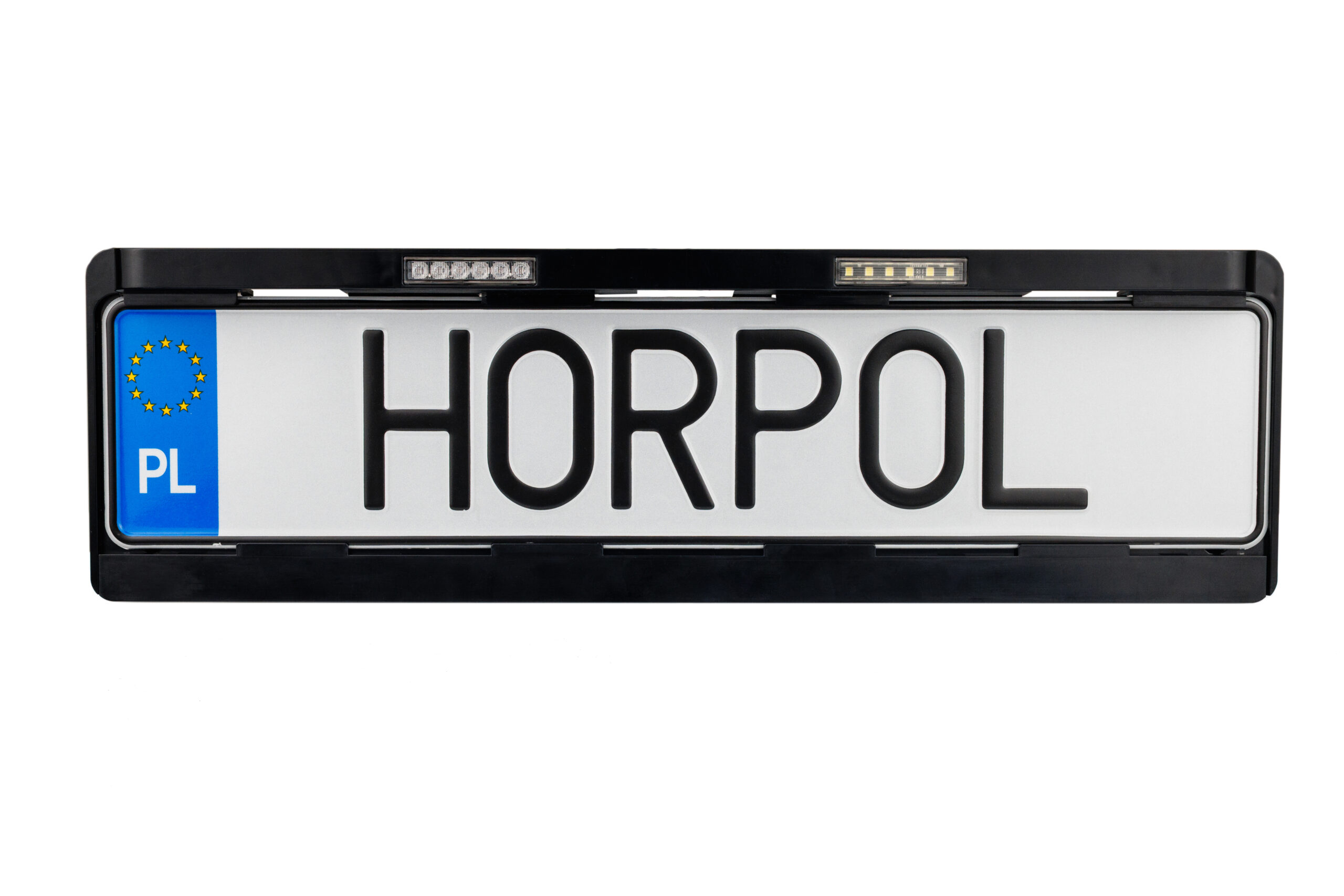

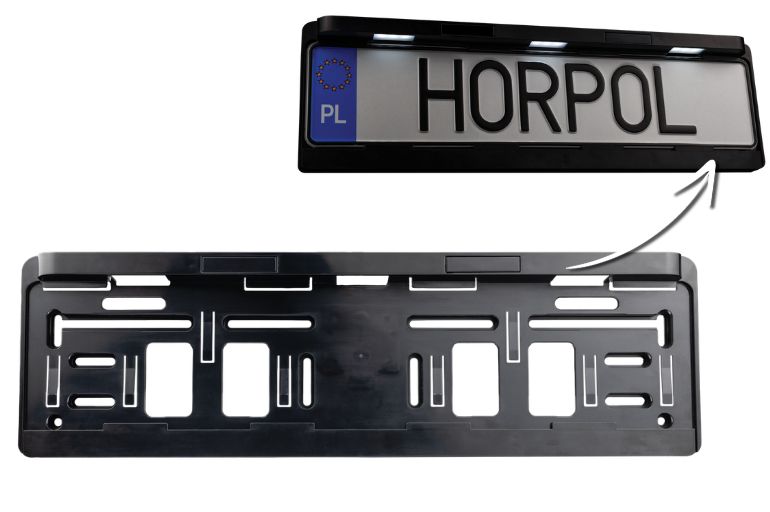

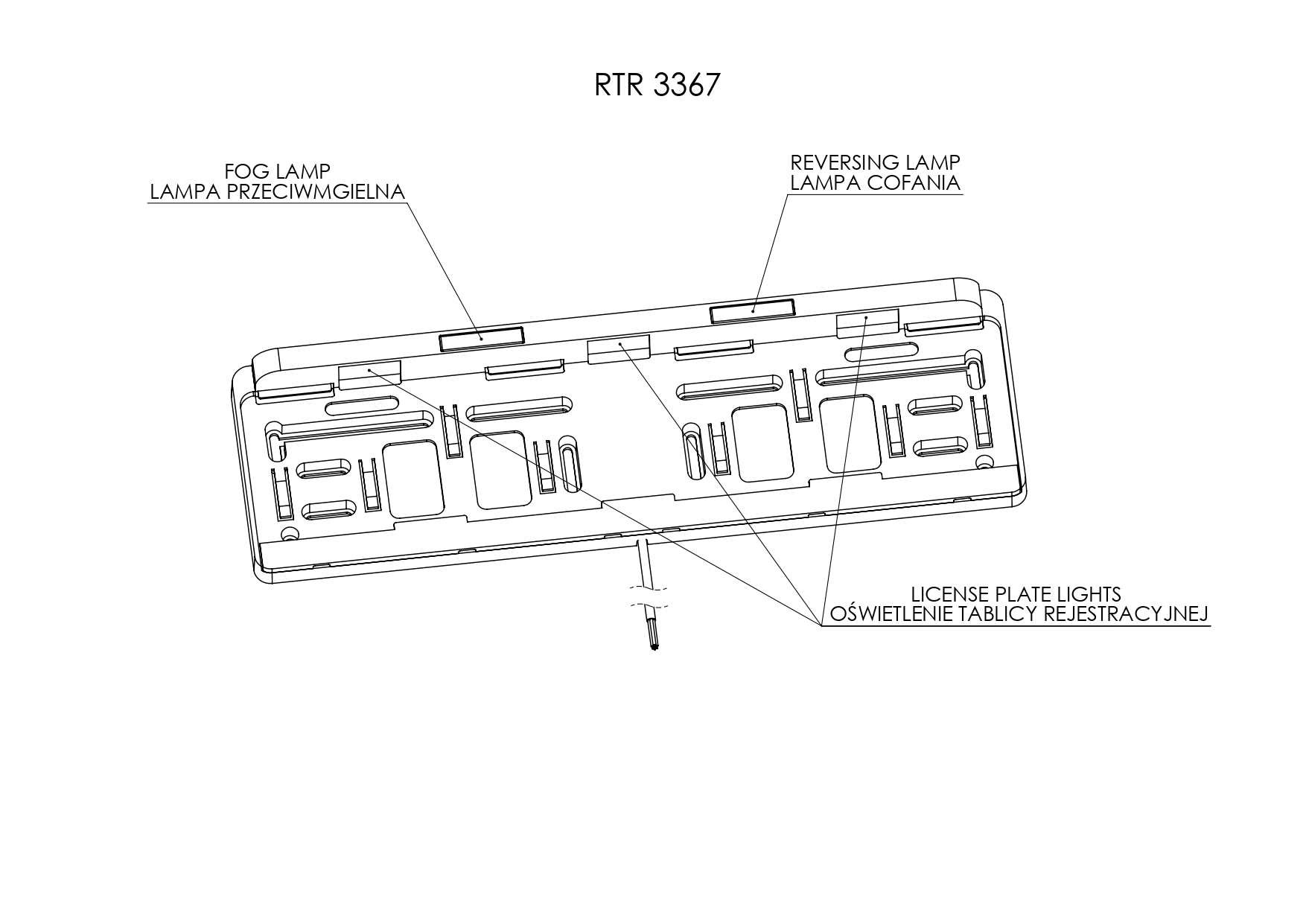

The RTR 3367 license plate frame has been designed for commercial vehicles, trailers, semi-trailers and car transporters, combining license plate mounting and LED illumination with additional reversing and rear fog lights in a single construction. This solution reduces the number of separate components installed on the vehicle, while providing an aesthetic appearance and easier installation.

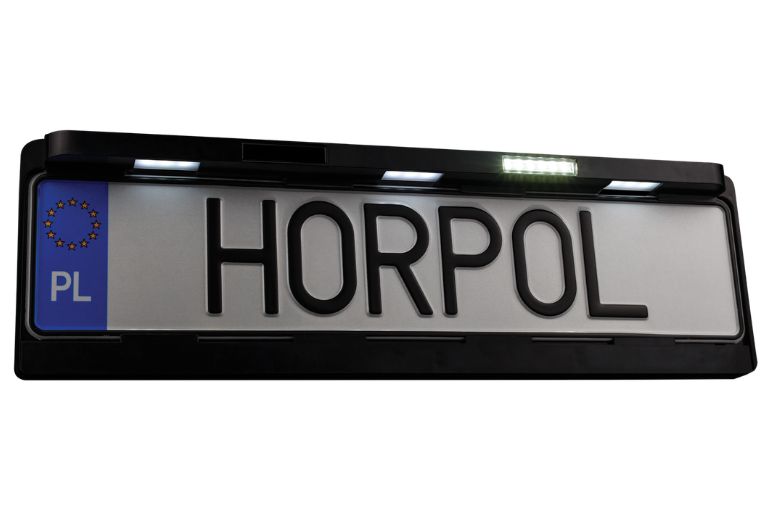

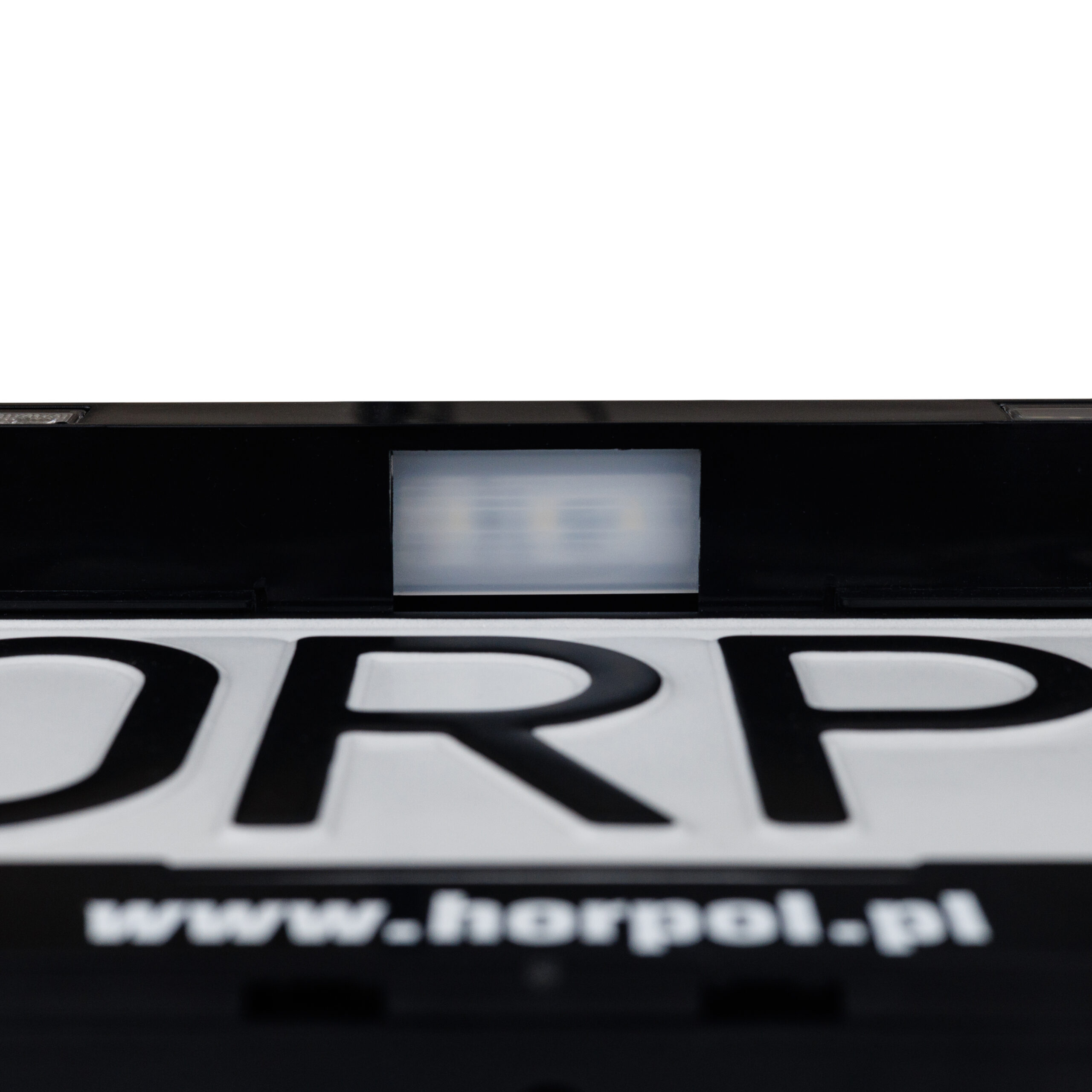

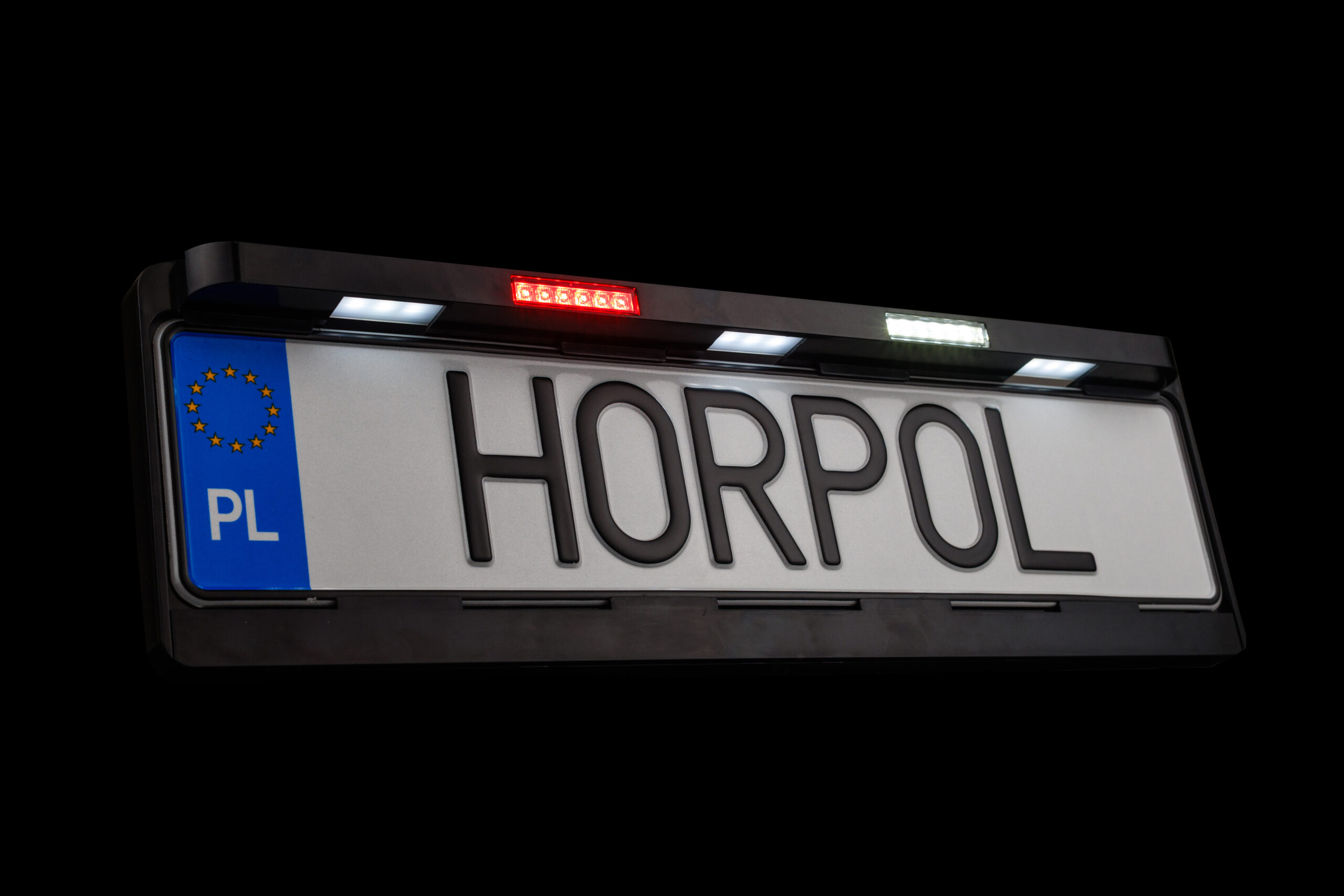

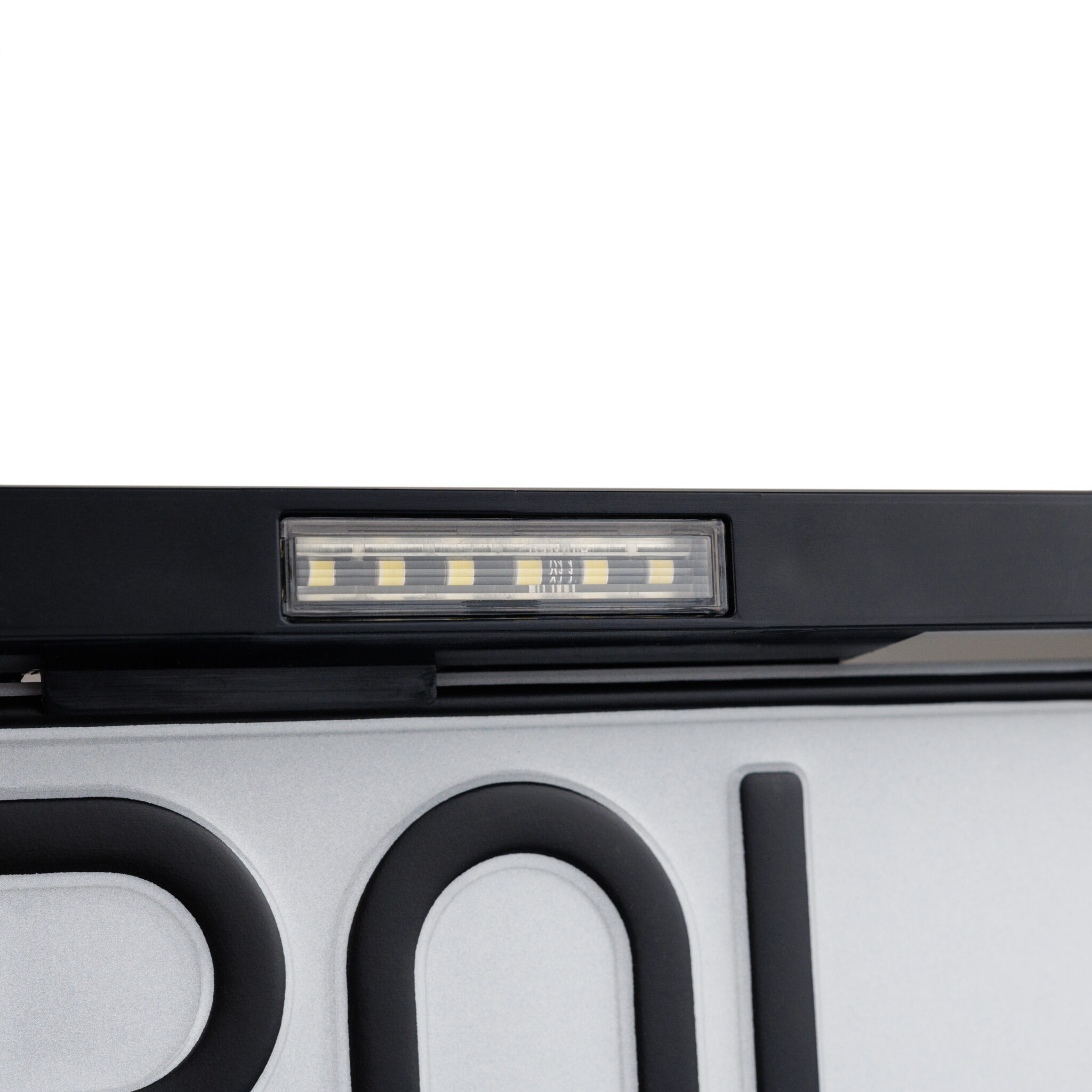

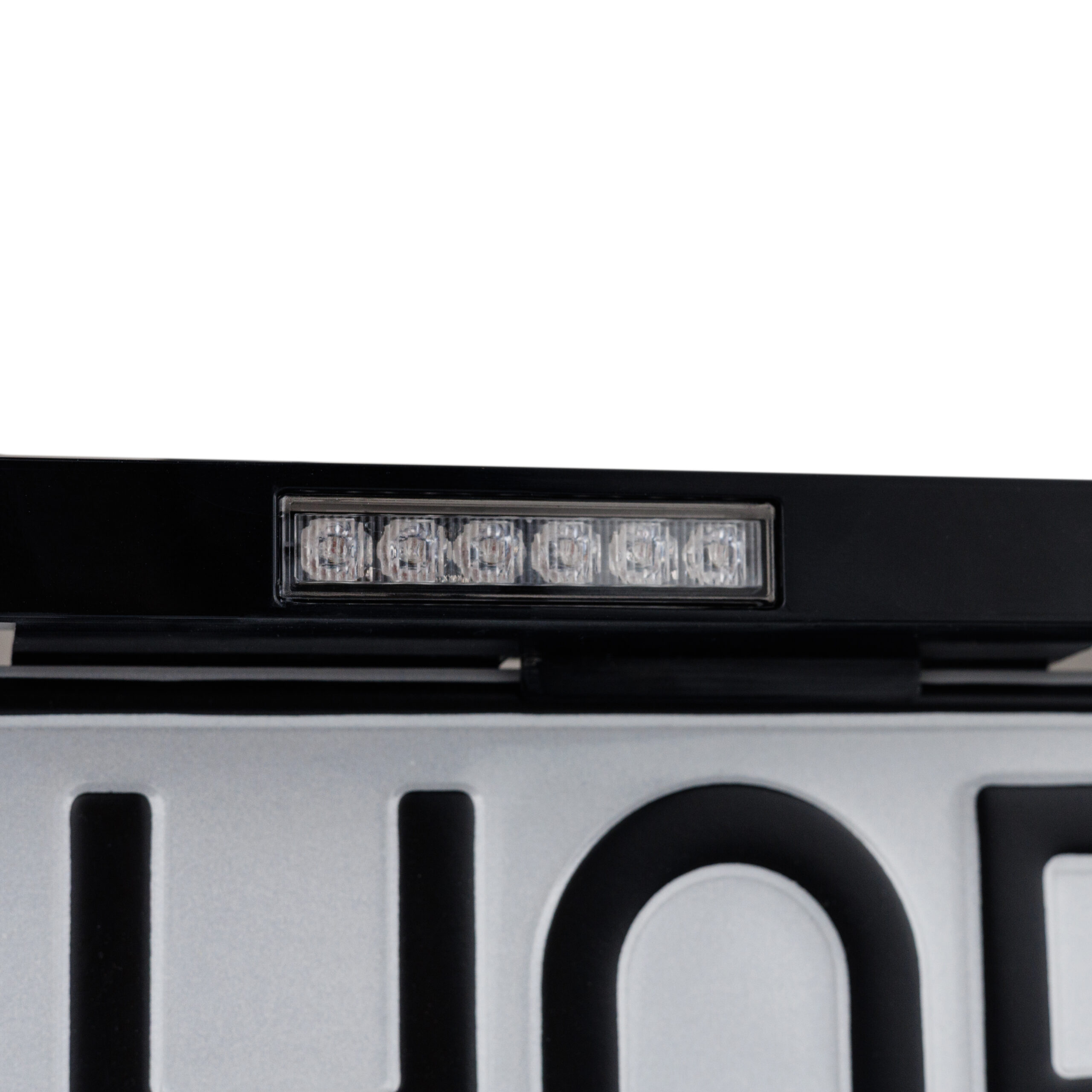

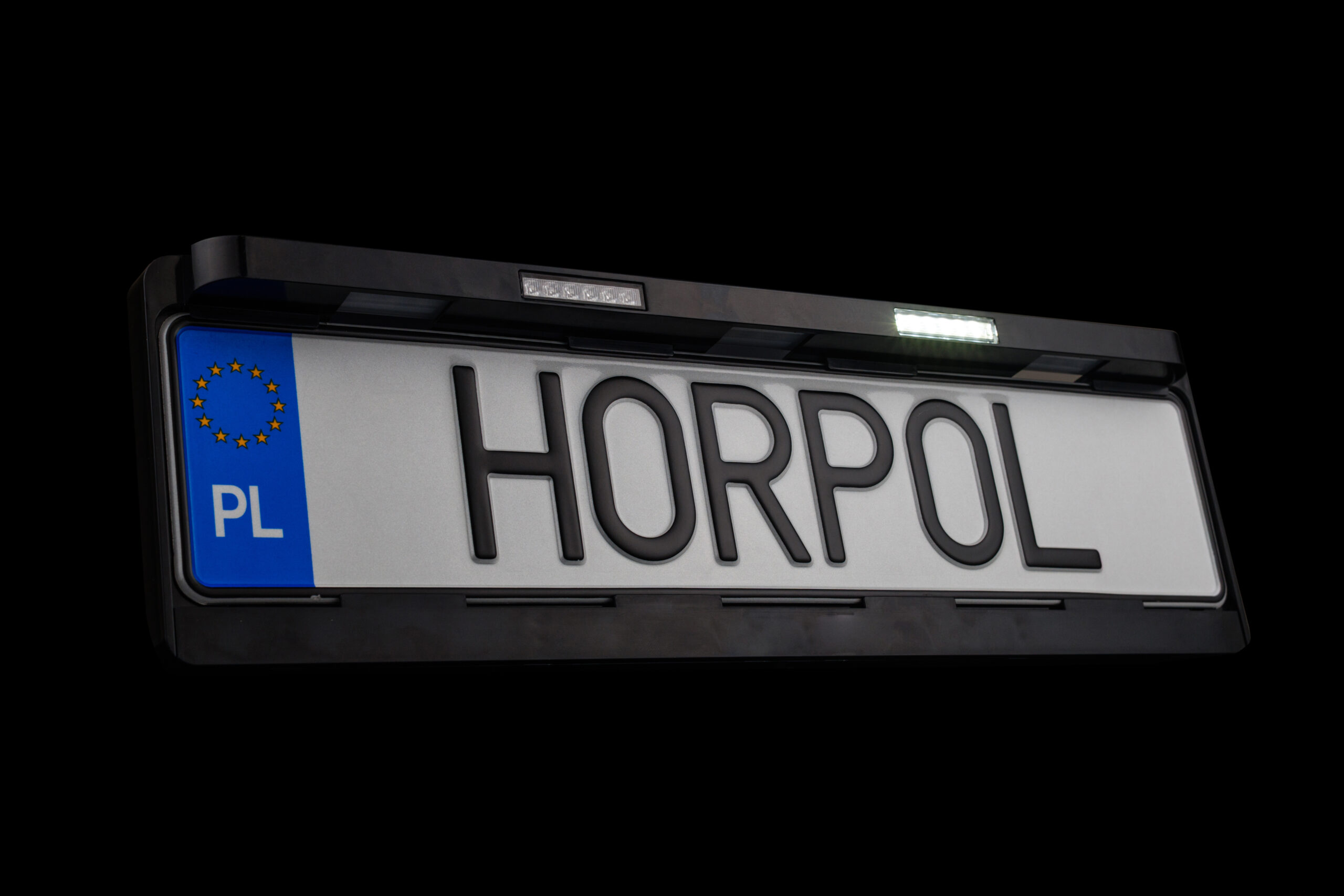

The integrated LEDs provide uniform, white illumination of the license plate directed downwards. The integrated reversing light improves visibility during manoeuvring, while the rear fog light enhances driving safety in difficult weather conditions. The product is designed for 12/24 V installations, making it suitable for a wide range of vehicles.

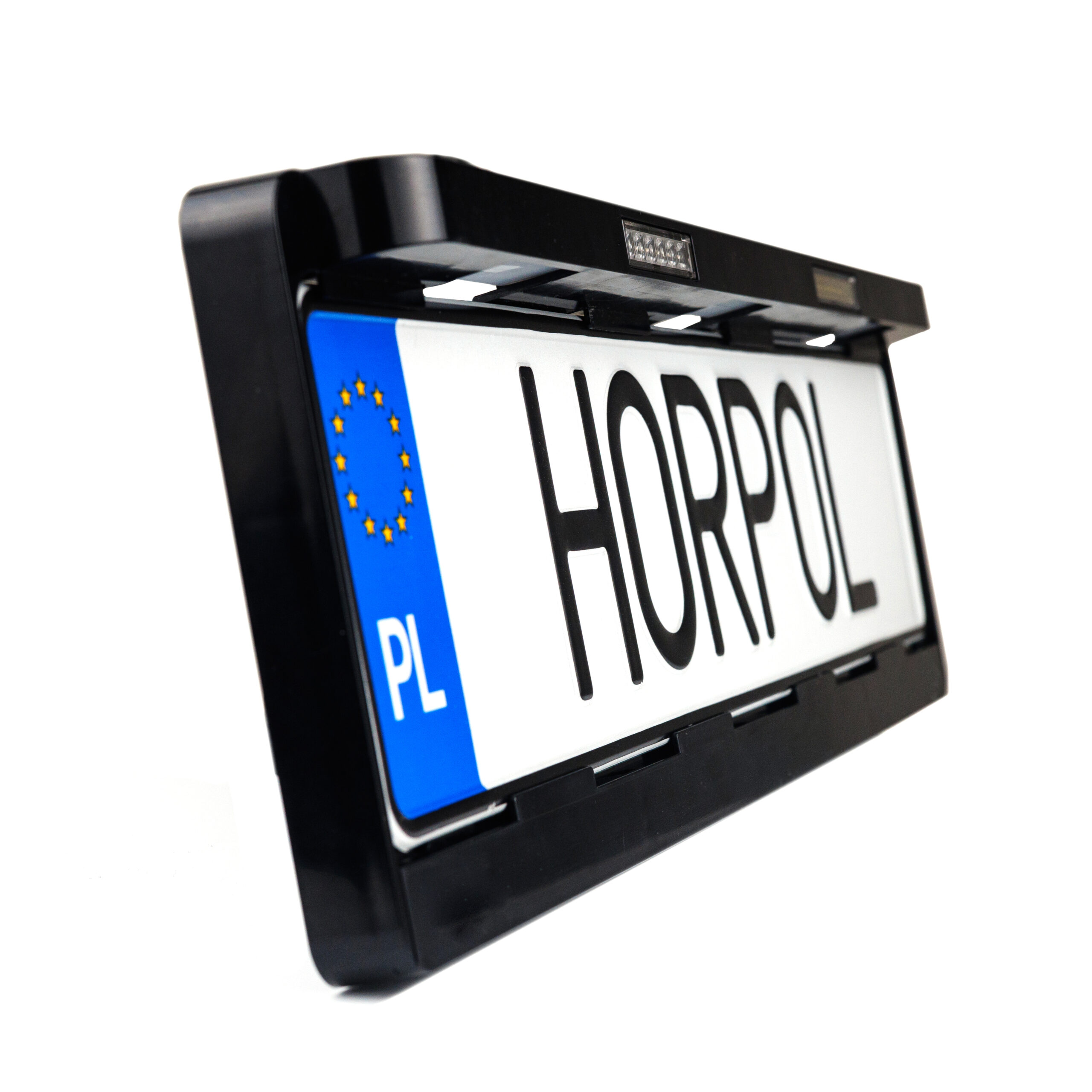

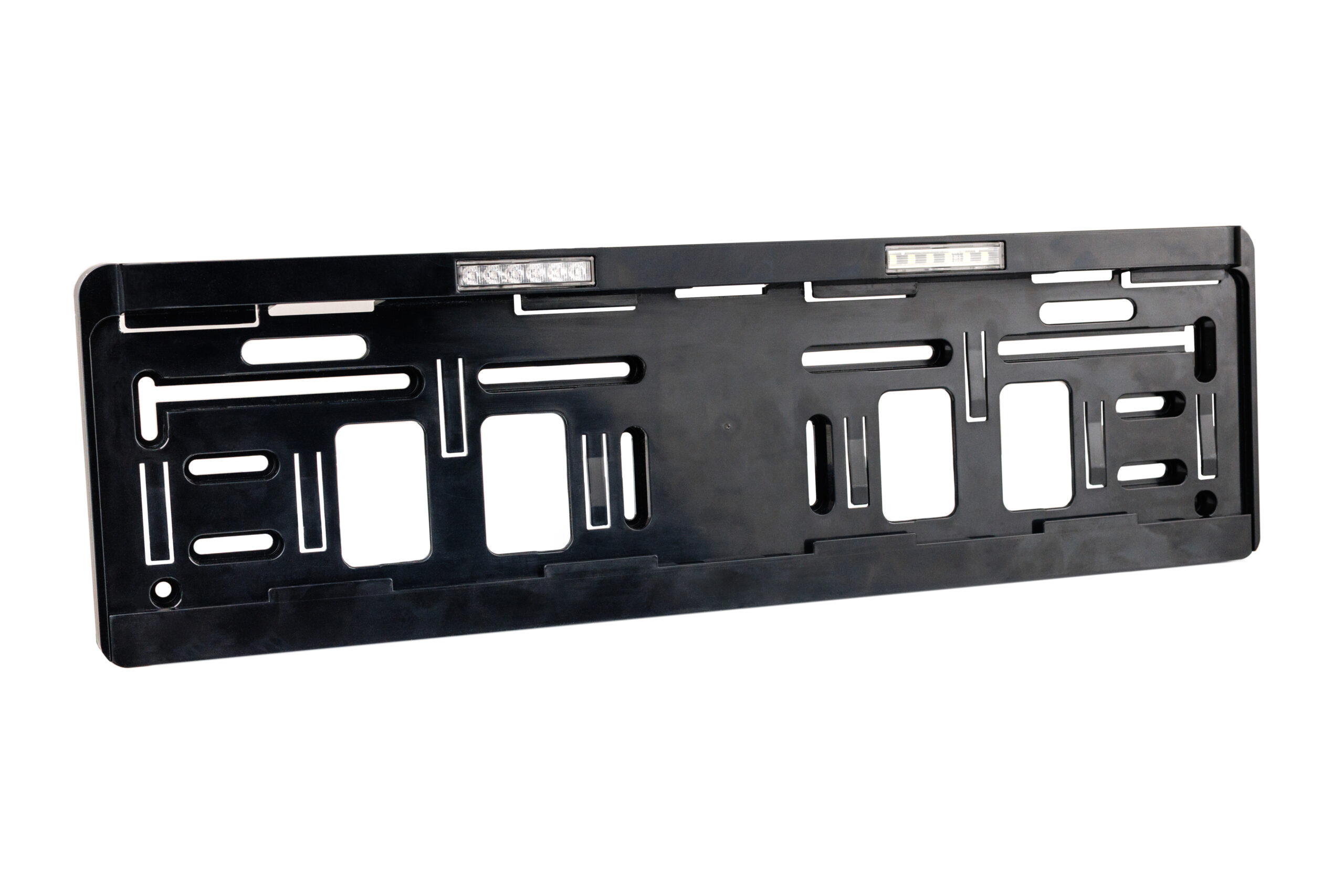

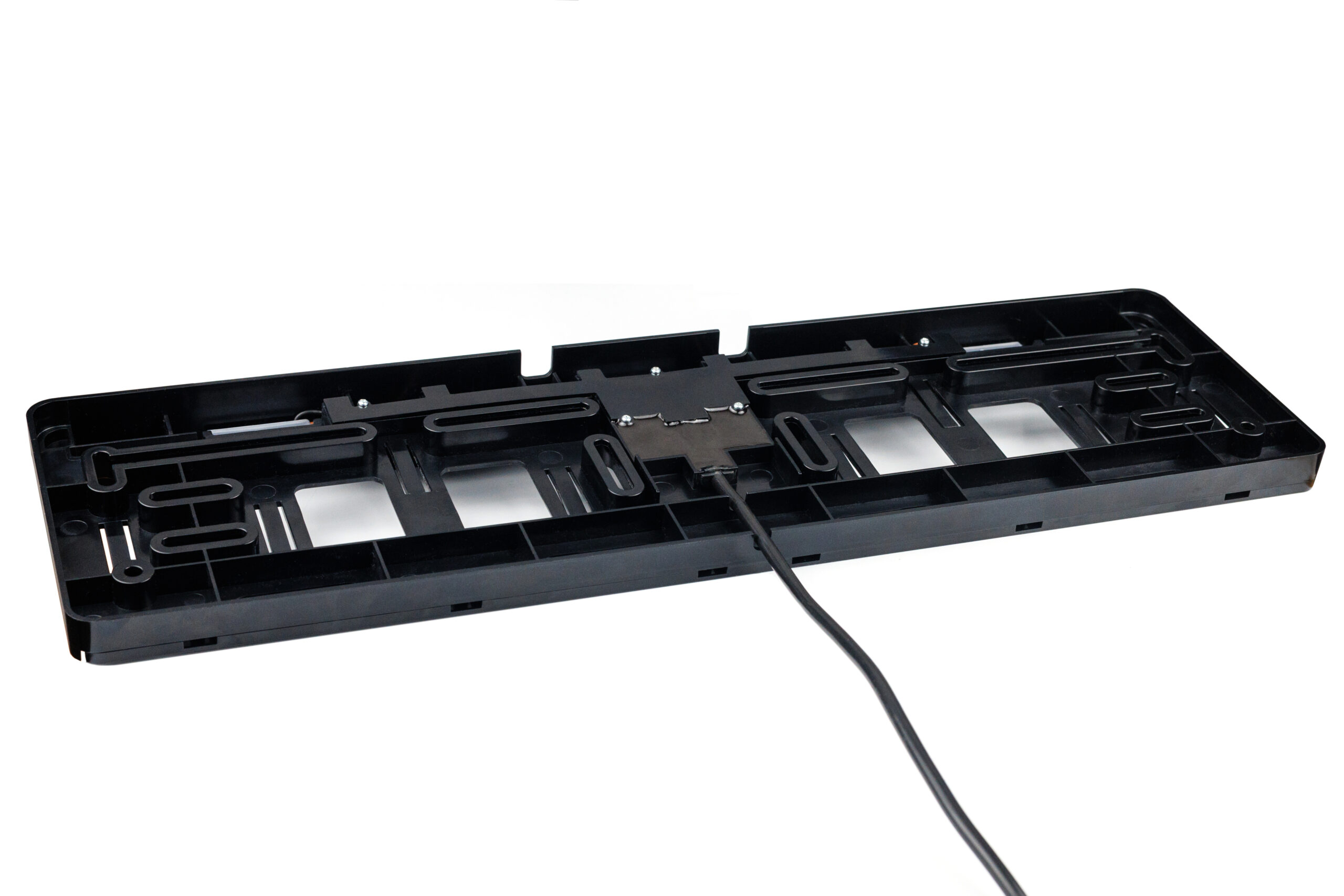

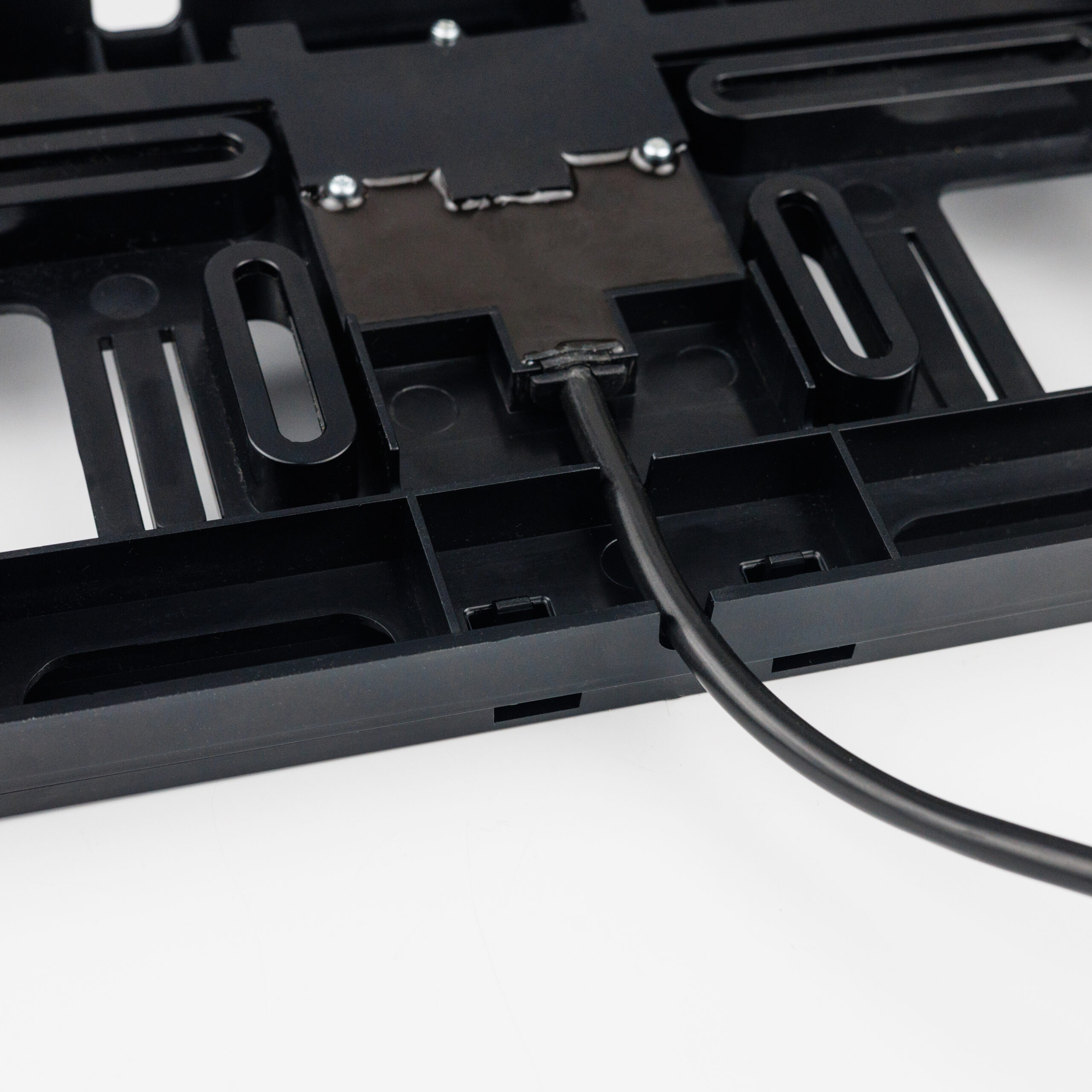

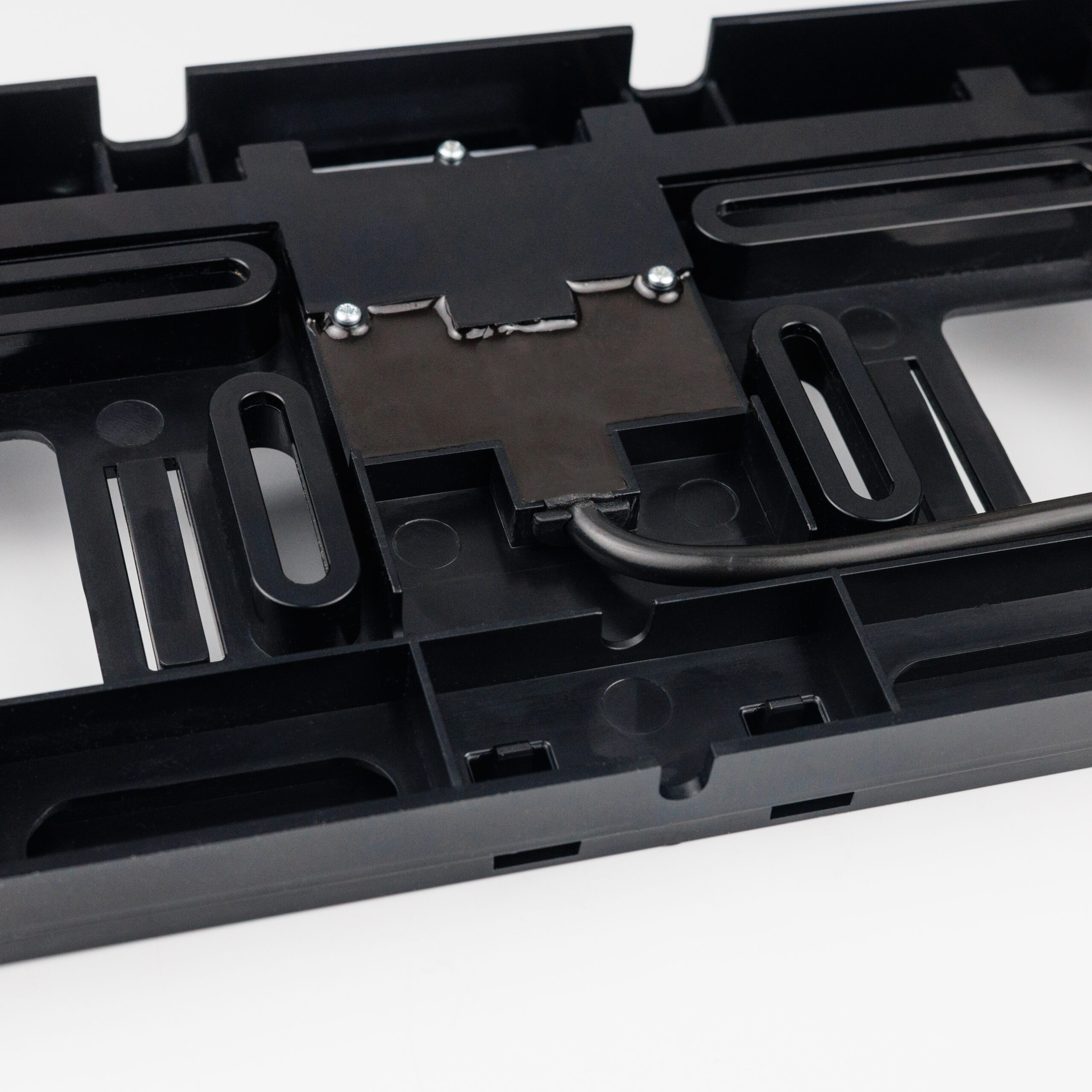

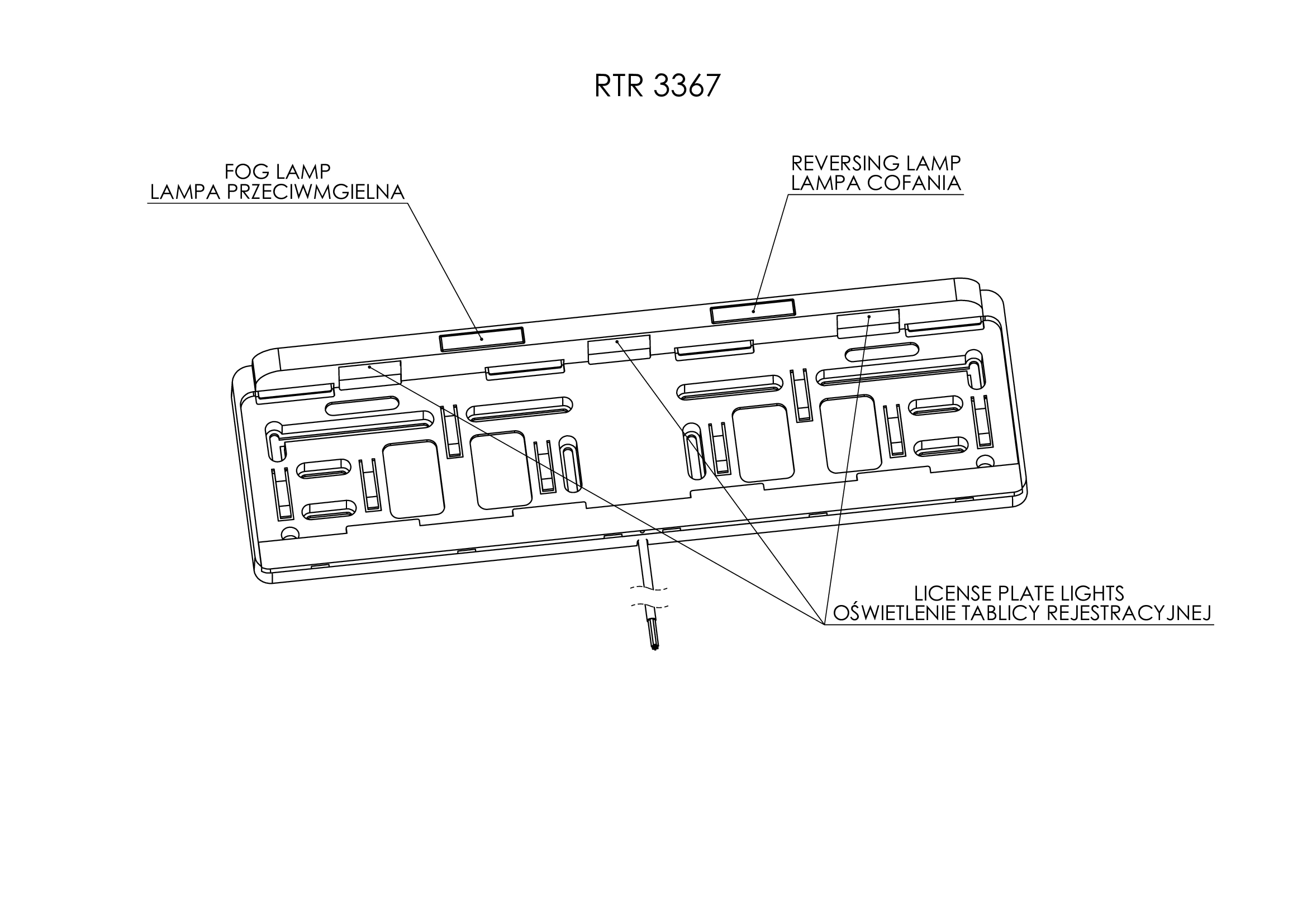

A distinctive feature of the RTR 3367 is its monolithic construction, combining an integrated housing with hermetically sealed inserts. The Clean-Wire Technology used in the product — an internal wire-routing system — eliminates the risk of contaminants entering the cable channels, enhancing the durability and overall appearance of the solution. The lower frame strip serves as the cover for the cable-routing system, keeping all wires concealed and properly protected.

The IP68-rated housing provides resistance to water, dust and demanding operating conditions. The product is designed to operate at temperatures ranging from -30°C to +50°C, while the 1.5 m cable ensures convenient installation in various types of vehicle body configurations.

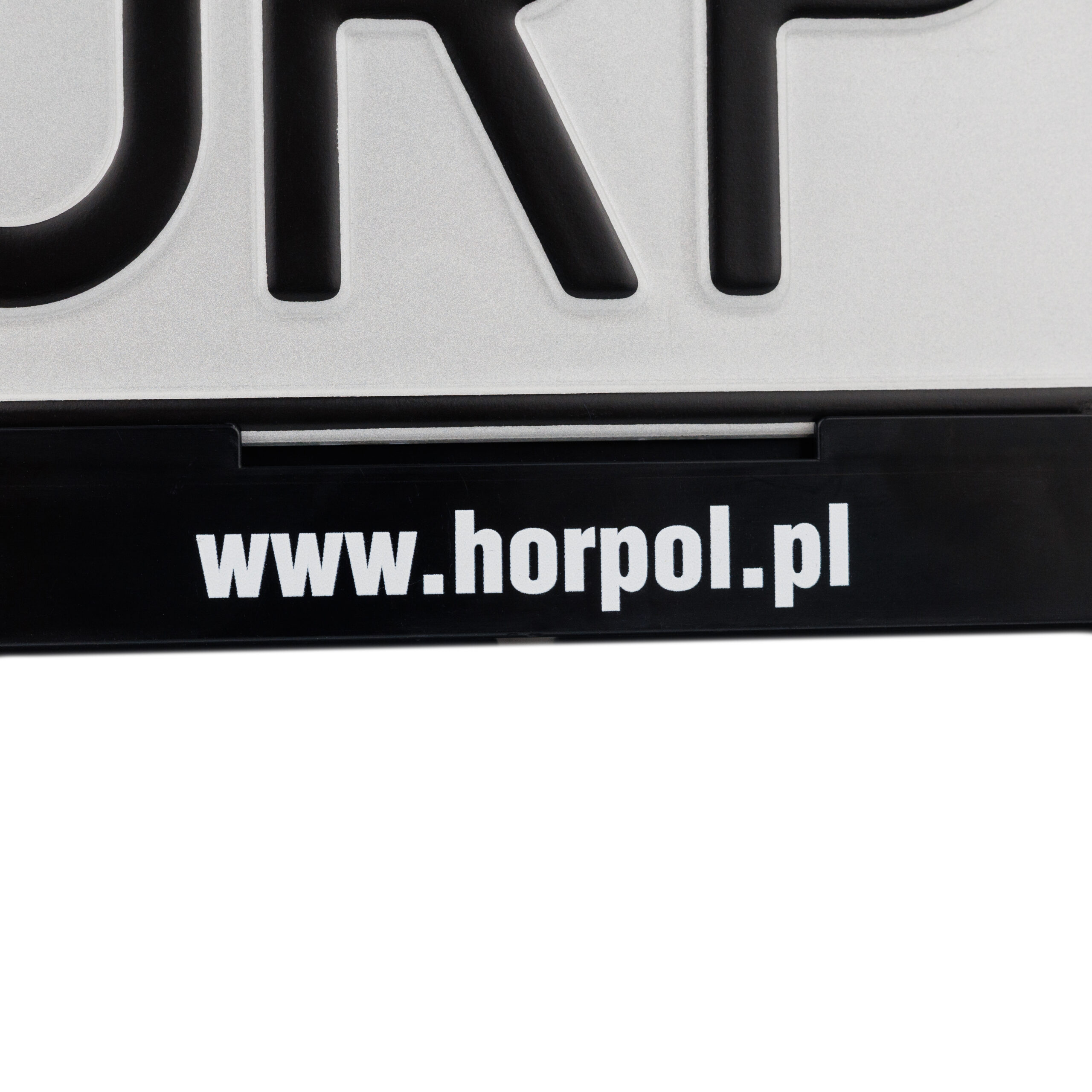

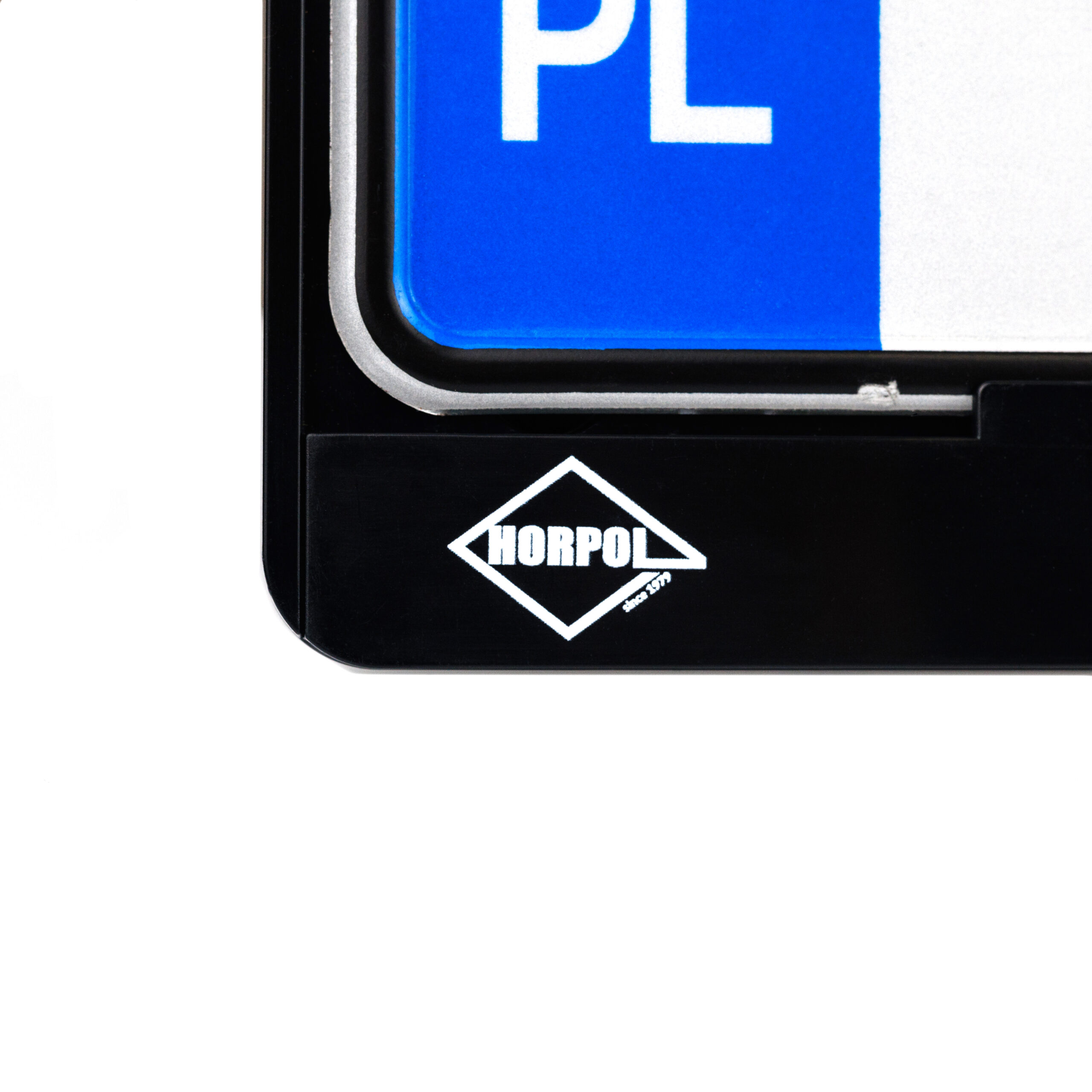

RTR 3367 is a practical solution for manufacturers of trailers, semi-trailers and car transporters looking for a durable, aesthetic and multifunctional product. An additional advantage is the possibility of individual printing on the lower strip of the frame according to a customer-provided design, allowing the product to be adapted to the manufacturer’s or brand’s visual identity.

Technical data

Light group
HOR 160
Light category
plate number
LED light
yes
LED quantity
24
Number plate light
yes
Fog light
yes
Reversing light
yes
Supply voltage
12/24 V
Cable
4×0,5 mm2; cable length 1,5 m
Operating temperature range
from -30°C to +50°C
Ingress protection rating
IP68

RTR 3367 3-in-1 LED license plate frame – license plate light, reversing light and rear fog light
