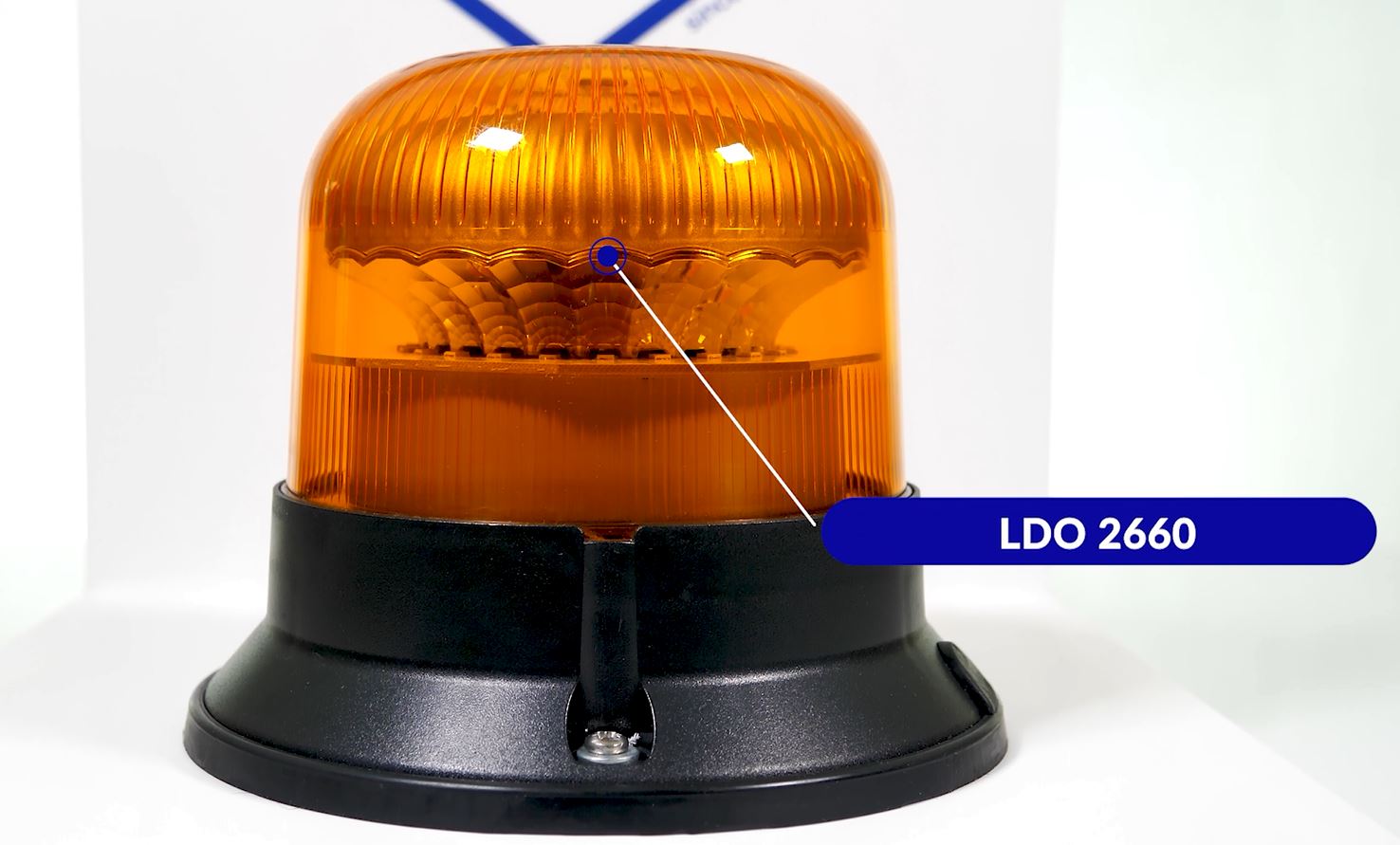

LDO 2660
Beacon light

Beacon light screw-on version HOR 110A, 12/24 V, orange.

Working mode: flash

Lamp type: LED

Technical data

Light group
HOR 110A
LED quantity
24
Working frequency
2,1 Hz
Light category
warning
Working mode
F-flash
Supply voltage
12/24 V
Light colour
amber
Power rating
14 W
Operating temperature range
from -30°C to +50°C
Cable
2x0,75 mm2; cable length 1,5 m, round
Connection method
screw-on
LED light
yes
Ingress protection rating
IP 68

Download

Beacon light LDO 2660 (technical drawing) 1 (beacon-light-ldo-2660-technical-drawing-1.ZIP)
Download
Beacon light LDO 2660 (homologation) 1 (beacon-light-ldo-2660-homologation-1.ZIP)
Download
HOR 110A (approval R10) (hor-110a-approval-r10.ZIP)
Download
Page content (ldo-2660.ZIP)
Download
