Home Offer Lamp types LED lights Direction indicators Direction indicator LKD 2590

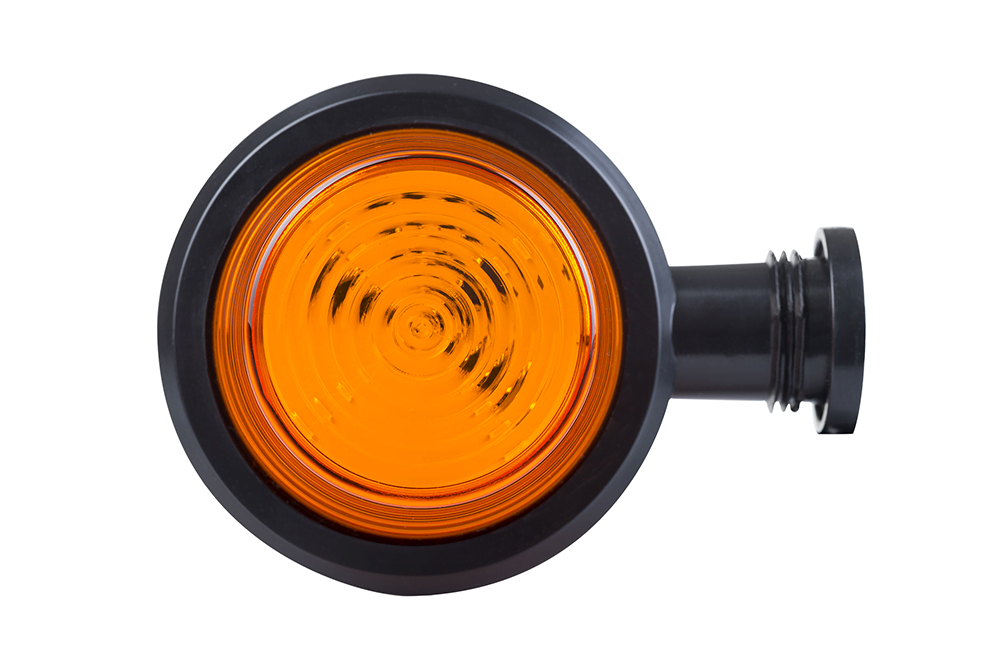

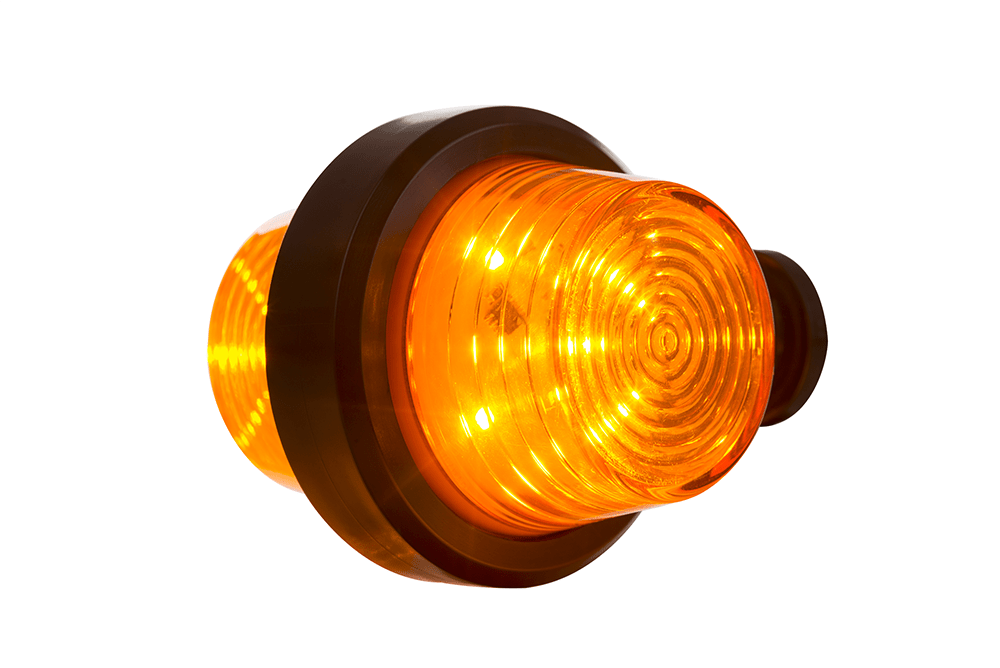

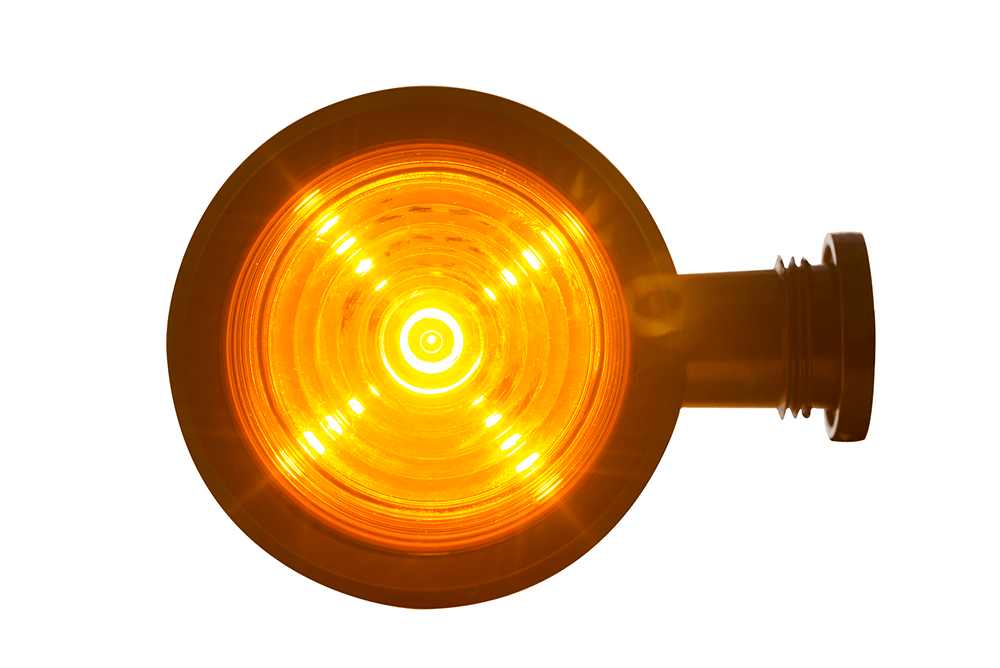

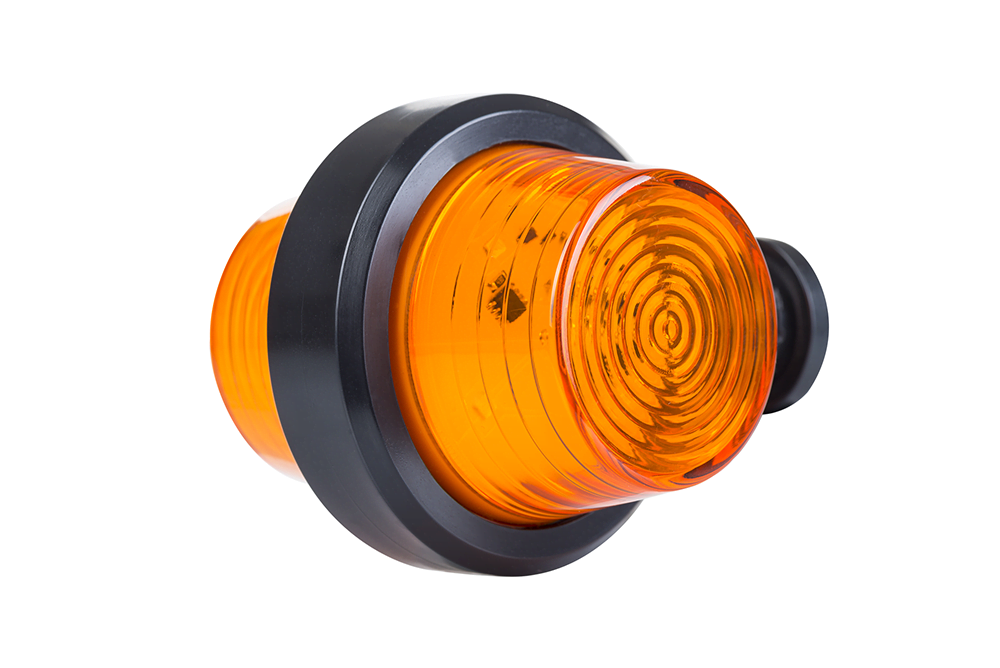

Direction indicator, short arm, amber lens, 0,6 m cable “old school” version

Technical data

Light group

HOR 102A

Light category

direction indicator

LED light

yes

LED quantity

10

Side direction indicator

yes

Side

universal

Supply voltage

12/24 V

Power rating

1/3 W

Cable

2×0,75 mm²; cable length 0,6 m

Operating temperature range

from -30°C to +50°C

Ingress protection rating

IP 68

LKD 2590 Direction indicator

Files to download

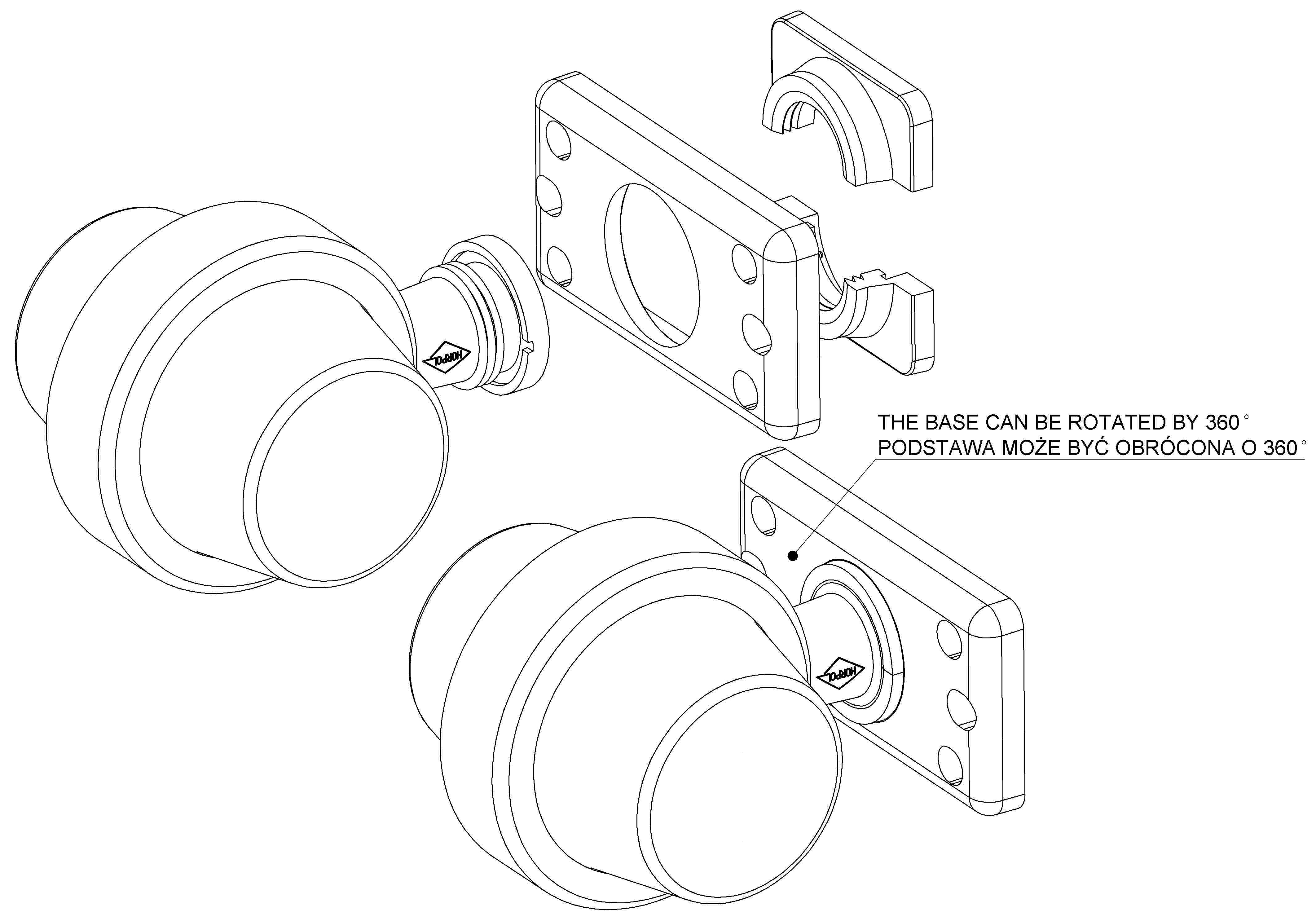

Page content (LKD 2590.zip) direction indicator lkd 2590 technical drawing direction indicator lkd 2590 technical drawing 1 direction indicator lkd 2590 homologation direction indicator lkd 2590 technical drawing 2
