Home Offer Trailers and tow trucks Interior light LWD 2153, rectangular with switch

Lamp type: LED

Lamps have 2 light modes:

basic mode – maximum light output
dimed mode – 30% of maximum light output

Specification of cores:

white –

black +

Technical data

Light group

HOR 66

Light category

interior

LED light

yes

LED quantity

Supply voltage

12/24 V

Cable

2x1x0,75 mm²; cable length 0,5 m

Operating temperature range

from -30°C to +50°C

Colour temperature

5000 K

Luminous flux

30% - 270 lm, 100% - 900 lm

Ingress protection rating

IP 65

LWD 2153 Interior light 2153, rectangular with switch

Files to download

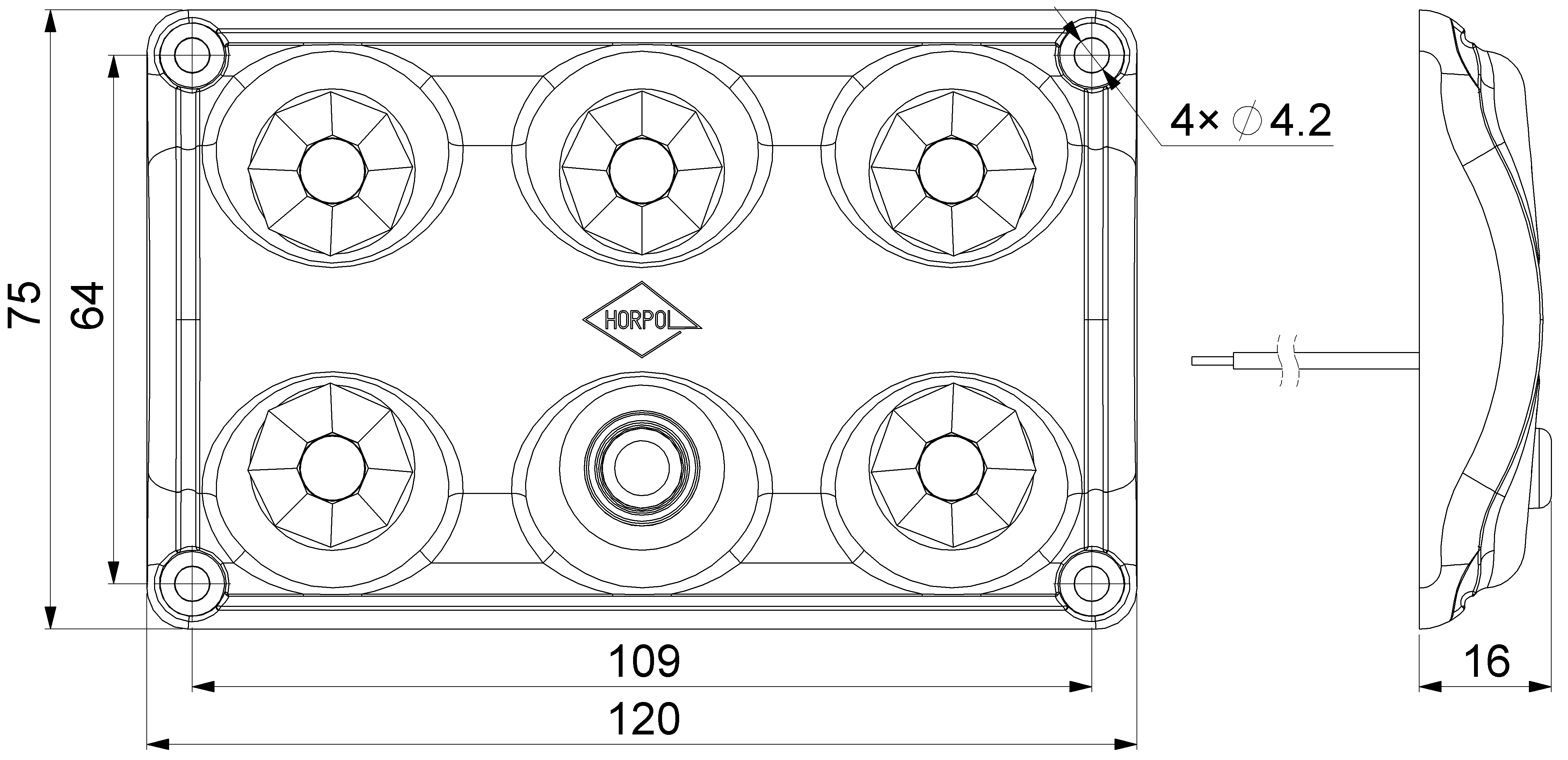

Page content (LWD 2153.zip) Interior lamp HOR RIMP2 approval R10 Interior light LWD 2153 technical drawings
