LD 2622
Marker lamp

Marker lamp orange-red, short arm, “old school” version.

Lamp type: LED

Technical data

LED light
yes
Light category
marker
Light group
HOR 102A
Side
universal
Supply voltage
12/24 V
Power rating
1,2/3 W
Ingress protection rating
IP 68
LED quantity
10
Rear position light
yes
Light colour
amber-red
Cable
2×0,75 mm2; cable length 0,6 m
Operating temperature range
from -30°C to +50°C

Download

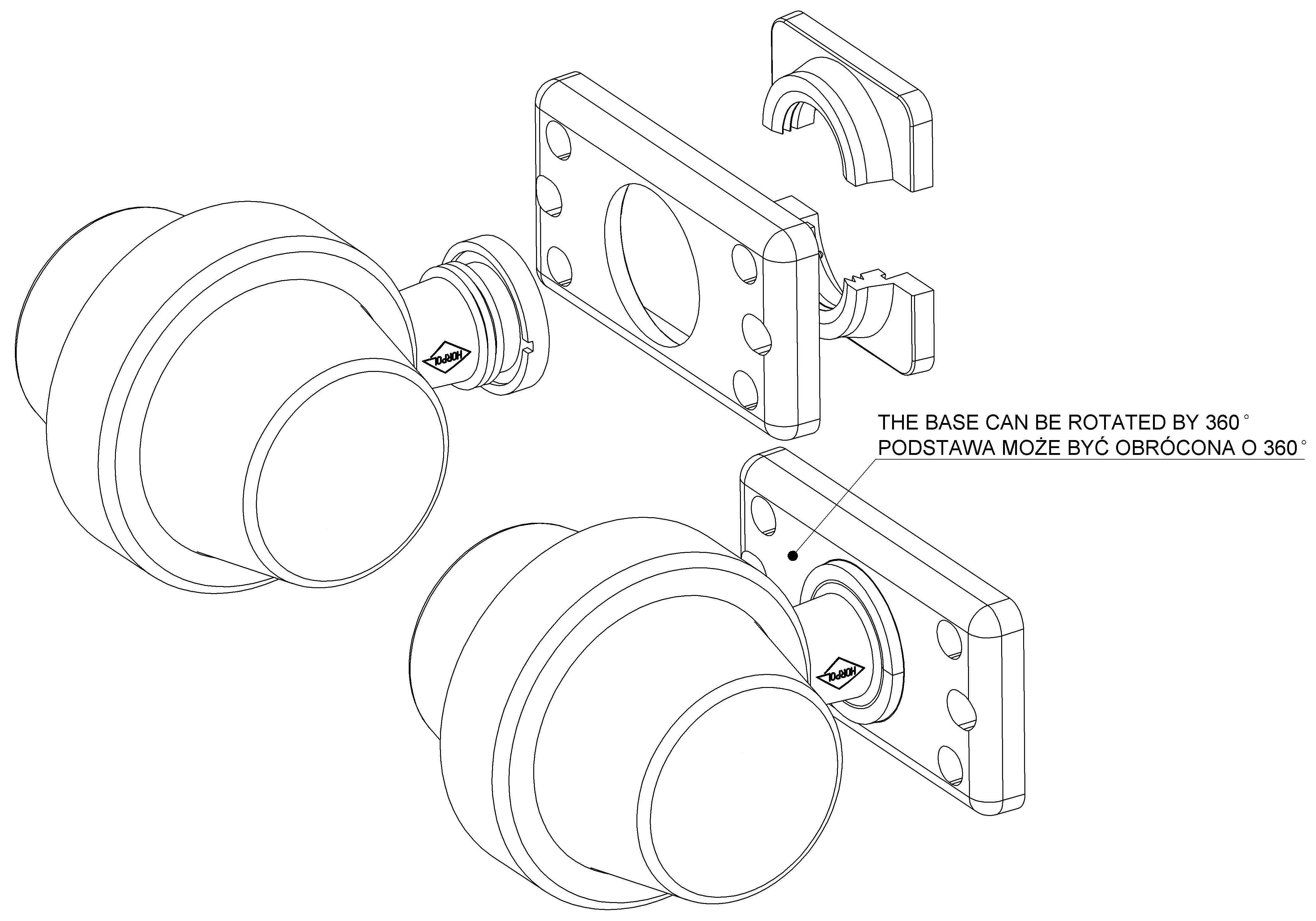

Marker lamp LD 2622 (technical drawing) 1 (marker-lamp-ld-2622-technical-drawing-1.ZIP)
Download

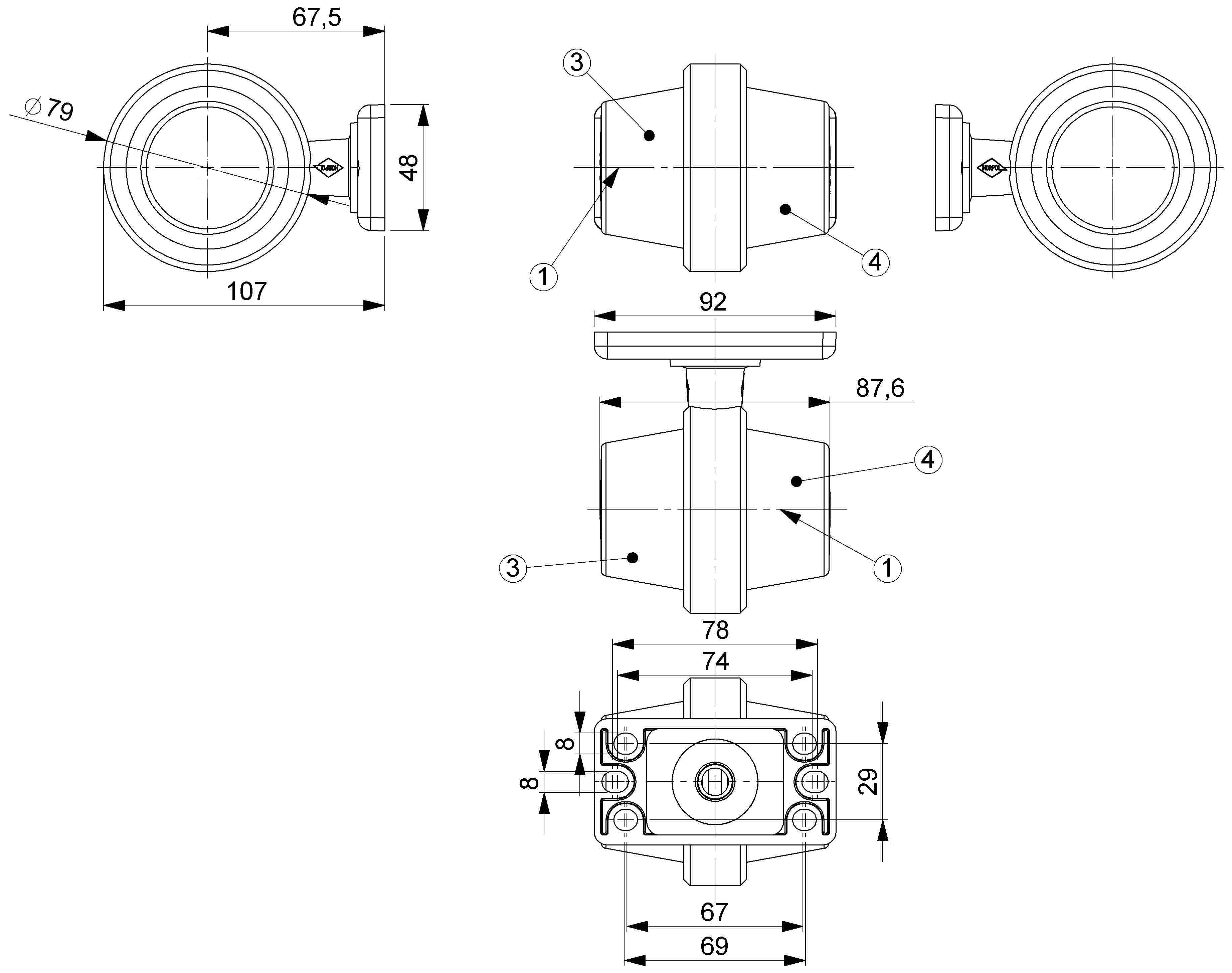

Marker lamp LD 2622 (technical drawing) 2 (marker-lamp-ld-2622-technical-drawing-2.ZIP)
Download
Marker lamp LD 2622 (technical drawing) 3 (marker-lamp-ld-2622-technical-drawing-3.ZIP)
Download
Page content (ld-2622.ZIP)
