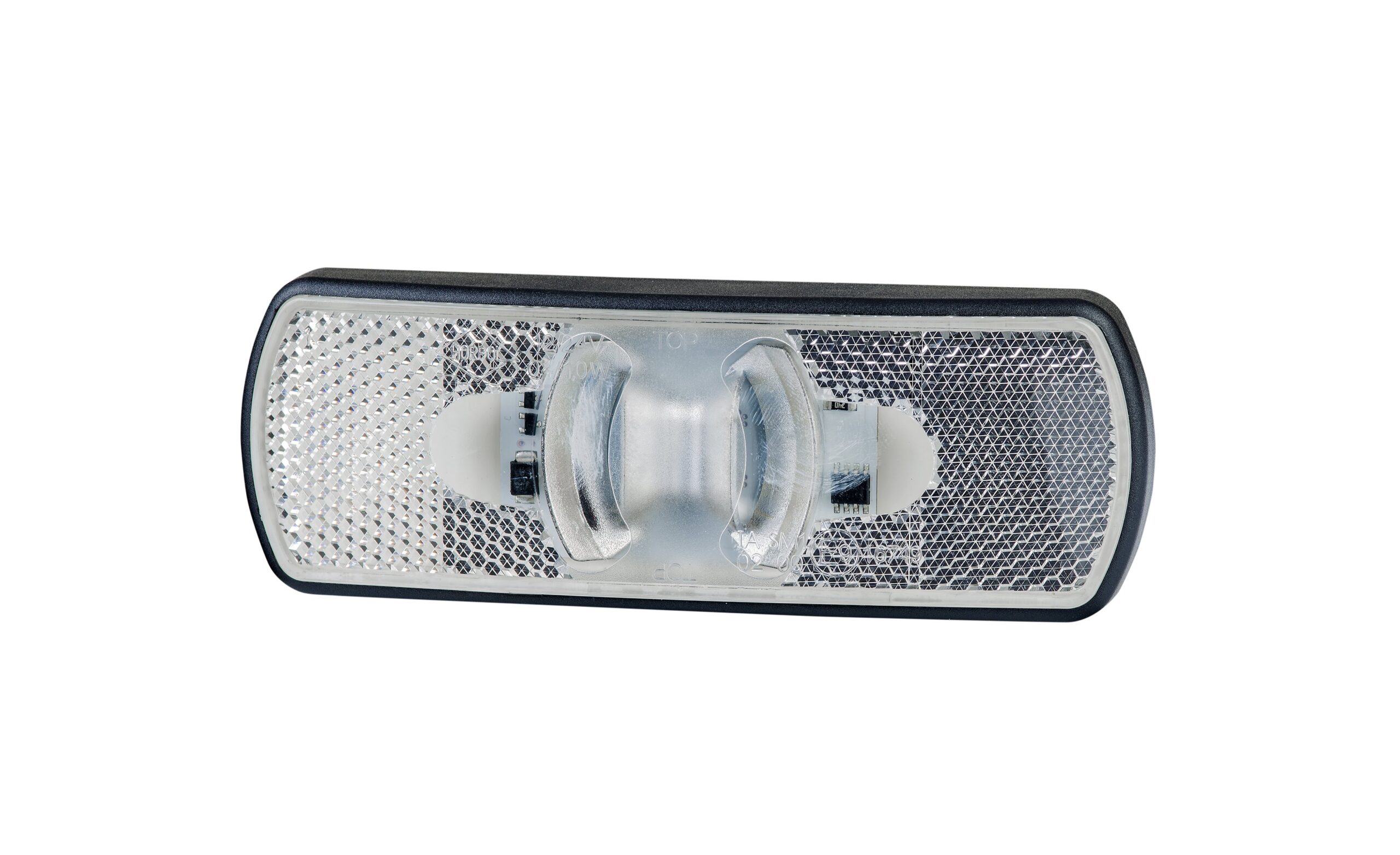

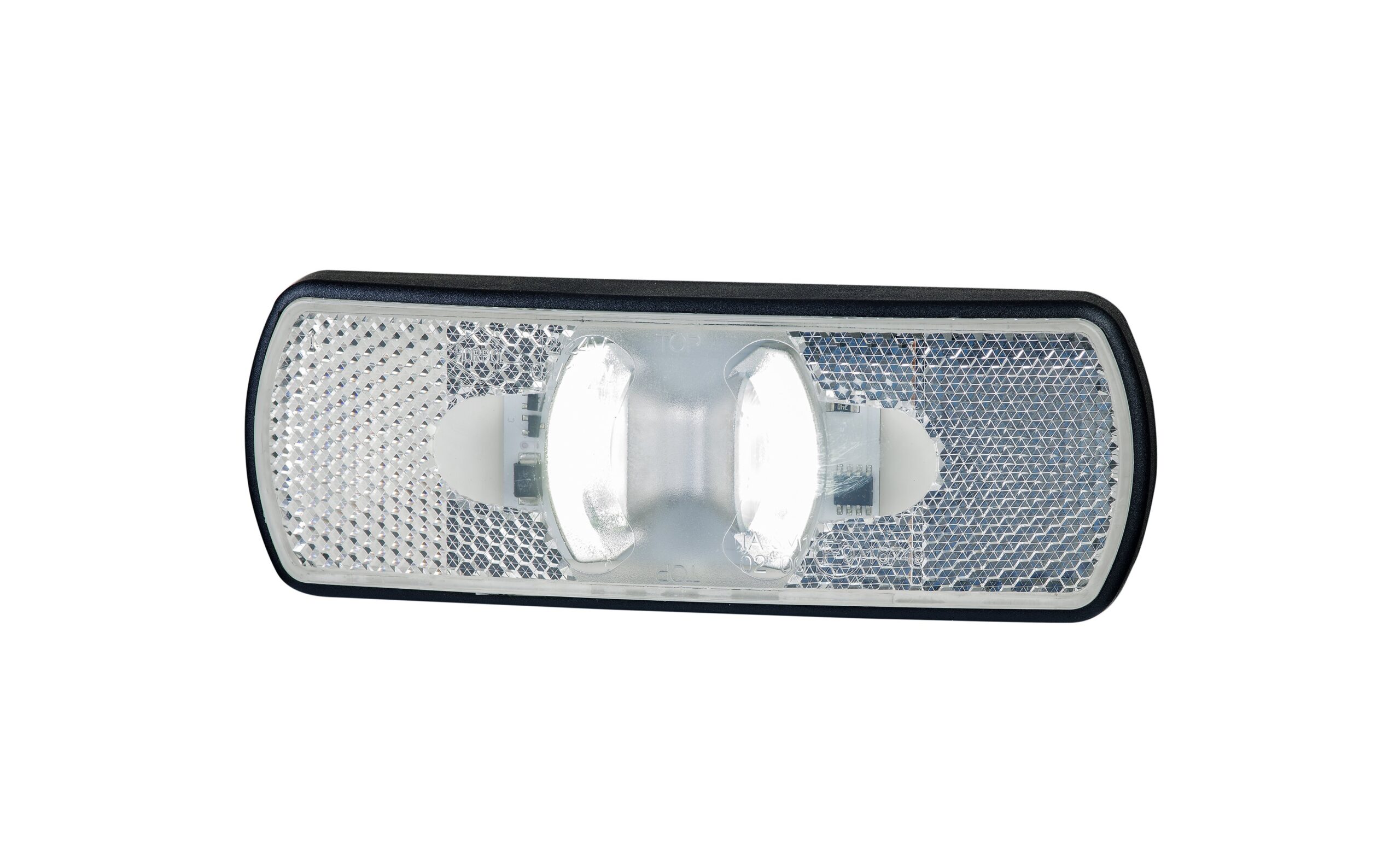

LD 2215
Marker light

Dual function LED lamp, type HOR 85, white

Description

Lamp LD 2215

Dimensions: 122mm x 44mm 16mm

Operating temperature:  from-30℃ to +50℃

-front position light

-reflective device

-modern design

-easy installation

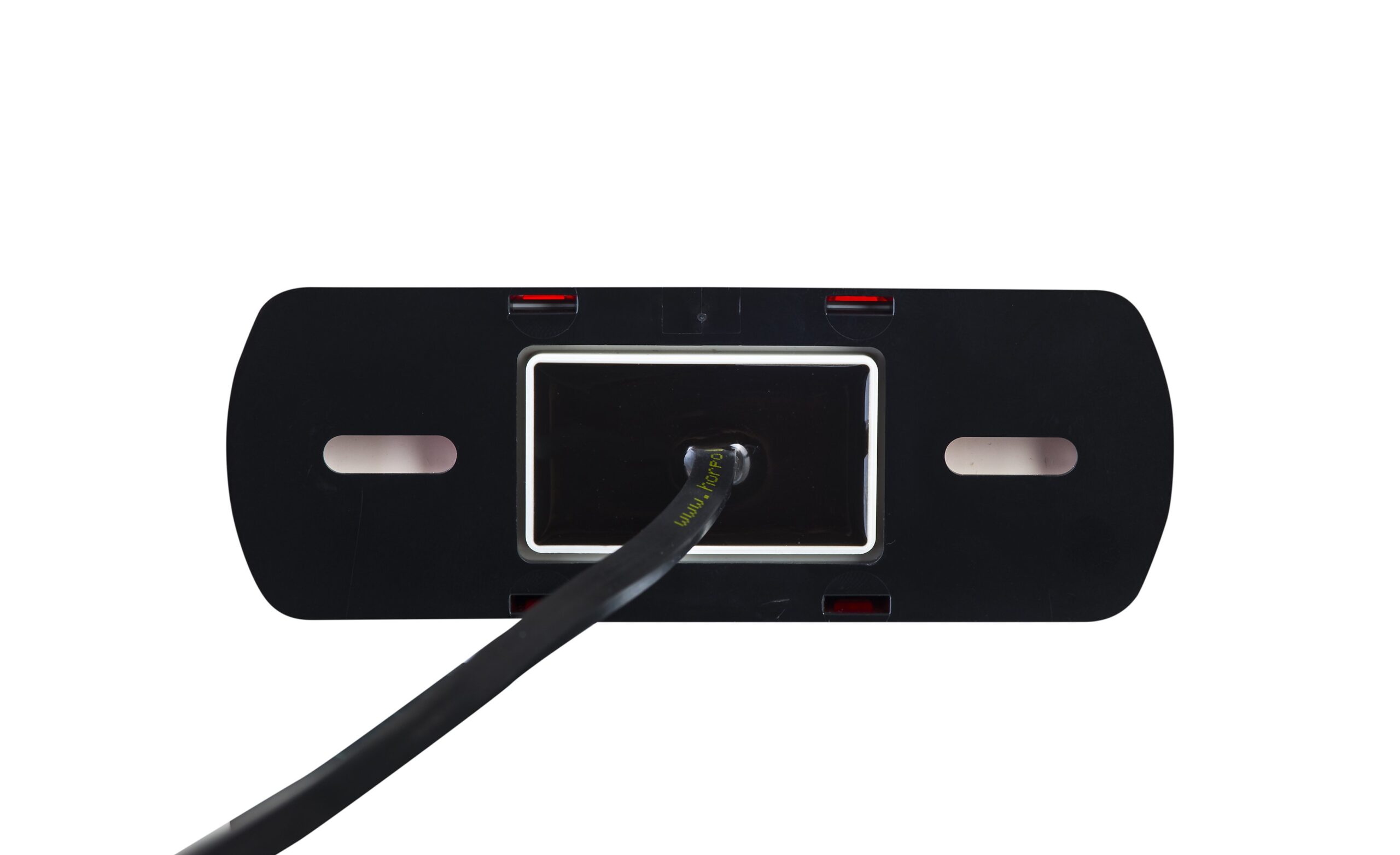

-the body allows to install the lamp without any visible mounting elements

Technical data

Light group
HOR 85
LED quantity
4
Light category
marker
Supply voltage
12/24 V
Power rating
0,6/1,2 W
Reflecting device
yes
Operating temperature range
from -30°C to +50°C
Side
universal
Front position light
yes
LED light
yes
Ingress protection rating
IP 68

Download

Marker light LD 2215 (homologation) 1 (marker-light-ld-2215-homologation-1.ZIP)
Download
Marker light LD 2215 (technical drawing) 1 (marker-light-ld-2215-technical-drawing-1.ZIP)
Download
Marker light LD 2215 (homologation) 2 (marker-light-ld-2215-homologation-2.ZIP)
Download
Marker light HOR 85 (approval IA) (marker-light-hor-85-approval-ia.ZIP)
Download
Marker light HOR 85 (approval R10) (marker-light-hor-85-approval-r10.ZIP)
Download
Page content (ld-2215.ZIP)
