LD 3109/L
Marker light

LD 3109/L is a triple marker lamp that comes with a flexible hanger and compact dimensions. It is specifically designed for mounting on the left side of the vehicles, ranging from small trailers to trucks and trailers.

The lamp emits a bright neon light and fulfills the most important functions.

Lamp functions:
– front marker light (white light color)
– side position light (orange light color)
– rear marker light (red light color)

The lamp operates on a universal voltage of 12/24 V and is characterized by low power consumption. Only branded diodes are used for production, which definitely distinguish the quality of lighting and attractively emphasize the outline of a moving vehicle. Product is fully hermetic (ingress protection rating IP 68), and the operating temperature range is from -30 degrees C to +50 degrees C.

Ensure your safety on the road! Identify your vehicle with LED new arrivals by Horpol!

Technical data

Light group
HOR 77
LED quantity
4
Light category
marker
Supply voltage
12/24 V
Front clearance light
yes
Power rating
0,7/1,4 W
Rear clearance light
yes
Operating temperature range
from -30°C to +50°C
Cable
2×0,75 mm2; cable length 0,6 m
Side marker light
yes
Side
left
LED light
yes
Ingress protection rating
IP 68

Download

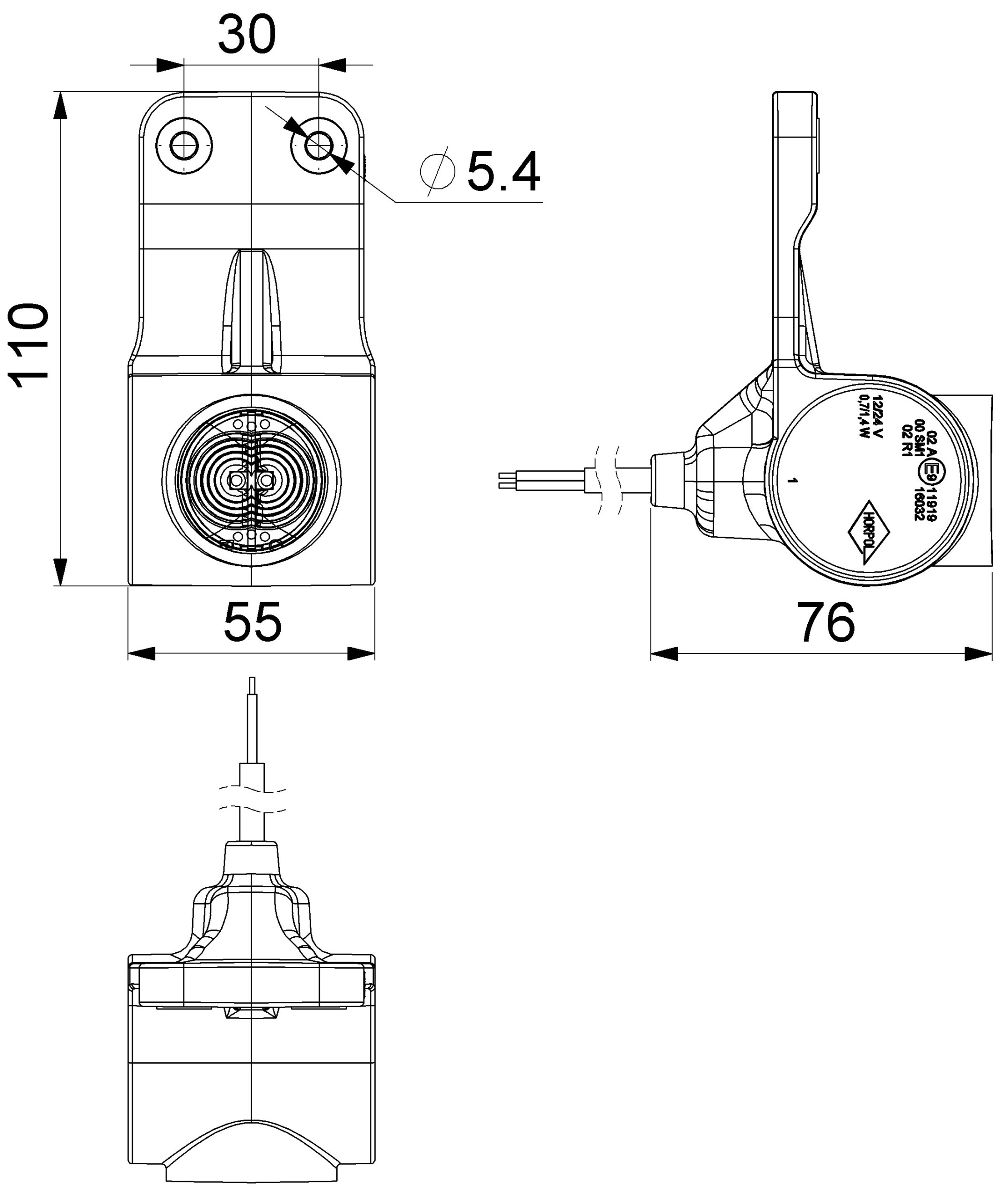

Marker light HOR 77 (technical drawing) (marker-light-hor-77-technical-drawing.ZIP)
Download
Marker light HOR 77 (approval SM1) (marker-light-hor-77-approval-sm1.ZIP)
Download
Marker light HOR 77 (approval R1) (marker-light-hor-77-approval-r1.ZIP)
Download
Marker light HOR 77 (approval A) (marker-light-hor-77-approval-a.ZIP)
Download
Marker light HOR 77 (drawings) (marker-light-hor-77-drawings.ZIP)
Download
Page content (ld-3109-l.ZIP)
