LD 377/GRAPHITE
Marker light

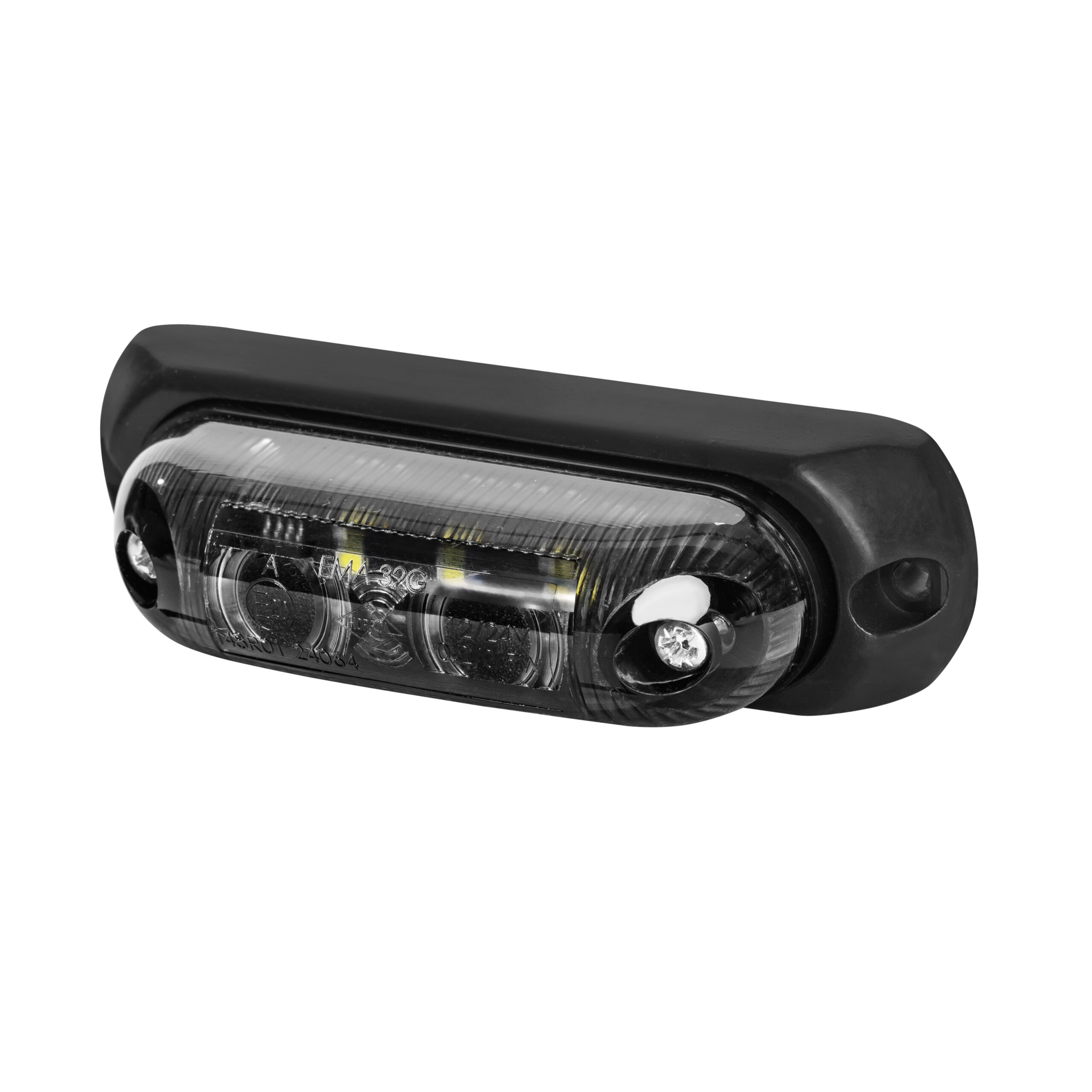

LD 377/GRAPHITE is an oval marker light with a rubber pad, compact in size and with a wide range of applications. The symmetrical design allows installation on both the right and left side of a vehicle.

The light from the GRAPHITE collection features a sleek, dark shade, combining modern design with functionality for excellent visibility.

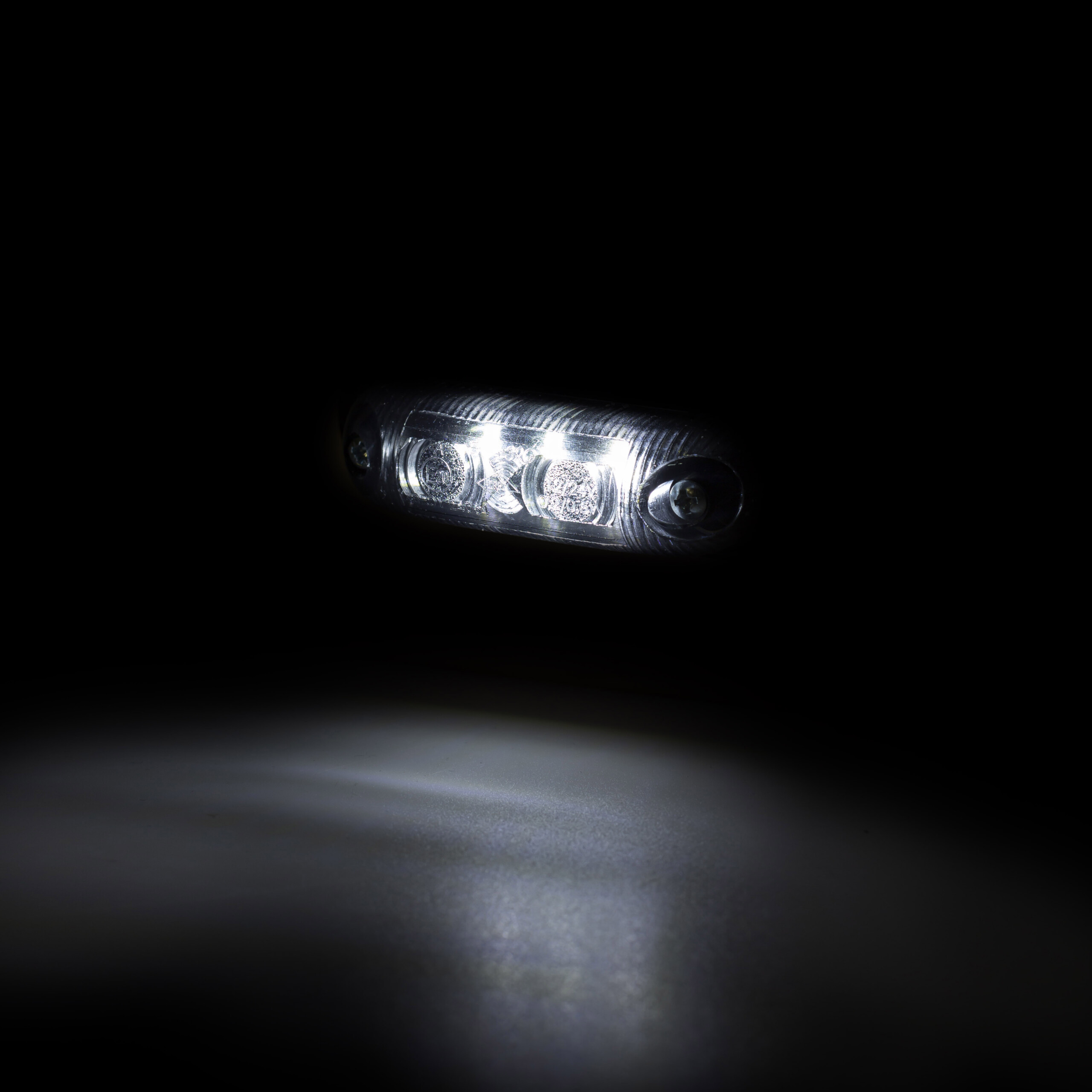

The LD 377/GRAPHITE front position light features universal 12/24 V voltage, low power consumption (12 V-0.2 W, 24 V-0.5 W), high IP 68 rating and an operating temperature range from -30°C to +50°C. The lamp emits clear white light, accentuating its shape. The sophisticated design and high-quality materials used in its manufacture make it a premium product.

Make sure you stay safe on the road! Discover our collection of GRAPHITE lights, a stylish solution for the automotive industry.

Technical data

Light group
EMA 32G
LED quantity
3
Light category
marker
Supply voltage
12/24 V
Light colour
white
Power rating
0,2/0,5 W
Operating temperature range
from -30°C to +50°C
Cable
2×0,75 mm2; cable length 0,5 m
Side
universal
Front position light
yes
LED light
yes
Ingress protection rating
IP 68

Download

Marker light EMA 32G (documents A) (lampa-obrysowa-ema-32g_a-dokumentacja-en.ZIP)
Download
Marker light EMA 32G (approval A) (lampa-obrysowa-ema-32g_a-homologacja-en.ZIP)
Download
Marker light EMA 32G 33G 34G (documents R10) (lampa-obrysowa-ema-32g_33g_34g_r10-dokumentacja-en.ZIP)
Download
Marker light EMA 32G 33G 34G (approval R10) (lampa-obrysowa-ema-32g_33g_34g_r10-homologacja-en.ZIP)
Download
Page content (ld-377-graphite.ZIP)
