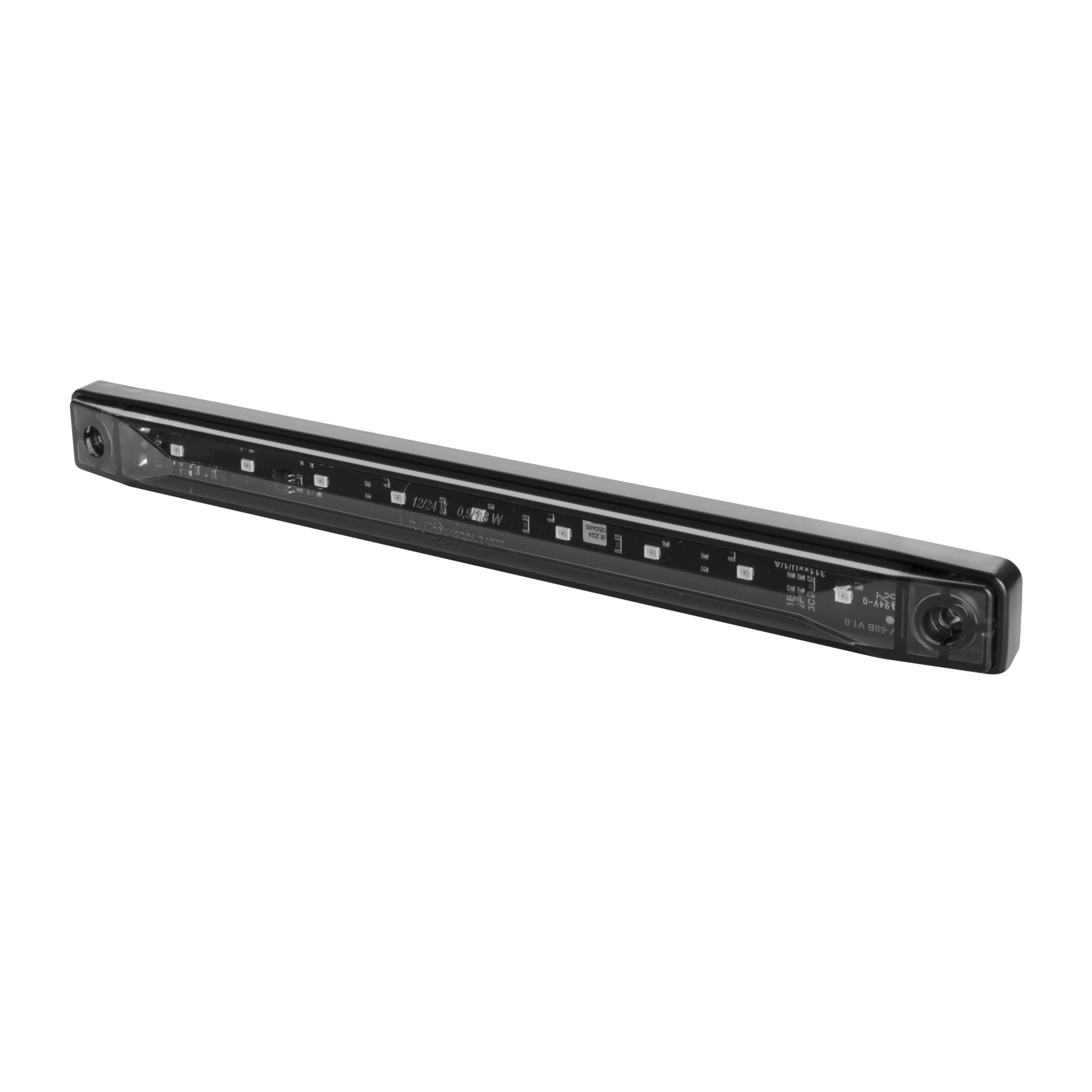

LD 999/GRAPHITE
Marker light

LD 999/GRAPHITE is a marker light for various types of vehicles, such as trucks and vans, minibuses, semi-trailers, trailers and car transporters, agricultural machinery and specialised vehicles. The symmetrical design allows installation on both the right and left side of a vehicle.

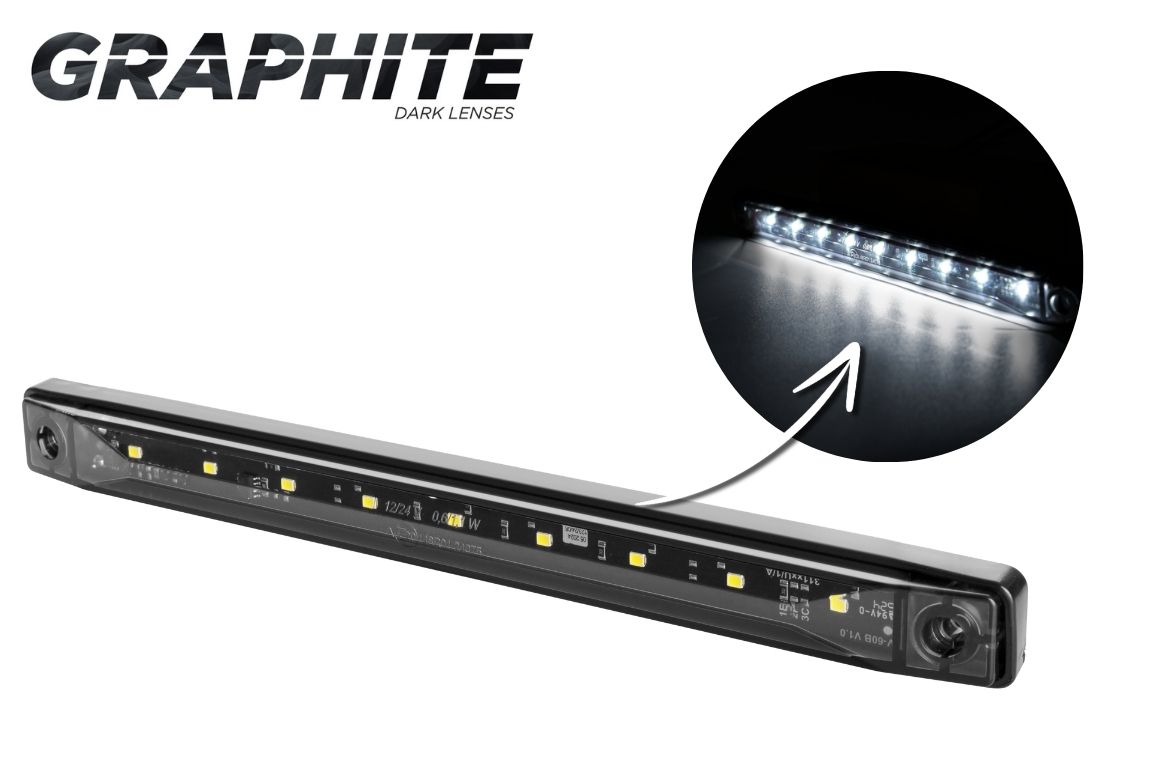

The light from the GRAPHITE collection features a sleek, dark shade, combining modern design with functionality for excellent visibility.

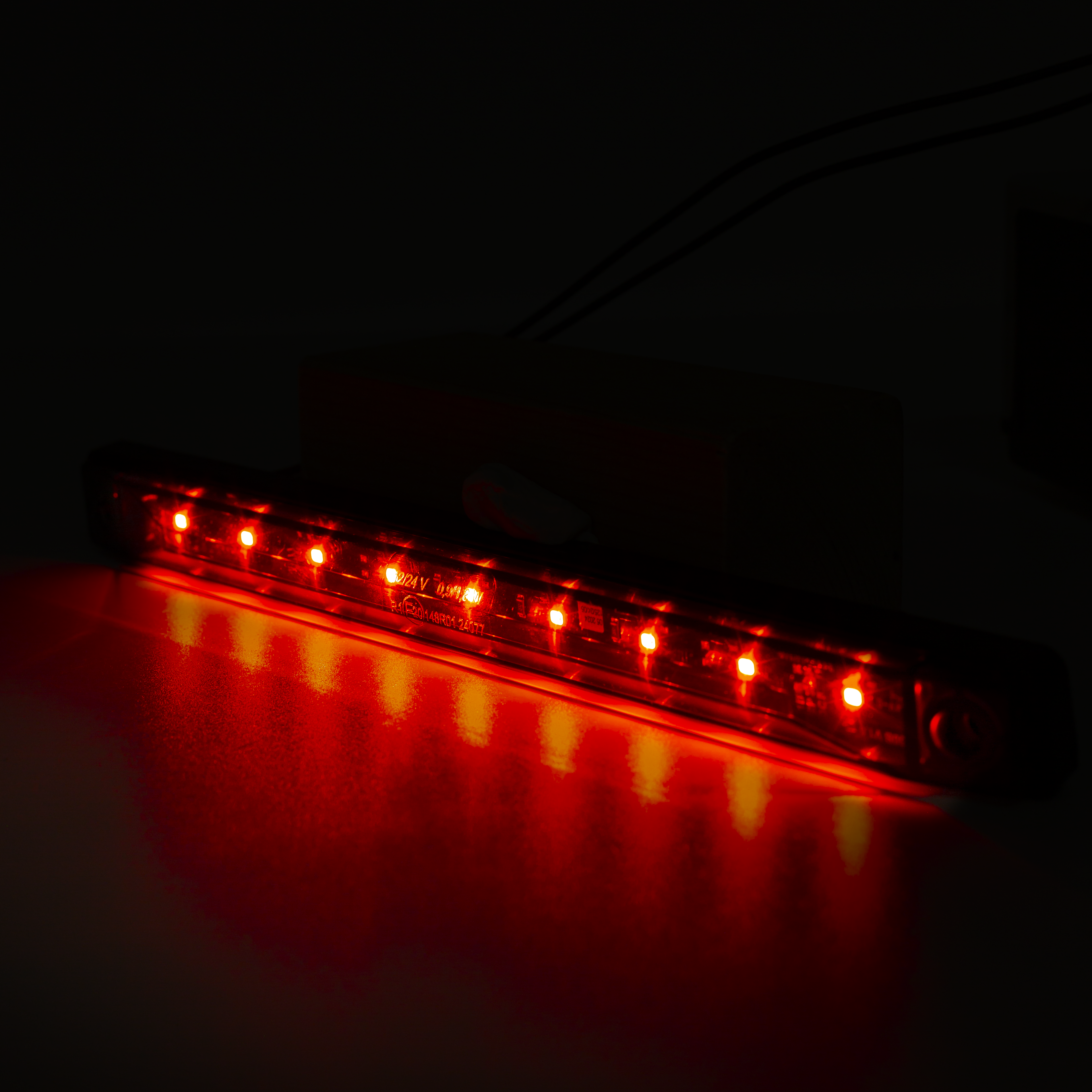

The LD 999/GRAPHITE rear position light features universal 12/24 V voltage, low power consumption (12 V-0.9 W, 24 V-1.8 W), high IP 68 rating and an operating temperature range from -30°C to +50°C. The lamp emits clear red light. The light has been manufactured only with branded LEDs, which ensure a unique quality of illumination and add a visual appeal to the contour of a vehicle in motion.

Make sure you stay safe on the road! Discover our collection of GRAPHITE lights, a stylish solution for the automotive industry.

Technical data

Light group
HOR 71G
LED quantity
9
Light category
marker
Rear position light
yes
Supply voltage
12/24 V
Light colour
red
Power rating
0,9/1,8 W
Operating temperature range
from -30°C to +50°C
Cable
2×0,75 mm2; cable length 0,3 m
Side
universal
LED light
yes
Ingress protection rating
IP 68

Download

Marker light HOR 71G (documents R1) (lampa-obrysowa-hor-71g_r1-dokumentacja-en.ZIP)
Download
Marker light HOR 71G (approval R148) (lampa-obrysowa-hor-71g_r1-homologacja-en.ZIP)
Download
Marker light HOR 71G (approval R10) (lampa-obrysowa-hor-71g_r10-homologacja-en.ZIP)
Download
Marker light HOR 71G (documents R10) (lampa-obrysowa-hor-71g_r10-dokumentacja-en.ZIP)
Download
Page content (ld-999-graphite.ZIP)
