LDCC 2794

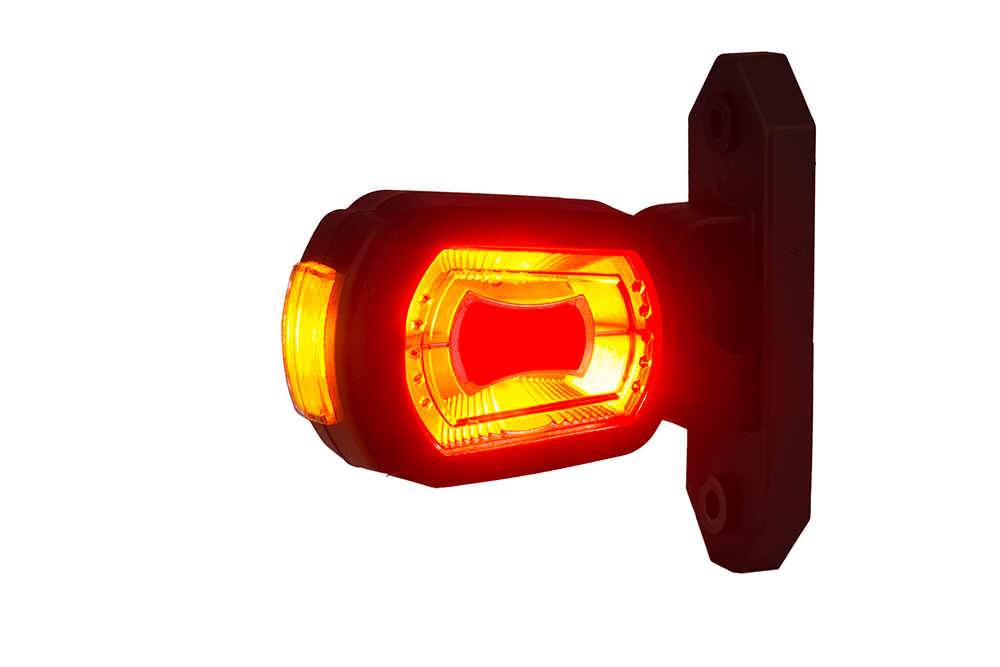

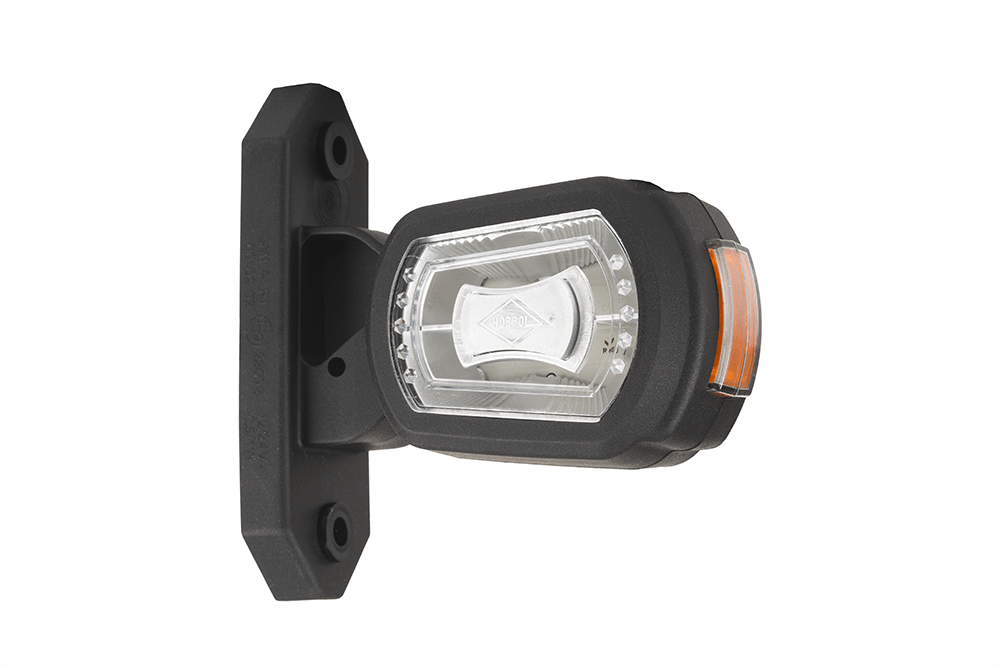

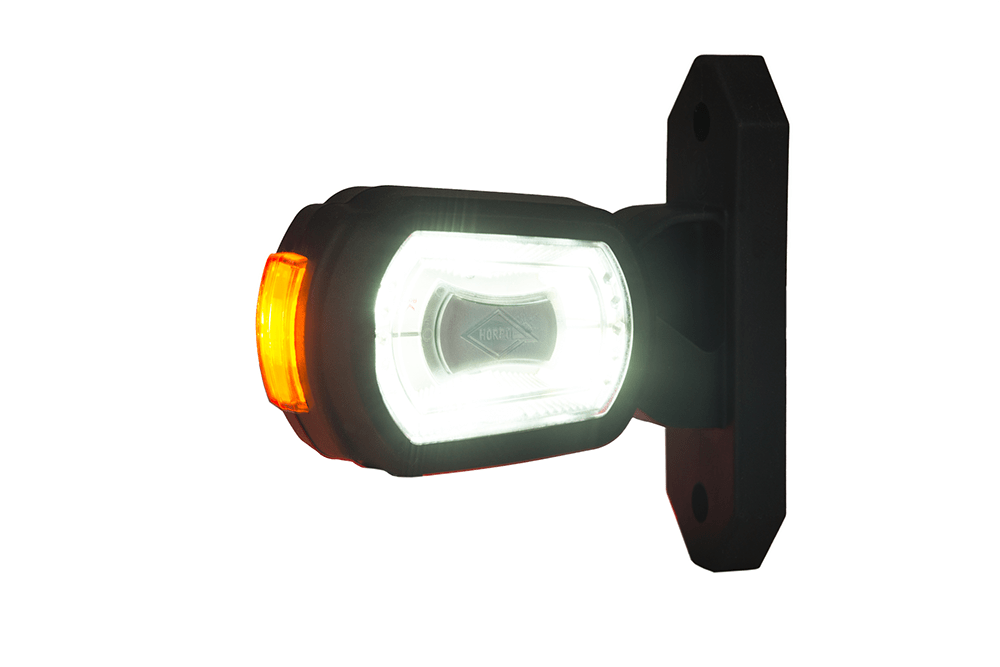

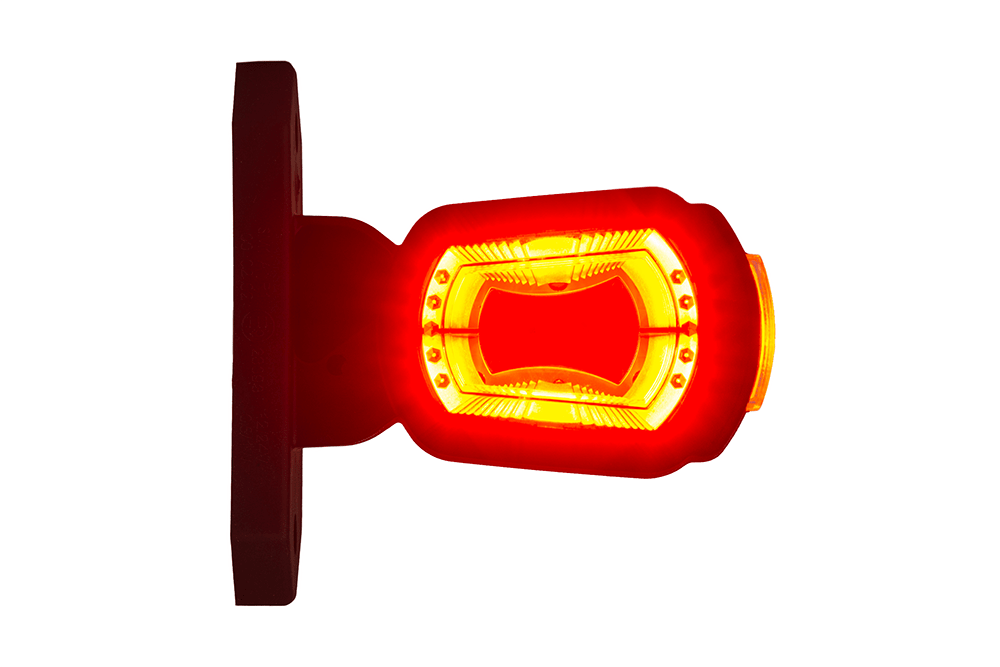

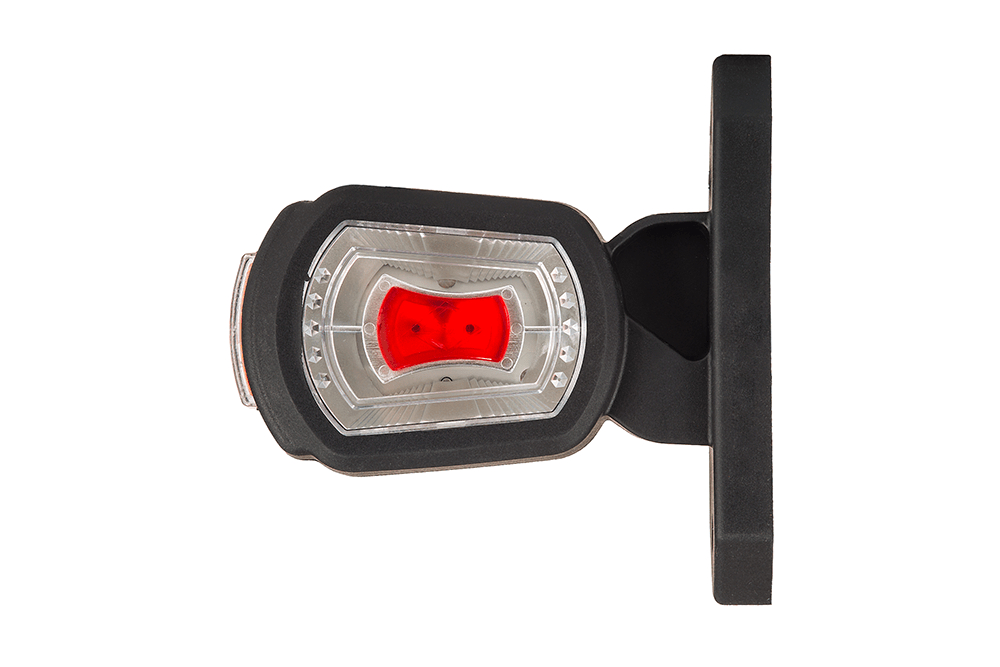

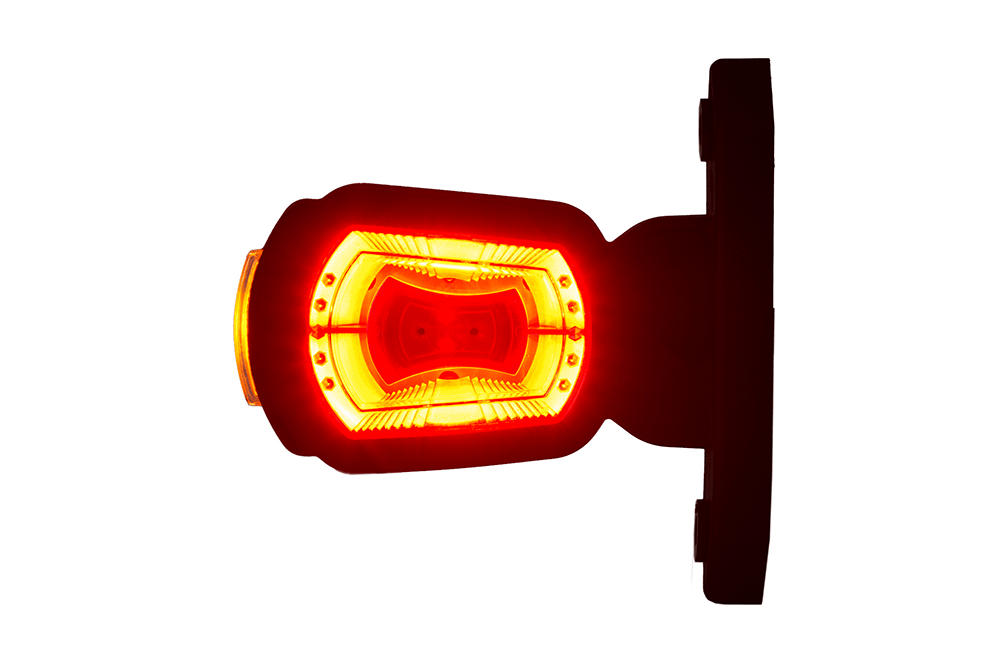

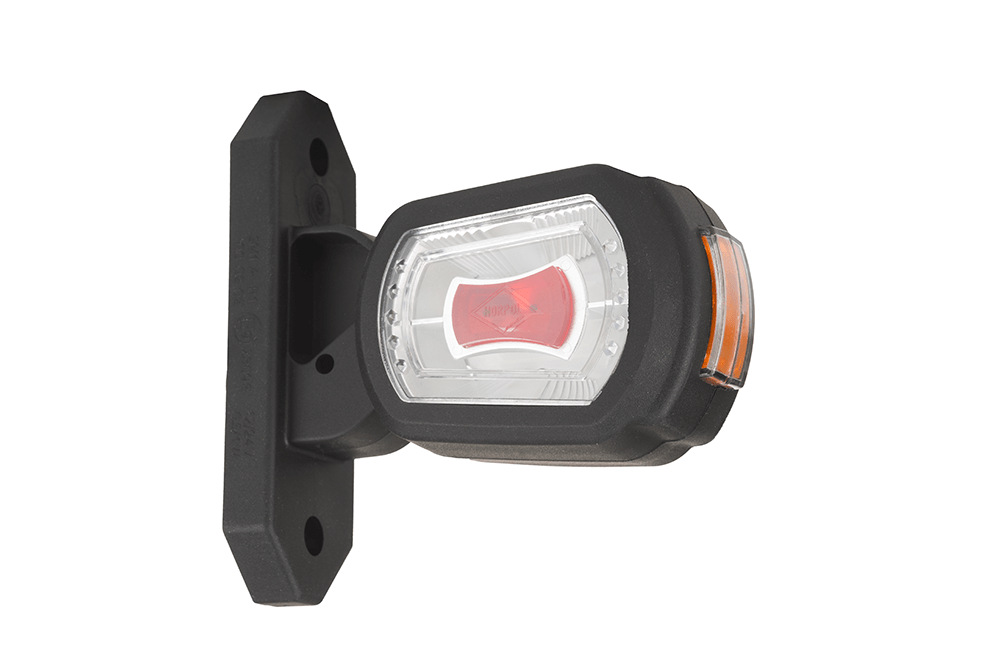

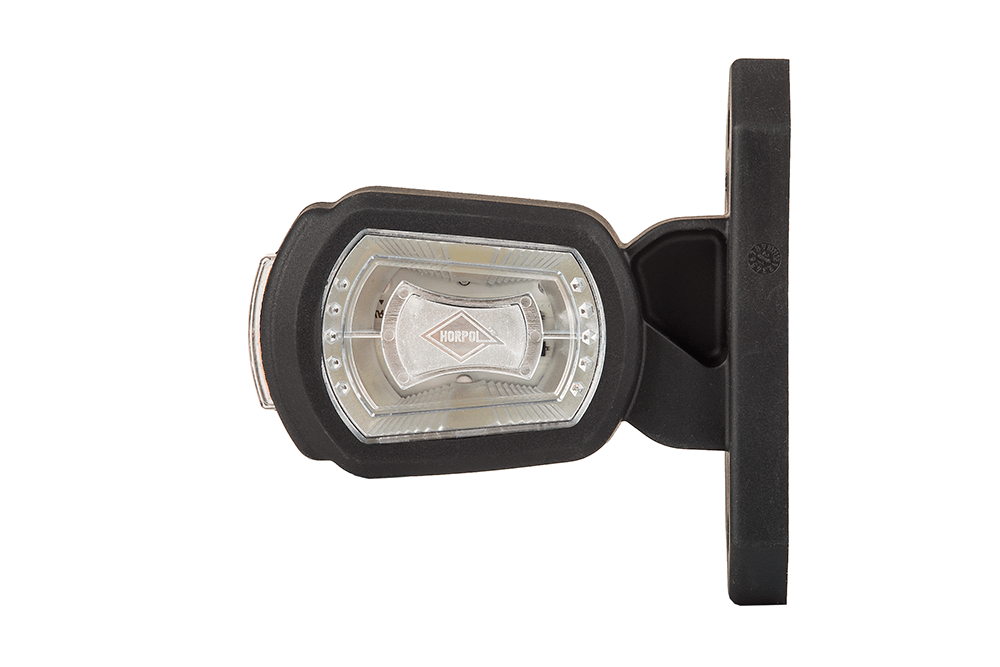

        Marker light

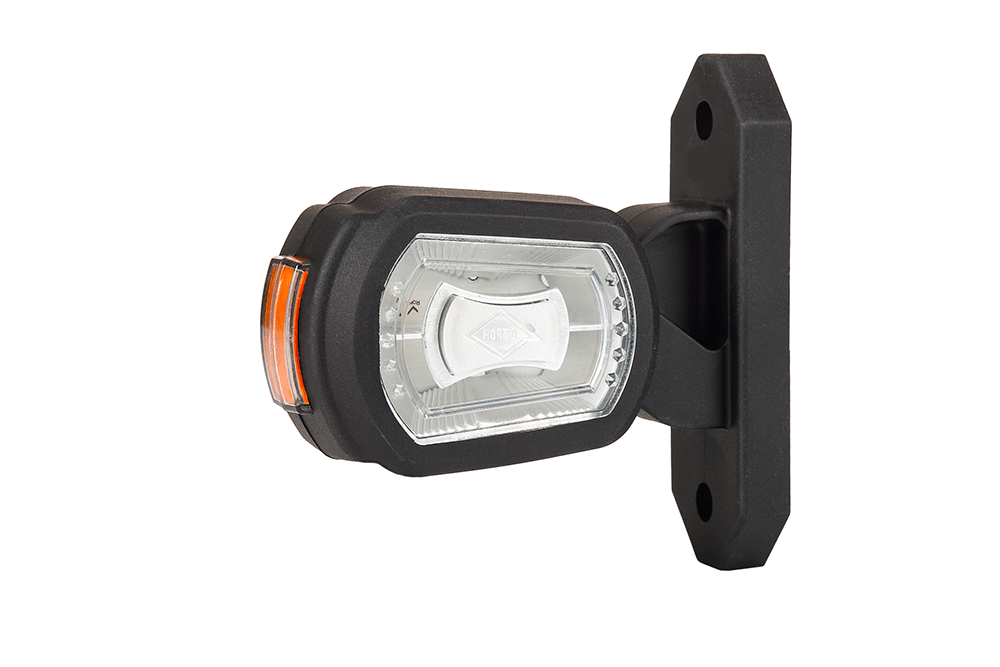

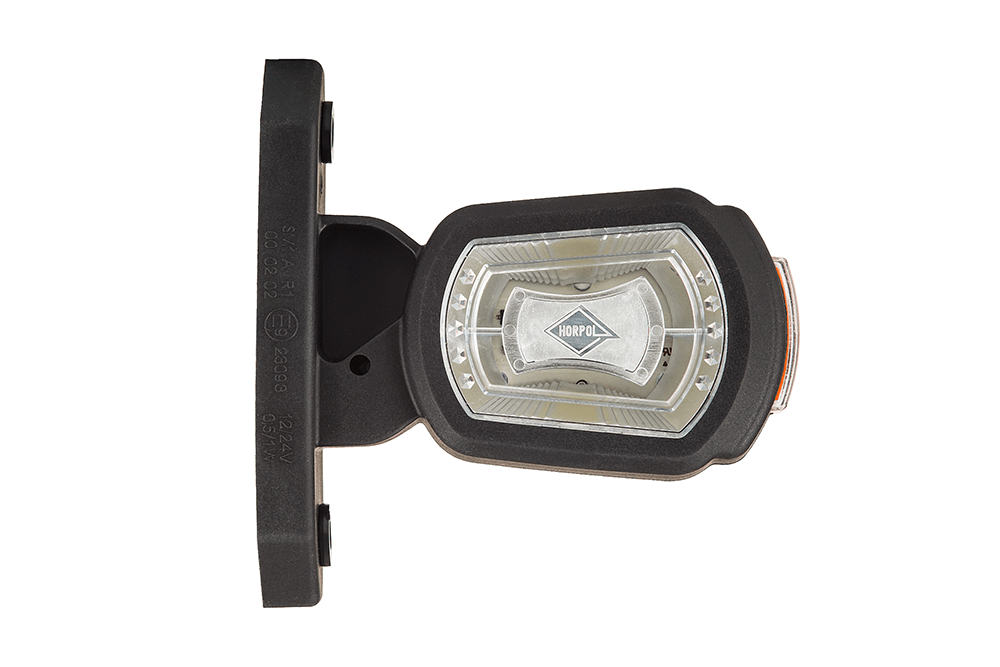

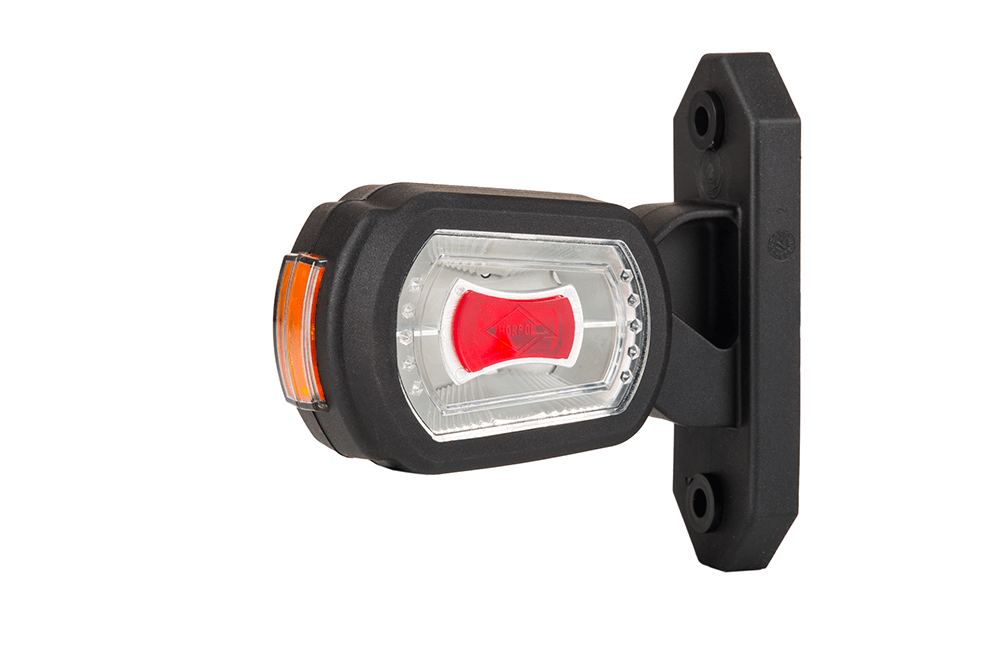

    Three-functional marker lamp with short straight arm HOR 101, with reversing sensor module, diodowa 12/24 V, 12/24 V, left (round wire 3×0,5 mm2, length 1,5 m).

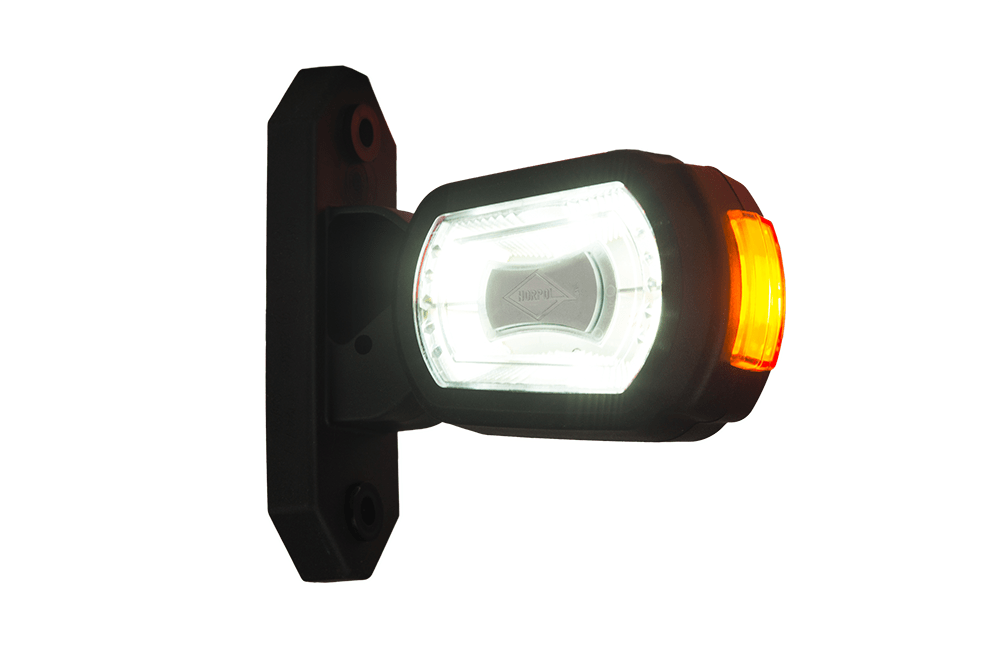

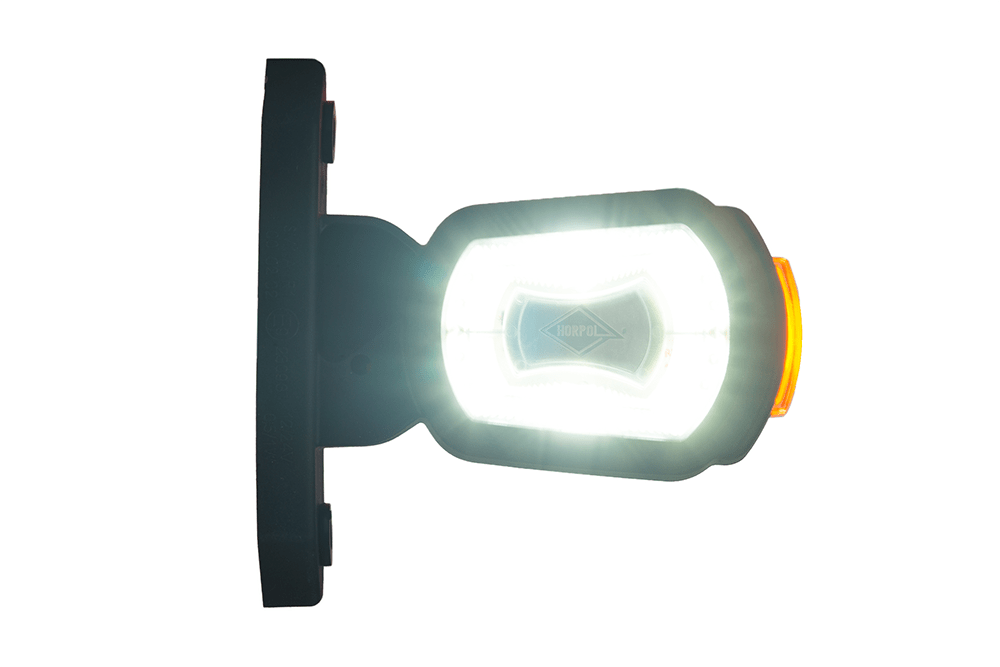

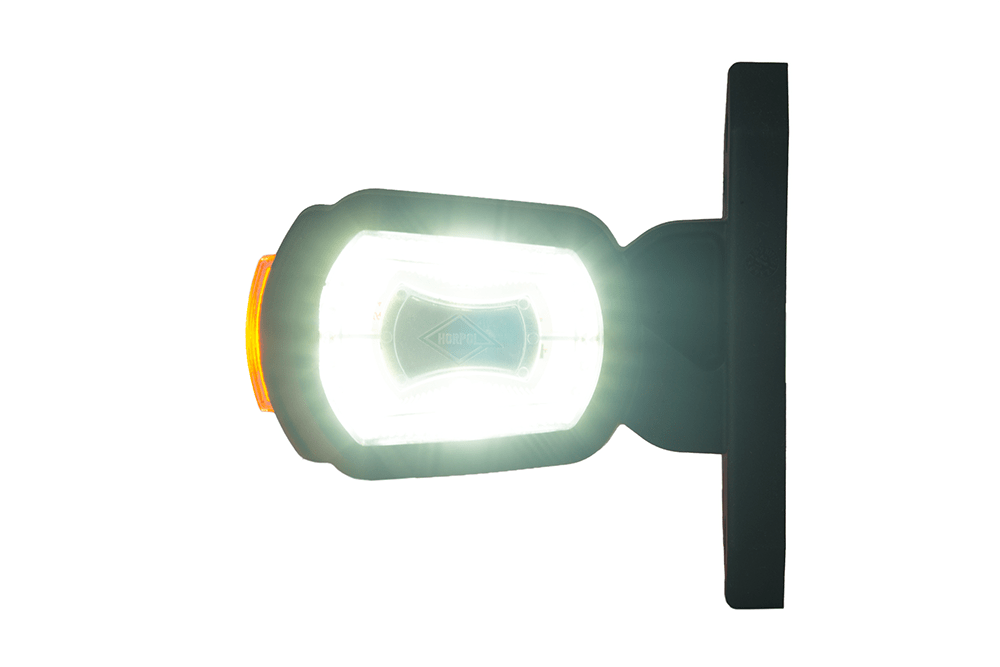

– front position light (white) -> 1 white LED 6500 K (cool white)

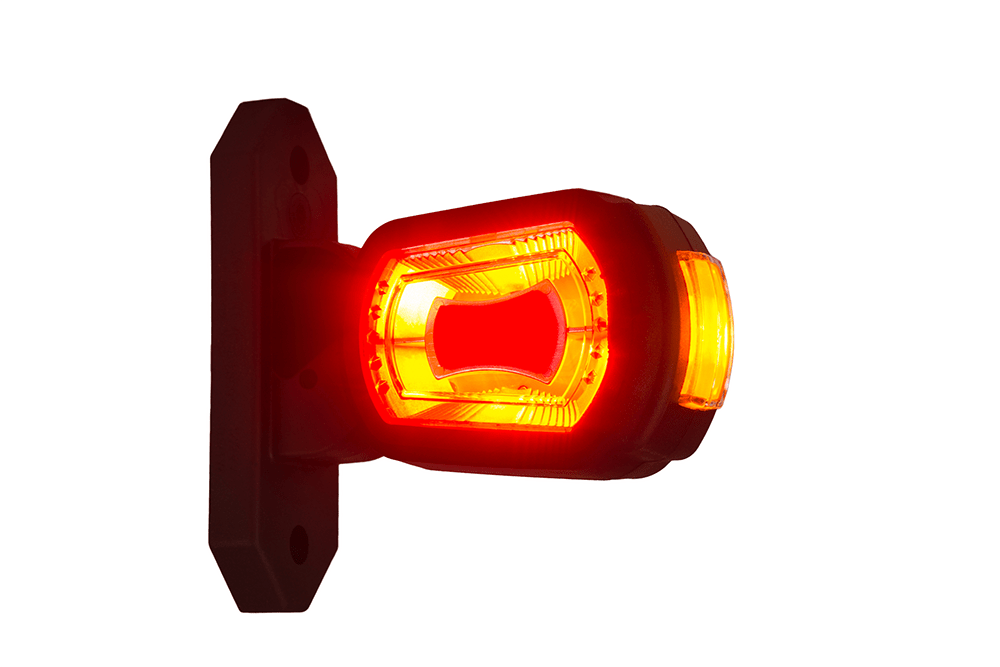

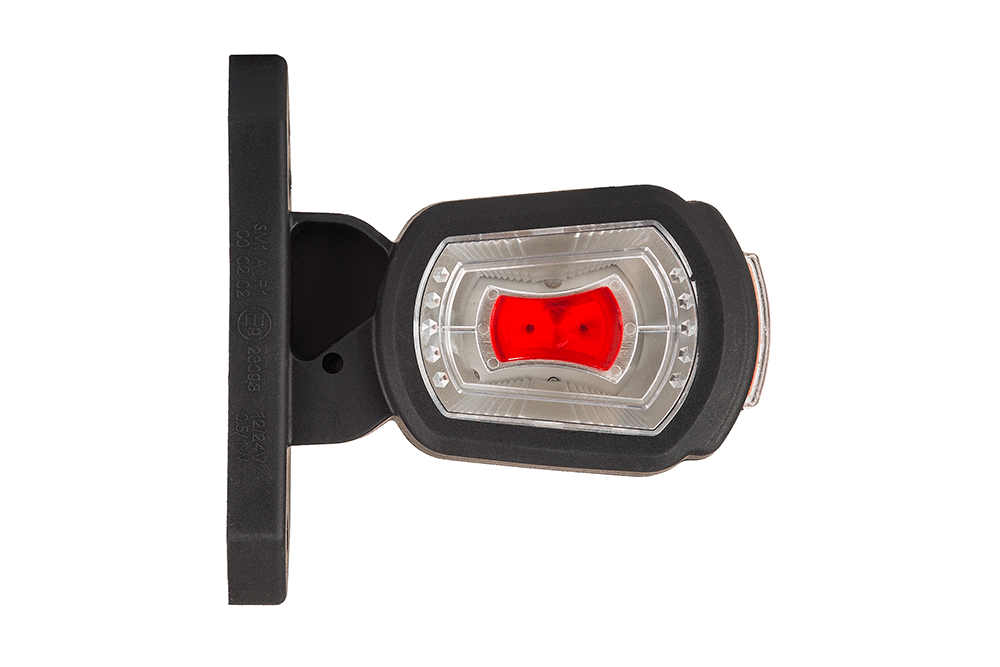

– rear position light (red) -> 4 red LEDs

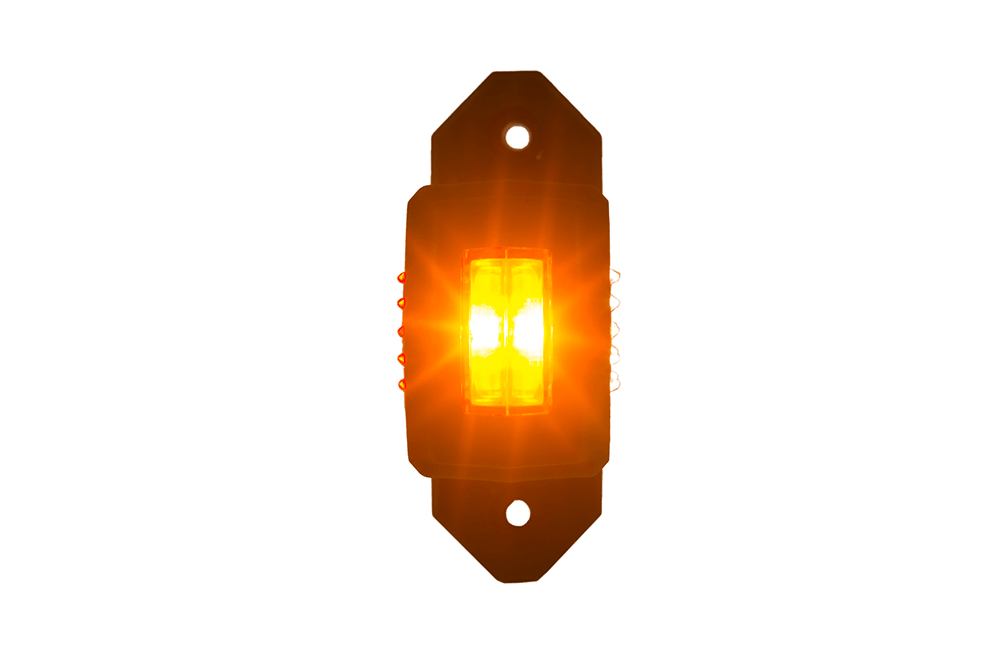

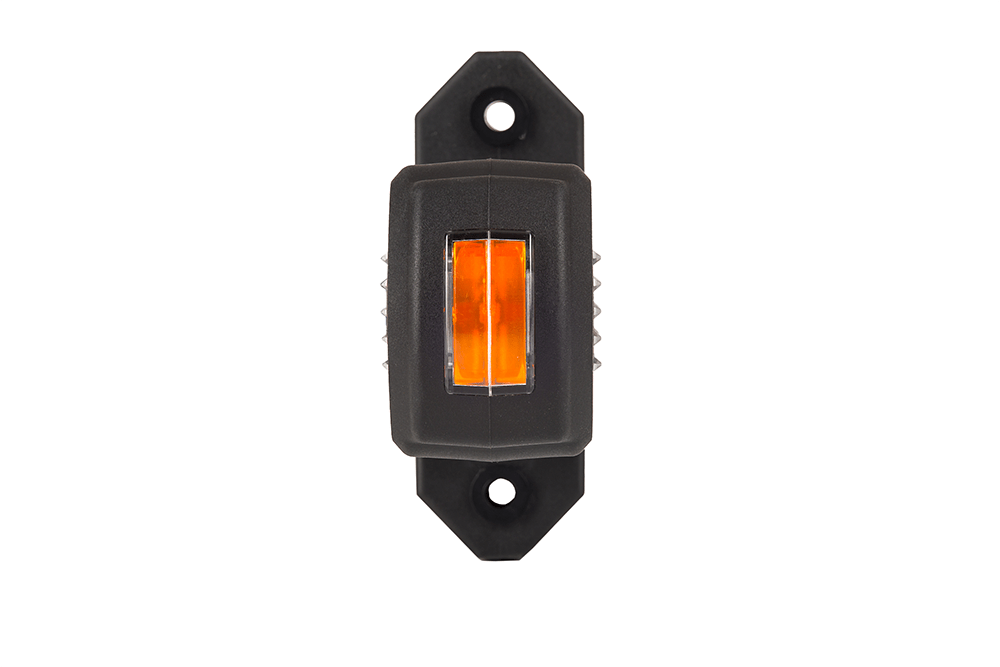

– side marker light (amber) -> 2 white LEDs 2700 K (warm white)
Technical data
Light group


                        HOR 101


            LED quantity


                        7


            Light category


                        marker


            Supply voltage


                        12/24 V


            Front clearance light


                        yes


            Light colour


                        white/amber/red


            Power rating


                        1/2,4 W


            Rear clearance light


                        yes


            Operating temperature range


                        from -30°C to +50°C

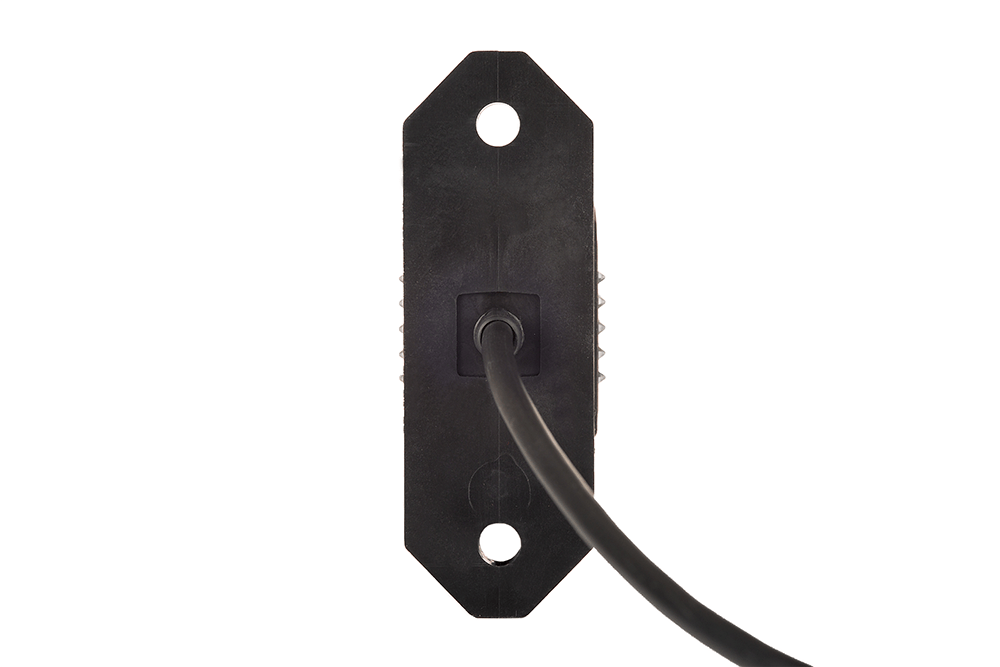

            Cable


                        3×0,5 mm2; cable length 1,5 m


            Side marker light


                        yes


            Side


                        left


            Arm


                        yes


            LED light


                        yes


            Ingress protection rating


                        IP 68


            Reversing sensor module


                        yes
