LD 2775

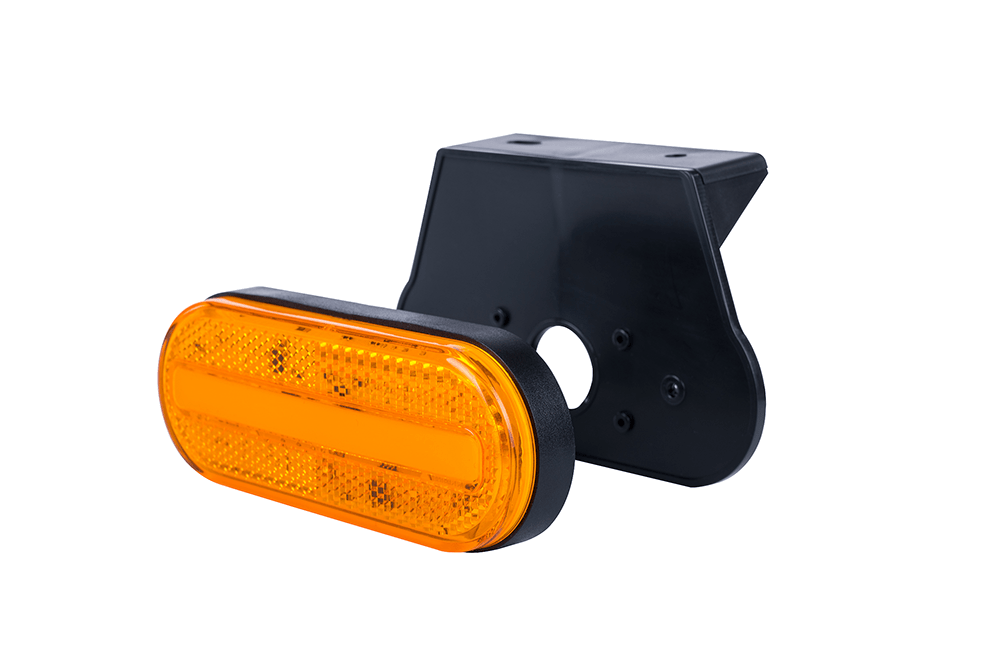

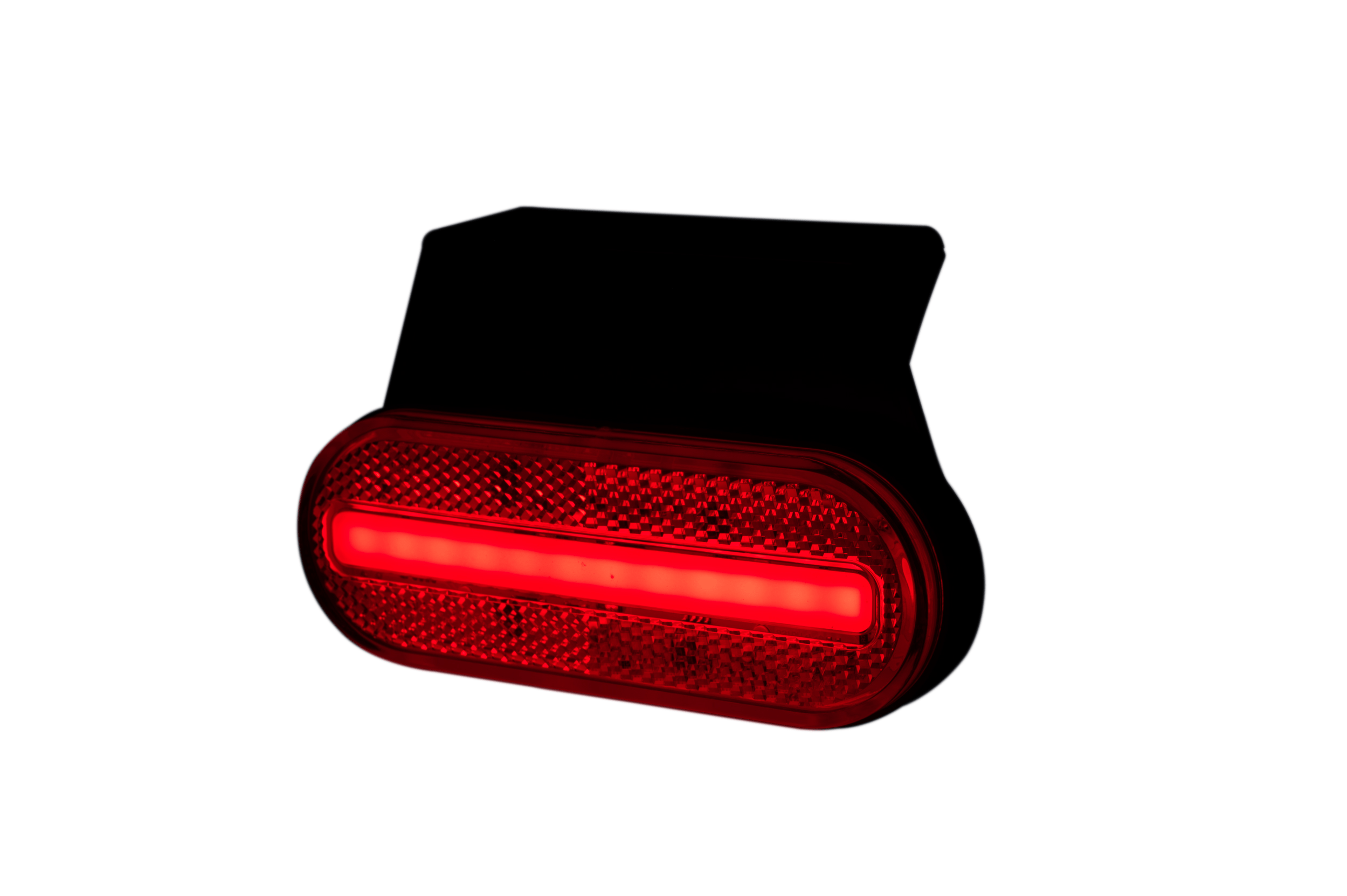

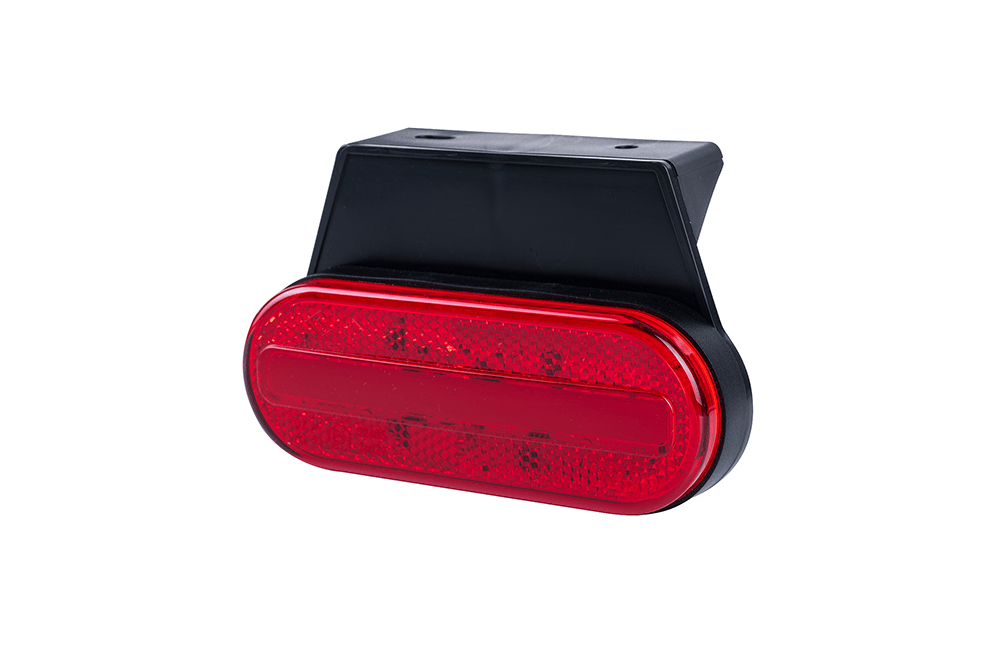

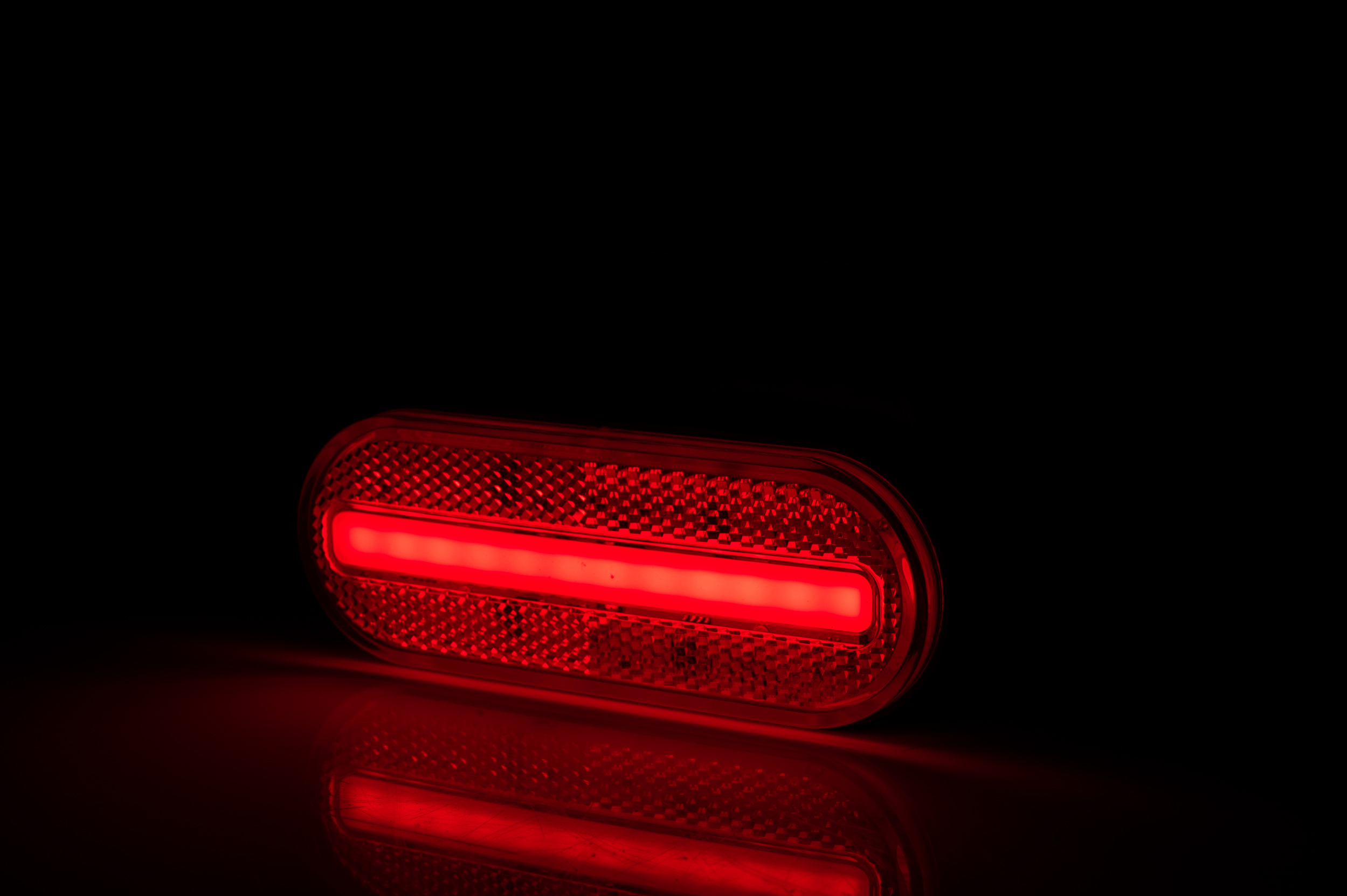

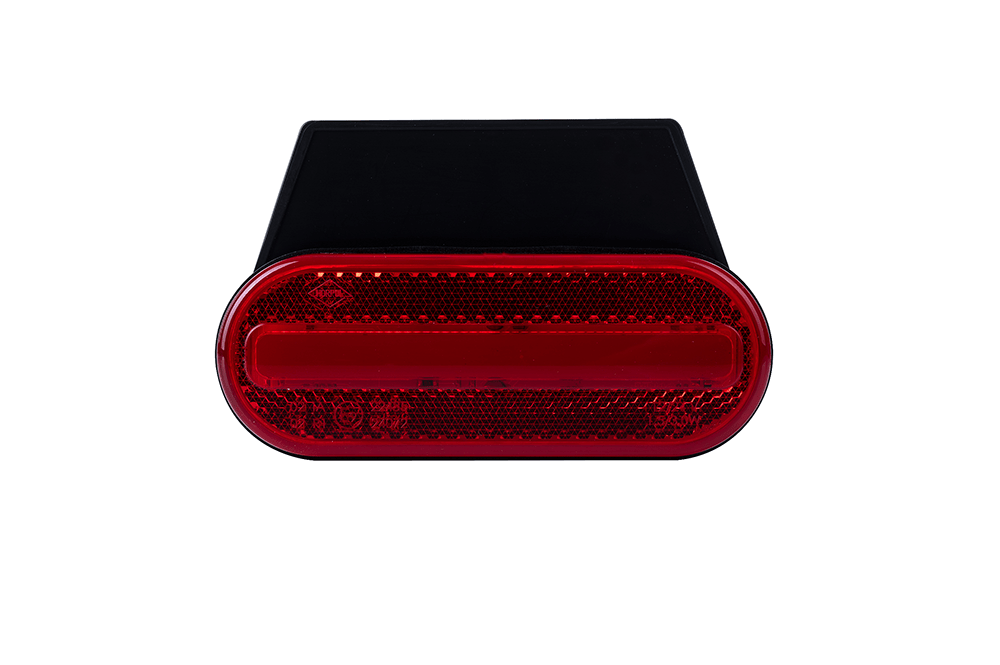

Marker light with a holder and reflective device

2-function LED light, type HOR 123:

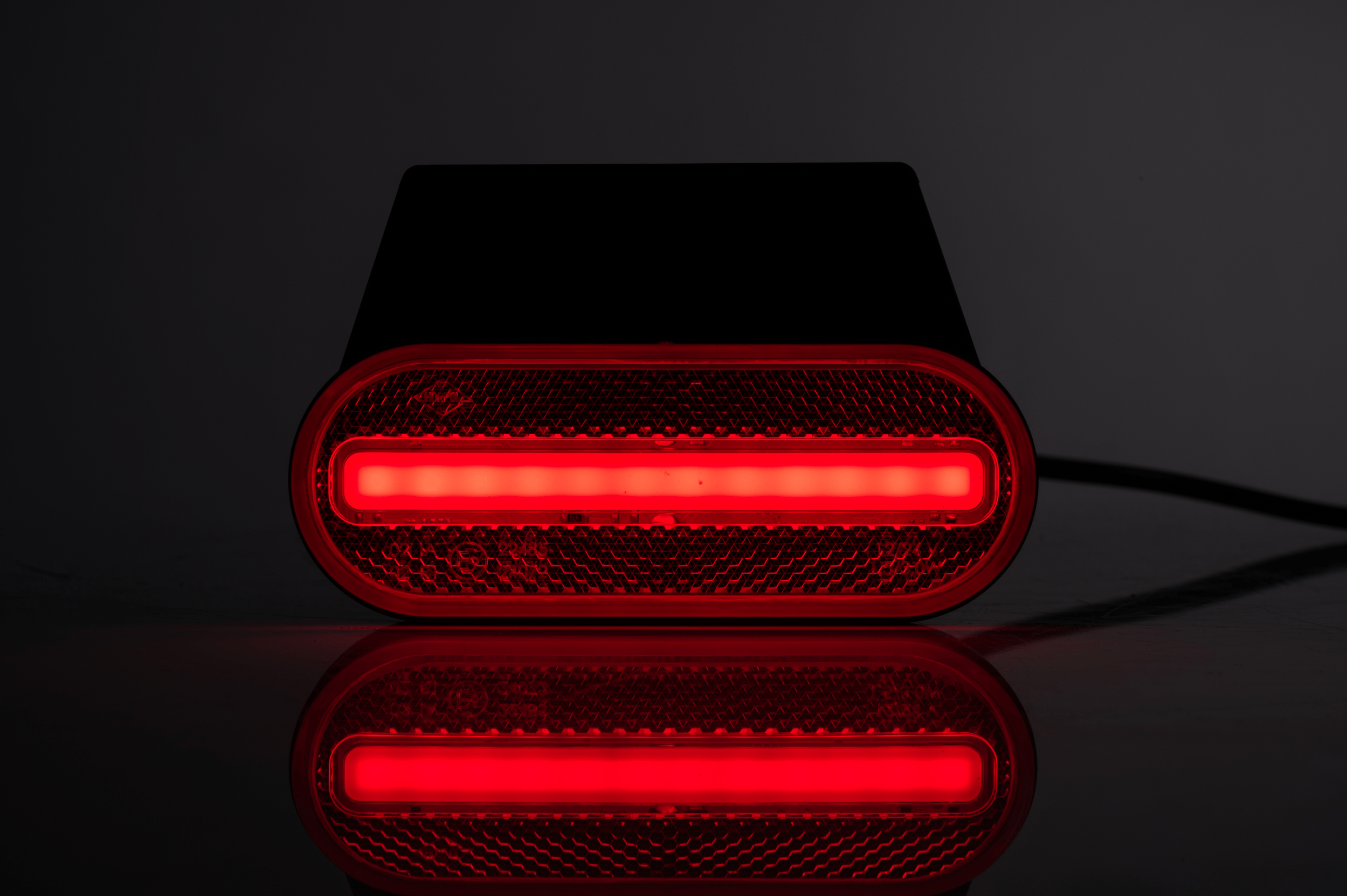

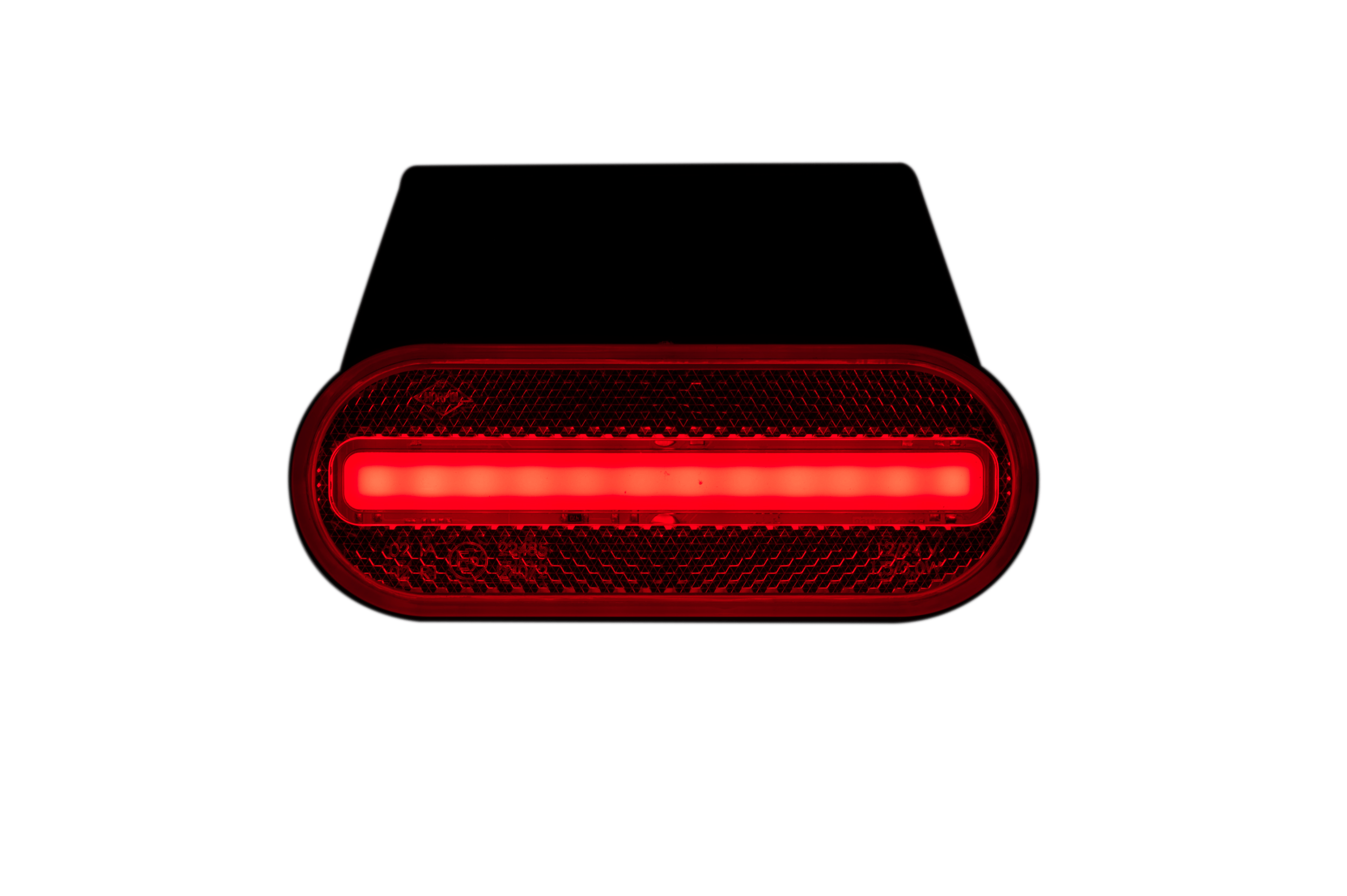

– rear marker light light, NEON version

– reflective device

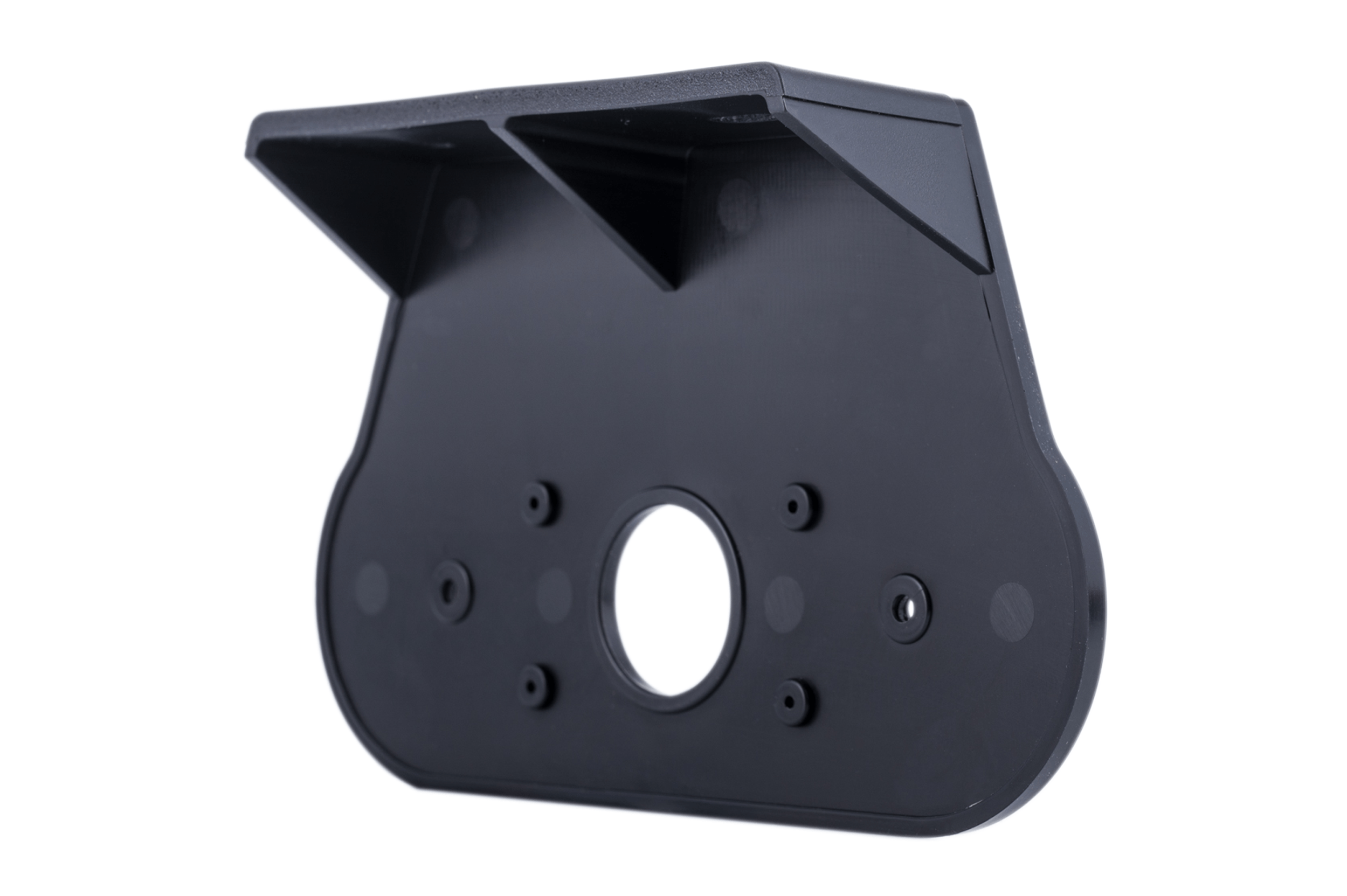

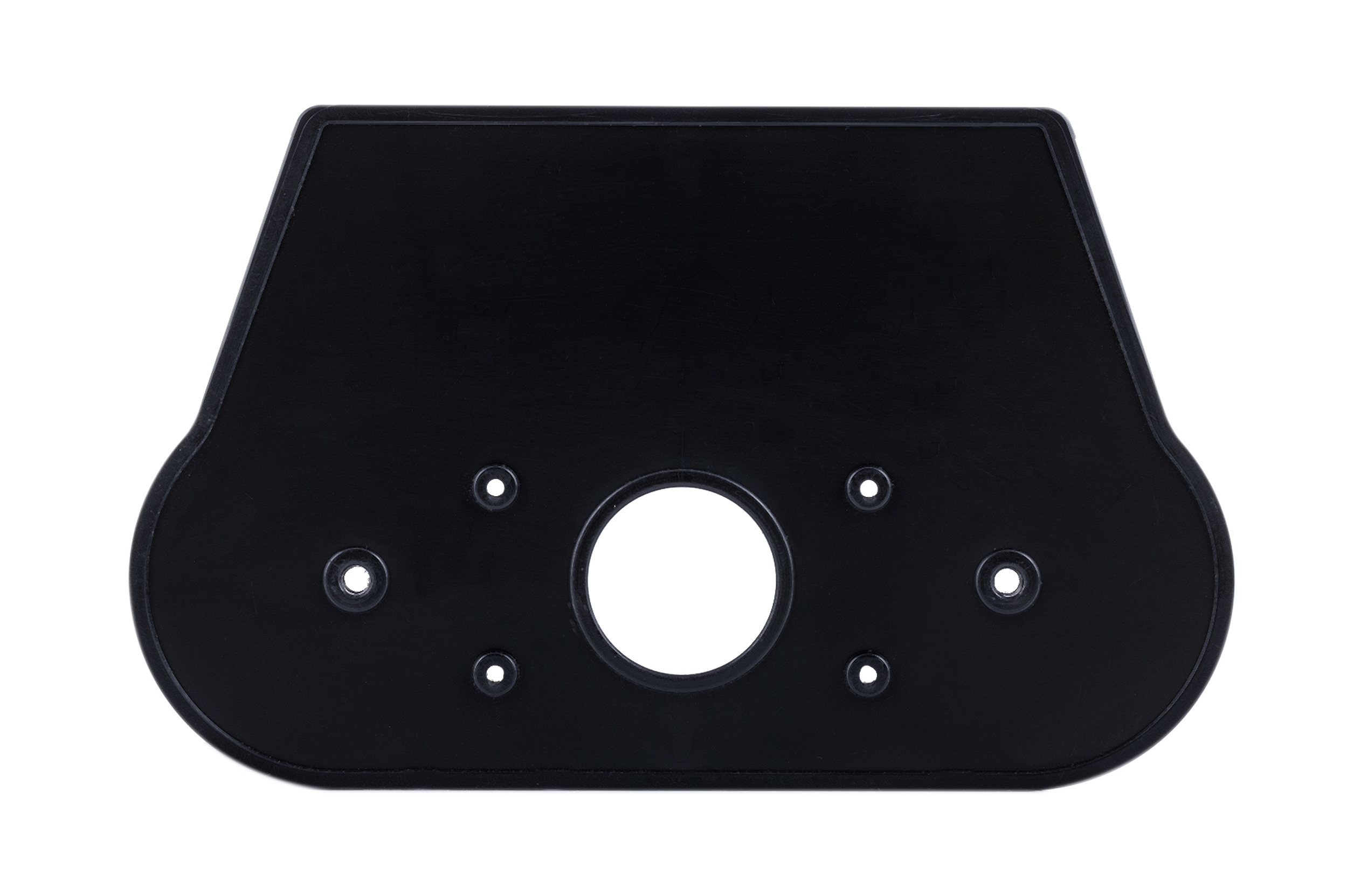

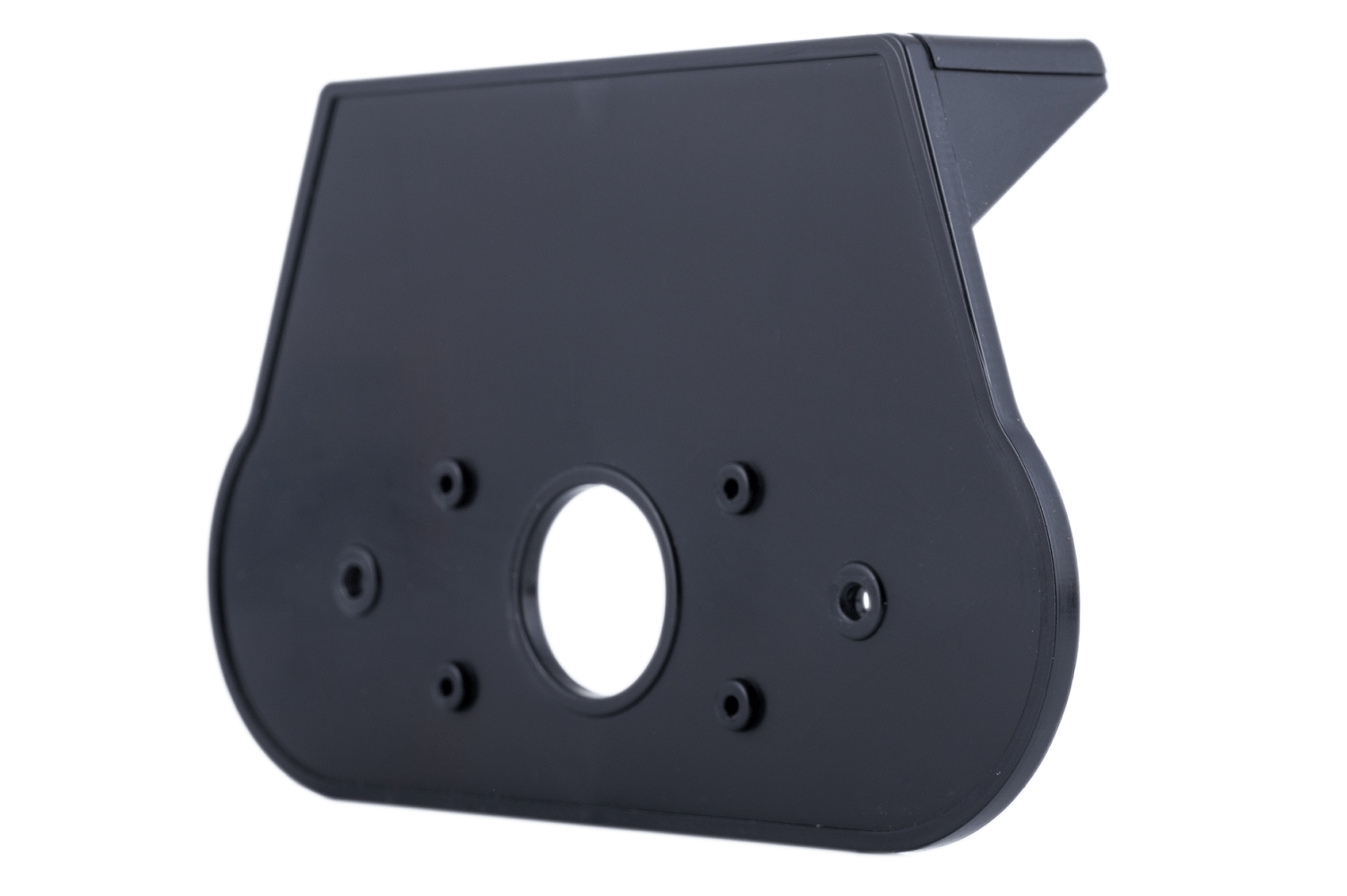

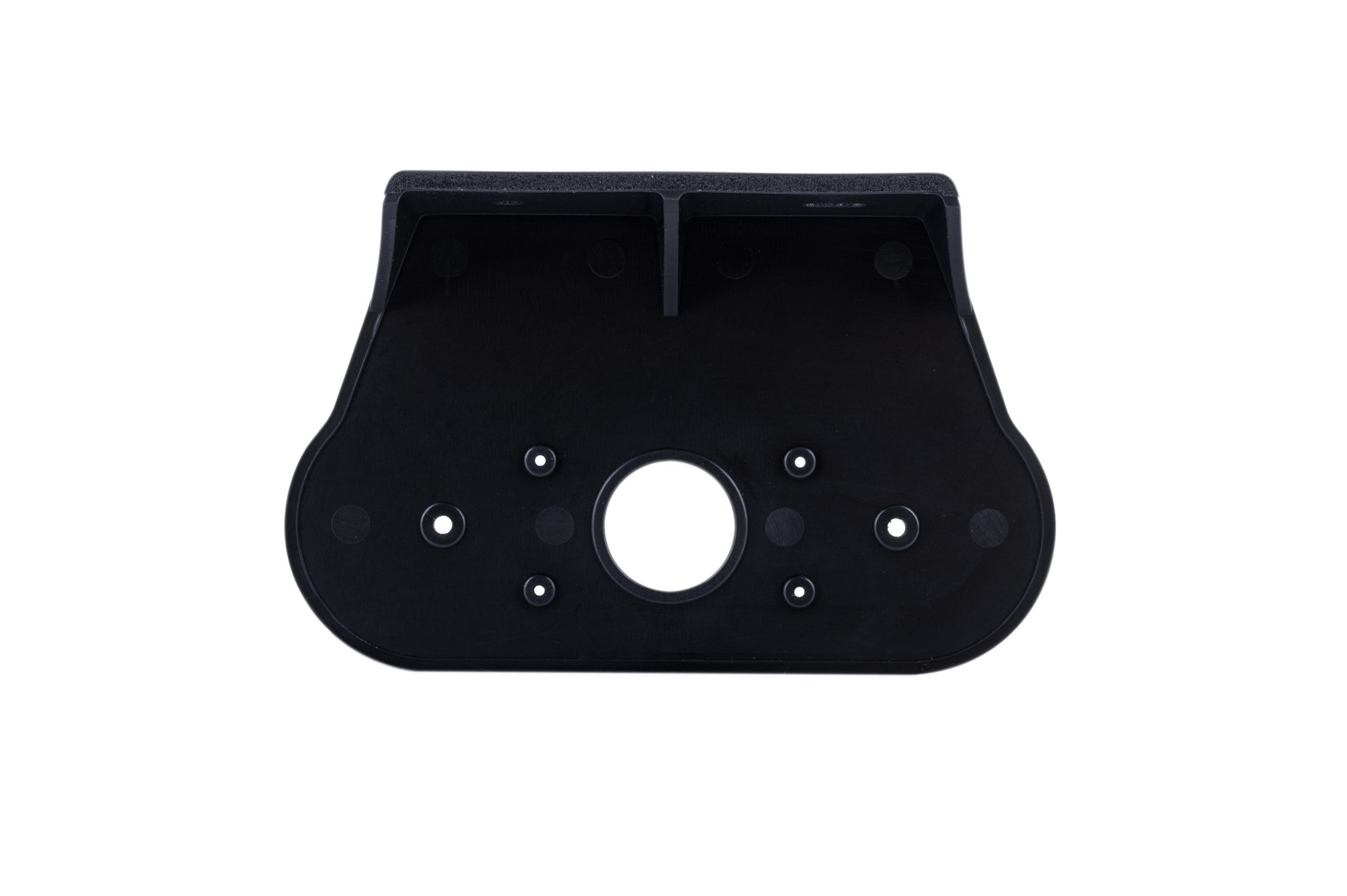

– can be mounted by a two-side holder

– modern design

– easy installation

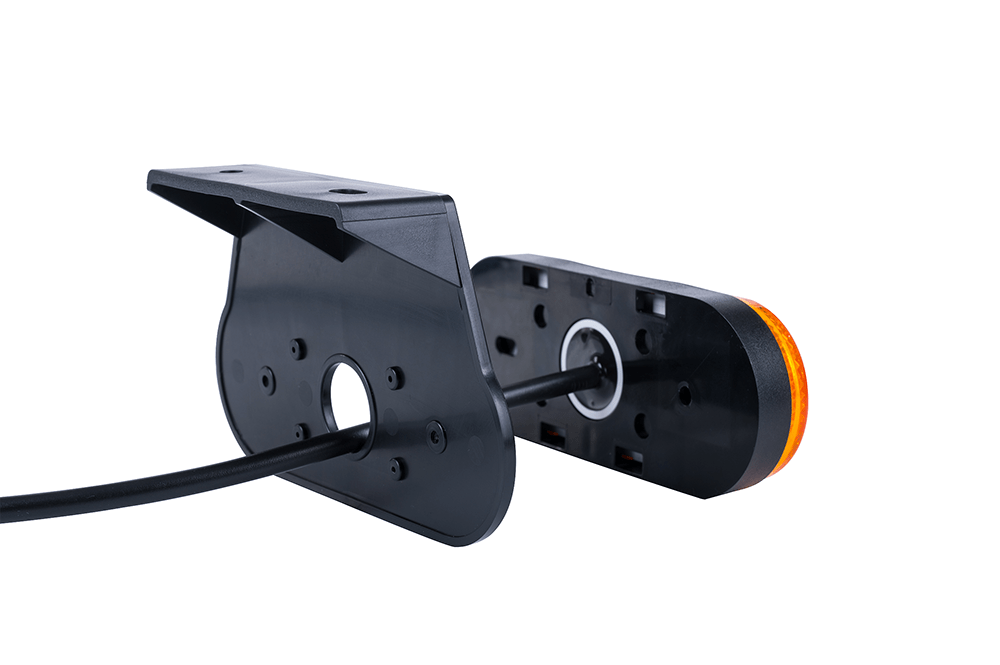

– the body allows to install the lamp without any visible mounting elements

Technical data

LED quantity
12
Light category
marker
Rear position light
yes
Supply voltage
12/24 V
Light colour
red
Reflecting device
yes
Operating temperature range
from -30°C to +50°C
Cable
2×0,75 mm2; cable length 0,5 m
Side
universal
LED light
yes
Ingress protection rating
IP 68
Light group
HOR 123
Power rating
1,5/3 W

Download

Marker light with a holder and reflective device LD 2775 (homologation) 1 (marker-light-with-a-holder-and-reflective-device-ld-2775-homologation-1.ZIP)
Download
Marker light with a holder and reflective device LD 2775 (technical drawing) 1 (marker-light-with-a-holder-and-reflective-device-ld-2775-technical-drawing-1.ZIP)
Download
Marker light with a holder and reflective device LD 2775 (homologation) 2 (marker-light-with-a-holder-and-reflective-device-ld-2775-homologation-2.ZIP)
Download
Marker light with a holder and reflective device LD 2775 (technical drawing) 2 (marker-light-with-a-holder-and-reflective-device-ld-2775-technical-drawing-2.ZIP)
Download
Marker light with a holder and reflective device LD 2775 (technical drawing) 3 (marker-light-with-a-holder-and-reflective-device-ld-2775-technical-drawing-3.ZIP)
Download
Page content (ld-2775.ZIP)
