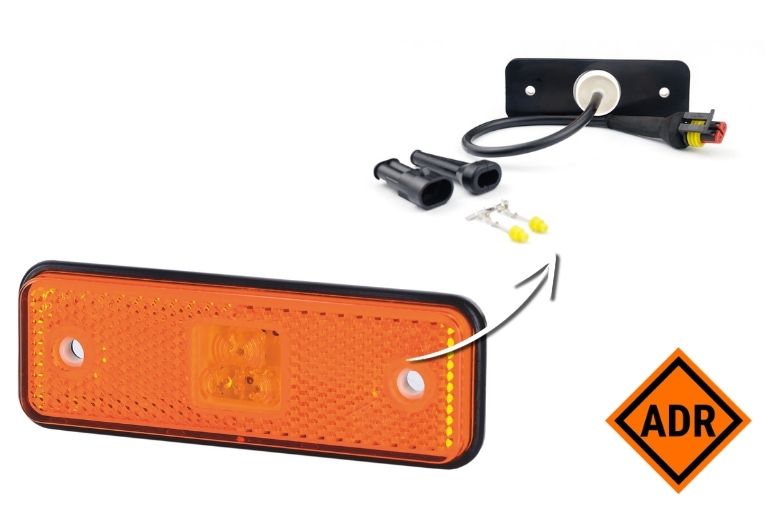

The LD 526/ADR/0.5M/SS is an LED marker lamp with an integrated reflector and rubber base, designed for installation on commercial vehicles, trailers, and semi-trailers, including vehicles used for the transport of dangerous goods in accordance with ADR requirements. It emits an amber light that clearly outlines the vehicle, improving visibility and enhancing road safety.
The lamp is equipped with three high-performance LEDs and an integrated reflector, delivering durable, energy-efficient performance. Its flexible rubber base simplifies installation, improves the fit to the vehicle surface, and helps absorb vibrations during operation.

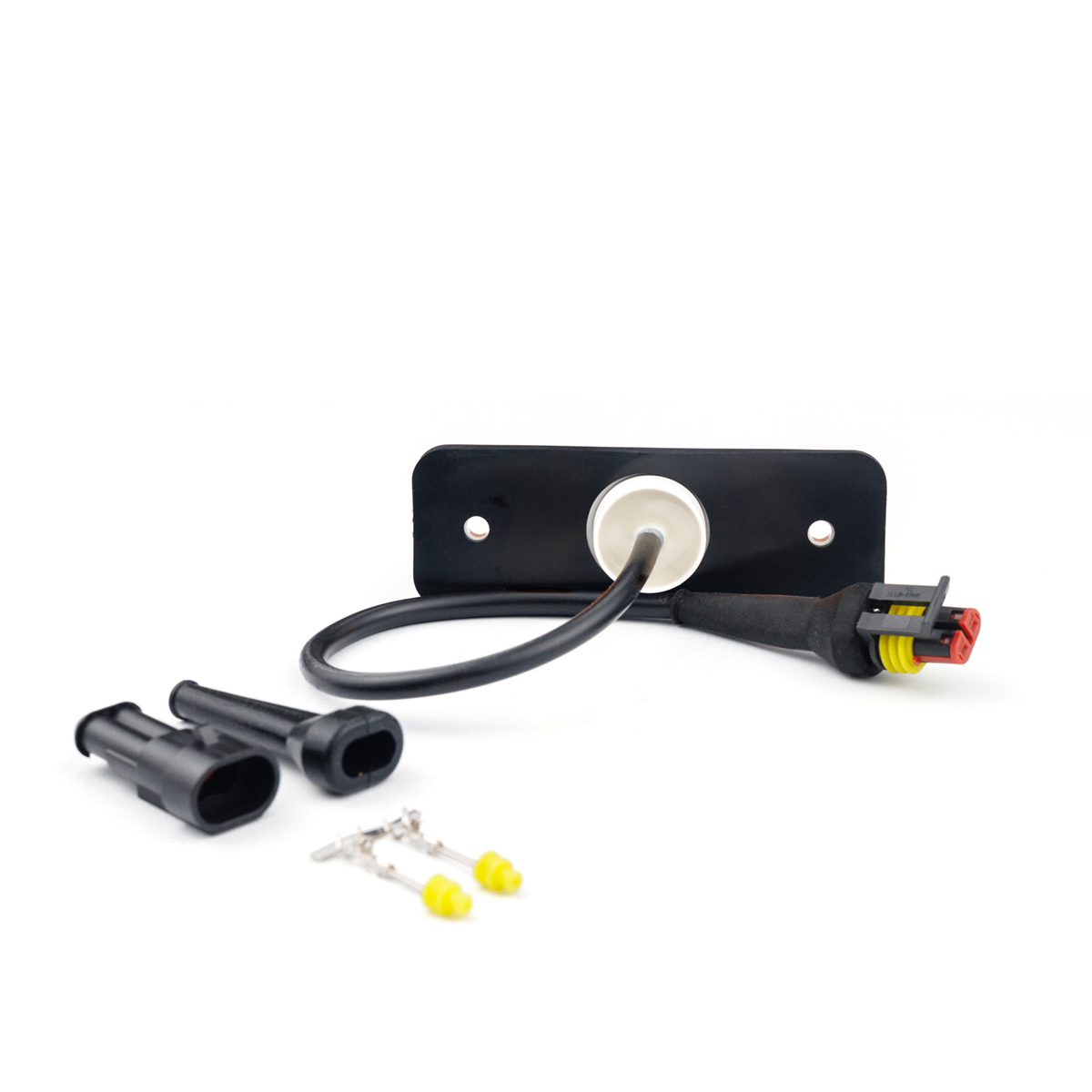

Designed for 12 V and 24 V electrical systems, the lamp features a 0.5 m ADR-compliant round cable (2 × 0.75 mm²) terminated with a Superseal connector fitted with female terminals. A matching Superseal socket with male terminals is supplied separately, allowing for a secure, durable, and waterproof electrical connection.
With an IP68 protection rating, ECE R10 EMC approval, and a wide operating temperature range, the LD 526/ADR/0.5M/SS is built to perform reliably in demanding operating conditions, providing long service life and dependable performance.
Technical data
