LZD 2342

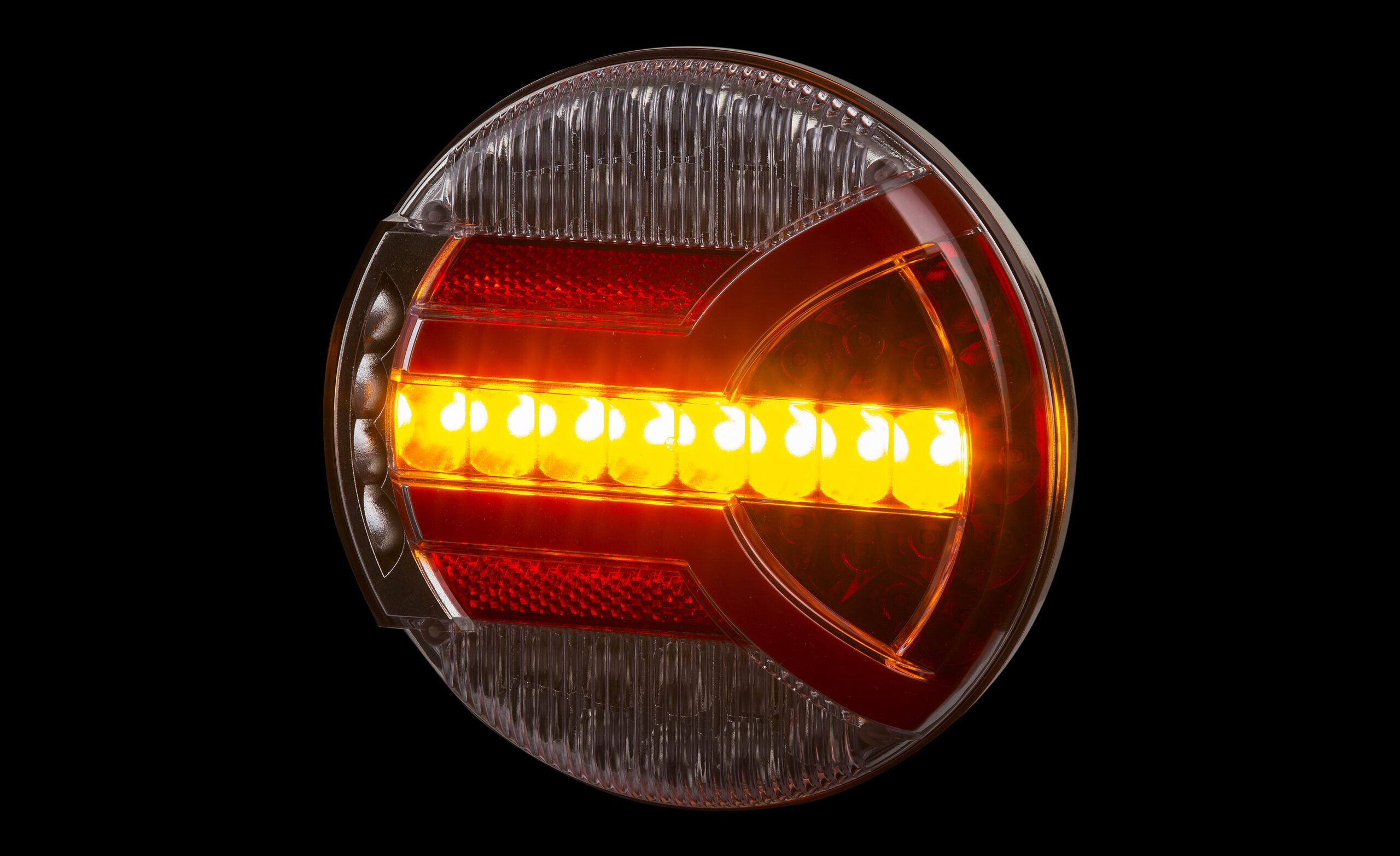

Multifunction rear lamp NAVIA

LED multifunction rear lamp with a dynamic direction indicator

Description

Multifunction rear lamp NAVIA is a 4-function lamp.

It is distinguished by modern design, which will undoubtedly give the vehicles a unique look.

It works well for vehicles of the following categories:

M – cars, buses

N – trucks

O – trailers, semi-trailers, special semi-trailers, truck trailers, special trailers

and many other.

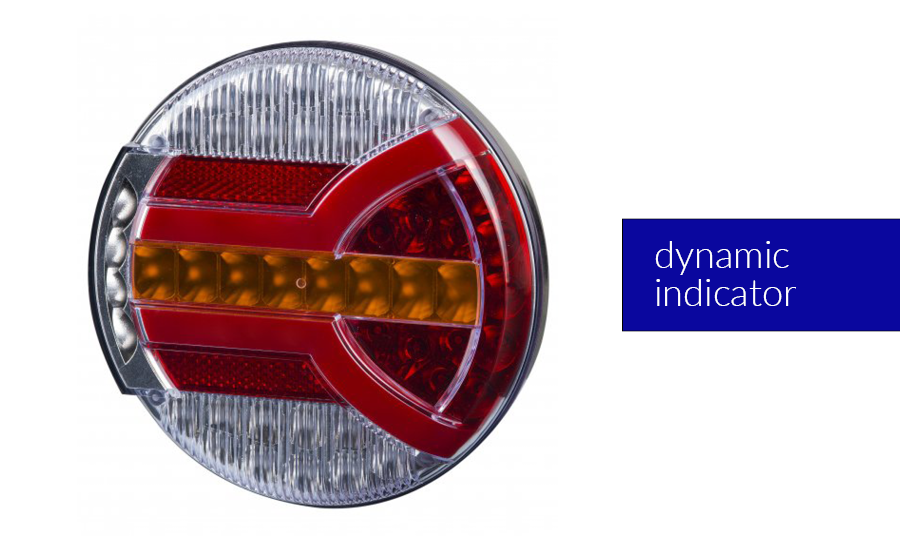

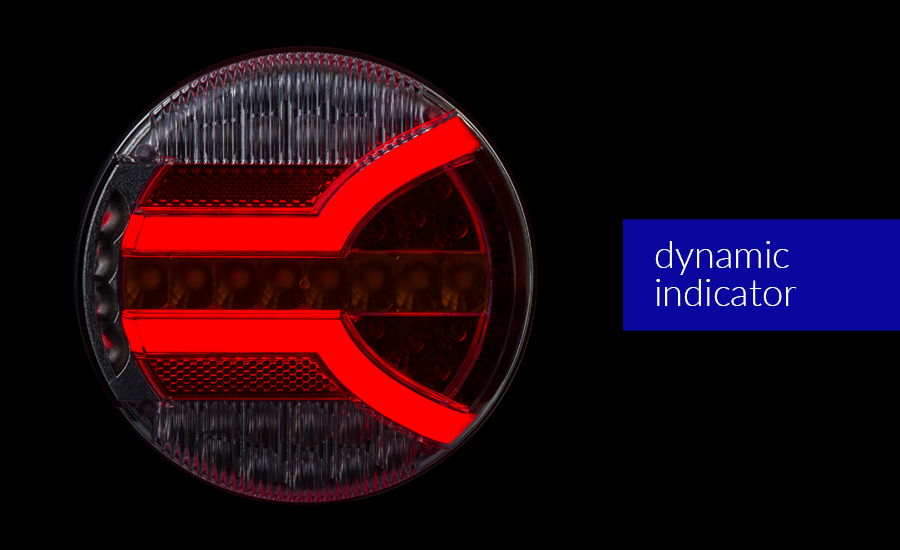

LZD 2342 lamp is equipped with a dynamic direction indicator and has European approval certificate.

Number plate light is powered by a separate cable, which allows you to connect this light regardless of the position light.

Lamp functions:

– rear position light

– number plate light

– brake light

– direction indicator

Technical data

Light group
HOR 94/B
LED quantity
61
Light category
multifunction rear
Rear position light
yes
Number plate light on side
yes
Supply voltage
12/24 V
Operating temperature range
from -30°C to +50°C
Cable
5x0,5 mm2; cable length 1,5 m
Side
universal
Dynamic rear indicator
yes
Brake light
yes
LED light
yes
Ingress protection rating
IP 68

Download

Multifunction rear lamp NAVIA LZD 2342 (homologation) 1 (multifunction-rear-lamp-navia-lzd-2342-homologation-1.ZIP)
Download
Multifunction rear lamp NAVIA LZD 2342 (homologation) 2 (multifunction-rear-lamp-navia-lzd-2342-homologation-2.ZIP)
Download
Multifunction rear lamp NAVIA LZD 2342 (homologation) 3 (multifunction-rear-lamp-navia-lzd-2342-homologation-3.ZIP)
Download
Multifunction rear lamp NAVIA LZD 2342 (homologation) 4 (multifunction-rear-lamp-navia-lzd-2342-homologation-4.ZIP)
Download
Multifunction rear lamp NAVIA LZD 2342 (technical drawing) 1 (multifunction-rear-lamp-navia-lzd-2342-technical-drawing-1.ZIP)
Download
Multifunction light LZD 2342 (approval R10) (multifunction-light-lzd-2342-approval-r10.ZIP)
Download
Page content (lzd-2342.ZIP)
