LZD 2791
Multifunction rear light Carla

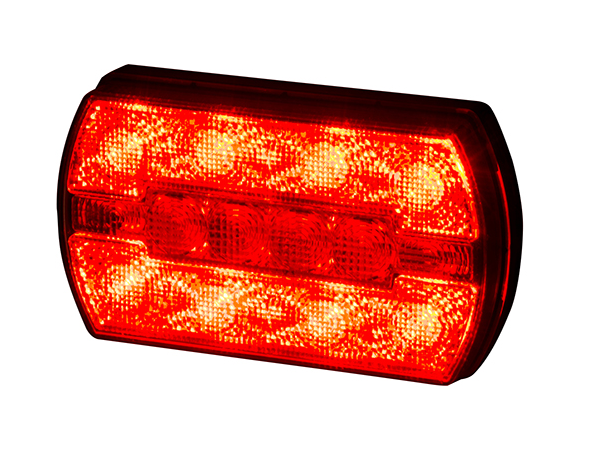

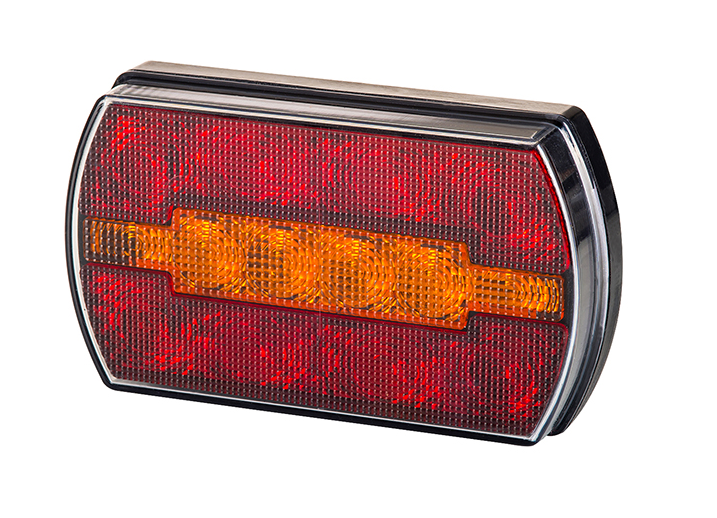

Carla (LZD 2791) is 3-function LED rear light.

Lamp features:
– rear position light (0,3 W)

– brake light (1,8 W)

– rear direction indicator (2,7 W)

Technical data

LED light
yes
Light category
multifunction rear
Side
universal
Ingress protection rating
IP 68
LED quantity
14
Rear position light
yes
Brake light
yes
Rear direction indicator
yes
Working frequency
2,5 Hz
Light group
HOR 115E
Supply voltage
12 V
Cable
4x0,5 mm², length 1 m
Operating temperature range
from -30°C to +50°C

Download

Multifunction rear light Carla LZD 2791 (technical drawing) 1 (multifunction-rear-light-carla-lzd-2791-technical-drawing-1.ZIP)
Download
Multifunction rear light Carla LZD 2791 (homologation) 1 (multifunction-rear-light-carla-lzd-2791-homologation-1.ZIP)
Download
Multifunction rear light Carla LZD 2791 (technical drawing) 2 (multifunction-rear-light-carla-lzd-2791-technical-drawing-2.ZIP)
Download
Multifunction rear light Carla LZD 2791 (homologation) 2 (multifunction-rear-light-carla-lzd-2791-homologation-2.ZIP)
Download
Multifunction rear light Carla LZD 2791 (technical drawing) 3 (multifunction-rear-light-carla-lzd-2791-technical-drawing-3.ZIP)
Download
Page content (lzd-2791.ZIP)
