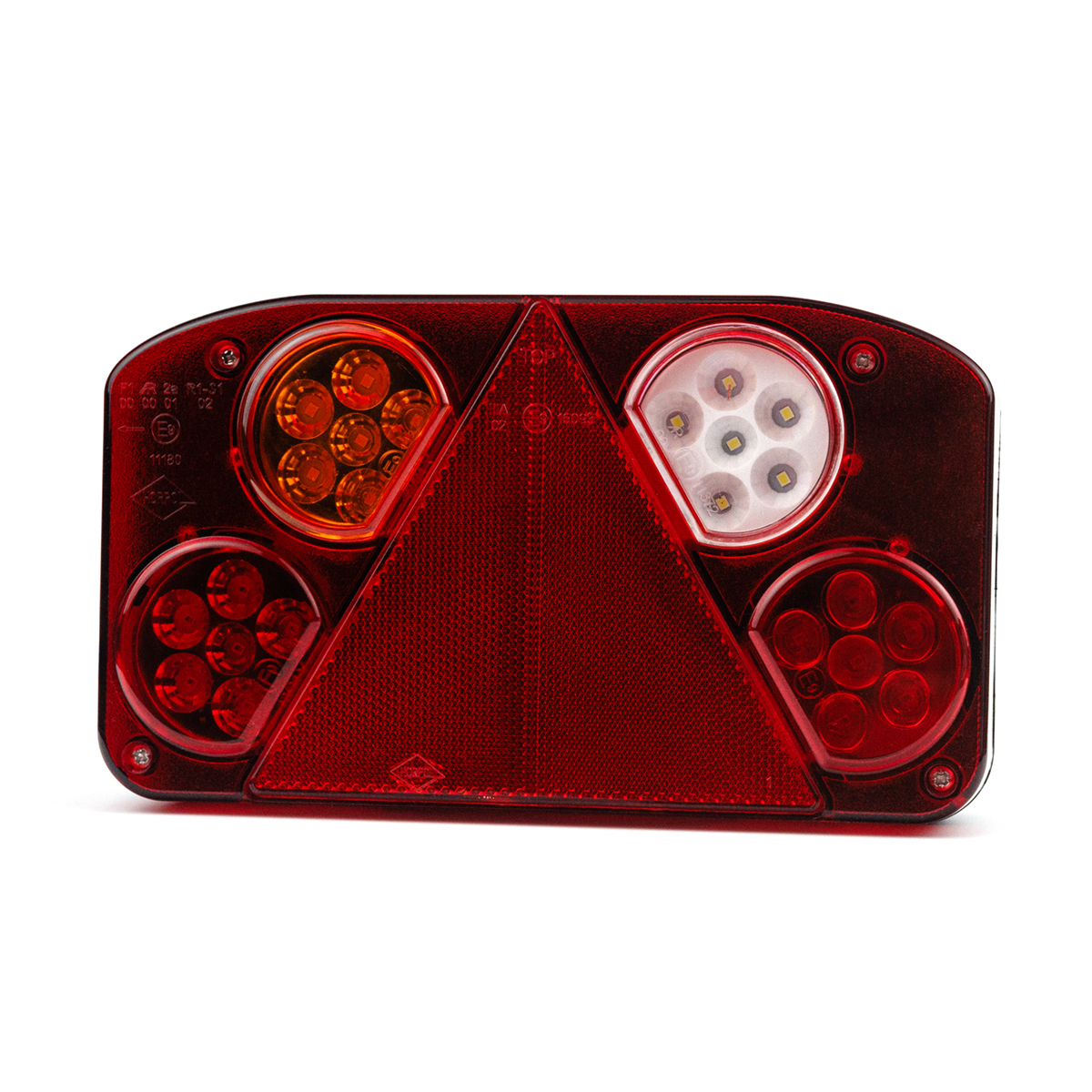

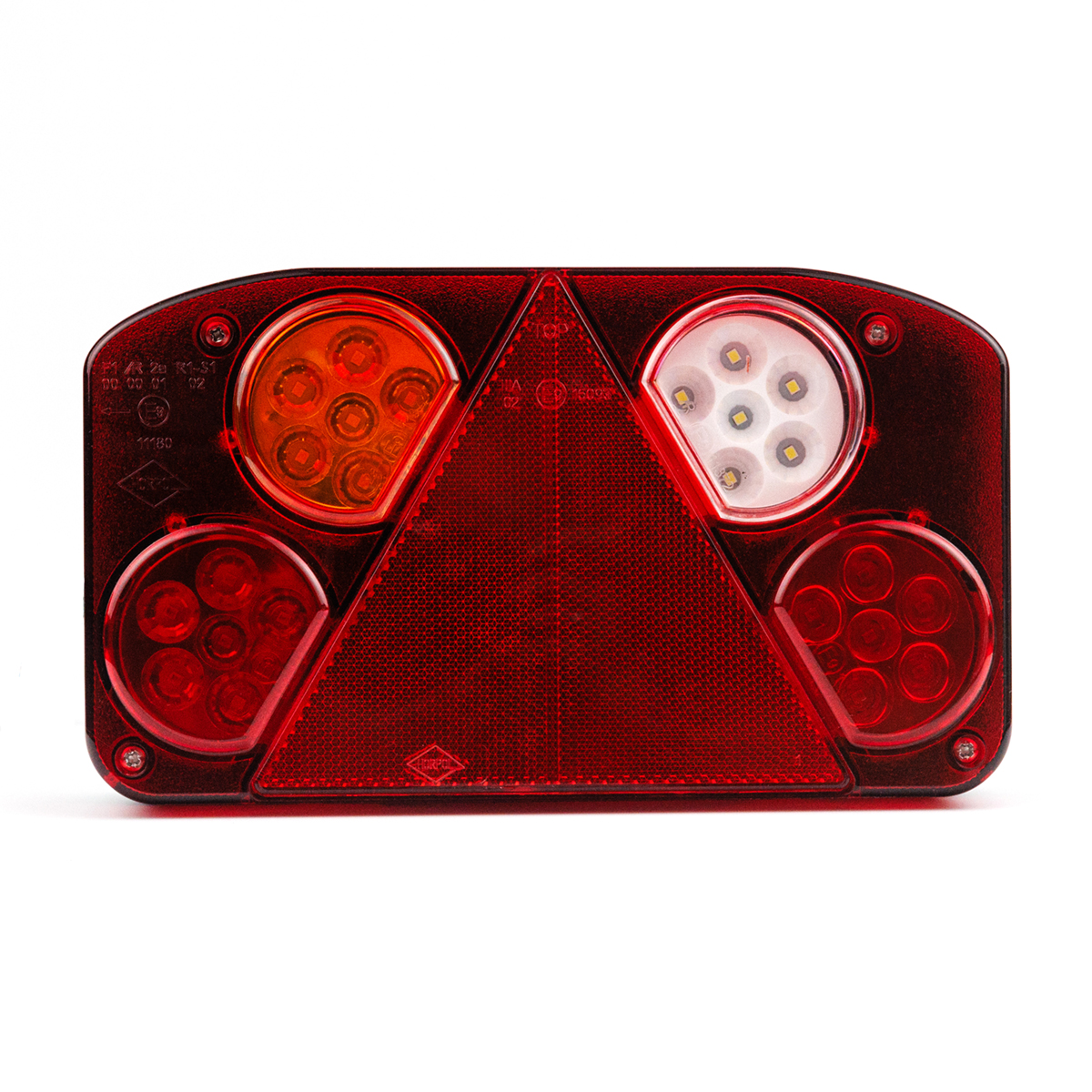

LZD 2507/ADR/0.5M/AMP7 is a left-side rear combination LED lamp with a reflective triangle, designed for installation on vehicles used to transport hazardous materials. The ADR version is adapted for use on vehicles that meet the requirements of the ADR agreement.

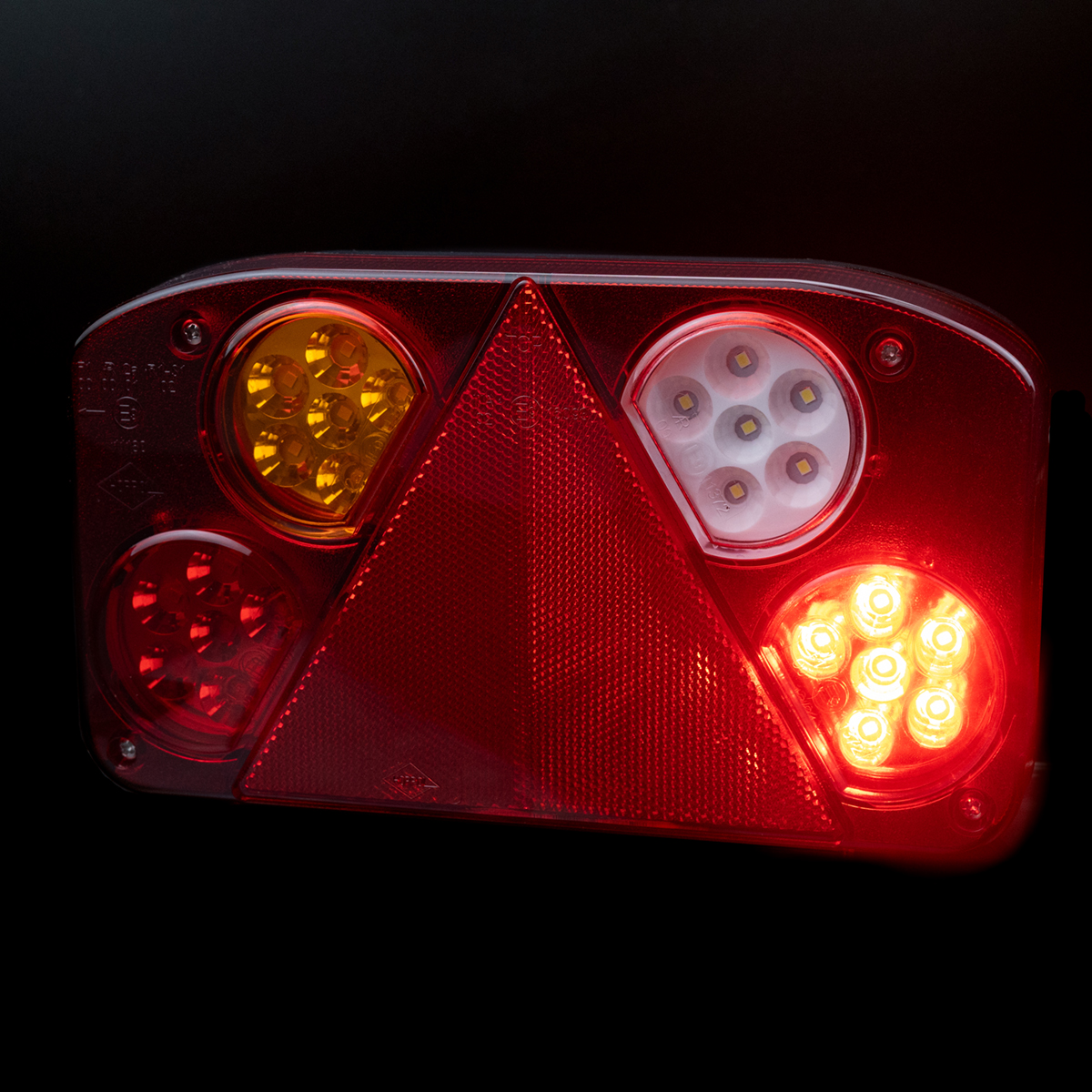

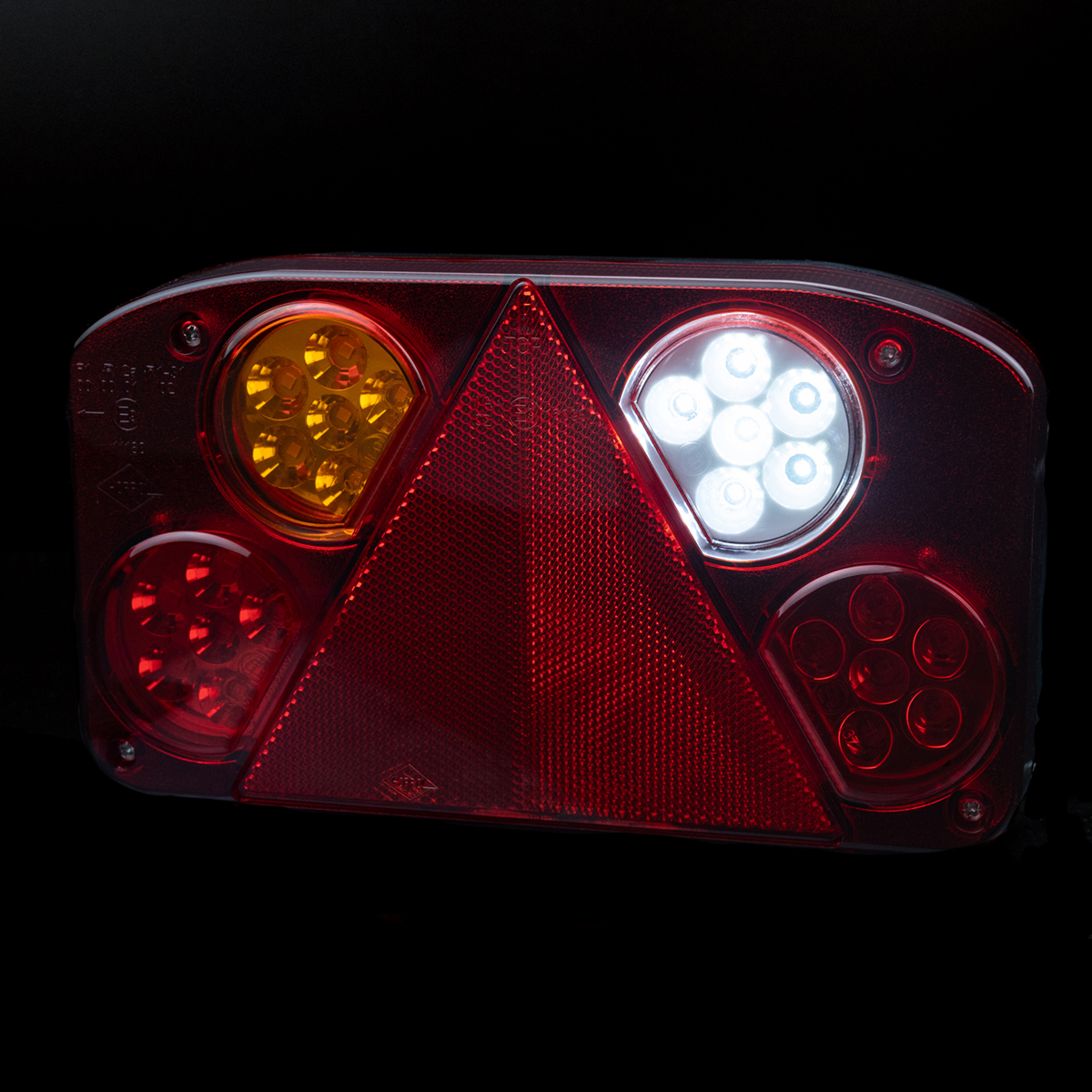

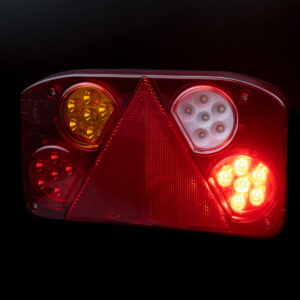

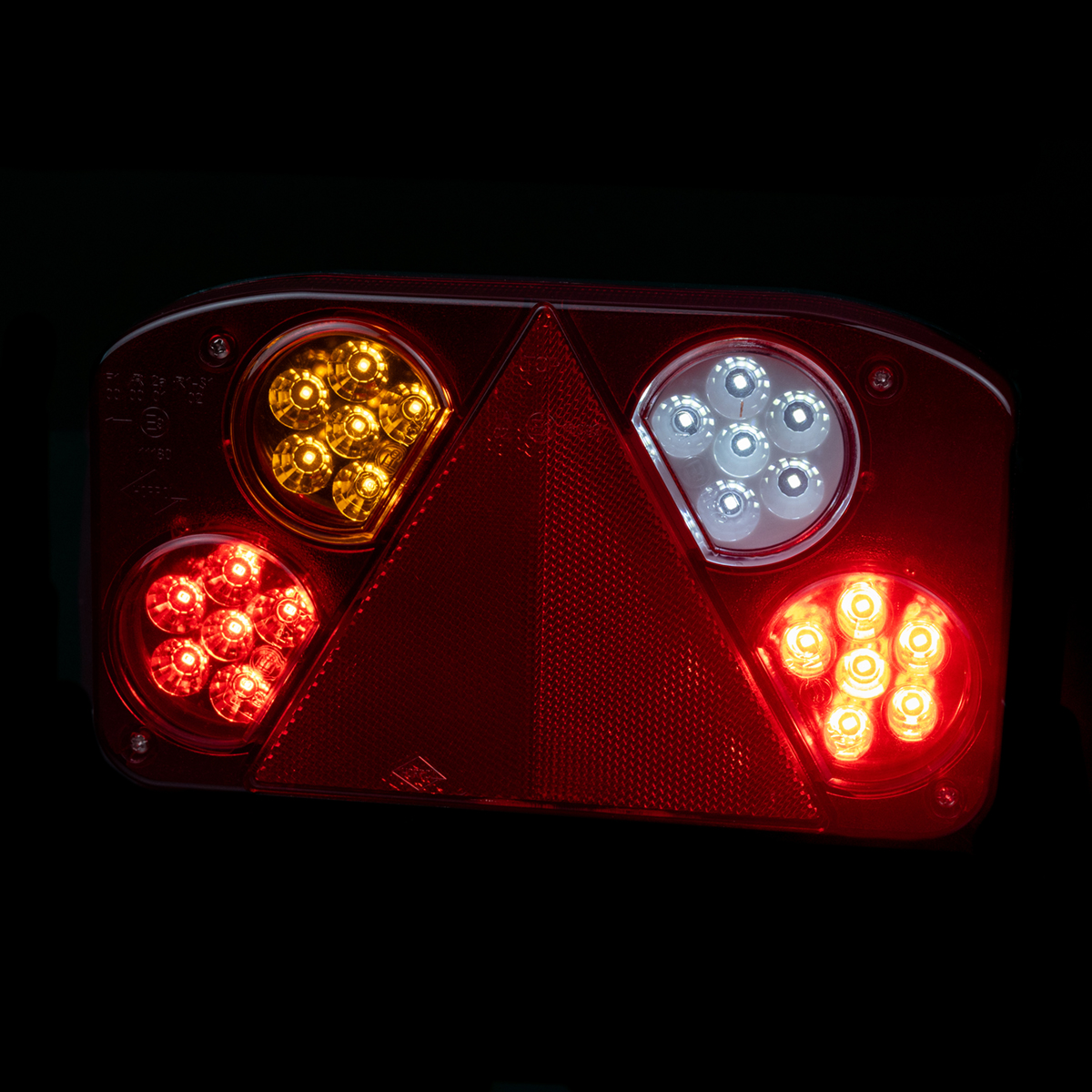

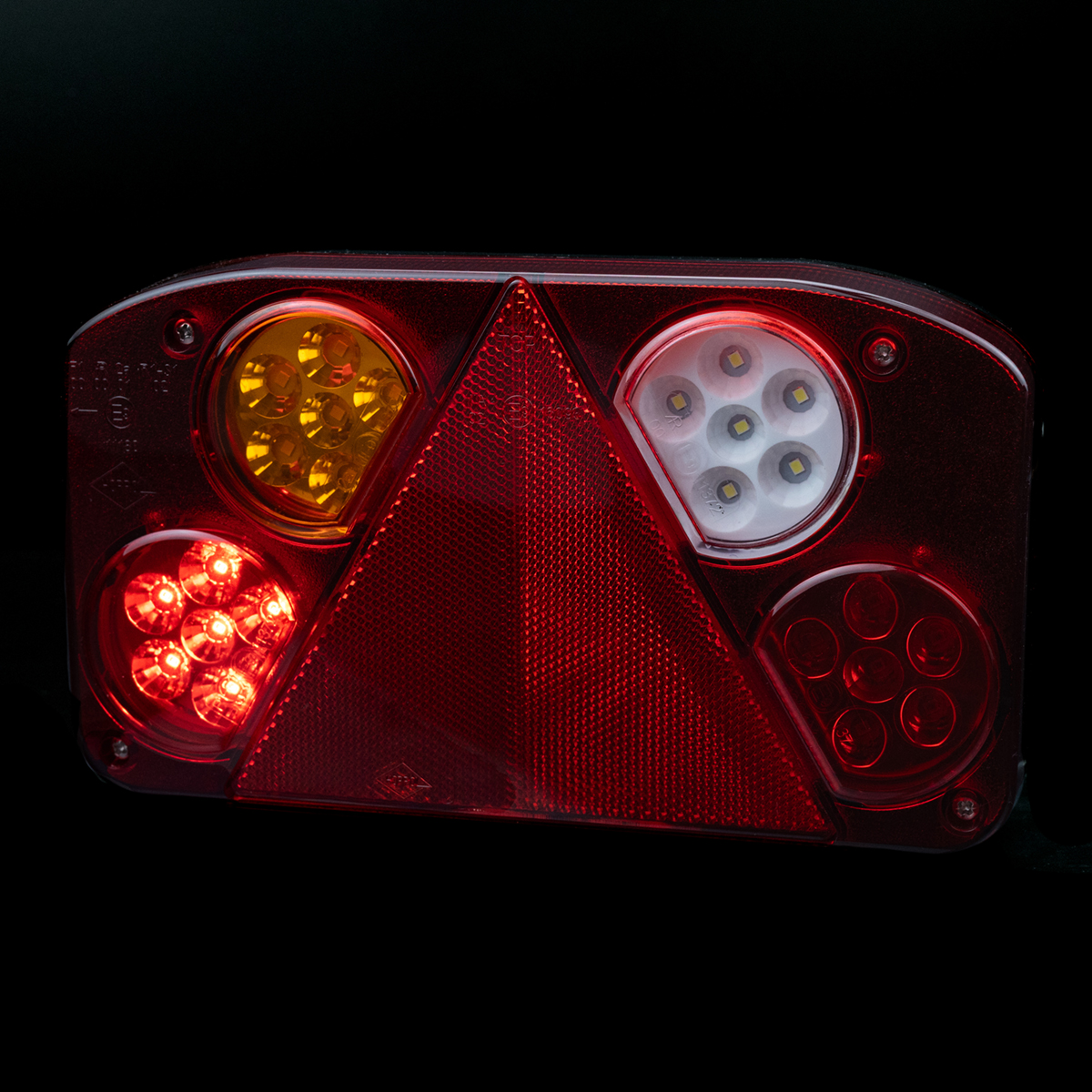

The lamp is equipped with 24 LEDs and combines the following functions in one housing: rear position light, brake light, reversing light, rear fog light and rear turn indicator. The design does not include a license plate light.

Power consumption of individual light functions:
– rear position light: 0.2 W / 12 V; 0.4 W / 24 V;
– brake light: 1 W / 12 V; 2.4 W / 24 V;
– reversing light: 1.2 W / 12 V; 2.4 W / 24 V;
– rear fog light: 1.9 W – 12/24 V;

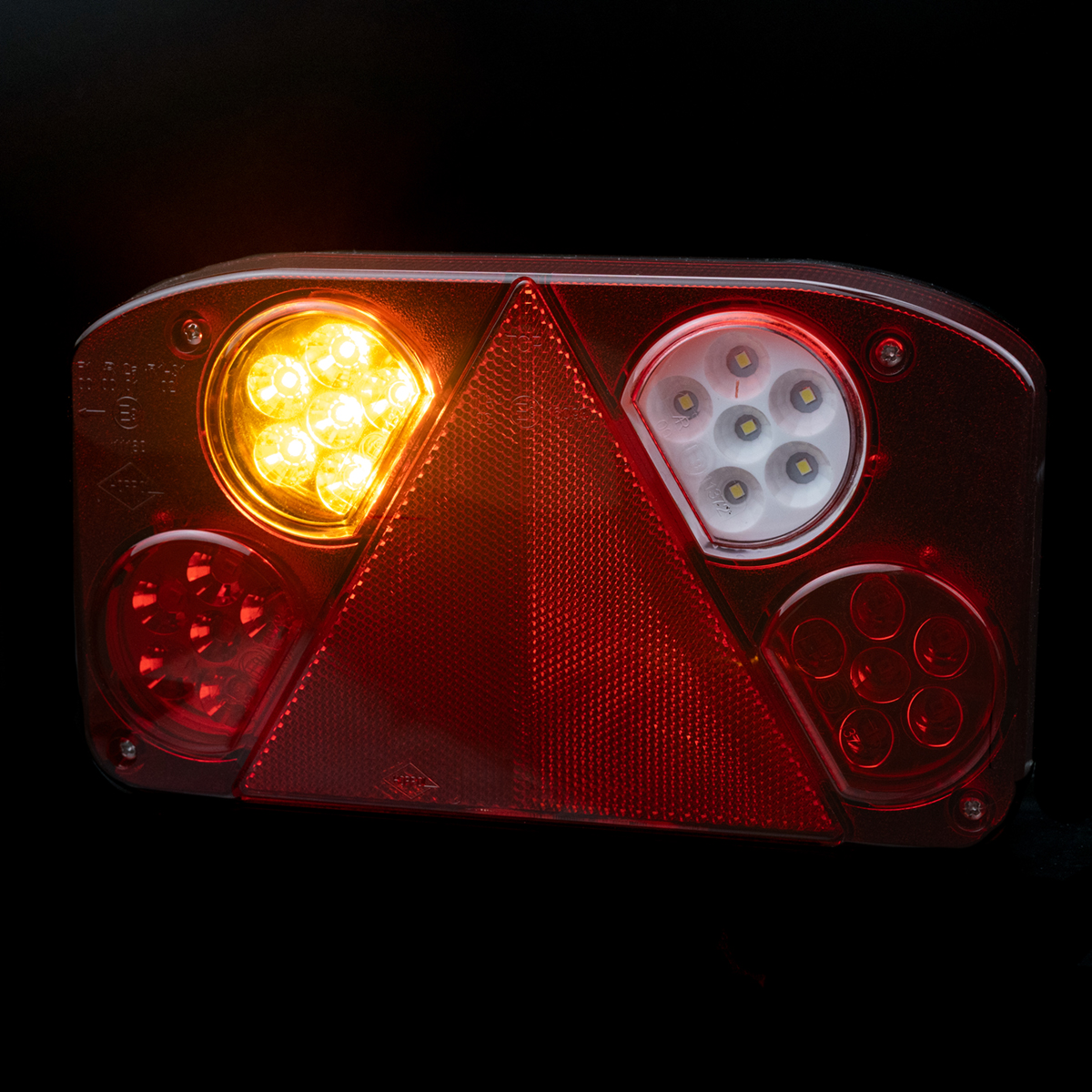

– rear turn indicator: 1.7 W – 12/24 V.

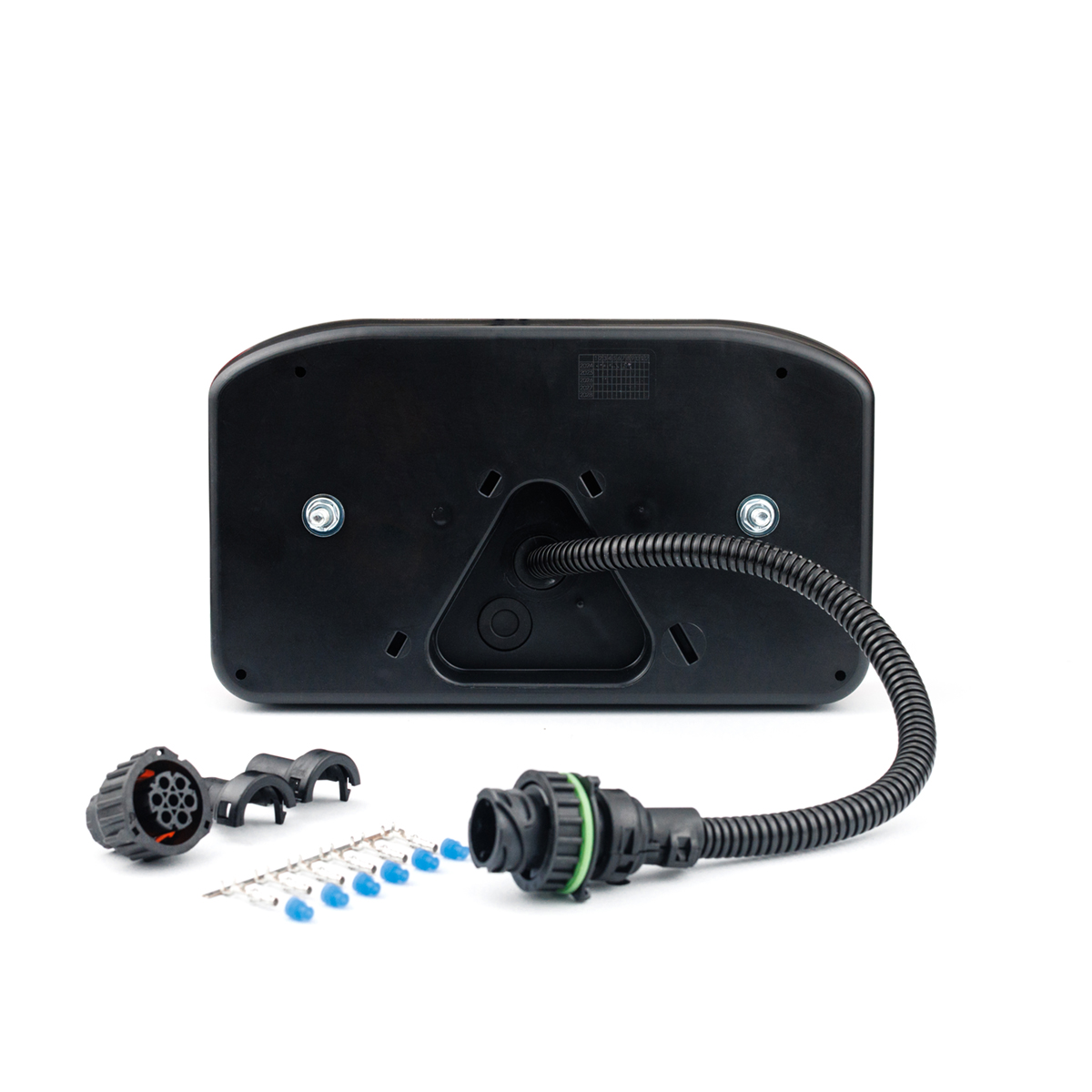

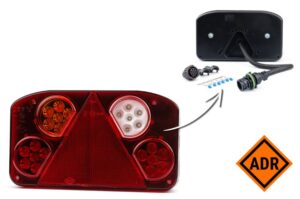

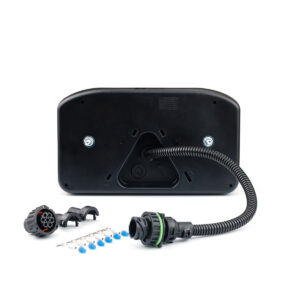

The model operates at 12/24 V and is equipped with a 6 × 0.5 mm² cable, 0.3 m long, protected by a corrugated conduit and terminated with a 7-pin AMP socket. The 7-pin AMP plug is supplied separately. The individual wires correspond to the following lamp functions:
– white – ground;
– black – position light;
– red – brake light;
– yellow – turn indicator;
– grey – reversing light;
– blue – rear fog light.

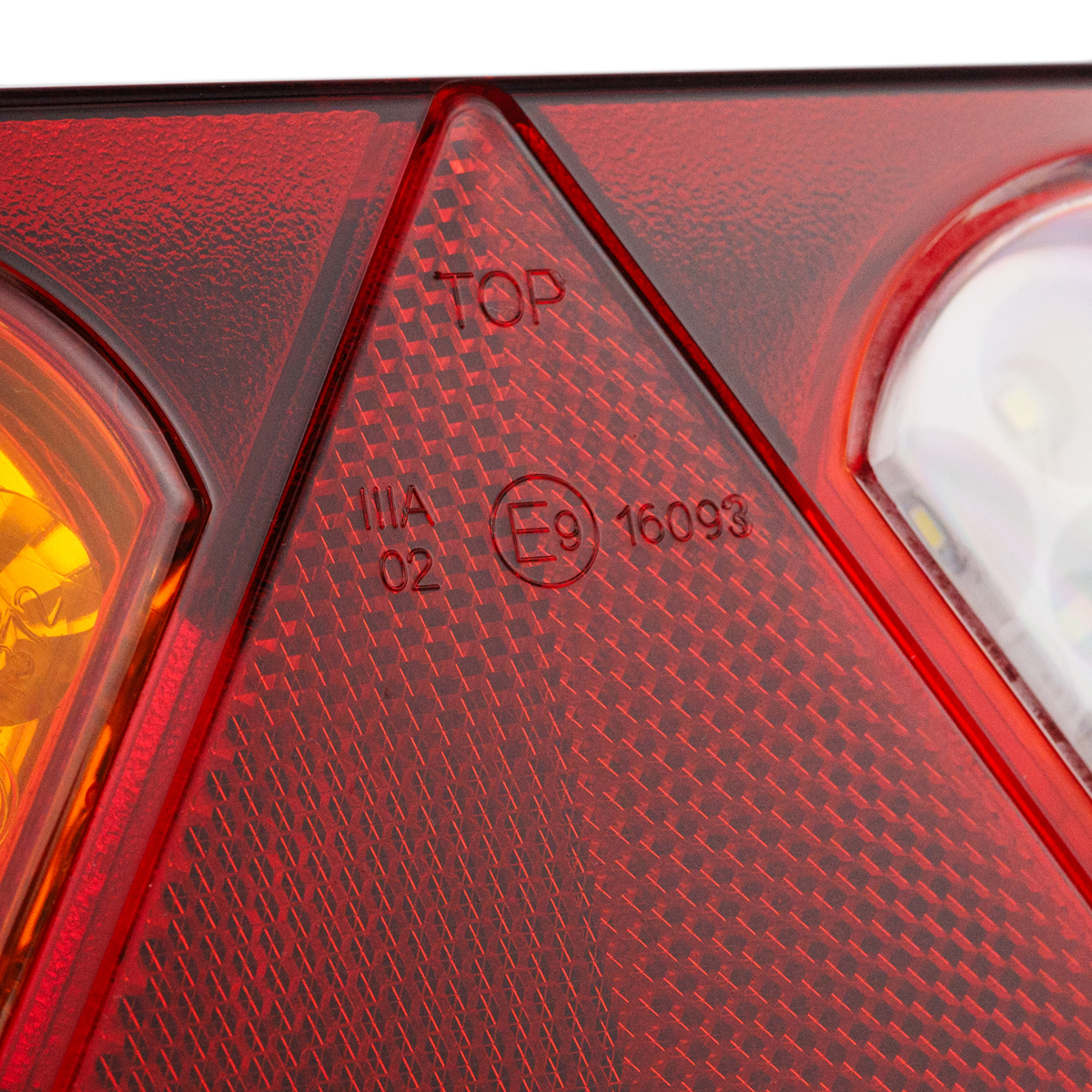

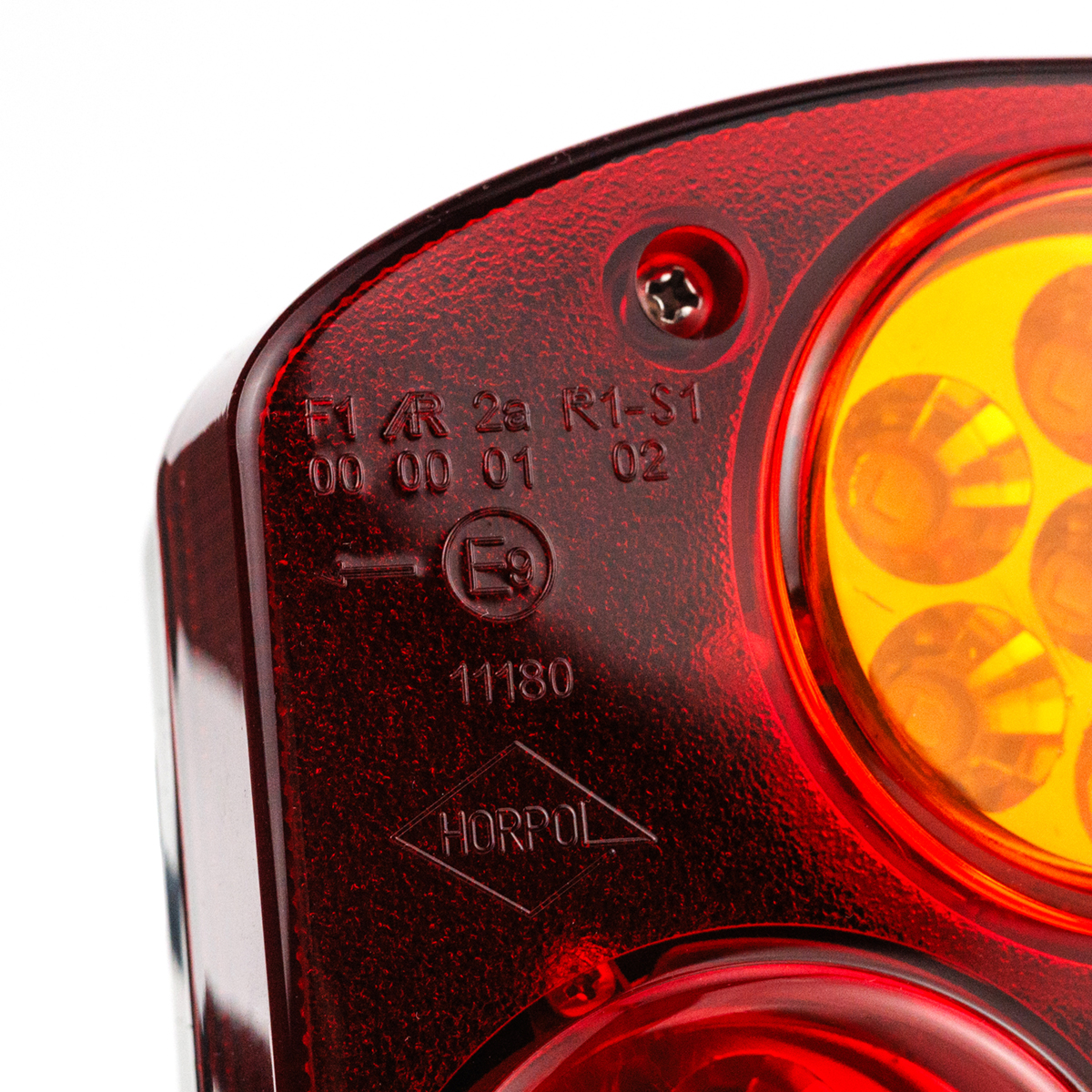

The lamp is designed to operate in temperatures ranging from -30°C to +50°C. The protection rating is IP55 for the lamp and IP68 for the modules, providing appropriate protection against dust and water. The product meets the homologation requirements for EMC R10 electromagnetic compatibility, ensuring proper operation together with the electronic systems of modern vehicles.
