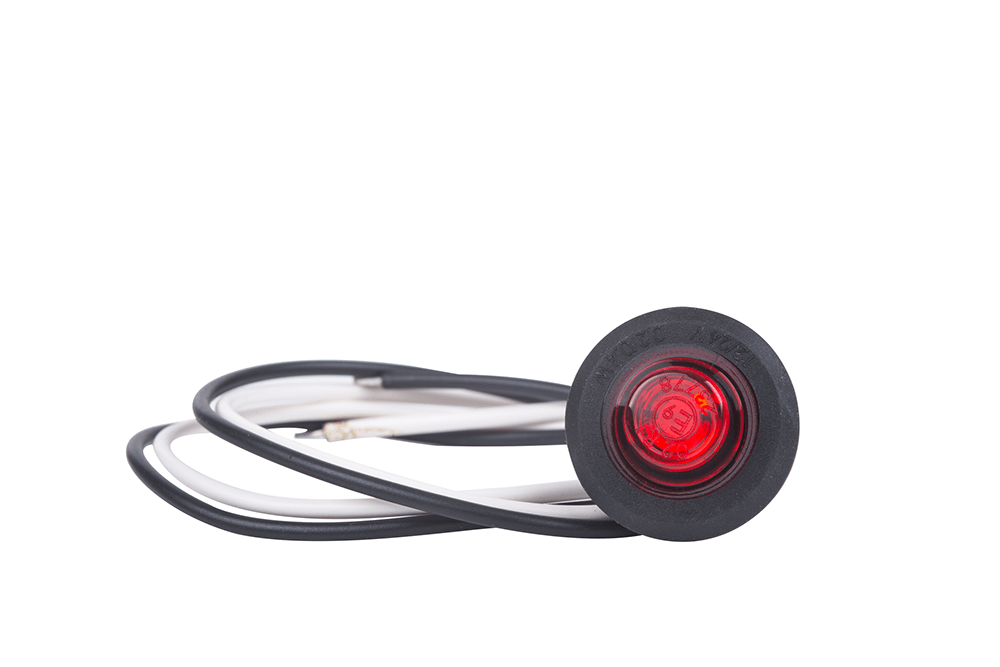

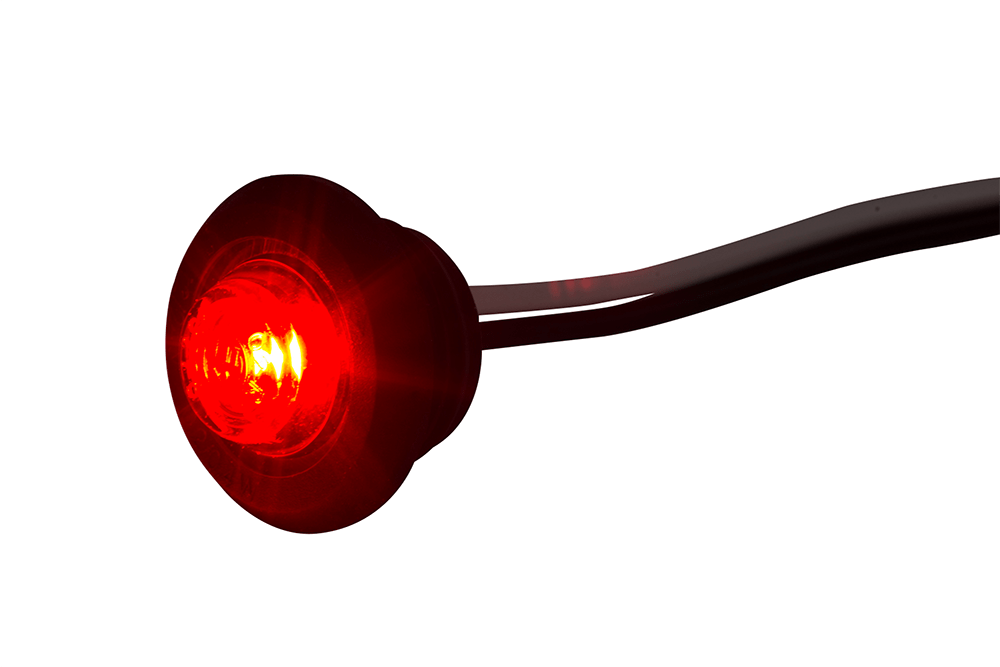

LD 2630

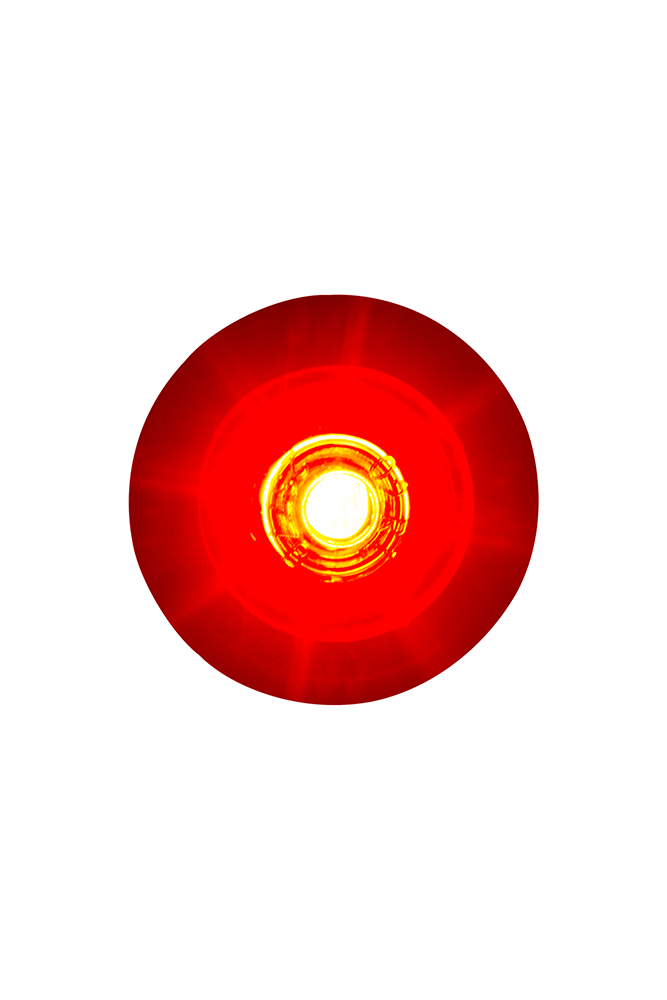

Rear position lamp

Rear position lamp.

Category: R1

Lamp type: LED

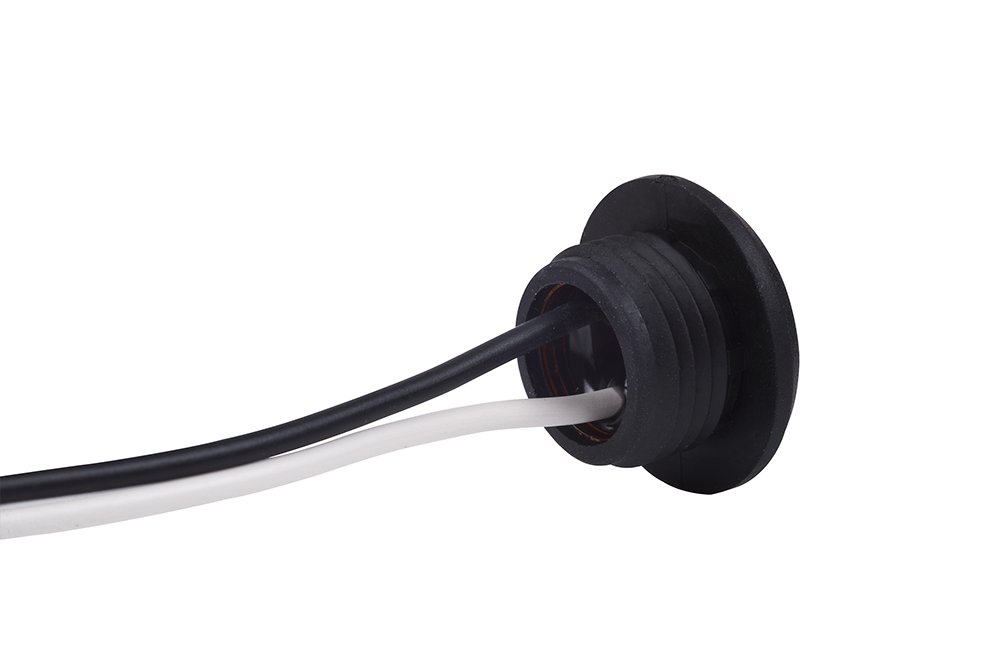

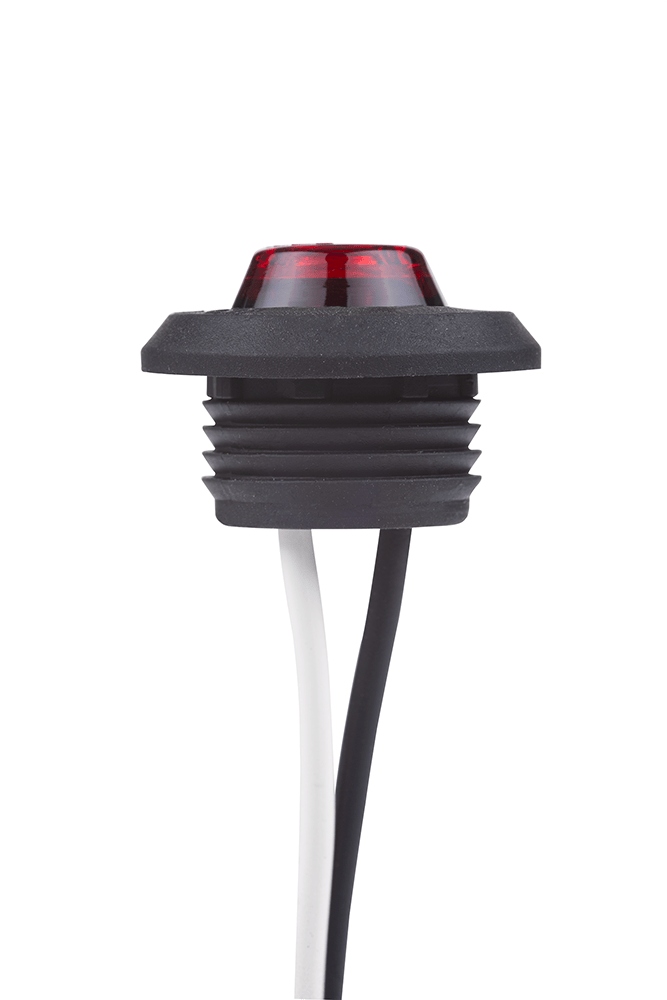

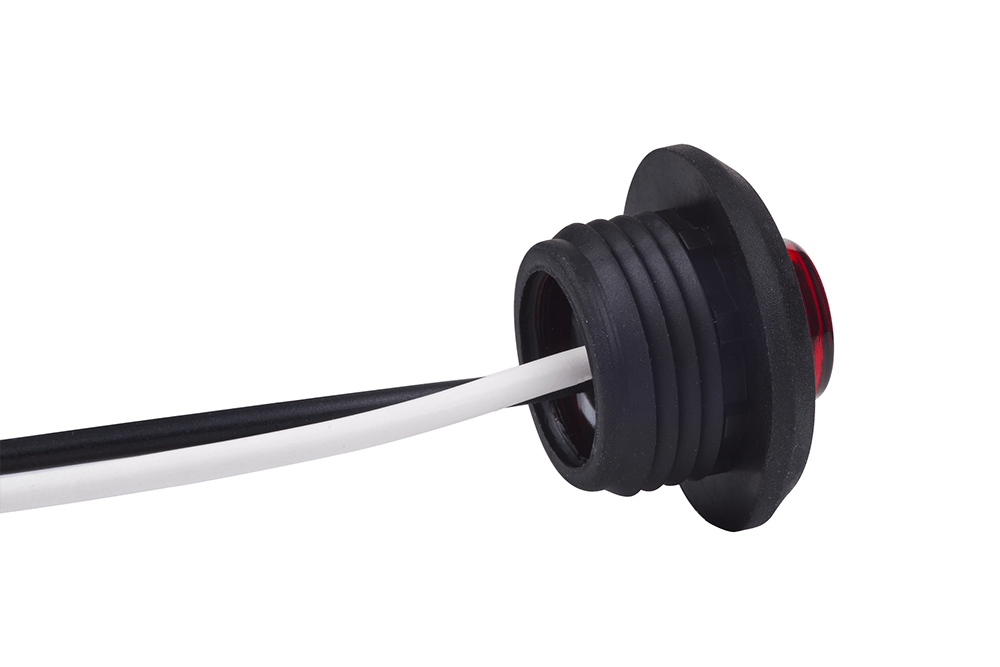

Important information. Specified polarization: black wire (+), white wire (-). Lamp assembly to the vehicle body by pressing into a hole with a diameter of Φ19.

Technical data

Light group
HOR 109
LED quantity
1
Light category
marker
Rear position light
yes
Supply voltage
12/24 V
Light colour
red
Power rating
0,2/0,4 W
Operating temperature range
from -30°C to +50°C
Cable
2x1x0,75 mm2
Connection method
two single electric wires
Side
universal
LED light
yes
Ingress protection rating
IP 68
