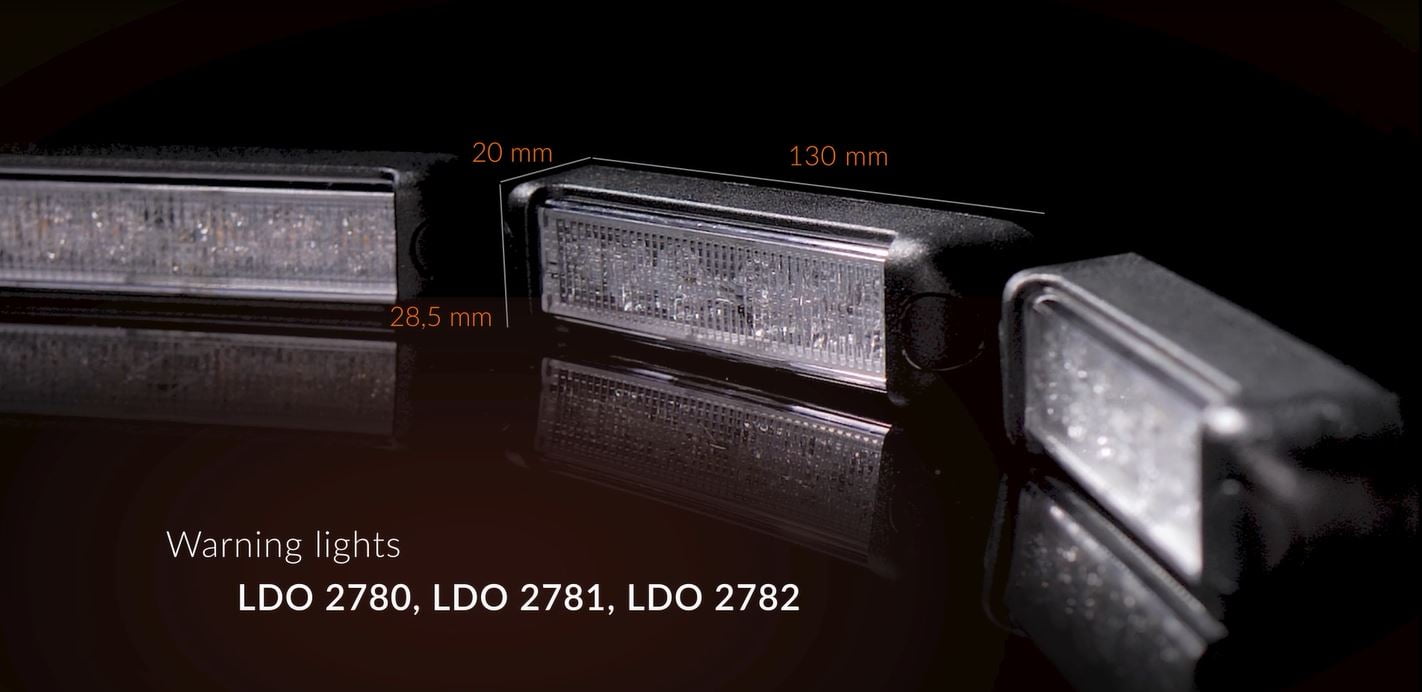

LDO 2780
Warning light

LED warning light HOR 121/XA2, 12/24 V, orange, 4 flash modes, 2 brightness levels: day/night.

Lamp type: LED

Technical data

Brightness level
day / night
Different flash patterns
4
Light group
HOR 121
LED quantity
6
Light category
warning
Working mode
F-flash
Supply voltage
12/24 V
Light colour
amber
Operating temperature range
from -30°C to +50°C
Side
universal
LED light
yes
Ingress protection rating
IP 68
Power rating
max. 12 W
Cable
round 4x0,5 mm², length 0,5 m

Download

Warning light LDO 2780 (homologation) 1 (warning-light-ldo-2780-homologation-1.ZIP)
Download
Warning light LDO 2780 (technical drawing) 1 (warning-light-ldo-2780-technical-drawing-1.ZIP)
Download
LDO 2780 2781 Assembly manual (ldo-2780-2781-assembly-manual.ZIP)
Download
Page content (ldo-2780.ZIP)
