LRD 3160
Work light RAPTOR

LRD 3160 RAPTOR work lamp – reliable illumination in all conditions.

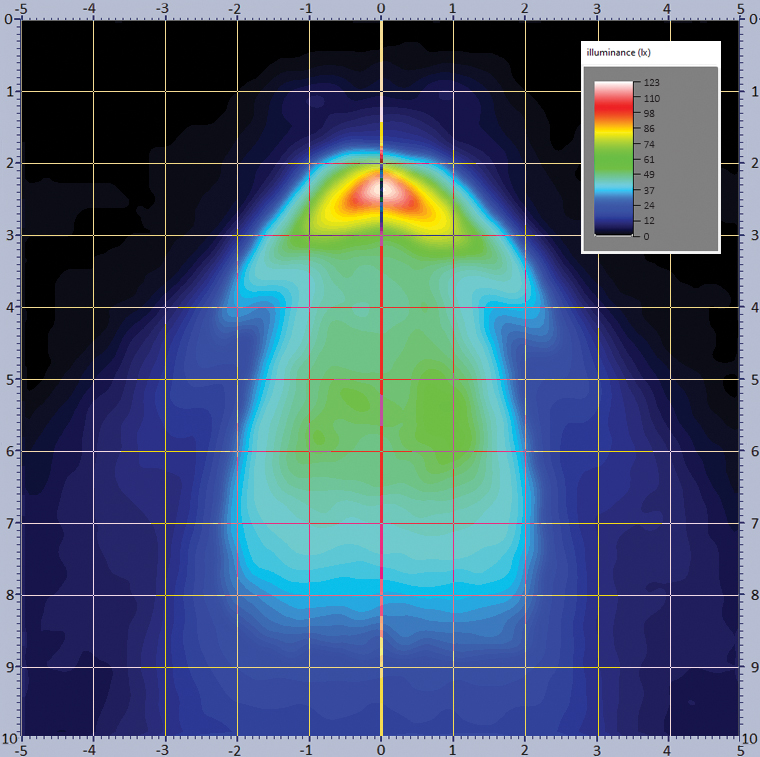

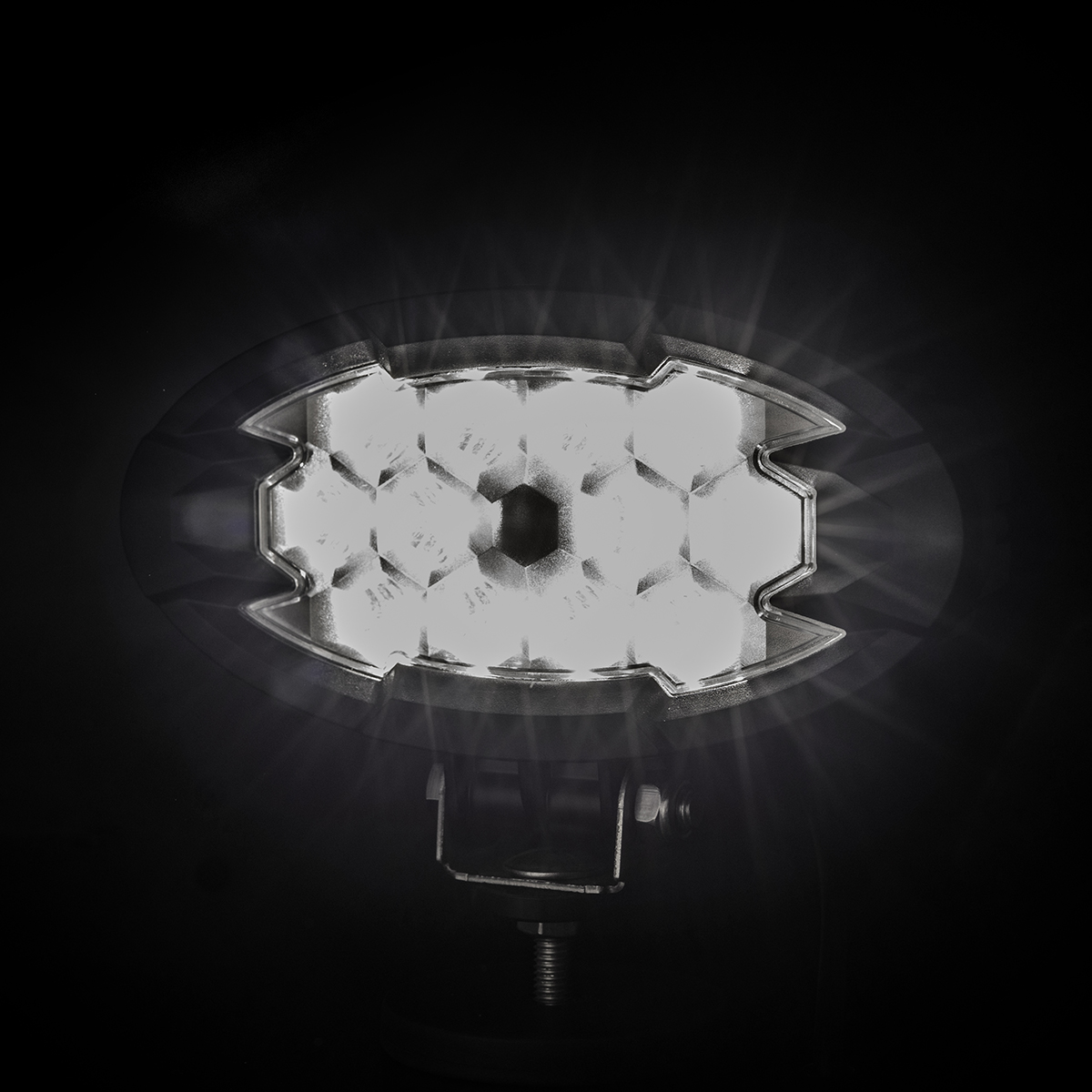

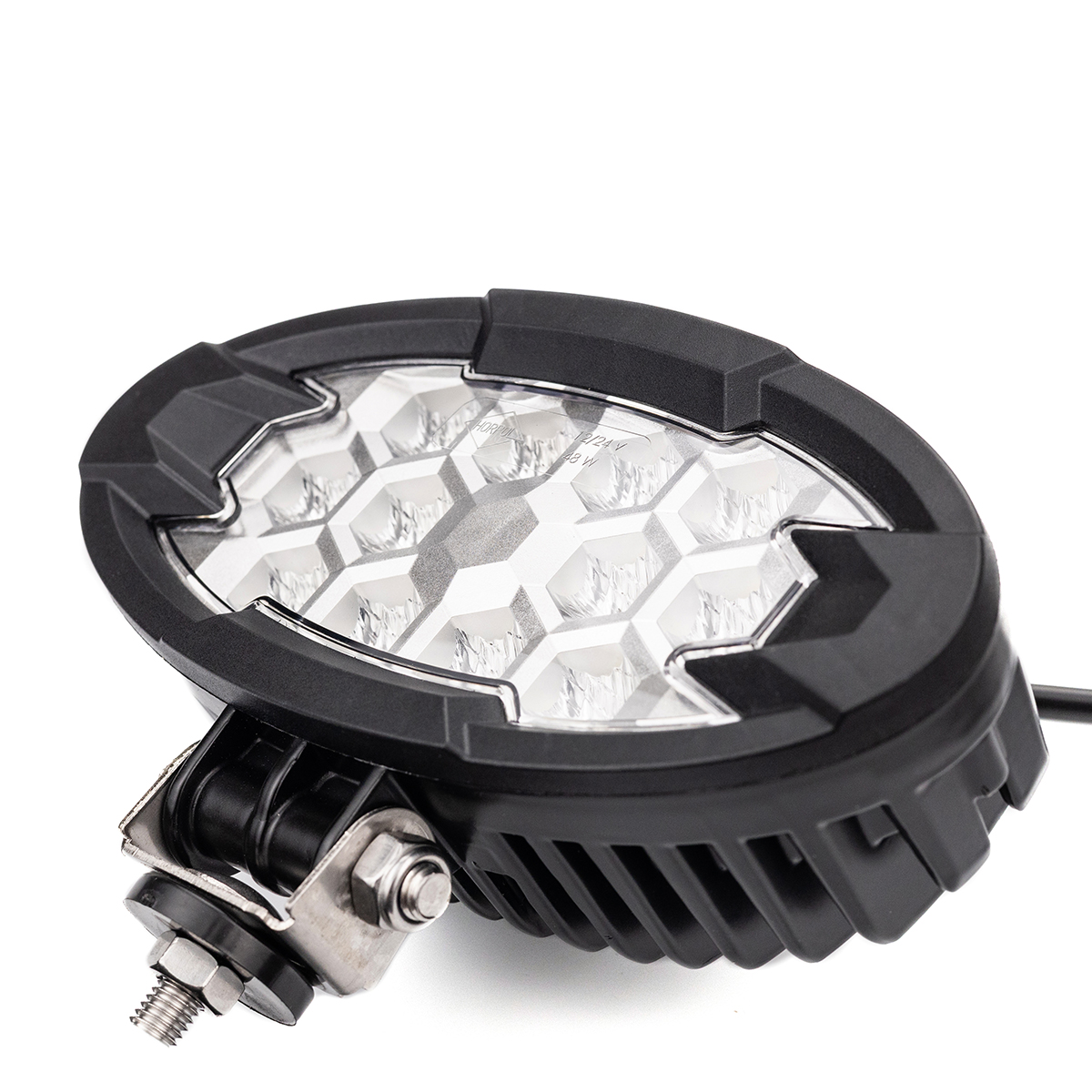

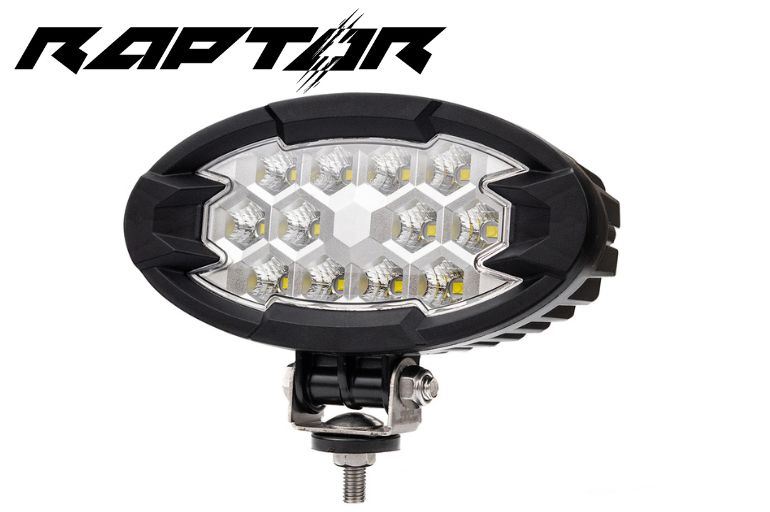

The LRD 3160 is a modern LED work lamp designed for intensive use in demanding off-road and industrial environments. Its oval design, combined with a precision-engineered reflector, delivers uniform, diffused light that illuminates the work area effectively without causing glare – even in complete darkness.

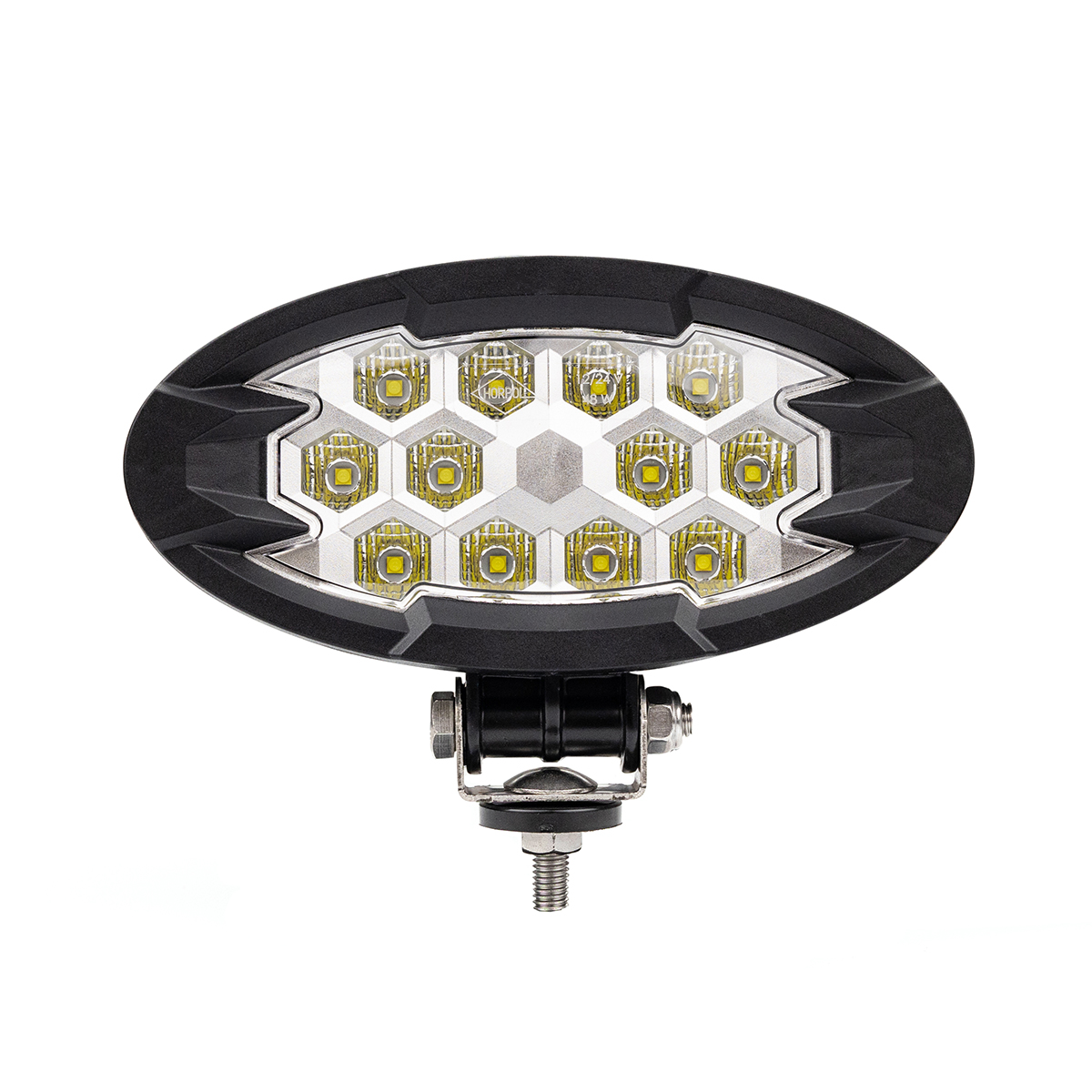

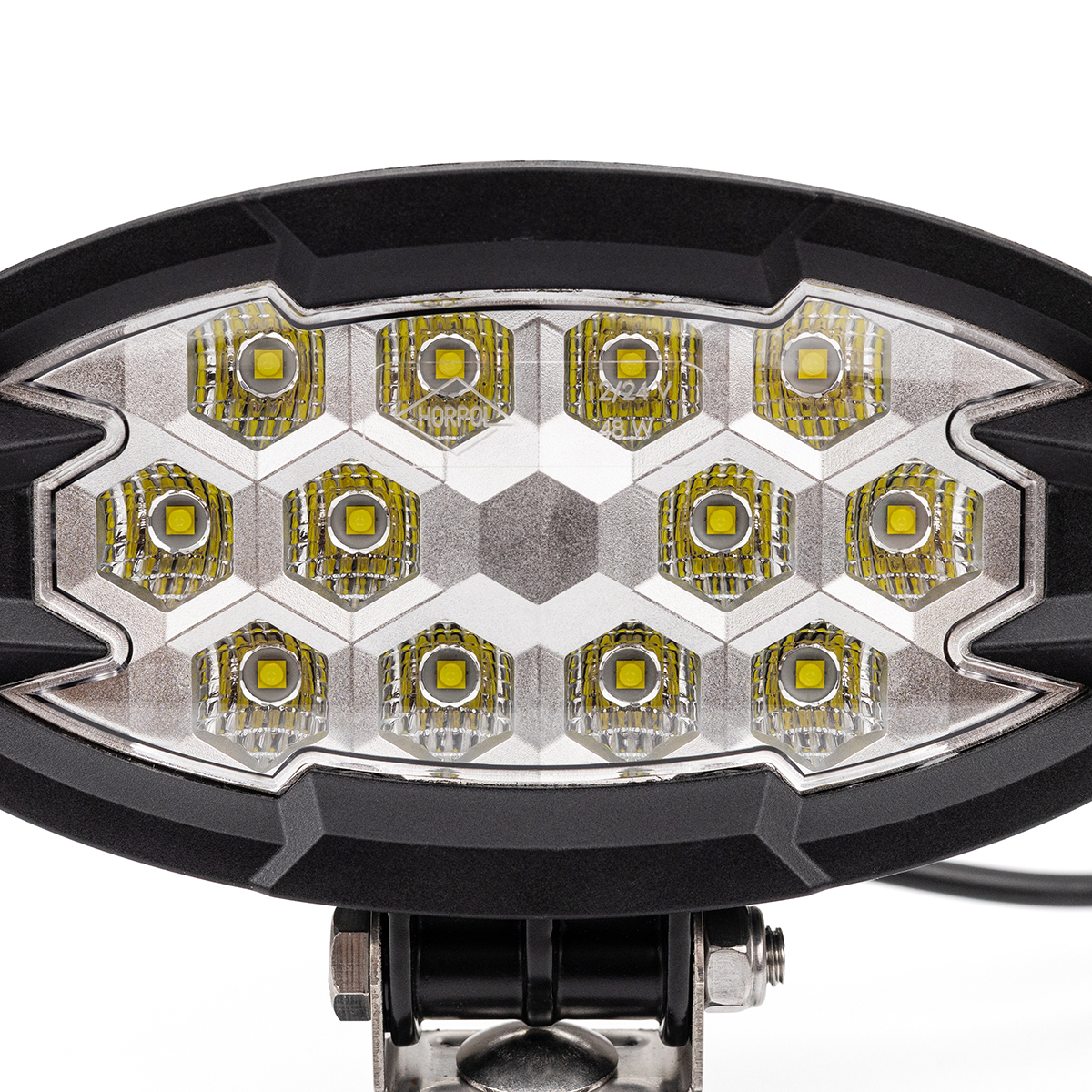

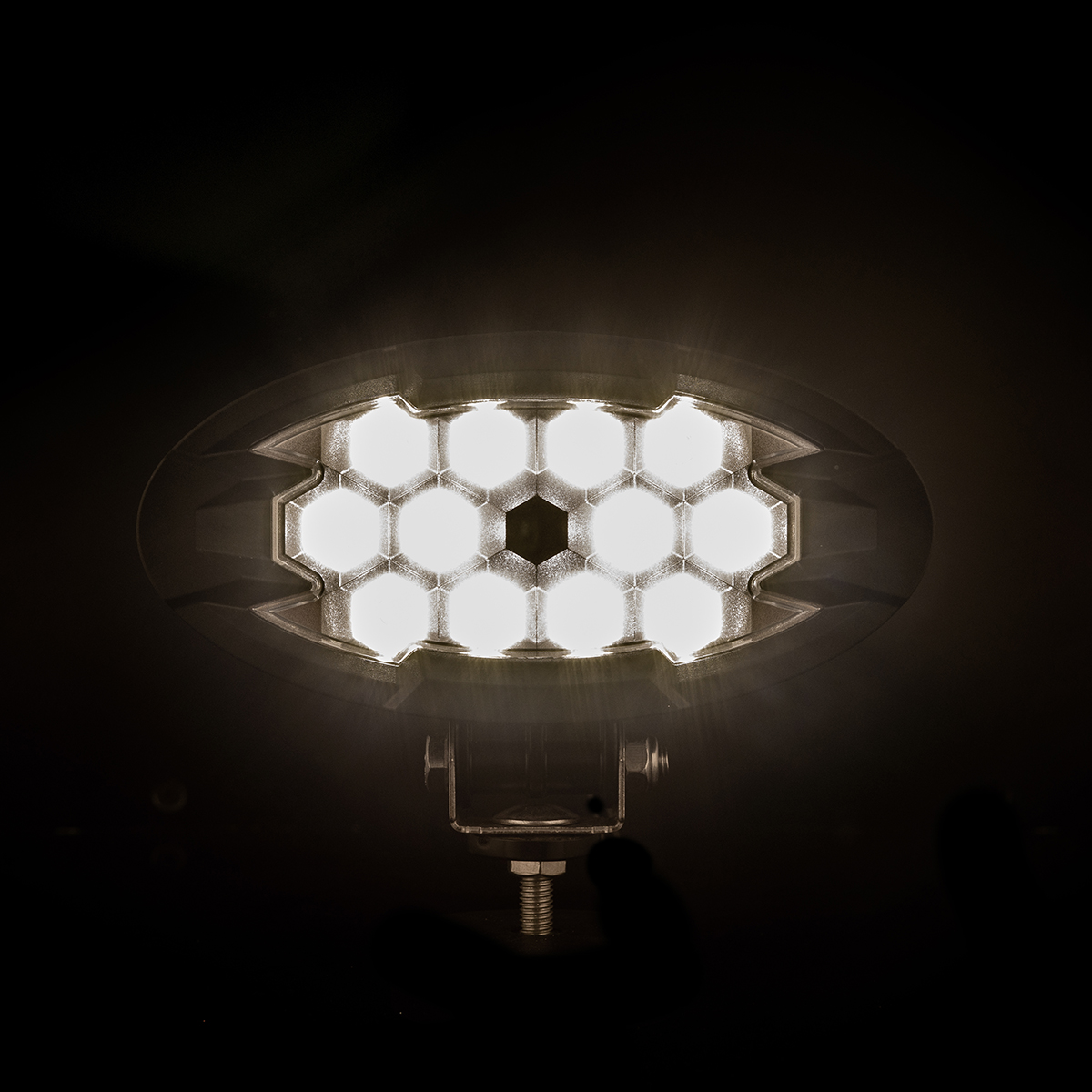

Equipped with 12 high-performance LEDs, the lamp produces an impressive light output of 5500 lumens, emitting a cool white light at 6500 K – closely resembling natural daylight. This enhances visibility, work comfort, and safety for machine operators, regardless of the time of day or weather conditions.

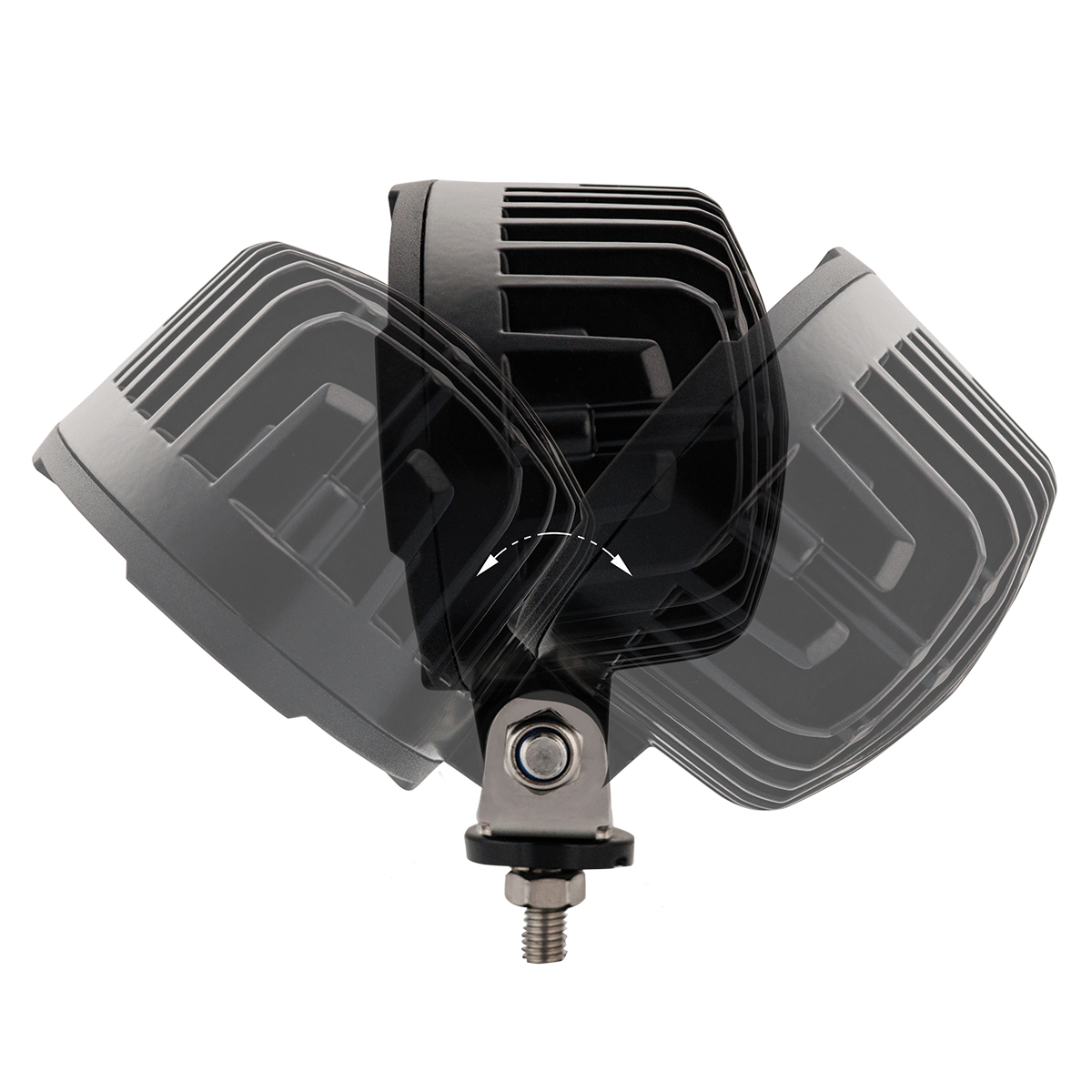

Designed with versatility in mind, the RAPTOR can be mounted on either side of a vehicle and is compatible with both 12 V and 24 V electrical systems, making it suitable for a wide range of applications. Additionally, its adjustable bracket allows users to precisely direct the beam exactly where it’s needed.

Description

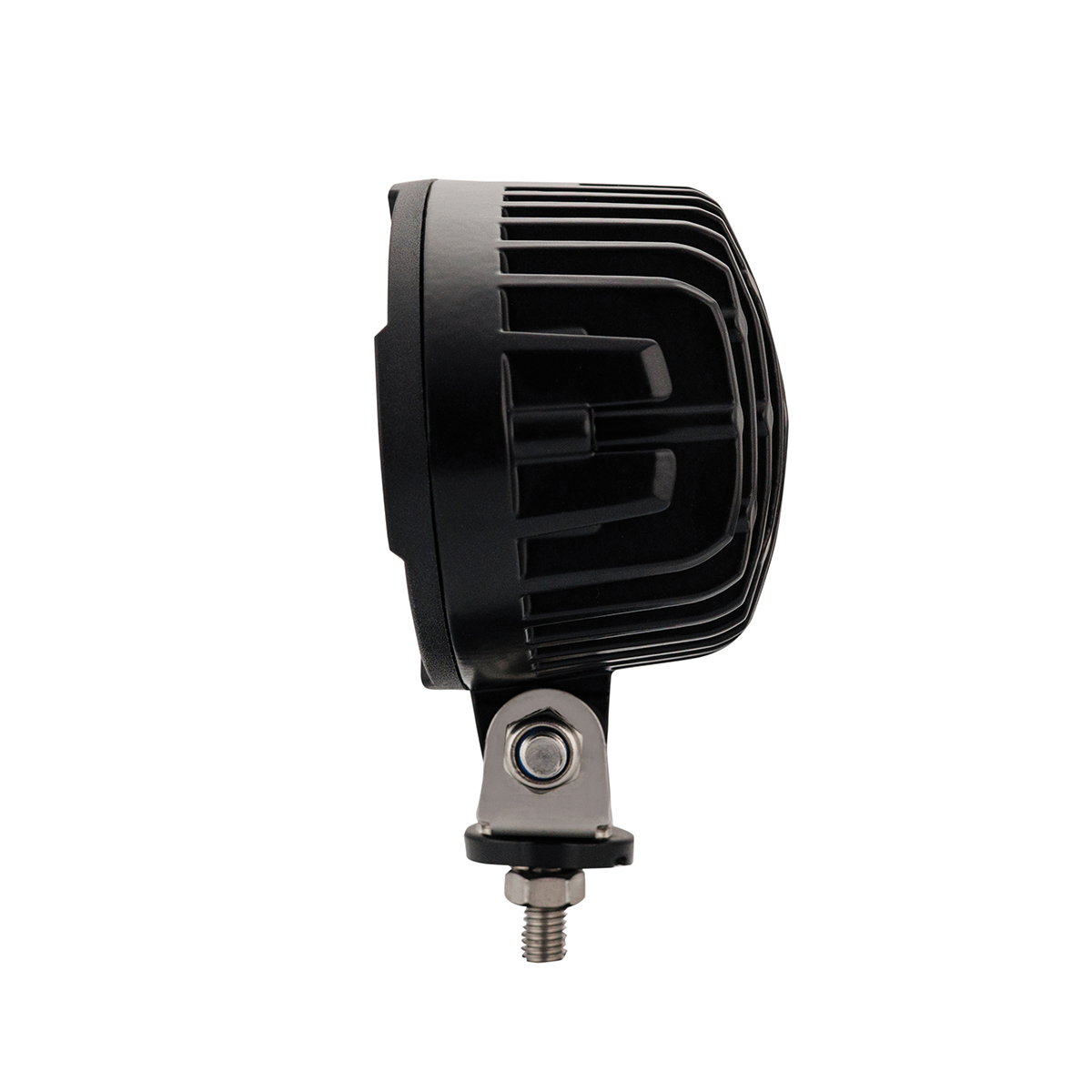

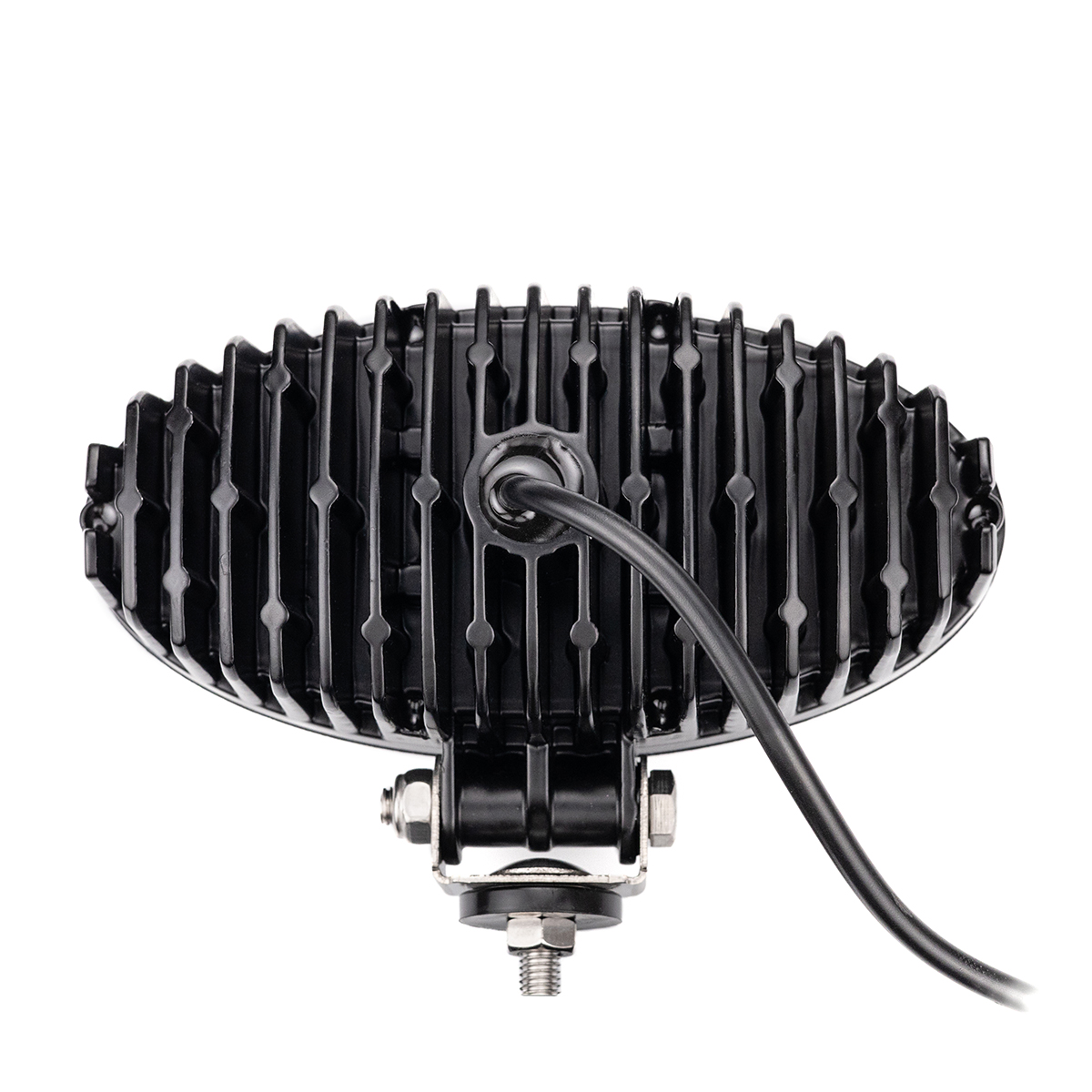

The lamp’s robust housing protects against mechanical damage, while the rear-mounted aluminum heat sink ensures efficient heat dissipation. Fully sealed (IP 68-rated), the lamp is resistant to moisture and dust and operates reliably in extreme temperatures ranging from -30°C to +50°C. R10 approval confirms compliance with electromagnetic standards, ensuring it doesn’t interfere with other onboard electronics (e.g., radios).

Applications:
– agricultural and construction machinery;
– trailers and semi-trailers;
– trucks and transport vehicles;
– tow trucks and roadside assistance vehicles;
– specialized and service vehicles.

The LRD 3160 is more than just a light source – it’s a dependable partner in everyday work, where precision, safety, and durability are essential.

Technical data

Dispersed light
yes
Light group
HOR 150
LED quantity
12
Light category
working light
Supply voltage
12/24 V
Light colour
white
Power rating
48 W
Operating temperature range
from -30°C to +50°C
Cable
2×0,75 mm2; cable length 1,5 m
Connection method
screw-on
Side
universal
Colour temperature
6500 K
Luminous flux
5500 lm
LED light
yes
Ingress protection rating
IP 68

Download

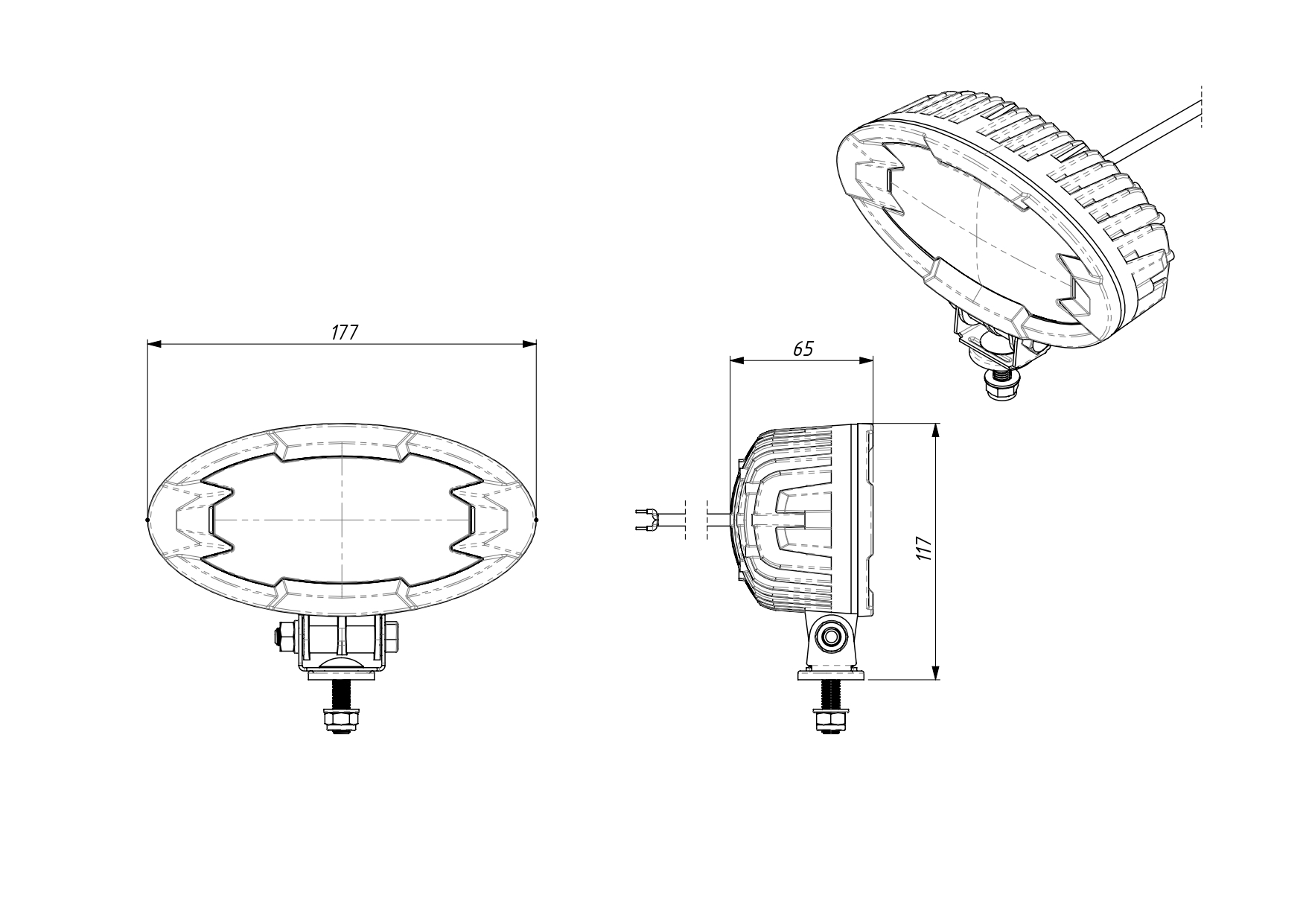

Work light HOR 150 (technical drawing) (work-light-hor-150-technical-drawing.ZIP)
