LRD 3180
Work light RAPTOR

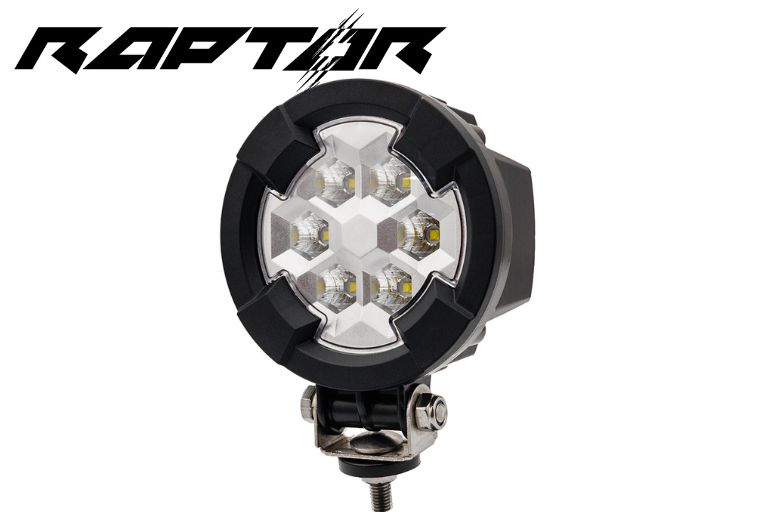

RAPTOR LRD 3180 work lamp – reliable lighting in any conditions.

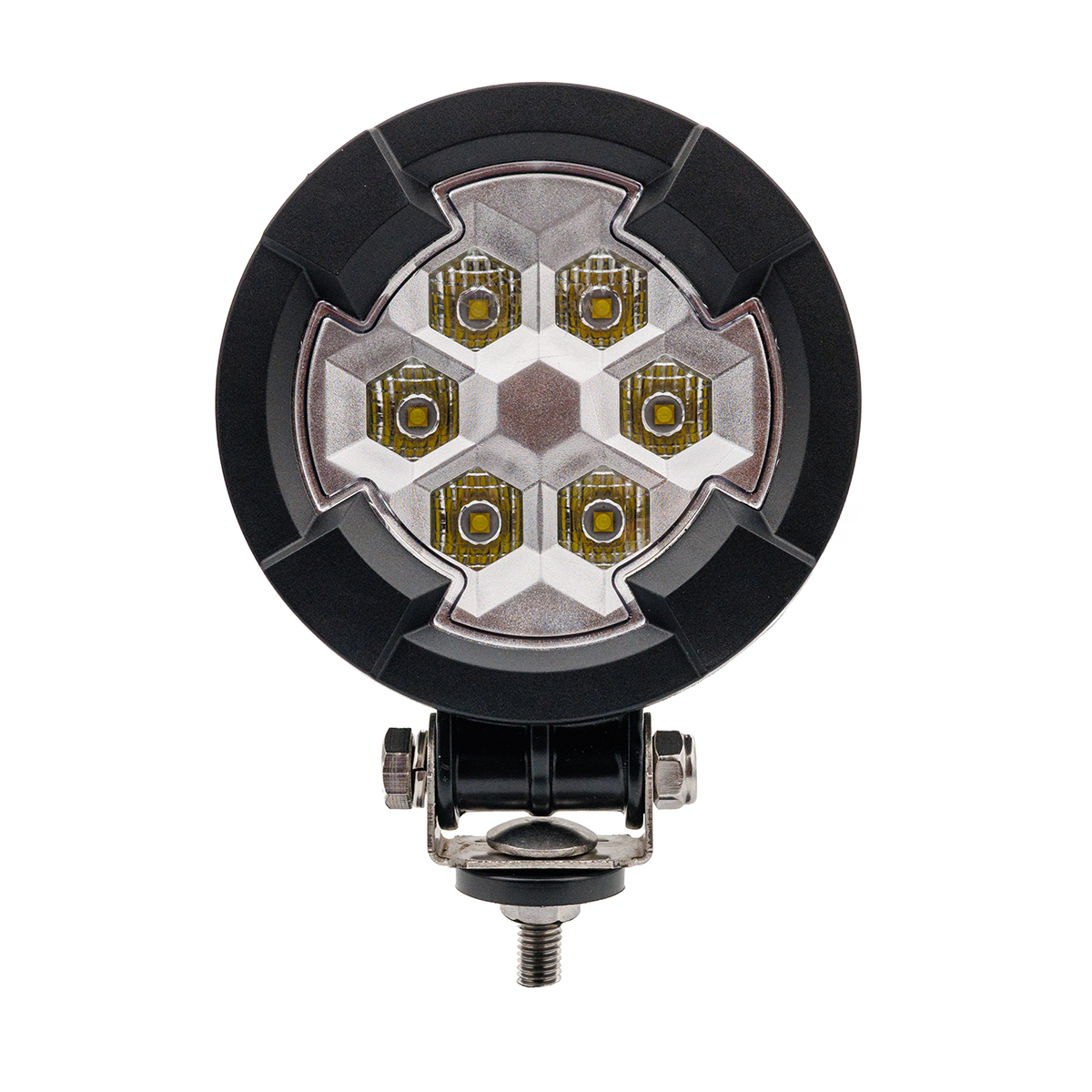

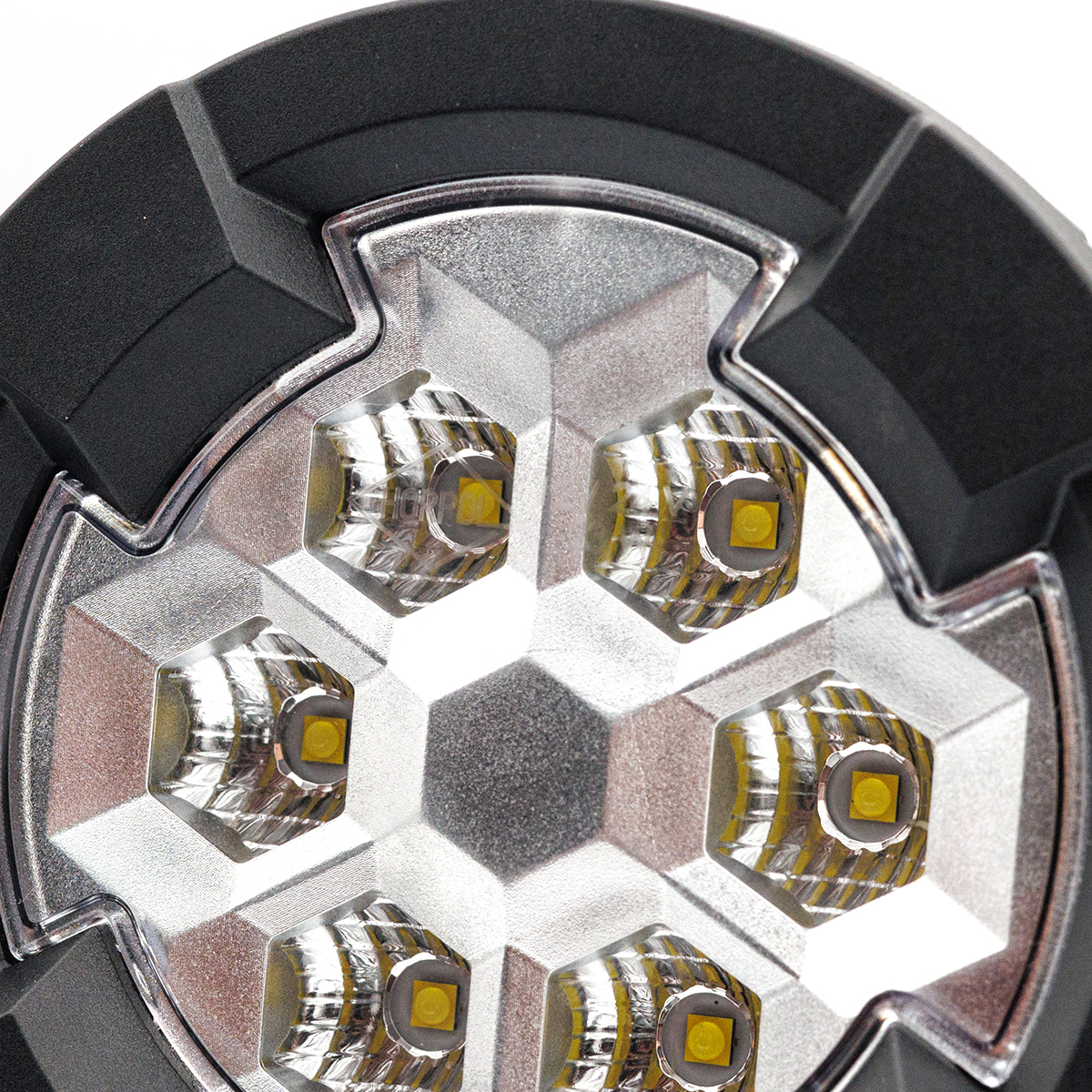

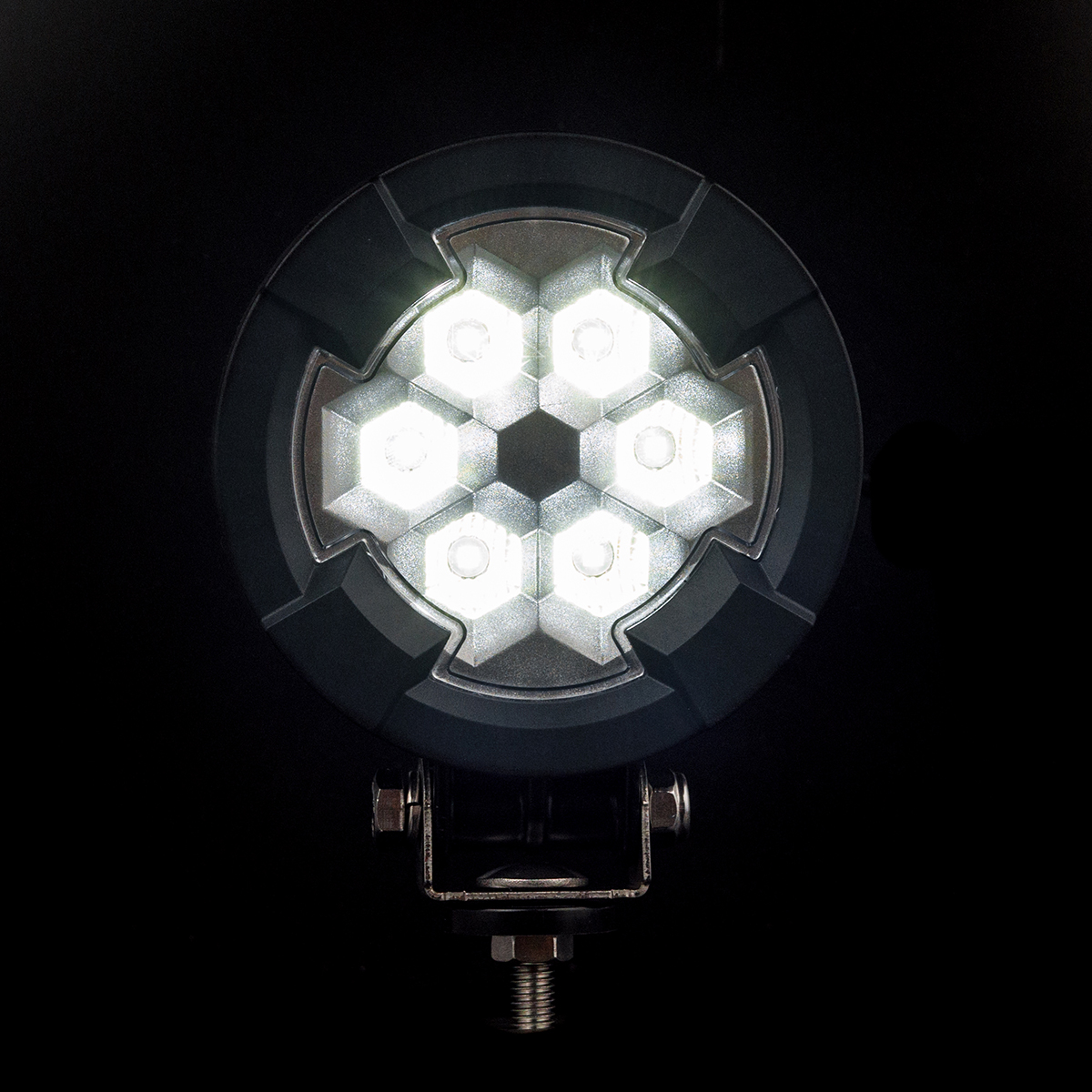

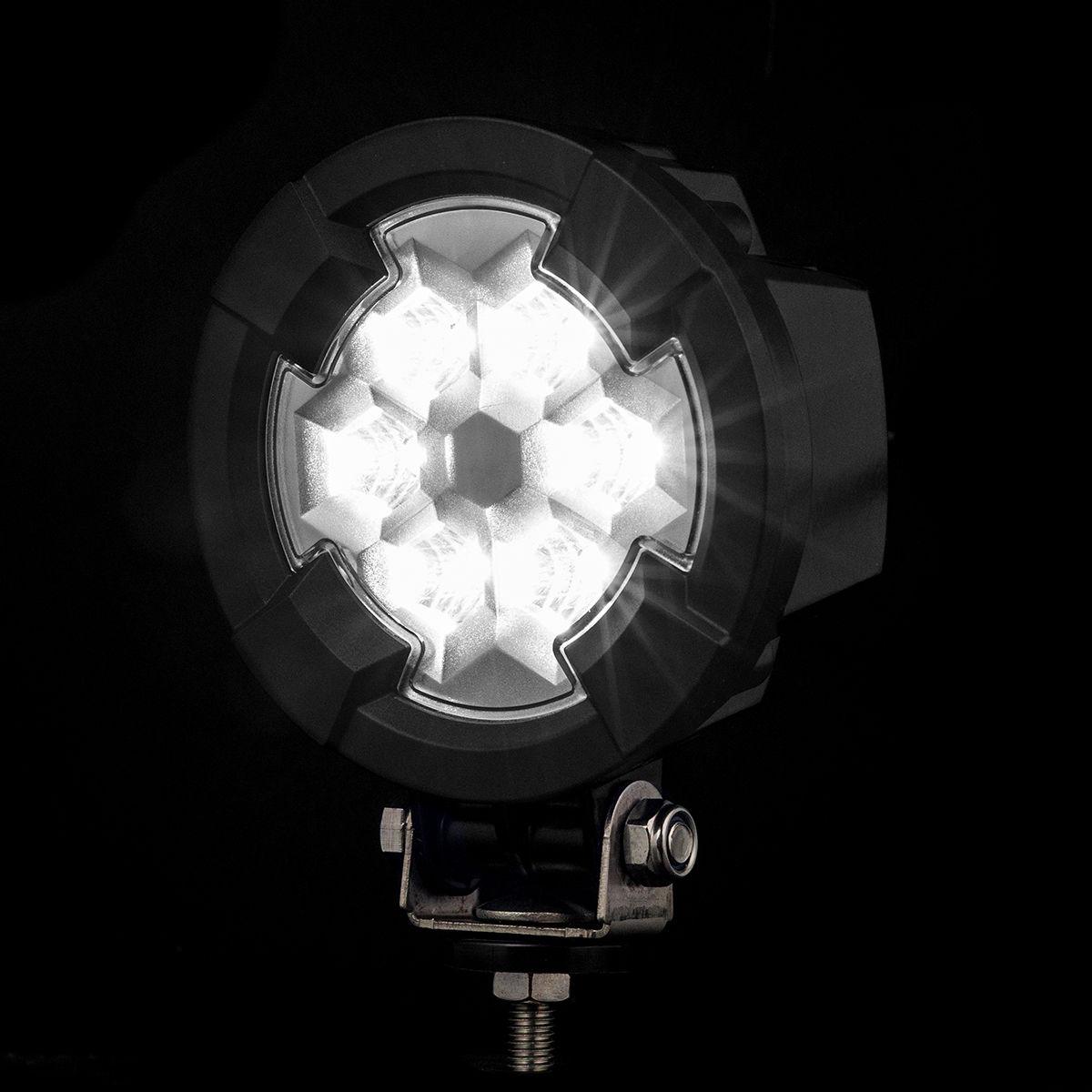

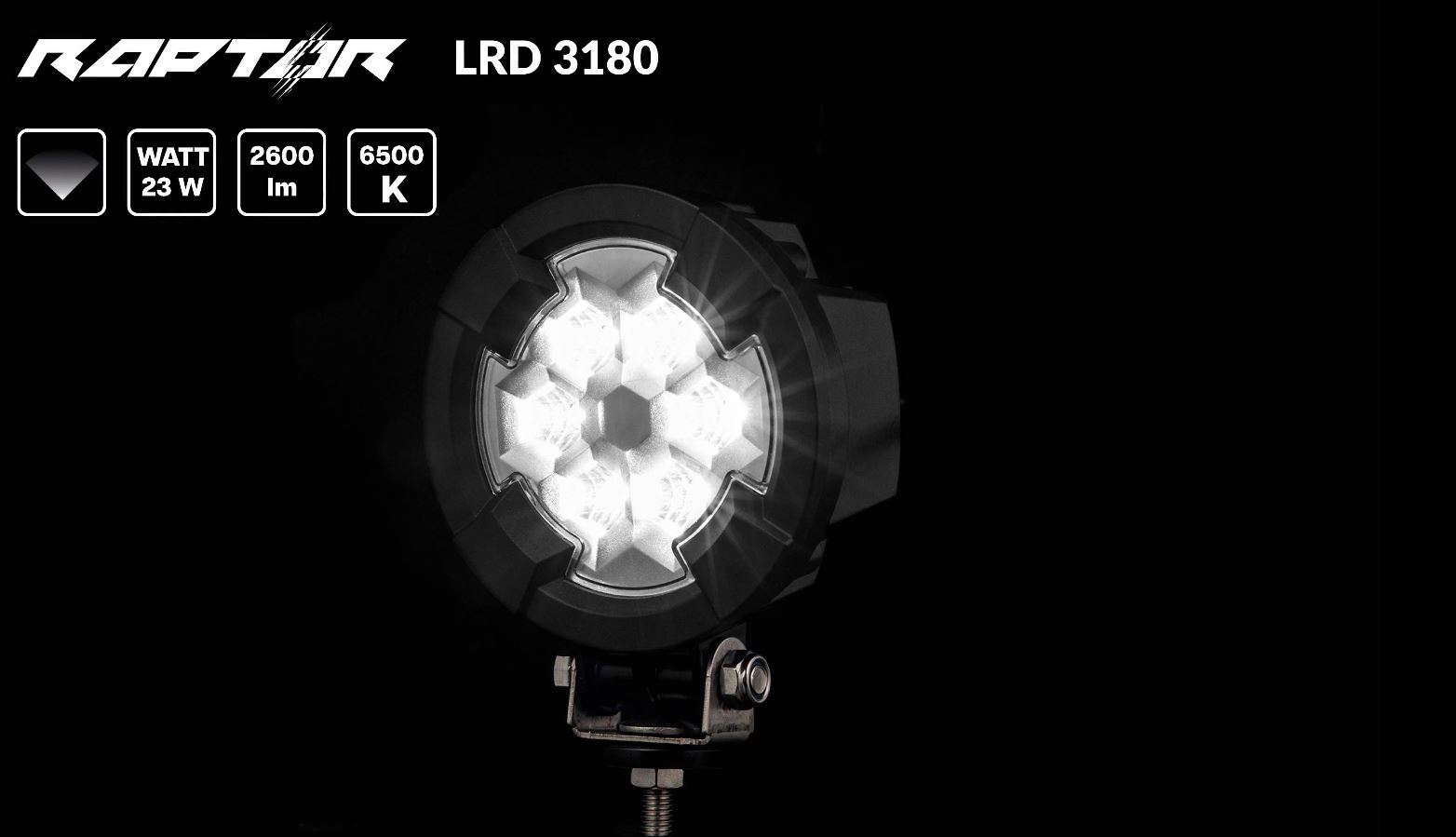

The RAPTOR LRD 3180 round work lamp is a modern, high-performance light source designed for intensive fieldwork and harsh weather conditions. Equipped with 6 LEDs with a total power of 23 W, it provides a luminous flux of 2600 lm and a light color of 6500 K, ensuring excellent visibility and comfortable work after dark.

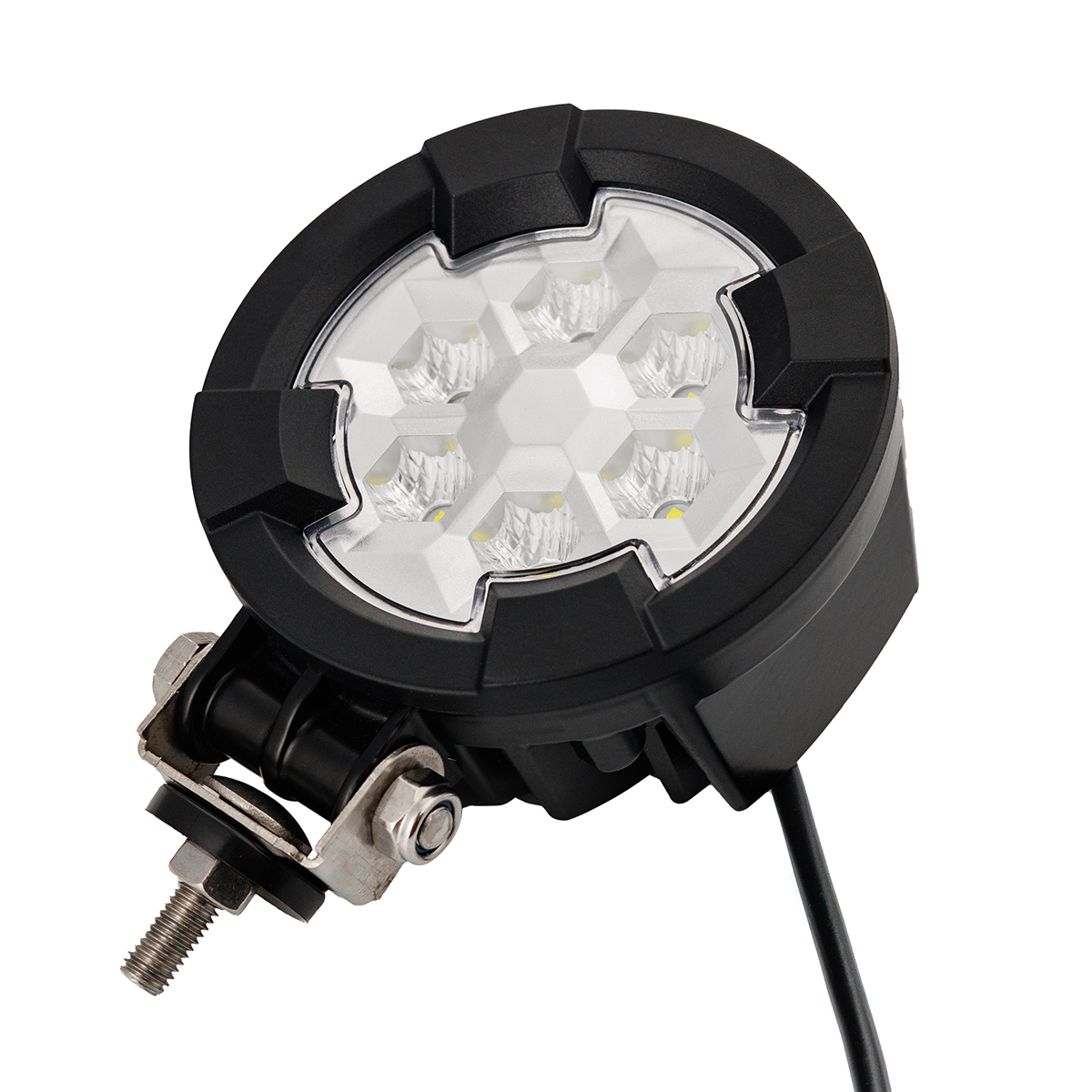

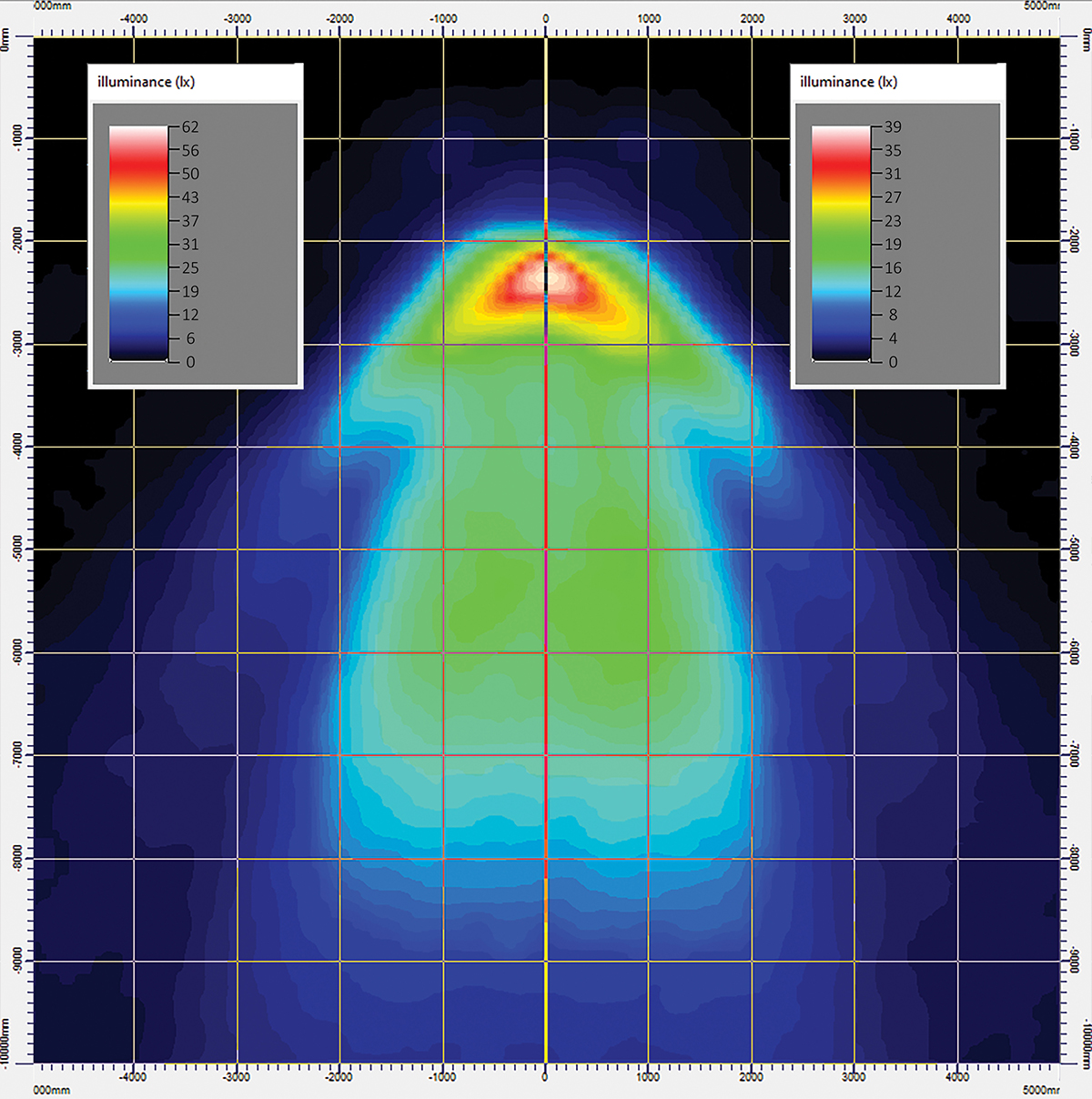

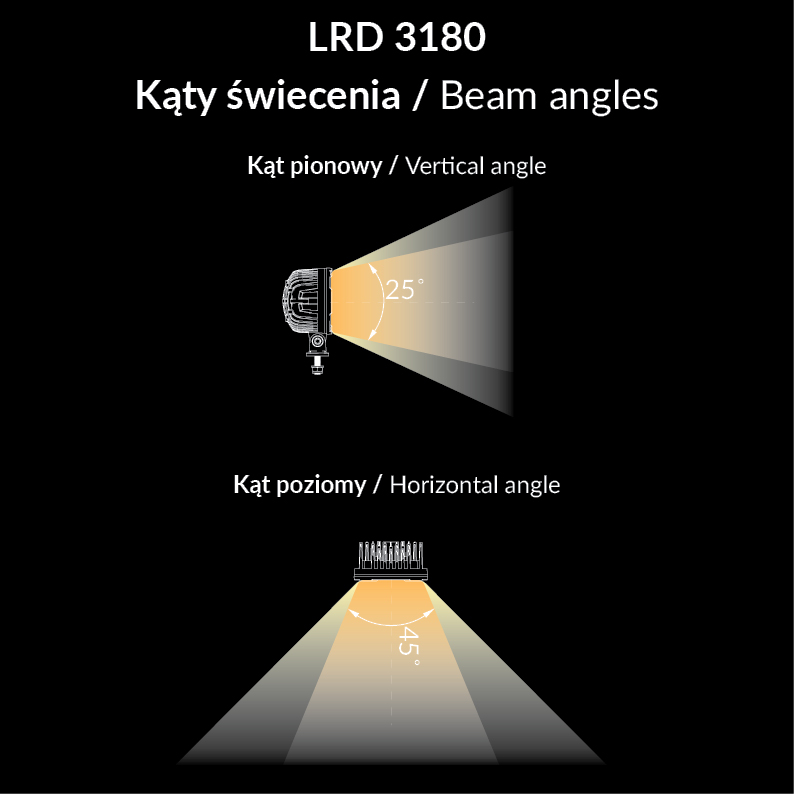

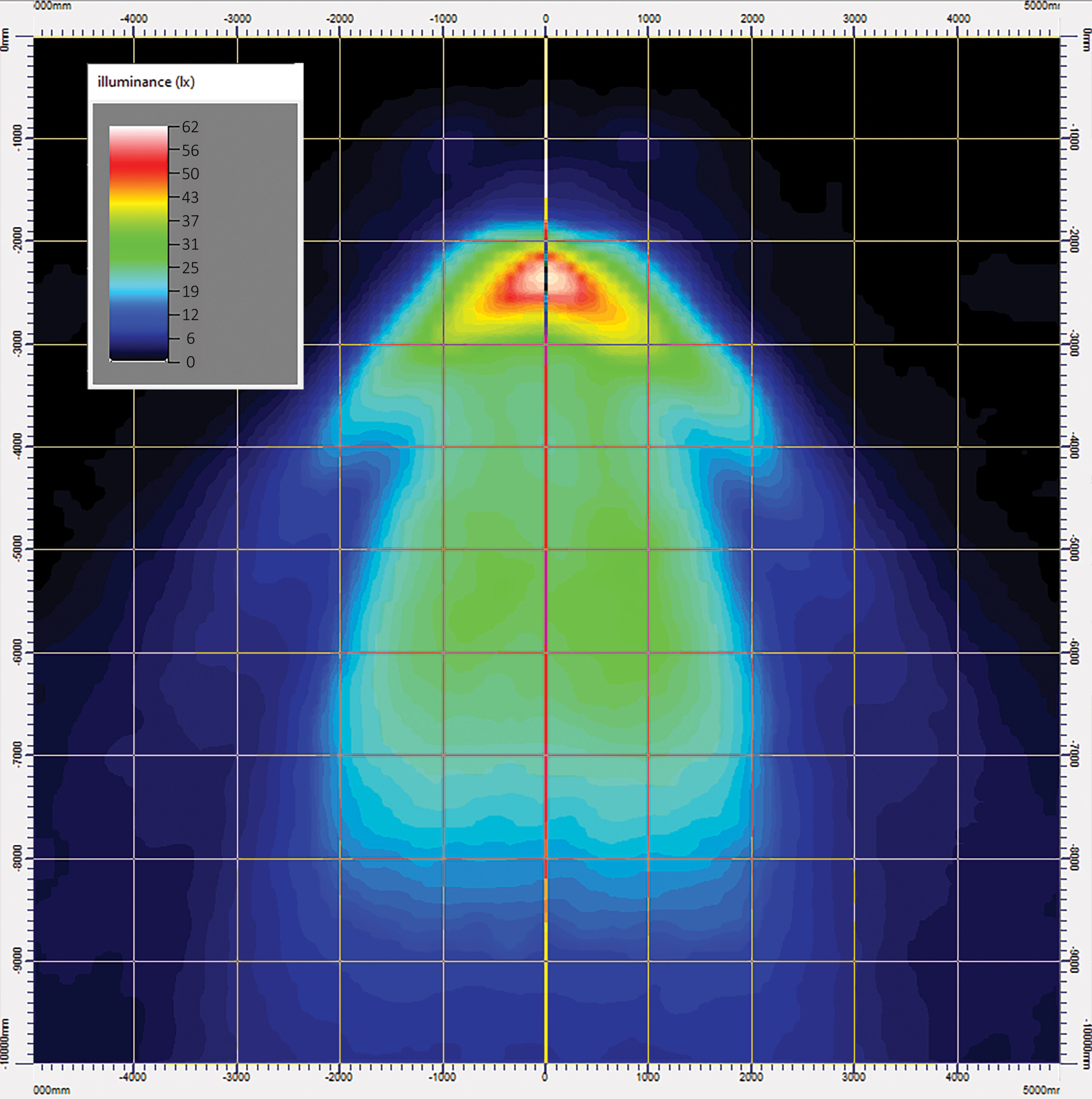

Thanks to its diffused light beam, the lamp evenly illuminates the workspace, and the tiltable stand allows precise adjustment of the angle, directing light exactly where it is needed.

Description

The robust lamp housing effectively protects against mechanical damage, while the aluminum heat sink at the back ensures efficient heat dissipation. The lamp is fully sealed (IP 68 rating), guaranteeing resistance to moisture and dust, and reliable operation in extreme temperatures – from -30°C to +50°C. R10 certification confirms compliance with electromagnetic standards, meaning it will not interfere with other electronic devices in the vehicle (e.g., radio).

Applications:
– agricultural and construction machinery;
– trailers and semi-trailers;
– trucks and transport vehicles;
– tow trucks and roadside assistance vehicles;
– specialized and service vehicles.

Technical data

Dispersed light
yes
Light group
HOR 156
LED quantity
6
Light category
working light
Supply voltage
12/24 V
Light colour
white
Power rating
23 W
Operating temperature range
from -30°C to +50°C
Cable
2×0,75 mm2; cable length 1,5 m
Side
universal
Colour temperature
6500 K
Luminous flux
2600 lm
LED light
yes
Ingress protection rating
IP 68

Download

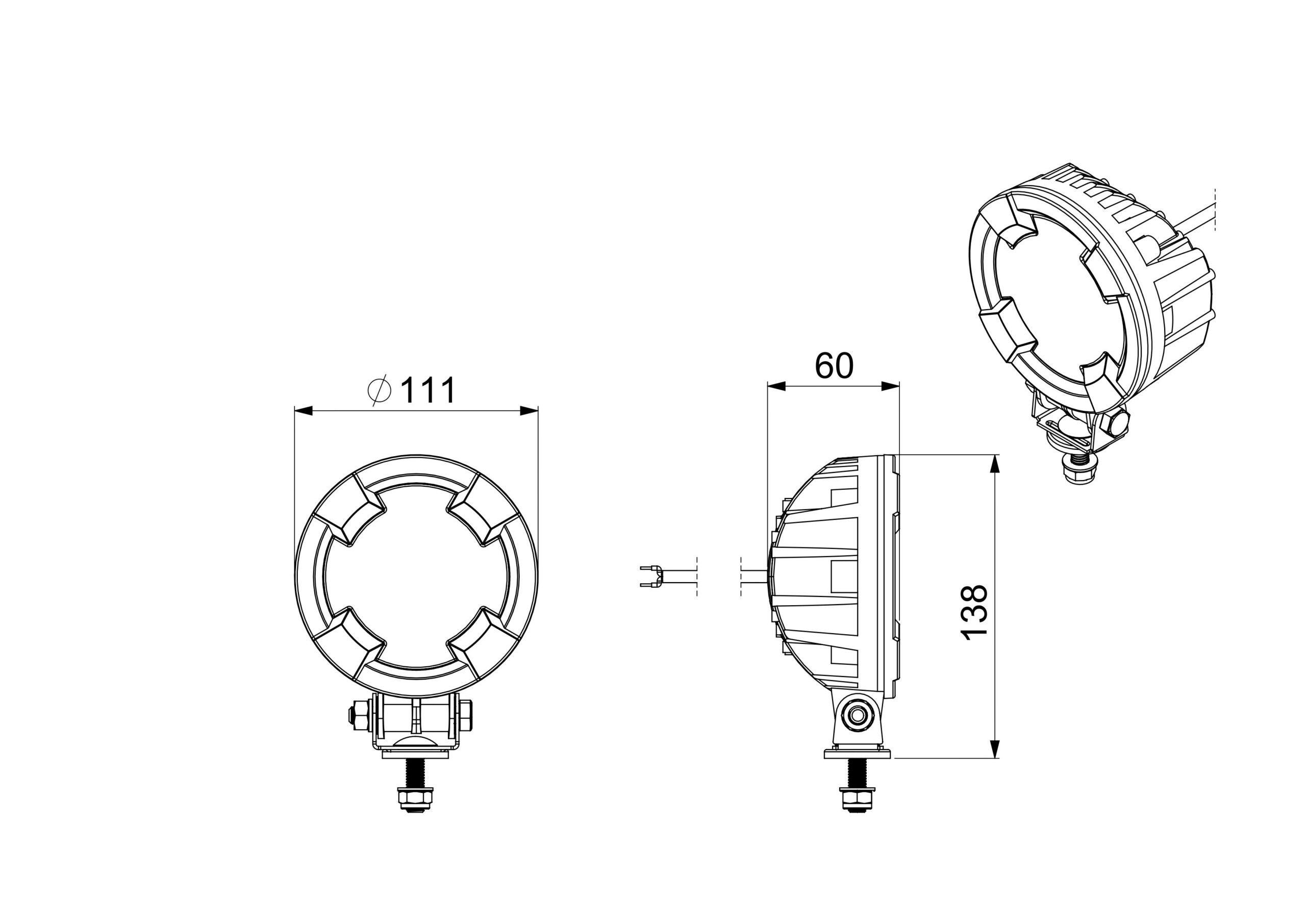

Work light HOR 156 (technical drawings) (work-light-hor-156-technical-drawings.ZIP)
Download
Page content (lrd-3180.ZIP)
Download
