LRD 3181
Work light RAPTOR

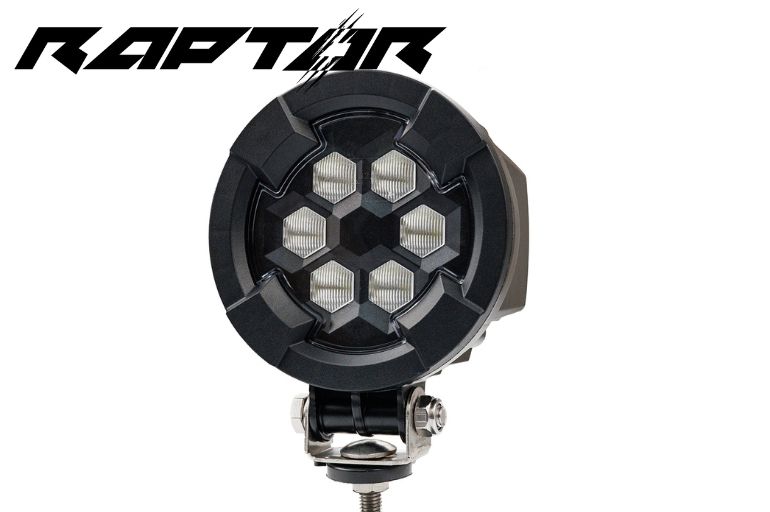

RAPTOR LRD 3181 work lamp – powerful illumination for demanding tasks.

Designed for challenging environments, the RAPTOR LRD 3181 delivers high efficiency and durability in all conditions. Equipped with 6 LED diodes with a total power of 18 W, it delivers a luminous flux of 1600 lm at 6500 K, providing bright and clear lighting that makes work after dark much easier.

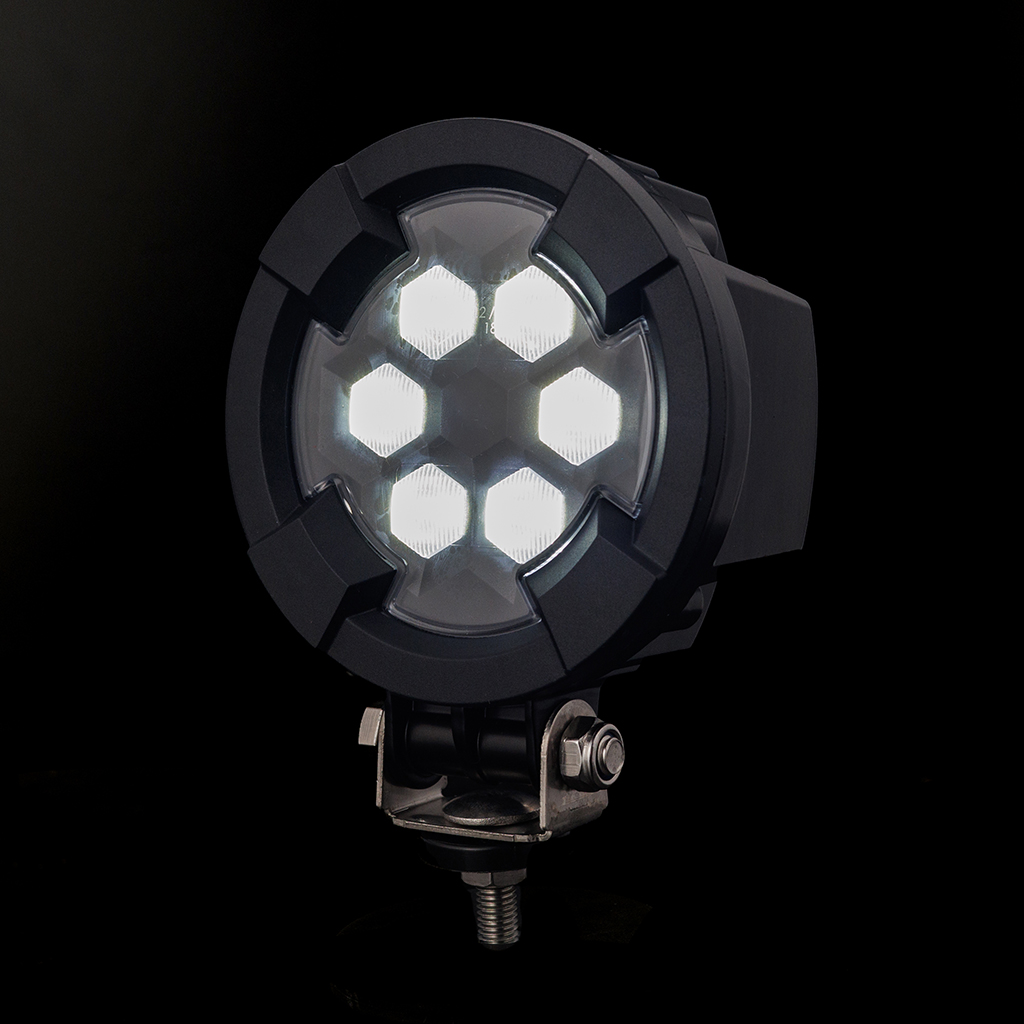

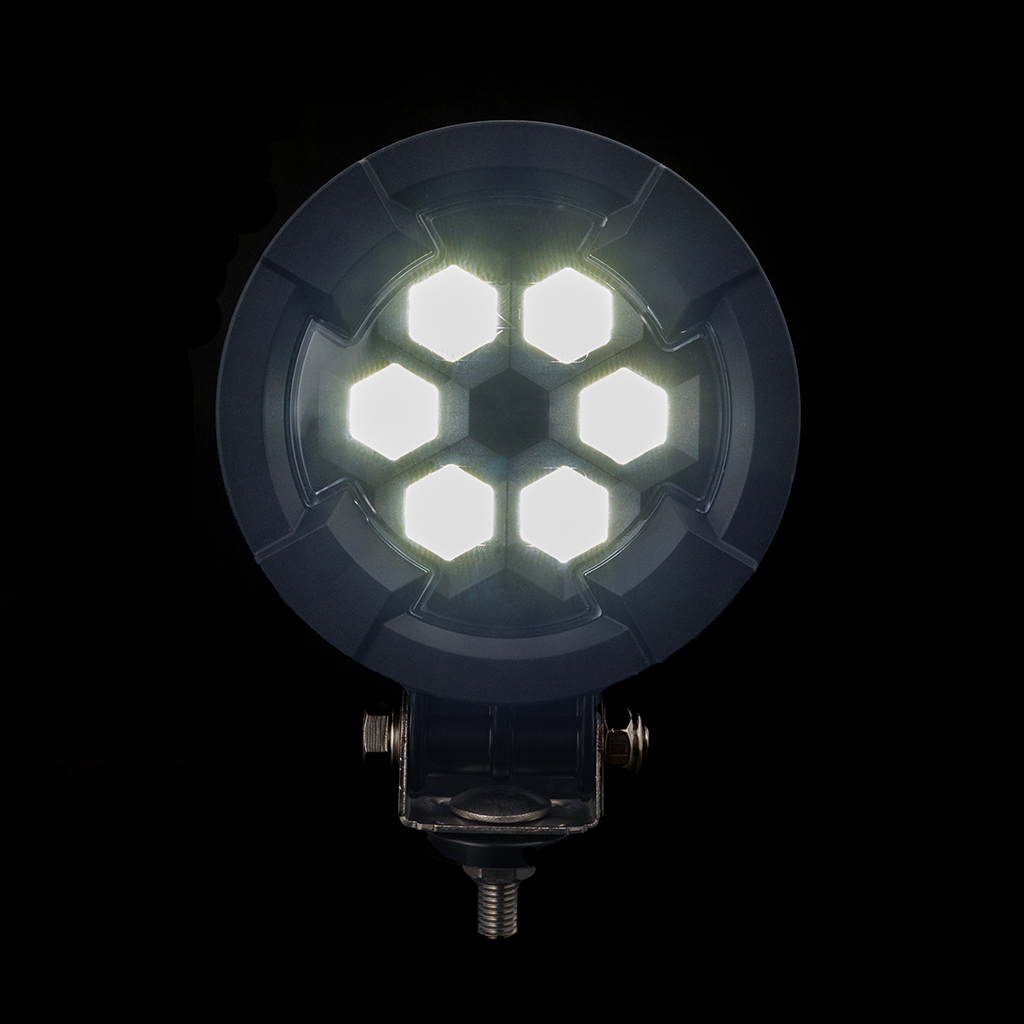

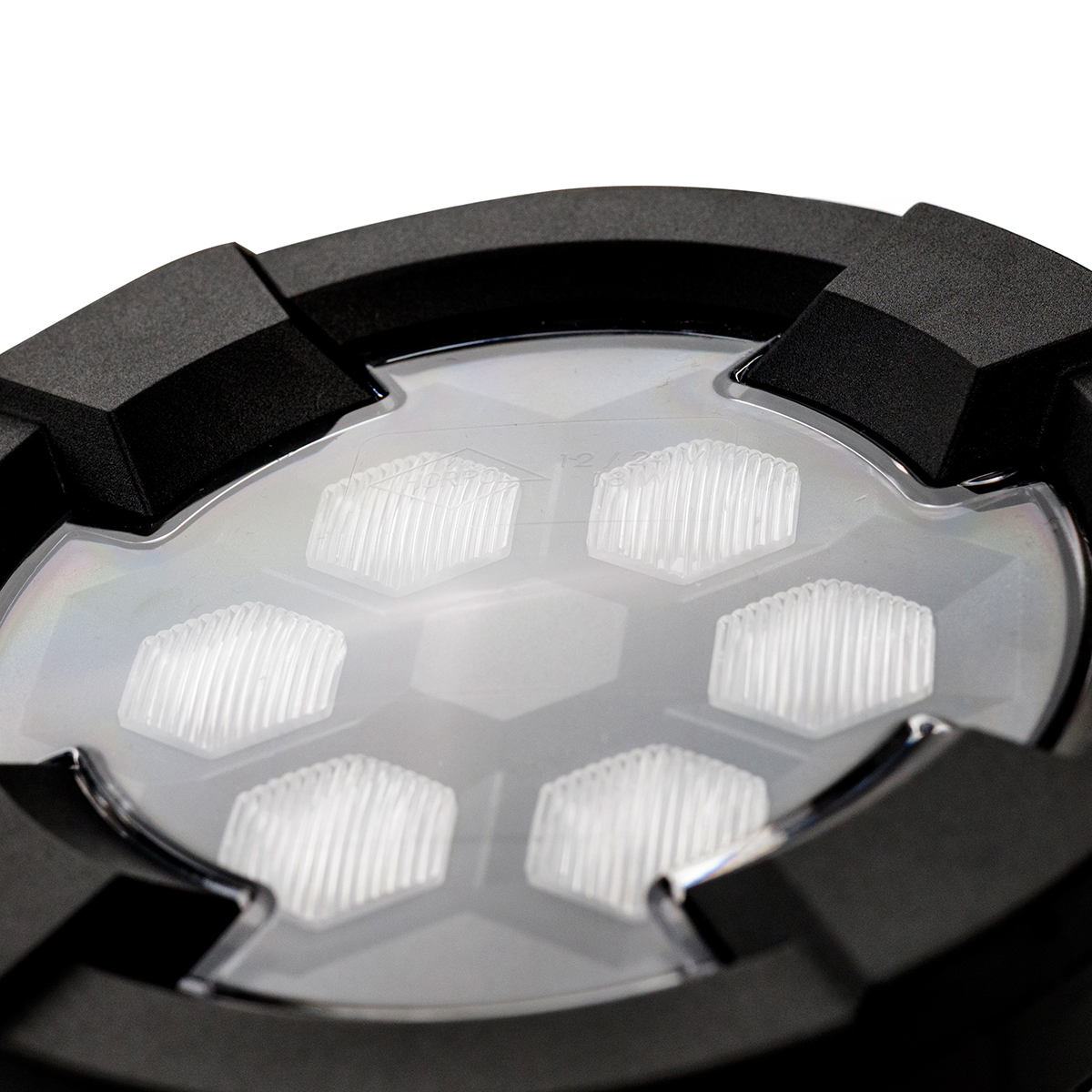

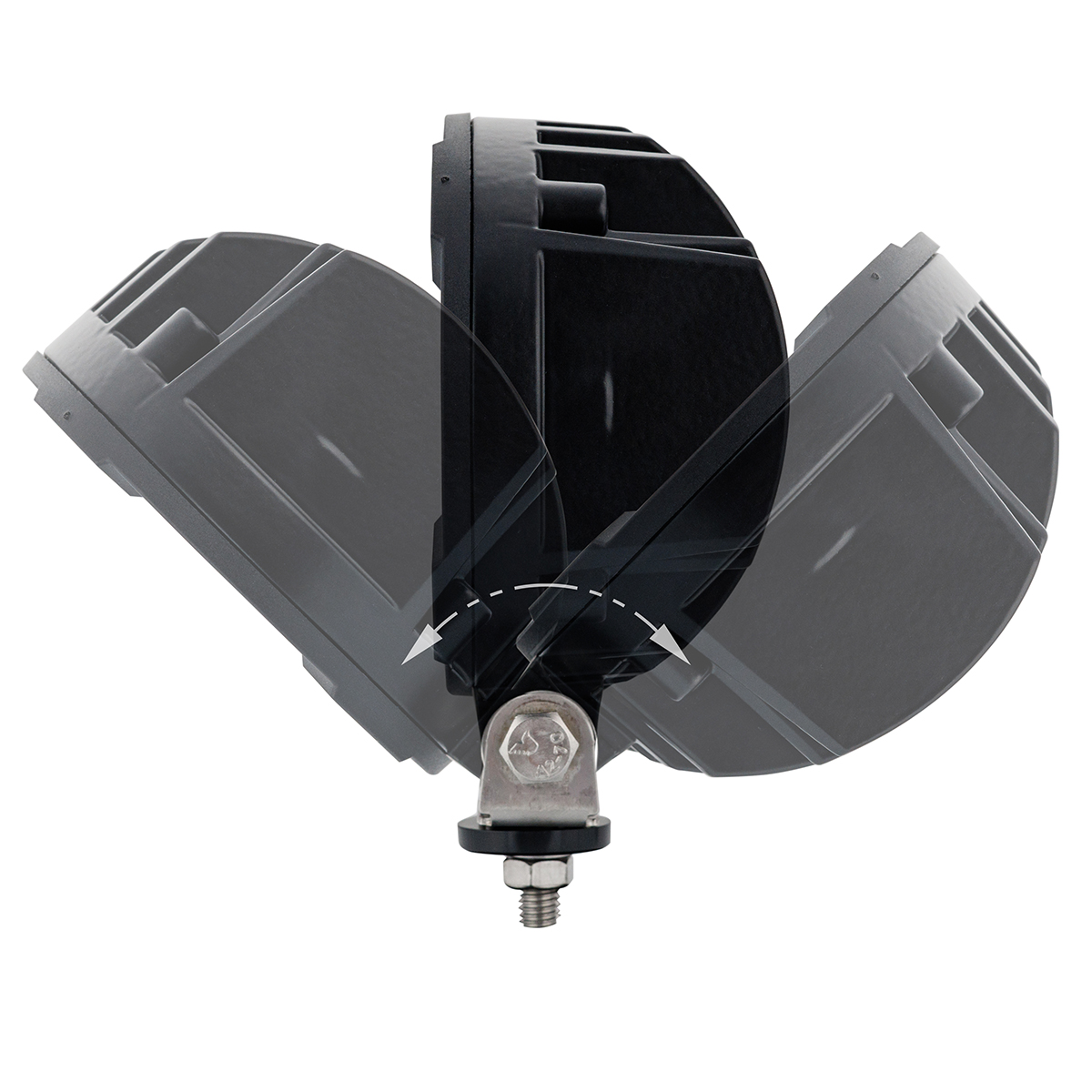

Its round design, fitted with a black grille, ensures even, diffused light that effectively illuminates the work area without causing glare – even in complete darkness. The tilting base allows adjustment of the lighting angle, so the beam can be directed exactly where it is needed.

Description

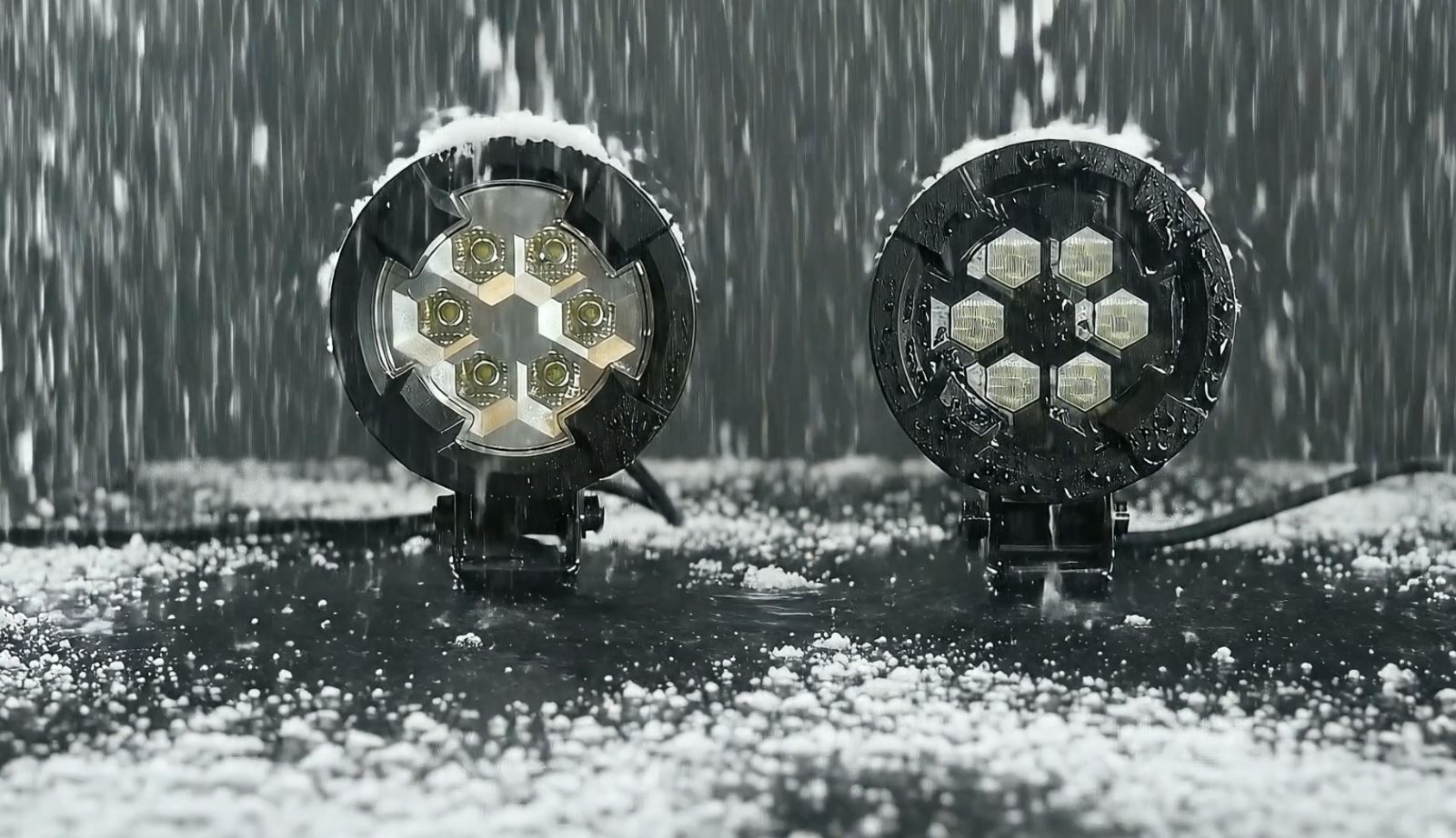

The lamp’s robust housing provides effective protection against mechanical damage, while the aluminum heat sink on the back ensures efficient heat dissipation. The lamp is fully sealed (IP 68 protection rating), guaranteeing resistance to moisture and dust, as well as reliable operation in extreme temperatures ranging from -30°C to +50°C. R10 approval confirms compliance with electromagnetic standards, meaning it does not interfere with other electronic devices in the vehicle (e.g., radio).

Applications:
– agricultural and construction equipment;
– trailers and semi-trailers;
– trucks and transport vehicles;
– tow trucks and roadside assistance vehicles;
– service and specialist vehicles.

Technical data

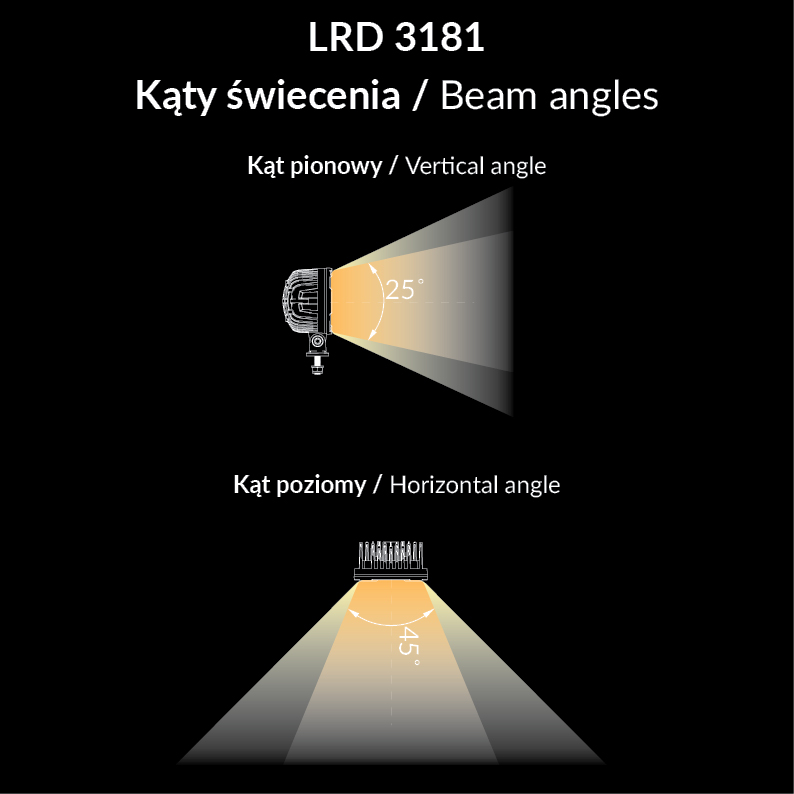

Dispersed light
yes
Light group
HOR 156
LED quantity
6
Light category
working light
Supply voltage
12/24 V
Light colour
white
Power rating
18 W
Operating temperature range
from -30°C to +50°C
Cable
2×0,75 mm2; cable length 1,5 m
Side
universal
Colour temperature
6500 K

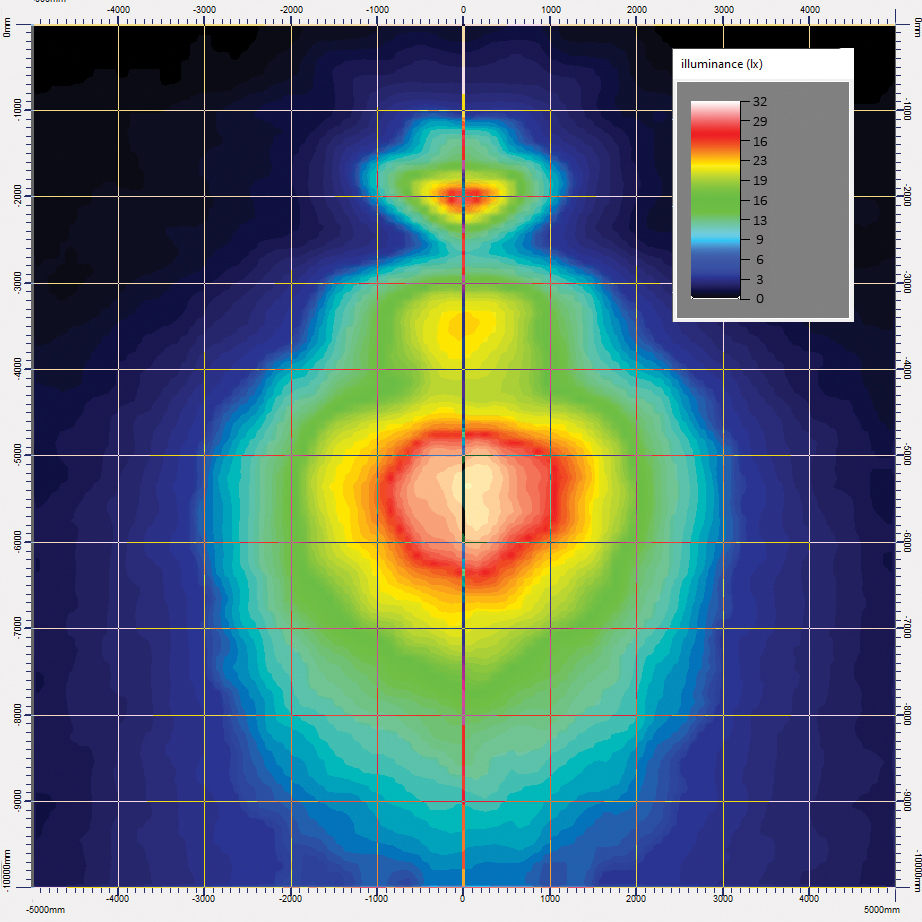

Luminous flux
1600 lm
LED light
yes
Ingress protection rating
IP 68

Download

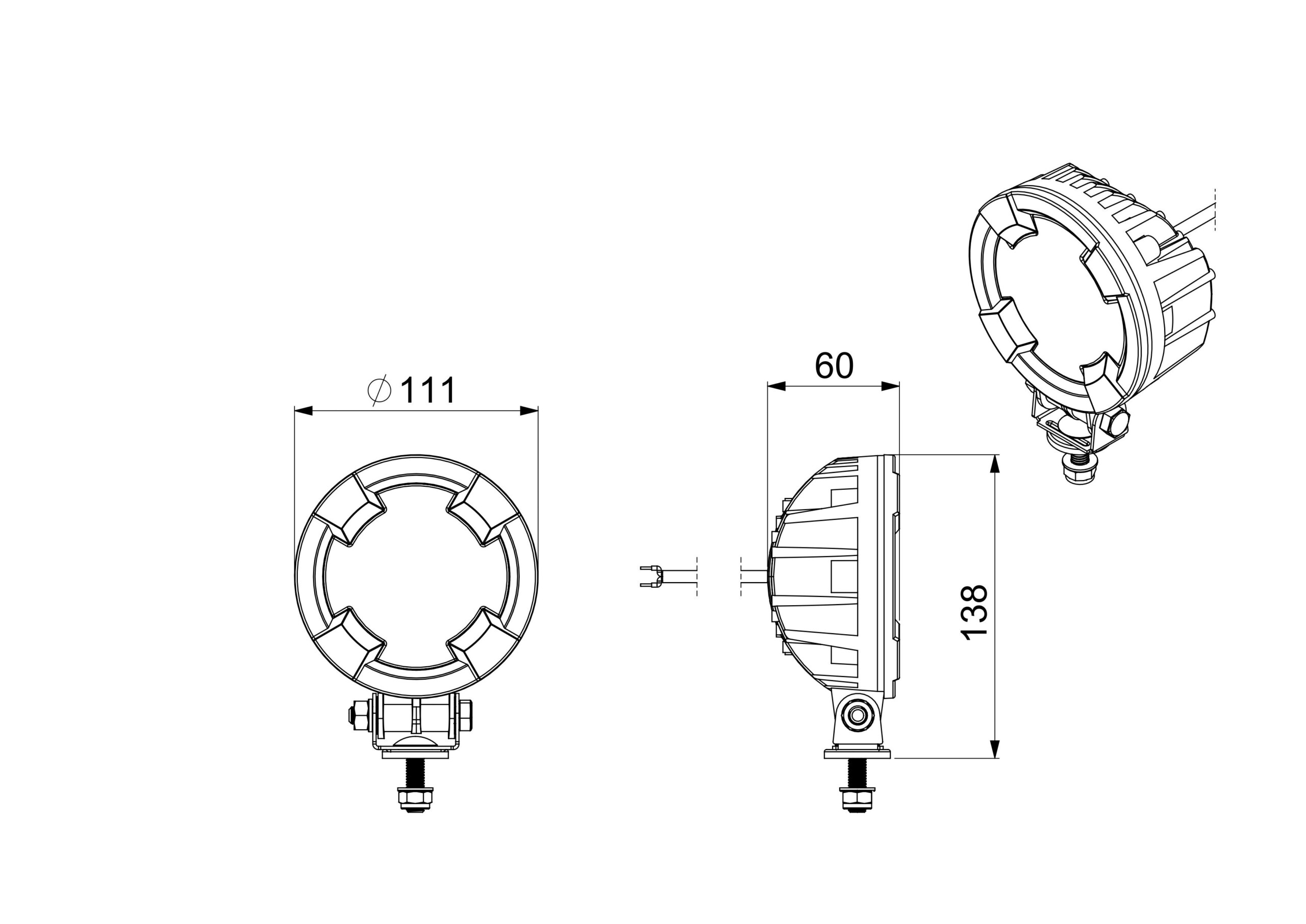

Work light HOR 156 (technical drawings) (work-light-hor-156-technical-drawings.ZIP)
Download
Page content (lrd-3181.ZIP)
