LRD 3182
Work light RAPTOR

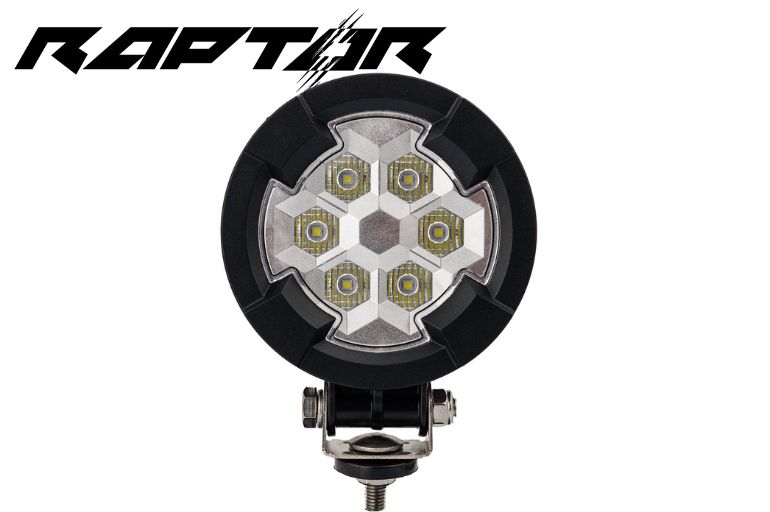

RAPTOR LRD 3182 – efficient lighting for work in all conditions.

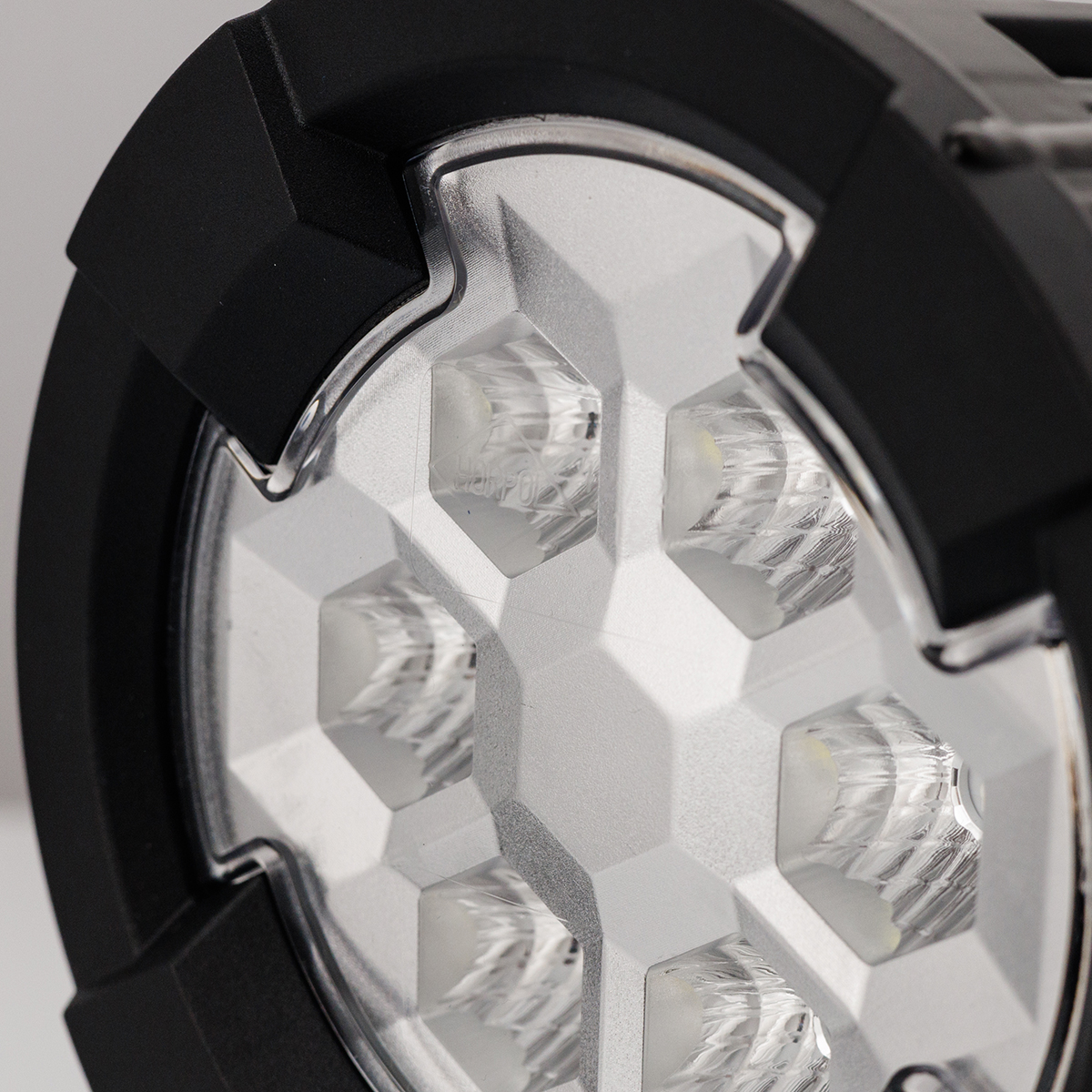

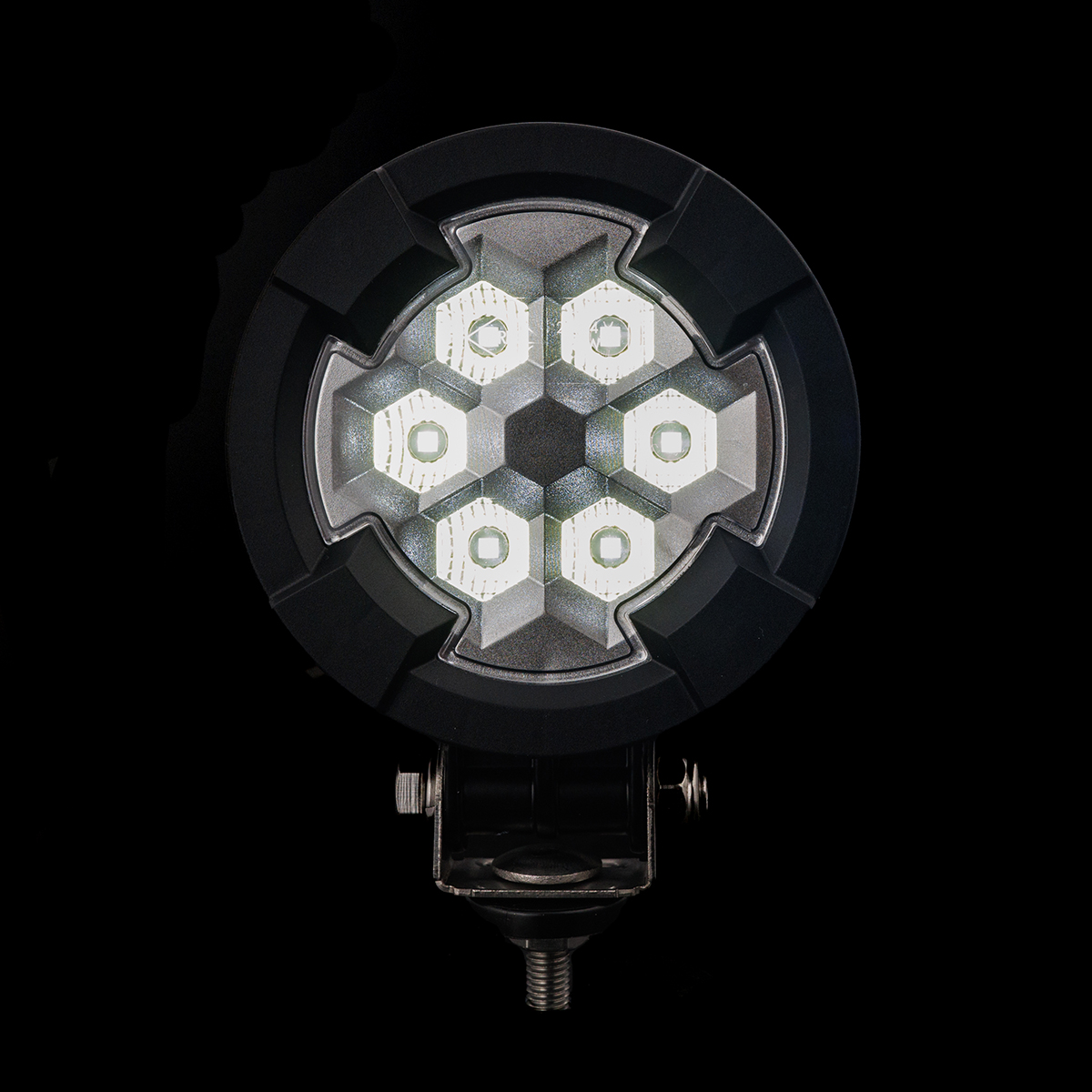

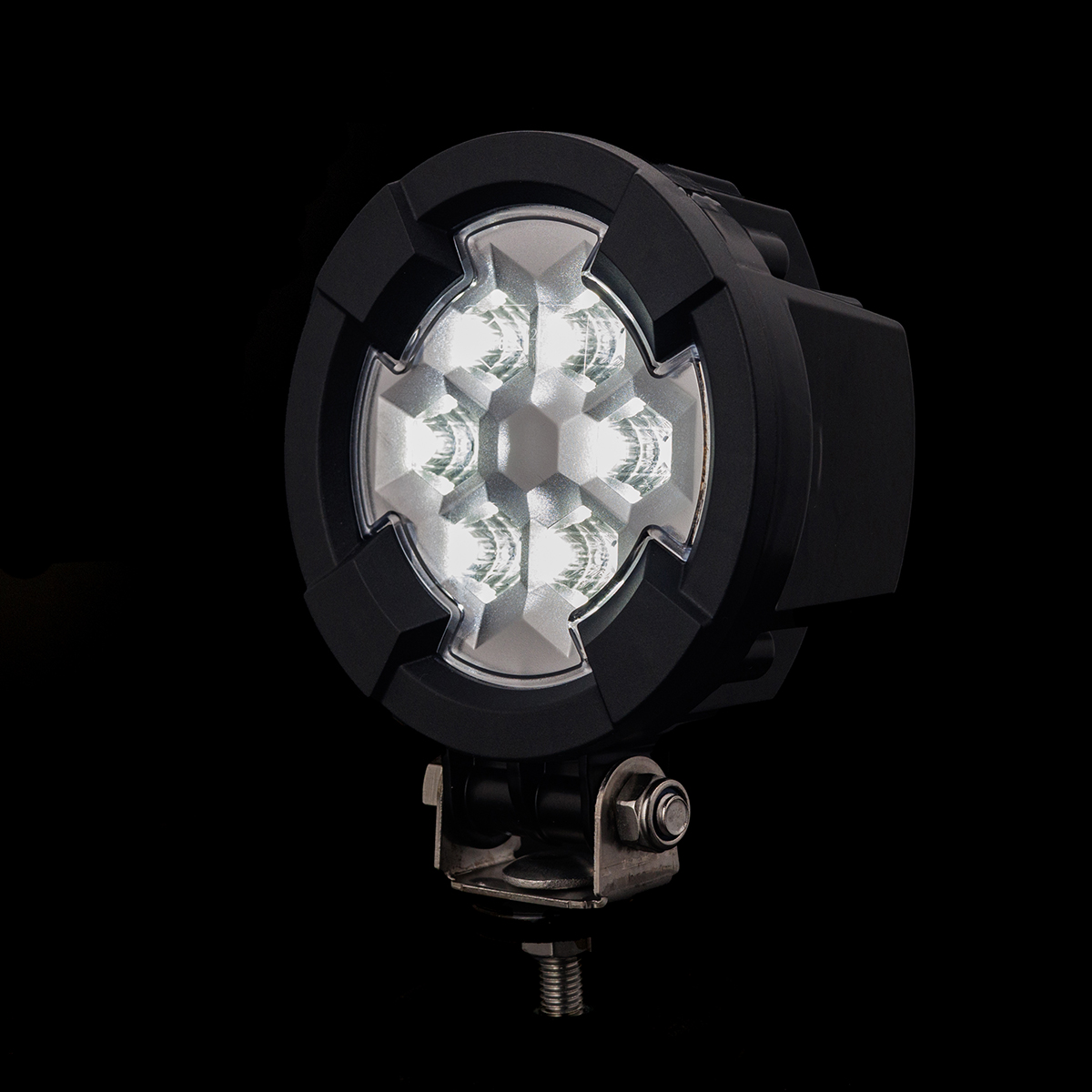

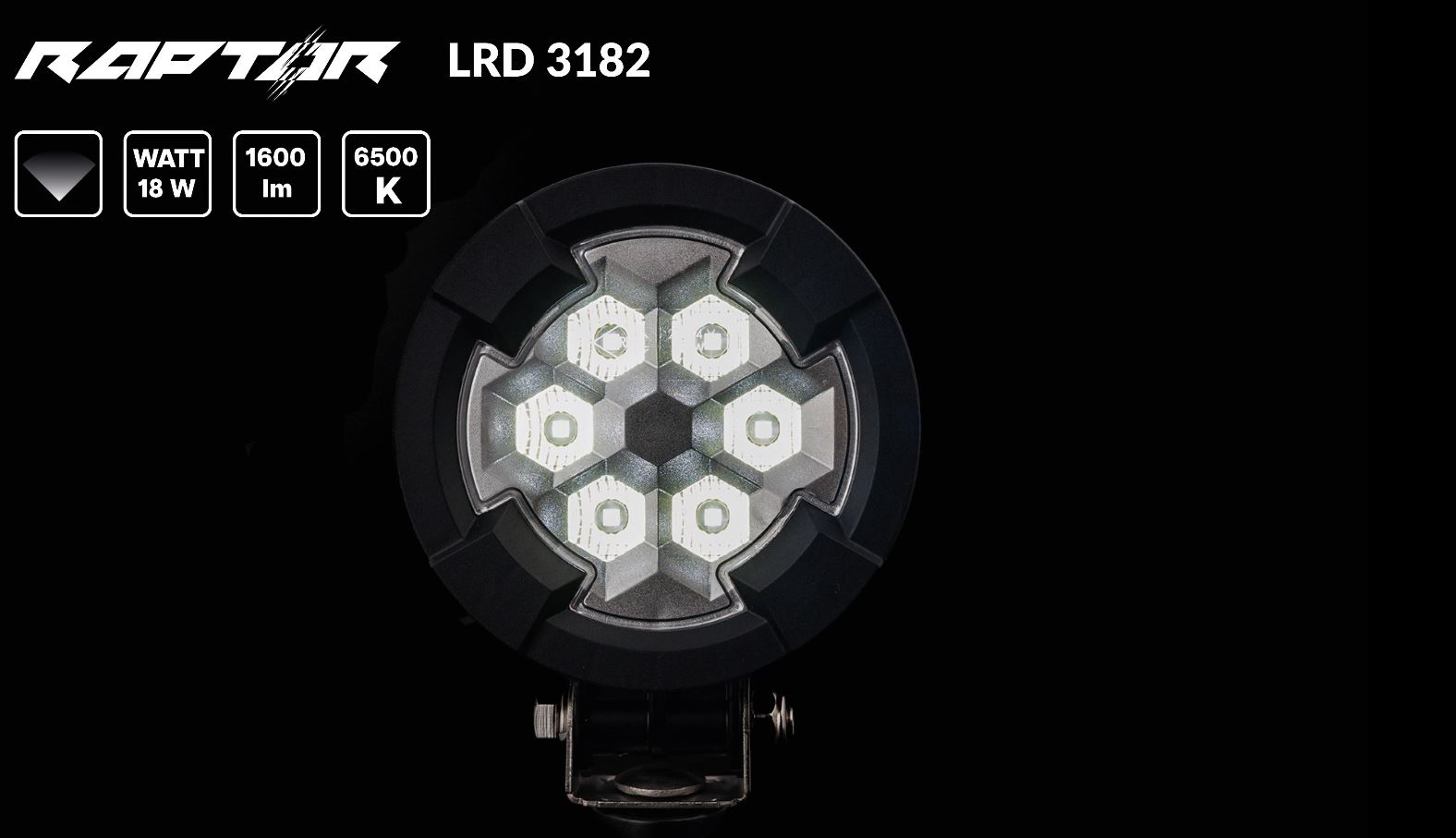

The RAPTOR LRD 3182 work lamp is a reliable and modern lighting solution created for demanding users. With 6 LED diodes and a total power of 18 W, it produces a bright light output of 1600 lm at 6500 K, ensuring clear and comfortable visibility even in complete darkness.

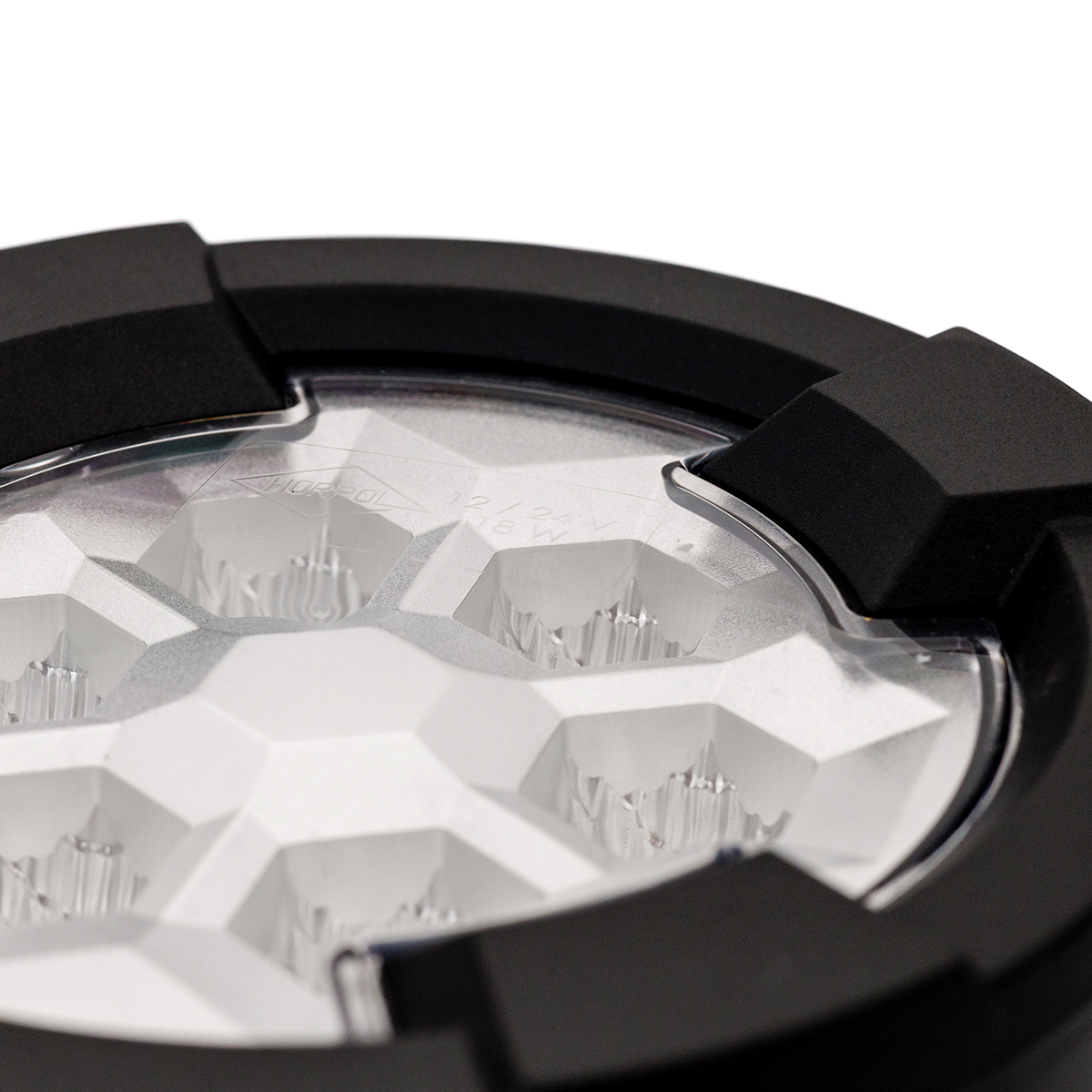

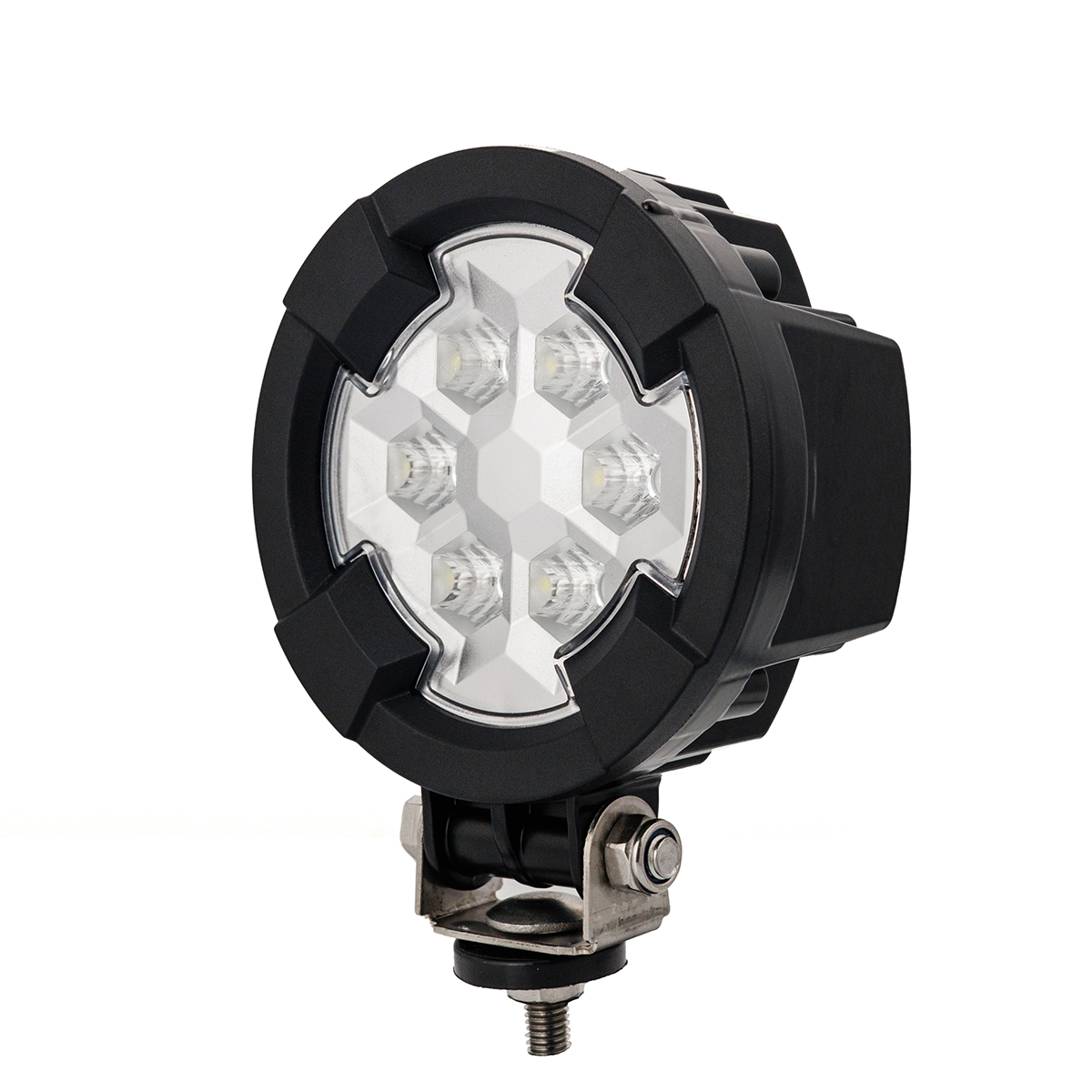

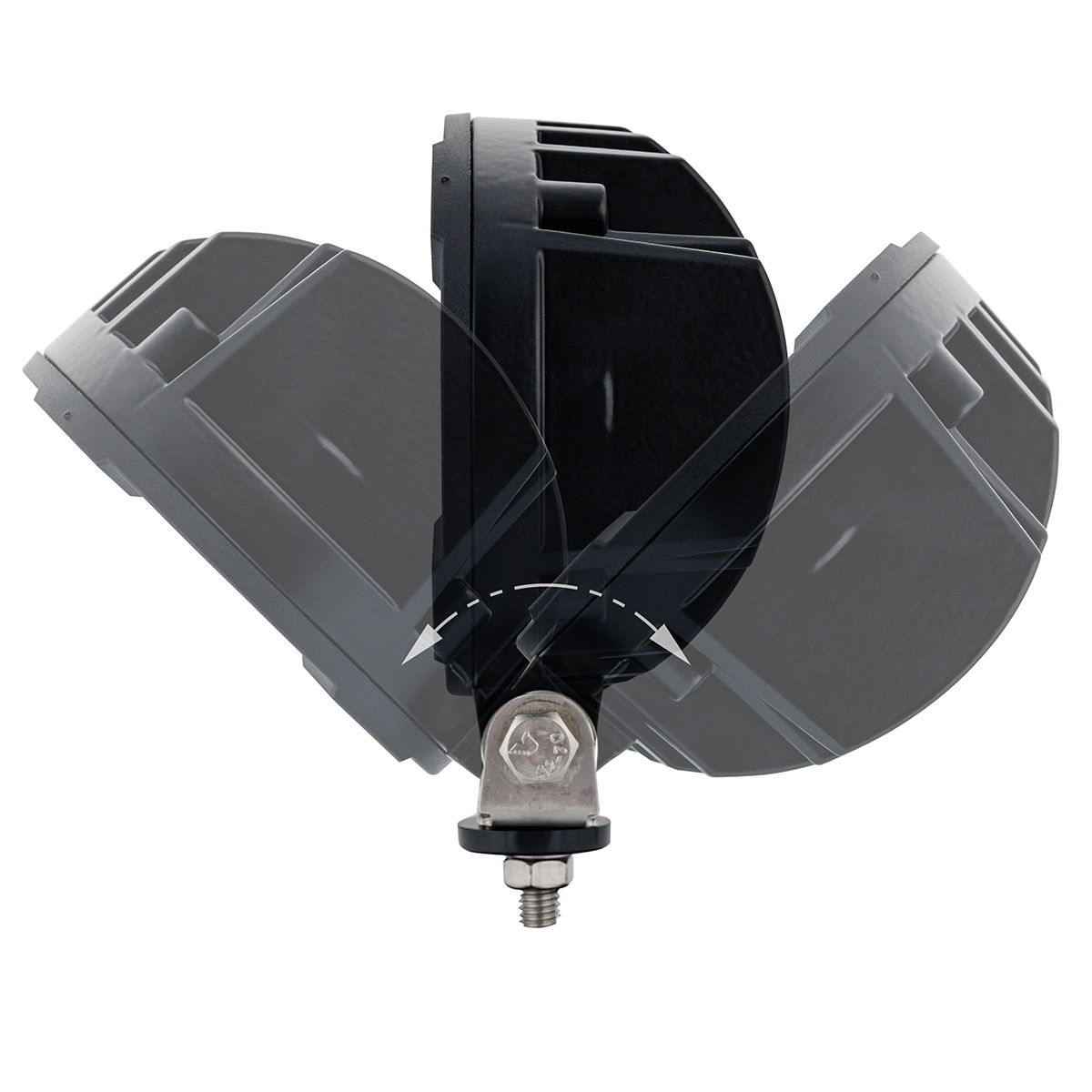

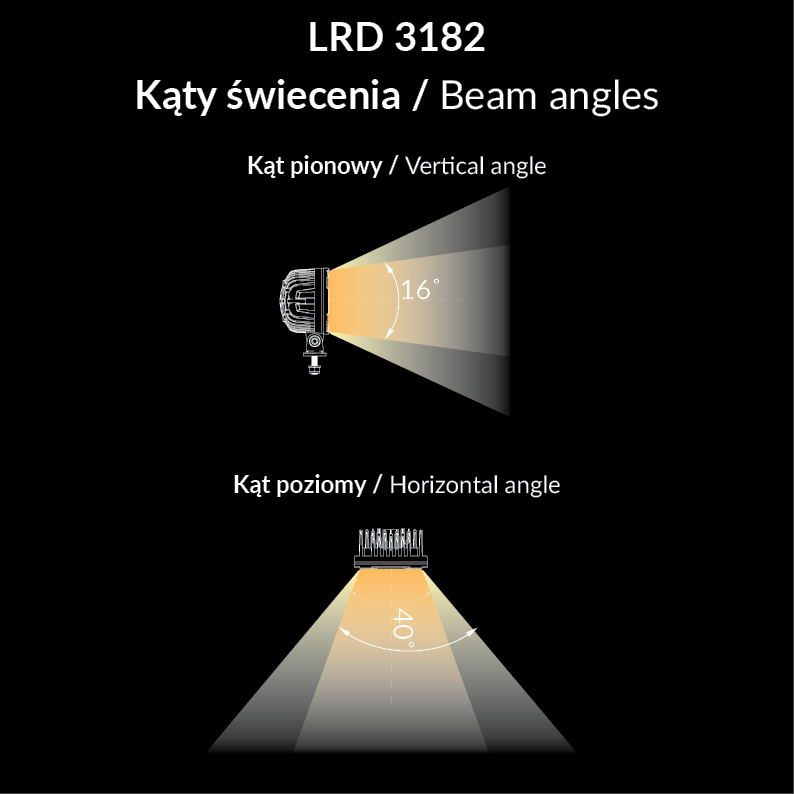

Its compact, round design combined with a precision reflector provides wide and evenly diffused light that effectively illuminates the workspace without causing glare. The tilting mount allows adjustment of the lamp’s angle, directing the beam precisely where it is needed.

Description

The lamp’s robust housing offers effective protection against mechanical damage, while the aluminum heat sink on the back ensures efficient heat dissipation. The lamp is fully sealed (IP 68 protection rating), guaranteeing resistance to moisture and dust, as well as reliable operation in extreme temperatures from -30°C to +50°C. R10 approval confirms compliance with electromagnetic standards, meaning it will not interfere with other electronic devices in the vehicle (e.g., radio).

Ideal applications:
– agricultural and construction equipment;
– trailers and semi-trailers;
– trucks and transport vehicles;
– tow trucks and roadside assistance vehicles;
– service and specialist vehicles.

Technical data

Dispersed light
yes
Light group
HOR 156
LED quantity
6
Light category
working light
Supply voltage
12/24 V
Light colour
white
Power rating
18 W
Operating temperature range
from -30°C to +50°C
Cable
2×0,75 mm2; cable length 1,5 m
Side
universal
Colour temperature
6500 K
Luminous flux
1600 lm
LED light
yes
Ingress protection rating
IP 68

Download

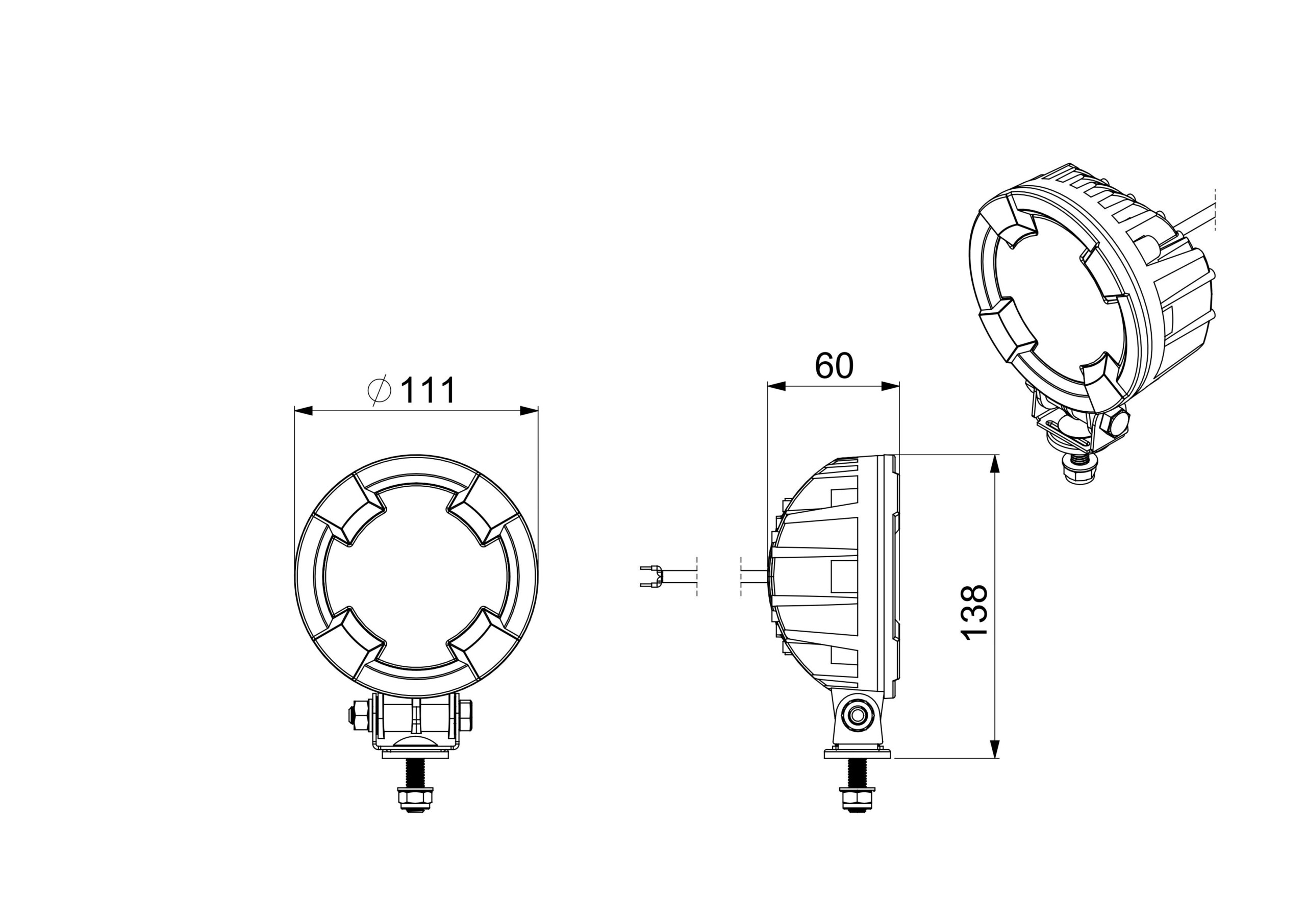

Work light HOR 156 (technical drawings) (work-light-hor-156-technical-drawings.ZIP)
Download
Page content (lrd-3182.ZIP)
