LRD 3183
Work light RAPTOR

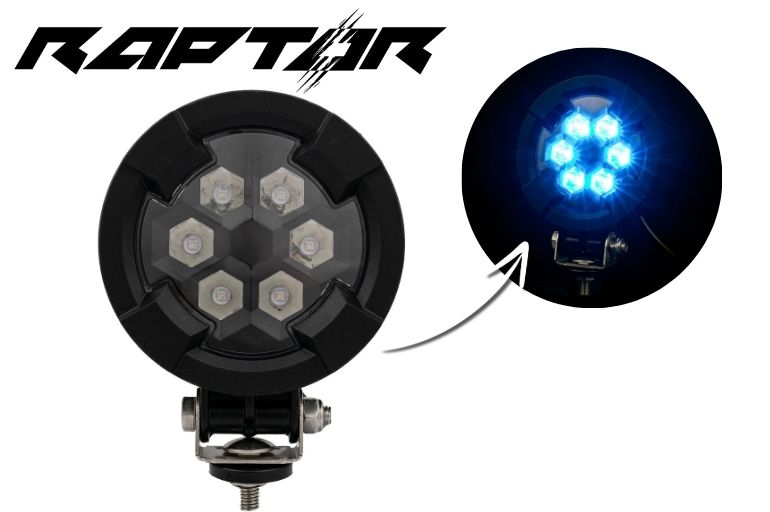

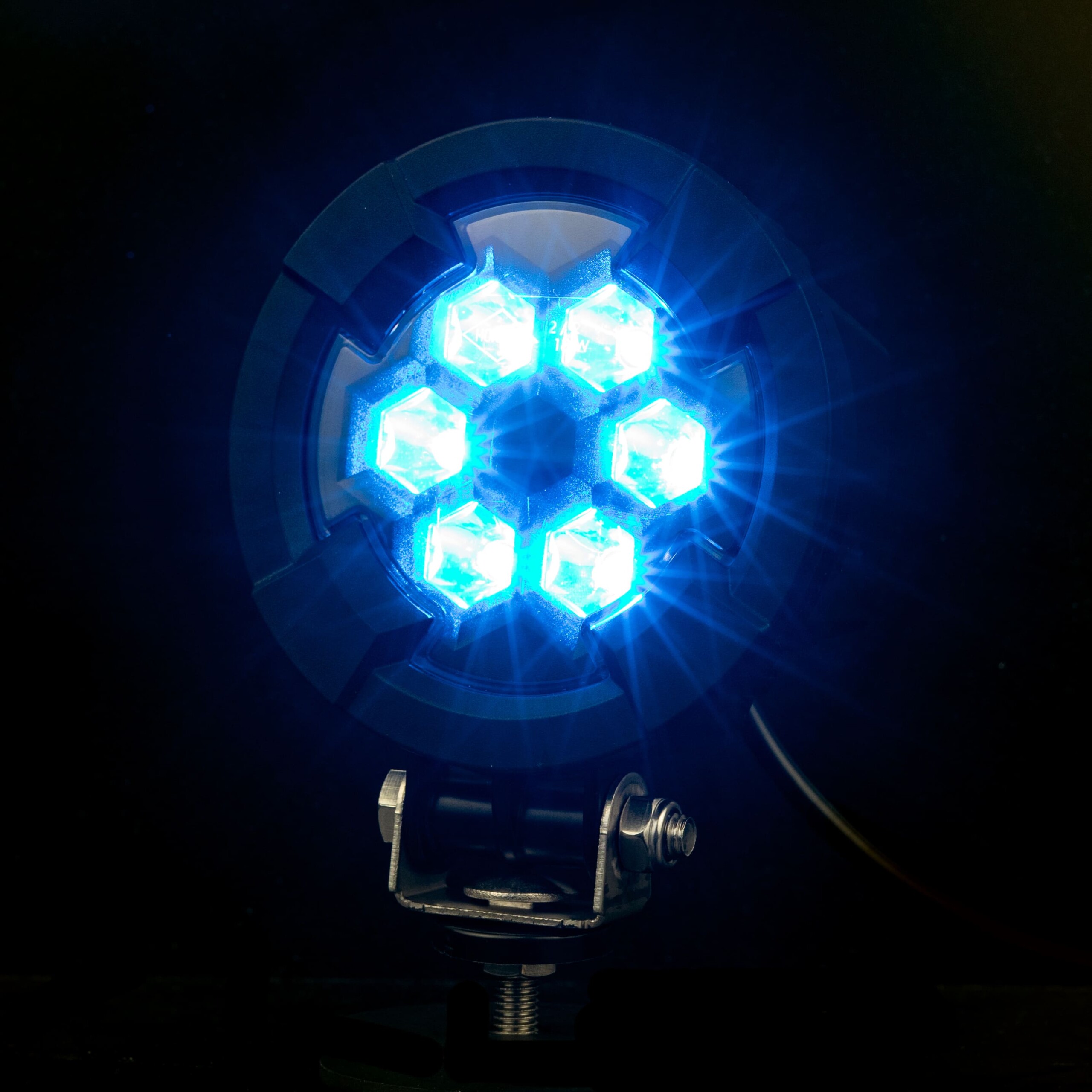

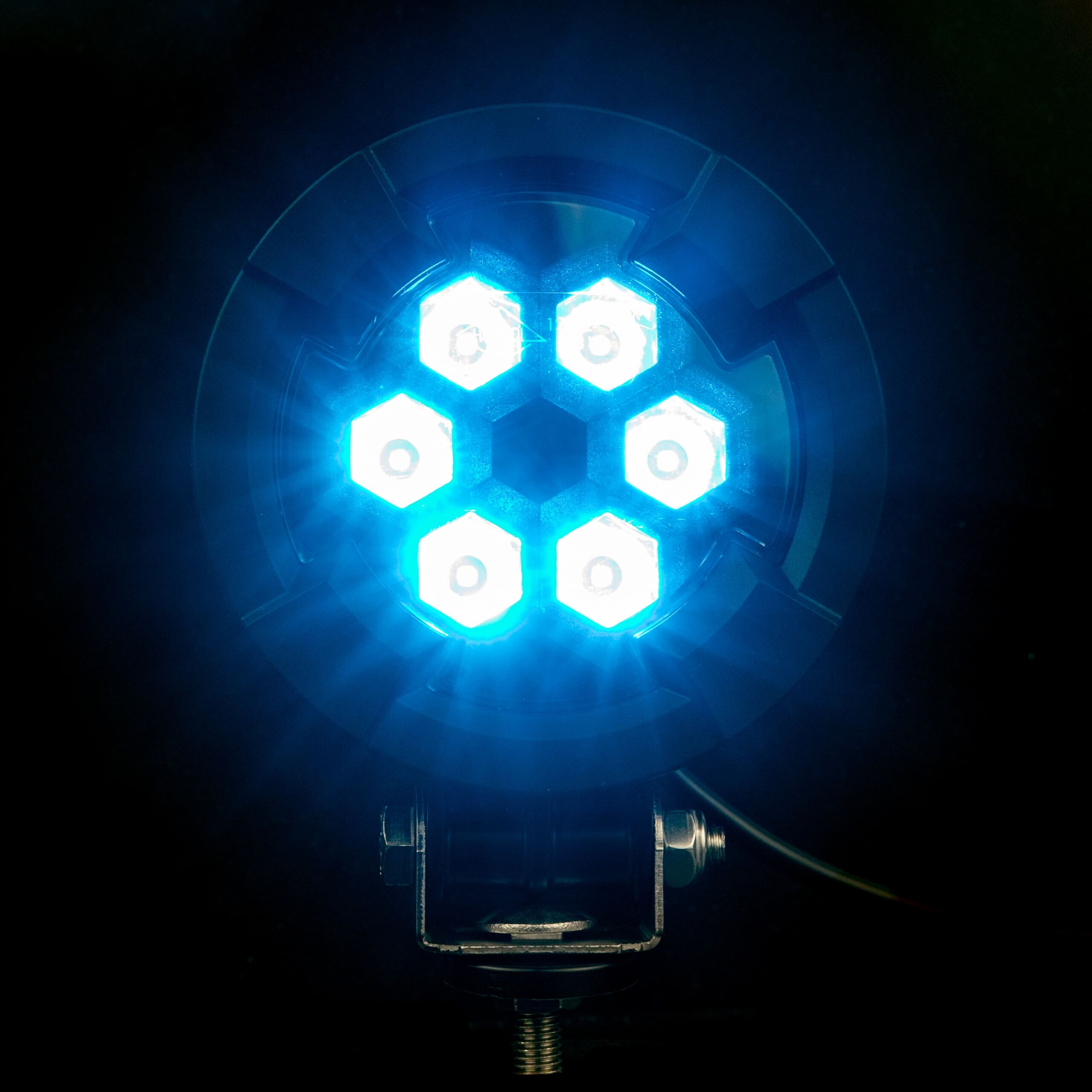

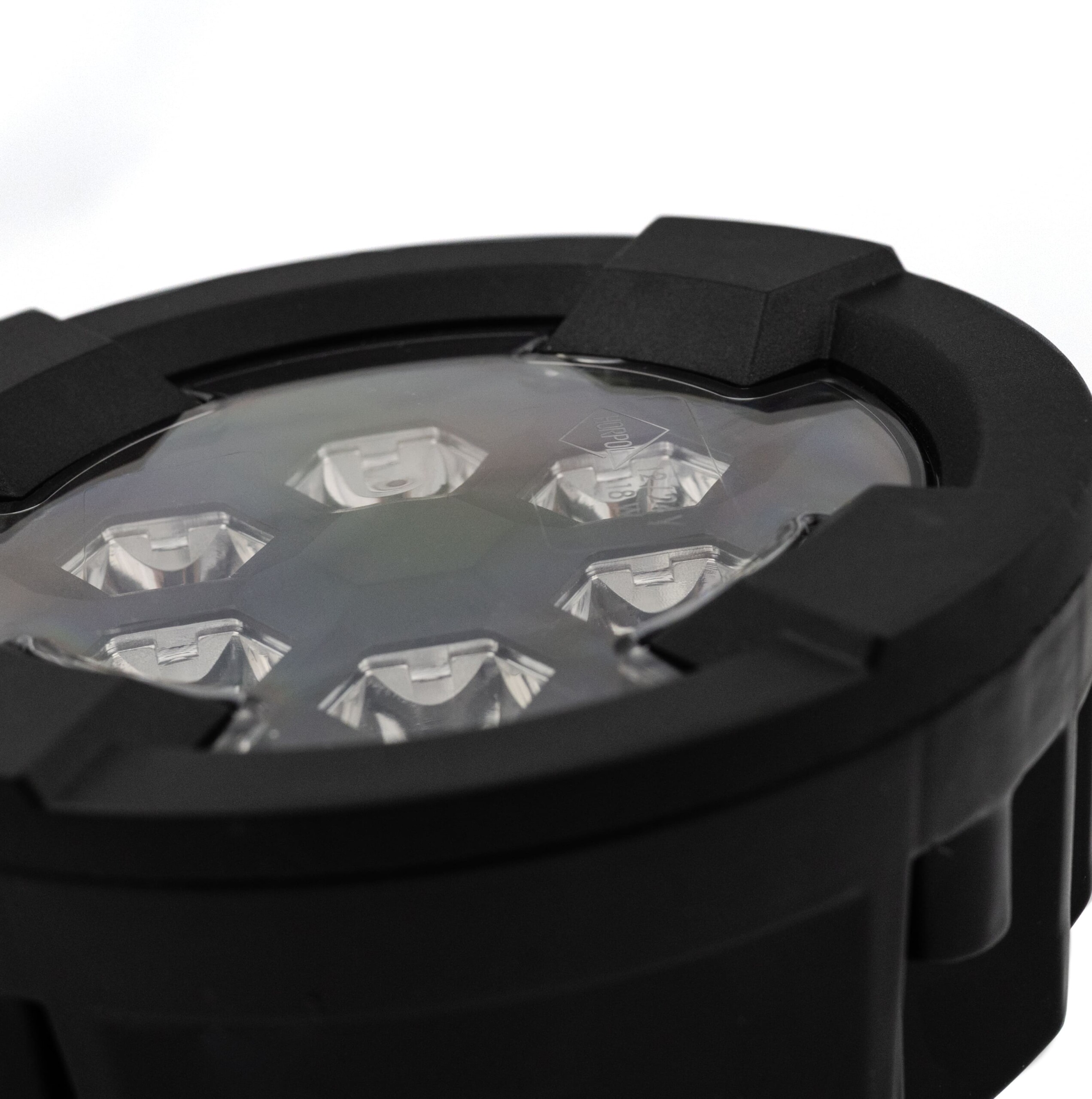

The RAPTOR LRD 3183 work lamp is a reliable LED light source designed for demanding working conditions in warehouses, industrial halls, and agricultural environments. Featuring 6 LEDs that emit focused blue light, the lamp is ideal as a warning light – it signals the presence and movement direction of forklifts, thereby enhancing workplace safety. It can also be used as a work light on sprayers, enabling precise monitoring of spraying operations in low-visibility conditions.

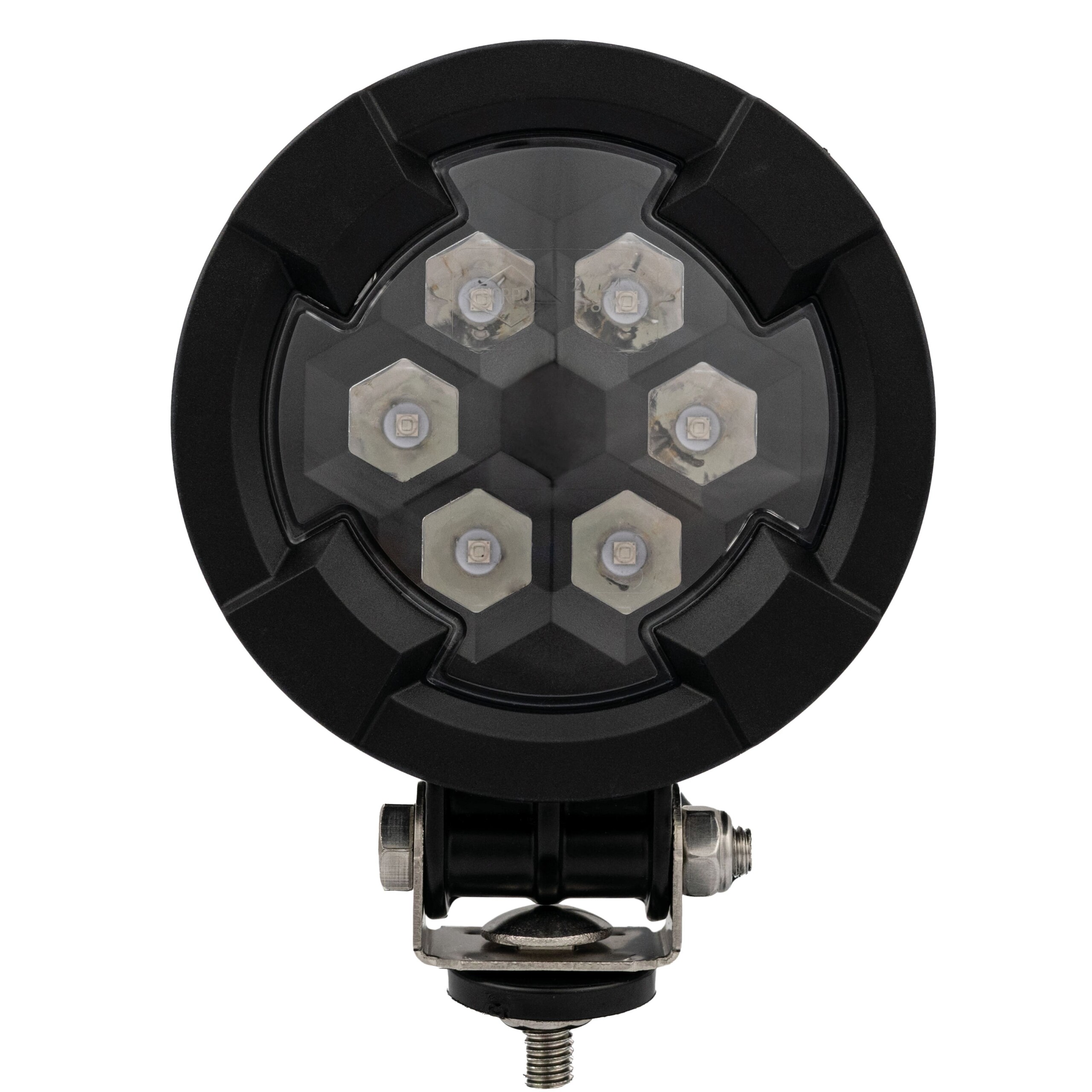

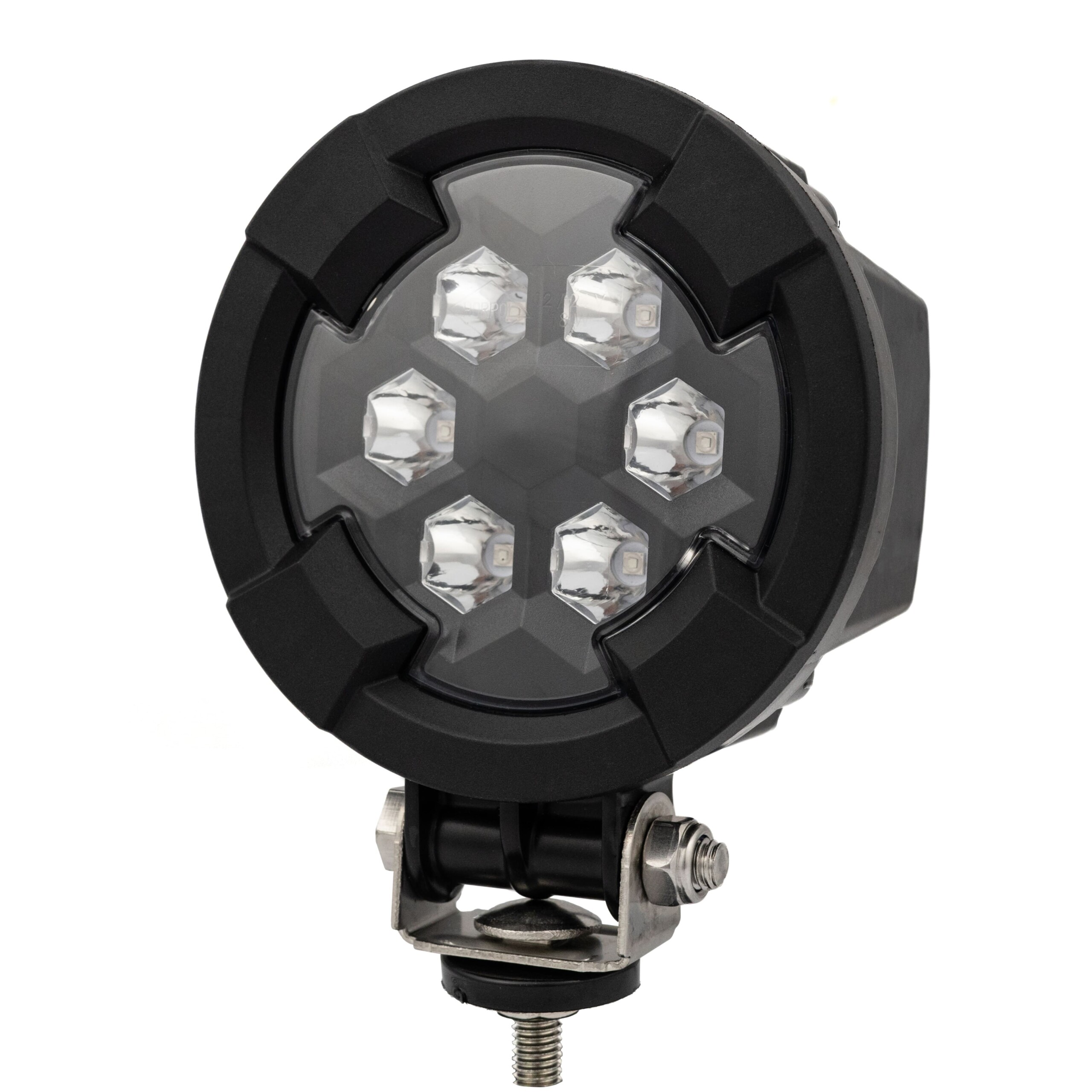

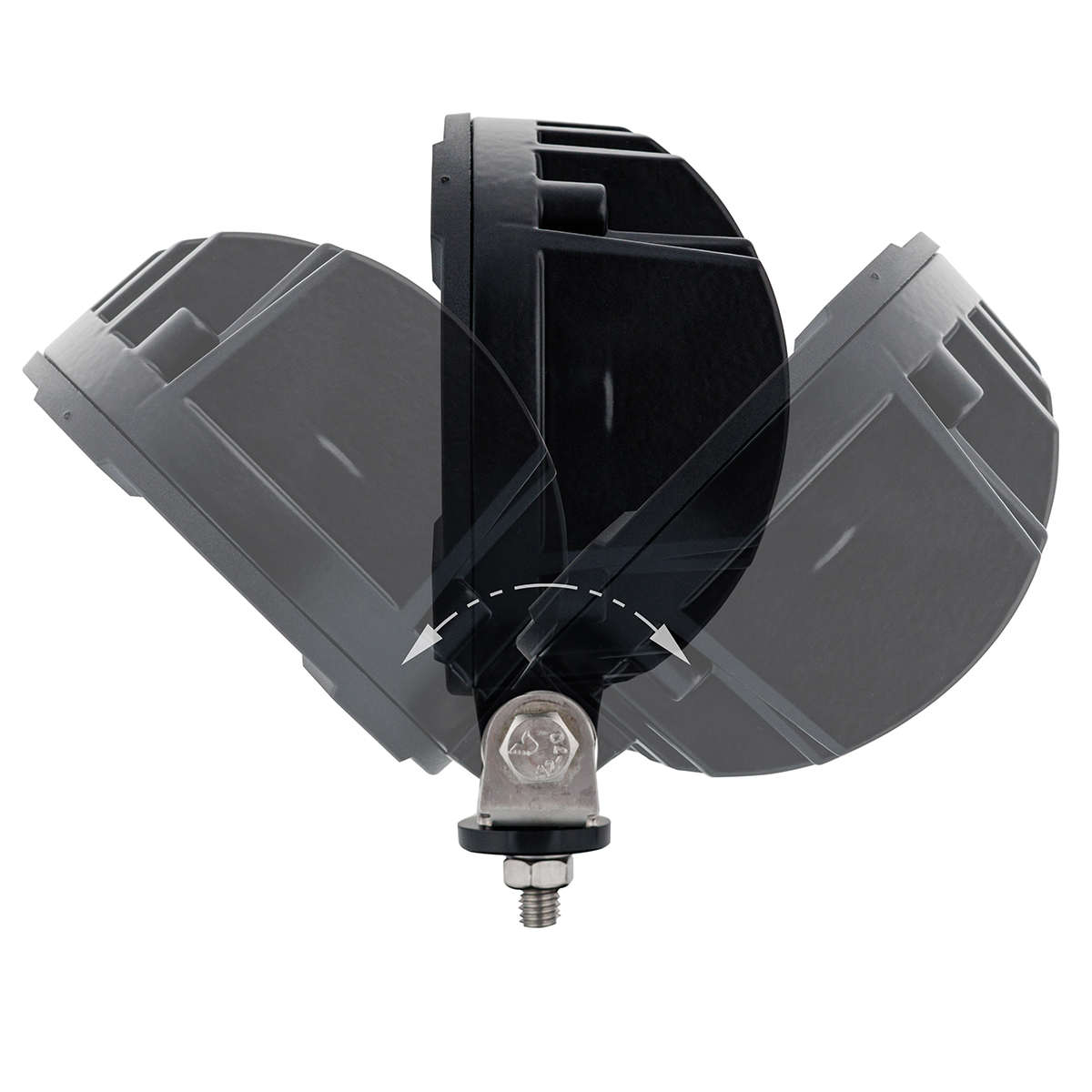

The round housing with an elegant black grille emphasizes the lamp’s durability and modern design, while the adjustable base allows precise adjustment of the lighting angle to direct the beam exactly where it’s needed.

Description

The robust housing effectively protects against mechanical damage, and the aluminum heat sink at the back ensures efficient heat dissipation. The lamp is equipped with a pressure equalizing membrane, which prevents condensation inside the housing and helps reduce internal temperature. The lens is made of high-quality impact-resistant polycarbonate, ensuring long and trouble-free operation even in harsh environments.

The lamp offers a rated power of 14 W, produces a luminous flux of 400 lm, and operates on a universal 12/24 V voltage. With an IP 68 protection rating, it is completely resistant to dust and water, and its wide operating temperature range ensures reliable performance even in demanding conditions. The R10 homologation confirms compliance with electromagnetic standards, meaning it does not cause interference with other electronic devices in the vehicle (e.g., radio).

Applications:
Forklifts – indicating travel direction and enhancing pedestrian safety;
Sprayers – providing work lighting for accurate spraying control.

Technical data

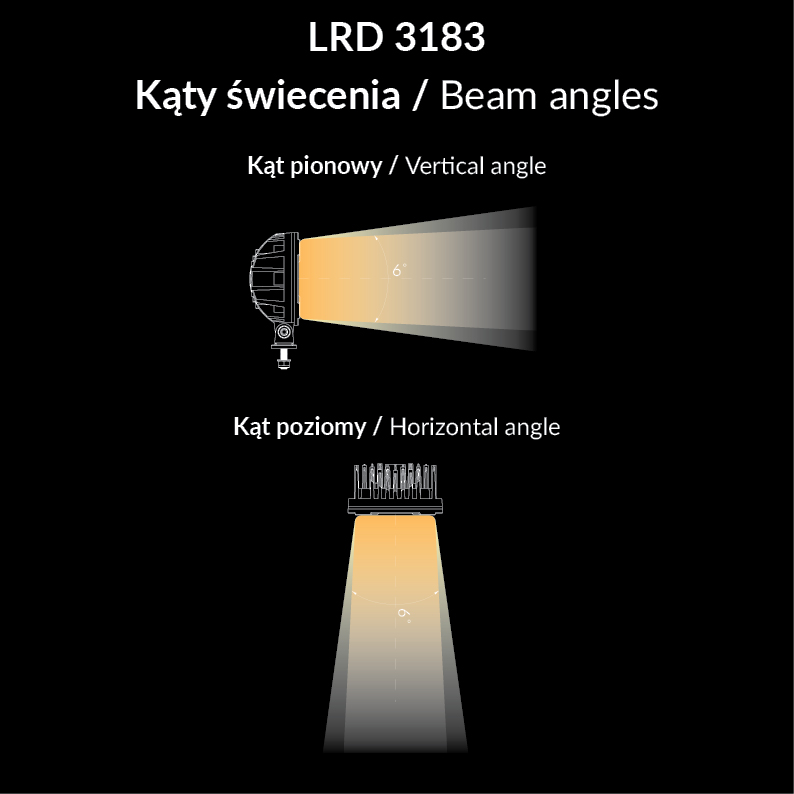

Focused light
yes
Light group
HOR 156
LED quantity
6
Light category
working light
Supply voltage
12/24 V
Light colour
blue
Power rating
14 W
Operating temperature range
from -30°C to +50°C
Cable
2×0,75 mm2; cable length 1,5 m
Side
universal
Luminous flux
400 lm
LED light
yes
Ingress protection rating
IP 68

Download

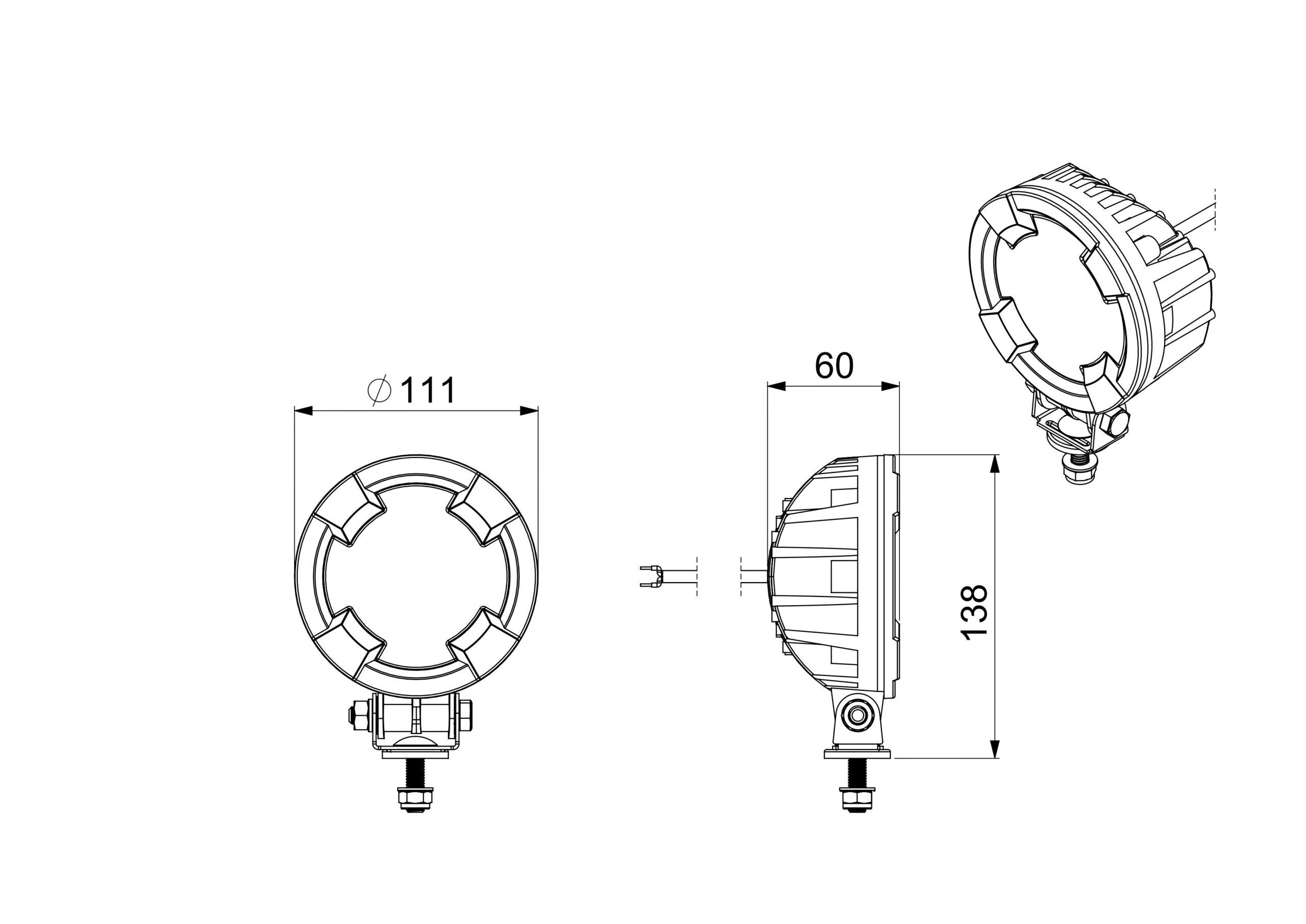

Work light HOR 156 (technical drawings) (work-light-hor-156-technical-drawings.ZIP)
Download
Page content (lrd-3183.ZIP)
