LRD 3188

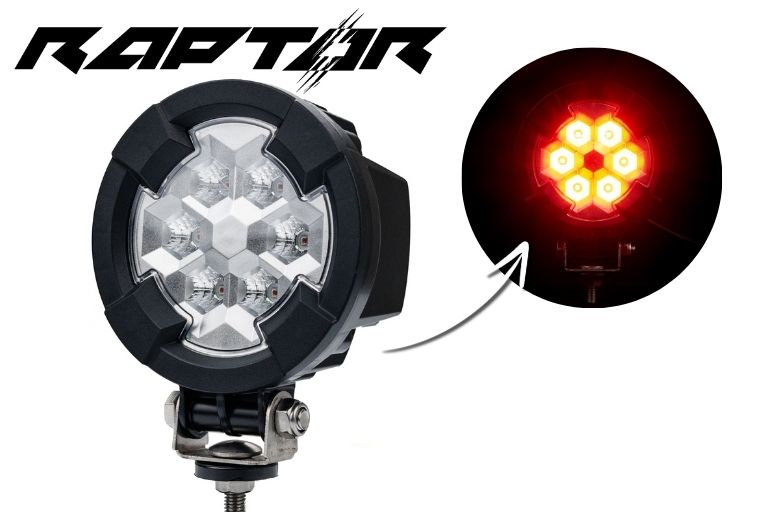

Work light RAPTOR

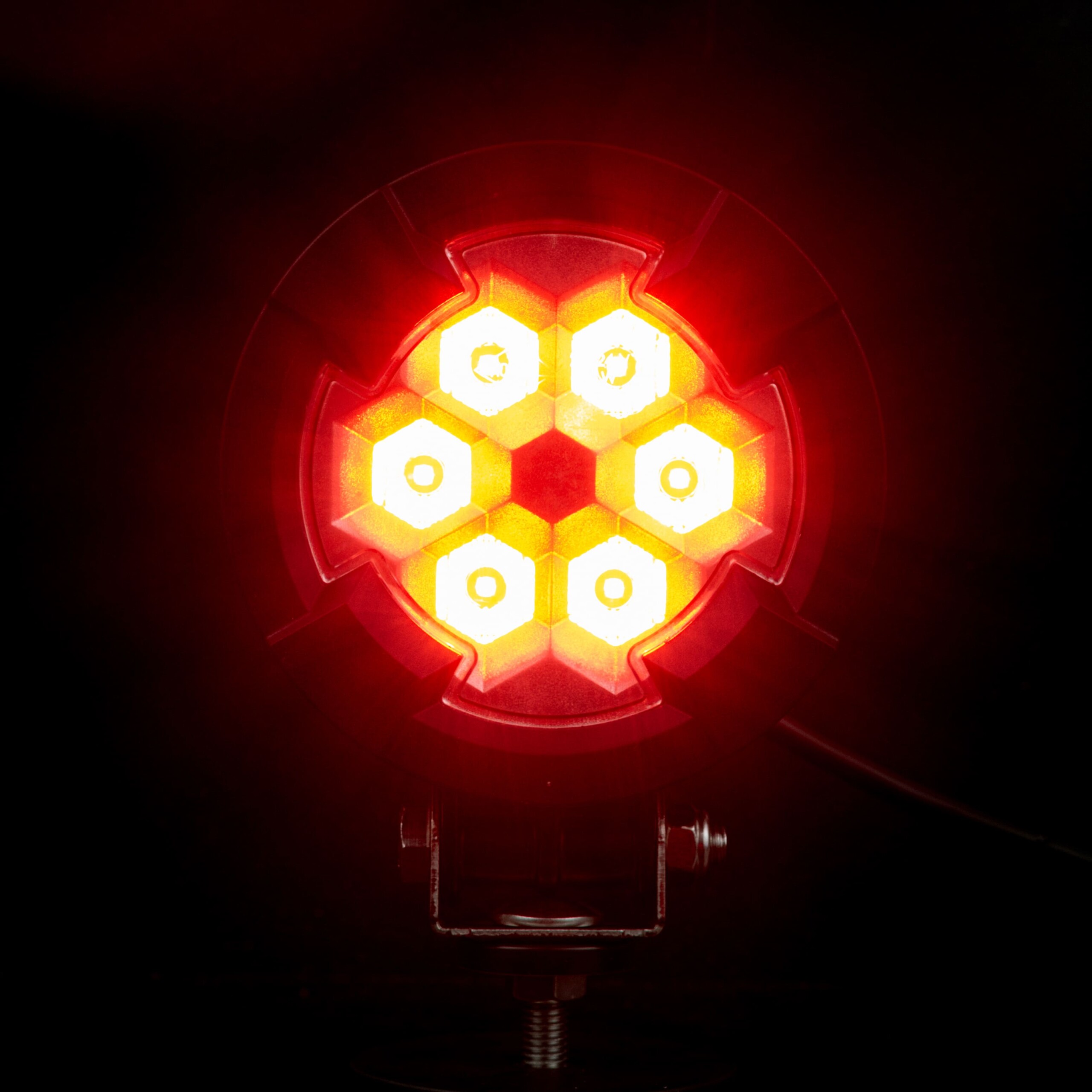

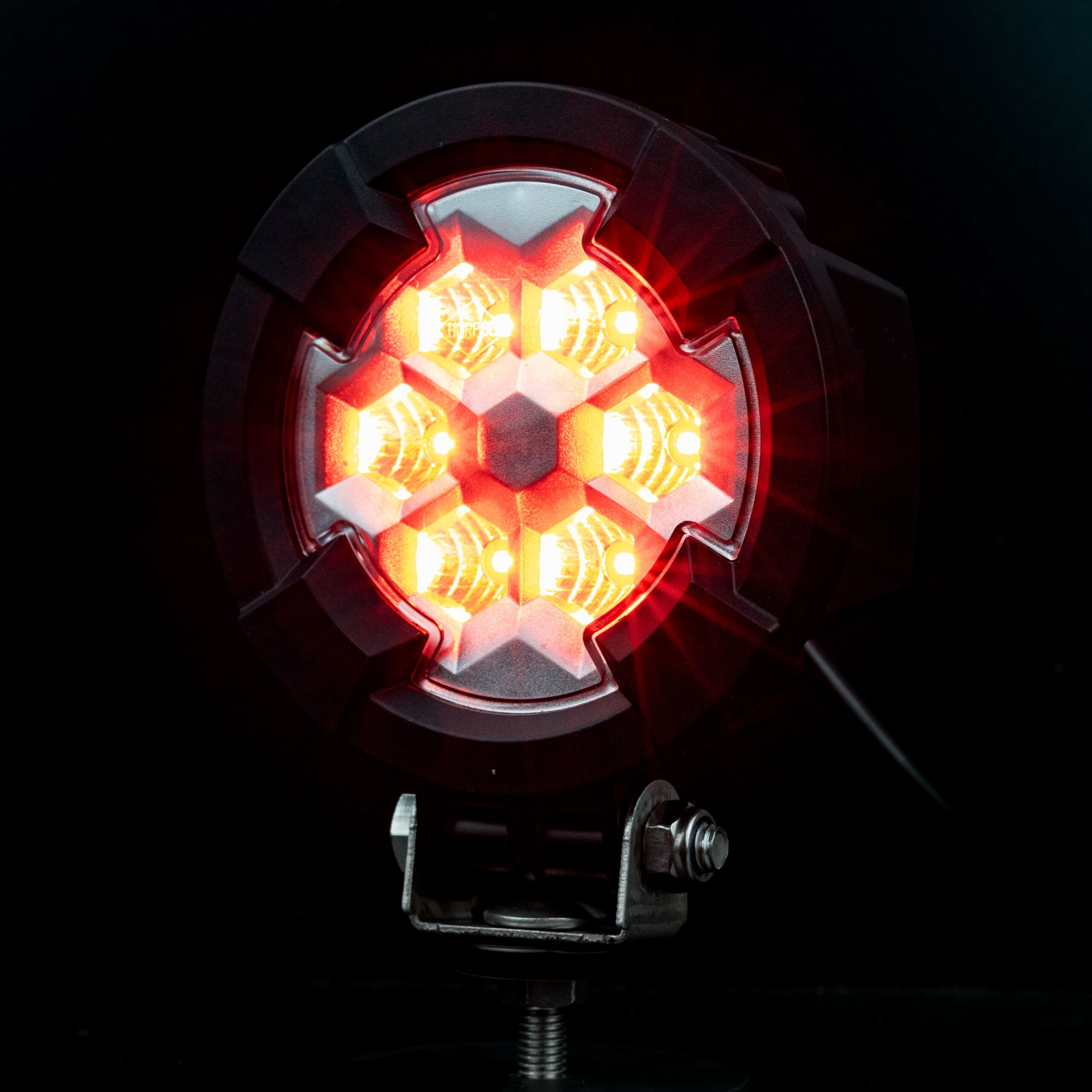

The RAPTOR LRD 3188 work lamp is a reliable LED light source designed for operation in demanding conditions. Equipped with 6 LEDs that emit diffused red light, it provides illumination that does not dazzle the operator or nearby personnel, ensuring safe task performance in low-visibility environments such as roadside work or service vehicles.

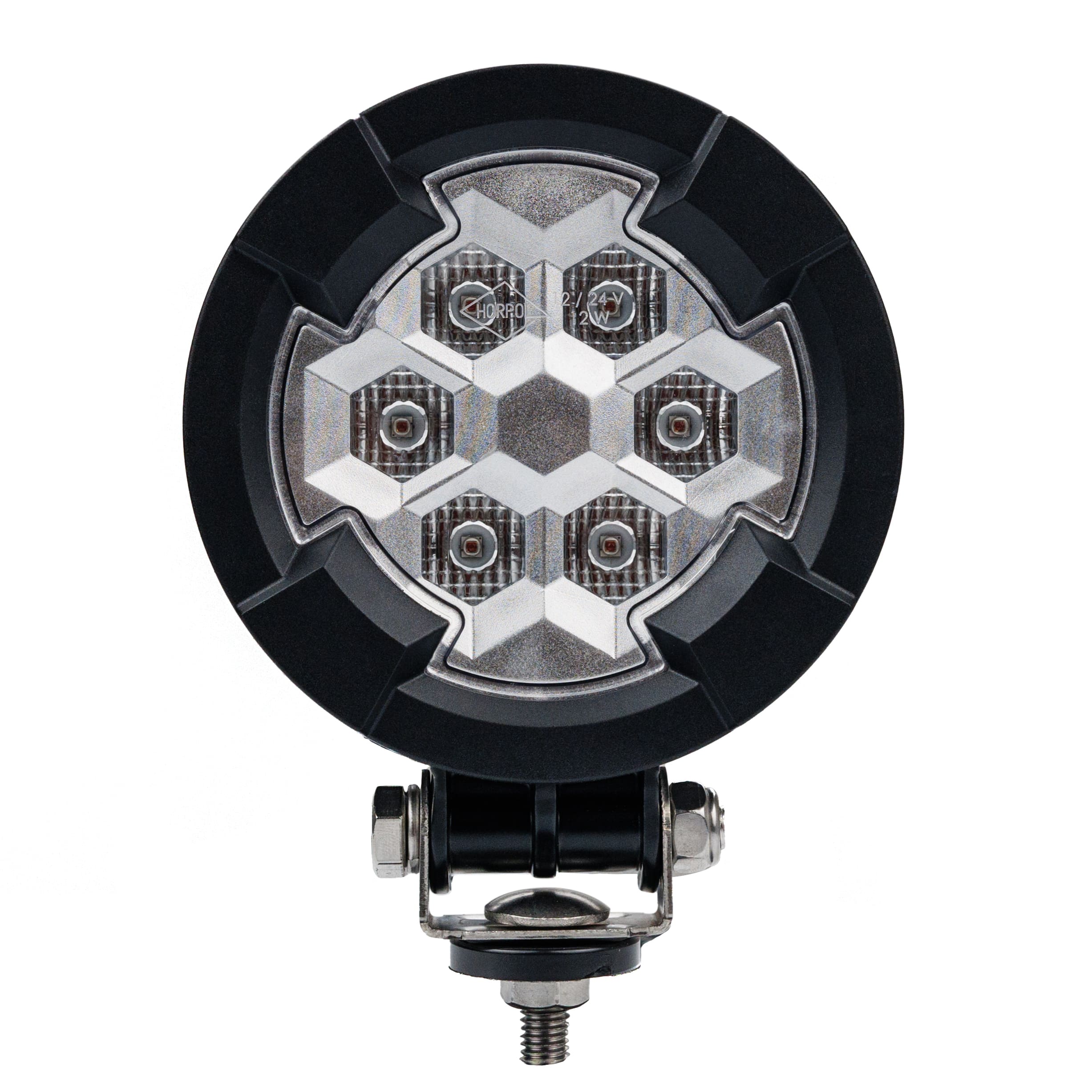

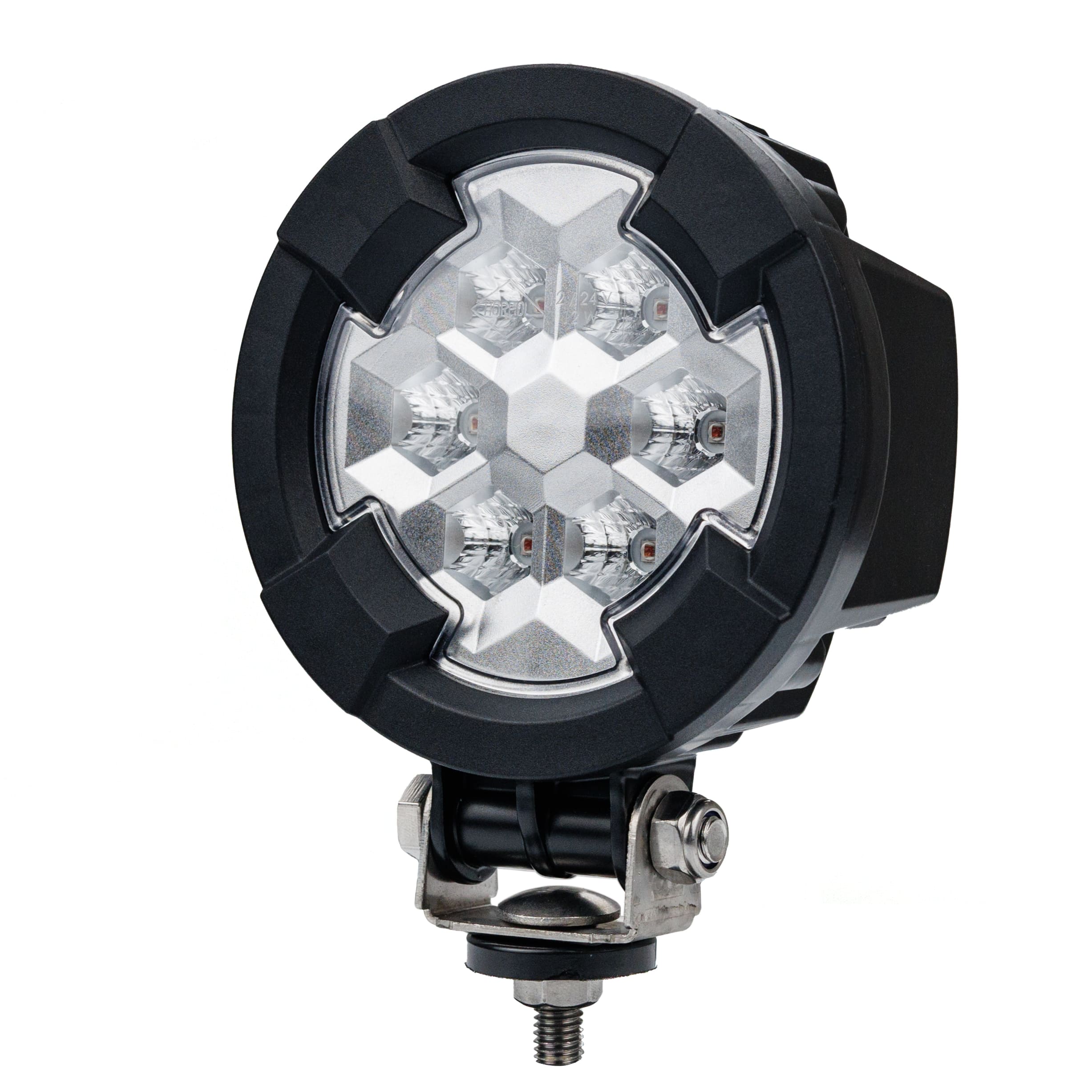

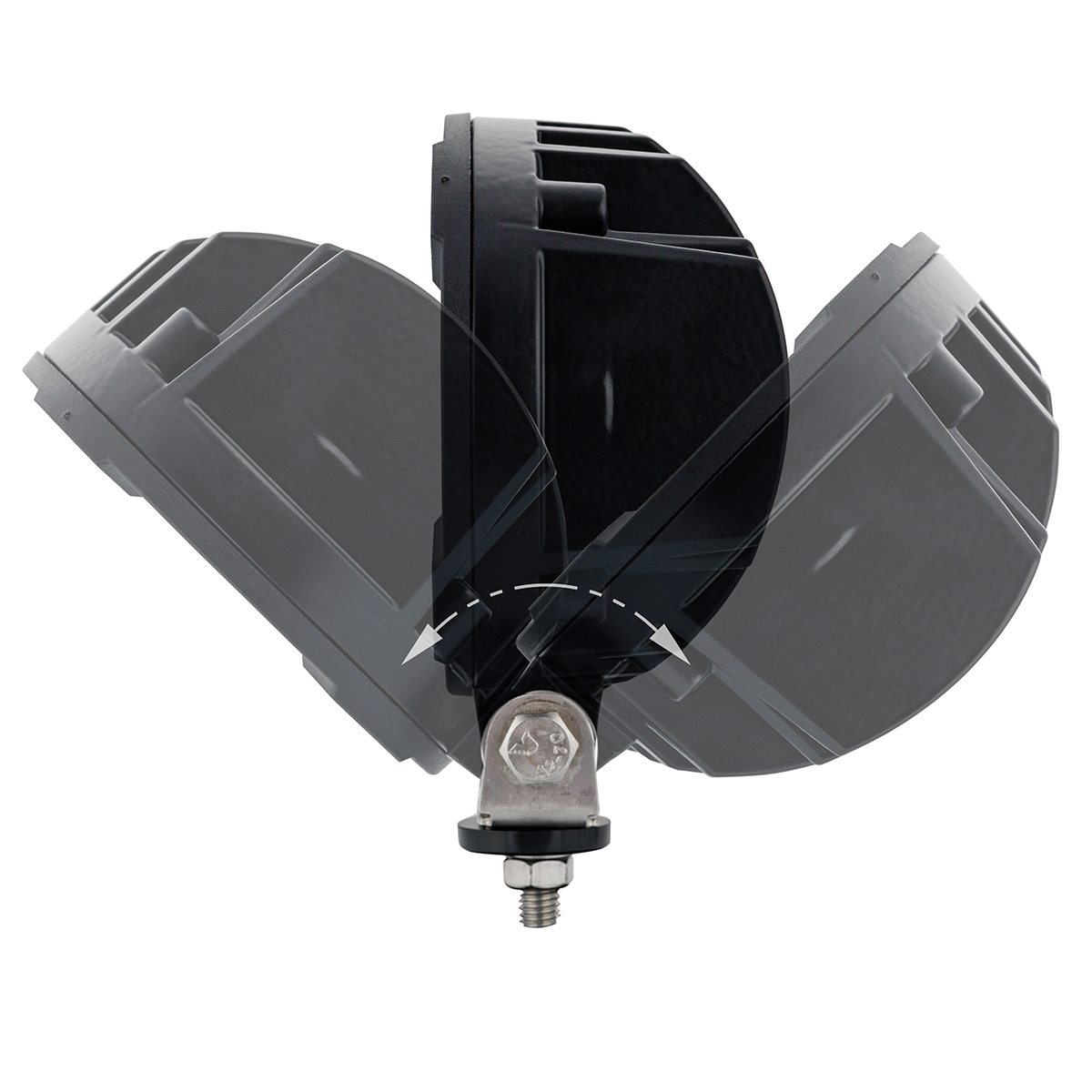

The round design with a reflector combines modern aesthetics with functionality, while the tiltable base allows precise adjustment of the lighting angle, directing light exactly where it is needed. The robust housing protects the lamp from mechanical damage, and the rear aluminum heat sink efficiently dissipates heat, ensuring a long service life.

Description

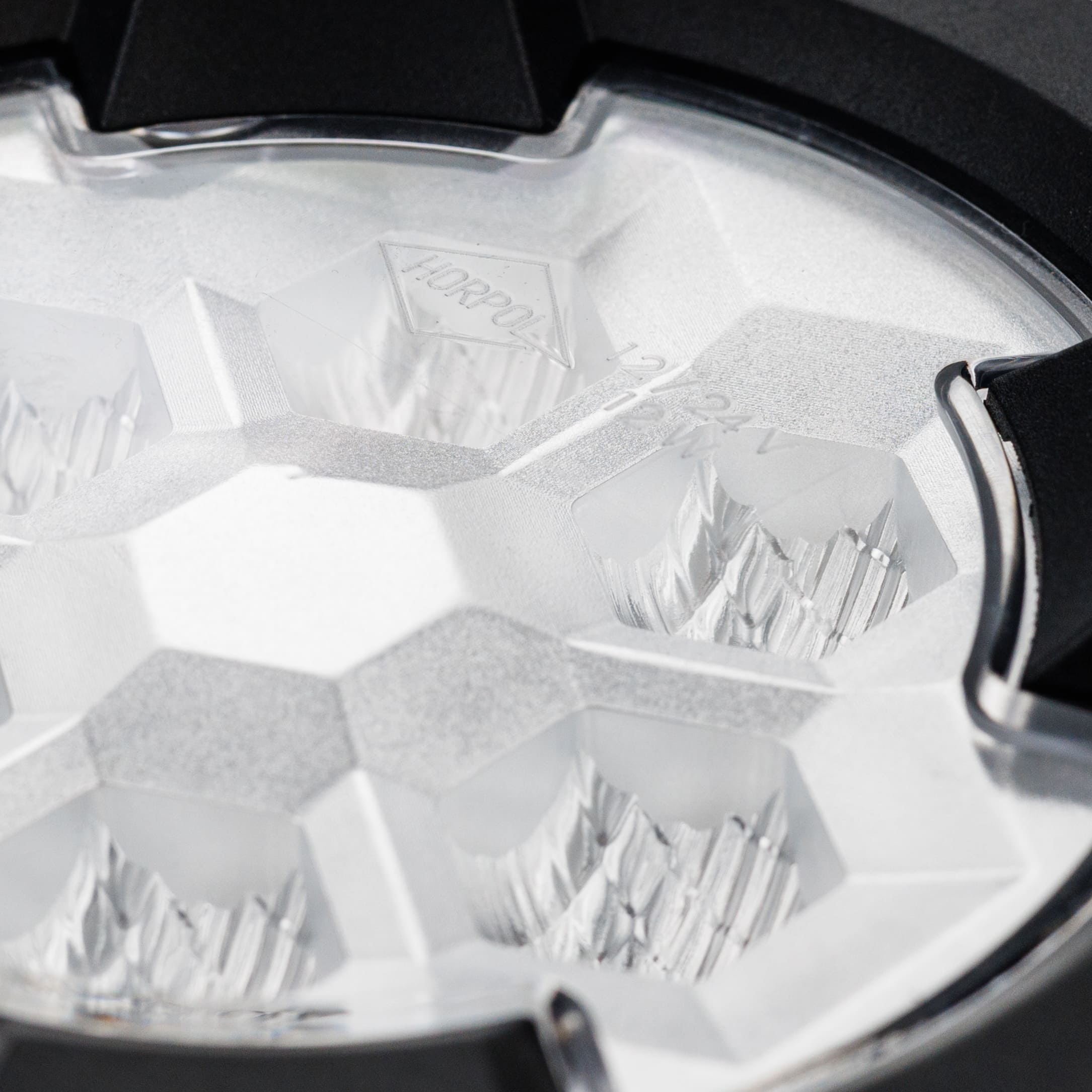

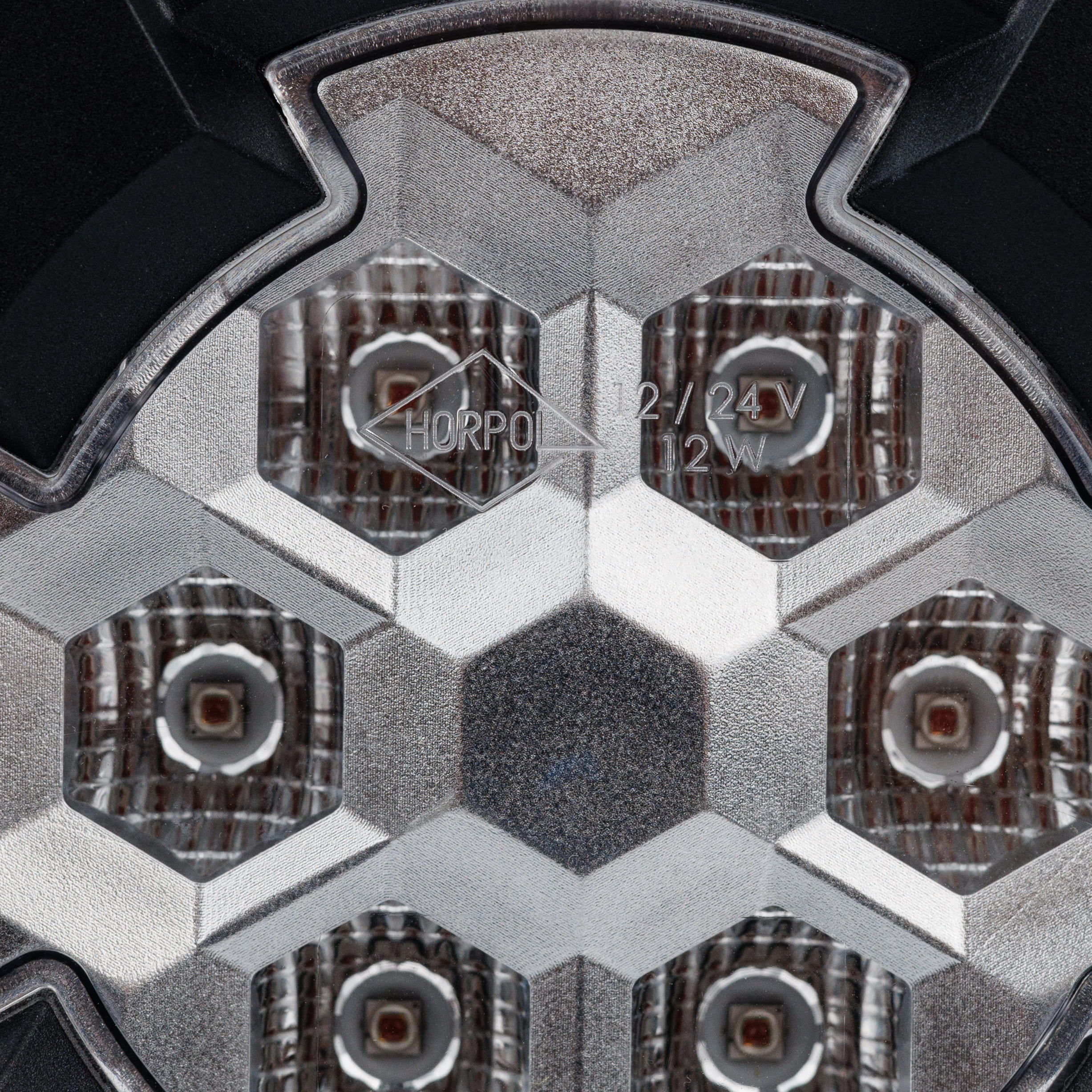

The lamp is equipped with a pressure equalizing membrane that prevents condensation inside the housing and helps reduce internal temperature. Its lens is made of high-quality impact-resistant polycarbonate, ensuring long-lasting and trouble-free operation even in harsh environments.

Operating on a wide voltage range of 12/24 V, the lamp delivers a rated power of 12 W and produces a luminous flux of 650 lm. It is designed for tough working conditions, featuring a high IP 68 protection rating and EMC compliance, ensuring electromagnetic compatibility.

Applications:

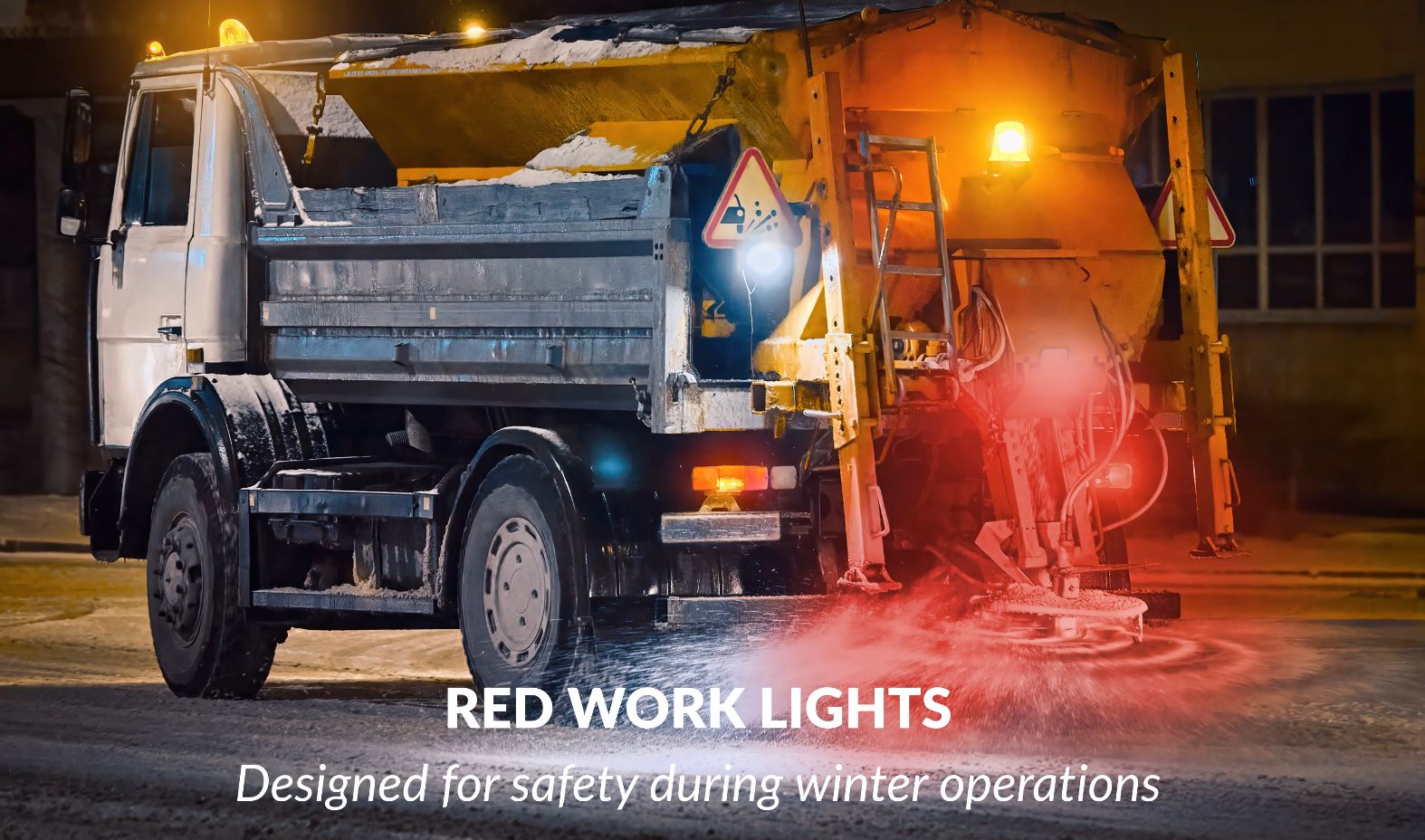

Gritters and service vehicles;
– Work in low-visibility conditions, where operator and environmental safety are a top priority.



Technical data

Dispersed light
yes
Light group
HOR 156
LED quantity
6
Light category
working light
Supply voltage
12/24 V
Light colour
red
Power rating
12 W
Operating temperature range
from -30°C to +50°C
Cable
2×0,75 mm2; cable length 1,5 m
Side
universal
Luminous flux
650 lm
LED light
yes
Ingress protection rating
IP 68

Download

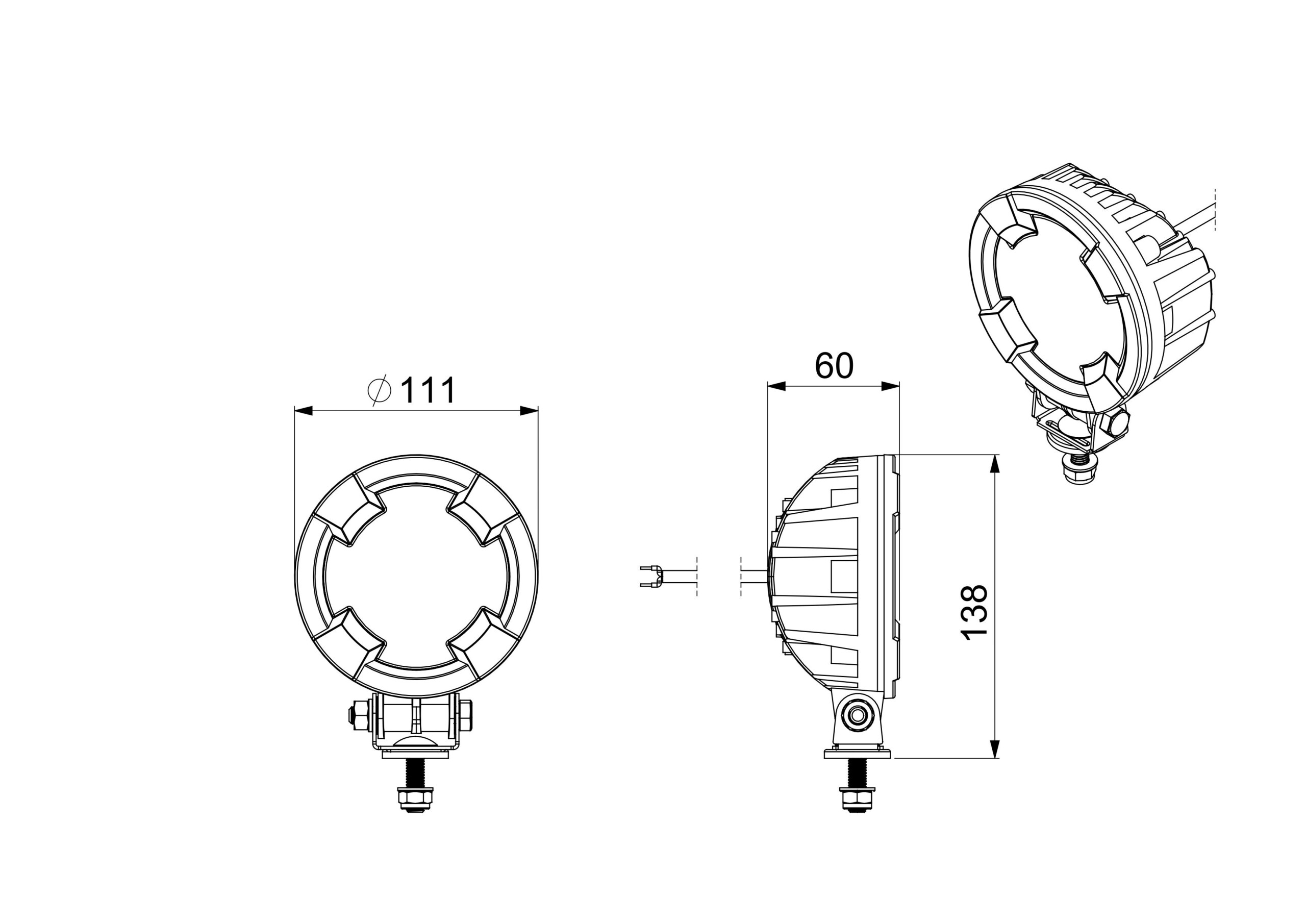

Work light HOR 156 (technical drawings) (work-light-hor-156-technical-drawings.ZIP)
Download
Page content (lrd-3188.ZIP)
