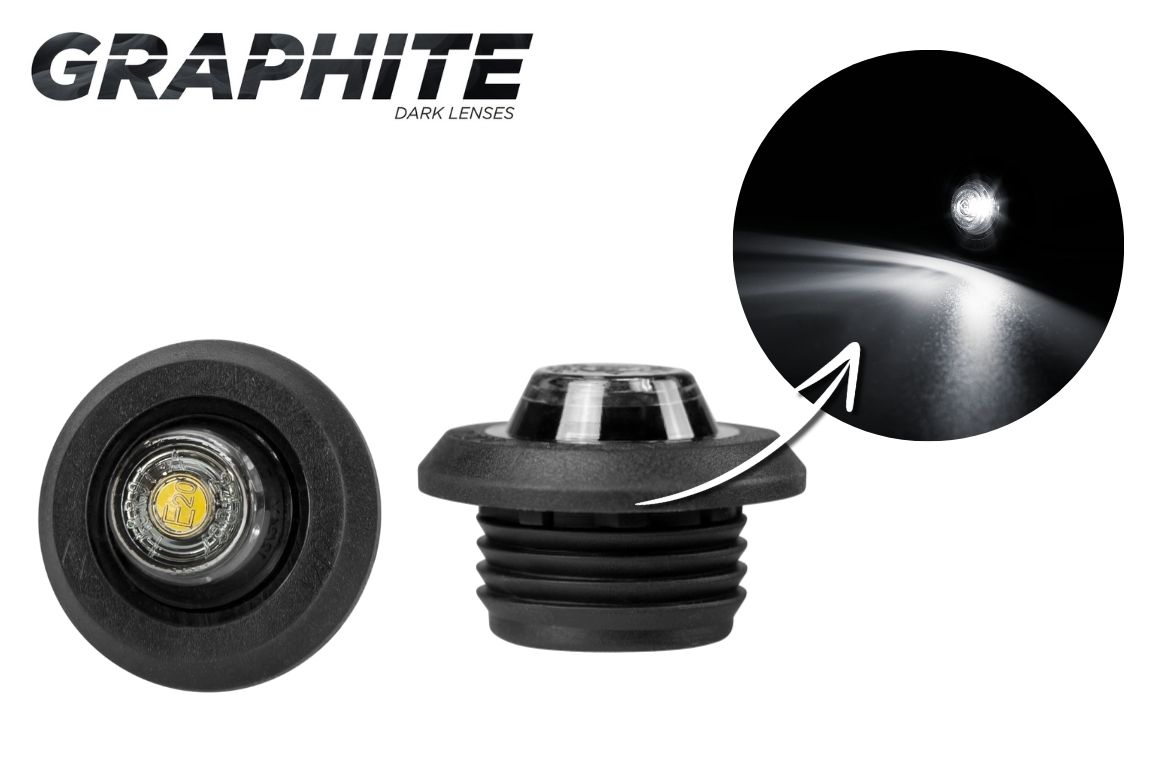

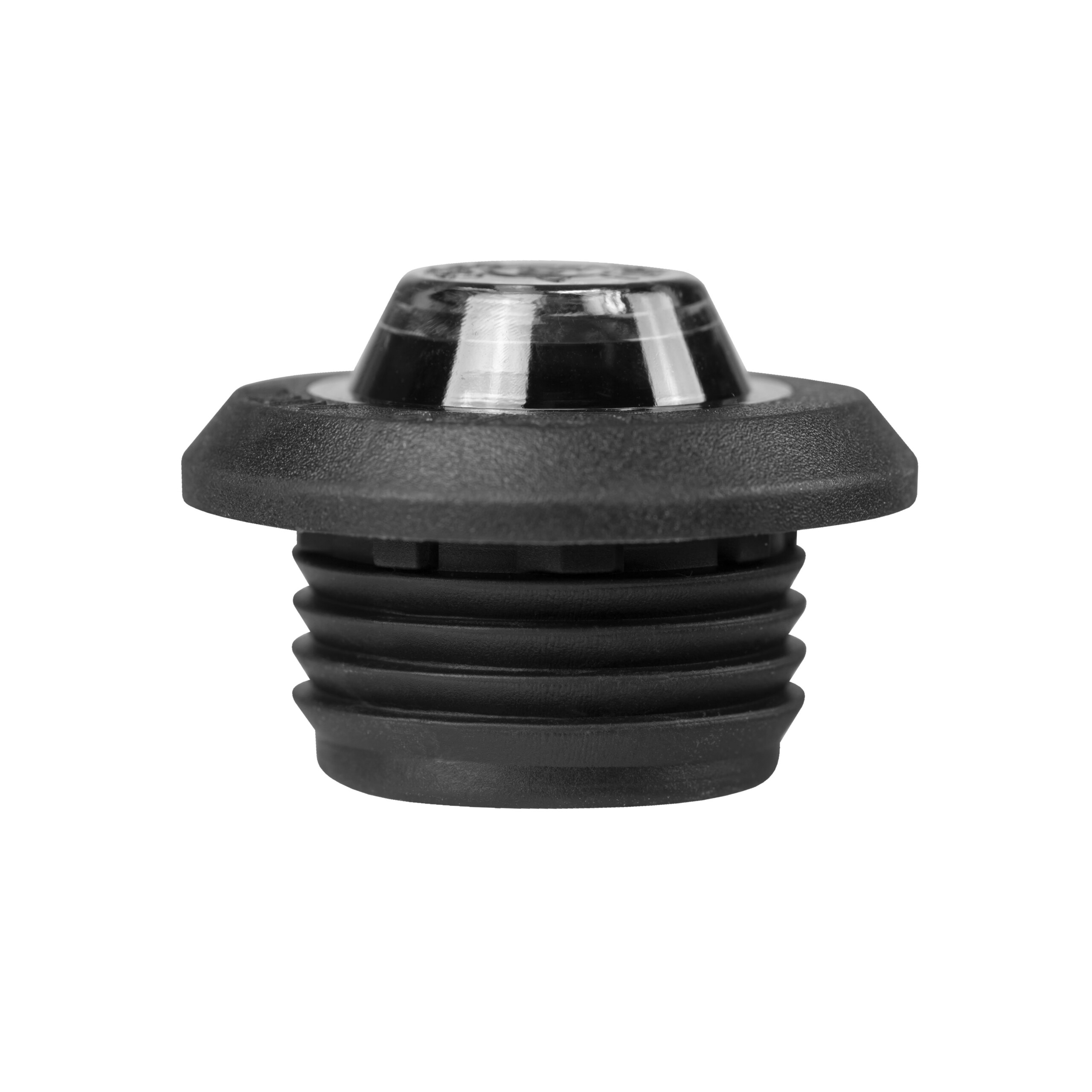

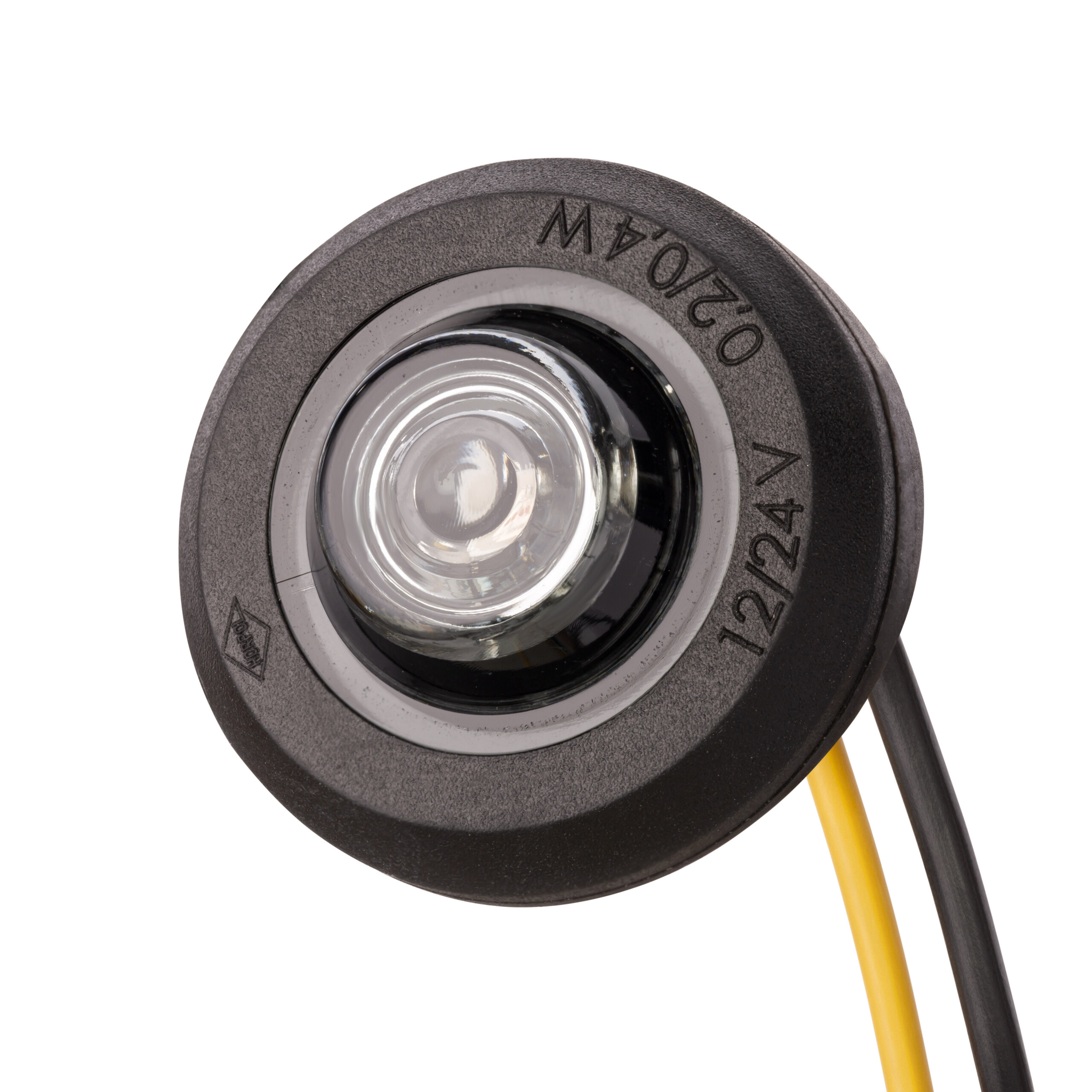

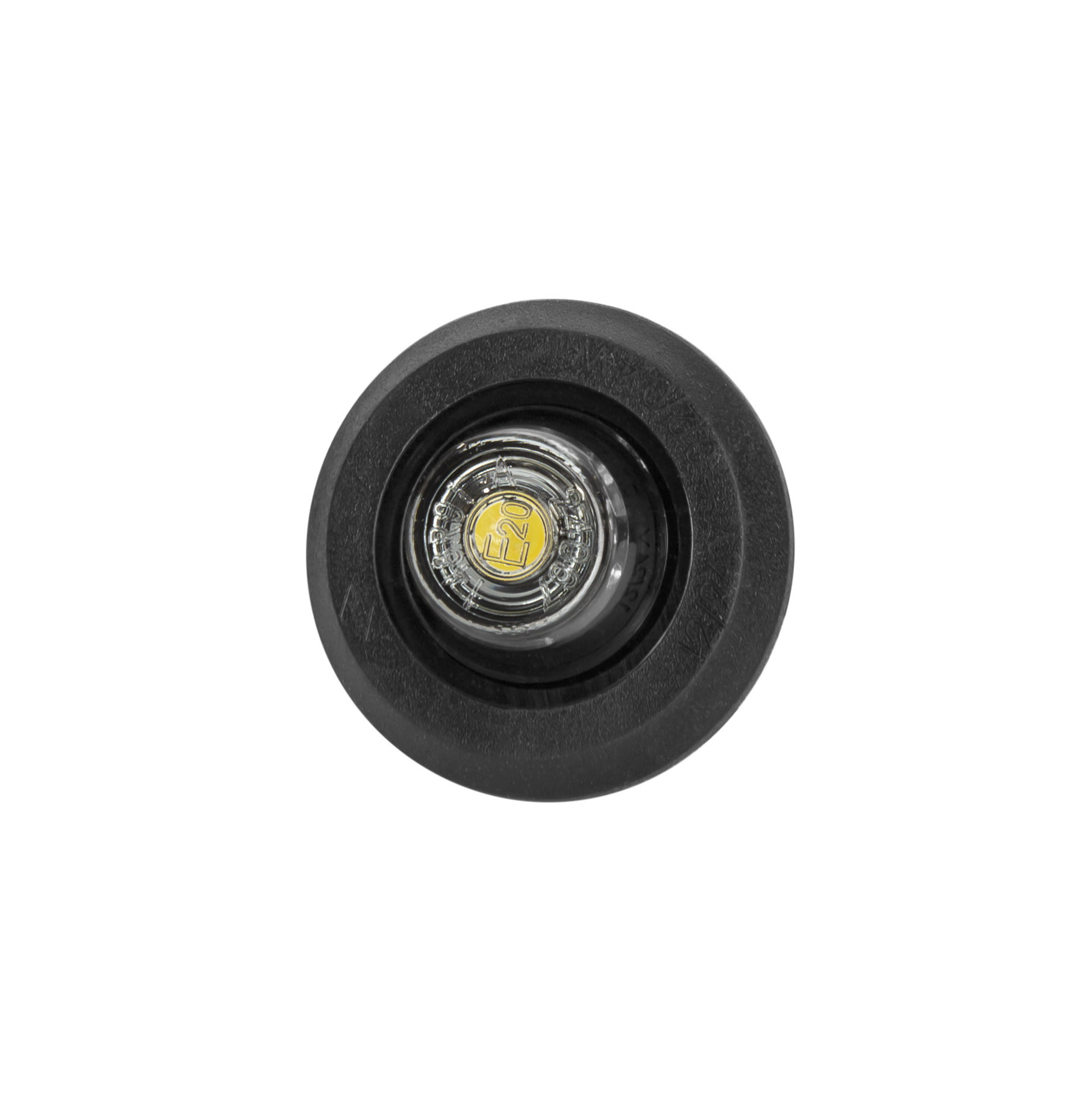

LD 2628/GRAPHITE
Front position light

The LD 2628/GRAPHITE front position light is a high-quality light designed to be mounted on flat surfaces. With its dark shade, the light follows modern trends in vehicle design while providing adequate visibility on the road.

LD 2628/GRAPHITE features:

– Fitted with one LED with white light for optimum visibility with minimal energy consumption (0.2/0.4 W rated power).
– With a supply voltage of 12/24 V, the light is universal and compatible with many types of vehicles.
– The product features an IP 68 rating, providing full resistance to water and dust, while the wide operating temperature range allows use in a variety of weather conditions.

Make sure you stay safe on the road! Discover our collection of GRAPHITE lights, a stylish solution for the automotive industry.

Technical data

Light group
HOR 109G
LED quantity
1
Light category
marker
Supply voltage
12/24 V
Light colour
white
Power rating
0,2/0,4 W
Operating temperature range
from -30°C to +50°C

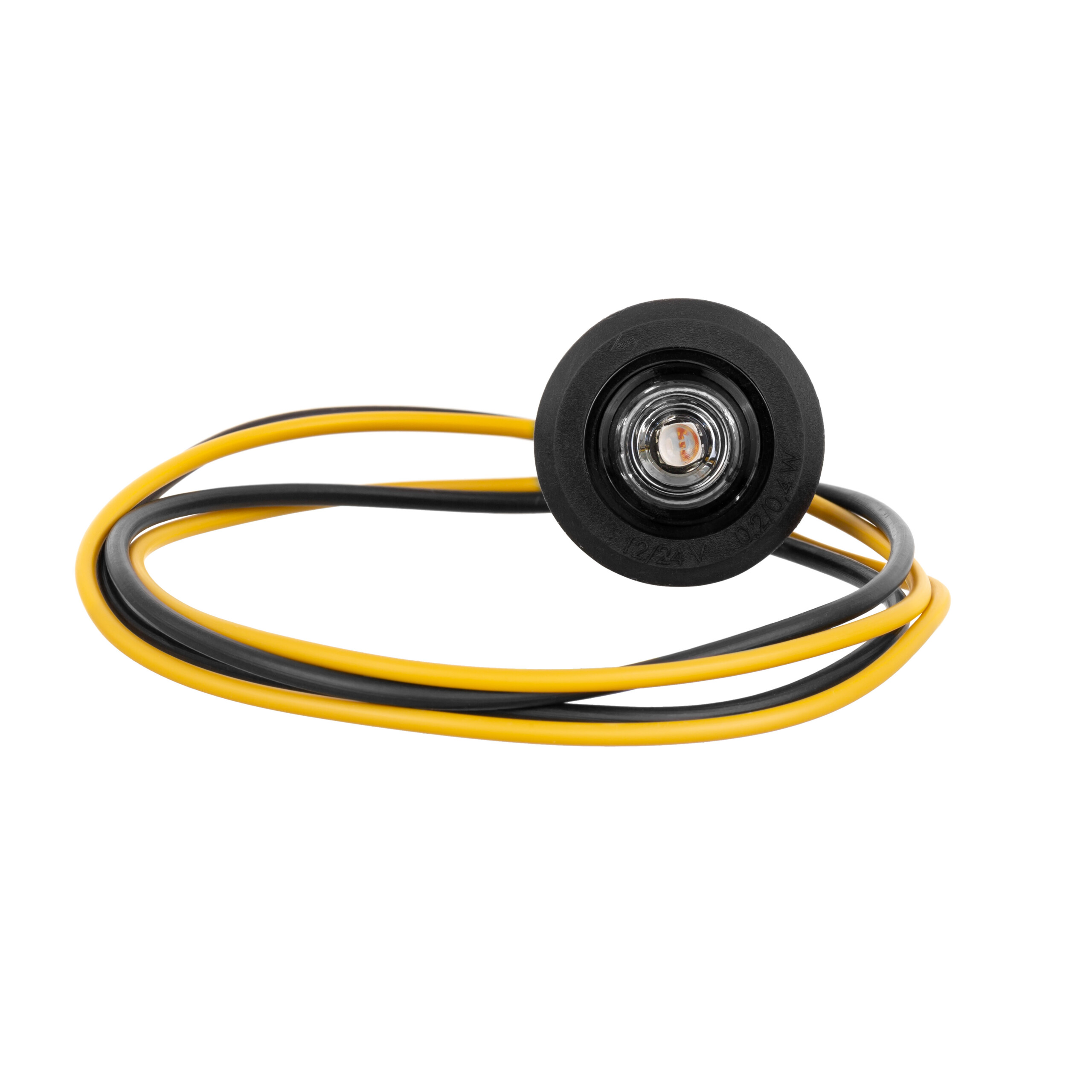

Cable
2×0,75 mm2; cable length 0,5 m
Side
universal
Front position light
yes
LED light
yes
Ingress protection rating
IP 68

Download

Position light HOR 109G (approval A) (lampa-pozycyjna-hor-109g_a-homologacja-en.ZIP)
Download
Position light HOR 109G (documents A) (lampa-pozycyjna-hor-109g_a-dokumentacja-en.ZIP)
Download
Position light HOR 109G (documents R10) (lampa-pozycyjna-hor-109g_r10-dokumentacja-en.ZIP)
Download
Position light HOR 109G (approval R10) (lampa-pozycyjna-hor-109g_r10-homologacja-en.ZIP)
Download
Page content (ld-2628-graphite.ZIP)
