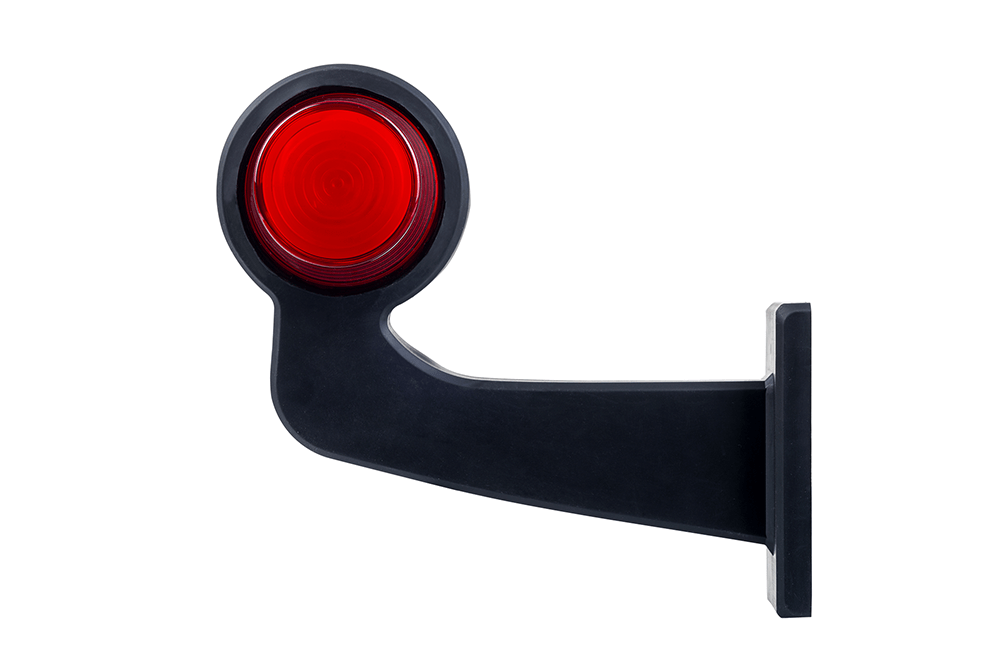

LD 2604

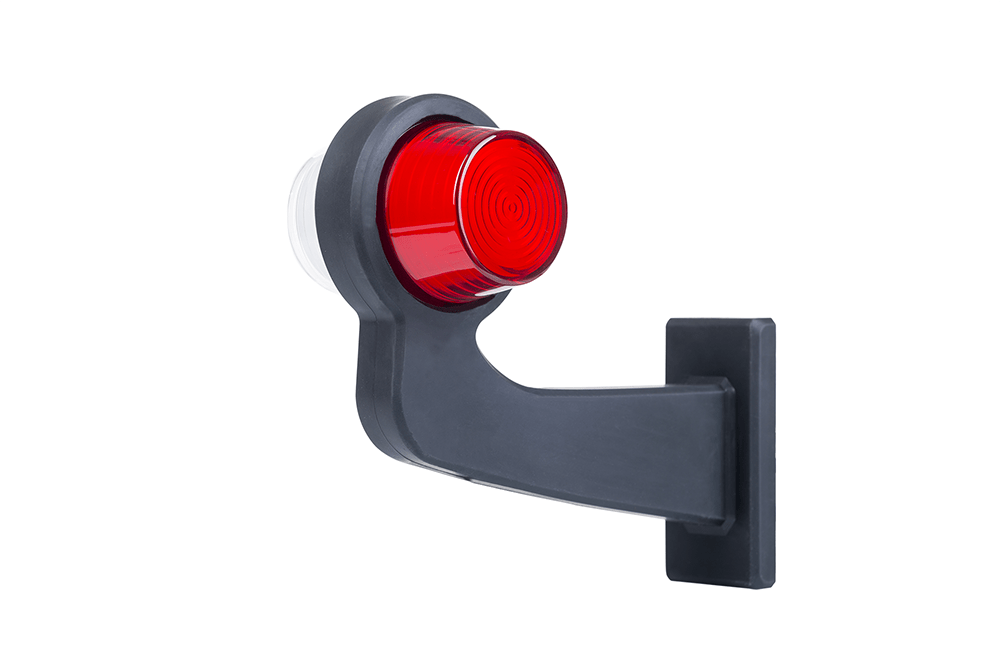

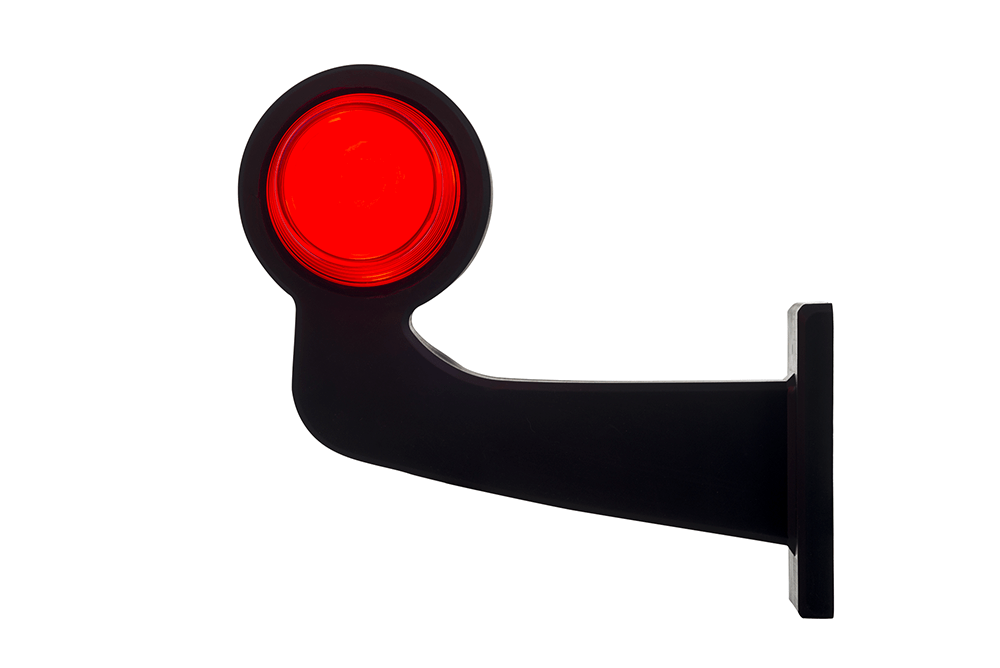

Marker lamp

Marker lamp white-red LEFT, long arm, white and red lens, 0,5 m cable, neon version

Technical data

LED light
yes
Light category
marker
Light group
HOR 102B
Side
left
Supply voltage
12/24 V
Power rating
2/4 W
Ingress protection rating
IP 68
LED quantity
18
Front position light
yes
Rear position light
yes
Operating temperature range
from -30°C to +50°C

Download

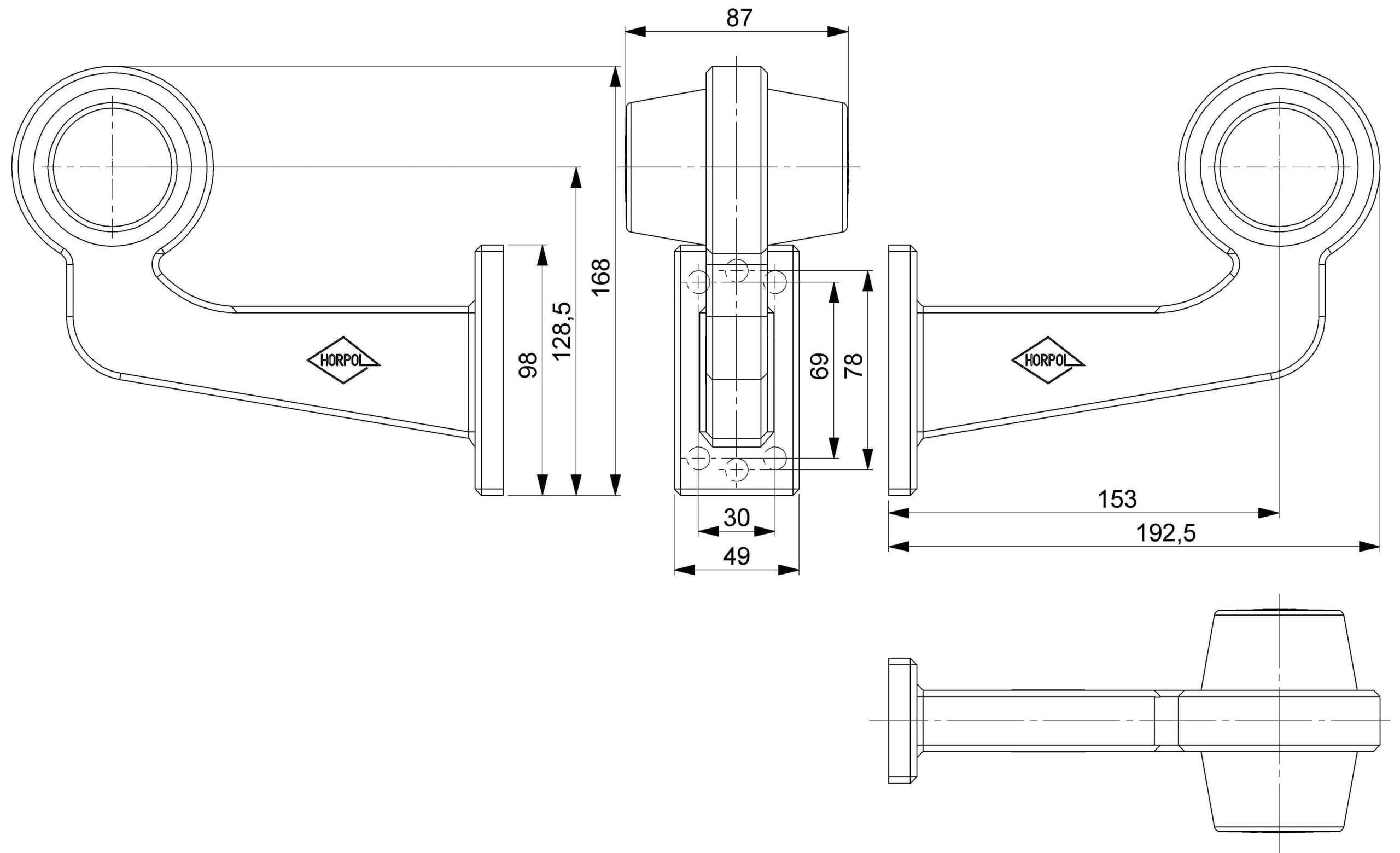

Marker lamp LD 2604 (attachment) 1 (marker-lamp-ld-2604-attachment-1.ZIP)
Download
Marker lamp LD 2604 (homologation) 1 (marker-lamp-ld-2604-homologation-1.ZIP)
Download

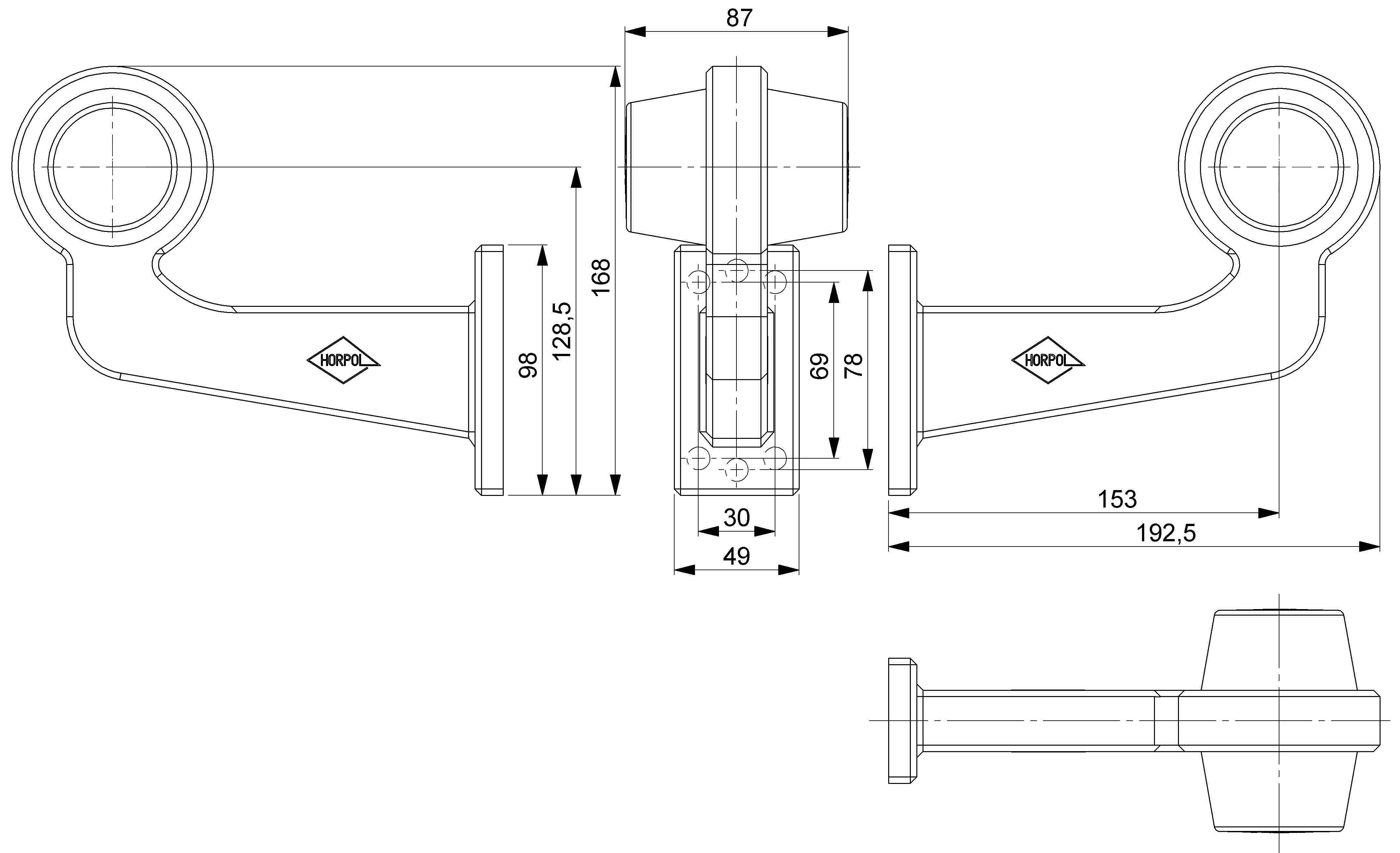

Marker lamp LD 2604 (technical drawing) 1 (marker-lamp-ld-2604-technical-drawing-1.ZIP)
Download
Page content (ld-2604.ZIP)
Download

Related products

  • LD 2605 Marker lamp

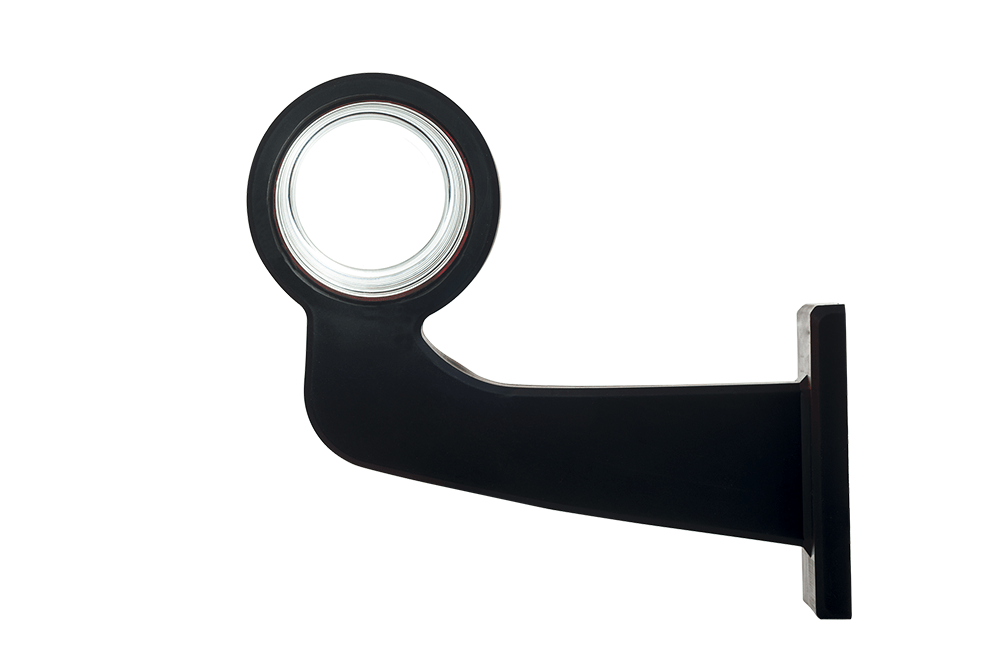

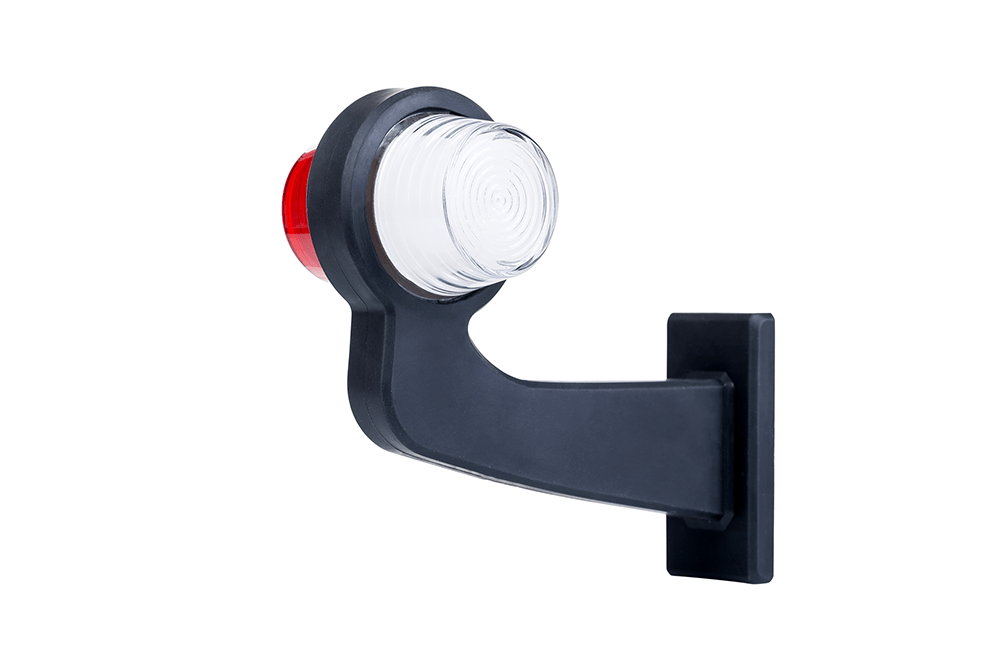

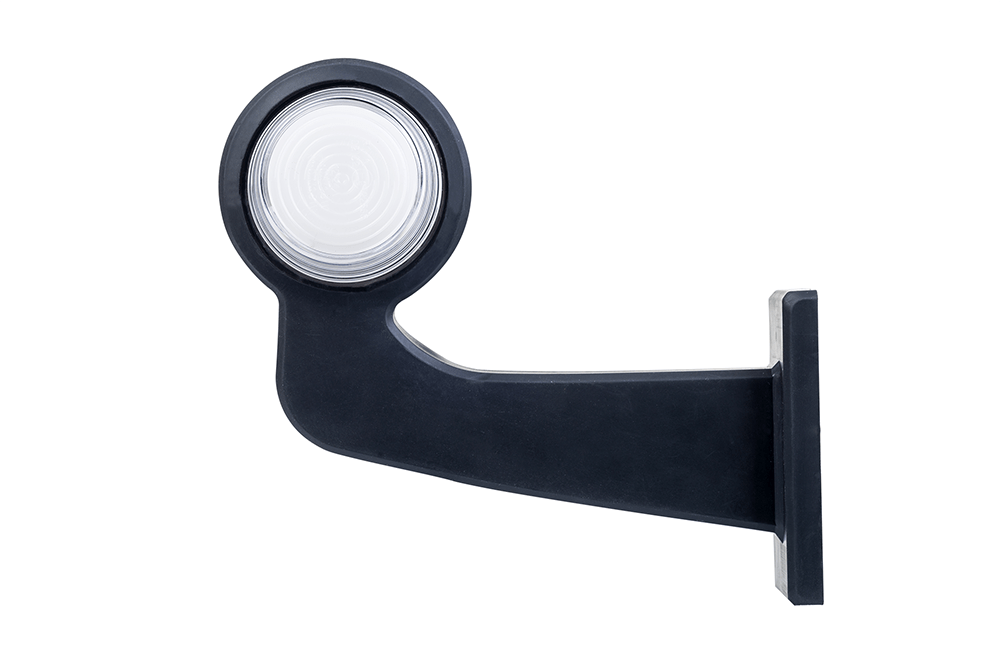

    Marker lamp white-red RIGHT, long arm, white and red lens, 0,5 m cable, neon version

    more information

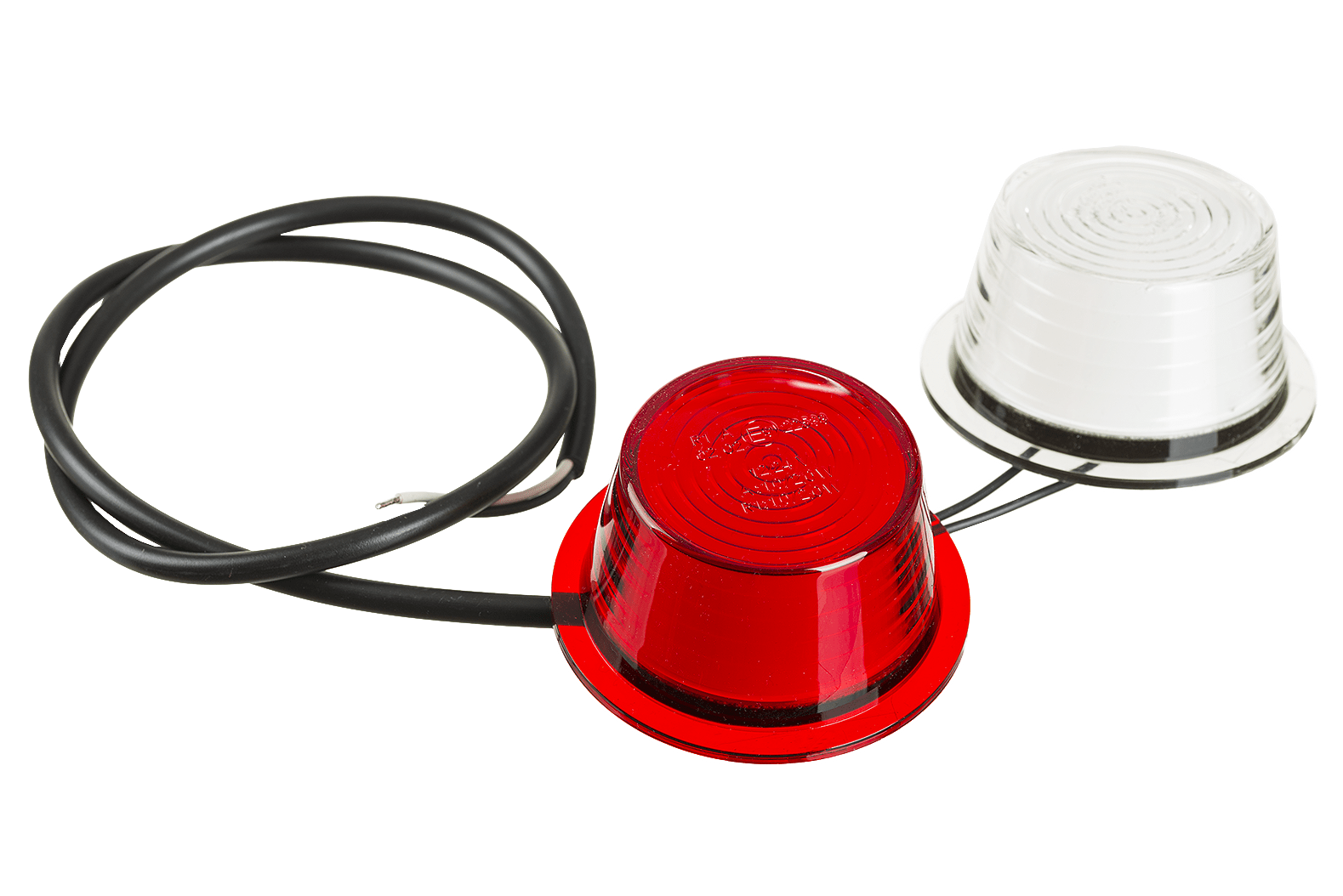

  • MDBC 2611 White and red modules
