Home Offer Lamp types LED lights Multifunction lights Multifunction front lamp LZD 2265

Lamp Type: LED

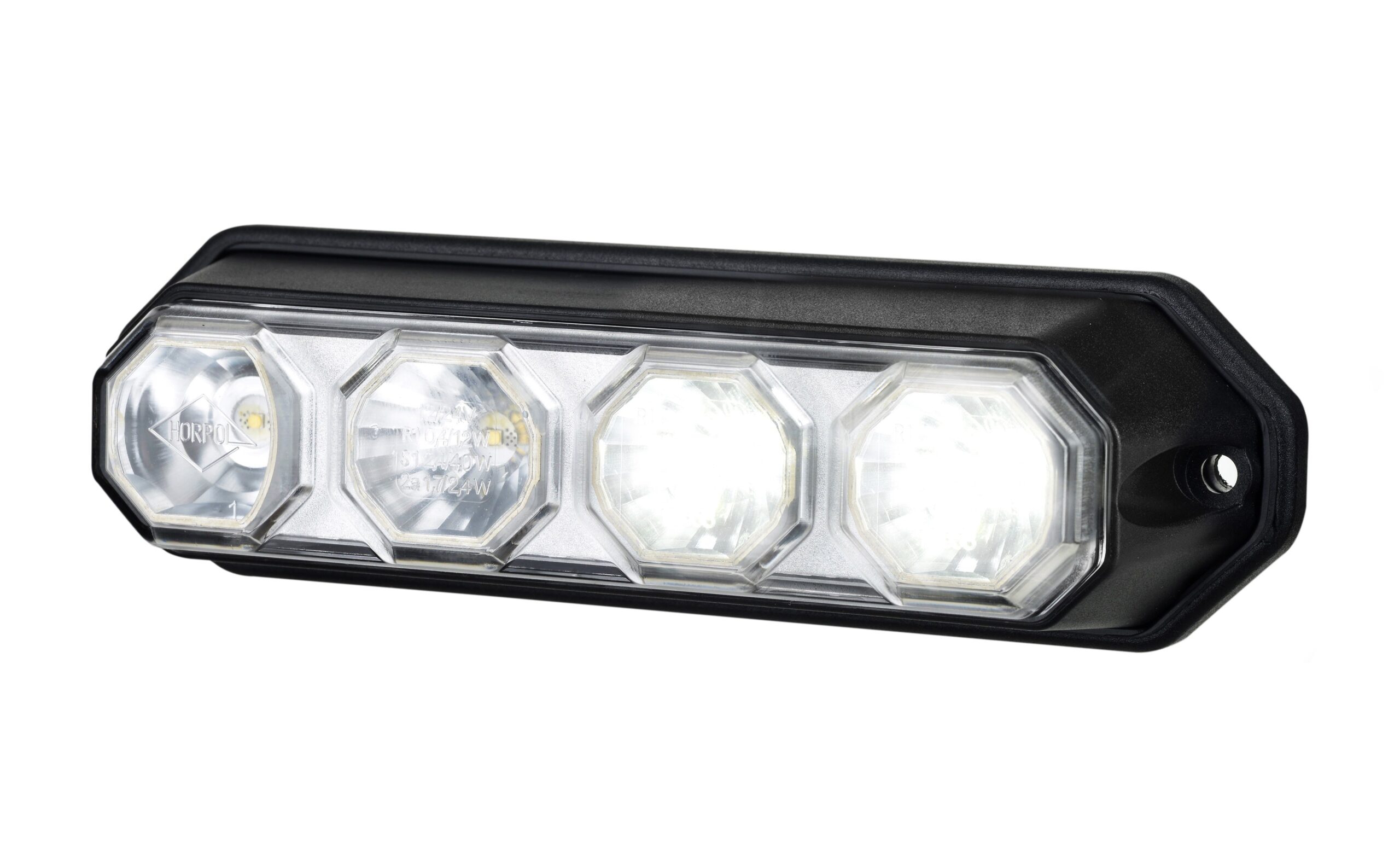

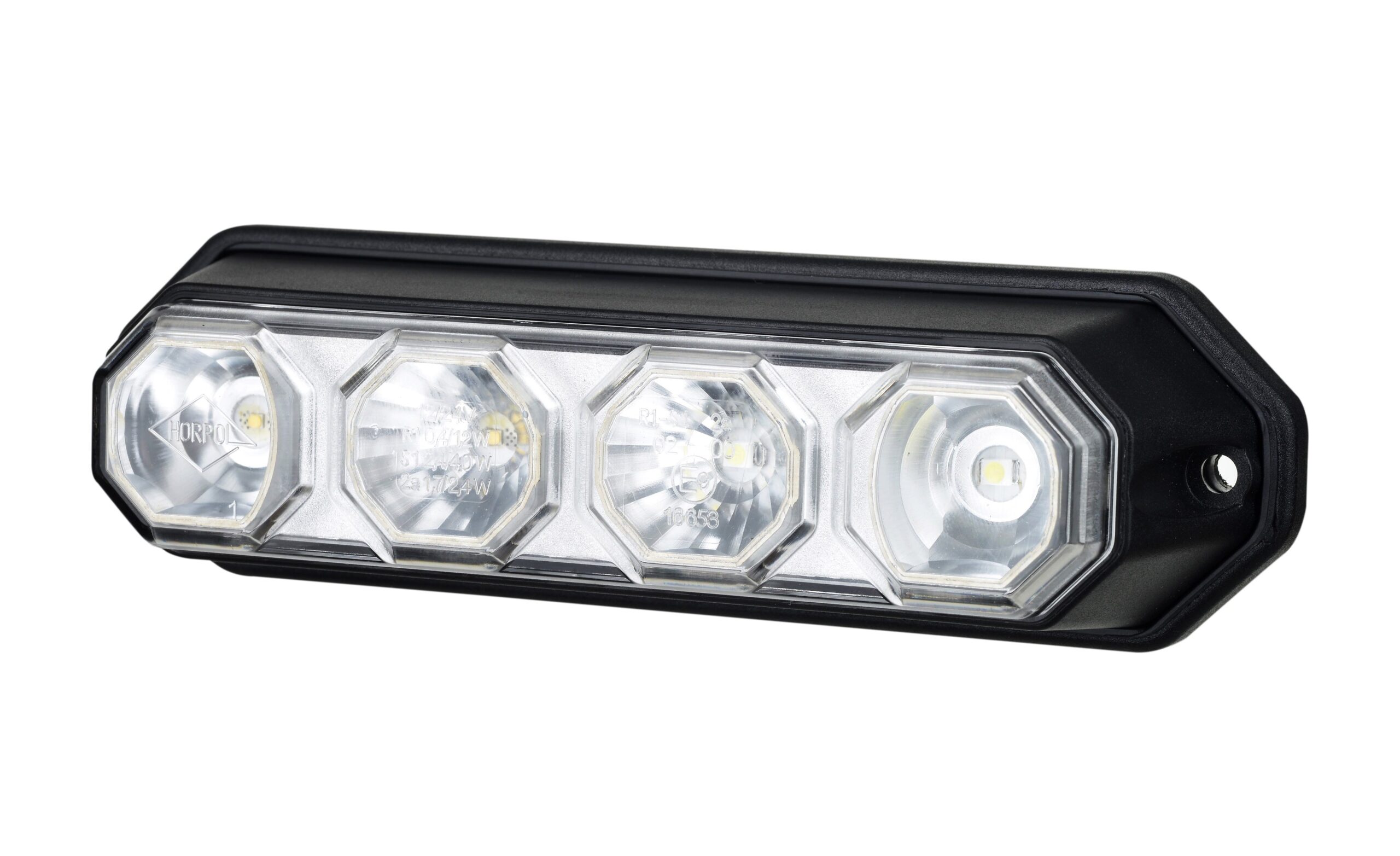

LED multifunction front lamp: position light and direction indicator

specification of cores:

– white – ground

– red – direction indicator

– blue – front position light

Technical data

Light group

HOR 78A

Light category

multifunction front

LED light

yes

LED quantity

4

Front position light

yes

Front direction indicator

yes

Side

universal

Supply voltage

12/24 V

Power rating

direction indicator 2,7/3,2 W; position light 0,3/0,5 W

Cable

3×0,5 mm²; cable length 1 m

Operating temperature range

from -30°C to +50°C

Ingress protection rating

IP 68

LZD 2265 Multifunction front lamp

Files to download

Page content (LZD 2265.zip) multifunction front lamp lzd 2265 technical drawing multifunction front lamp lzd 2265 homologation multifunction front lamp lzd 2265 homologation 1 multifunction front lamp lzd 2265 technical drawing 1
