LZD 2011

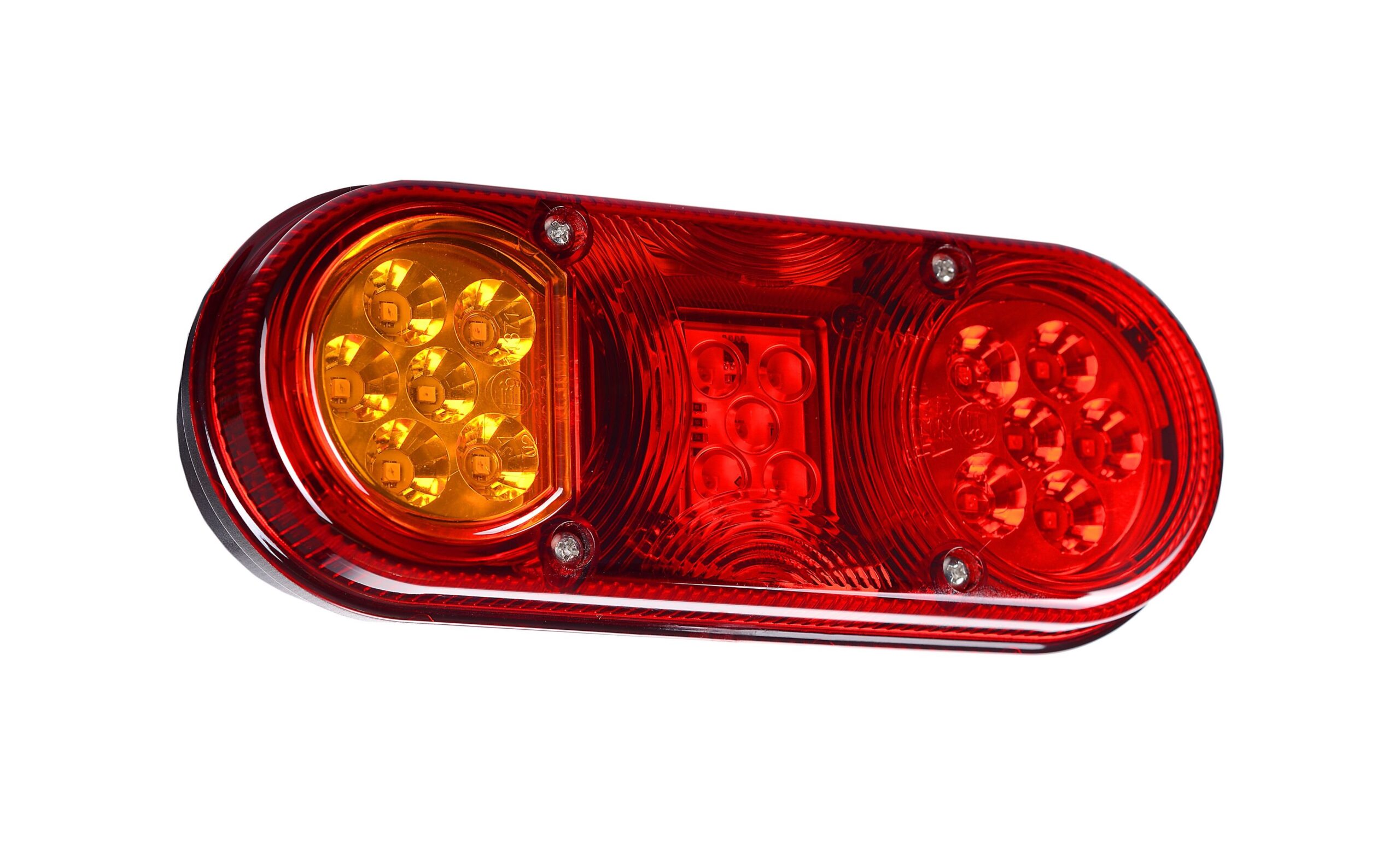

Multifunction light

Rear multifunction light, 12/24 V, right.

Technical data

LED light
yes
Bulb light
yes
Light category
multifunction rear
Light group
HOR 76
Side
right
Supply voltage
12/24 V
Cable
4x0,75 mm2; cable length 2 m
LED quantity
21
Rear position light
yes
Brake light
bulb P21 W
Rear direction indicator
bulb P21 W
Operating temperature range
from -30°C to +50°C

Download

Multifunction light LZD 2011 (technical drawing) 1 (multifunction-light-lzd-2011-technical-drawing-1.ZIP)
Download
Multifunction light LZD 2011 (homologation) 1 (multifunction-light-lzd-2011-homologation-1.ZIP)
Download
Multifunction light LZD 2011 (homologation) 2 (multifunction-light-lzd-2011-homologation-2.ZIP)
Download
Multifunction light LZD 2011 (homologation) 3 (multifunction-light-lzd-2011-homologation-3.ZIP)
Download
Page content (lzd-2011.ZIP)
Download
