LZD 2544

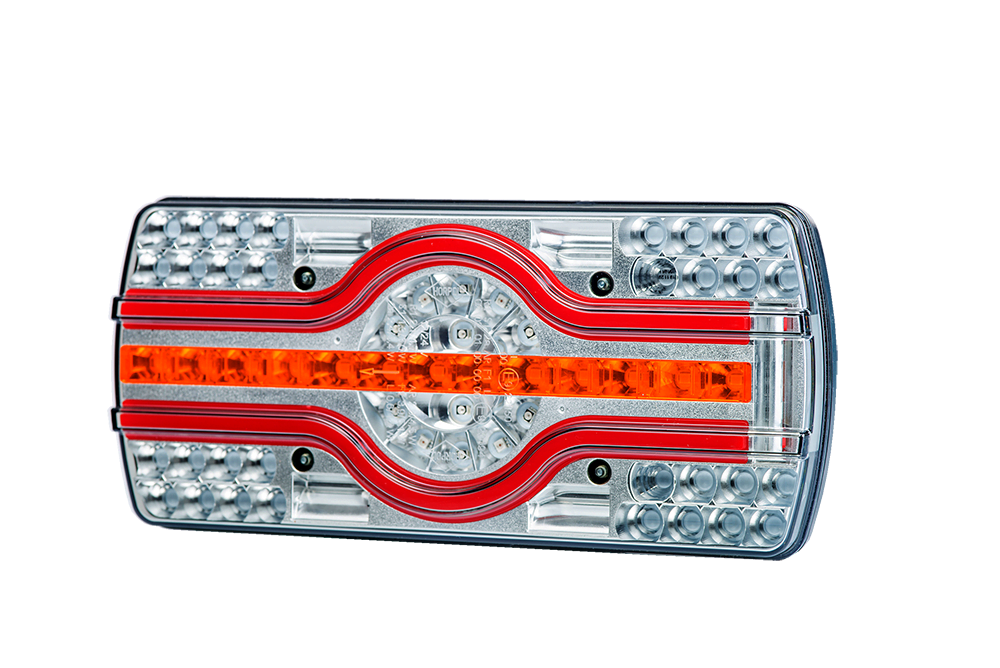

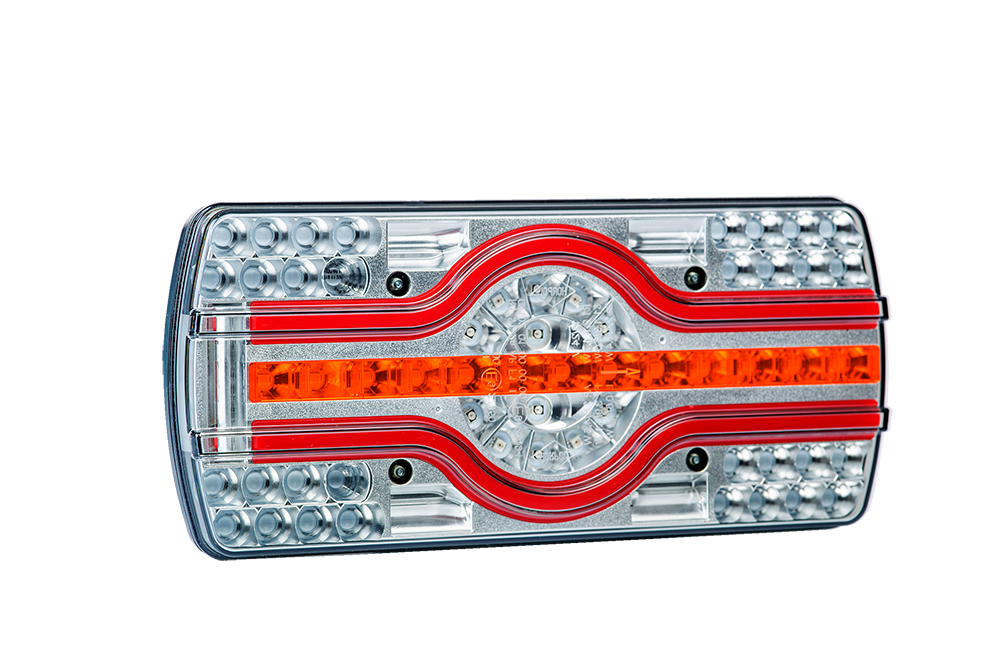

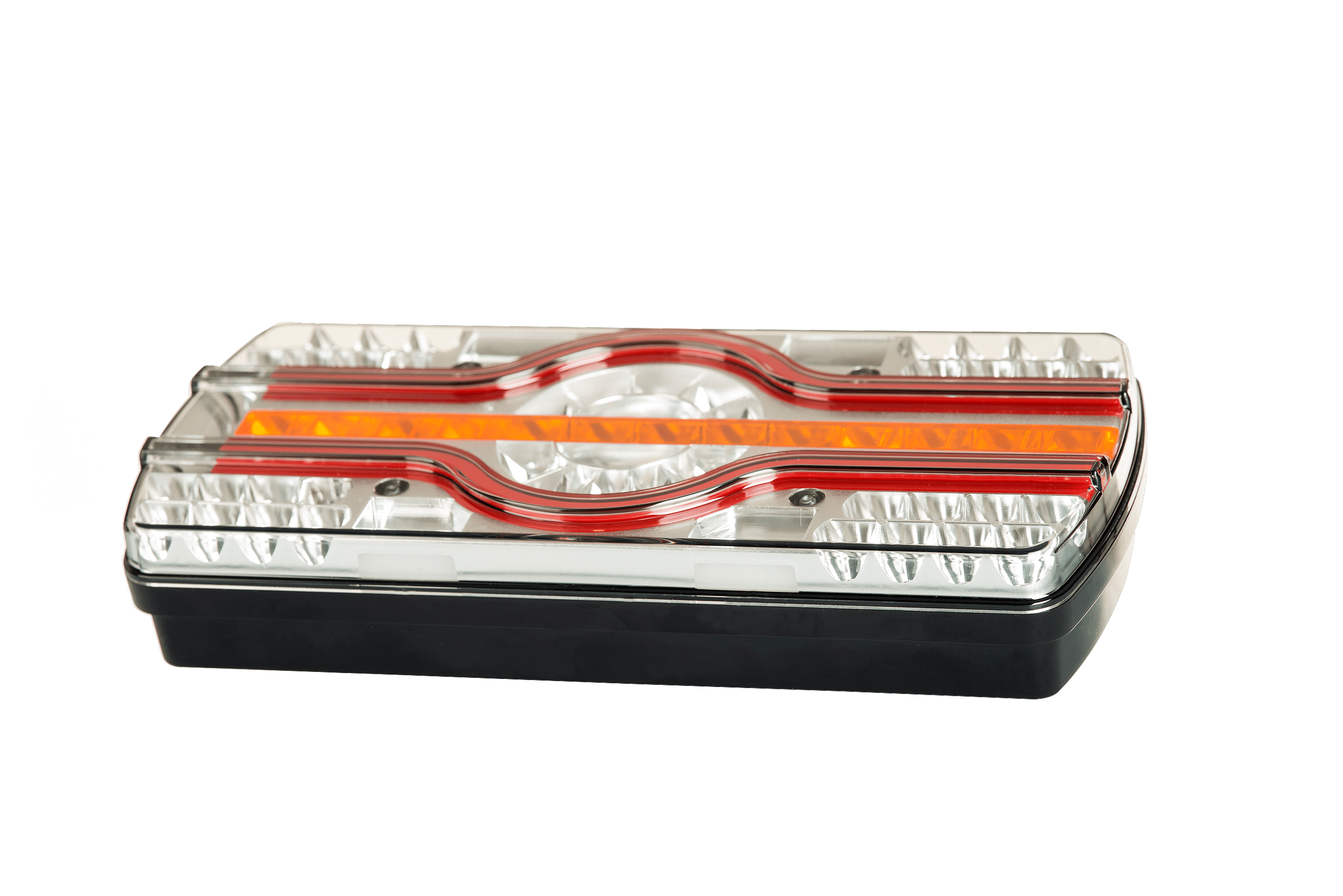

Multifunction rear lamp EMA

Multifunction rear lamp. Number plate light – underarm, left

Description

Lamp functions/parameters

universal input voltage 12/24 V

power rating

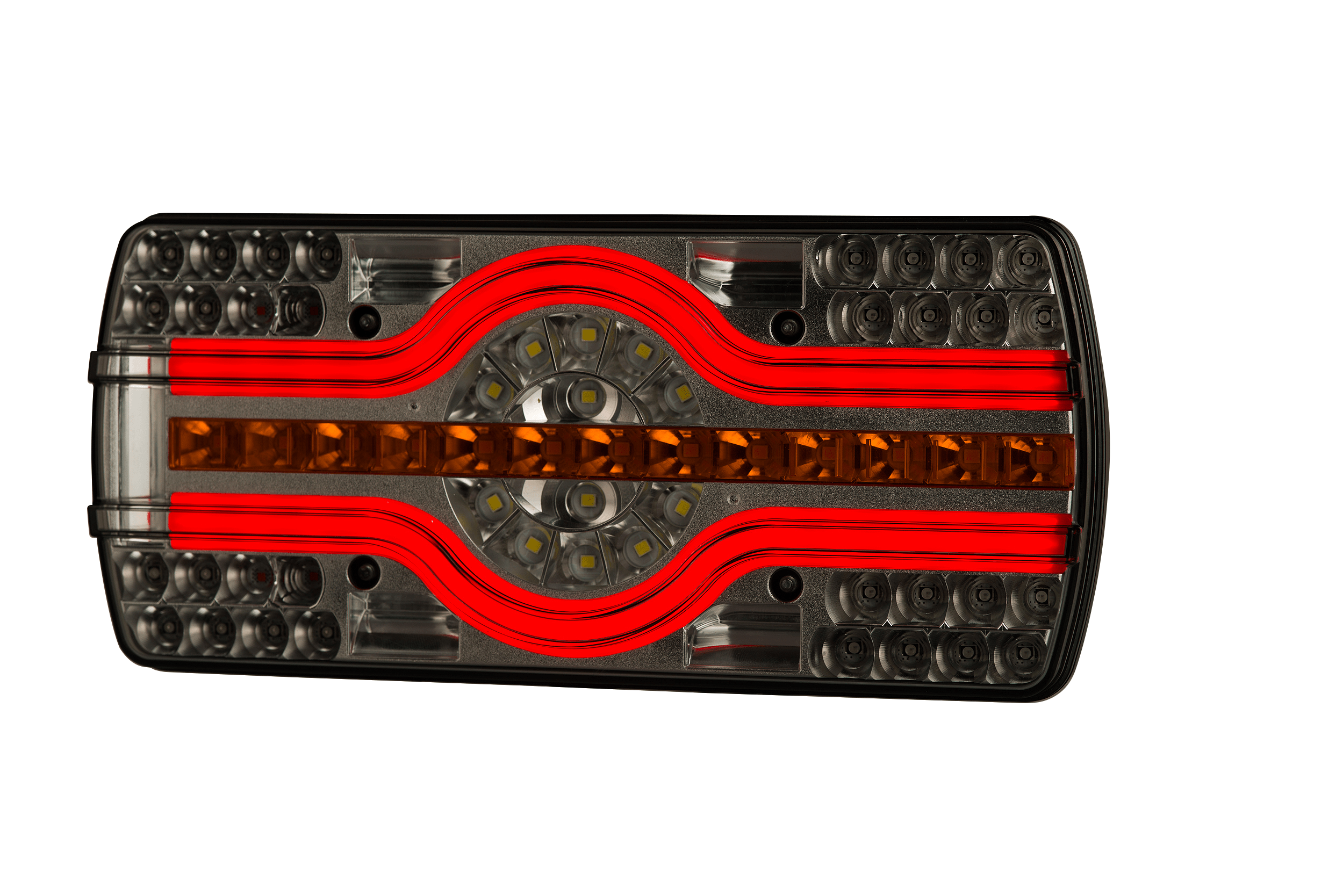

– position light (neon) 2,1/4,7 W

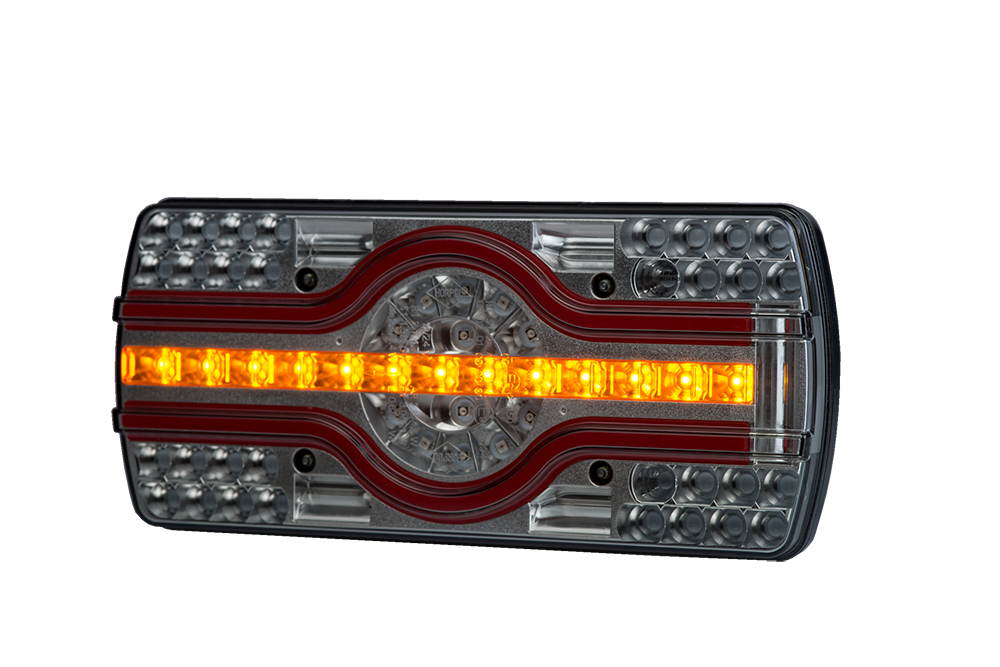

– direction indicator 2,4/5,4 W

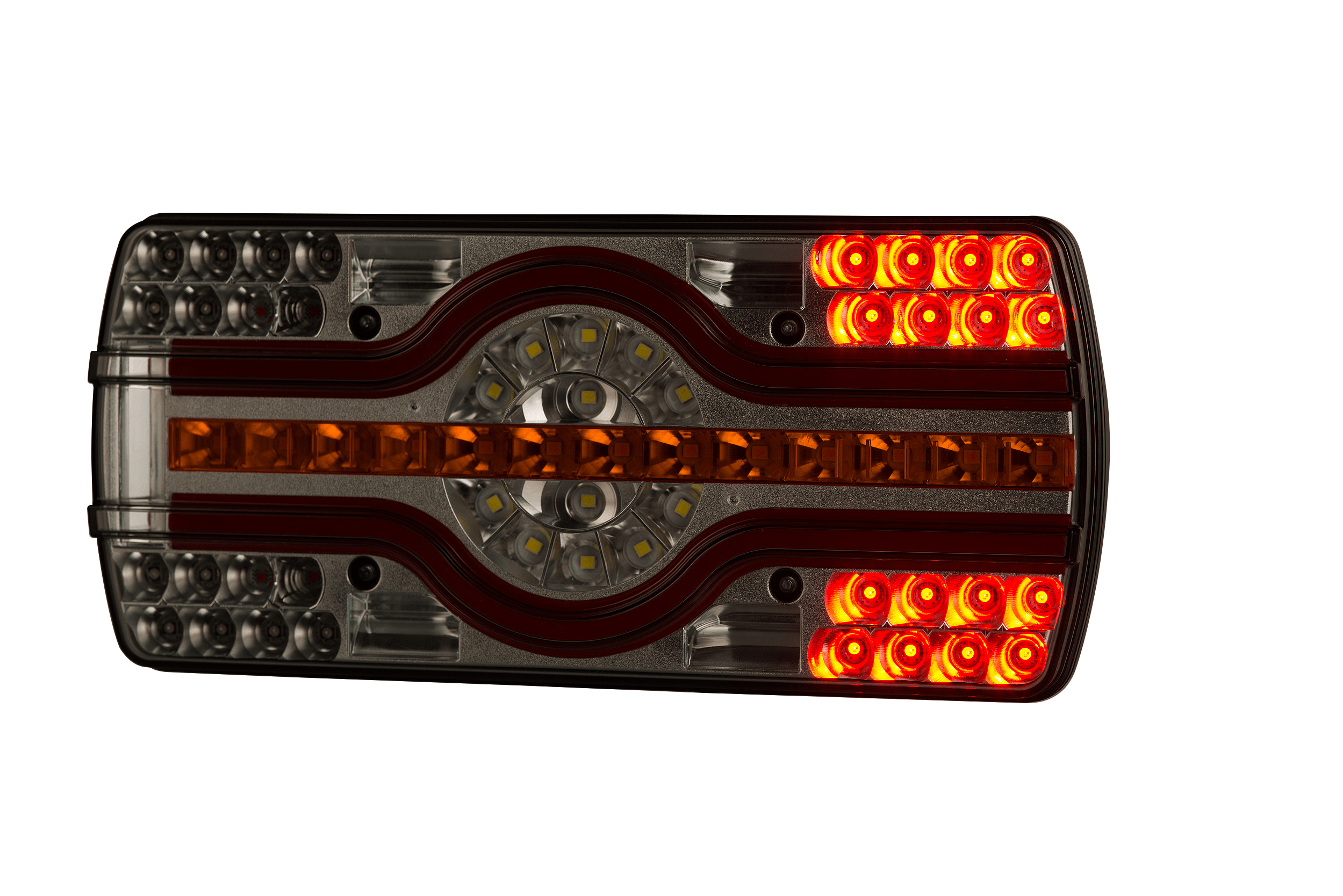

– brake light 2,7/6,0 W

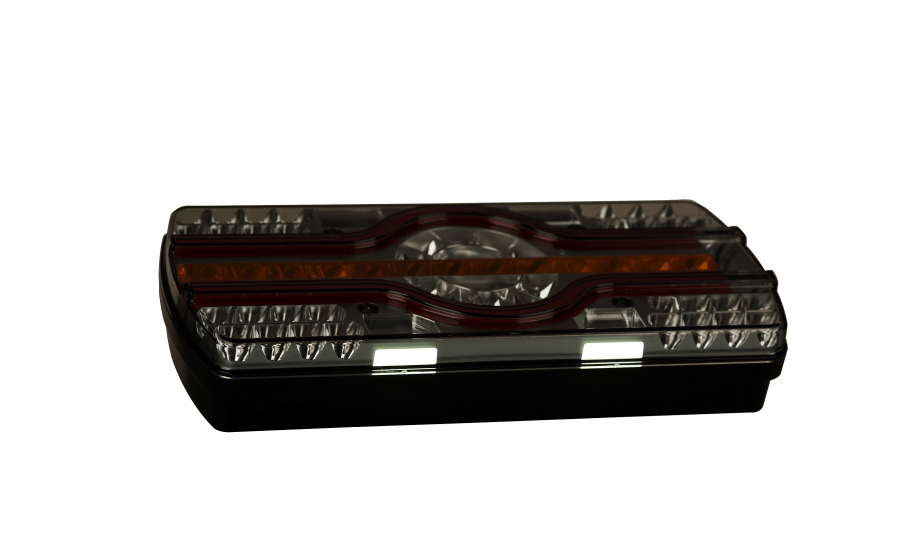

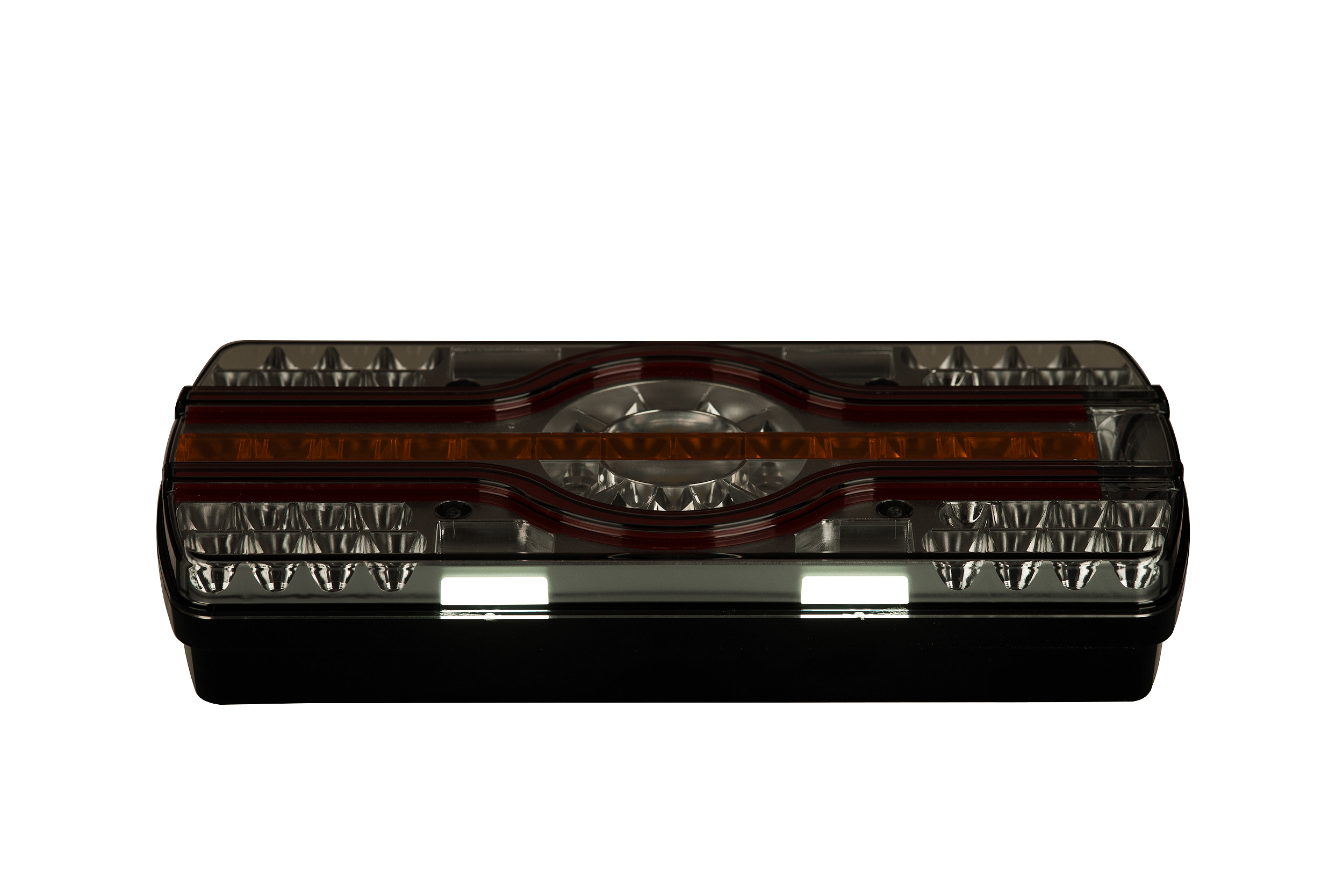

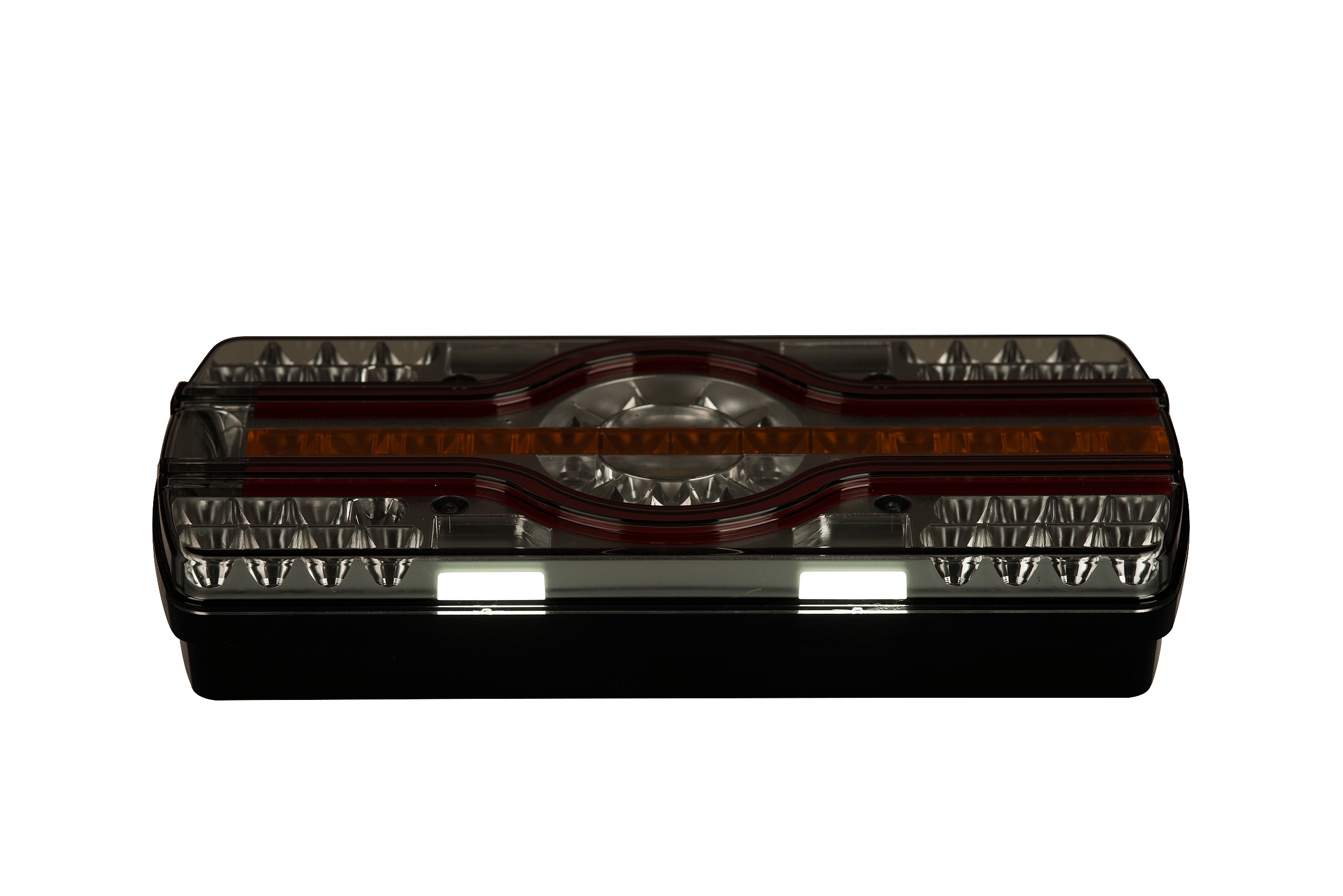

– number plate light 0,6/1,2 W

cable 5×0,5 mm2, długość 2 m

Specifications of cores:

– white – ground

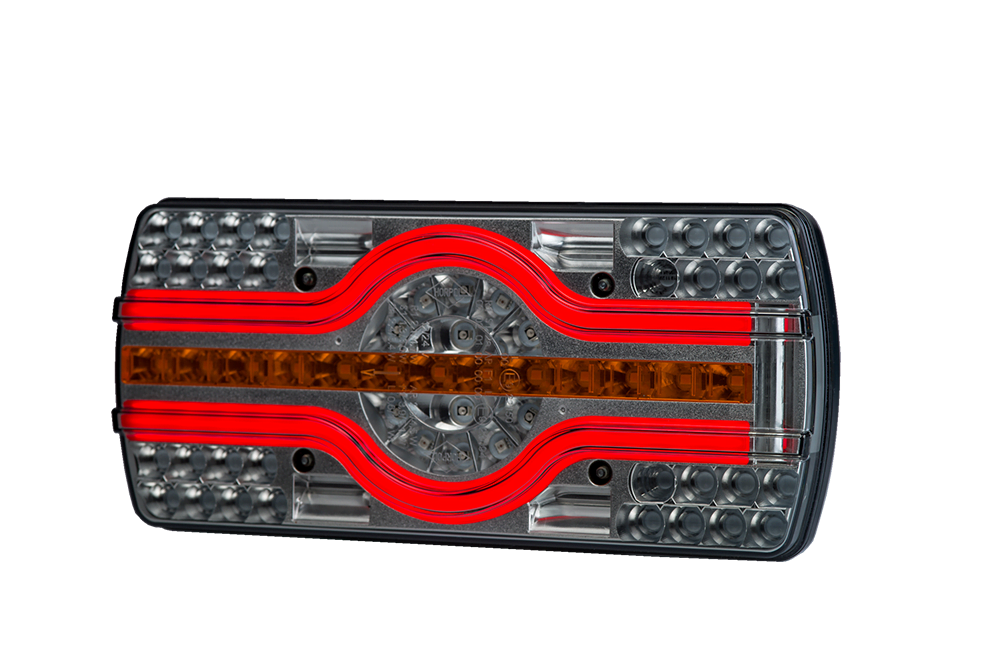

– black – position light

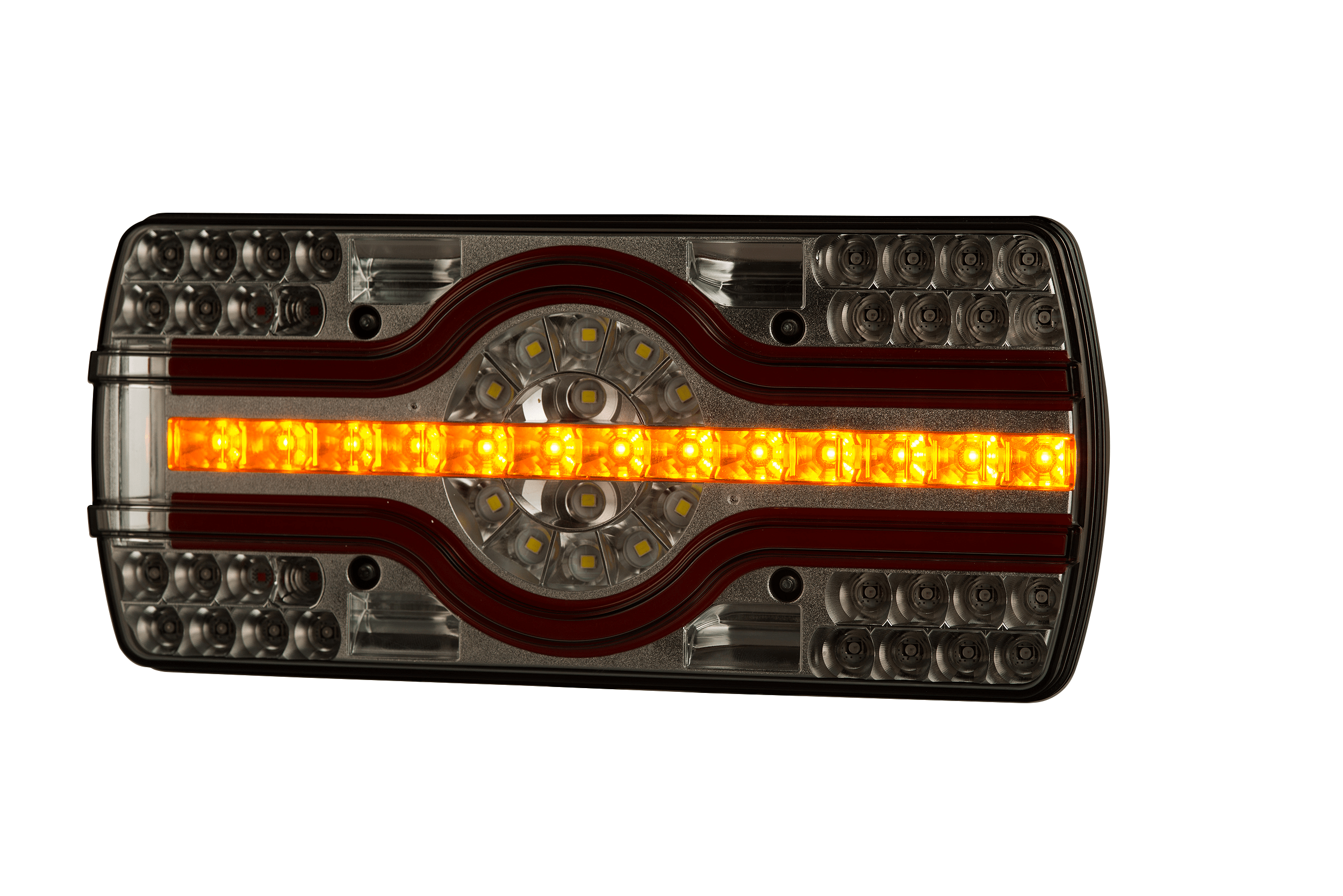

– yellow – direction indicator

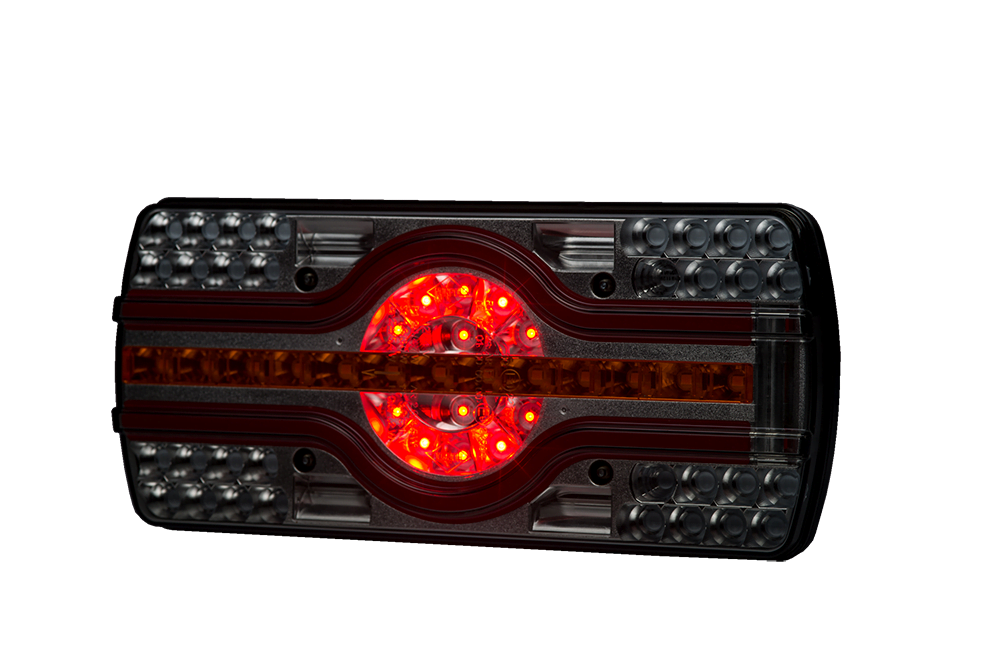

– red – brake light

– blue – number plate light

Hermetic lamps IP 68

Technical data

Light category
multifunction rear
Rear position light
yes
Supply voltage
12/24 V
Number plate light
yes
Operating temperature range
from -30°C to +50°C
Cable
5×0,5 mm2; cable length 2 m
Side
left
Brake light
yes
Rear direction indicator
yes
LED light
yes
Ingress protection rating
IP 68

Download

Multifunction rear lamp EMA LZD 2544 (homologation) 1 (multifunction-rear-lamp-ema-lzd-2544-homologation-1.ZIP)
Download
Multifunction rear lamp EMA LZD 2544 (homologation) 2 (multifunction-rear-lamp-ema-lzd-2544-homologation-2.ZIP)
Download
Multifunction rear lamp EMA LZD 2544 (attachment) 1 (multifunction-rear-lamp-ema-lzd-2544-attachment-1.ZIP)
Download

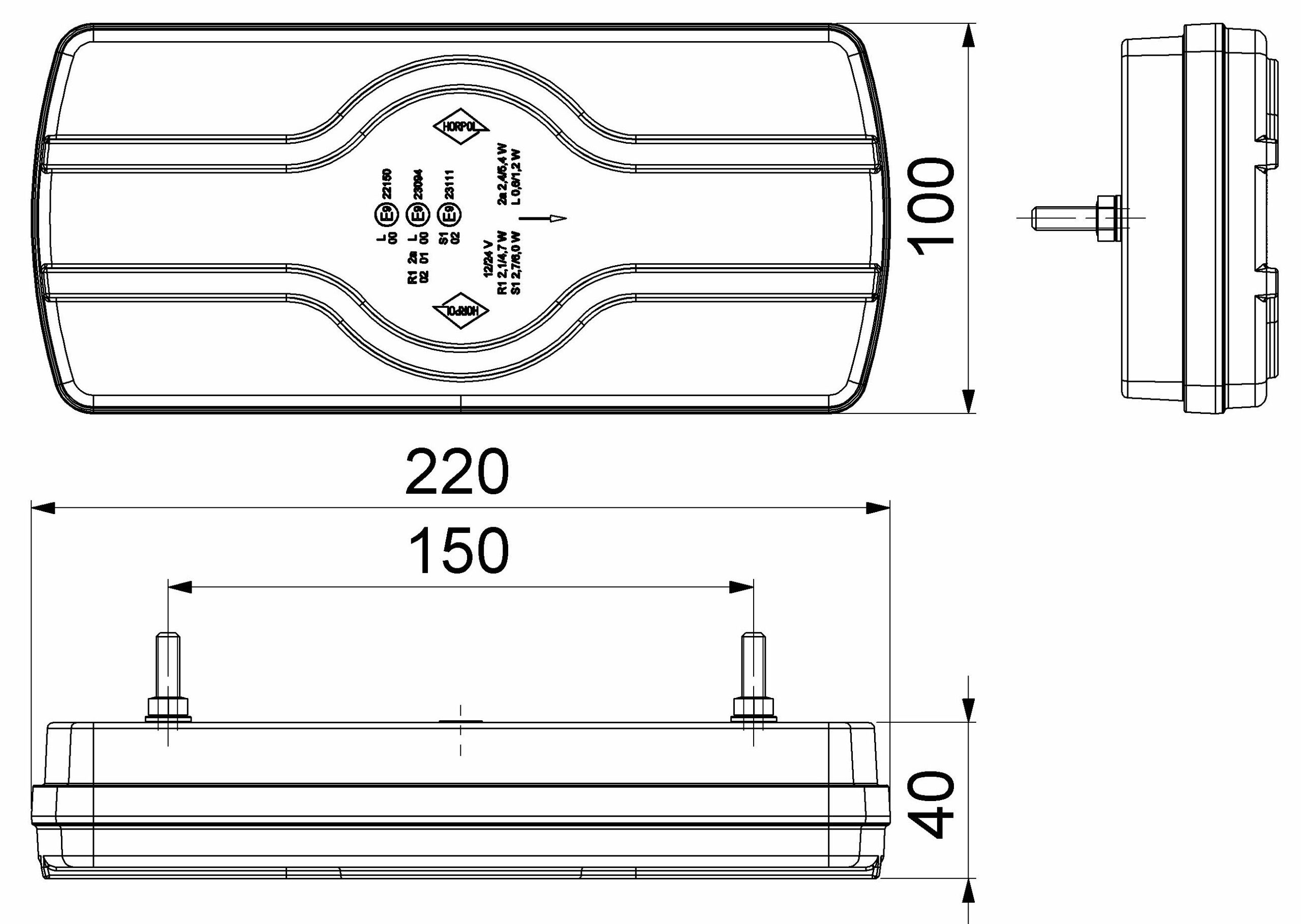

Multifunction rear lamp EMA LZD 2544 (technical drawing) 1 (multifunction-rear-lamp-ema-lzd-2544-technical-drawing-1.ZIP)
