LTD 2834

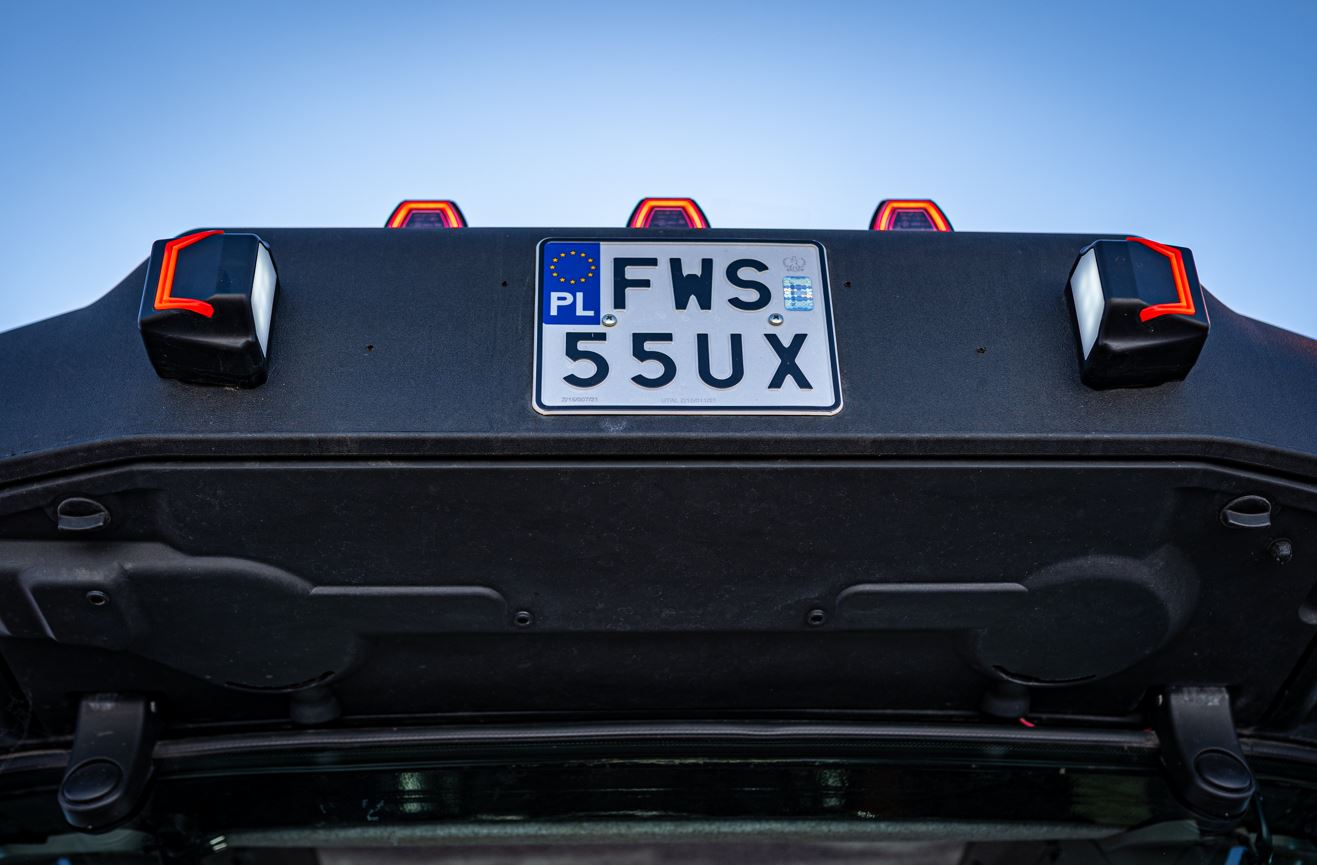

Number plate lamp with position light

The license plate lamp with red position light LTD 2834 is a modern product and is suitable for various types of vehicles. Instead of traditional spot LED lighting, it features the NEON effect, which ensures consistent and uniform illumination. It is a top-quality product with an IP 68 ingress protection rating and can operate in a temperature range from -30°C to +50°C.

Power consumption at operating voltage 12/24 V:
– number plate light 1/2 W;
– red position light – 0,1/0,2 W.

Technical data

Light group
HOR 127
LED quantity
12
Light category
plate number
Rear position light
yes
Supply voltage
12/24 V
Number plate light
yes
Operating temperature range
from -30°C to +50°C
Cable
2×0,75 mm2; cable length 0,5 m
Side
universal
LED light
yes
Ingress protection rating
IP 68

Download

Number plate lamp with position light LTD 2834 (approval HOR 127) (number-plate-lamp-with-position-light-ltd-2834-approval-hor-127.ZIP)
Download
Number plate lamp with position light LTD 2834 (technical drawing HOR 127) (number-plate-lamp-with-position-light-ltd-2834-technical-drawing-hor-127.ZIP)
Download
Number plate lamp with position light LTD 2834 (technical drawing_HOR 127) (number-plate-lamp-with-position-light-ltd-2834-technical-drawing_hor-127.ZIP)
Download
Page content (ltd-2834.ZIP)
