The MDPC 2623 LED module is a proven Old School-style solution — combining a classic form, robust construction, and modern LED technology in one. Designed specifically for stalk marker lights, it perfectly blends functionality with timeless aesthetics.

Its dual-diode system in orange (front) and red (rear) ensures clear vehicle marking from both the side and the rear. With a 12/24 V power supply, the module is fully compatible with most trucks, trailers, and other special vehicles.

Technical data

Light group

HOR 102A

Light category

marker

LED light

yes

LED quantity

10

Rear position light

yes

Side

universal

Supply voltage

12/24 V

Power rating

1,2/3 W

Cable

2×0,75 mm²; length 0,7 m

Operating temperature range

from -30°C to +50°C

Light colour

amber-red

Ingress protection rating

IP 68

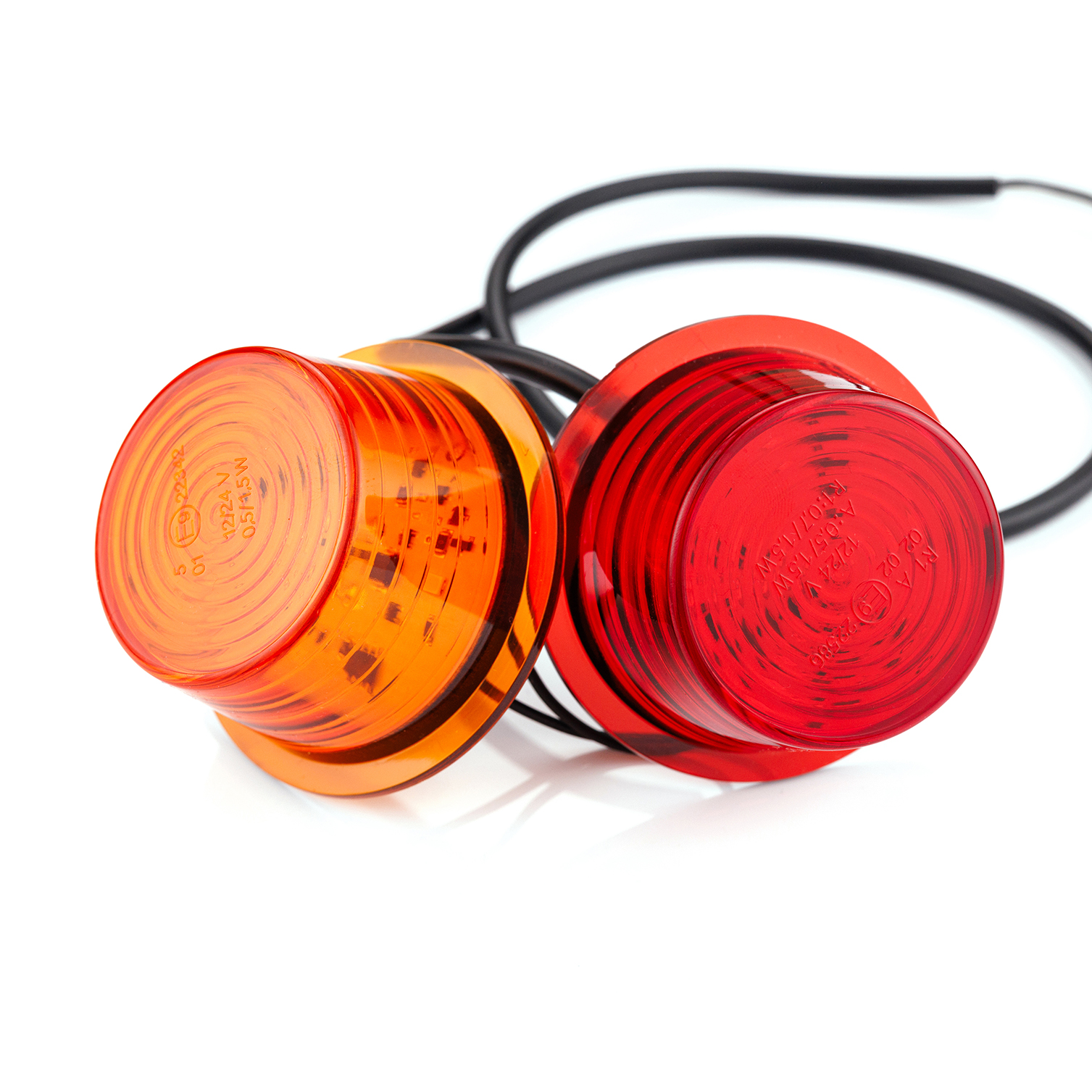

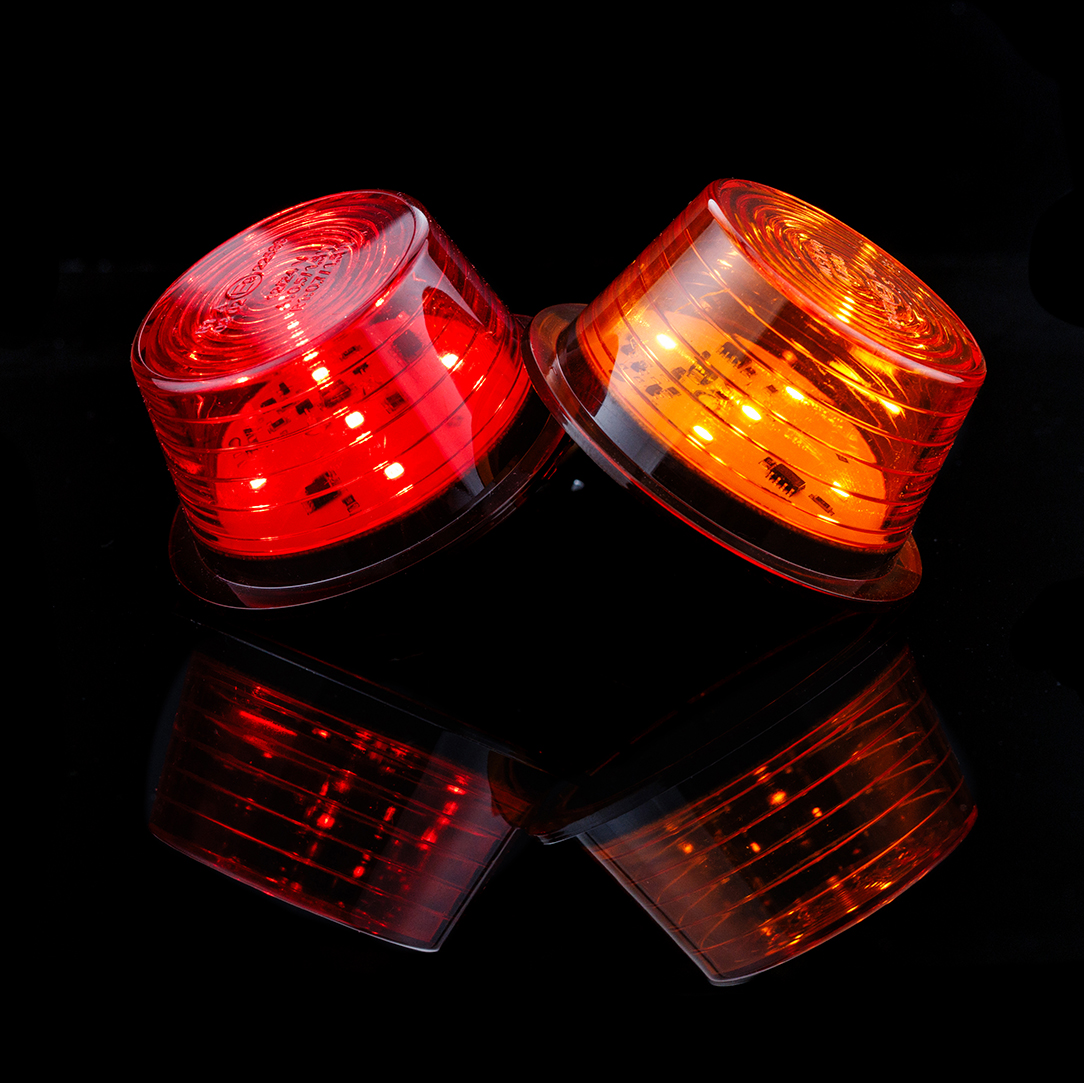

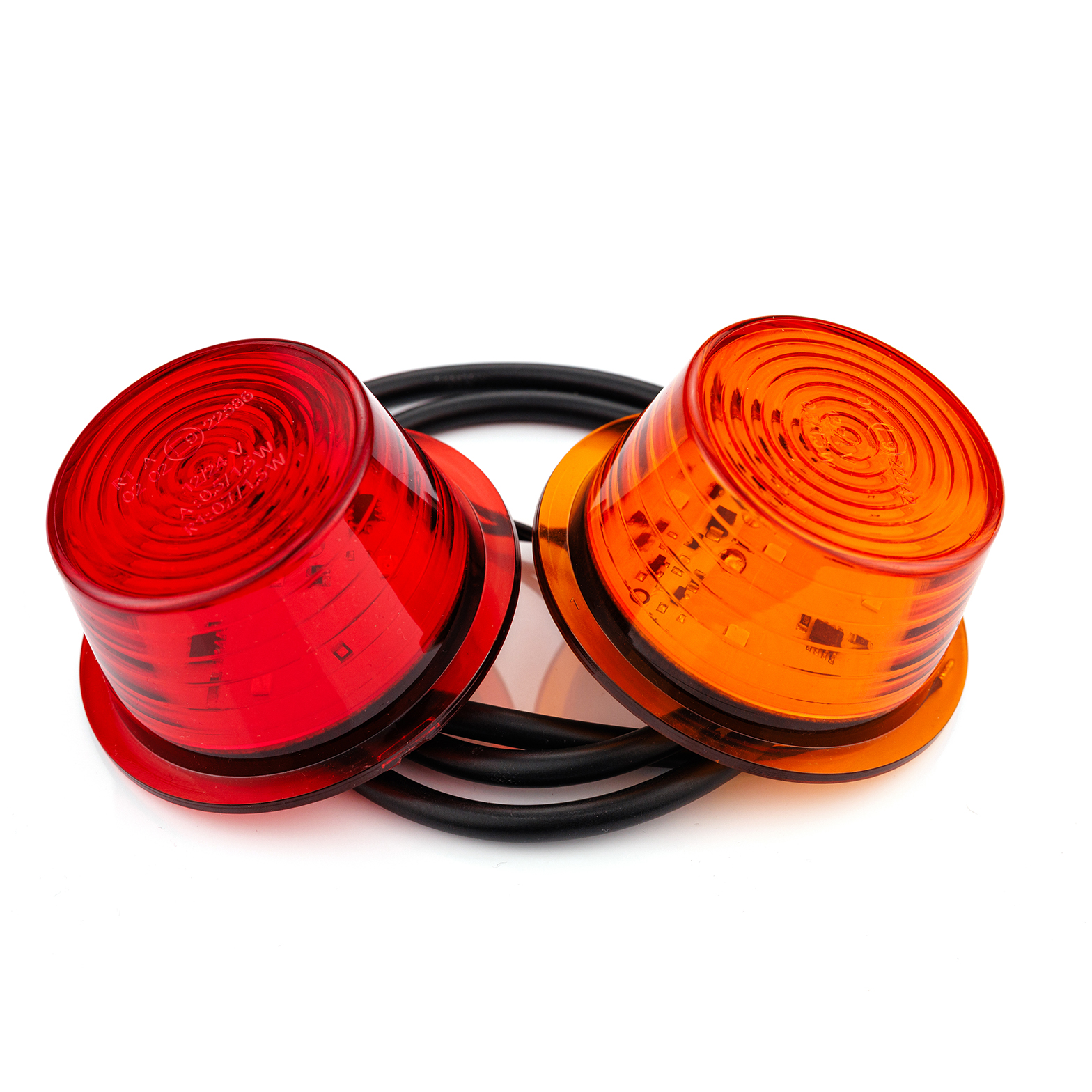

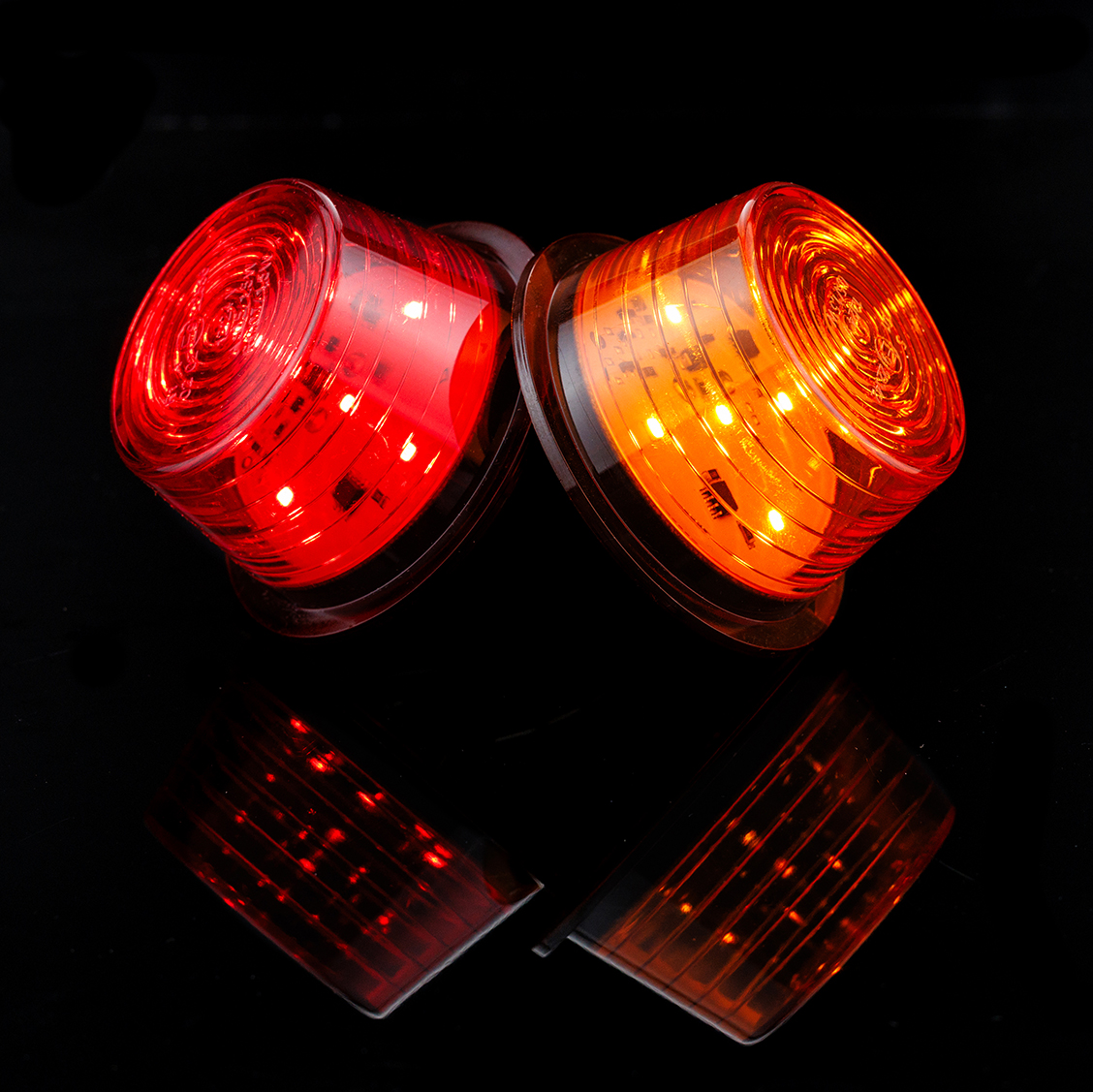

MDPC 2623 Orange and red module for stalk marker light

Files to download

Page content (MDPC 2623.zip) Module for stalk marker light MDPC 2623 technical drawing
