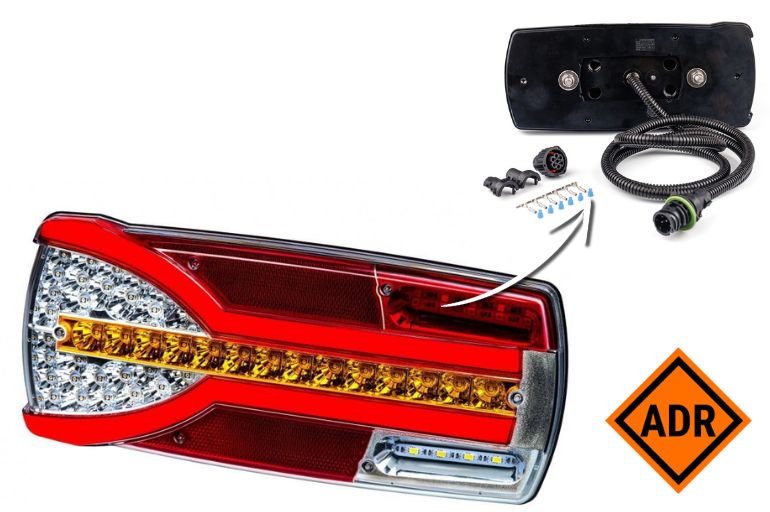

The CARMEN LZD 2302/ADR/0.5M/AMP7 rear combination lamp has been designed for modern commercial vehicles where reliable operation, high safety standards, and an attractive appearance are essential. Thanks to advanced LED technology and the distinctive NEON rear position light, the lamp provides excellent vehicle visibility both during the day and at night, improving safety for all road users.

The lamp features a dynamic turn indicator with a smooth sequential light pattern that effectively attracts the attention of other drivers and clearly indicates the intention to change direction. The stop light, positioned behind a clear lens, provides intense light output, while additional functions – reverse light, rear fog light, and side licence plate light – ensure full functionality required for the daily operation of trucks, trailers, and semi-trailers. An integrated reflector further enhances vehicle visibility when parked or stationary.

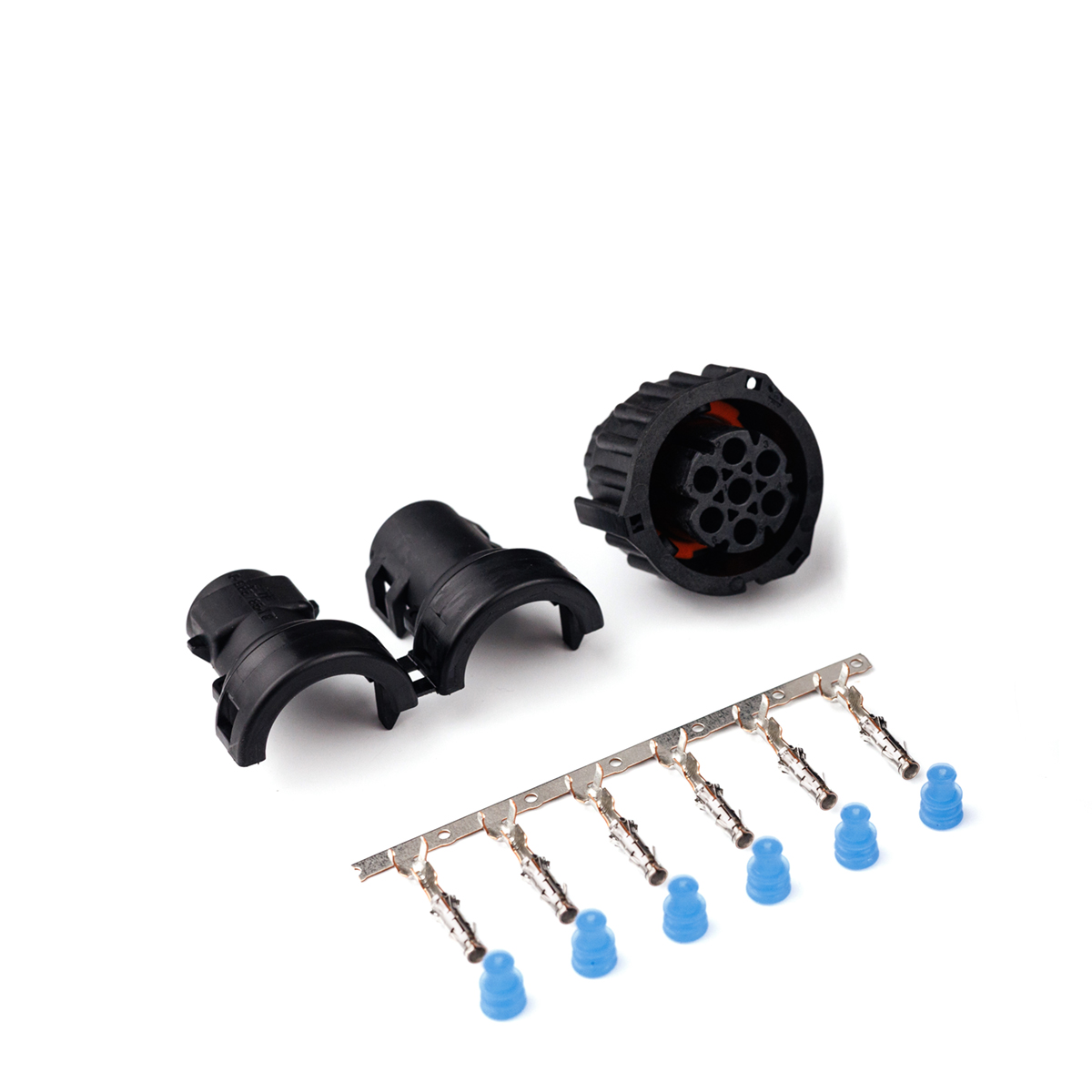

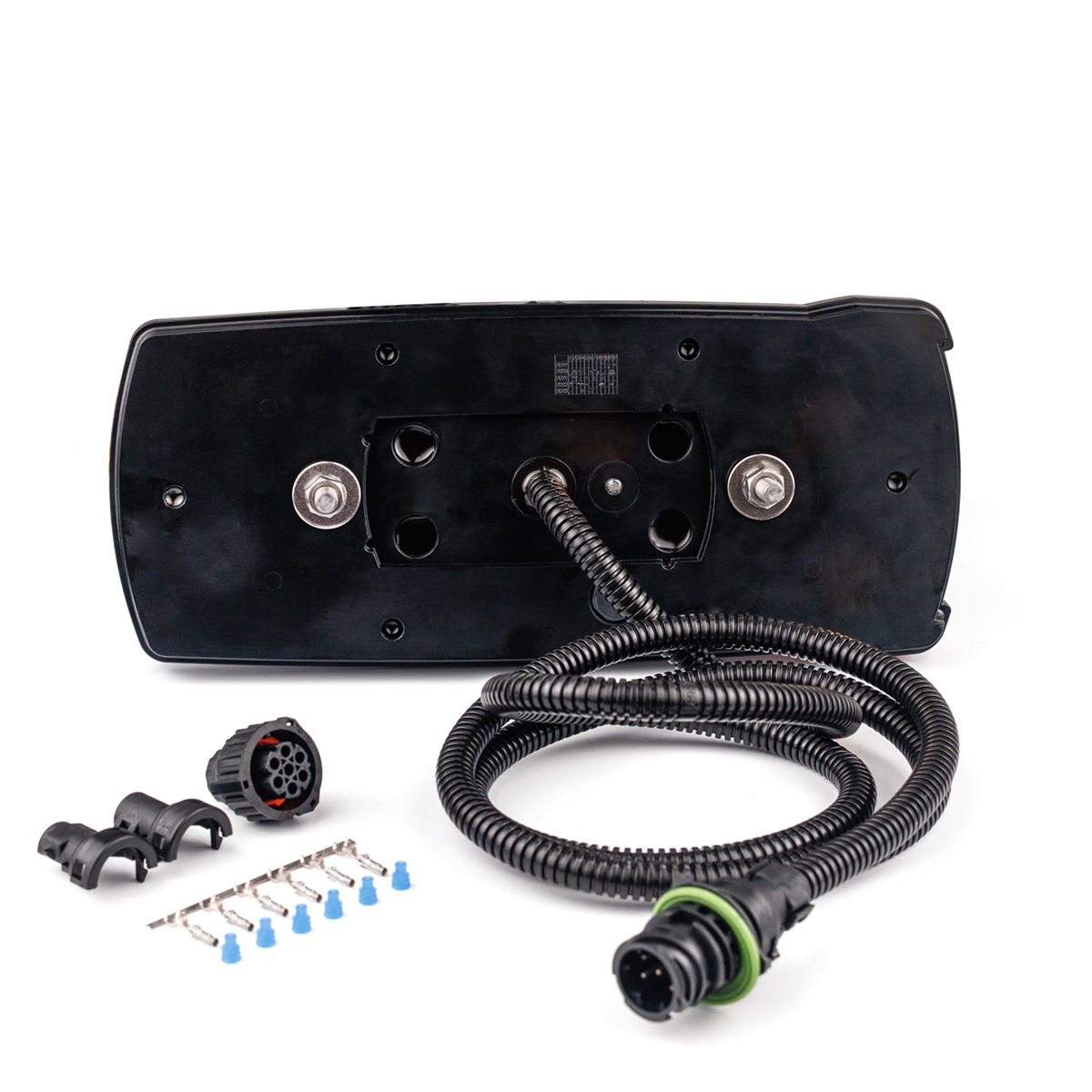

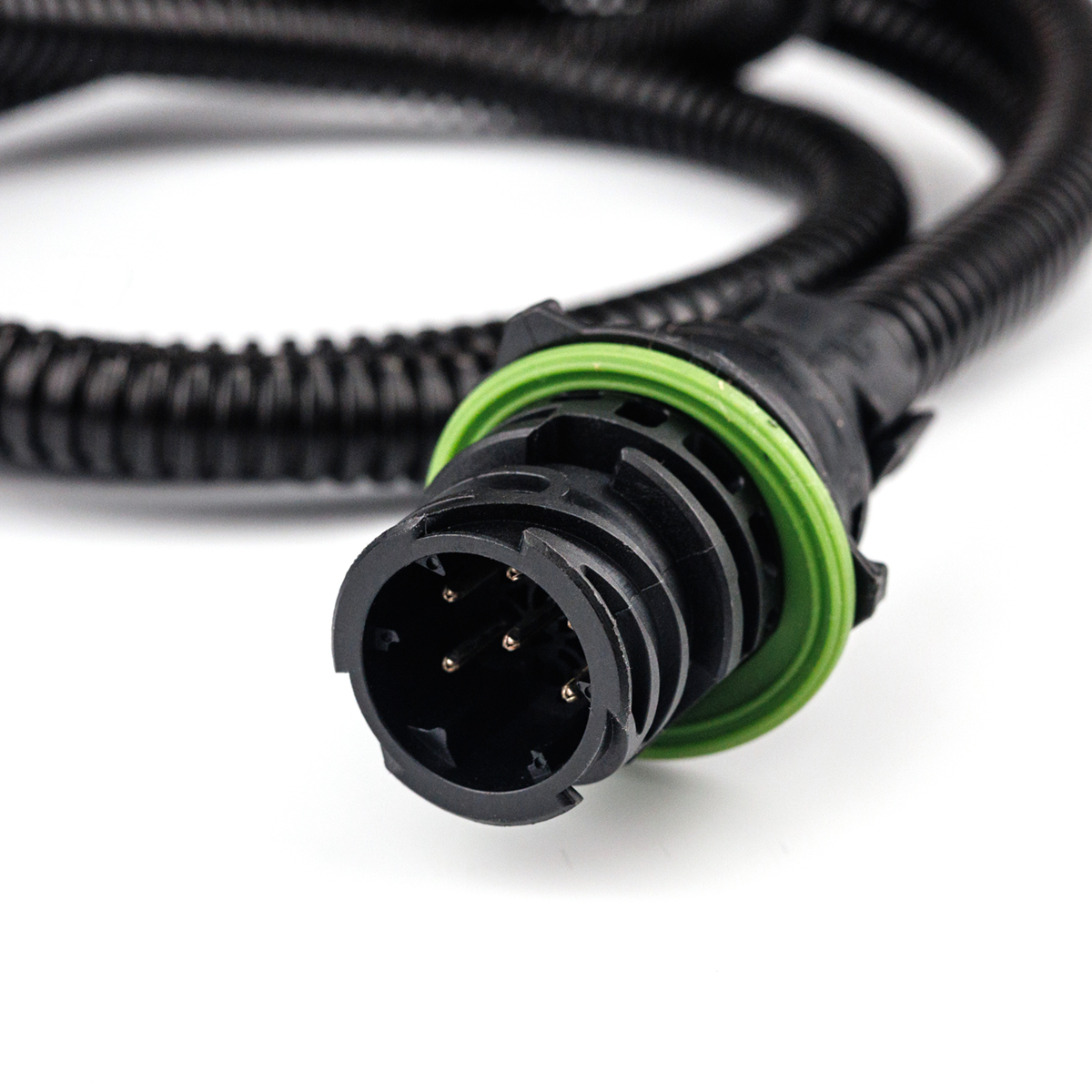

The ADR version is designed for installation on vehicles used for the transport of dangerous goods in accordance with ADR Agreement requirements. The lamp is equipped with a 0.5 m ADR-compliant round cable (6 × 0.5 mm²) protected by a corrugated conduit and a 7-pin Amphenol connector, ensuring a durable and secure electrical connection. The 7-pin Amphenol plug is supplied separately, allowing convenient installation according to the vehicle manufacturer’s requirements.

The lamp is intended for installation on the left-hand side of the vehicle and operates with both 12 V and 24 V electrical systems. It has been designed for reliable operation across a wide temperature range, ensuring dependable performance in both extreme heat and harsh winter conditions.

The product complies with ECE R10 EMC approval requirements, confirming its resistance to electromagnetic interference and ensuring proper operation with the electronic systems of modern vehicles.

Functions:
– NEON rear position light – 4.2 W / 8.6 W;
– Stop light (clear lens) – 2.6 W / 3.1 W;
– Dynamic turn indicator – 1.5 W / 3.2 W;
– Reverse light – 2.5 W / 5.2 W;
– Rear fog light – 2.0 W / 4.0 W;
– Side licence plate light – 0.5 W / 1.0 W;
– Integrated reflector.
