LZD 2840

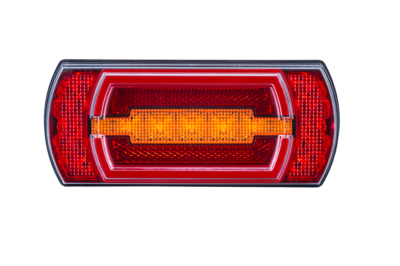

Rear multifunction light CLEOmax

Attractive and modern design, high-quality materials and implemented energy-efficient LED technology, which ensures very good lighting parameters at very low power consumption, are the special hallmarks of multifunction lamp CLEOmax LZD 2840. The lamp is fully hermetic (ingress protection rating IP 68), and the operating temperature range is from -30 degrees C to + 50 degrees C. Only branded diodes are used for production, ensuring excellent quality of products. The operation of the lamp LZD 2840 is also guaranteed in a way that does not emit electromagnetic interference and is electromagnetic interference-resistant, which is confirmed by the EMC certificate.

CLEOmax is universal in assembly, it can be installed both on the left and right side of the vehicle, vertically and horizontally. The lamp fulfills the following functions: position light with NEON effect, direction indicator, brake light, fog light and reflective device.

This model is dedicated to various types of vehicles such as trailers, semi-trailes, tow trucks, agricultural machines and special vehicles.

Description

Power consumption at 12/24 V operating voltage:
– NEON position light – 1,7 W/4;

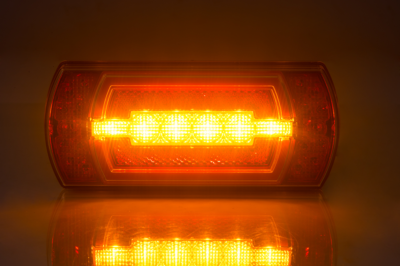

– direction indicator – 3,3/7,3 W;
– brake light – 3,5/4,2 W;
– fog light – 5,3/6 W.

Technical data

Light group
HOR 114
LED quantity
42
Light category
multifunction rear
Rear position light
yes
Supply voltage
12/24 V
Reflecting device
yes
Operating temperature range
from -30°C to +50°C
Cable
5×0,5 mm2; cable length 1 m
Side
universal
Fog light
yes
Brake light
yes
Rear direction indicator
yes
LED light
yes
Ingress protection rating
IP 68

Download

Rear multifunction light LZD 2840 (approval R10) (rear-multifunction-light-lzd-2840_12-approval-r10.ZIP)
Download
Rear multifunction light LZD 2840 (approval R148) (rear-multifunction-light-lzd-2840_12-approval-r148.ZIP)
Download
Rear multifunction light LZD 2840 (approval R150) (rear-multifunction-light-lzd-2840_12-approval-r150.ZIP)
Download
Rear multifunction light LZD 2840 (technical drawing R148) (rear-multifunction-light-lzd-2840_12-technical-drawing-r148.ZIP)
Download
Rear multifunction light LZD 2840 (technical drawing R150) (rear-multifunction-light-lzd-2840_12-technical-drawing-r150.ZIP)
Download
Rear multifunction light LZD 2840 (technical drawing) (rear-multifunction-light-lzd-2840-technical-drawing.ZIP)
Download
Page content (lzd-2840.ZIP)
