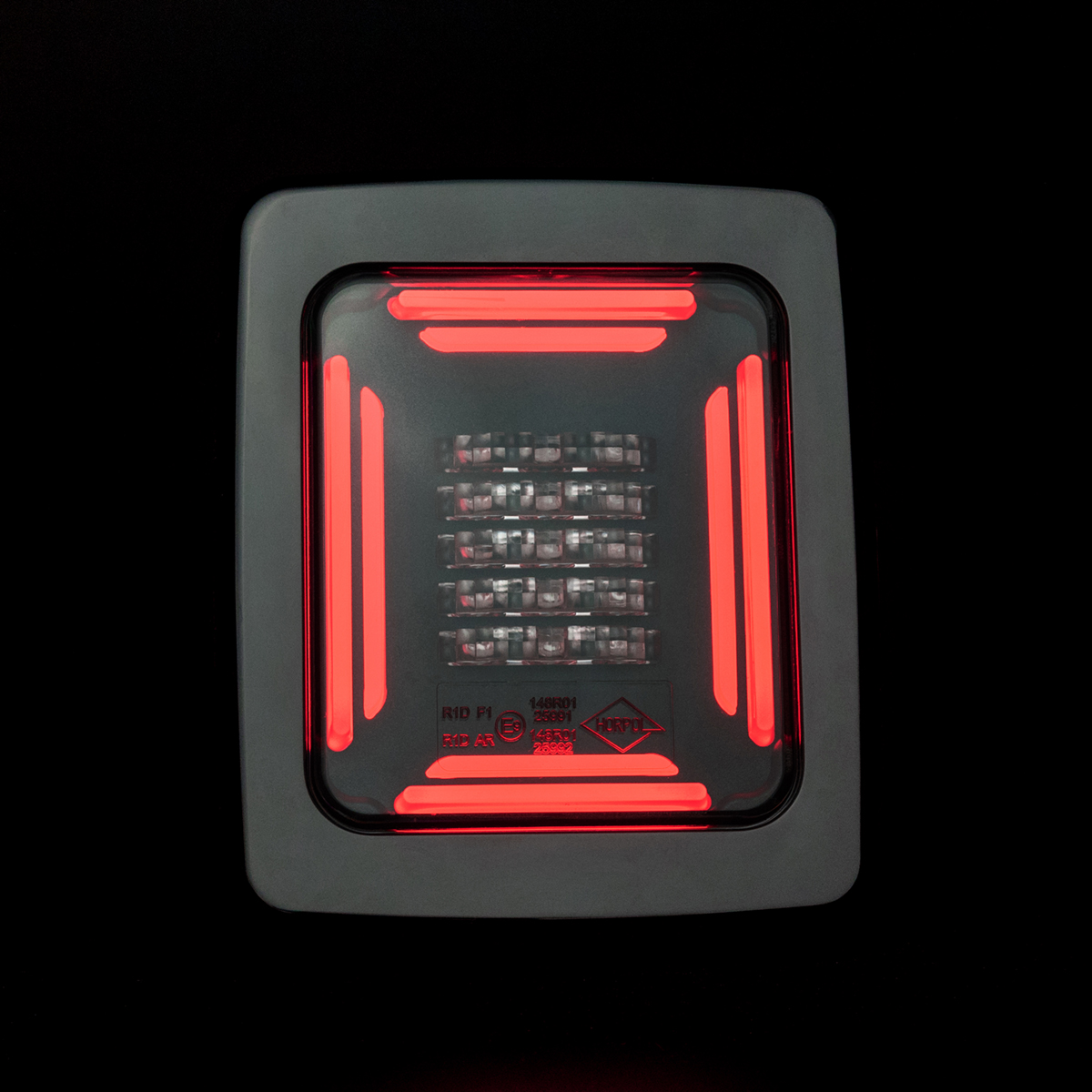

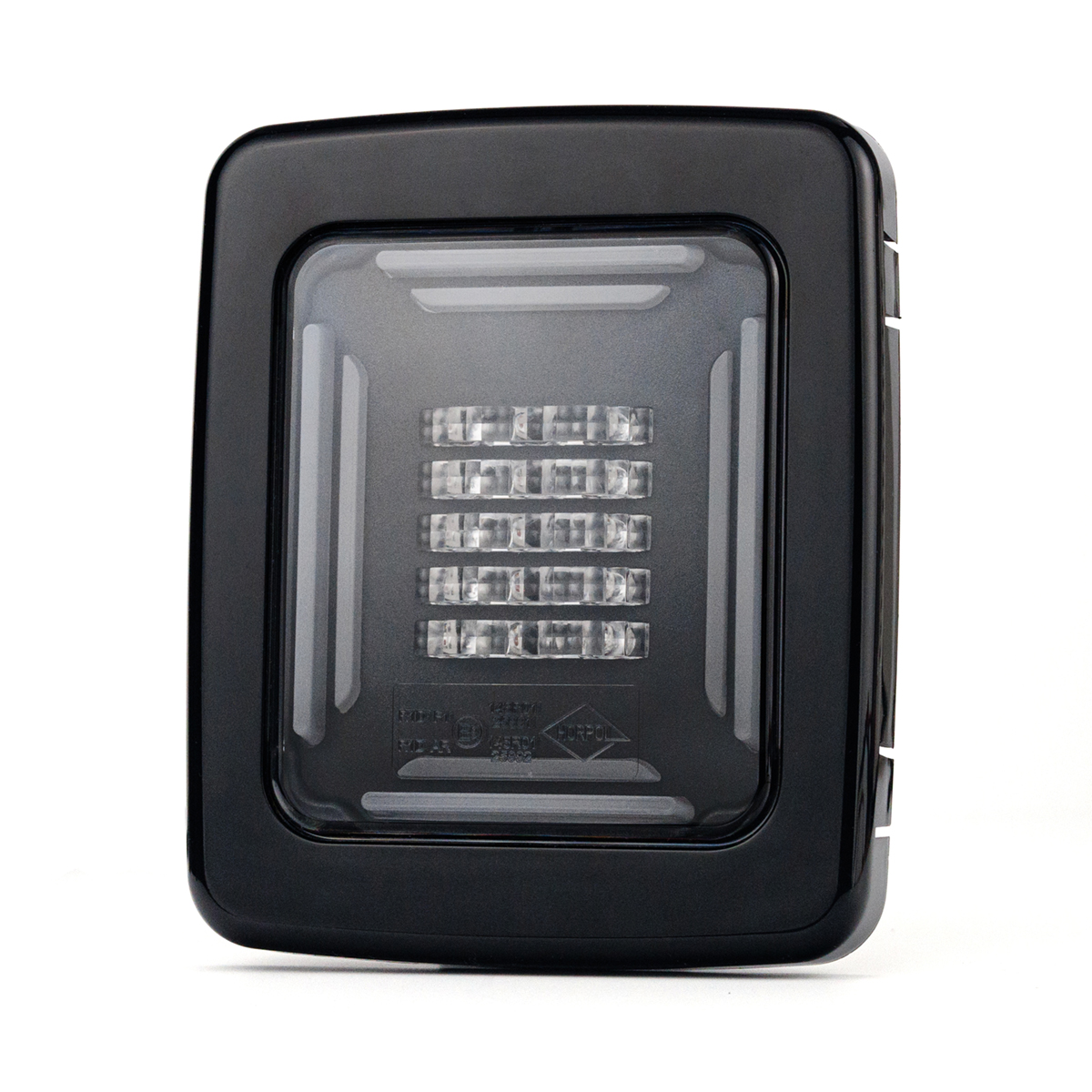

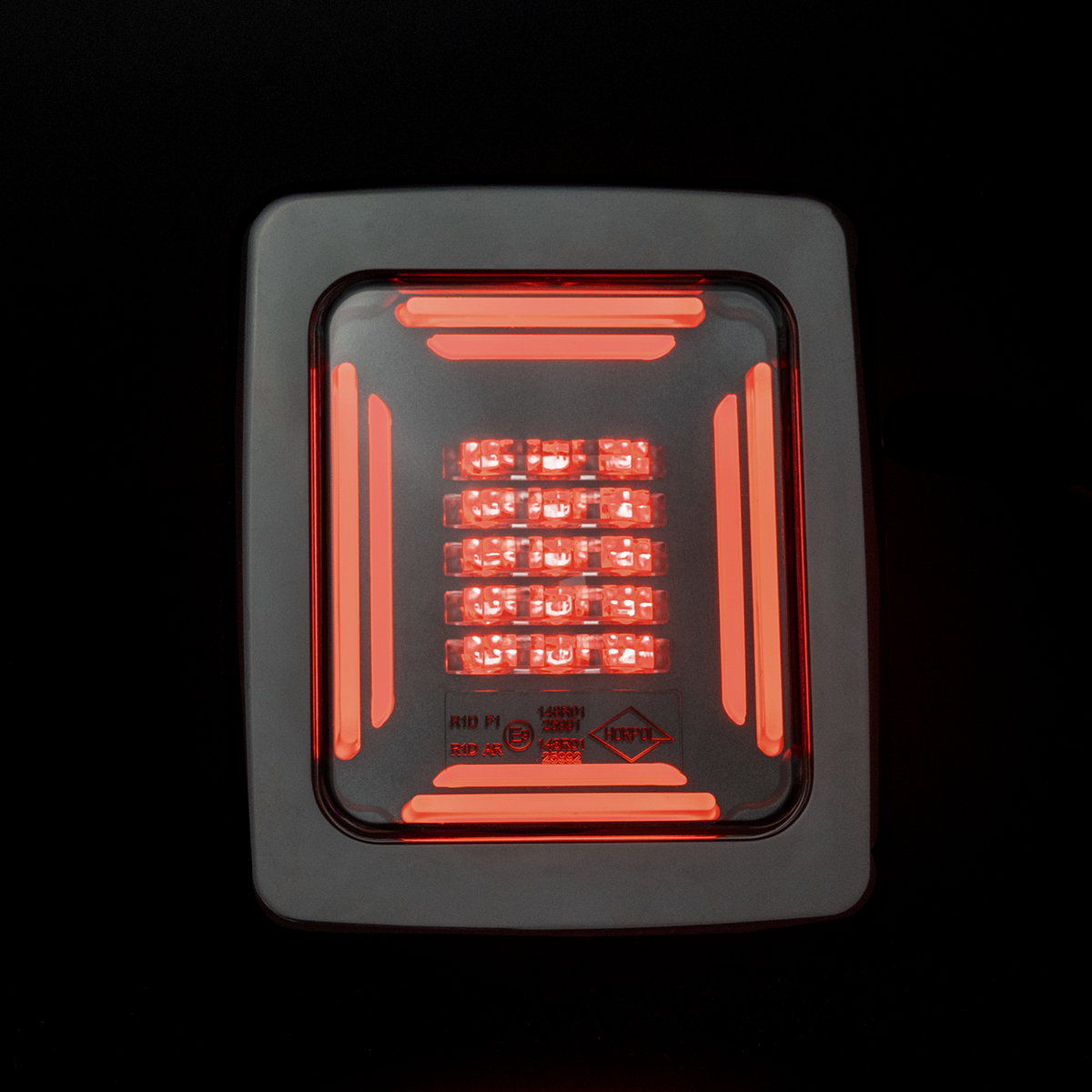

The LZD 2883 features two essential lighting functions: NEON rear position light (1.3/1.8 W) and rear fog light (3.3/3.8 W), ensuring good visibility for both the driver and other road users. The use of 71 LEDs provides effective light output while maintaining low energy consumption.
The product is designed for commercial vehicles, including trailers, semi-trailers, trucks, agricultural machinery and special-purpose vehicles. Thanks to its 12/24 V power supply, the lamp is suitable for vehicles equipped with either voltage system.

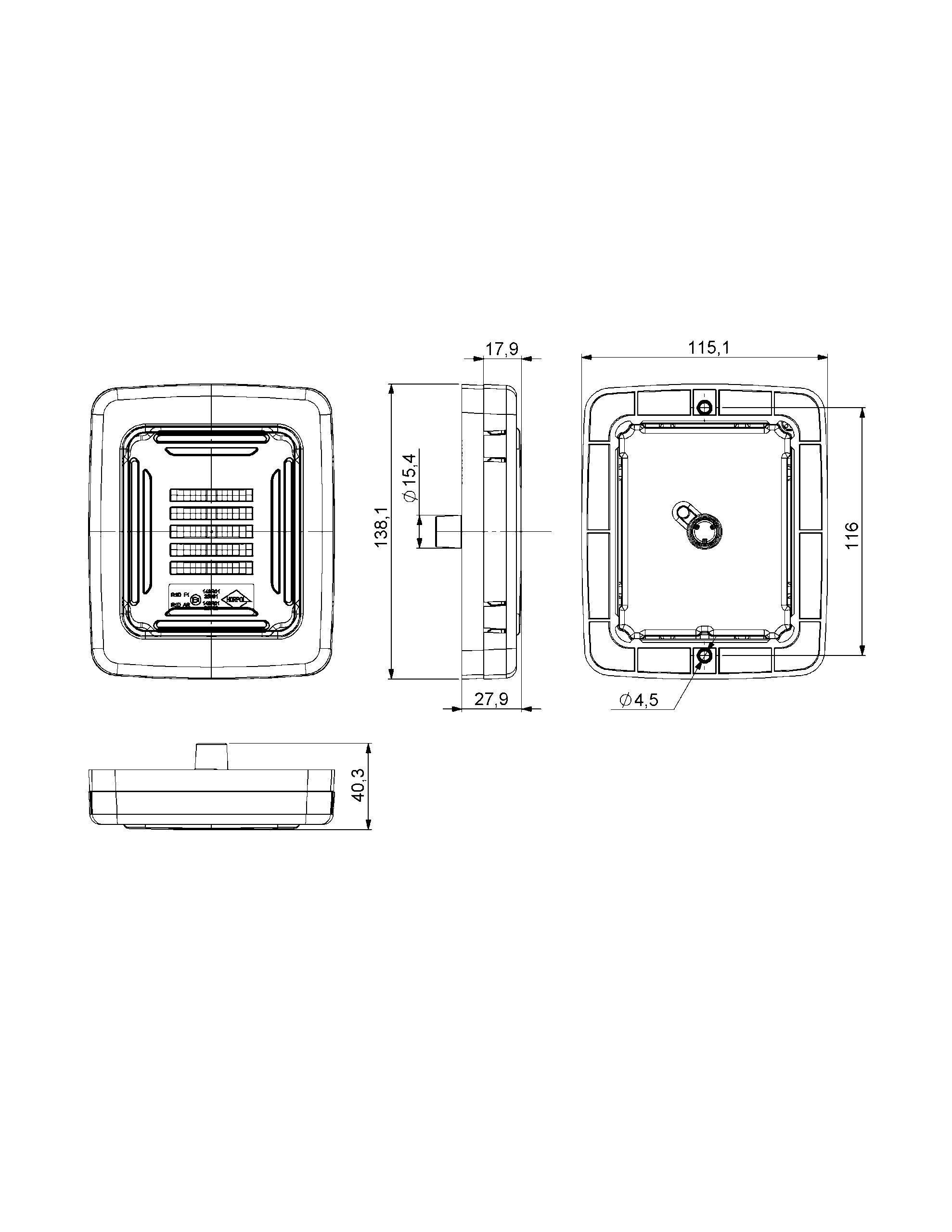

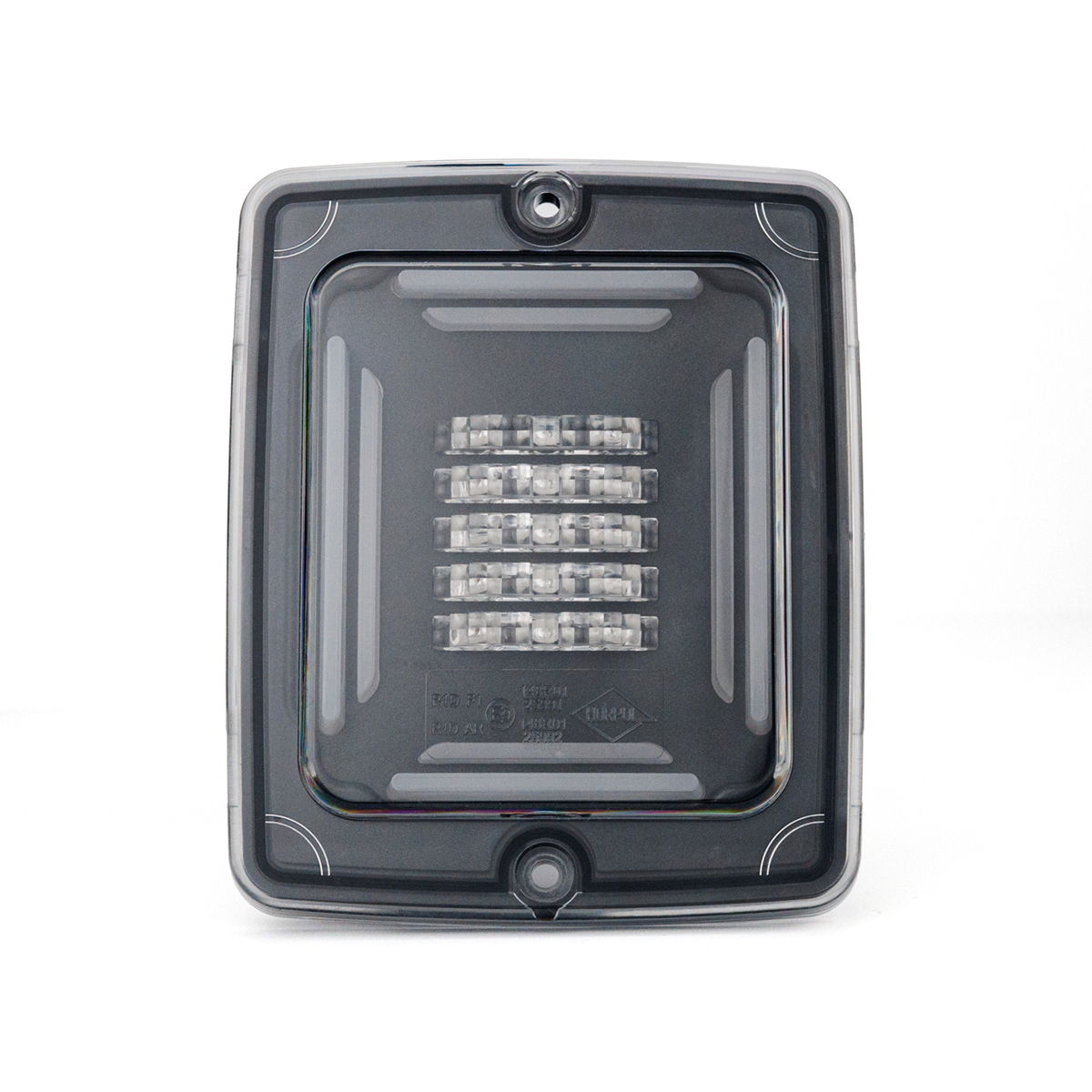

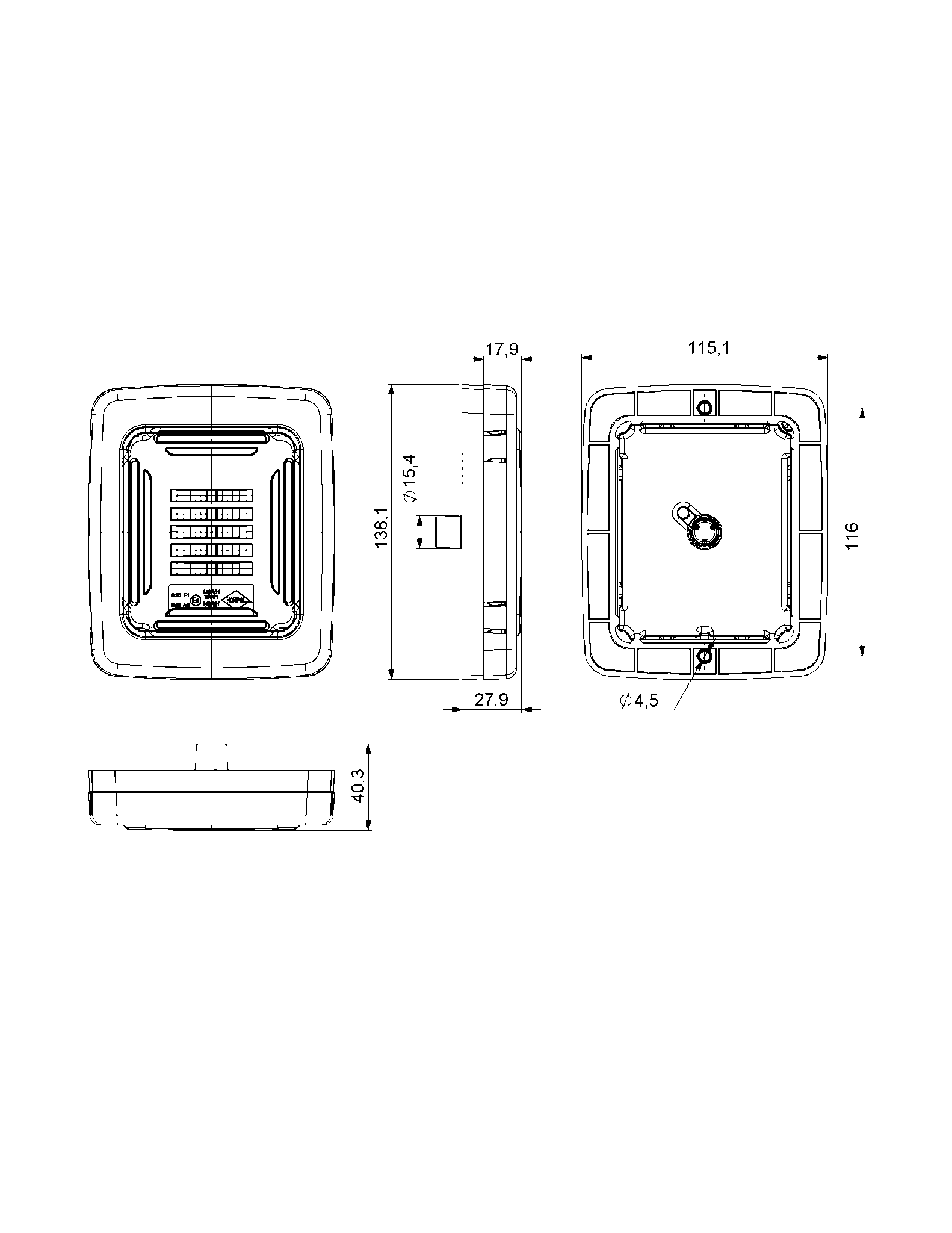

Universal mounting side allows the lamp to be installed on either the left or right side of the vehicle. However, it is designed for vertical installation only. The set includes a spacer frame, which facilitates secure mounting on a flat surface, and an outer frame that provides a neat finish and protects the edges of the product.

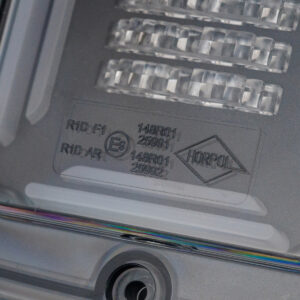

The IP68 ingress protection rating provides effective protection against dust and water, supporting reliable operation in demanding operating conditions. The product complies with R148 and R10 homologation requirements relating to vehicle lighting and electromagnetic compatibility.

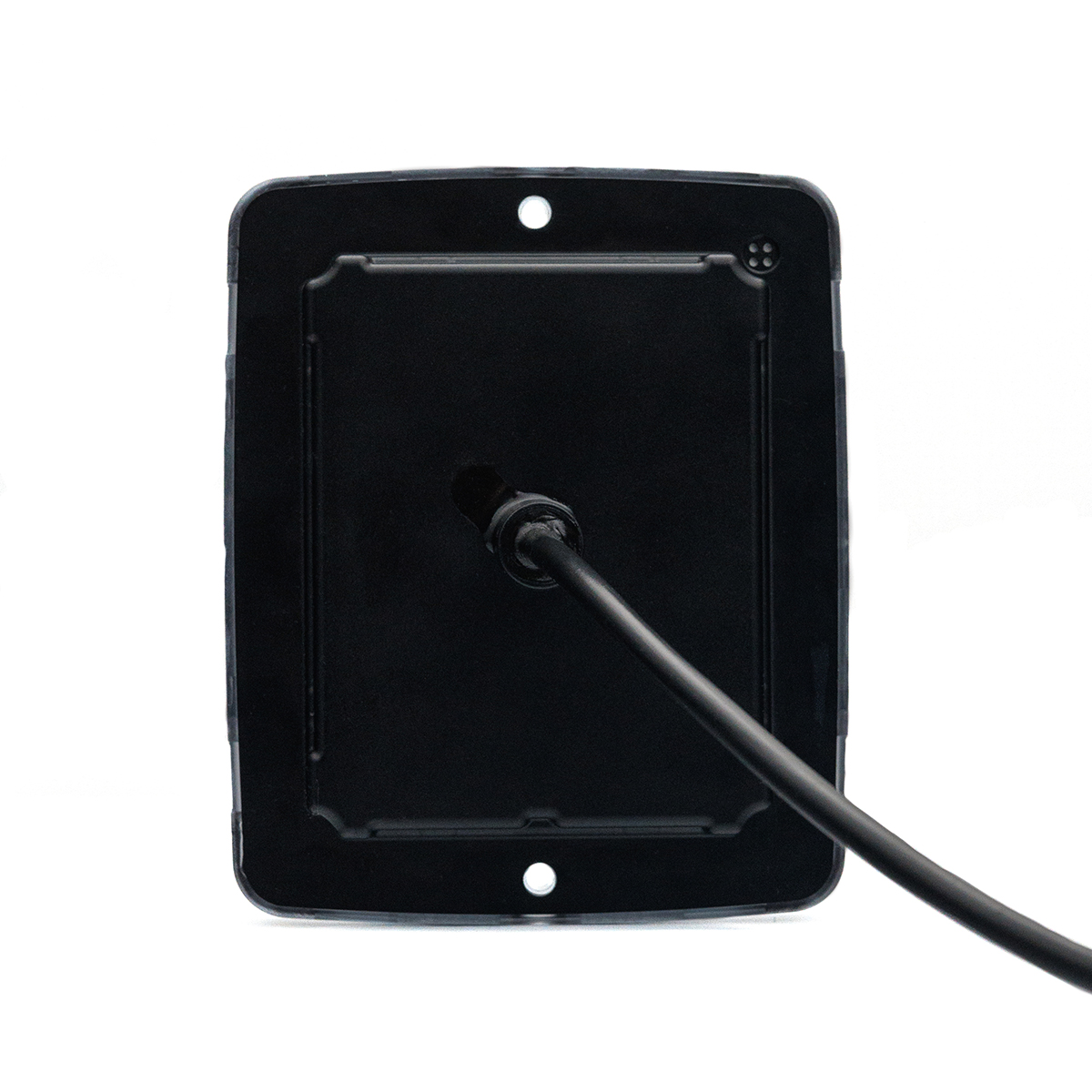

The lamp is connected via a 1 m round cable with a cross-section of 3×0.5 mm². Colour-coded wires make installation straightforward:
white – ground,
red – rear position light,
blue – rear fog light.
The model is also available with a metallic frame under code LZD 2885, allowing users to choose the finish that best suits their preferences.
Designed and manufactured by HORPOL, a Polish vehicle lighting manufacturer combining decades of experience with a commitment to quality workmanship and durable lighting solutions.
Technical data
LZD 2883 Rear multifunction light CUBE with black frame
