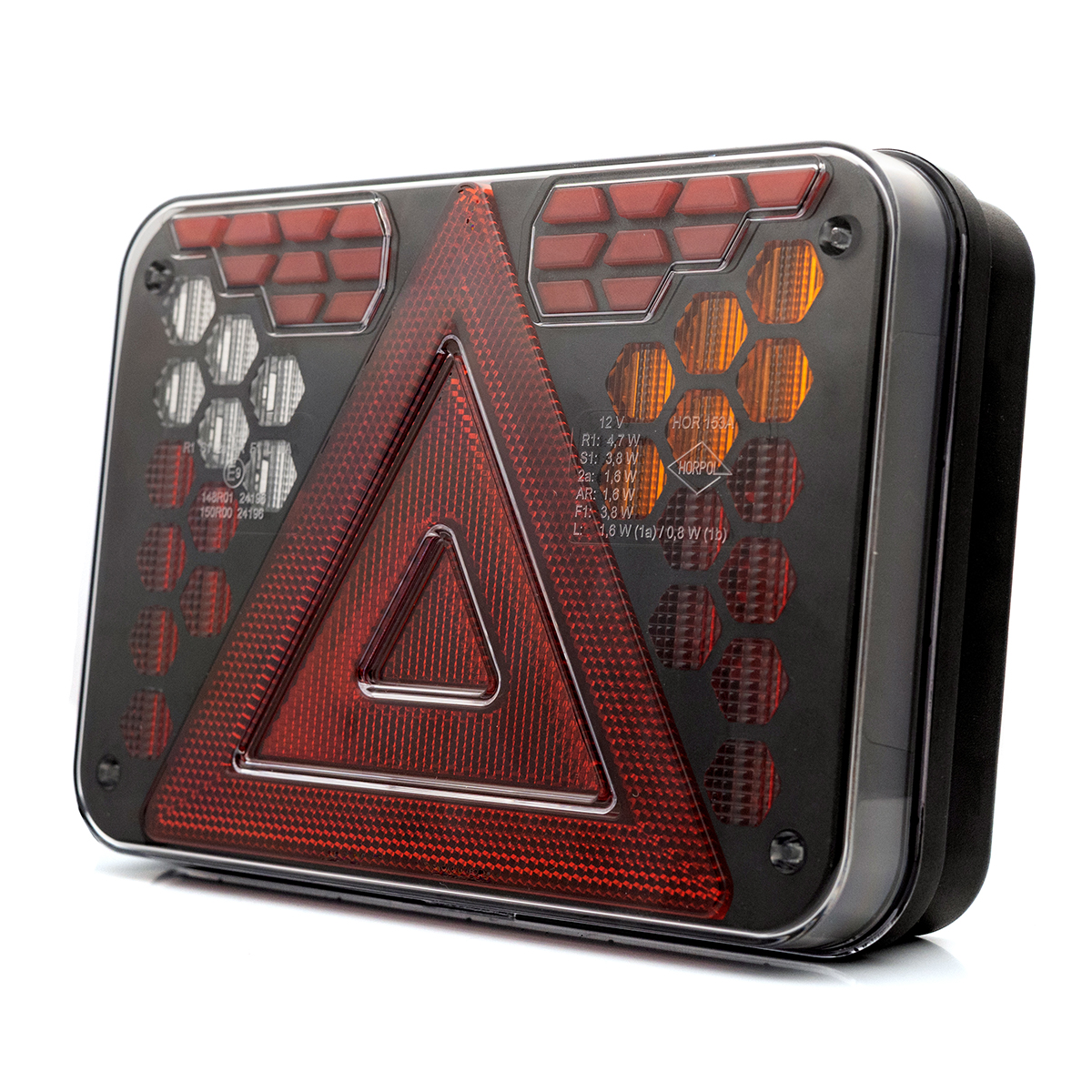

LZD 3216
Rear multifunction light HORUS (right)

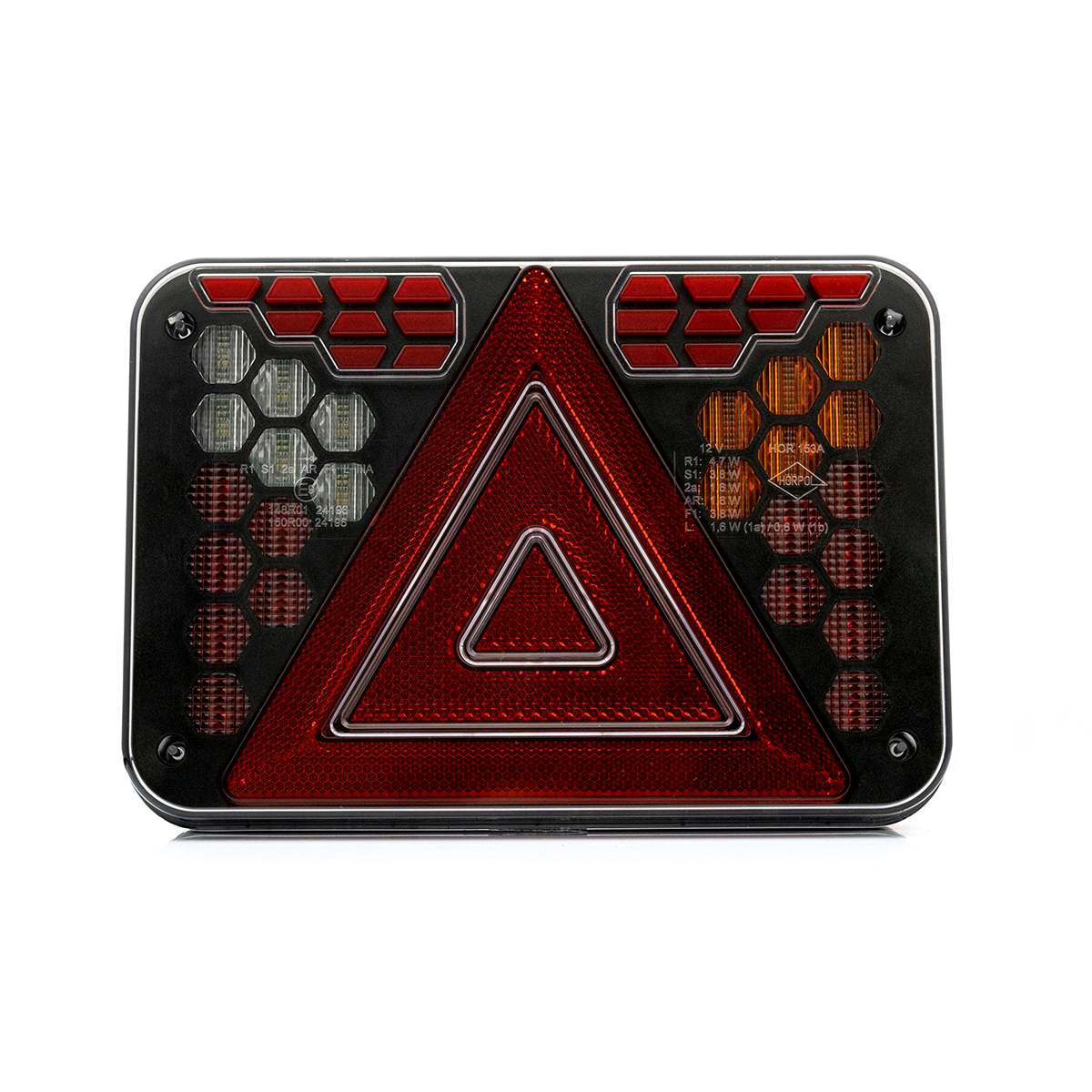

HORUS LZD 3216 is a high-performance LED rear multifunction light designed for automotive trailers, agricultural and special vehicles. It has been engineered with compact dimensions and maximum durability in mind. The lamp construction is based on precisely shaped light modules that create a cohesive and striking illumination effect against the robust housing. The entire unit is protected by a durable, transparent polycarbonate lens that resists mechanical damage and harsh working environments.
The lamp is intended for right-side vehicle mounting and operates on a 12 V electrical system. Using advanced LED technology integrates all key lighting functions into a single, compact module, simplifying vehicle wiring design and enhancing overall functionality.

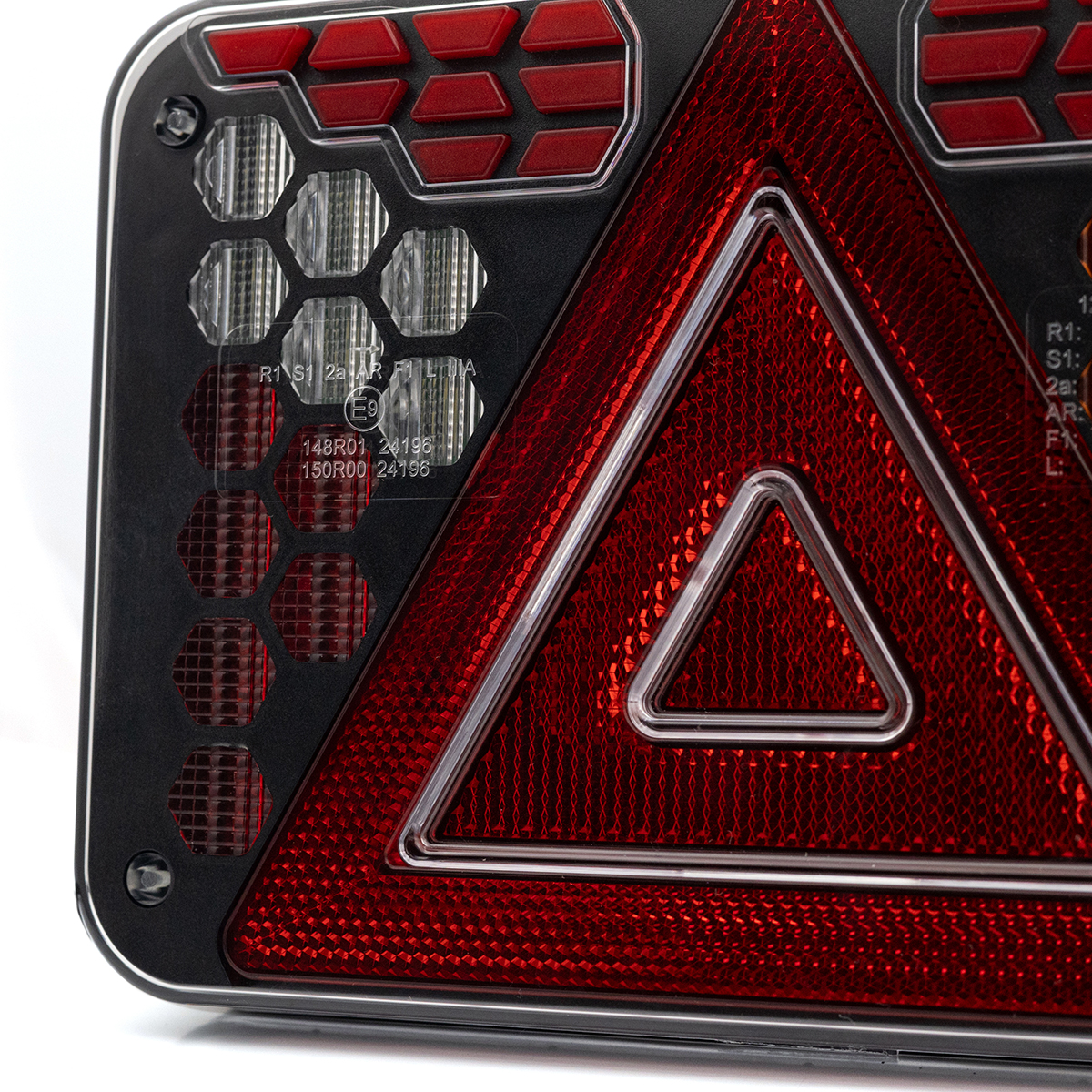

A distinctive feature of this lamp is its three-dimensional reflector, formed by multiple spatial planes at different levels, which provides depth and a modern appearance uncommon in traditional lamps. The geometric arrangement of the LED segments and the distinct NEON position light ensure clear and easily readable light signals.
Description

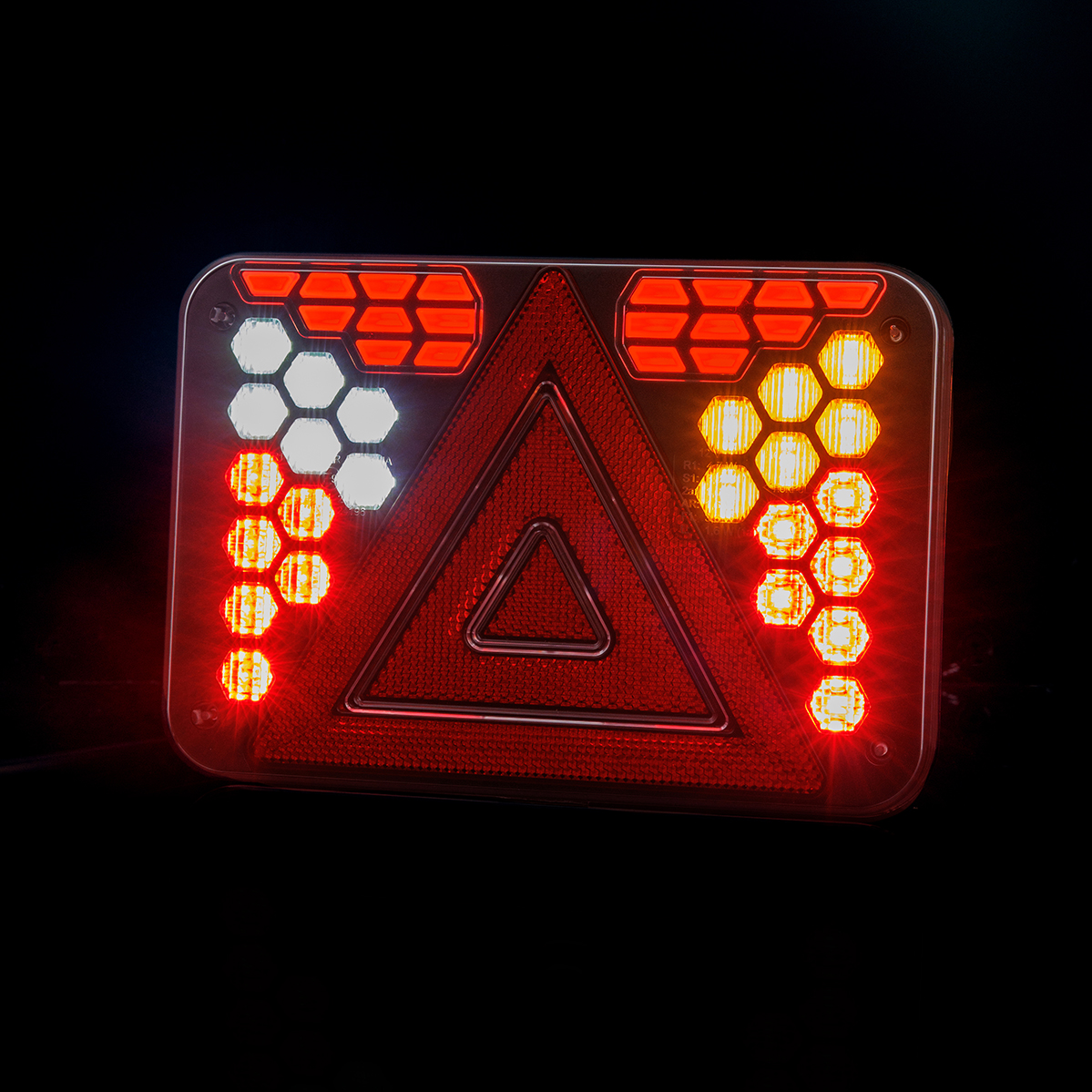

Key lighting functions include:

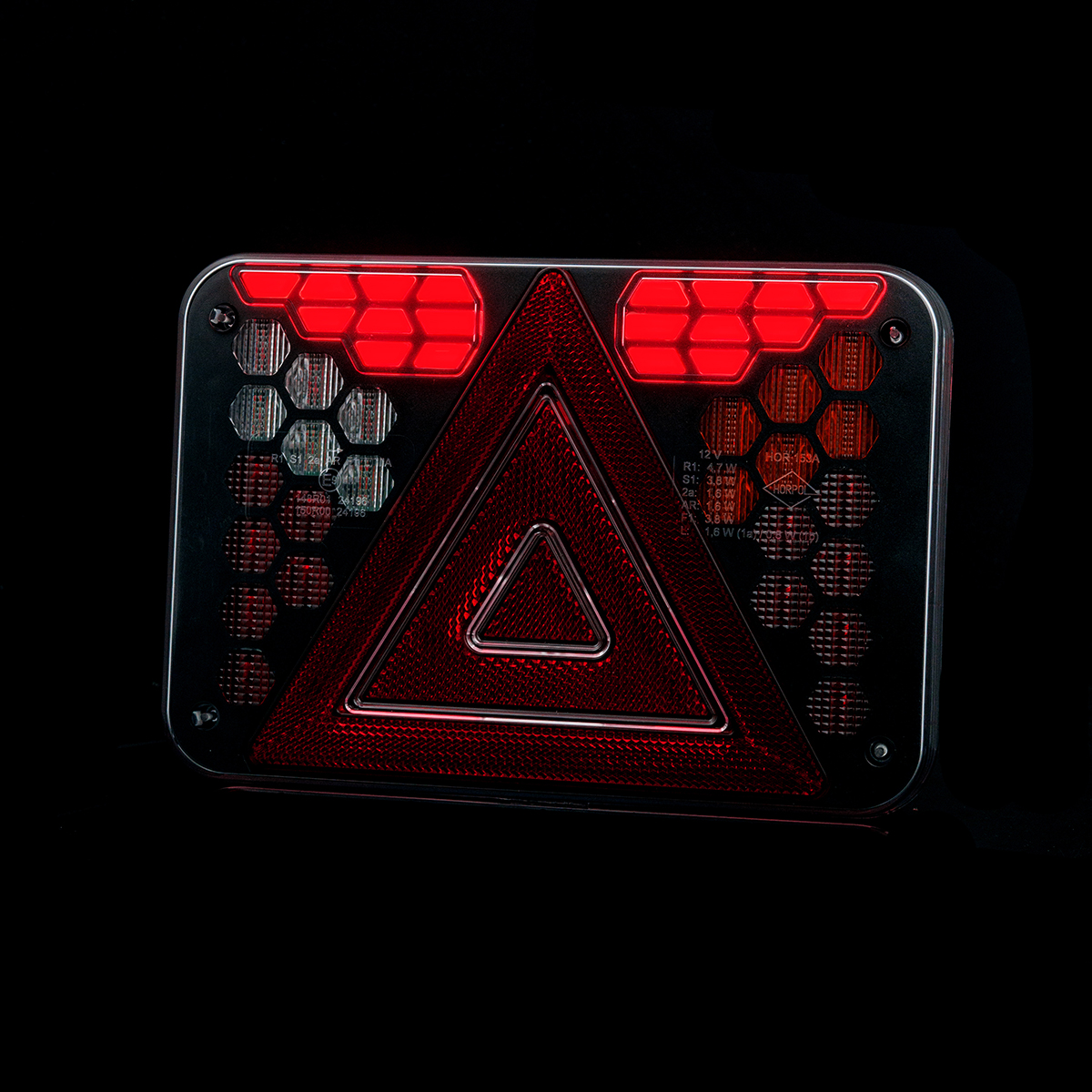

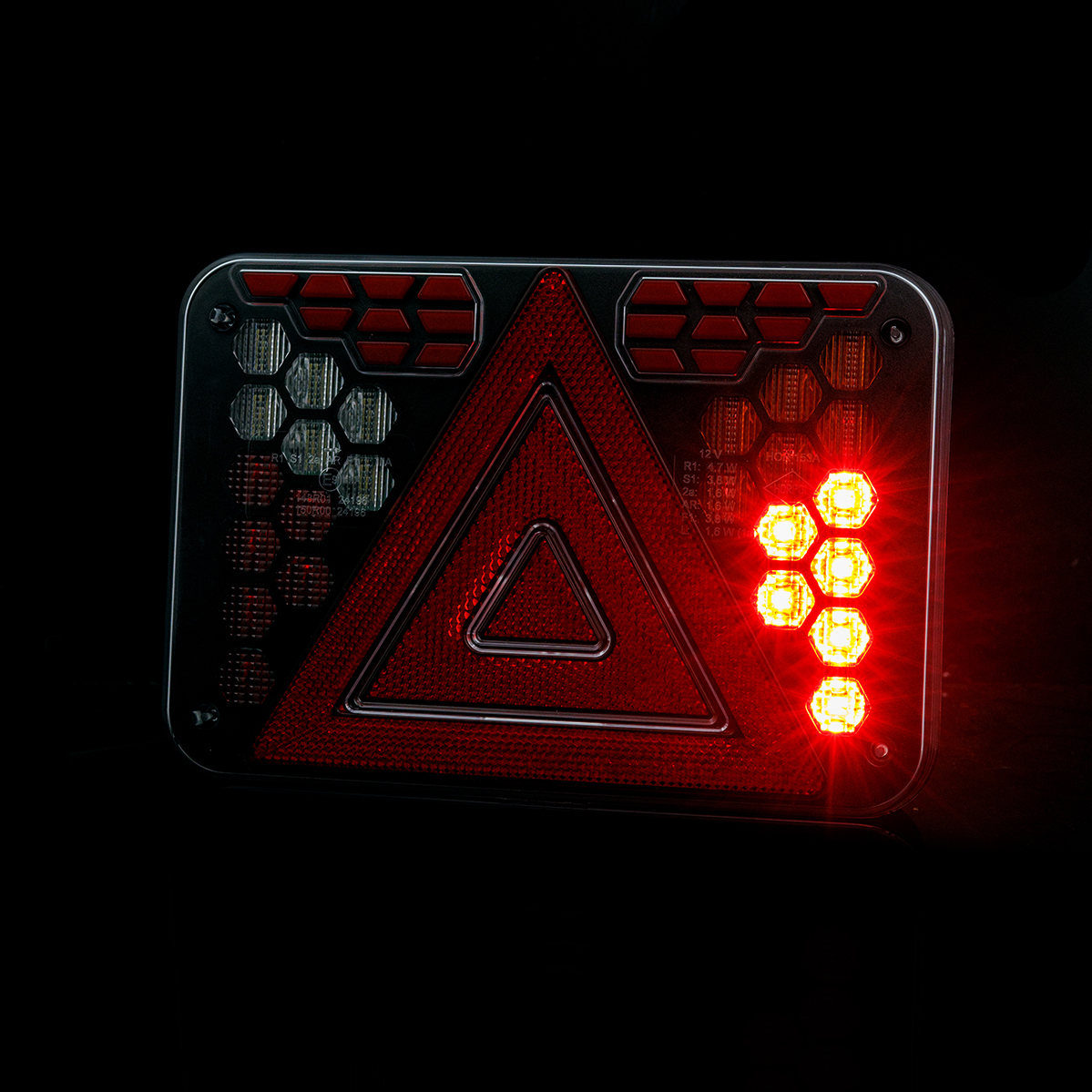

– Rear NEON position light (geometric modules) – 4,7 W;
– Rear turn indicator – 1,6 W;
– Brake light – 3,8 W;
– Reversing light – 1,6 W;

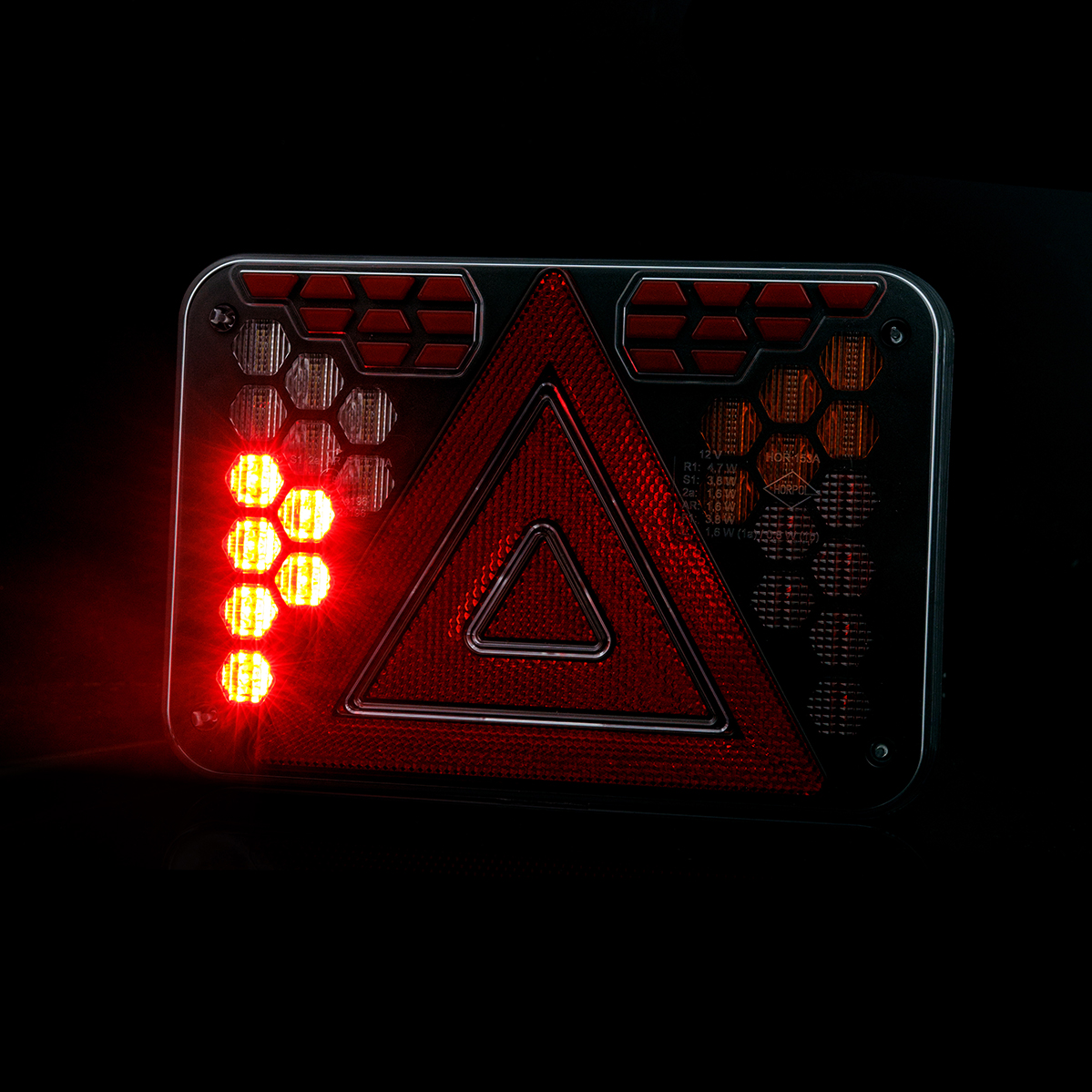

– Rear fog light – 3,8 W;

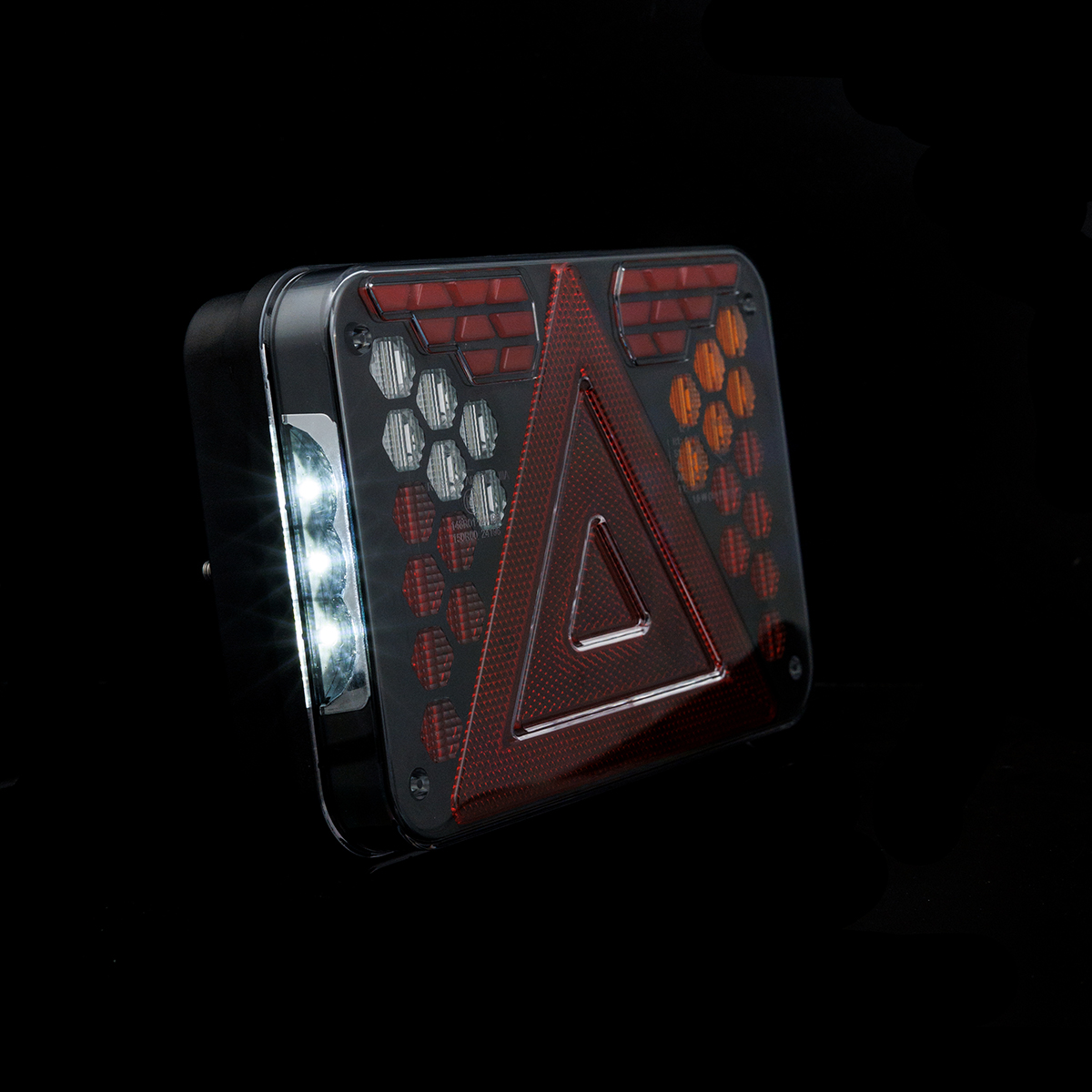

– Side number plate lighting (separate power cord) – 0,8 W;
– Three-dimensional reflective triangle.
The lamp meets EMC R10 certification, confirming resistance to electromagnetic interference and safe integration with modern vehicle electrical systems. With IP 68 protection, it is fully sealed against water and dust, ensuring reliable operation in demanding environmental conditions such as heavy rain, dust, and pressure washing.
LED technology delivers high energy efficiency, long service life, and excellent resistance to shocks and vibrations — critical for vehicles used continuously or off-road.
Summary – what makes the lamp stand out from standard solutions?

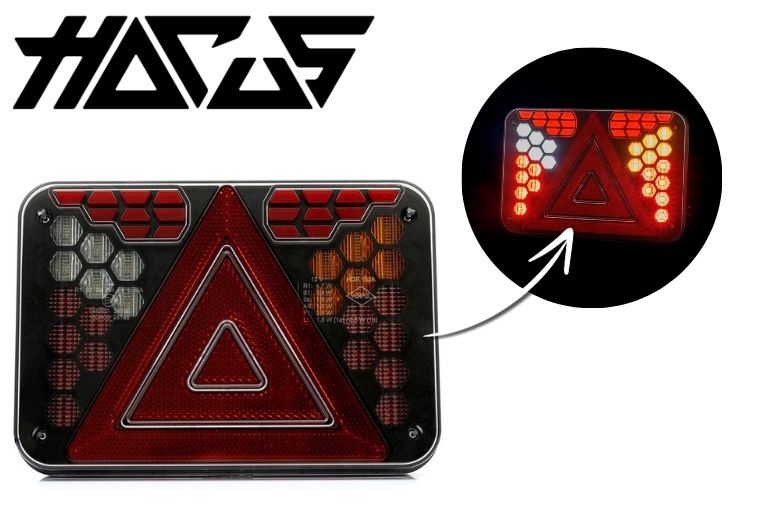

1. Unique geometric LED modules creating a distinctive light signature.
2. Polycarbonate lens with high impact and weather resistance.
3. Three-dimensional reflective triangle for enhanced visibility.
4. Built-in pressure regulating vent to prevent overheating and condensation buildup.
5. Compact design for easy installation in limited spaces.
6. Separate power feed for license plate illumination.
HORUS LZD 3216 is proudly designed and manufactured in Poland, representing a blend of safety, build quality and advanced engineering typical of HORPOL products — ideal for professional automotive applications.
