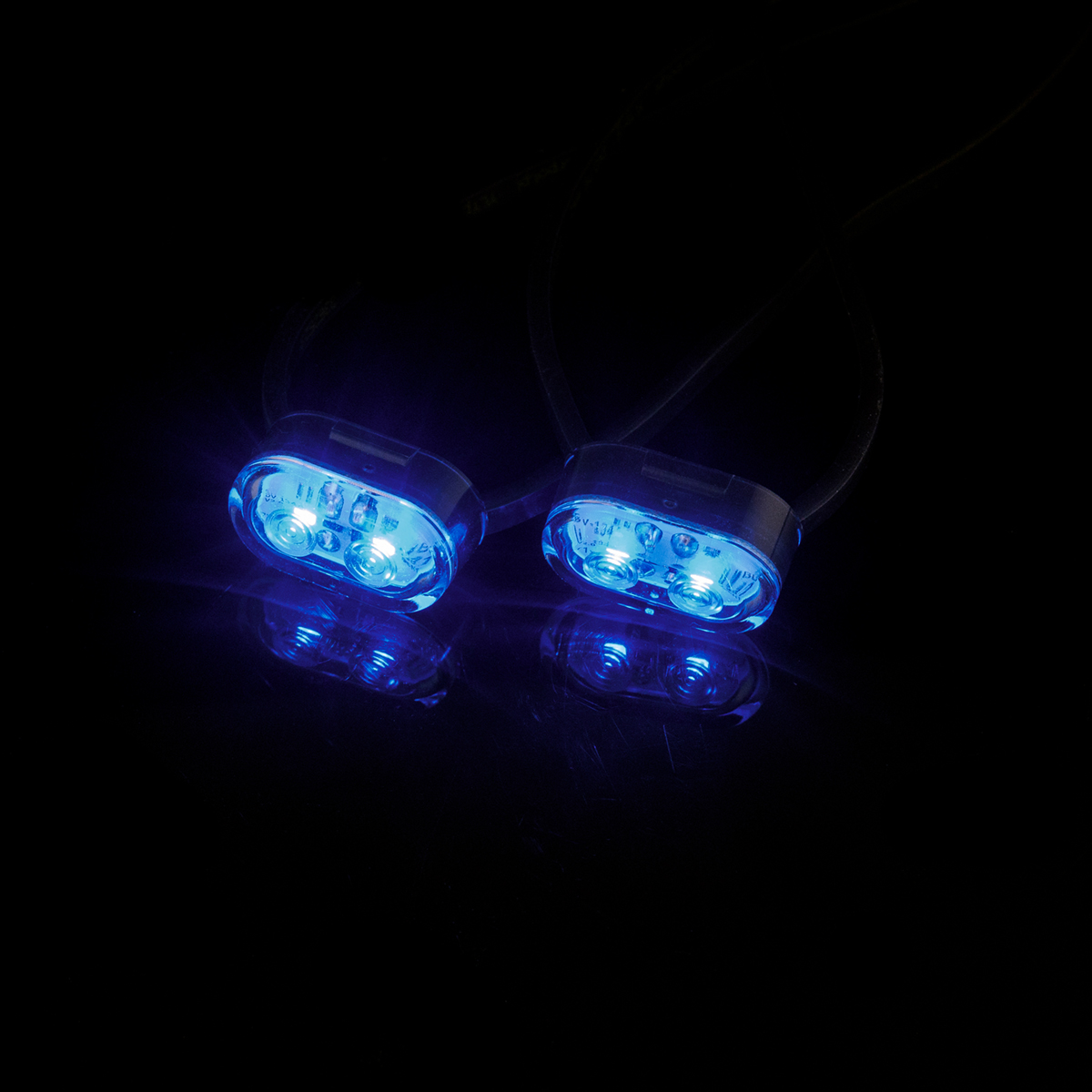

The set of two universal work area lamps ZLD 2645/2 is a compact and reliable solution designed for professional illumination of the working field of agricultural machinery. Thanks to the use of efficient LED diodes emitting blue light, the lamps provide precise lighting of a selected work area, increasing both comfort and safety when working in demanding conditions.

The ZLD 2645/2 model features a narrow, focused beam angle of 40°, allowing the light to be effectively concentrated exactly where it is needed. The total power output of the set is 2 W, ensuring energy-efficient operation while maintaining high luminous effectiveness. The luminous flux of a single lamp is approximately 20 lm, while the wavelength of the emitted light is 465 nm.

The set is designed to operate in harsh environmental conditions. An operating temperature range from -40°C to +60°C and a high IP68 protection rating ensure resistance to moisture, dust, mud, vibrations, and other adverse external factors.

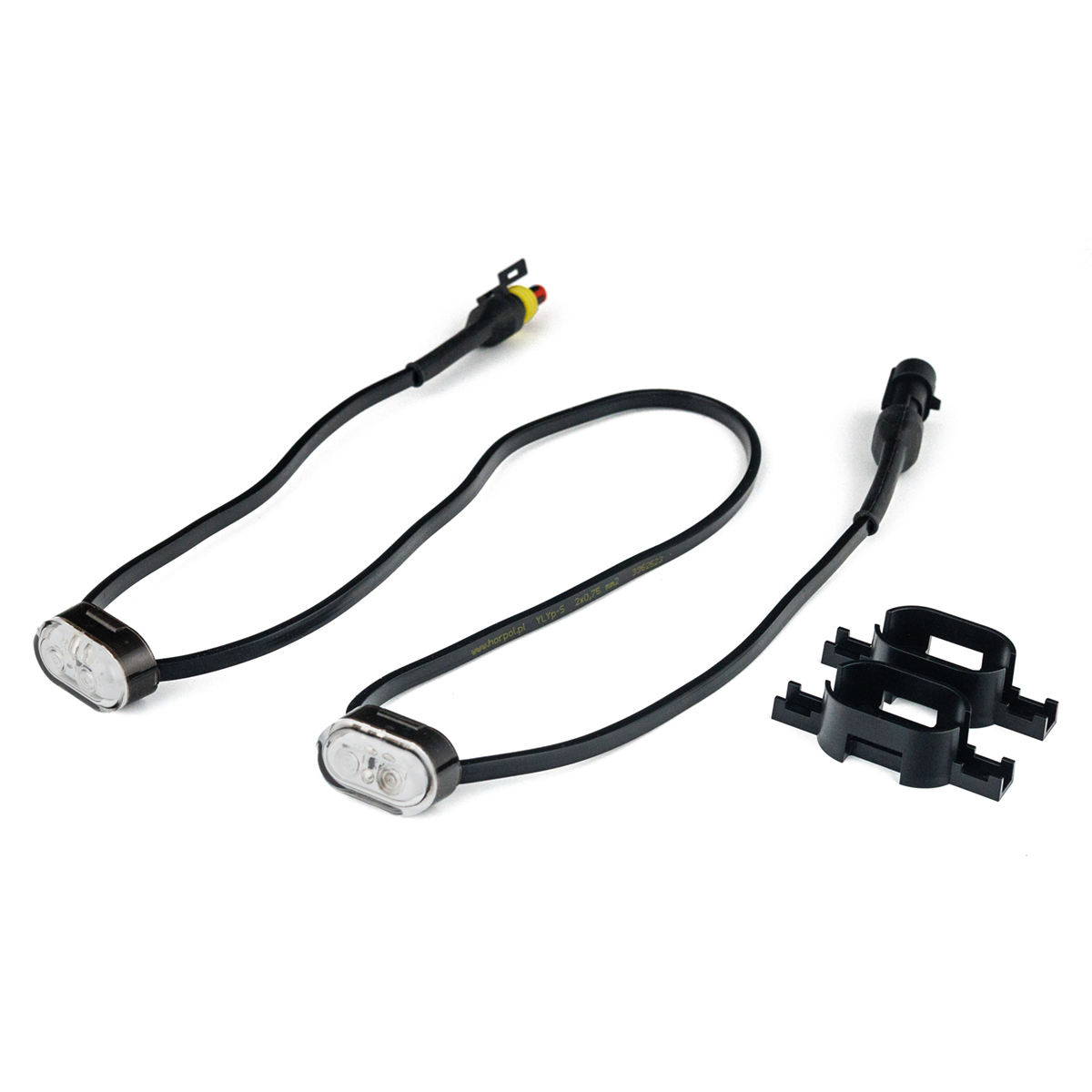

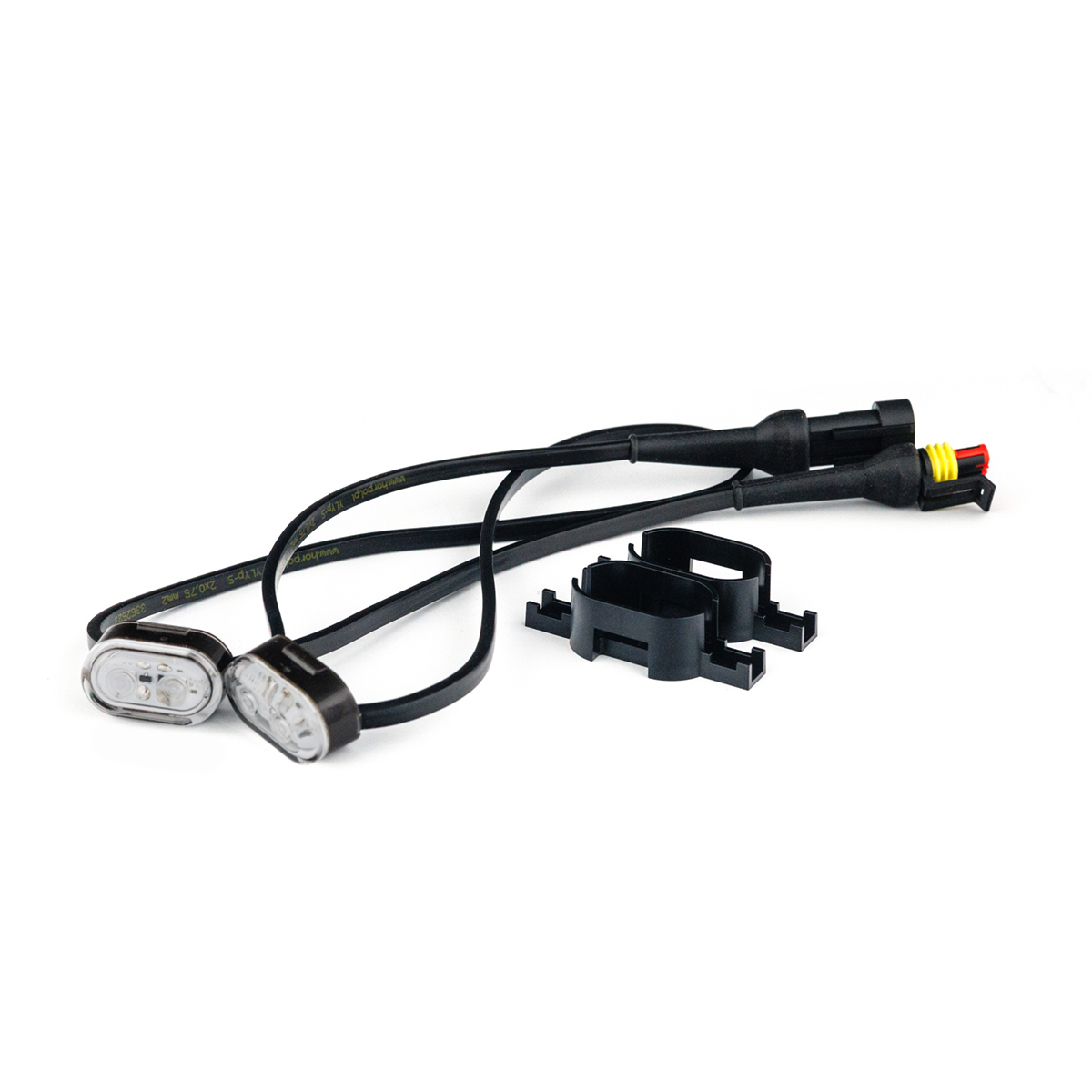

The lamps are equipped with 2×0.75 mm² flat cables, 0.5 m long, terminated with a Superseal socket and plug, enabling quick, safe, and convenient installation. Universal polarity additionally simplifies mounting and operation of the set.

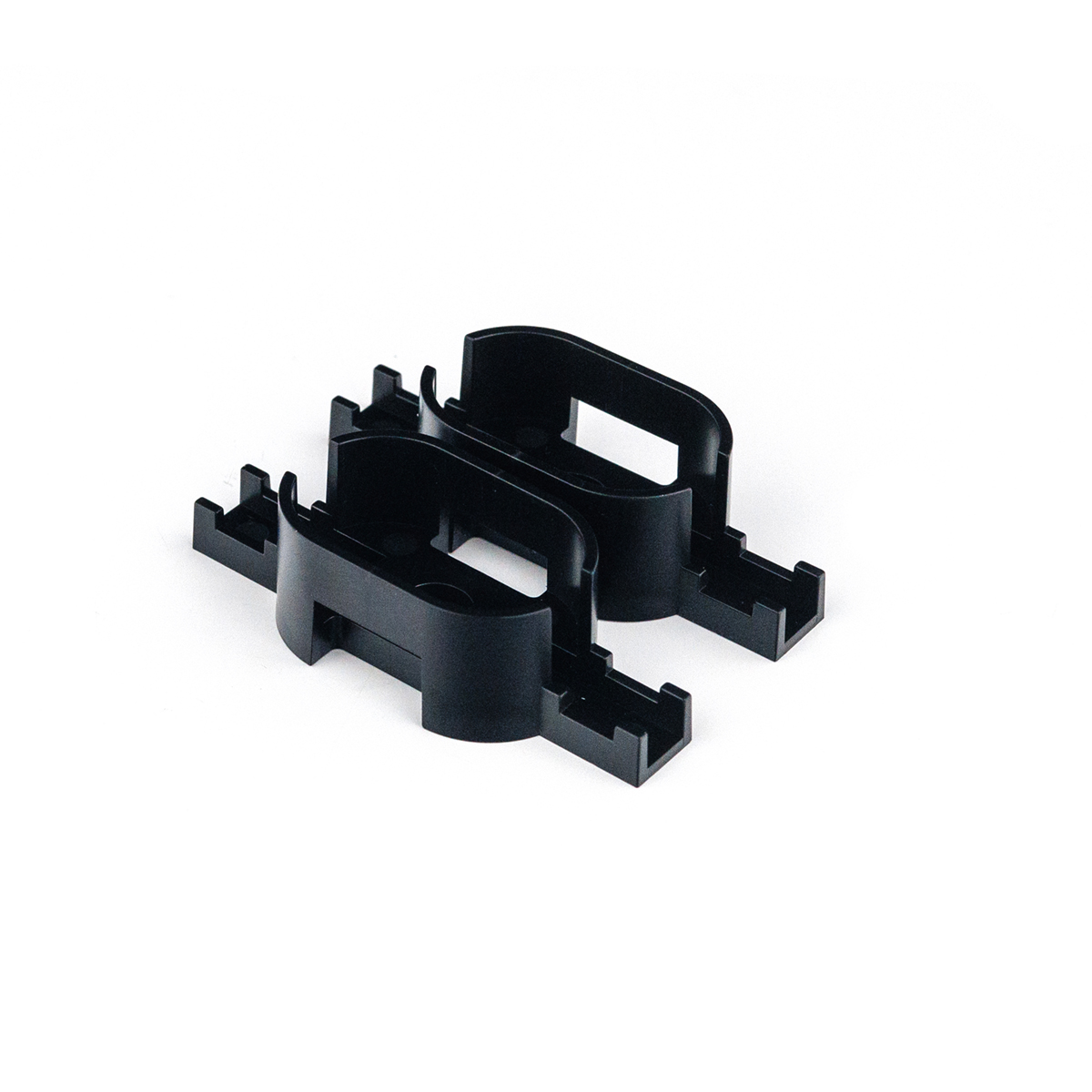

The lamps can be installed using an M4x16 metric screw with an M4 washer and nut, or with a cable tie, allowing easy adaptation of the installation method to specific applications.

Technical data

Light group
HOR 106
Light category
for the working area of machines
LED light
yes
LED quantity
4
Focused light
yes
Wavelength of light
465 nm
Side
universal
Supply voltage
12 V
Power rating
2 W
Cable
2x0,75 mm2 ; flat, Supersal connector
Operating temperature range
from -40°C to +60°C
Light colour
blue
Luminous flux
40 lm
Ingress protection rating
IP 68

ZLD 2645/2 Set of 2 universal work area lights for machinery
