Home Offer Lamp types LED lights Universal work area lights for special machinery Universal work area light for machinery ZLD 2645/1

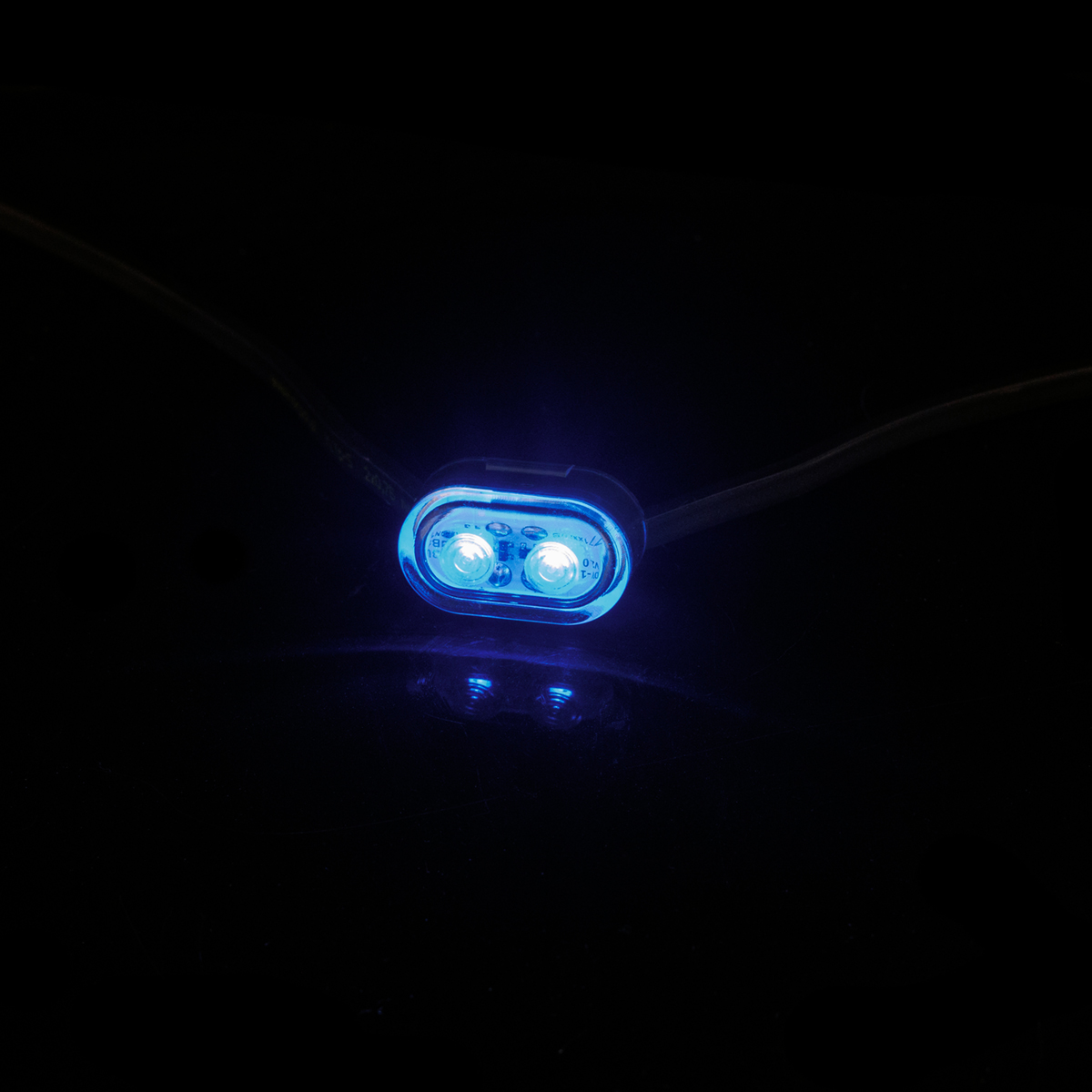

The ZLD 2645/1 universal work area lighting is a compact and reliable solution designed for professional illumination of the working field of agricultural machinery. Thanks to the use of efficient LED diodes emitting blue light, the lamp provides precise lighting of a selected work area, increasing comfort and safety when working in demanding conditions.

The ZLD 2645/1 model is characterized by a narrow, focused beam angle of 40°, which allows the light to be effectively concentrated exactly where it is needed. A rated power of 1 W (per lamp) ensures energy-efficient operation while maintaining high luminous effectiveness. The luminous flux is approximately 20 lm, while the wavelength of the emitted light is 465 nm, providing clear and high-contrast illumination of the work area.

The lamp is designed to operate in harsh environmental conditions. A temperature range from -40°C to +60°C and a high IP68 protection rating ensure resistance to moisture, dust, mud, and vibrations.

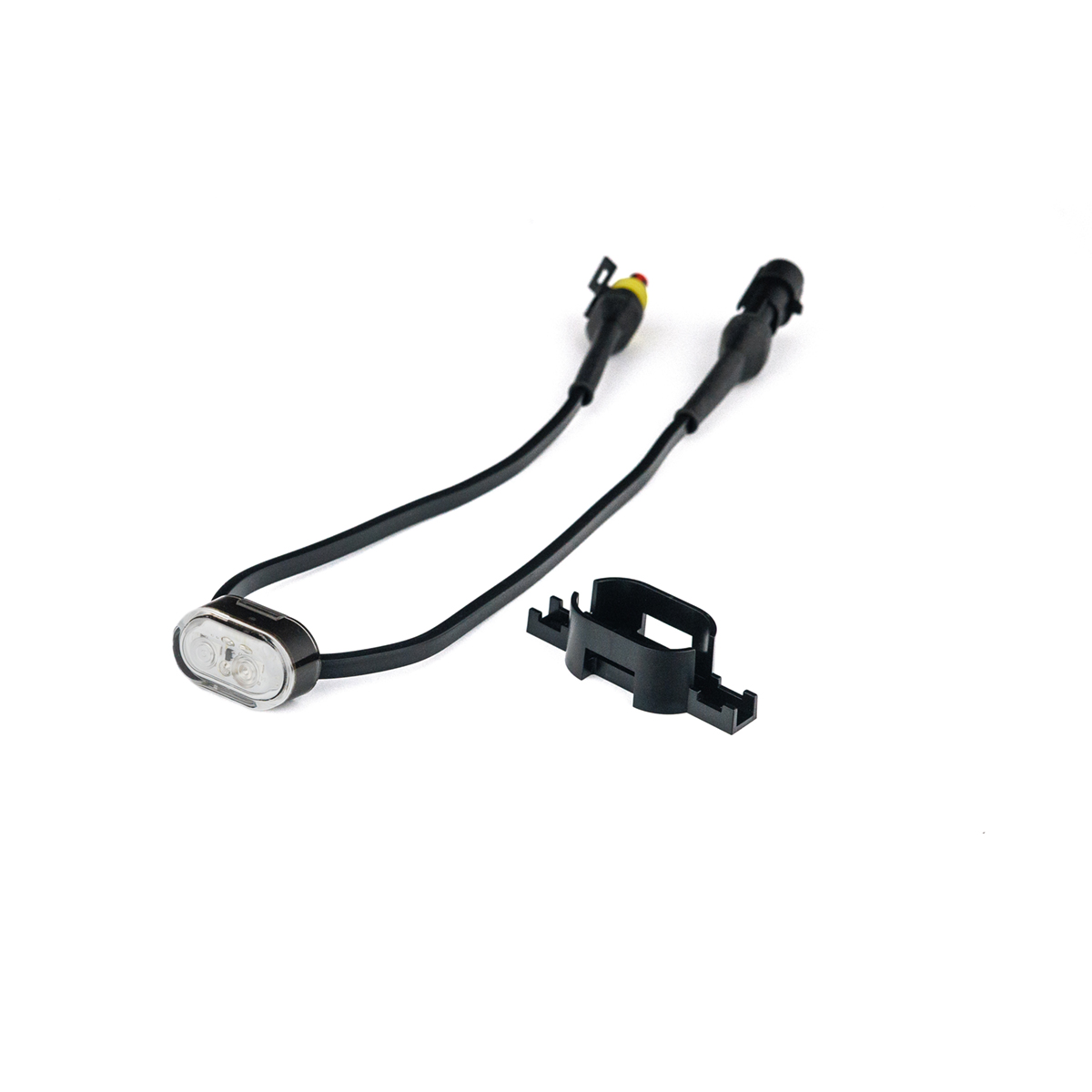

The device is equipped with a 2×0.75 mm² flat cable, 0.5 m long, terminated with a Superseal socket and plug, enabling quick and safe installation. Universal polarity further simplifies mounting and operation.

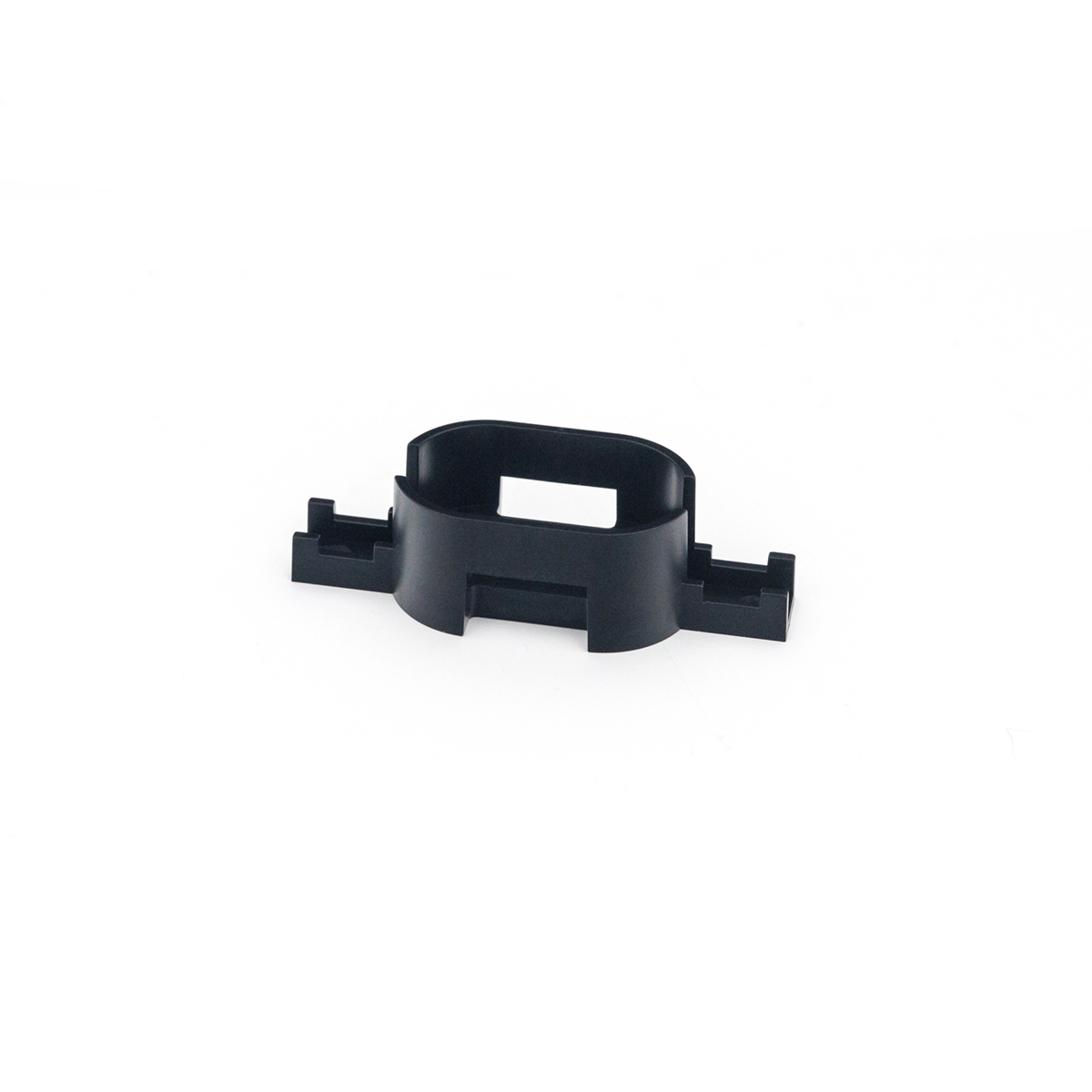

The lamp can be installed using an M4x16 metric screw with an M4 washer and nut, or with a cable tie, allowing easy adaptation of the installation method to specific applications.
