The ZPR 3020 (8.2.2) set is a comprehensive, professional lighting solution designed for marking vehicles and machinery with increased dimensions. It has been engineered to ensure maximum safety and visibility in road traffic, particularly in demanding working conditions where reliability and durability are critical.

The set includes:

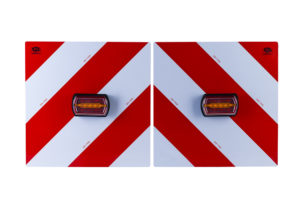

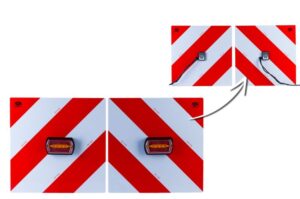

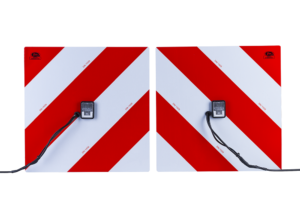

– two square oversize marker boards (left and right), in a red-and-white angled pattern, covered with reflective film on both sides (dimensions of each: 423 × 423 mm);

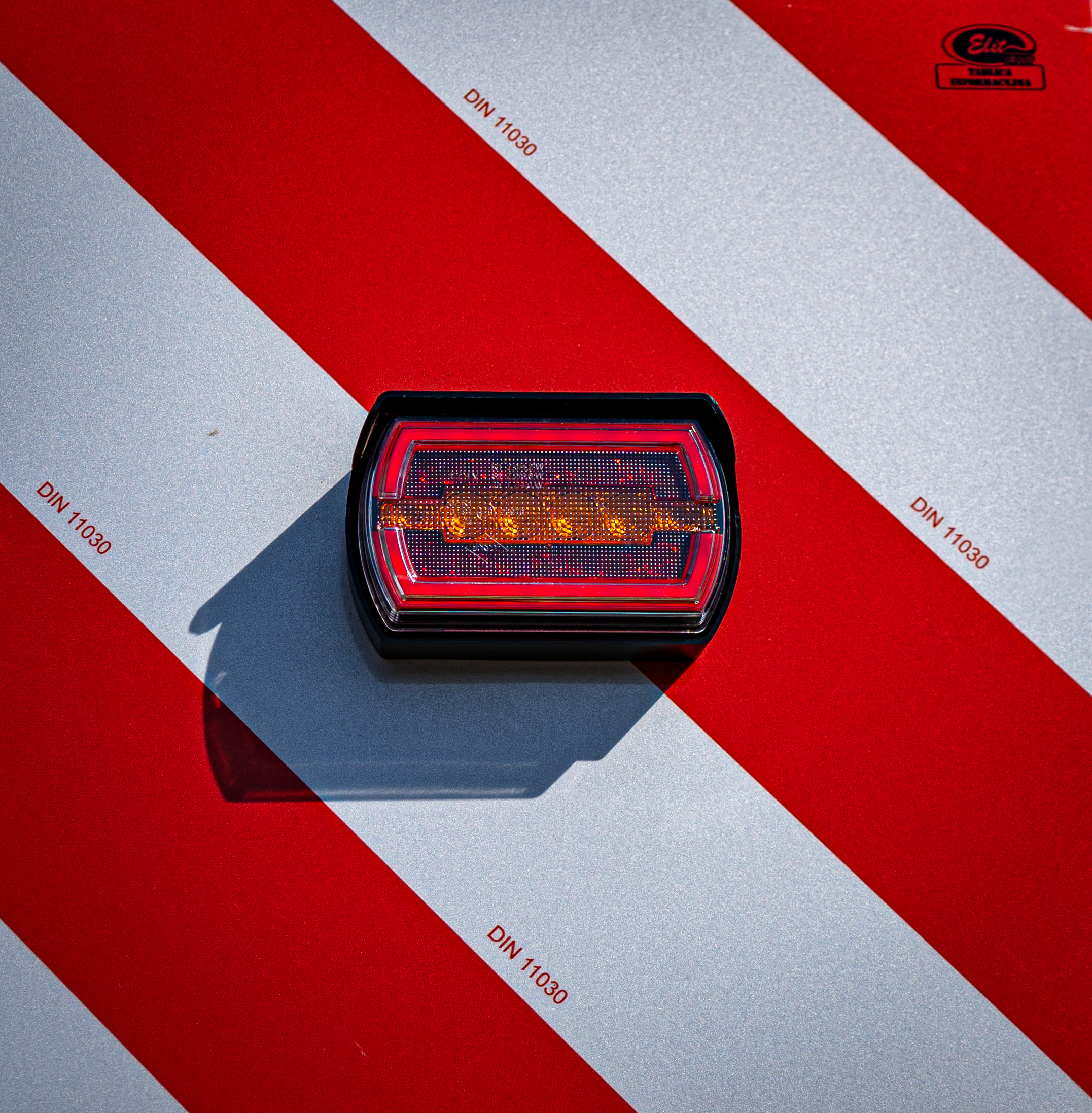

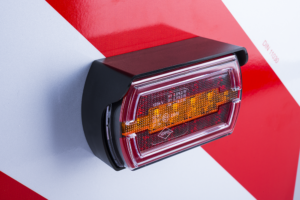

– two CLEO rear combination lamps;
– two front marker lamps with reflector and a distinctive NEON strip;

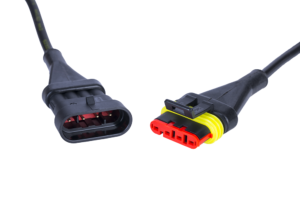

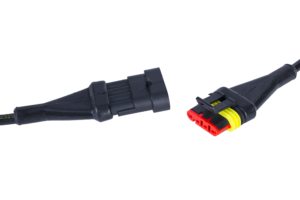

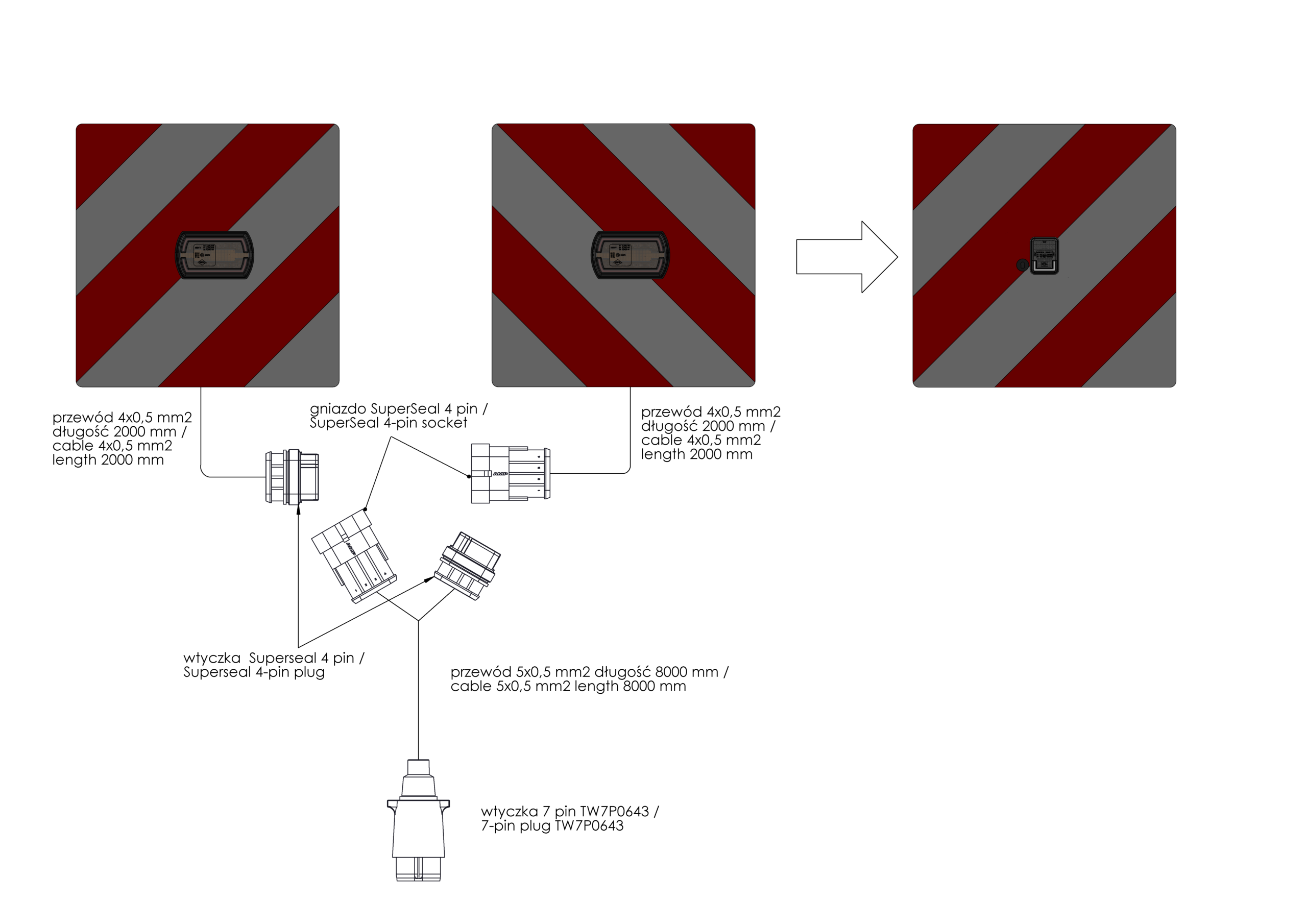

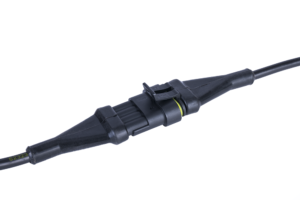

– wiring harness equipped with sealed Superseal connectors (socket and plug).

Functions of the CLEO rear combination lamp:
– rear position light NEON – 2/4.2 W
– rear direction indicator – 1.7/4 W
– brake light – 2.7/3 W

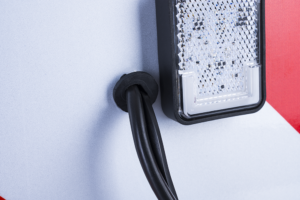

Front marker lamp:
– white light – 0.4/0.8 W

Thanks to LED technology, the lamps feature low power consumption, long service life, and fast response time, which translates into improved road safety.

The set is compatible with both 12 V and 24 V electrical systems, making it a versatile solution suitable for various types of vehicles. The use of hermetically sealed Superseal connectors ensures a secure and durable electrical connection, resistant to moisture, dirt, and vibration. The entire system meets a high ingress protection rating of IP68, guaranteeing complete resistance to water and dust, even in the most demanding operating conditions.

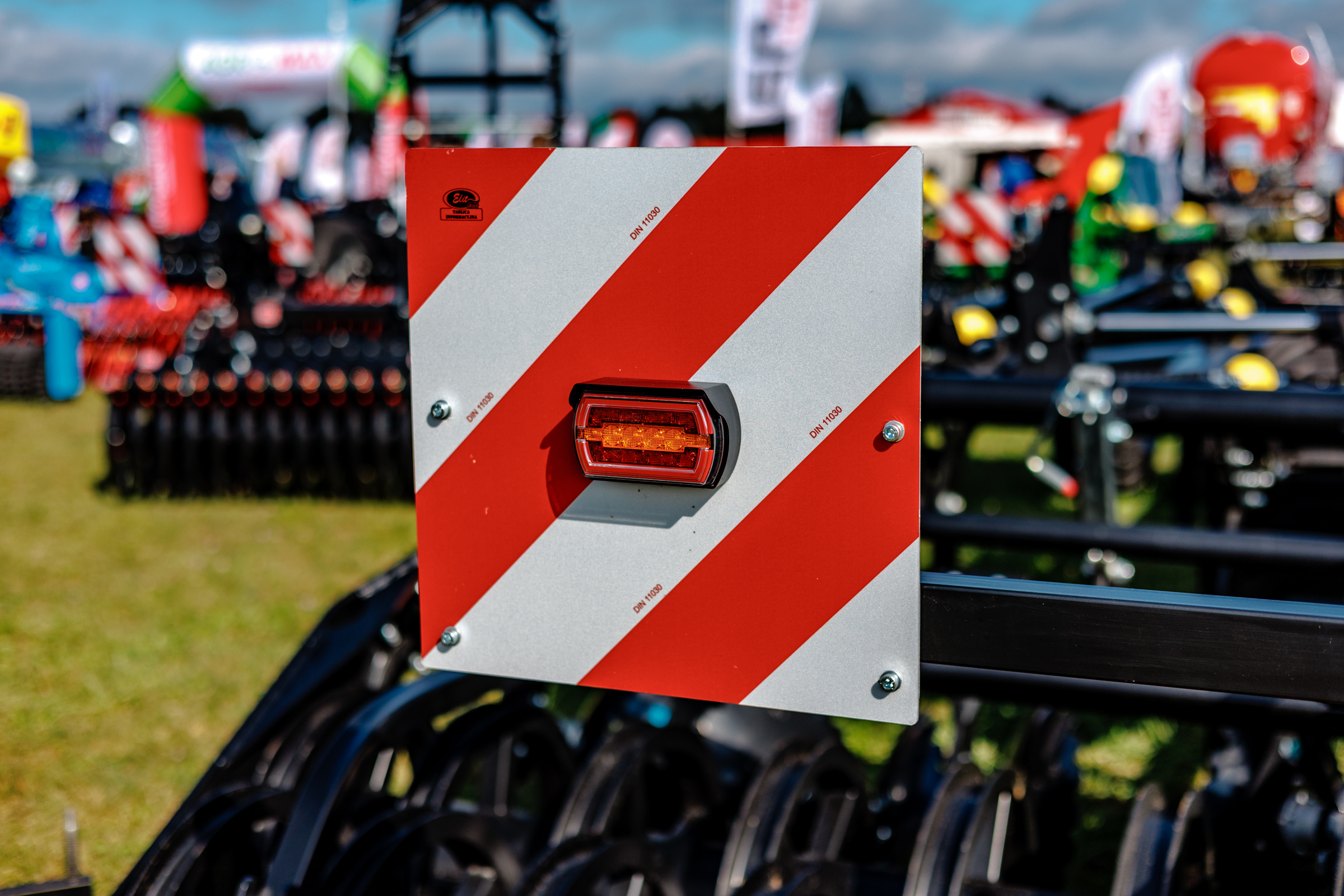

The ZPR 3020 (8.2.2) is widely used in the agricultural and municipal sectors, as well as in specialist vehicles. It is ideal for agricultural machinery such as combine harvesters or sprayers, where proper marking of vehicle dimensions is essential when operating on public roads. It is also a perfect solution for municipal vehicles and equipment used in roadworks and maintenance services.

The product is designed and manufactured in Poland by HORPOL, ensuring high build quality, durability, and compliance with applicable standards.
