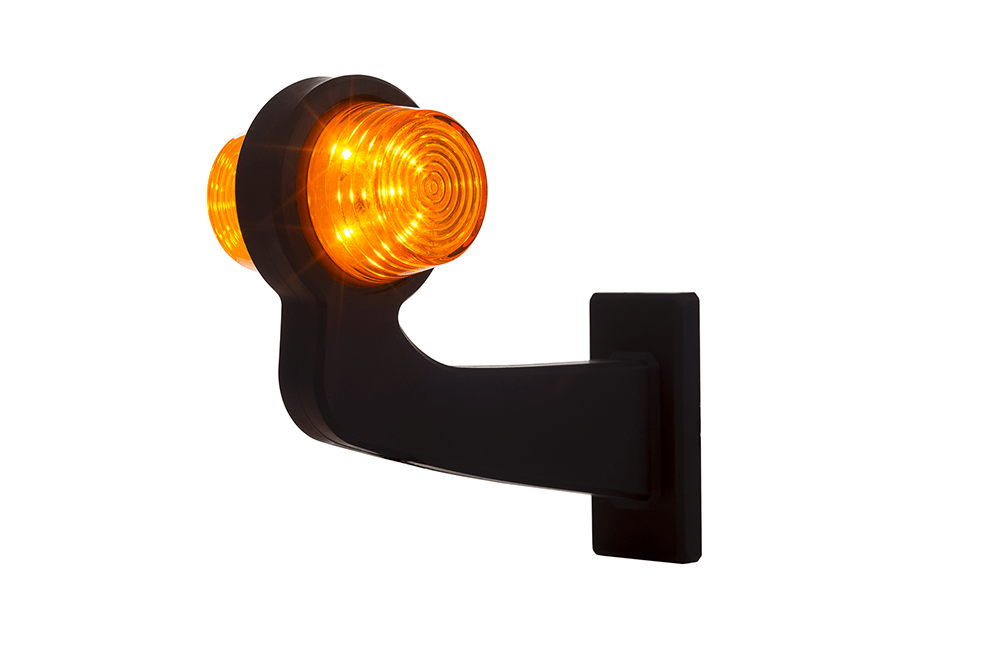

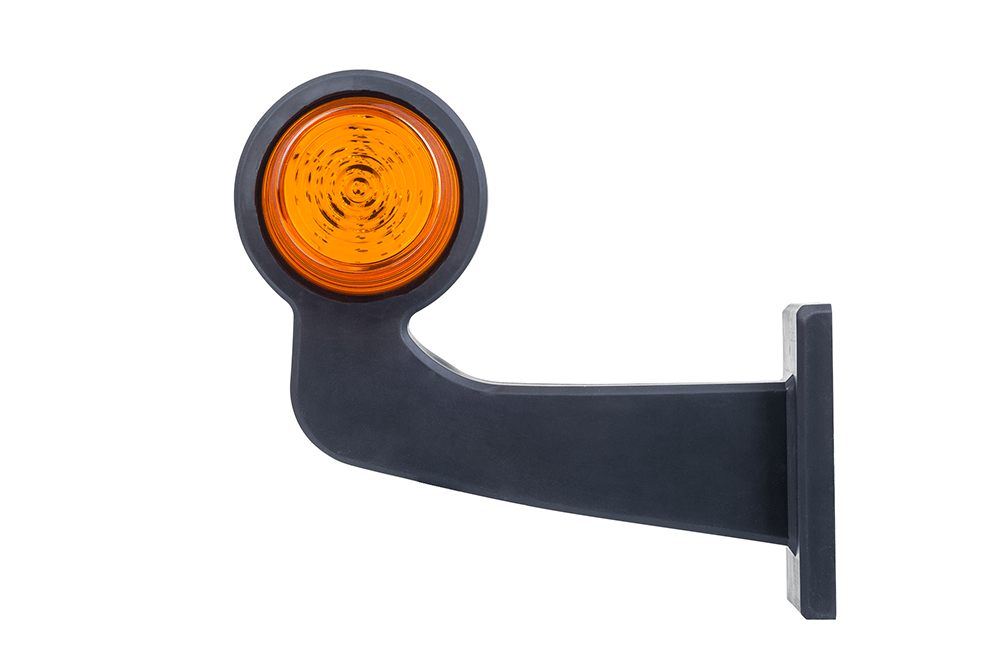

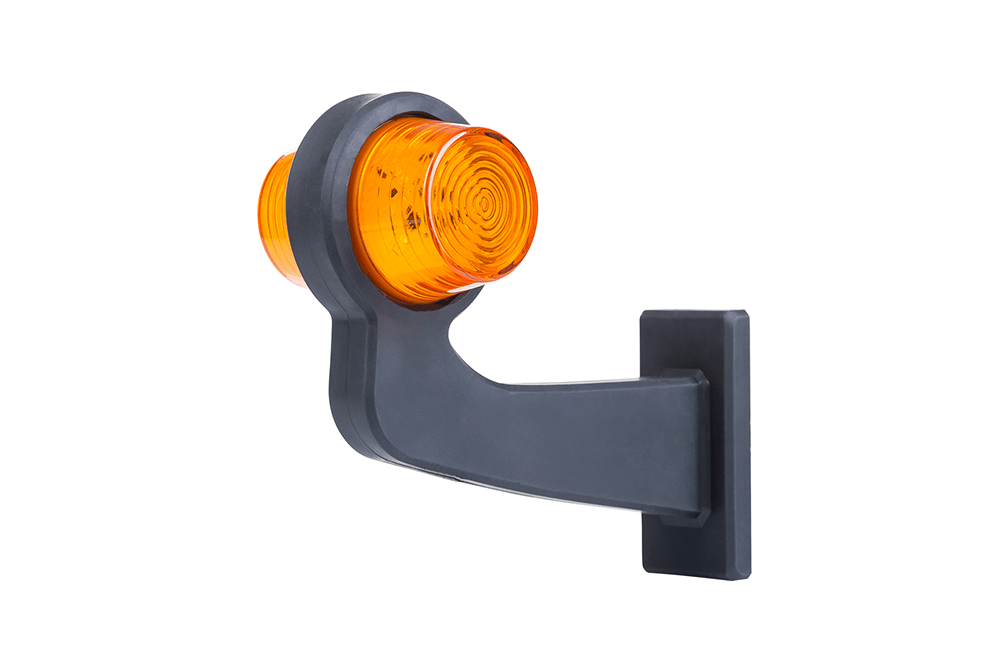

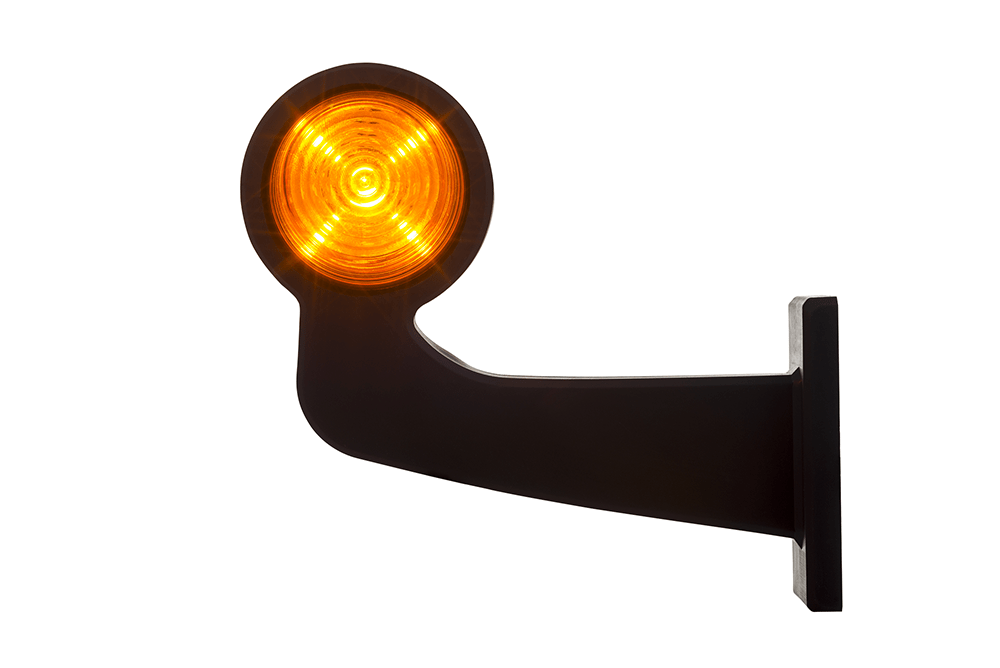

LKD 2566
Direction indicator

Direction indicator, long arm, amber lens, 5 m cable, “old schoolversion



Technical data

LED light
yes
Light category
direction indicator
Light group
HOR 102A
Side
universal
Supply voltage
12/24 V
Power rating
1/3 W
Ingress protection rating
IP 68
LED quantity
10
Side direction indicator
yes
Cable
2×2×0,75 mm2; cable length 2×5 m
Operating temperature range
from -30°C to +50°C

Download

Direction indicator LKD 2566 (homologation) 1 (direction-indicator-lkd-2566-homologation-1.ZIP)
Download
Direction indicator LKD 2566 (technical drawing) 1 (direction-indicator-lkd-2566-technical-drawing-1.ZIP)
Download
Page content (lkd-2566.ZIP)
