LD 2560
Marker lamp

Marker lamp white-red LEFT, long arm, white and red lens, 5 m cable, “old school” version

Technical data

LED light
yes
Light category
marker
Light group
HOR 102A
Side
left
Supply voltage
12/24 V
Power rating
1,2/3 W
Ingress protection rating
IP 68
LED quantity
10
Front position light
yes
Rear position light
yes
Cable
2×2×0,75 mm2; cable length 2×5 m
Operating temperature range
from -30°C to +50°C

Download

Marker lamp LD 2560 (attachment) 1 (marker-lamp-ld-2560-attachment-1.ZIP)
Download
Marker lamp LD 2560 (homologation) 1 (marker-lamp-ld-2560-homologation-1.ZIP)
Download

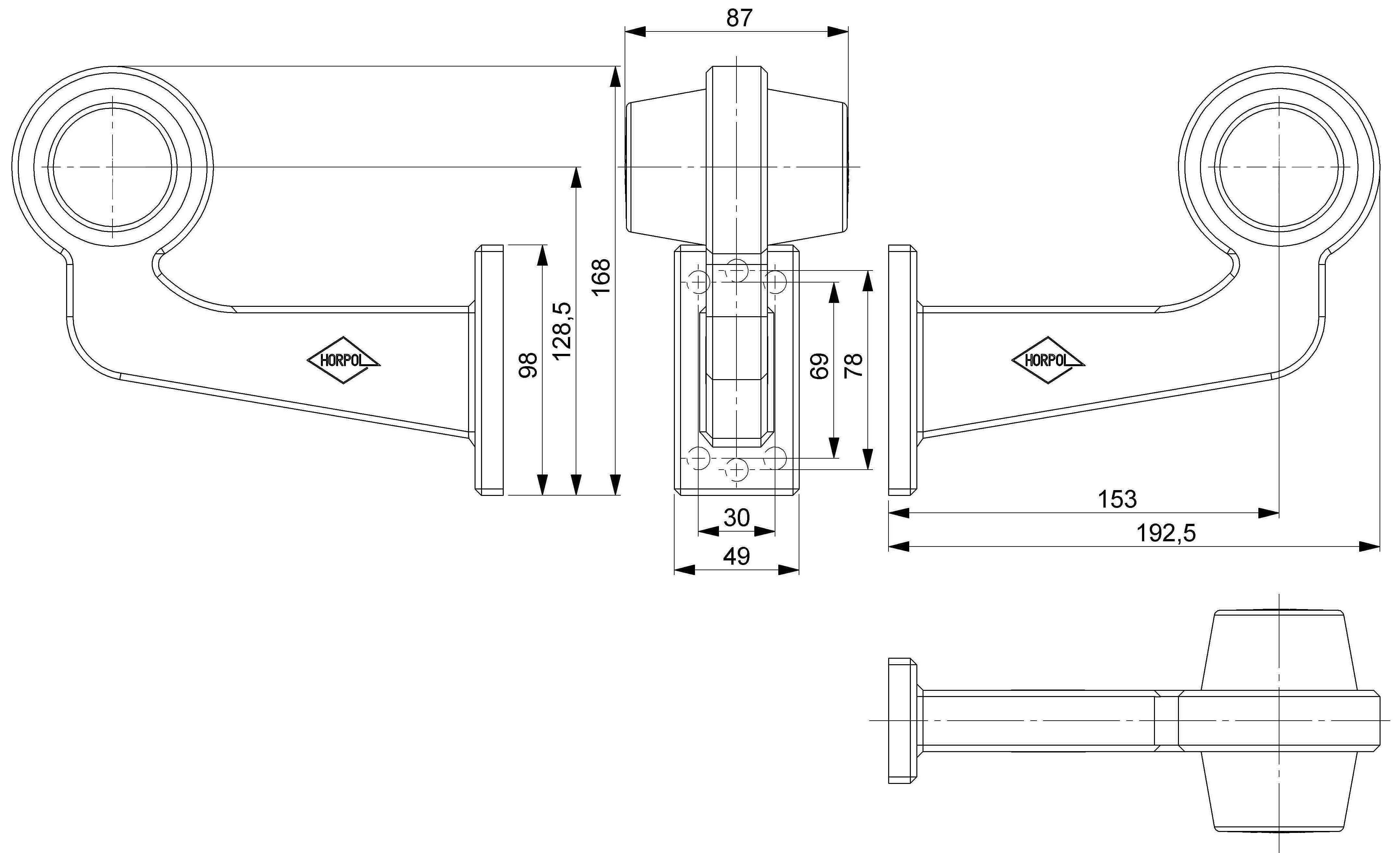

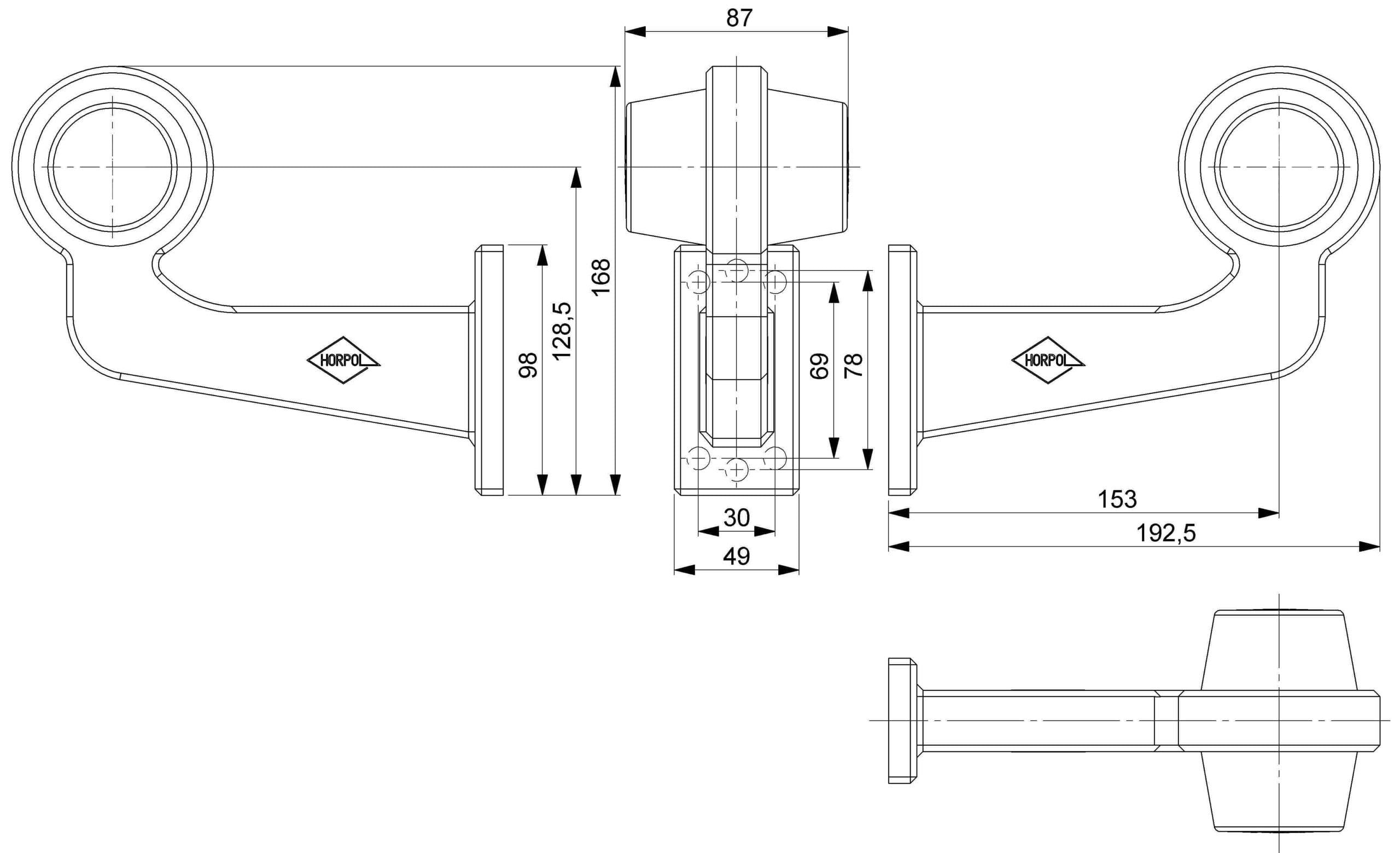

Marker lamp LD 2560 (technical drawing) 1 (marker-lamp-ld-2560-technical-drawing-1.ZIP)
Download
Page content (ld-2560.ZIP)
