Technical data
LED light
yes
Light category
marker
Light group
HOR 92
Side
universal
Supply voltage
12/24 V
Power rating
0,5/1 W
Cable
2x0,75 mm2; cable length 0,5 m
Ingress protection rating
IP 68
Front clearance light
yes
Operating temperature range
from -30°C to +50°C
Download

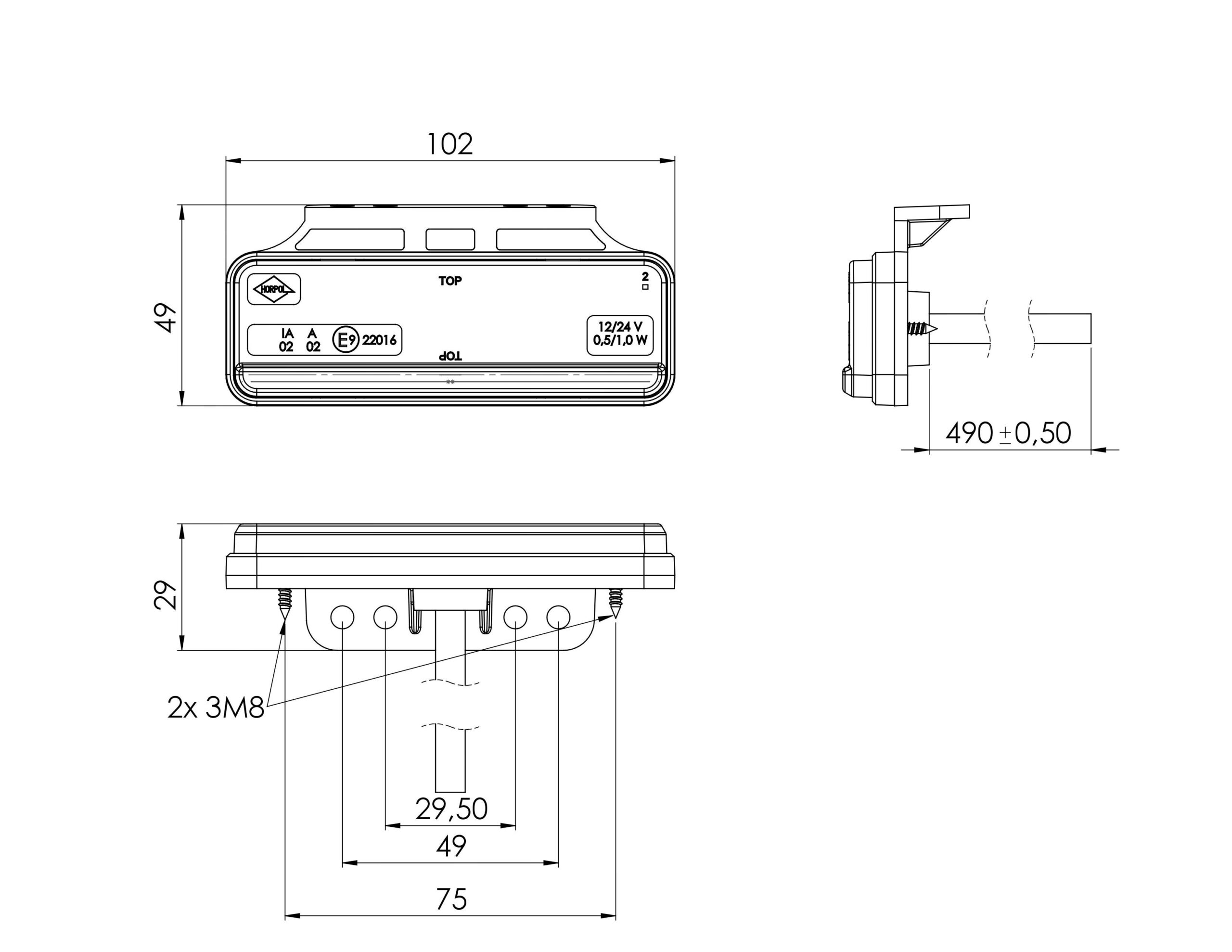

Marker light slim XS - LD 2430 (technical drawing) 1 (marker-light-slim-xs-ld-2430-technical-drawing-1.ZIP)
Download
Marker light slim XS - LD 2430 (technical drawing) 2 (marker-light-slim-xs-ld-2430-technical-drawing-2.ZIP)
Download
Marker light slim XS - LD 2430 (homologation) 1 (marker-light-slim-xs-ld-2430-homologation-1.ZIP)
Download
Marker light slim XS - LD 2430 (technical drawing) 3 (marker-light-slim-xs-ld-2430-technical-drawing-3.ZIP)
Download
Marker light slim XS - LD 2430 (homologation) 2 (marker-light-slim-xs-ld-2430-homologation-2.ZIP)
Download
Page content (ld-2430.ZIP)
