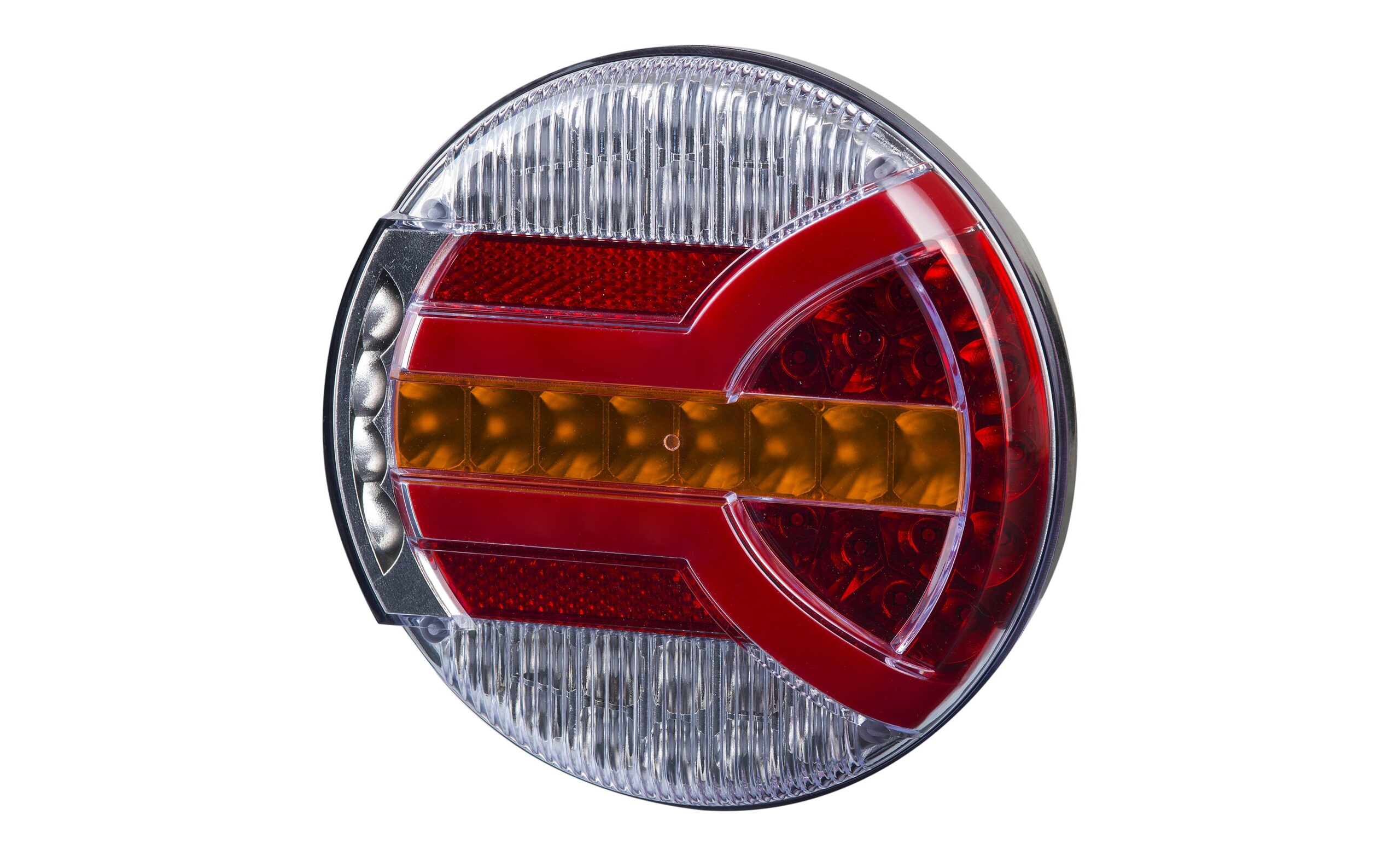

LED multifunction rear lamp
It is distinguished by modern design, which will undoubtedly give the vehicles a unique look.
It works well for vehicles of the following categories:
M – cars, buses
N – trucks
O – trailers, semi-trailers, special semi-trailers, truck trailers, special trailers
and many other.

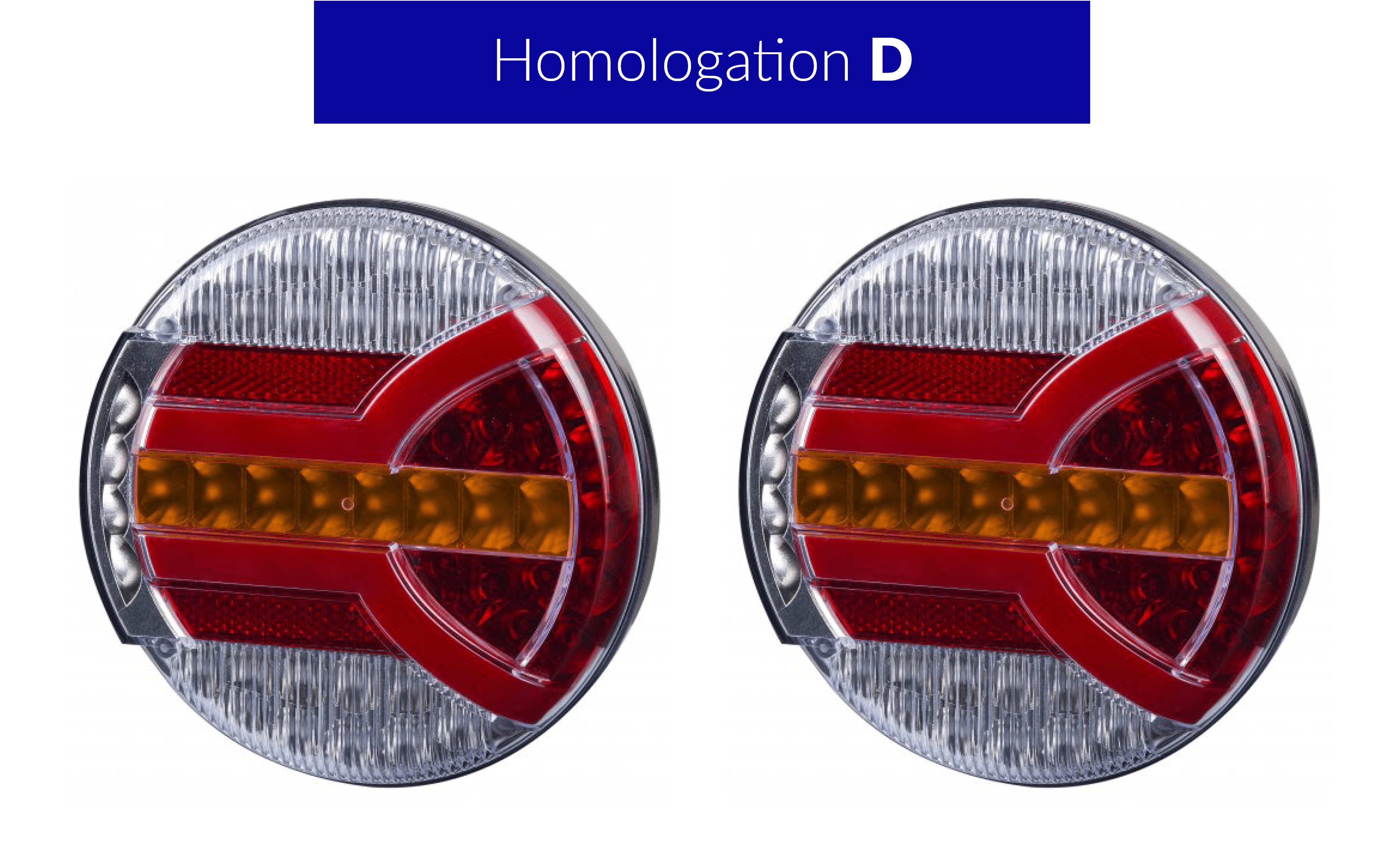

LZD 2343 has European approval and EMC certificate. Furthermore it is distinguished by the D-type approval, which allows the installation of two lamps on each side of the vehicle (the installation of two lamps unmarked D on one side of the vehicle is not compliant with the regulations).
Number plate light is powered by a separate cable, which allows you to connect this light regardless of the position light.
Lamp functions:

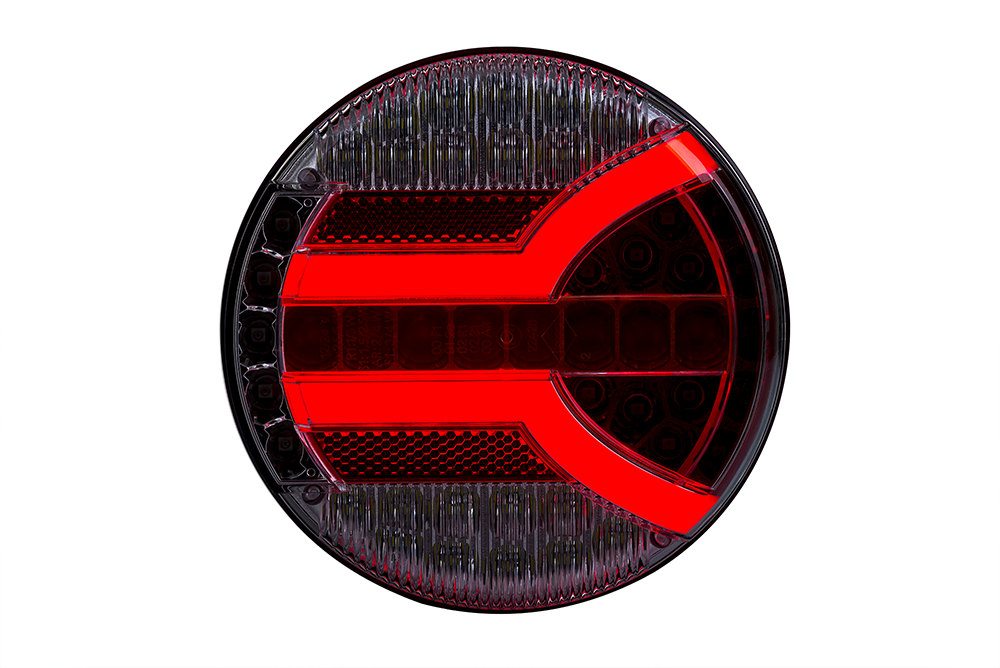

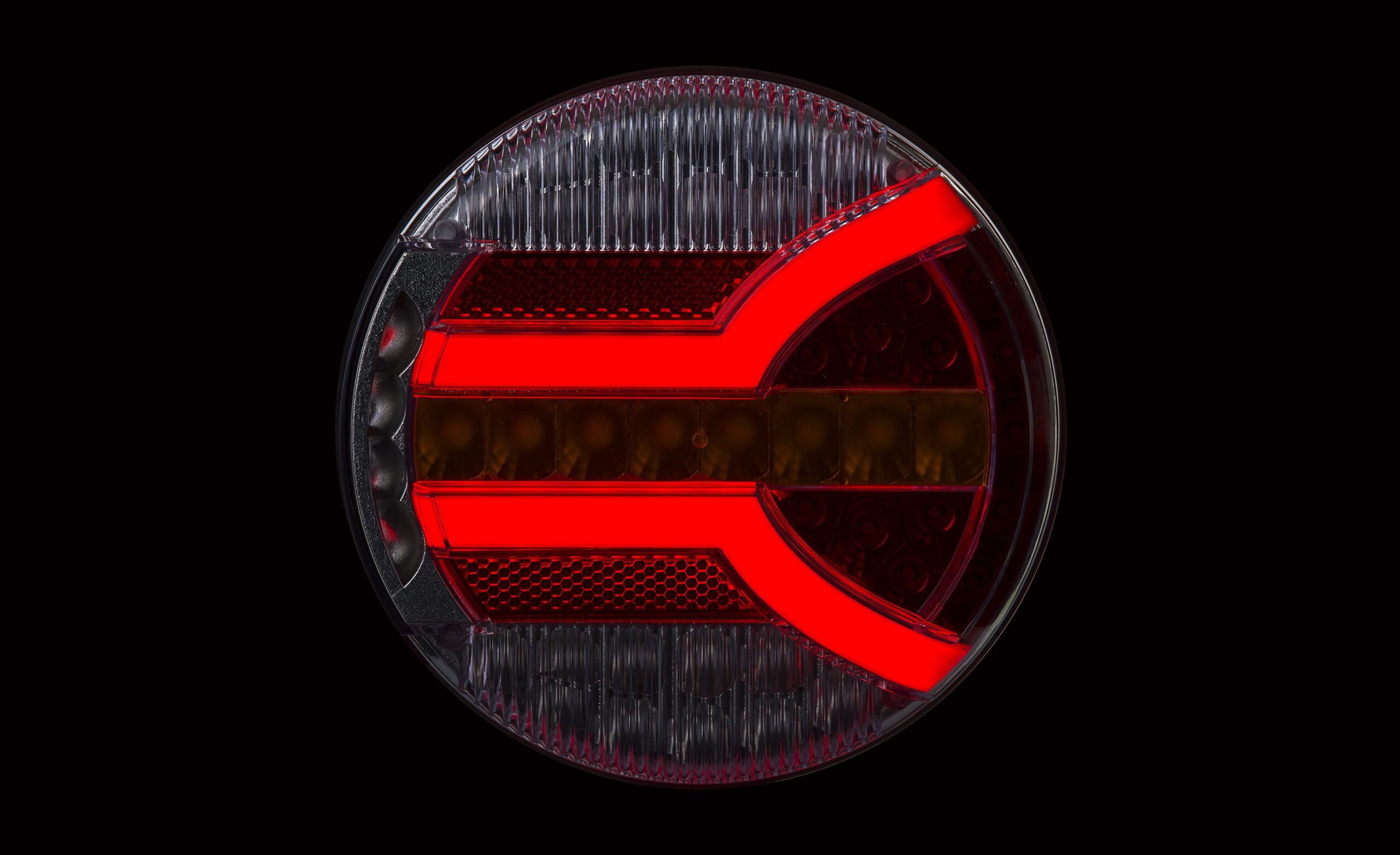

– rear position light

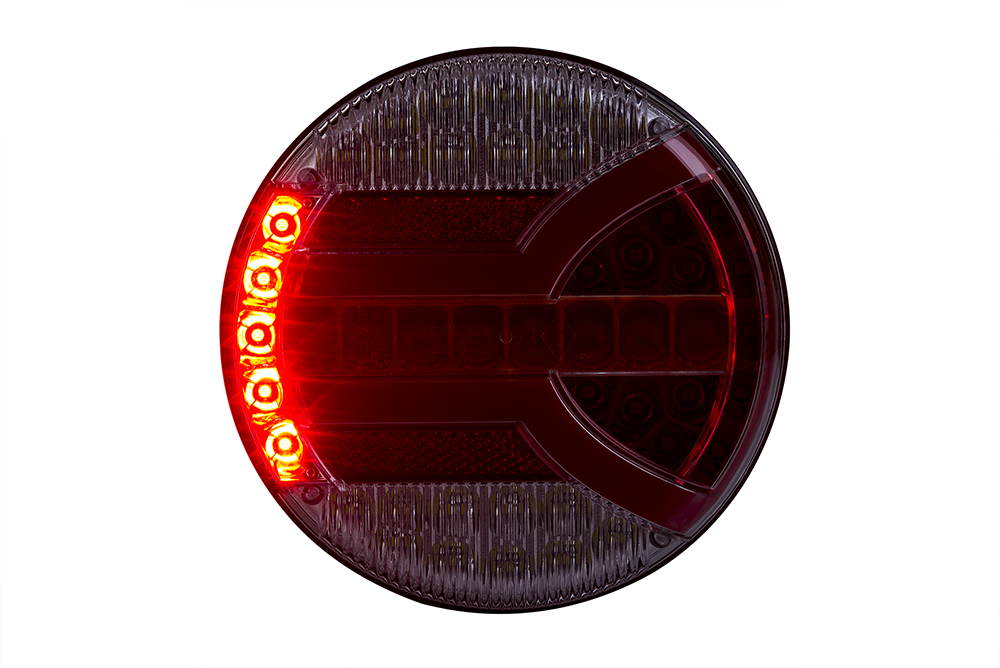

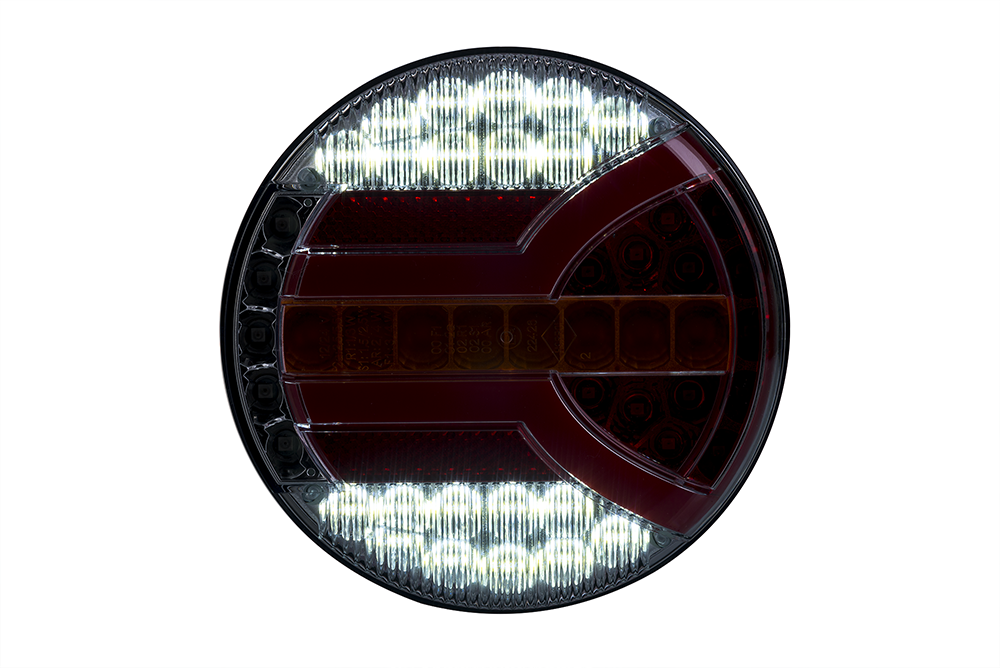

– number plate light

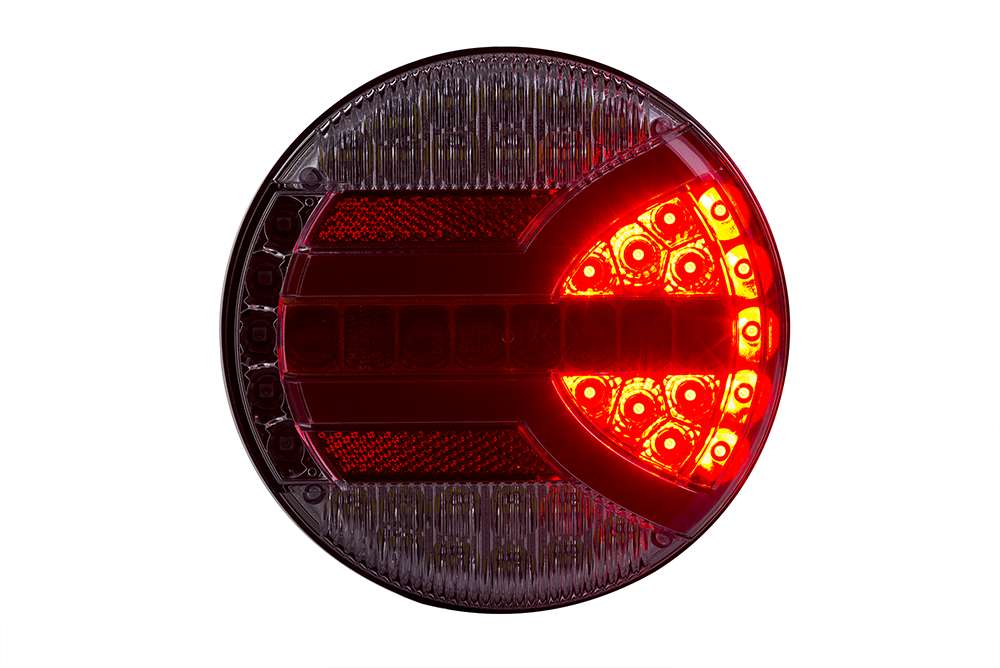

– brake light

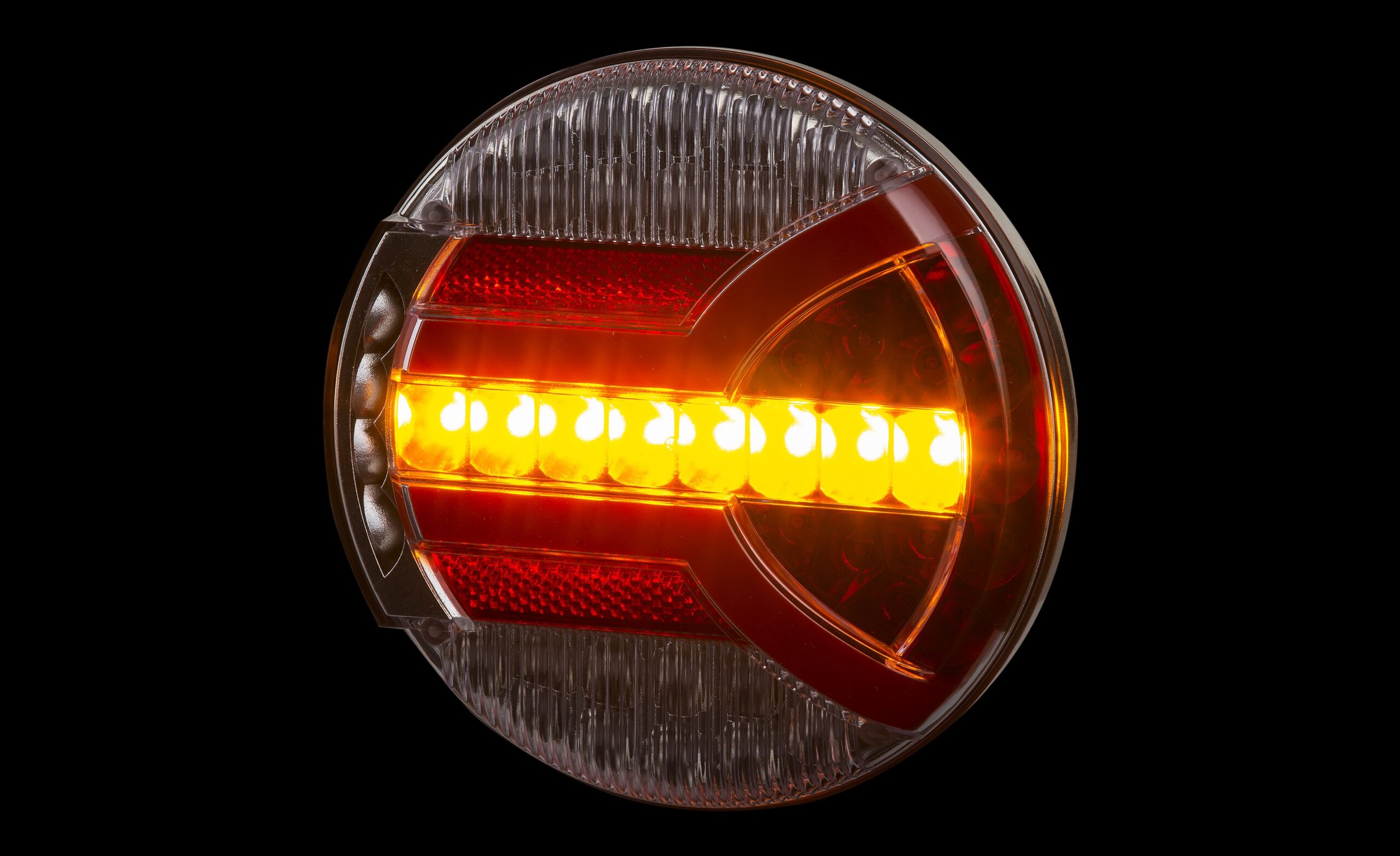

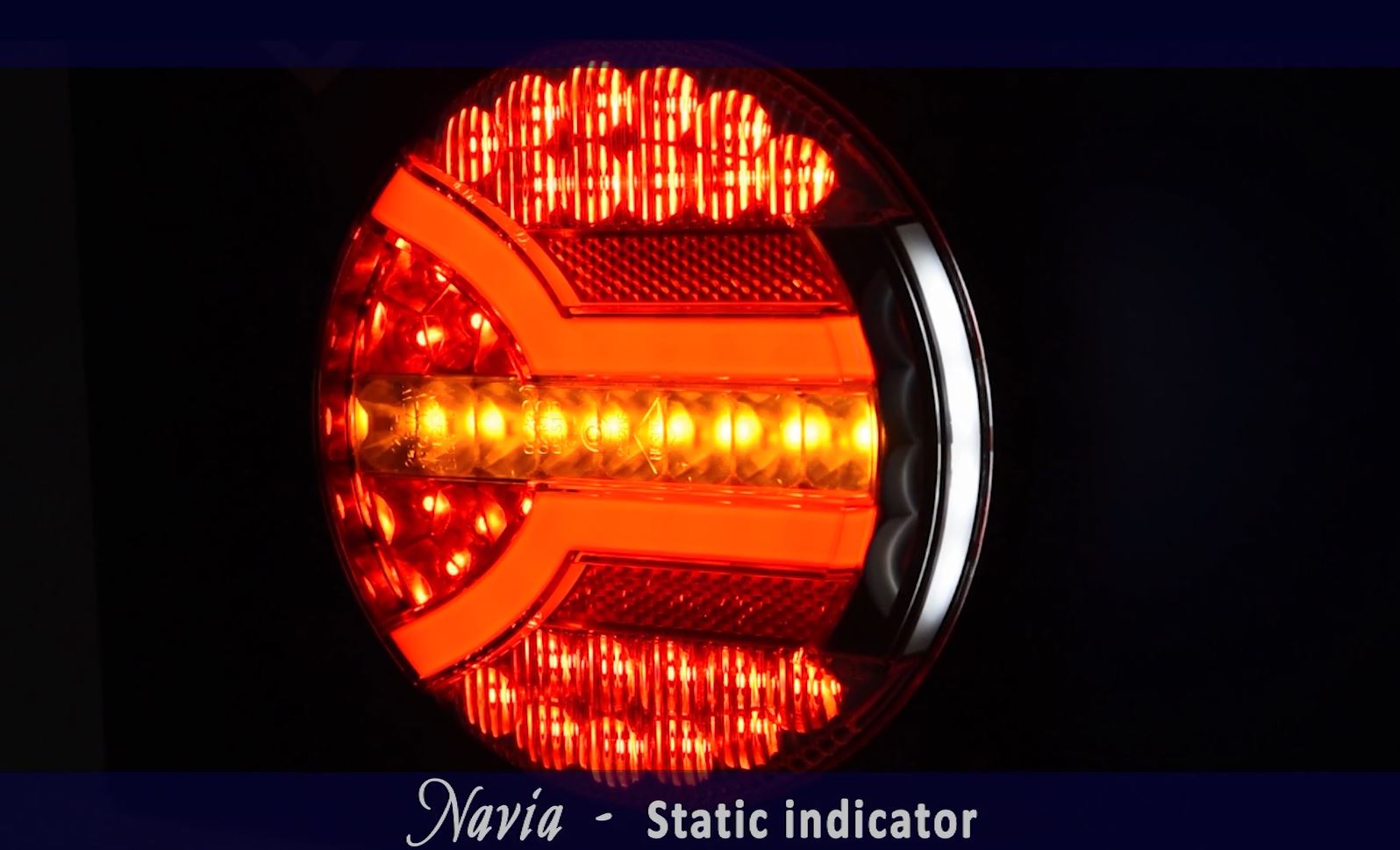

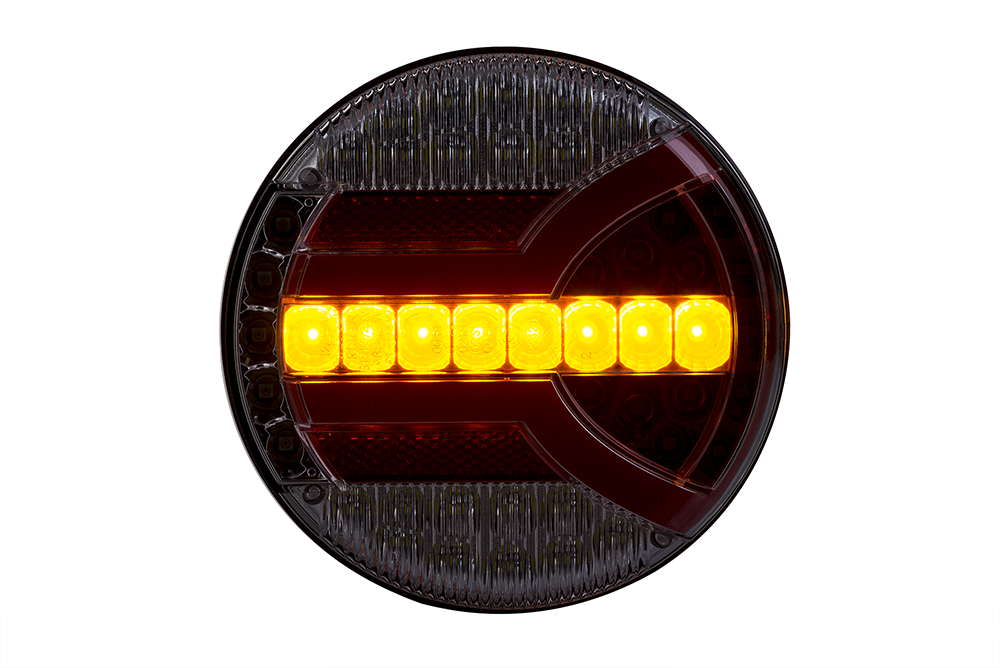

– direction indicator
Parameters:
– universal power supply 12/24 V
– power rating:
– rear position light: 0,7/1,7 W
– number plate light: 0,6/1,1 W
– brake light: 1,2/3,3 W
– direction indicator: 3,4/7 W
– cable 5×0,5mm2, 1,5 m
Specification of cores:
– white – ground
– black – rear position light
– red – break light
– yellow – direction indicator
– blue – number plate light
Technical data
