Discreet by day, distinctive by night – how does photometry work in GRAPHITE dark-lens lamps?
Modern commercial vehicle design calls for solutions that combine aesthetics with uncompromising road safety. The GRAPHITE series meets these needs by using dark-tinted lenses that create a seamless visual line with the vehicle body during the day, while emitting a distinctive beam of light after dark. At HORPOL, we have been designing and manufacturing advanced vehicle lighting since 1979, drawing on our own engineering capabilities. In this article, we explain how dark-tinted automotive lamps affect vehicle visibility and why properly designed photometry ensures reliable performance in all conditions.
The technological challenge – how can automotive lamps be dark-tinted without compromising brightness?
Using darker materials in lighting housings presents engineers with significant challenges related to the physics of light. Traditional lamp tinting works by blocking part of the luminous flux with dark pigment incorporated into the lens material. Without appropriate optical correction, this solution would lead to a drastic reduction in brightness, which on the road could pose a direct safety risk. HORPOL’s design team develops unique lens structures and carefully optimises LED positioning to compensate for the loss of light caused by the tinted lenses. As a result, every dark-lens lamp leaving our factory produces a light signal with an intensity that fully complies with legal requirements.
The precise selection of polycarbonate and UV-resistant pigments plays a key role in this process. The material used for GRAPHITE dark-lens lamps features selective light transmission, preventing it from becoming cloudy when exposed to sunlight. In addition, the inside of the housing is designed to prevent reflected external light from creating glare that could make the signal difficult for other drivers to see. Properly engineered optical modification ensures that the dark housing does not negatively affect the reaction time of road users. By investing in refined lighting solutions, you can be confident that an elegant finish goes hand in hand with full technical functionality.
The role of the photometric laboratory in testing the brightness of dark-tinted lenses
Our photometric laboratory, equipped with goniophotometers and integrating spheres, is the heart of our production facility. During research and development work on the GRAPHITE series, HORPOL specialists measure the distribution of light in three-dimensional space around the lamp. The goniophotometer precisely rotates the lamp under test, measuring light intensity at different observation angles, which helps eliminate so-called dead zones. The integrating sphere, on the other hand, is used to verify the total luminous flux emitted by the LED system enclosed in the dark housing. Spectroradiometric testing, in turn, helps maintain the correct light colour in line with international guidelines for road signalling.
Thanks to digital verification of every optical parameter, we eliminate the risk of products with insufficient performance reaching the market. This process allows us to precisely calibrate the current supplied to the LEDs, ensuring stable operation without overheating the electronic modules. Advanced vibration and temperature tests confirm that the photometric parameters remain unchanged throughout the product’s service life. By choosing tested solutions from a Polish manufacturer, you can ensure optimal fleet visibility in challenging weather conditions. The measurement accuracy of the HORPOL laboratory directly contributes to the safety of drivers travelling on European roads.
ECE regulations and type approval – how can dark-tinted lamps be legally used on the road?

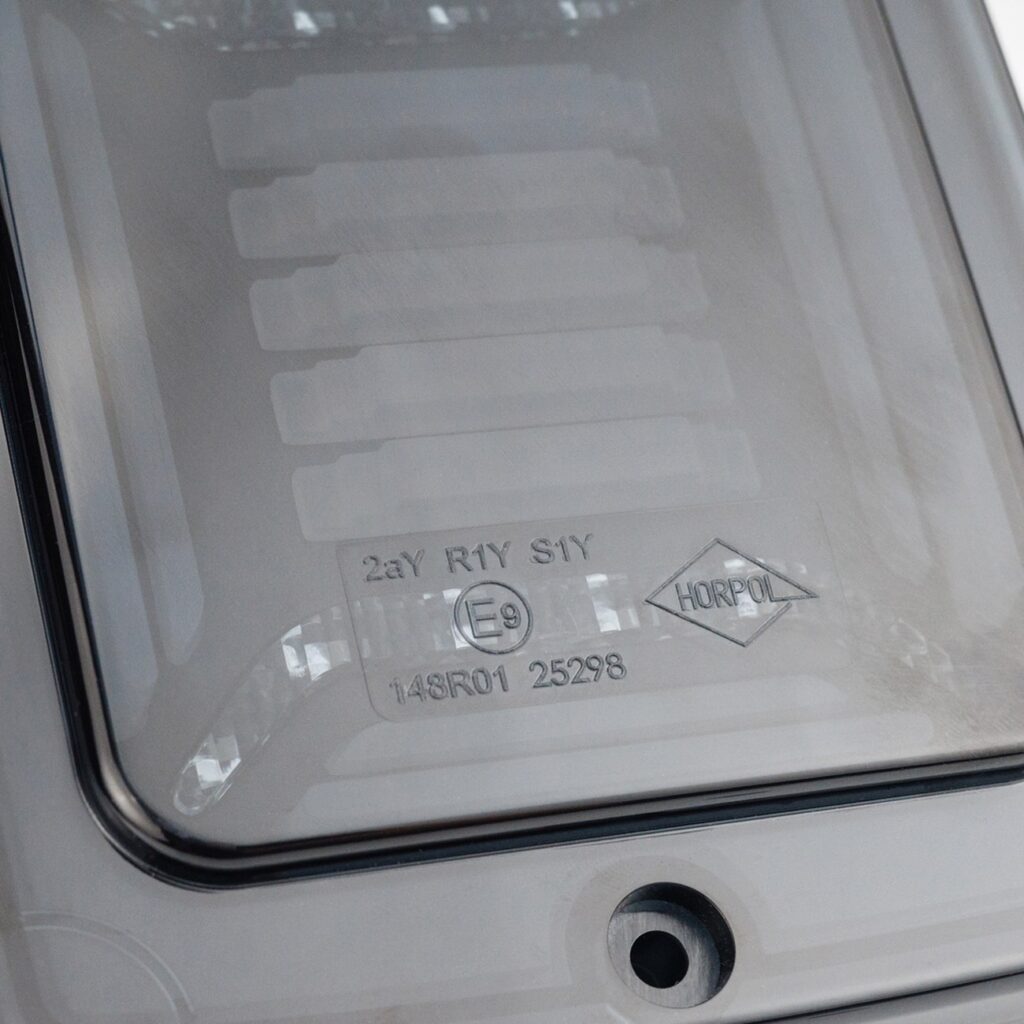

Every lighting component approved for road use in Europe must carry clear type-approval markings confirming compliance with ECE regulations. In the case of dark-tinted lenses, regulatory verification is particularly stringent, as unapproved aftermarket modifications are illegal. The certification mark on the lens provides evidence that the tinted lamp has undergone testing by independent certification bodies. Using non-approved replacements may result in the vehicle registration certificate being retained during a roadside inspection and may affect insurance coverage in the event of a collision. A certified dark-lens lamp from HORPOL provides complete peace of mind for both the driver and the transport company owner.
ECE type approval defines not only the minimum and maximum light intensity, but also the required reflective area. GRAPHITE series products are designed in accordance with these requirements, with reflective elements integrated in a way that preserves the vehicle’s cohesive appearance. By choosing factory-produced dark-tinted lighting, you can avoid issues during periodic vehicle inspections. It is important to remember that applying paint or wrapping the lenses with film without proper approval changes their photometric properties and invalidates the existing type approval. Trusting HORPOL’s engineering solutions ensures trouble-free vehicle operation on the road.
Practical applications of the GRAPHITE series in commercial vehicles and fleets

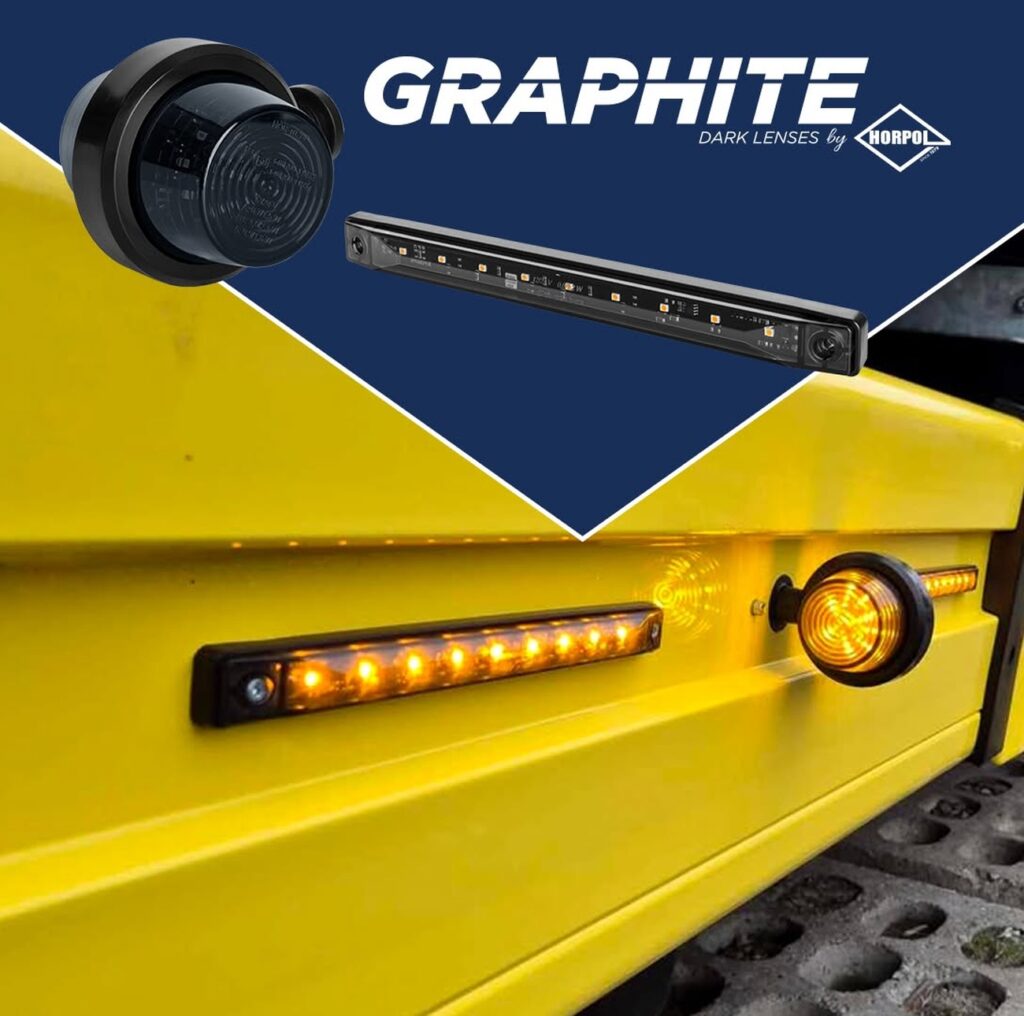

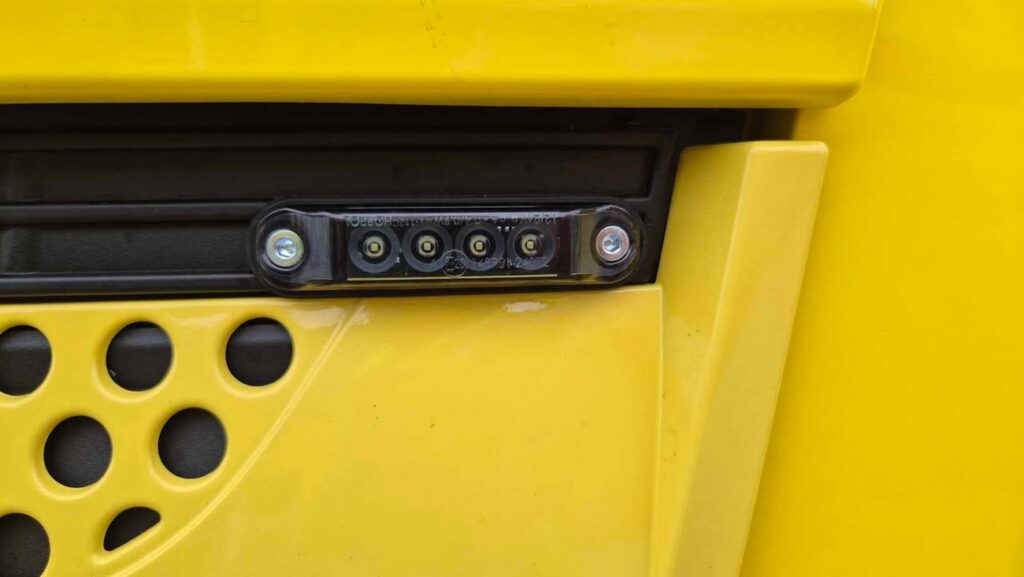

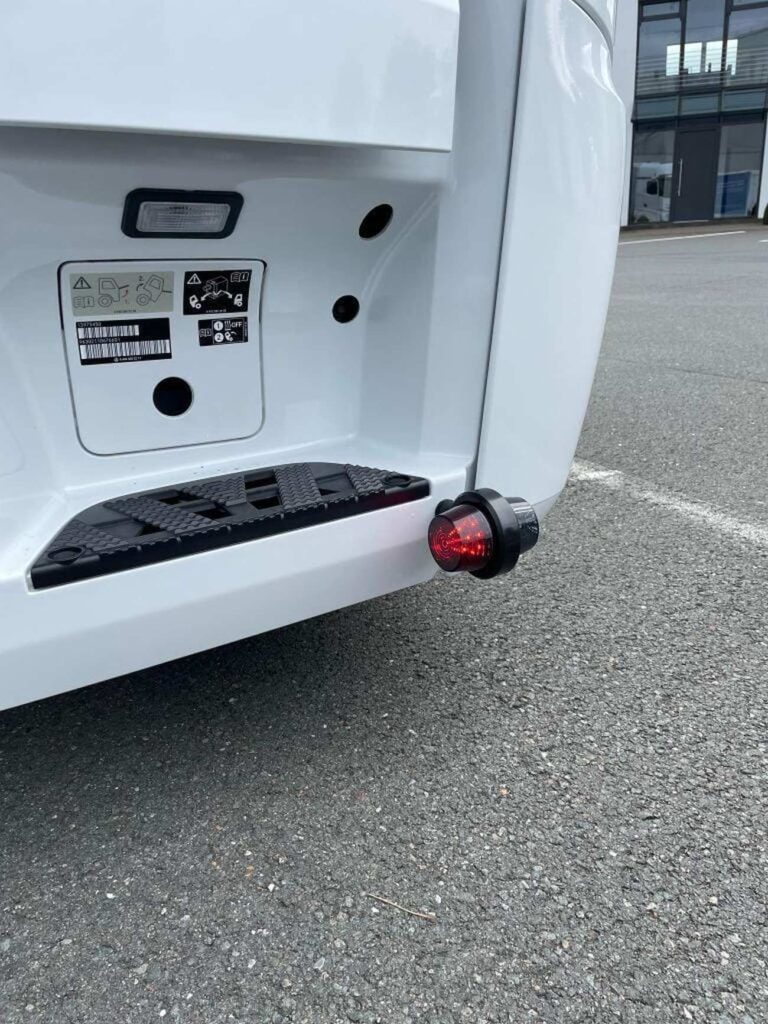

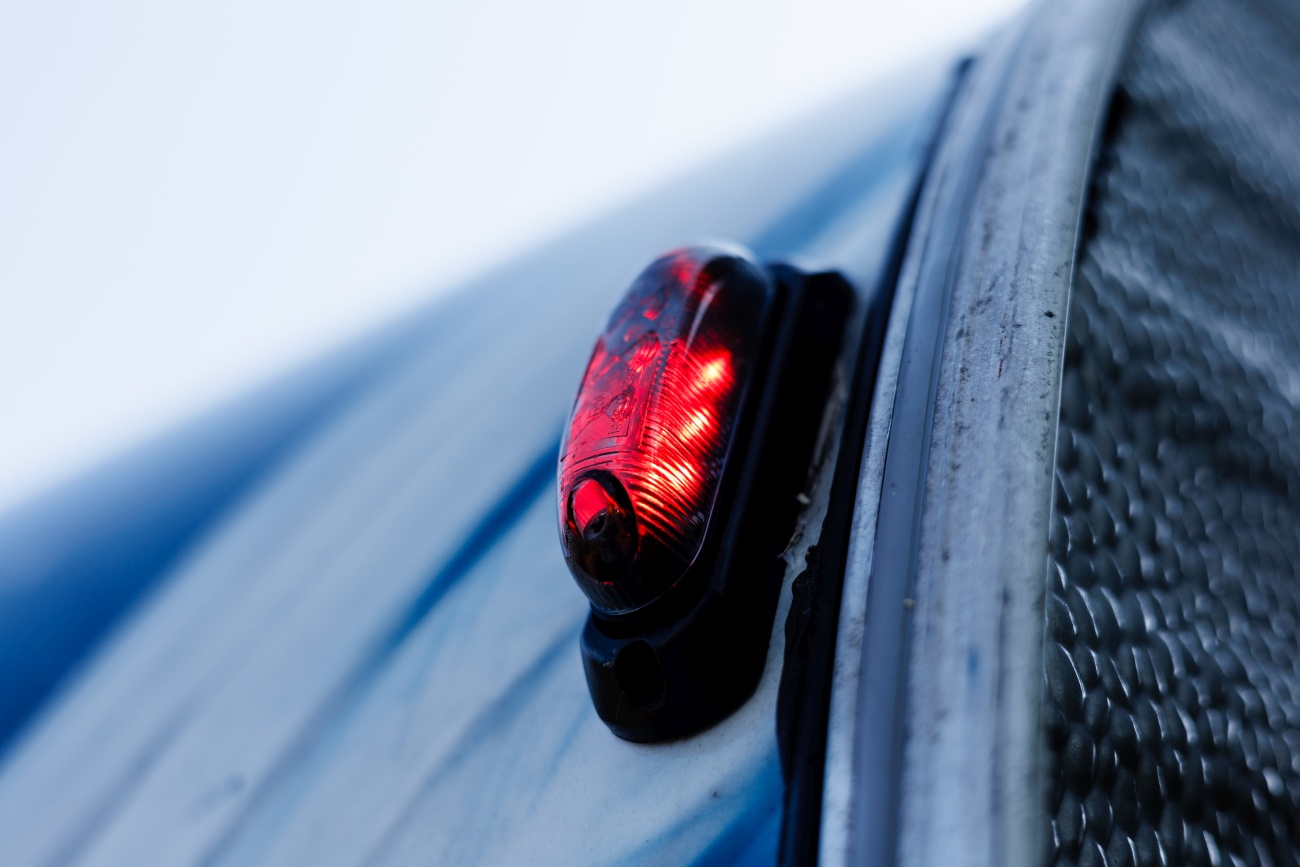

The GRAPHITE series has been designed for a wide range of vehicles, from delivery vans and trucks to specialist semi-trailers and trailers. At the outermost points of the body, GRAPHITE LD 2174 marker lamps with a flexible rubber arm are an excellent choice. Narrow vehicle profiles can be fitted with discreet SLIM marker lamps, such as the LD 2327/GRAPHITE, which blend seamlessly into the bodywork. Side protection is enhanced by LKD 2566/GRAPHITE side indicators and LD 2628/GRAPHITE position lamps, providing clear signalling during turning manoeuvres. For roof lighting, we recommend the LD 370/GRAPHITE module, which combines modern design with resistance to damage.
The use of modern LED technology combined with a fully sealed IP68-rated housing ensures reliable operation for many years, even in the most demanding conditions. Resistance to mud, high-pressure washing and road chemicals means that HORPOL dark-lens lamps retain both their aesthetic appeal and technical performance over time. The universal 12–24 V operating voltage allows for easy installation across a wide range of vehicle types without the need for additional modules. The smoked-lens design gives fleets a modern, premium appearance, enhancing the overall visual appeal of company vehicles. Carefully selected, high-quality lighting solutions also help reduce servicing costs associated with replacing damaged or leaking lamps.
Why choose HORPOL’s Polish lighting technologies?
More than 45 years of experience in the automotive market have enabled us to establish a strong position in the field of automotive lighting manufacturing. As a fully Polish-owned company with our own production facilities, we maintain complete control over every stage of product development, from the initial design to final packaging. Our in-house design and engineering team continuously responds to market needs, developing new solutions in optics and industrial design. The high quality of the components used to assemble our electronic systems ensures reliable, trouble-free operation across a wide range of climatic conditions. By choosing HORPOL, you are investing in driver safety while supporting the development of Polish engineering and technological expertise.
We make sure that our product range meets the challenges of modern transport and advanced logistics. Our in-house R&D facilities allow us to continuously improve lighting performance and introduce new product lines, such as the GRAPHITE series. We offer energy-efficient products that are easy to install and resistant to mechanical damage, helping to deliver real savings in fleet operation and maintenance. The trust of thousands of customers across Europe is a testament to our reliability and high manufacturing standards. We invite you to explore our product range and discover related categories of marker, warning and work lighting to find the solution ideally suited to your vehicle.
