Transporting oversized loads – how to ensure proper visibility?

When does a load become abnormal? Oversized transport dimensions and legal requirements

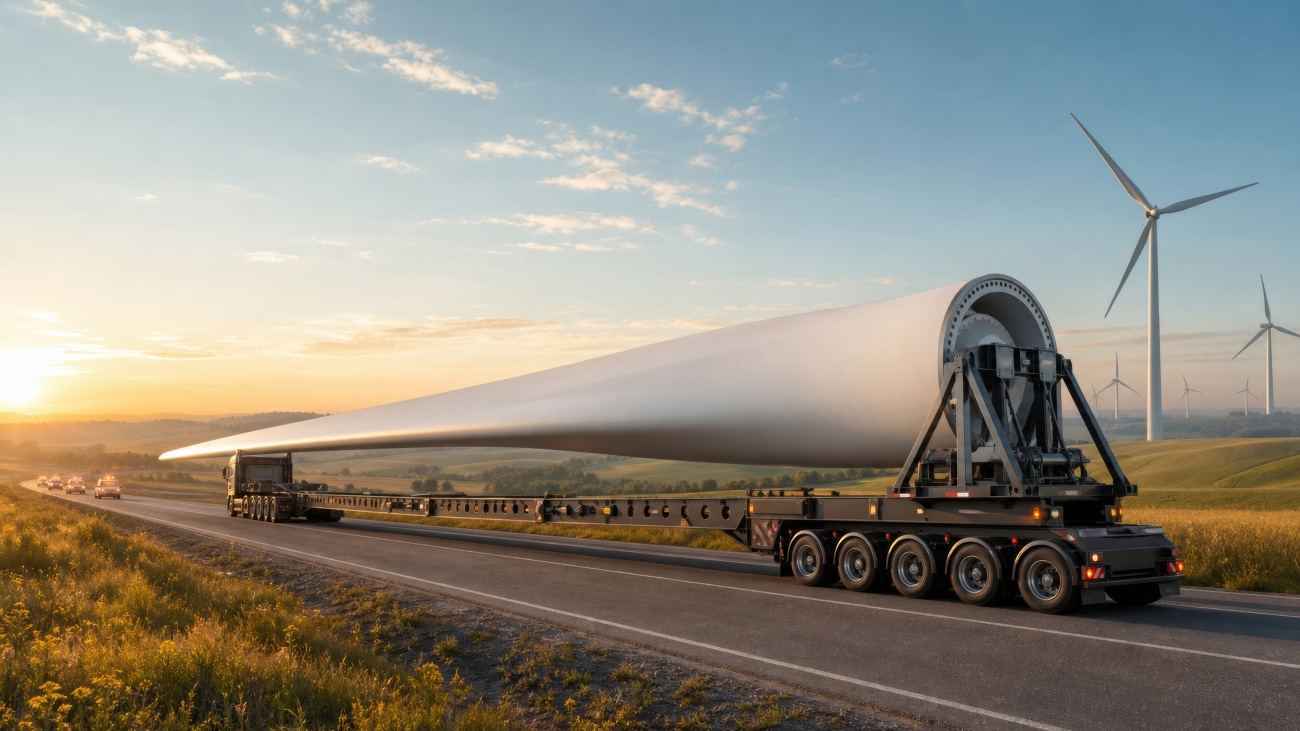

Precisely defining the load parameters is the essential starting point when planning any abnormal road transport operation. Standard transport dimensions are exceeded when the vehicle combination is longer than 16.5 metres for a semi-trailer or 18.75 metres for a trailer combination, wider than 2.55 metres, or taller than 4 metres. A gross vehicle combination weight exceeding 40 tonnes may impose additional requirements regarding axle loads. Oversized transport regulations require carriers to clearly mark the outer limits of the load using reflective boards and warning beacons. By choosing certified HORPOL lighting solutions, you can ensure that your fleet meets European ECE type-approval requirements, helping you maintain compliance with applicable regulations.

Failure to meet load-marking requirements can result in severe legal and financial consequences. During roadside inspections, the Road Transport Inspection (ITD) checks the relevant documentation, as well as the correct placement and visibility of warning signals. The use of non-approved lamps with poor visibility may lead to the vehicle being detained and directed to a secure parking area. This can cause significant delivery delays and substantial fines for the carrier. Investing in reliable oversized transport lighting directly from a Polish manufacturer helps protect your business against costly downtime while enhancing driver safety.

Oversized transport permits and restrictions on travel times

Planning an abnormal load route requires obtaining the appropriate administrative permit, depending on the extent to which standard road limits are exceeded. Oversized transport permits specify the exact travel schedule, designated route and technical requirements that the tractor unit and trailer must meet.
To maintain smooth traffic flow, travel times for oversized transport are regulated, with many vehicle combinations operating at night, between 10 p.m. and 6 a.m. Driving an oversized vehicle combination after dark calls for uncompromising lighting solutions. The powerful light emitted by HORPOL lamps helps make your tractor unit and trailer visible to other drivers from hundreds of metres away.

Night-time driving places greater demands on a driver’s concentration, increasing the risk of overlooking obstacles or failing to recognise the trailer’s outer dimensions. Navigating narrow roundabouts and toll plazas becomes safer when the edges of the load are clearly defined by effective lighting.
For international routes, you must also take into account the requirements of road authorities, which place particular emphasis on the quality of lighting and signalling systems. HORPOL’s in-house photometric laboratory allows us to test our lamps under demanding conditions, ensuring their reliability on roads across Europe. This helps keep your international oversized transport operations running smoothly, reducing the risk of unexpected lighting failures.

The role of an oversized transport escort – how to choose lighting for BF2 / BF3 escort vehicles?

The safe movement of an abnormal vehicle combination along national roads and motorways would not be possible without professional road escort services. A qualified oversized transport escort is responsible for warning other road users, securing intersections and helping manage traffic efficiently during manoeuvres.

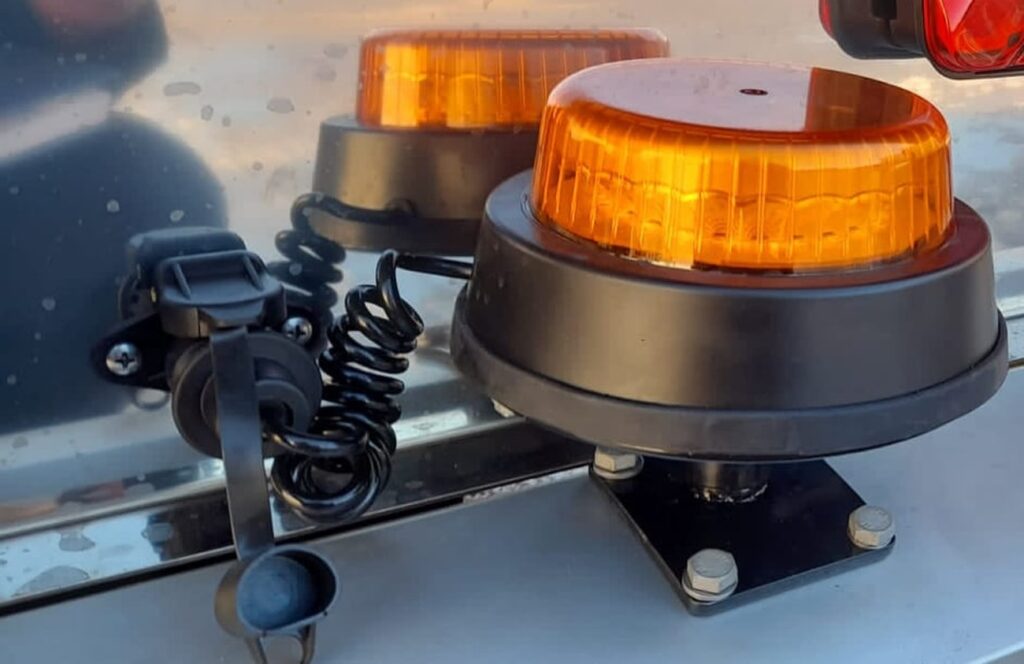

Escort vehicles must be equipped with a yellow warning sign featuring flashing lights, as well as additional signalling lamps that immediately attract attention. The responsibilities of an escort driver call for equipment offering the highest levels of electrical reliability and vibration resistance. HORPOL offers a range of specialised LED warning beacons designed to meet the demanding needs of professional transport escort services.

During rapidly changing weather conditions, the visibility of warning flashes on an escort vehicle is crucial for preventing collisions. Professional oversized transport escort operations require high-intensity lighting that remains visible in dense fog and heavy rain. By choosing remote-controlled warning beacons or compact warning lights, you benefit from powerful light output with low power consumption. We also offer advanced SLO-series warning light synchronisers that allow flash sequences to be coordinated across the entire vehicle. With these solutions, the abnormal vehicle combination benefits from a consistent, highly visible warning system that helps alert other road users from a distance.

Which HORPOL products are best suited for oversized load transport?

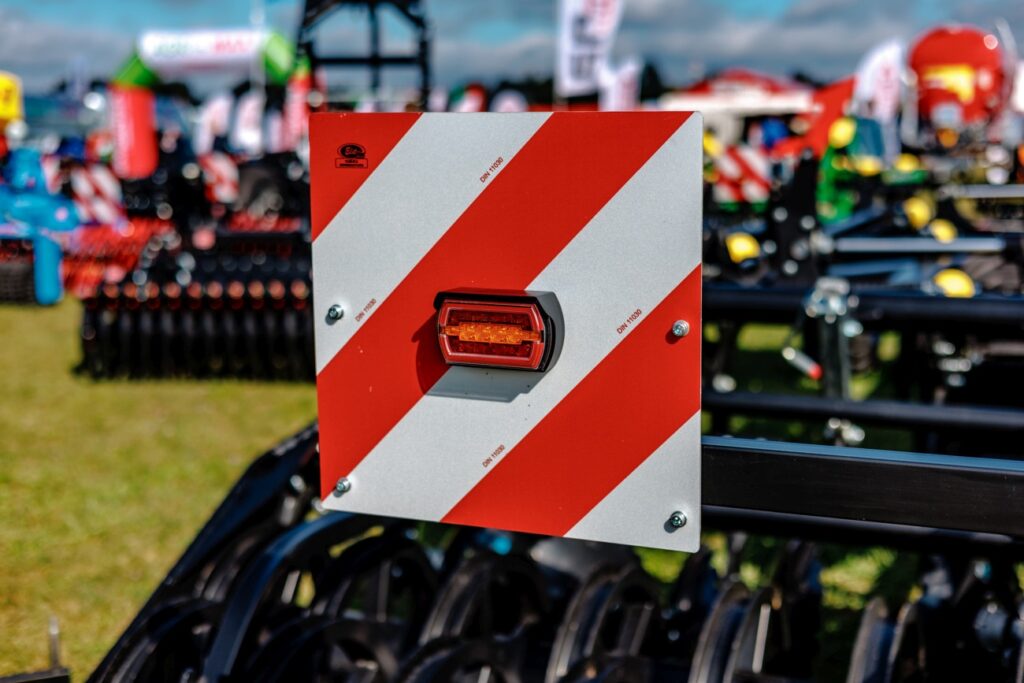

Effective oversized load transport requires dedicated lighting equipment tailored to the specific dimensions and requirements of low-loader trailers. One of the essential components is a set of certified oversized load warning boards from the TTBO series, available in unlit versions as well as integrated LED lighting configurations. For example, the ZPR 3020 LED lighting kit with an oversized load warning board and sealed Superseal connectors ensure quick installation and reliable operation in demanding conditions. Another key component is outline lighting, including the LD 2174 series with a flexible rubber mounting arm. These lamps can withstand accidental impacts while helping clearly mark the vehicle’s outer dimensions. To complete the setup, LDO 2780 series flashing warning lights offer selectable day and night operating modes, adapting warning signals to changing lighting conditions.

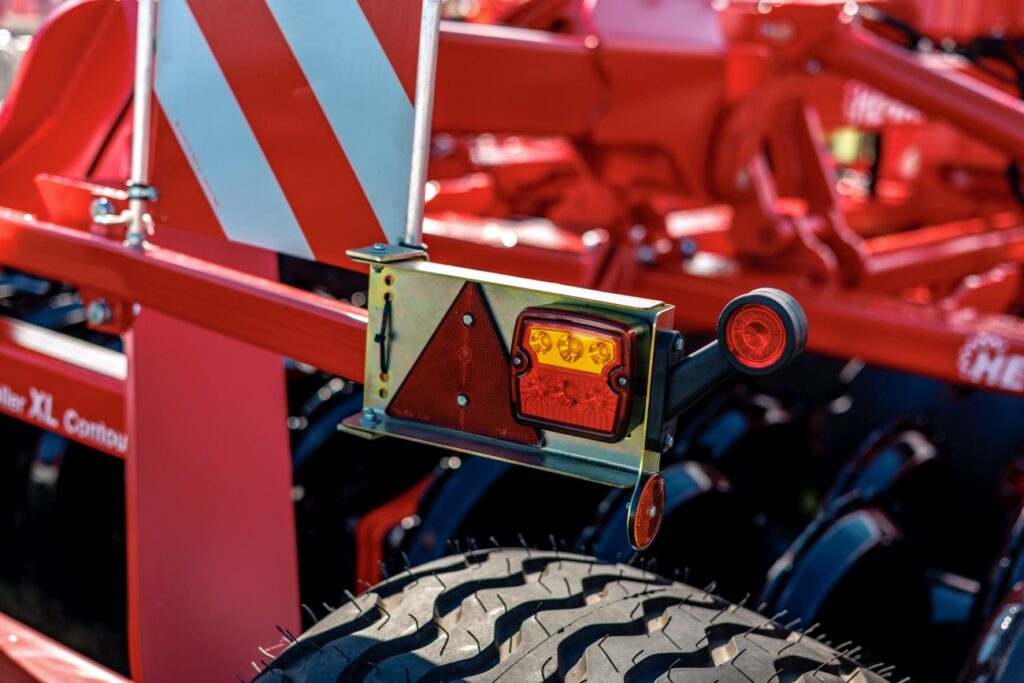

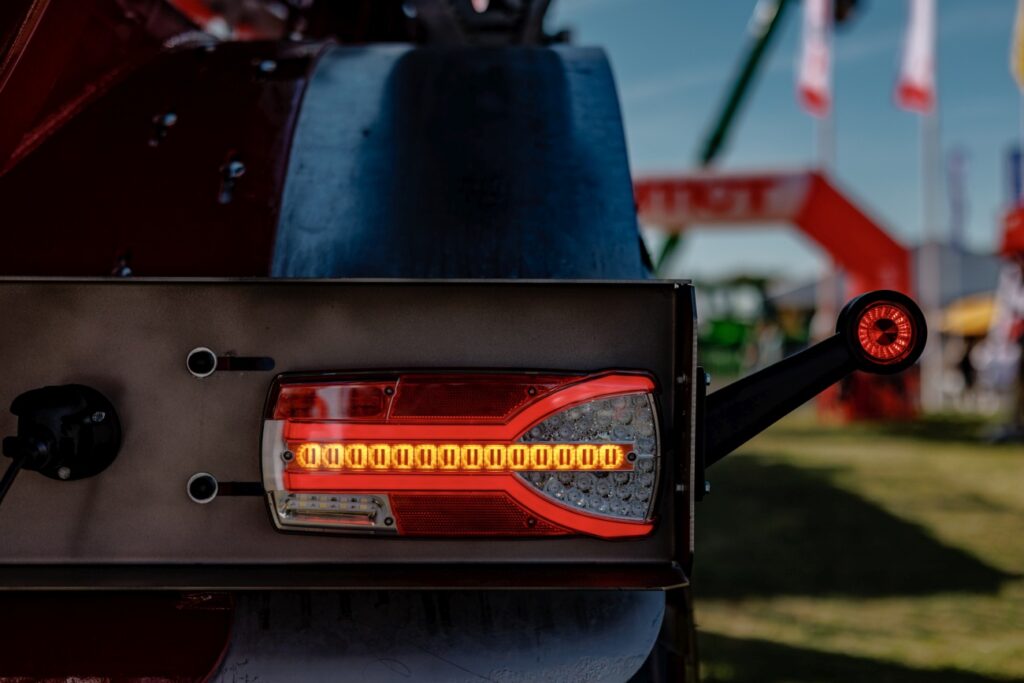

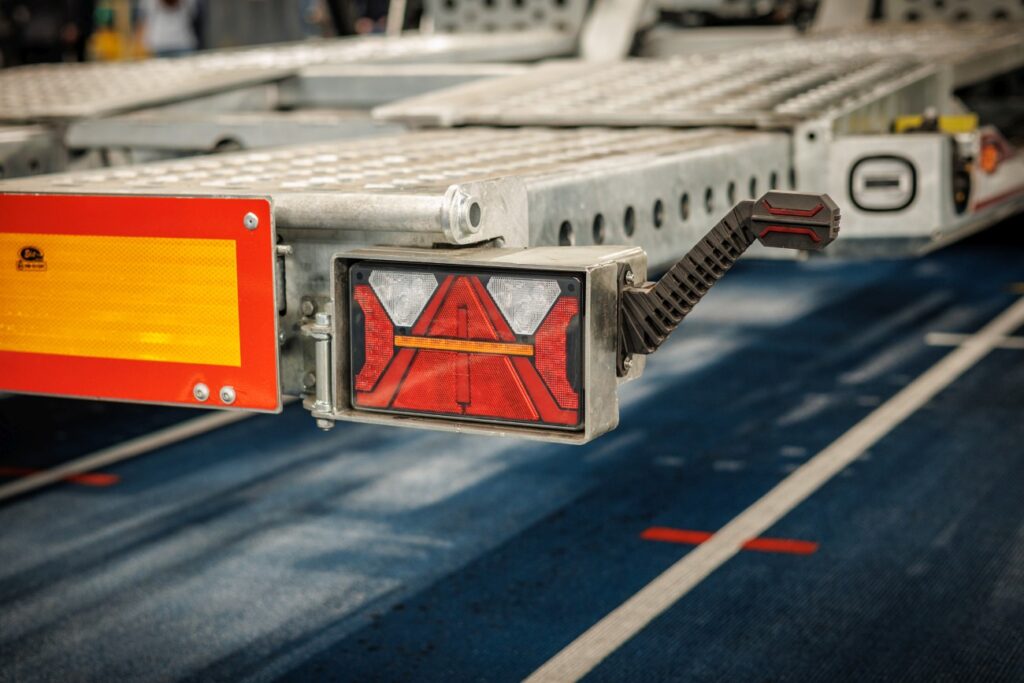

Equally important during night-time loading and precise manoeuvring is effective work lighting mounted on trailers and tractor units. Professional RAPTOR LRD 3160 work lights deliver a luminous flux of up to 5,500 lumens, providing powerful illumination of the working area around the load. Another excellent solution is the LRD 3043 hybrid work light with a warning function, combining a high-performance spotlight with an amber strobe light. At the rear of the vehicle combination, durable rear combination lamps are an ideal choice. These include the CARMEN LZD 2400 series, featuring a dynamic turn indicator. The system is complemented by TTB 0584 warning boards for slow-moving vehicles and TTB 582 warning signs for tail lifts, creating a comprehensive safety system.

Durability, waterproofing and photometry – why choose HORPOL?

Long-distance oversized transport exposes lighting equipment to rain, road grime, vibrations and de-icing chemicals. At HORPOL, we understand the challenges faced by the transport industry, which is why our products undergo rigorous quality testing. Our designs feature polycarbonate lenses and fully encapsulated electronics, providing the highest level of ingress protection, rated IP68. Our engineering department continuously improves power supply systems to ensure reliable operation across a voltage range of 12 V to 24 V. By choosing lighting from a Polish manufacturer with over 45 years of experience, you benefit from dependable performance and comprehensive technical support from our experts.

Every lighting product leaving our manufacturing facility meets the most demanding safety standards, as confirmed by the certifications we have obtained. Thanks to full control over our production processes and our in-house testing facilities, we deliver products with consistently excellent optical performance. Whether you manage a fleet of low-loader trailers or handle individual oversized transport operations, choosing the right lighting is one of the best investments you can make. We are committed to providing our customers with advanced, energy-efficient solutions that complement the design of modern heavy-duty vehicles.
Explore the full range available in our online catalogue and discover our related categories of warning, outline and work lighting to equip your vehicles for every journey.
