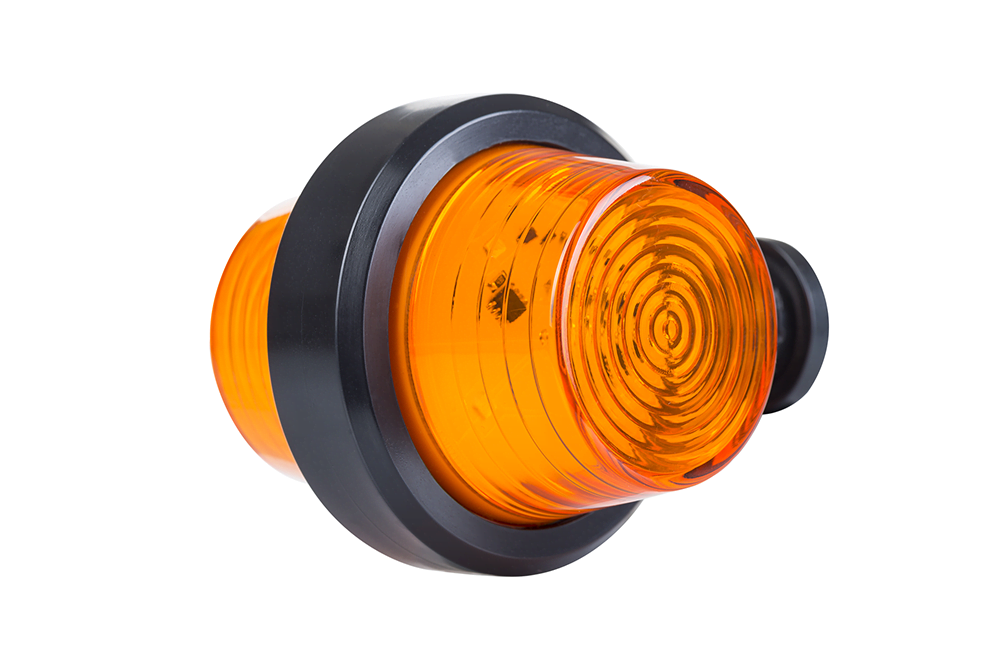

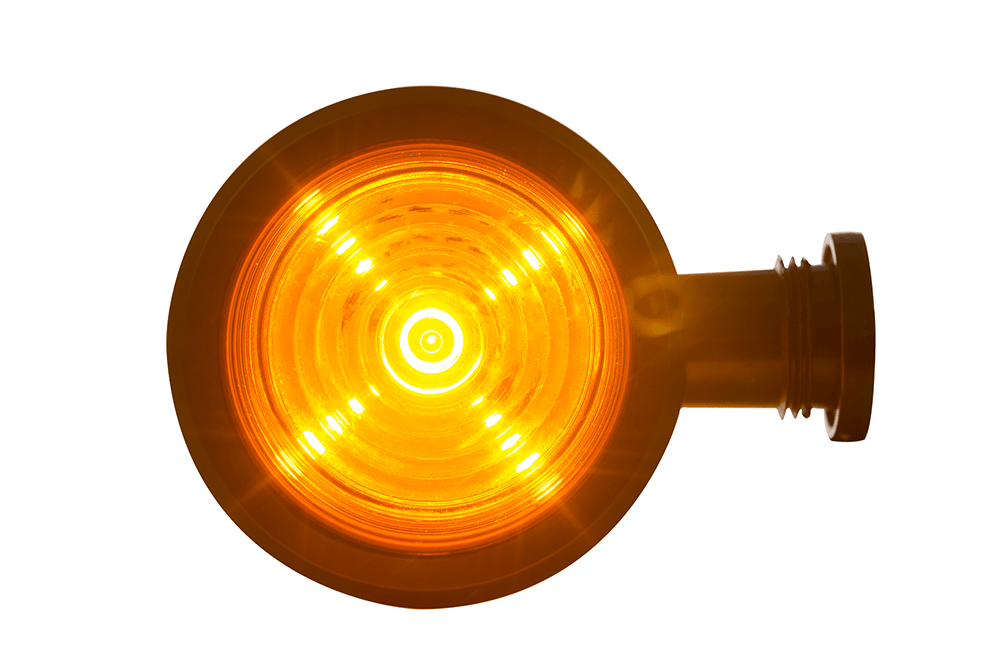

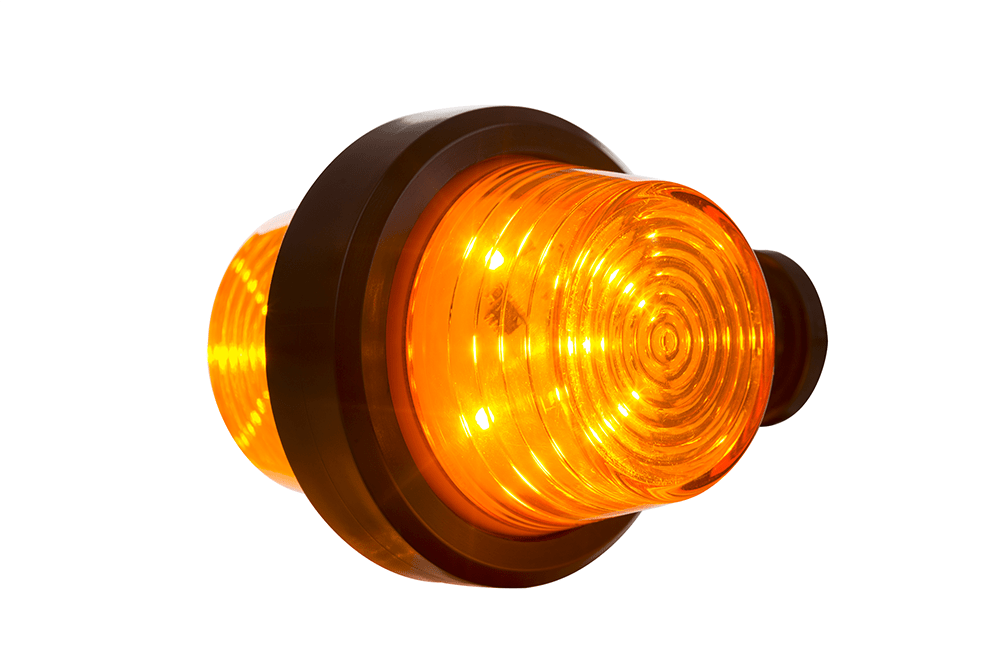

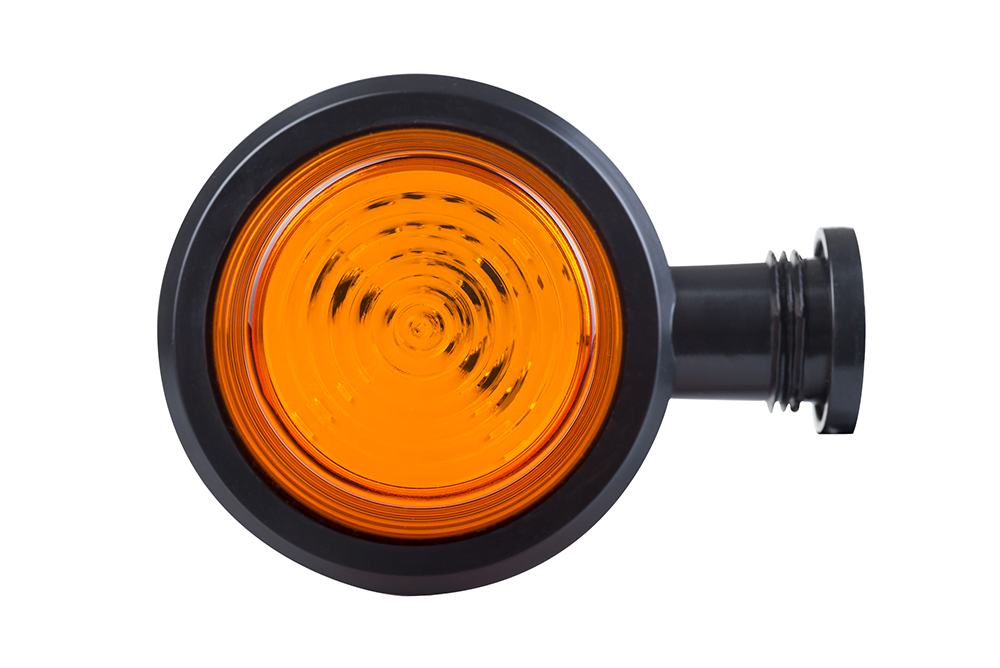

LKD 2567
Direction indicator

Direction indicator, short arm, amber lens, 5 m cable, “old school” version

Technical data

Light group
HOR 102A
LED quantity
10
Side direction indicator
yes
Light category
direction indicator
Supply voltage
12/24 V
Power rating
1/3 W
Operating temperature range
from -30°C to +50°C
Cable
2×2×0,75 mm2; cable length 2×5 m
Side
universal
LED light
yes
Ingress protection rating
IP 68

Download

Direction indicator LKD 2567 (homologation) 1 (direction-indicator-lkd-2567-homologation-1.ZIP)
Download
Direction indicator LKD 2567 (technical drawing) 1 (direction-indicator-lkd-2567-technical-drawing-1.ZIP)
Download
Page content (lkd-2567.ZIP)
Download
