LKD 870
Indicator light

Side direction indicator cat. 6

Lamp type: LED

Technical data

Light group
HOR 71
LED quantity
14
Light category
direction indicator
Supply voltage
24 V
Power rating
4,3 W
Operating temperature range
from -30°C to +50°C
Cable
2×1×0,75 mm2; cable length 0,3 m
Side
universal
LED light
yes

Download

Indicator light LKD 870 (homologation) 1 (indicator-light-lkd-870-homologation-1.ZIP)
Download
HOR LRP3 (approval R10) (hor-lrp3-approval-r10.ZIP)
Download

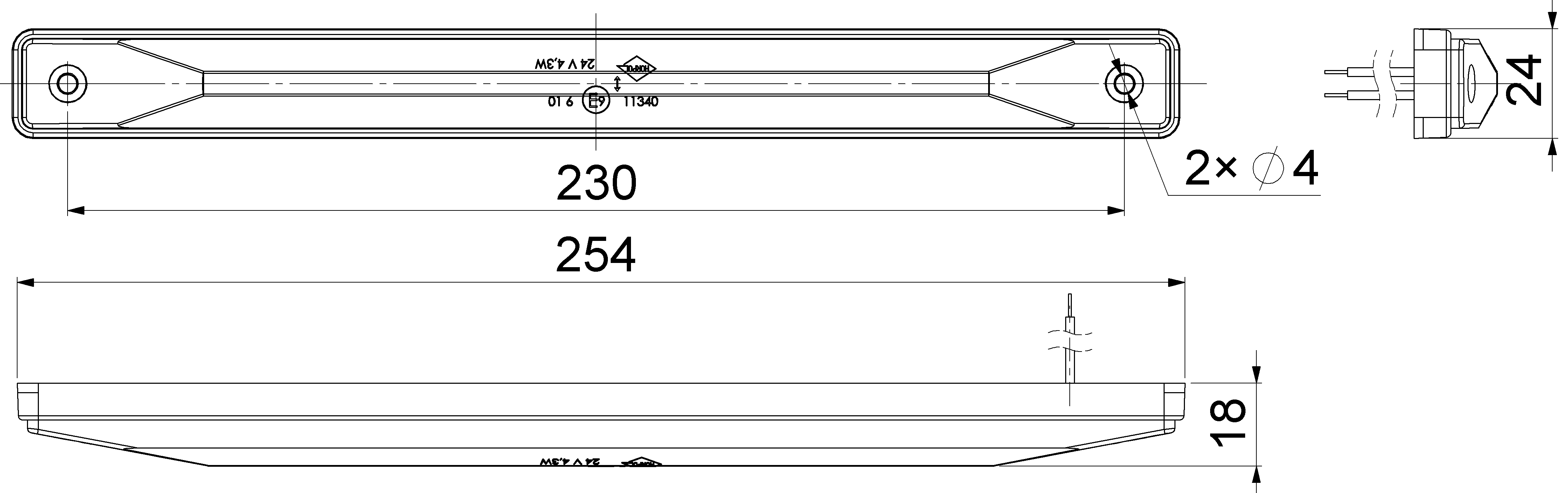

Indicator light HOR 71 (technical drawings) (indicator-light-hor-71-technical-drawings.ZIP)
Download
Page content (lkd-870.ZIP)
