LRD 3186
Work light RED SPOT RAPTOR (focused beam, 650 lm)

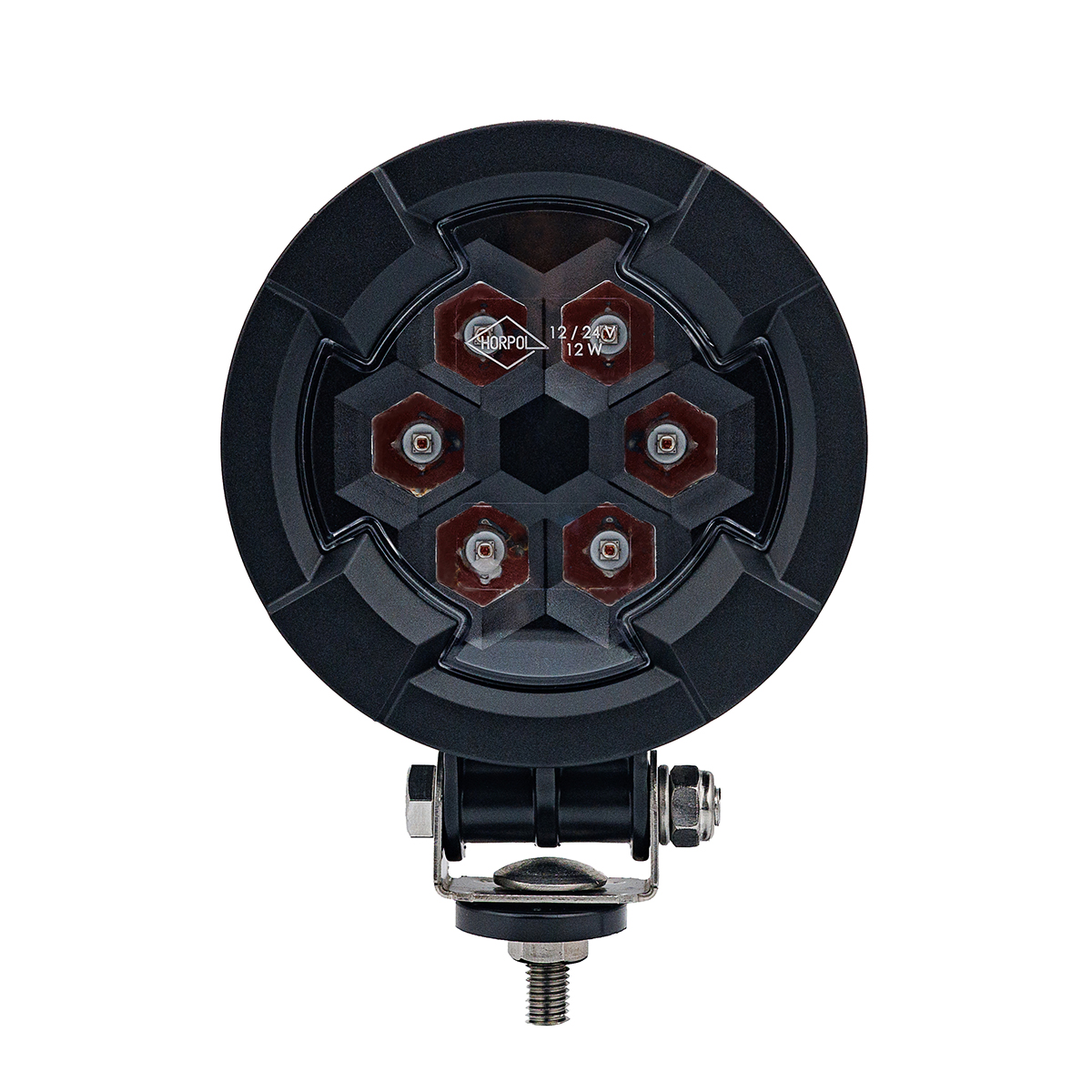

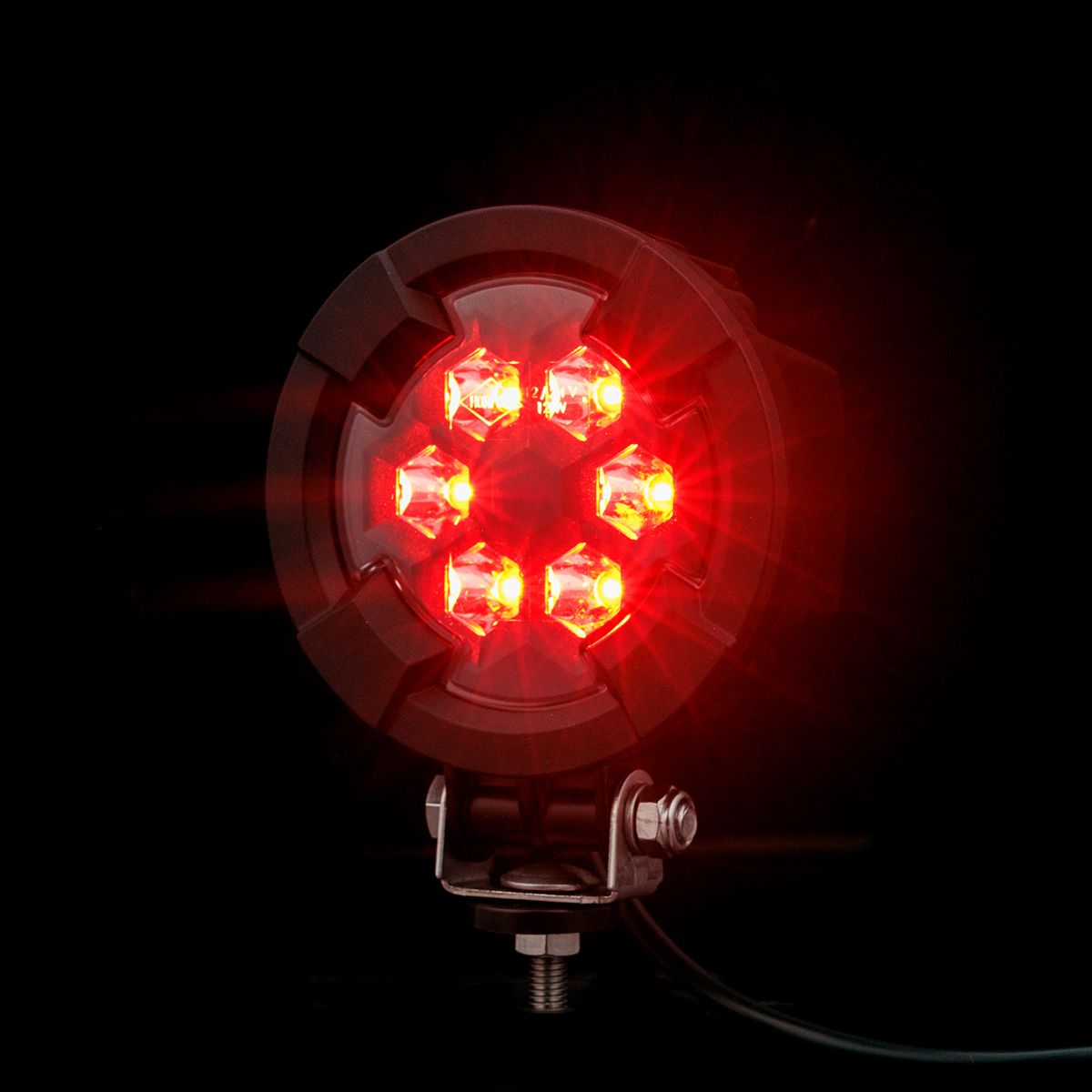

LRD 3186 RAPTOR RED SPOT – a professional work light for maximum safety.

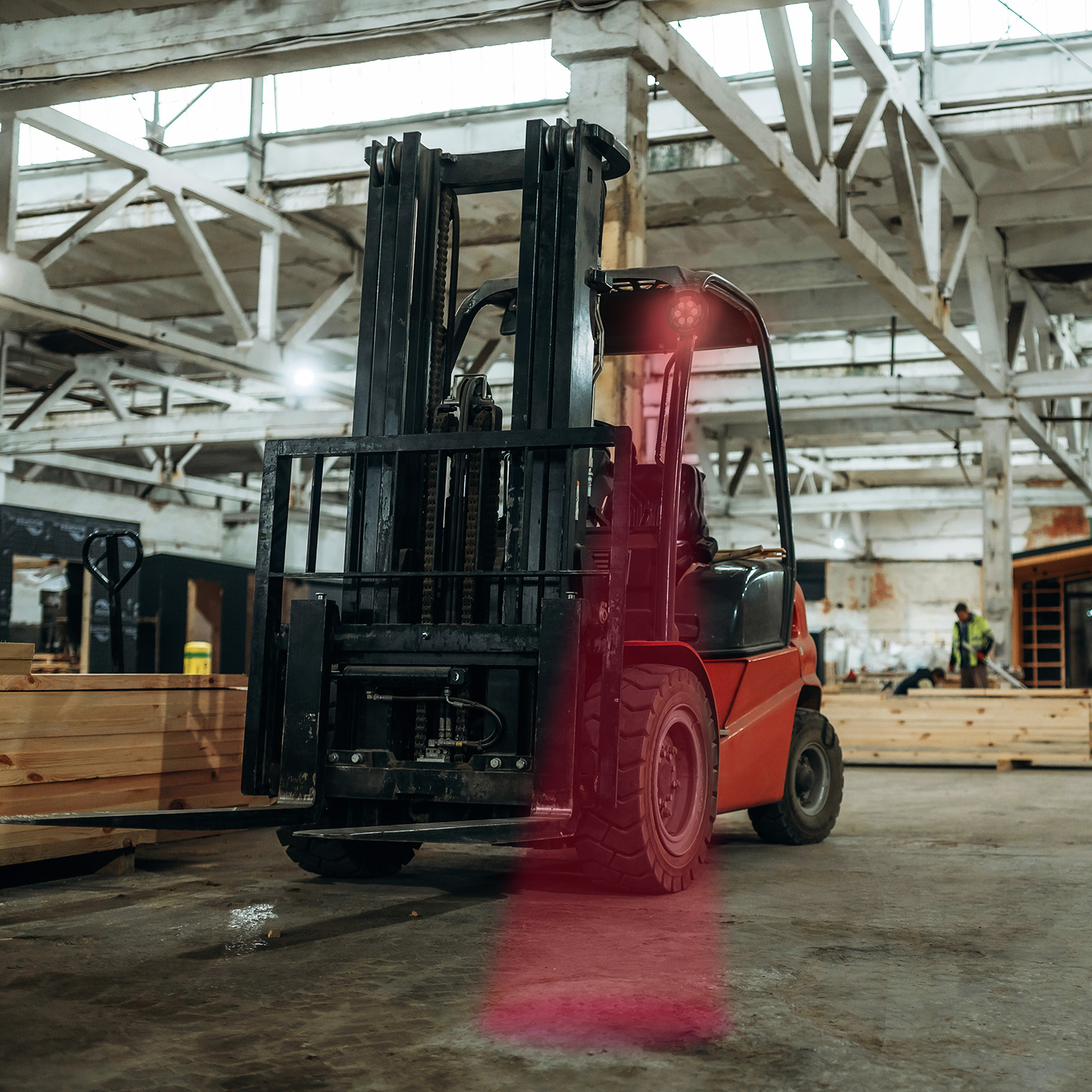

Ensure the highest level of safety in warehouses, logistics centers, and during forklift maneuvers. The LRD 3186 RAPTOR RED SPOT work light is designed to clearly mark hazardous zones with an intense red spot of light. This allows employees to react in time and avoid potential collisions.

Thanks to 12 W LED technology, the unit generates a powerful luminous flux of 650 lumens at a wavelength of 630 nm, ensuring excellent visibility of the red spot on the ground. The built-in 6 LEDs operate reliably at both 12 V and 24 V, making the lamp universal and suitable for most types of warehouse vehicles.

Description

An additional advantage is easy installation – the lamp can be mounted on either the left or right side of the vehicle, and a robust 1.5-meter cable simplifies power connection. The adjustable mounting bracket allows precise setting of the beam angle, enabling the light output to be adapted to specific operational requirements.

R10 homologation confirms compliance with electromagnetic compatibility standards, ensuring seamless integration with the vehicle’s electrical system. With an IP 68 protection rating, the lamp is fully dustproof and waterproof, and its wide operating temperature range guarantees reliable performance even in demanding conditions.

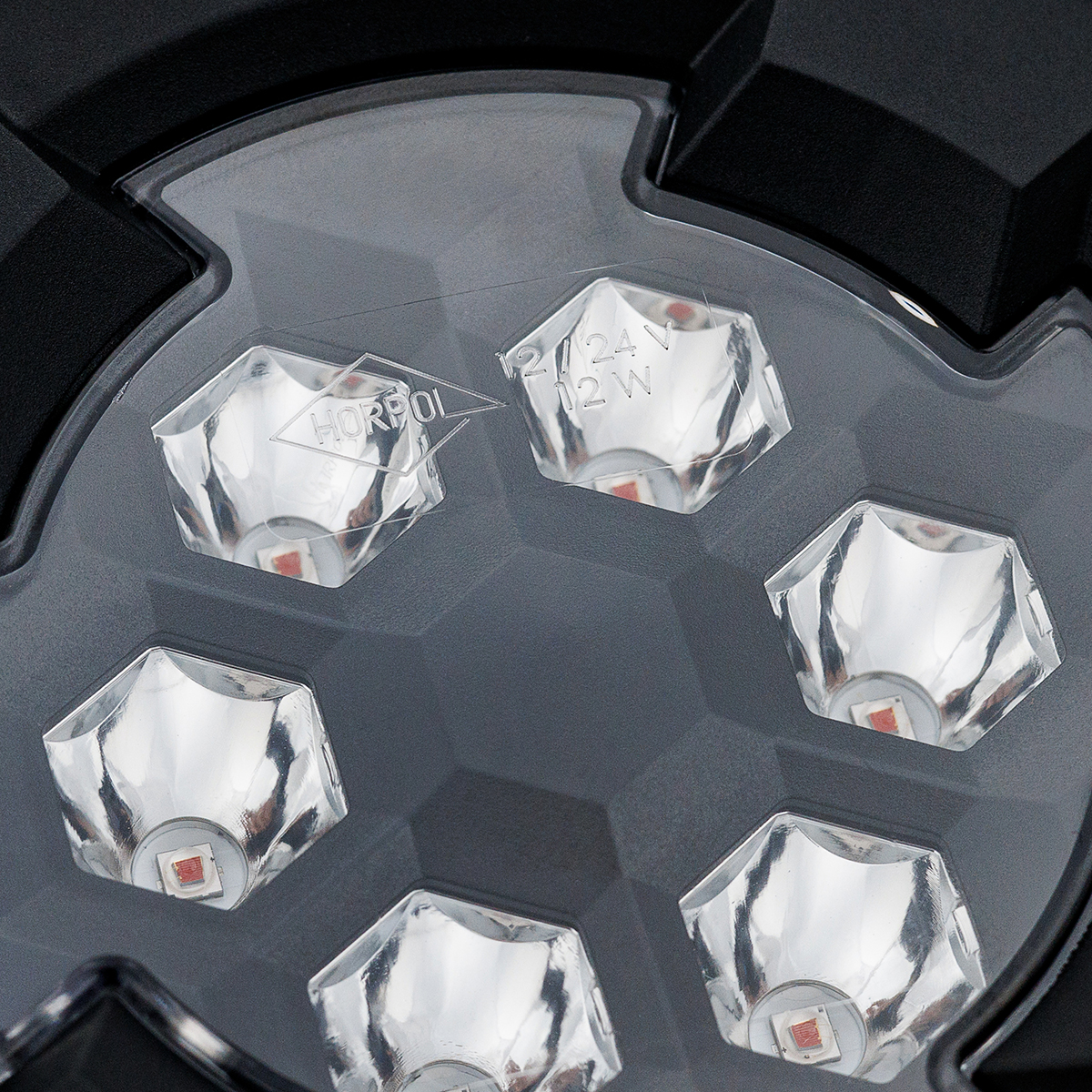

The solid housing effectively protects against mechanical damage, while the rear-mounted aluminum heat sink ensures efficient heat dissipation. The RED SPOT lamp is equipped with a pressure-equalizing membrane that prevents condensation inside the lamp and reduces internal housing temperature. The lens is made of high-quality, impact-resistant polycarbonate, ensuring long and trouble-free operation.

Choose VISIBILITY that PROTECTS people and equipment – reliable and effective lighting is the foundation of a safe working environment.

Technical data

Focused light
yes
Wavelength of light
630 nm
Light group
HOR 156
LED quantity
6
Light category
working light
Supply voltage
12/24 V
Light colour
red
Power rating
12 W
Operating temperature range
from -30°C to +50°C
Cable
2×0,75 mm2; cable length 1,5 m
Side
universal
Luminous flux
650 lm
LED light
yes
Ingress protection rating
IP 68

Download

Work light HOR 156 (technical drawings) (work-light-hor-156-technical-drawings.ZIP)
Download
Page content (lrd-3186.ZIP)
Download
