LD 2627
Marker lamp

Marker lamp amber-red, short arm, NEON version.

Lamp type: LED

Technical data

LED light
yes
Light category
marker
Light group
HOR 102B
Side
universal
Supply voltage
12/24 V
Power rating
2/4 W
Cable
2×0,75 mm2; cable length 0,6 m
Ingress protection rating
IP 68
LED quantity
18
Rear position light
yes
Light colour
amber-red
Operating temperature range
from -30°C to +50°C

Download

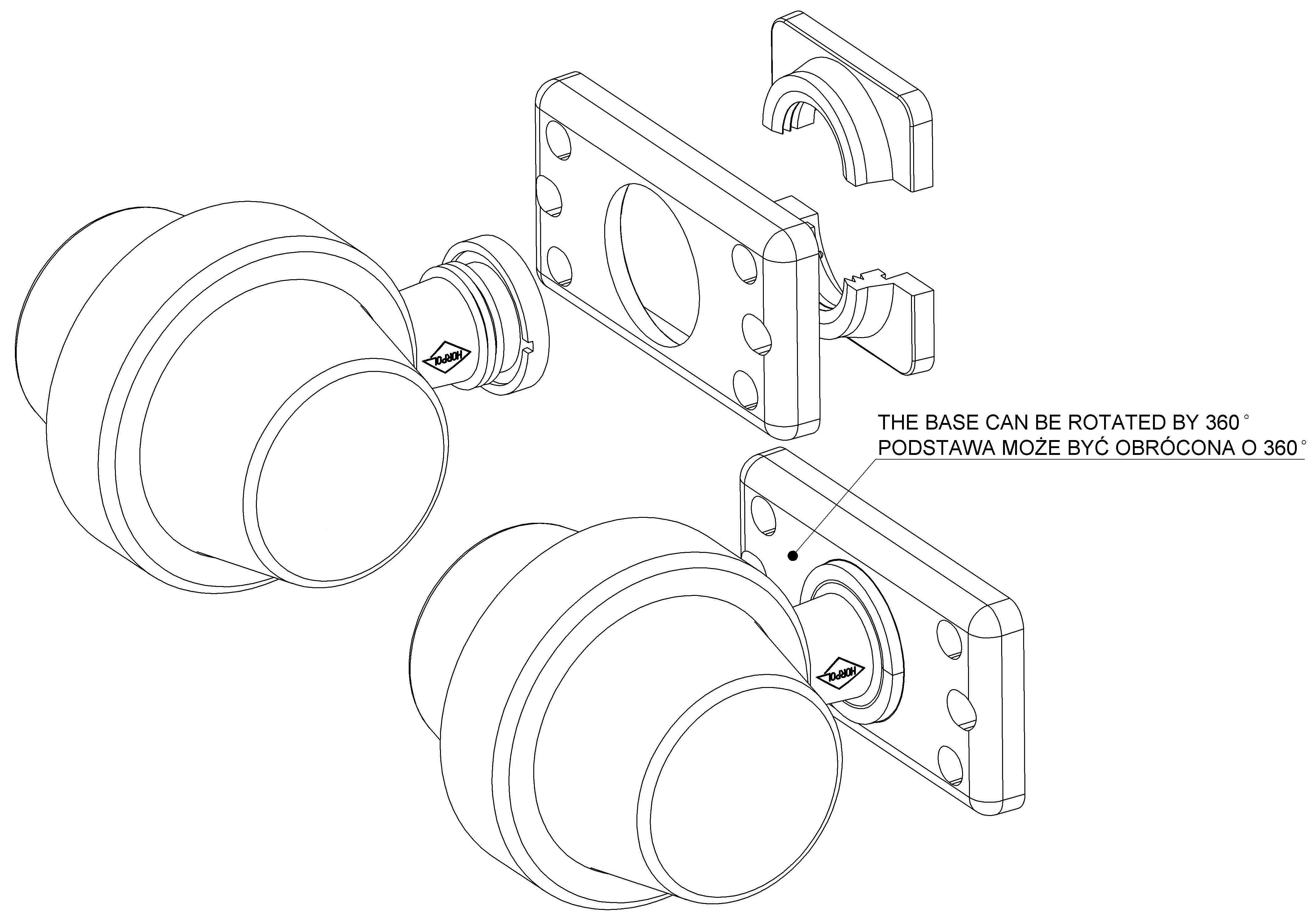

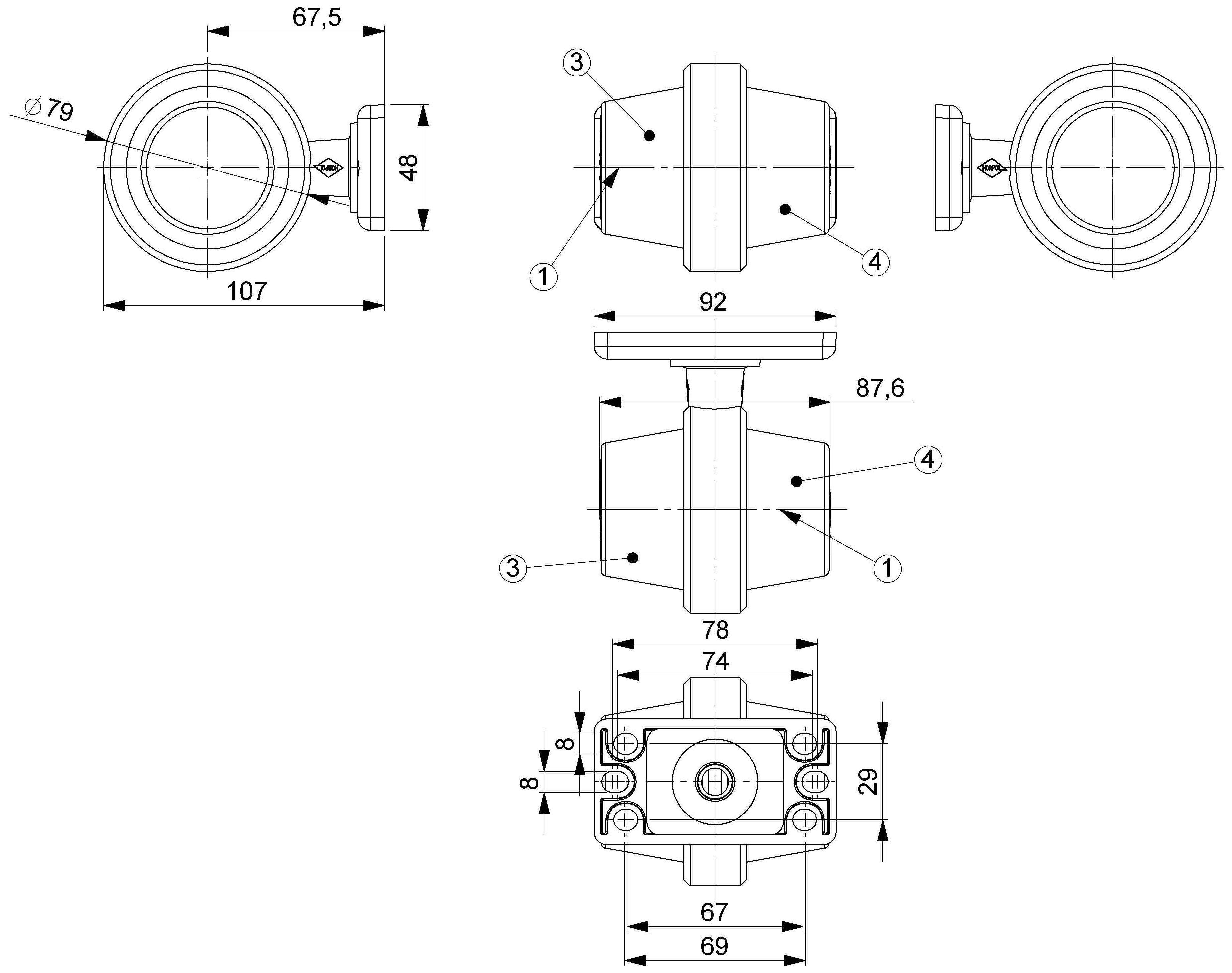

Marker lamp LD 2627 (technical drawing) 1 (marker-lamp-ld-2627-technical-drawing-1.ZIP)
Download
Marker lamp LD 2627 (technical drawing) 2 (marker-lamp-ld-2627-technical-drawing-2.ZIP)
Download
Page content (ld-2627.ZIP)
