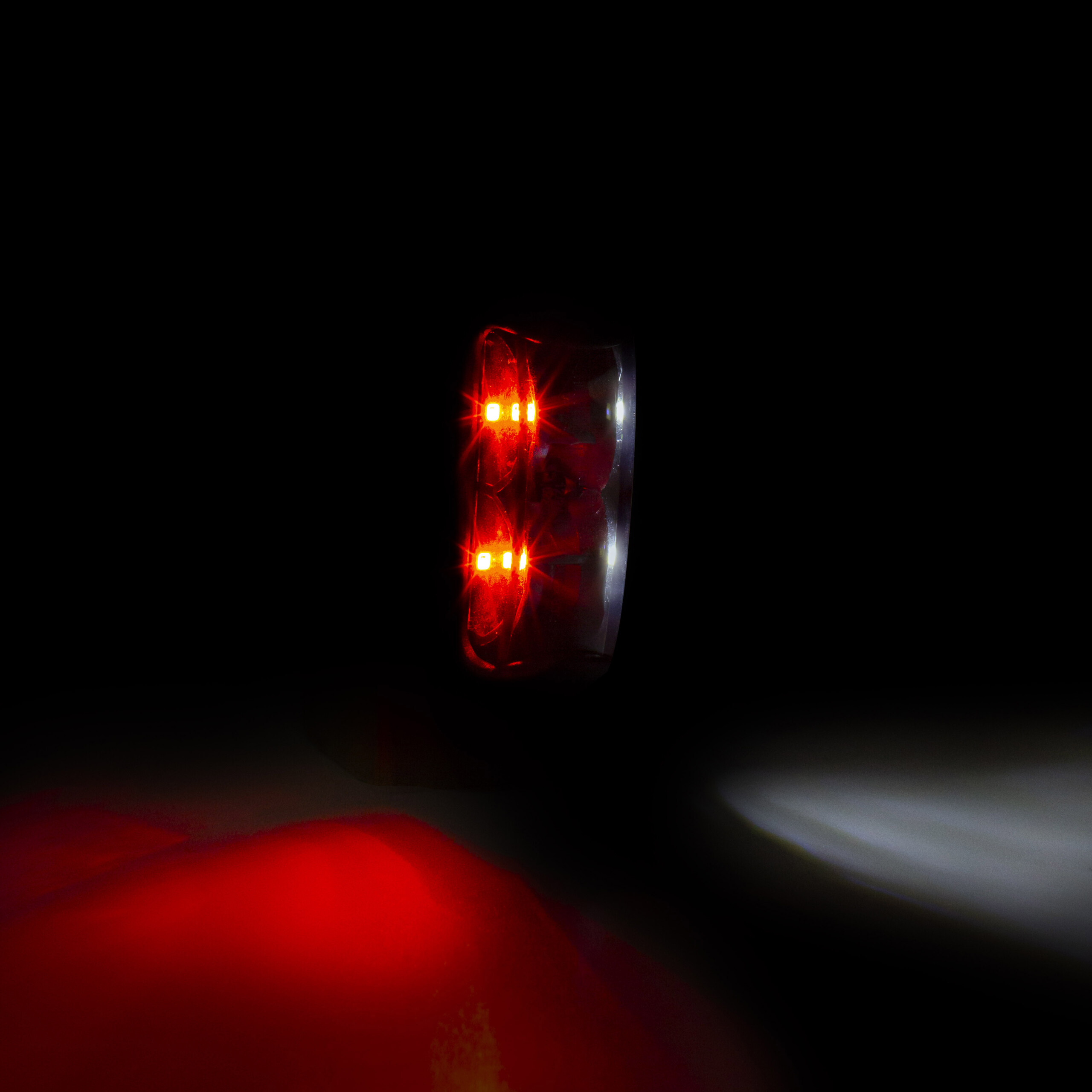

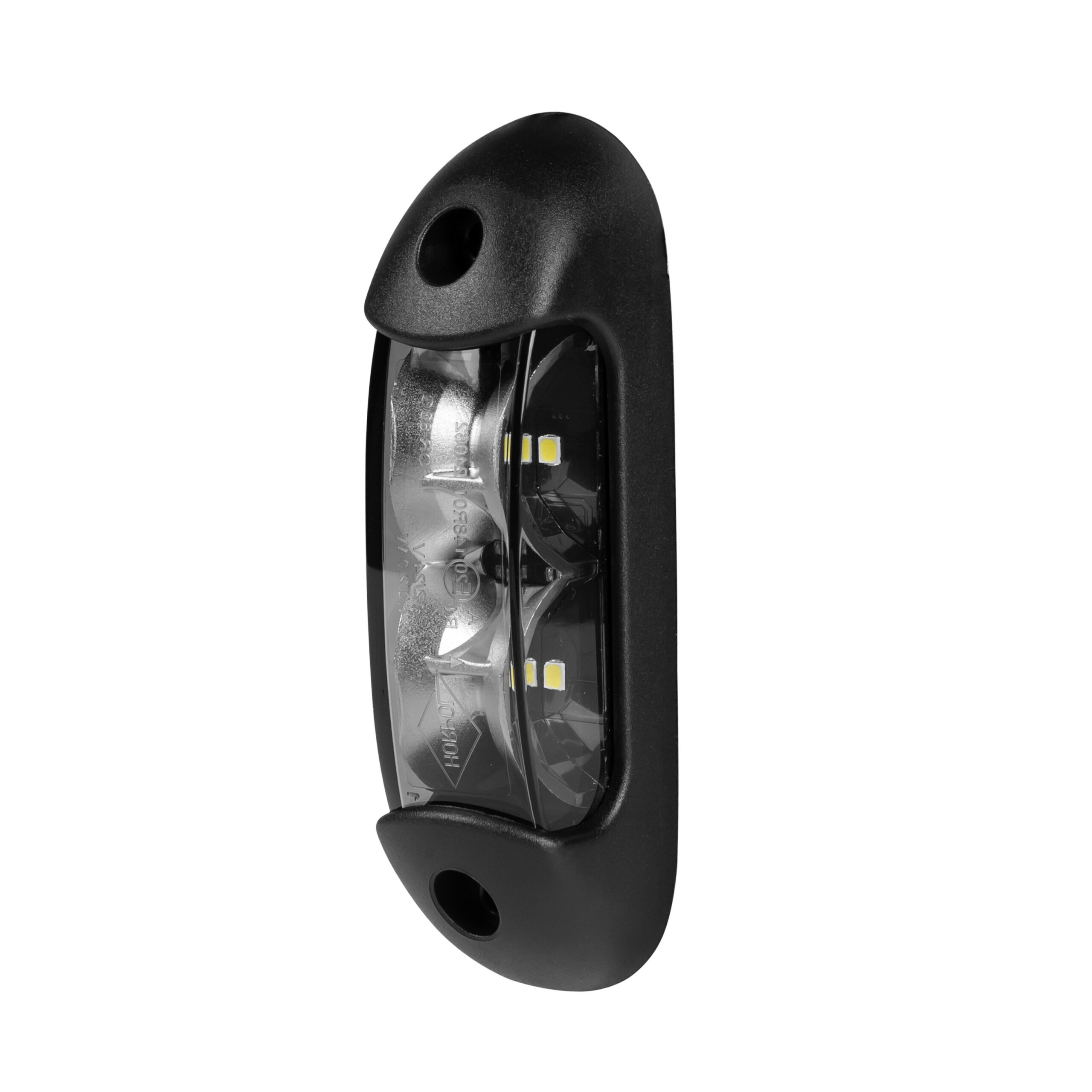

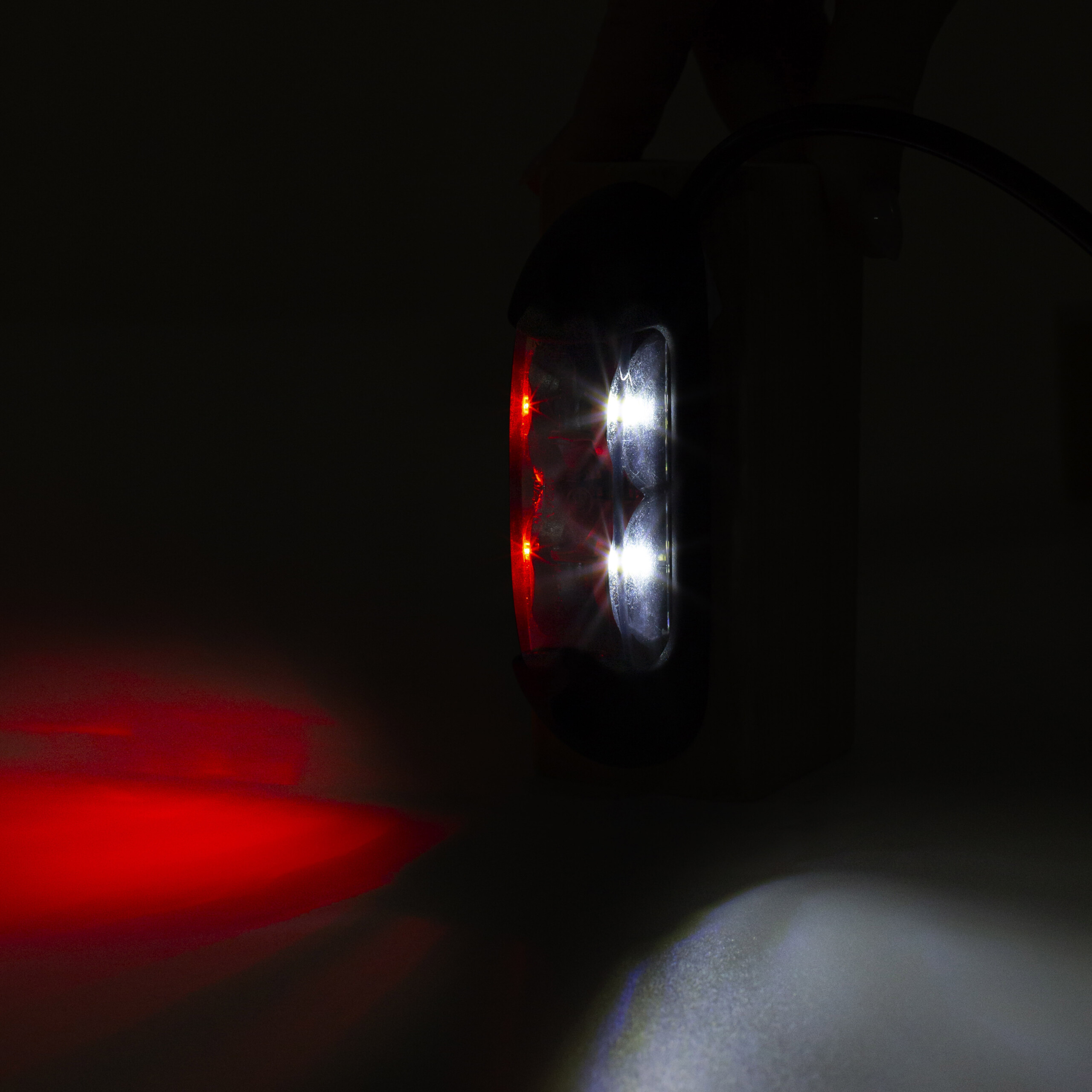

LD 2164/GRAPHITE
Marker light

LD 2164/GRAPHITE is a compact marker light with a wide range of applications. The symmetrical design provides universal mounting options (both on the right and left side of a vehicle). The lamp will work well in various types of vehicles such as:
– trailers and car transporters;
– camper vans and caravans;
– minibuses and vans;
– agricultural and construction machinery;
– trucks;
– special vehicles.

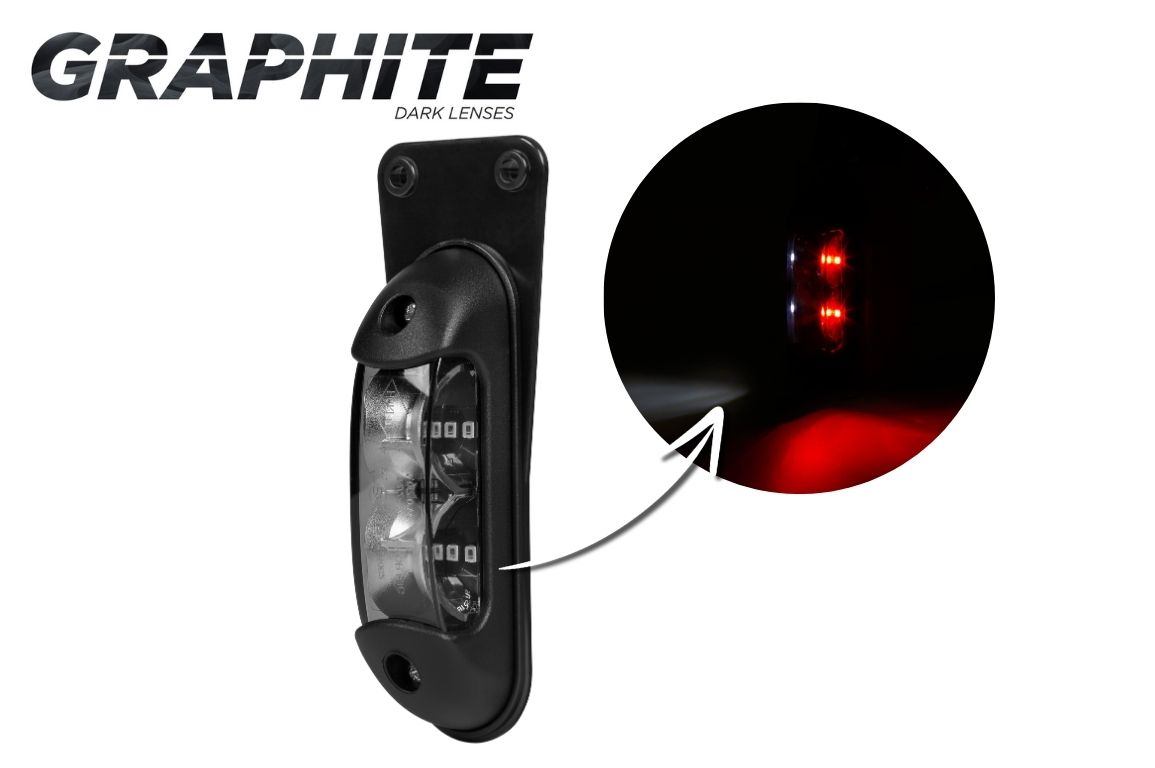

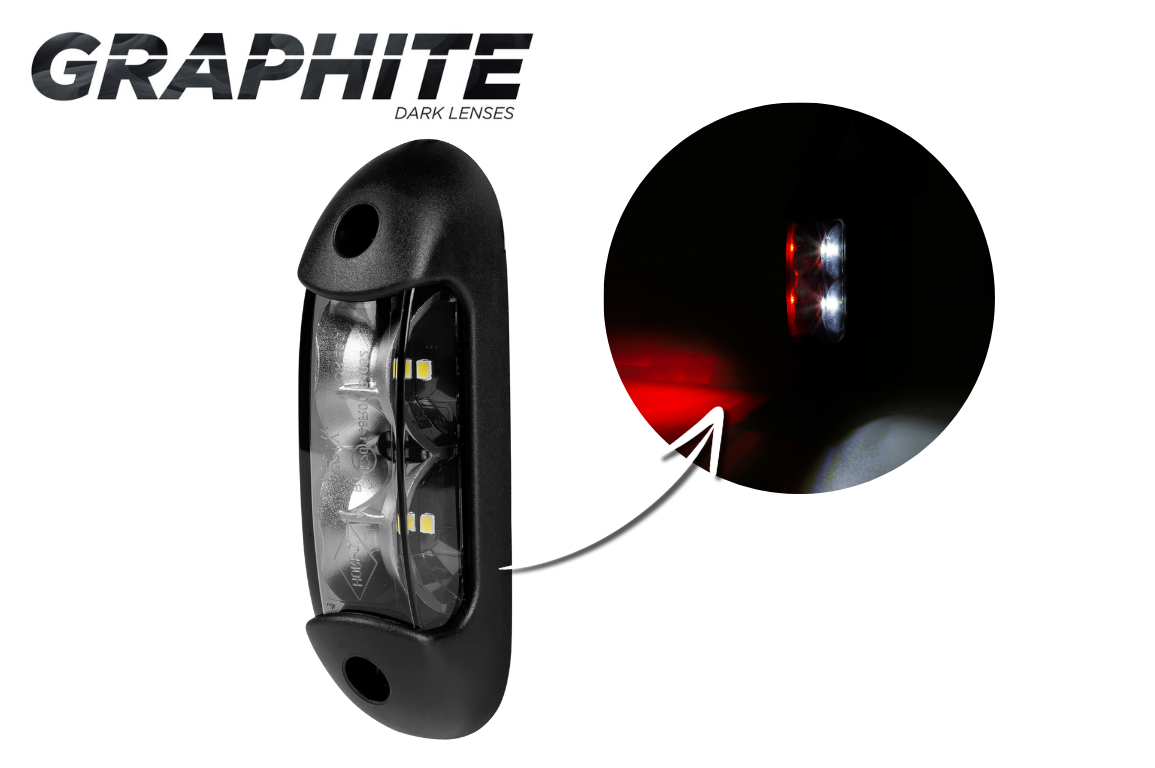

The lampt from the GRAPHITE collection features a sleek, dark shade, combining modern design with functionality for excellent visibility.

LD 2164/GRAPHITE features:
– front position light (white light);
– rear position light (red light);

With a universal voltage of 12/24 V, this light is characterised by low power consumption (12 V – 1 W, 24 V – 2 W). The light has been manufactured only with branded LEDs, which ensure a unique quality of illumination and add a visual appeal to the contour of a vehicle in motion. The high IP 68 rating and the operating temperature range of 30 degrees C to + 50 degrees C make it a top quality product.

Make sure you stay safe on the road! Discover our collection of GRAPHITE lights, a stylish solution for the automotive industry.

Technical data

Light group
HOR 83G
LED quantity
4
Light category
marker
Rear position light
yes
Supply voltage
12/24 V
Light colour
white-red
Power rating
1/2 W
Operating temperature range
from -30°C to +50°C
Cable
2×0,75 mm2; cable length 0,5 m
Side
universal
Front position light
yes
LED light
yes
Ingress protection rating
IP 68
