LZD 2300

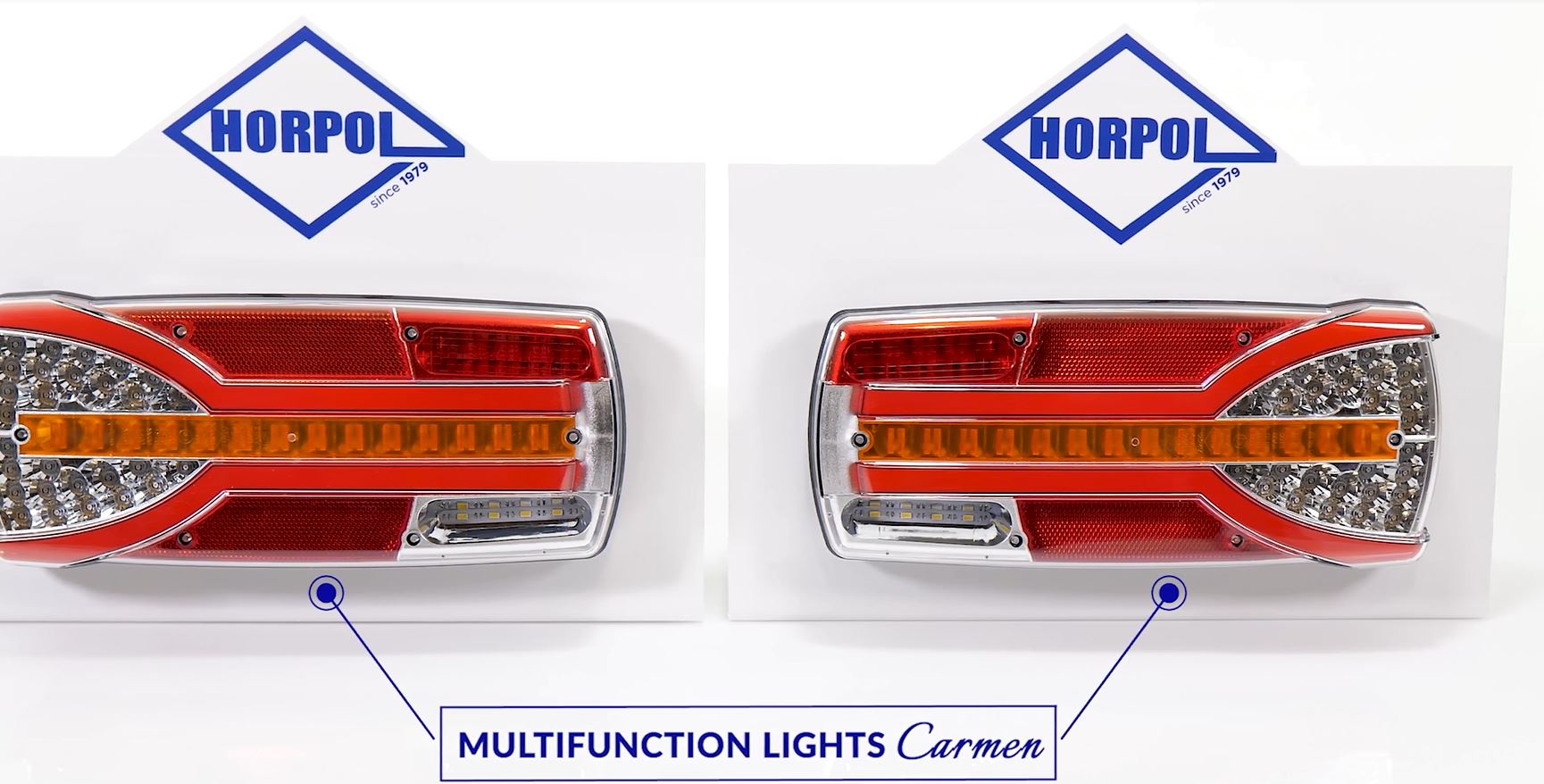

Multifunction rear lamp Carmen

Carmen (LZD 2300 / left) is a 7-function rear lamp.  Its unique shape and innovative design gives the vehicles a unique character and style. Carmen lamp is equipped with a dynamic direction indicator and NEON position light.

Number plate light is powered by a separate cable, which allows you to connect this light regardless of the position light.

Technical data

Light group
HOR 87
LED quantity
83
Light category
multifunction rear
Rear position light
yes
Number plate light on side
yes
Supply voltage
12/24 V
Reflecting device
yes
Operating temperature range
from -30°C to +50°C
Cable
7×0,5 mm2; cable length 1,5 m
Side
left
Reversing light
yes
Dynamic rear indicator
yes
Fog light
yes
Brake light
yes
LED light
yes
Ingress protection rating
IP 68
