LZD 2790/B
Rear multifunction light CLEO, bottom mount version

The rear multifunction light CLEO, side mount version LZD 2790/B is a compact light with modern design, made of premium materials and with energy-saving LED technology, offering excellent light performance with very low power consumption. The LZD 2790/R2 light is fully water and dust resistant (IP 68), enabling trouble-free use whatever the terrain and weather conditions. The 32 high-performance LEDs deliver even and intense light, increasing visibility and safety on the road. The product meets electromagnetic compatibility (EMC) standards to eliminate the risk of interference that could affect other vehicle electrical equipment.

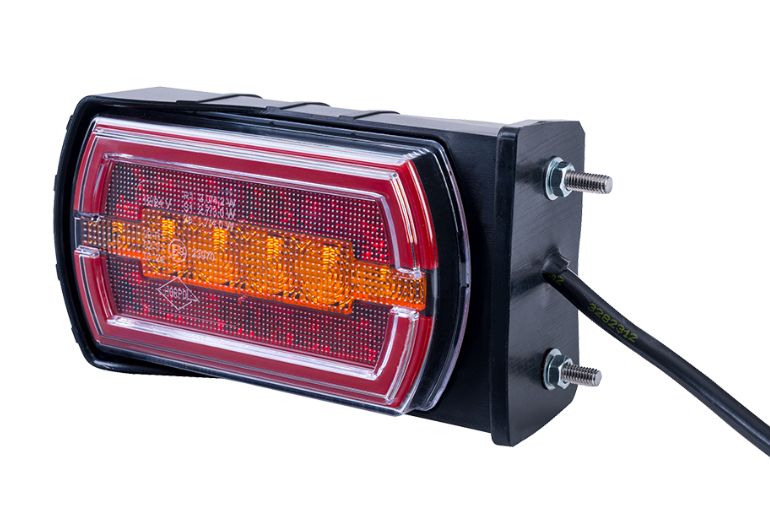

The LZD 2790/B light, bottom mount version, is universal in terms of mounting options. It can be mounted both on the left and right side of a vehicle, vertically and horizontally. This mounting means that installation of the light is extremely simple and flexible, and the light can be adapted to suit different types of vehicles and machines.

With light functions:.

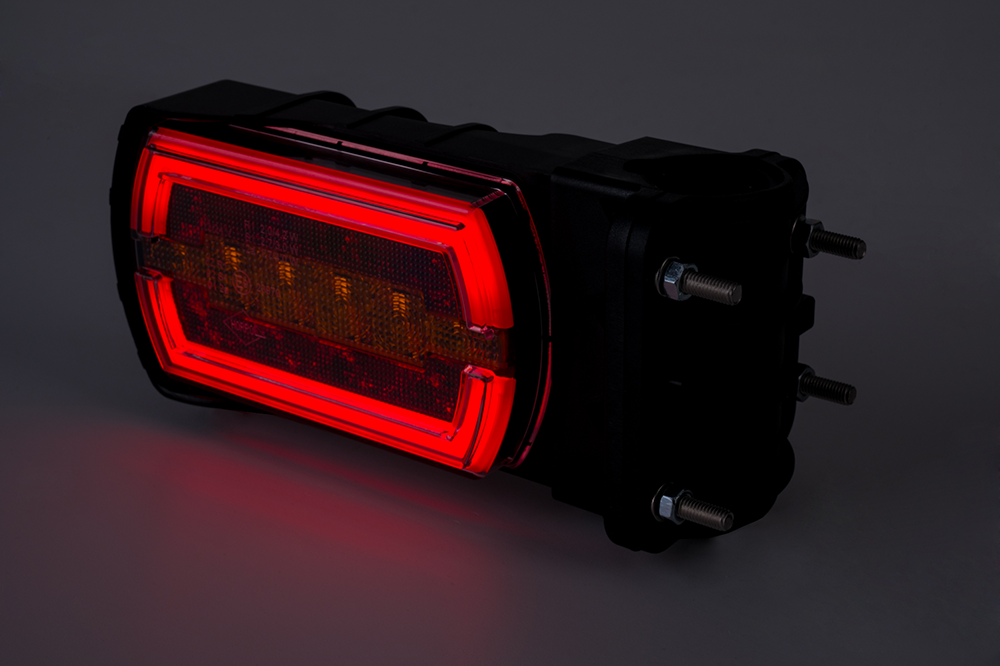

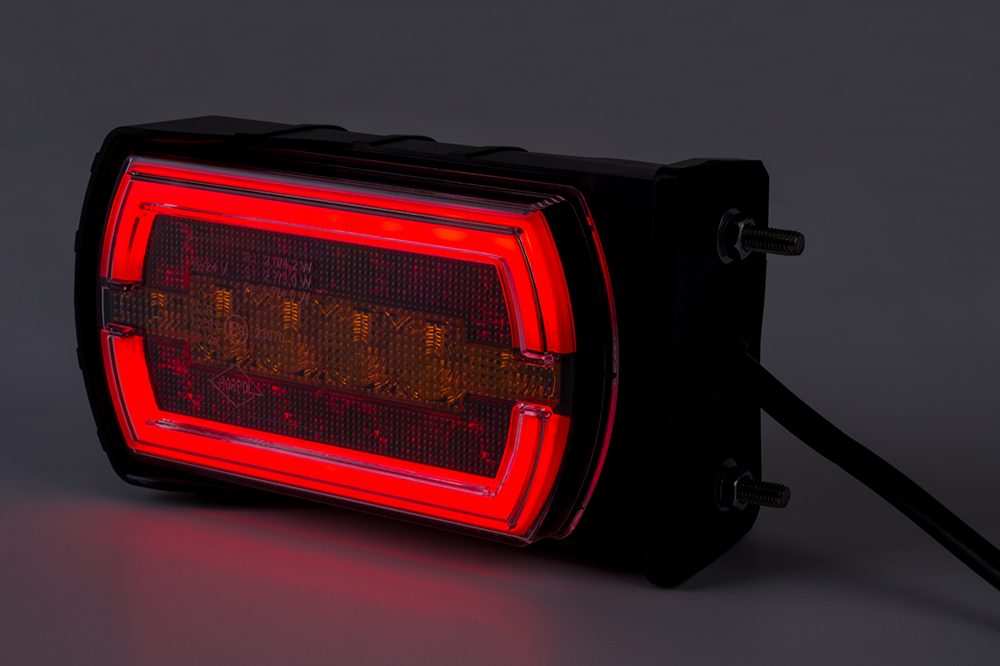

NEON rear position light;

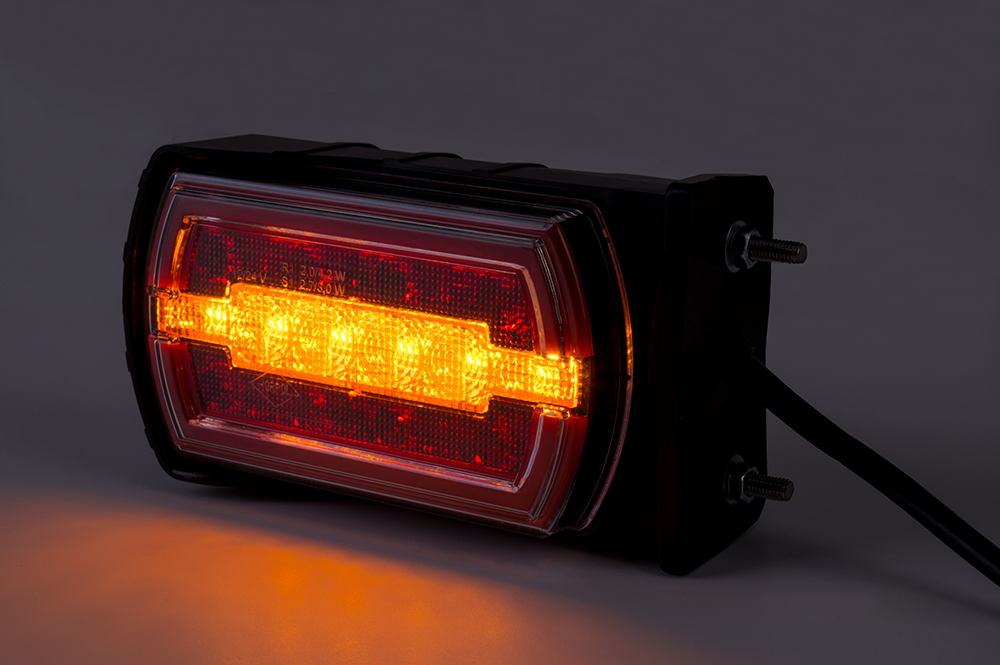

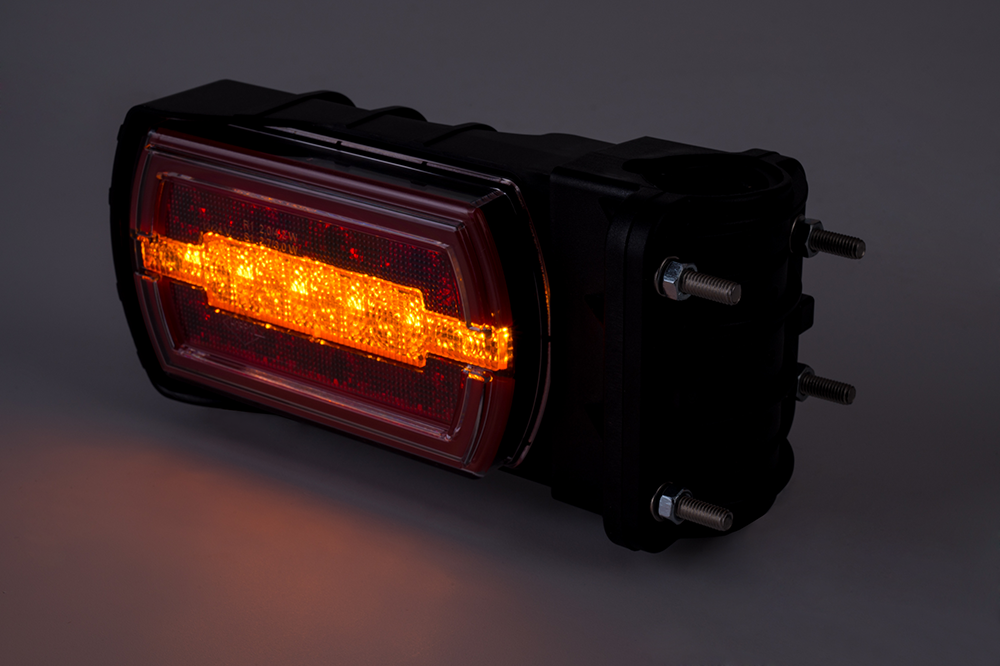

– rear direction indicator;

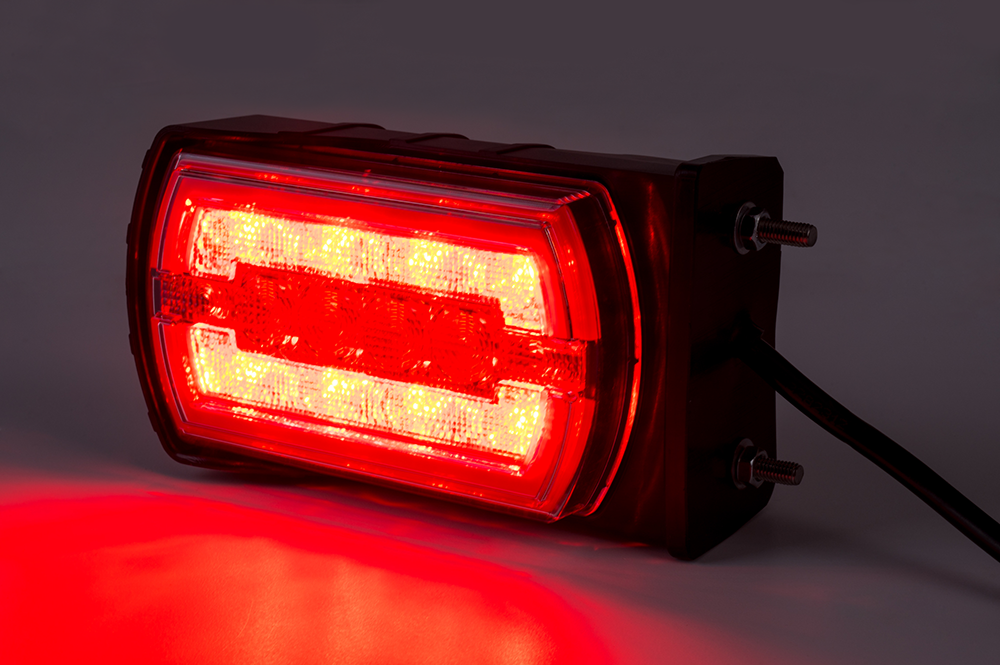

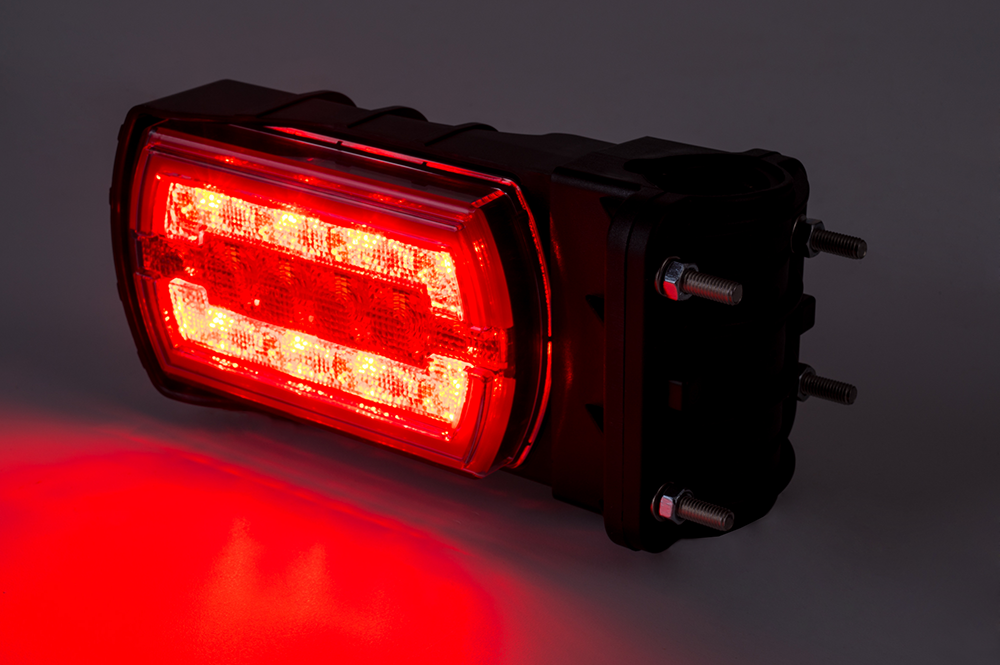

– break light.

This model will perform well in agricultural and construction machinery, specialised vehicles, forklifts, quads, light electric vehicles and municipal vehicles, to name but a few, where reliability and durability are key assets.

Description

Power consumption at 12 V operating voltage:
– rear position light (2 W)
– rear direction indicator (1,7 W)
– break light (2,7 W)

Power consumption at 24 V operating voltage:
– rear position light (4,2 W)
– rear direction indicator (4 W)
– break light (3 W)

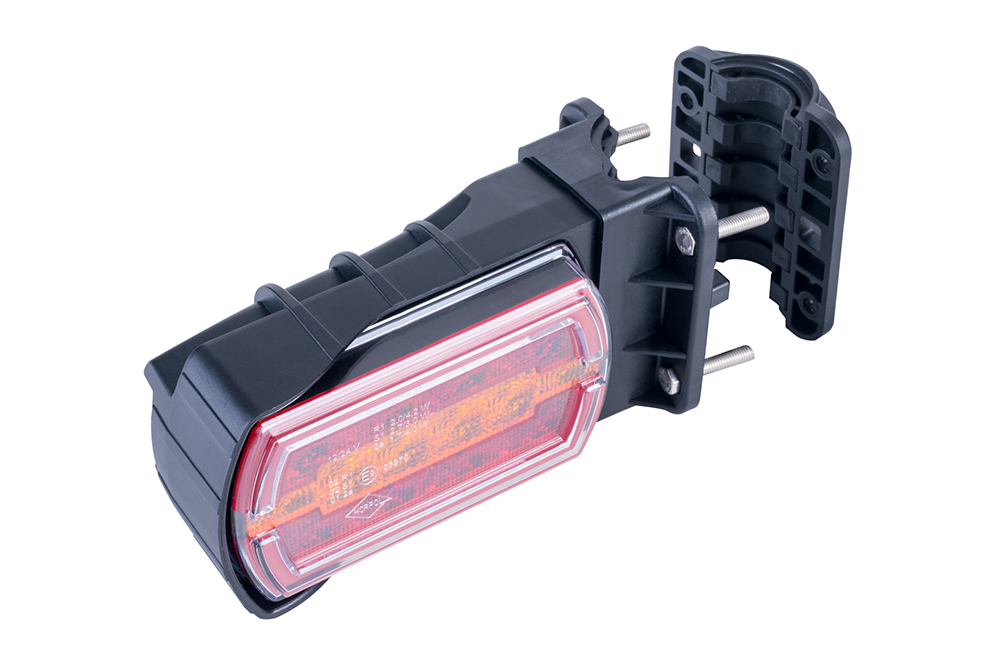

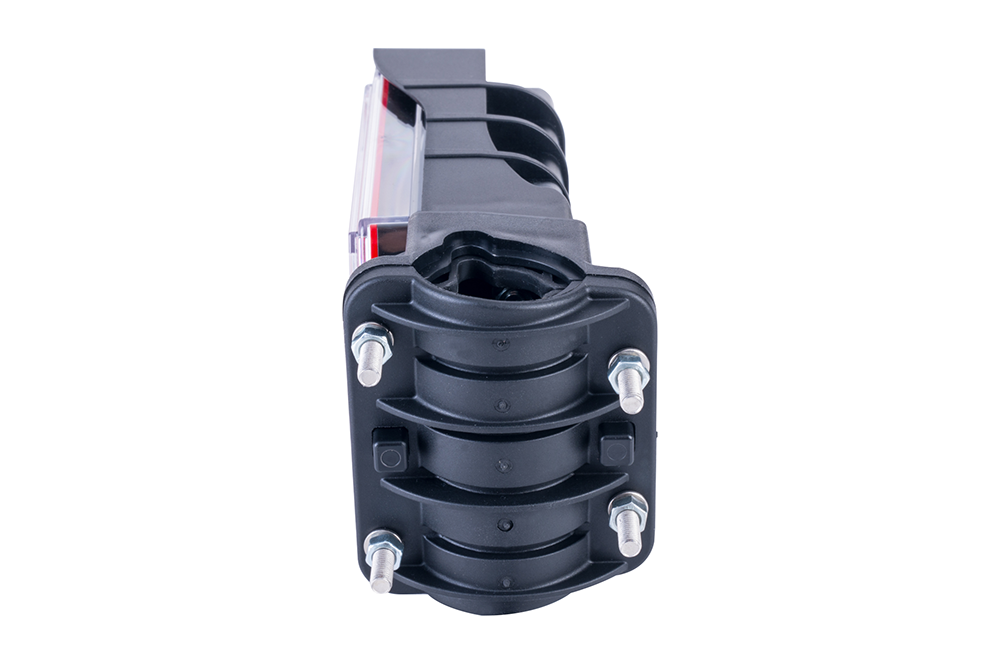

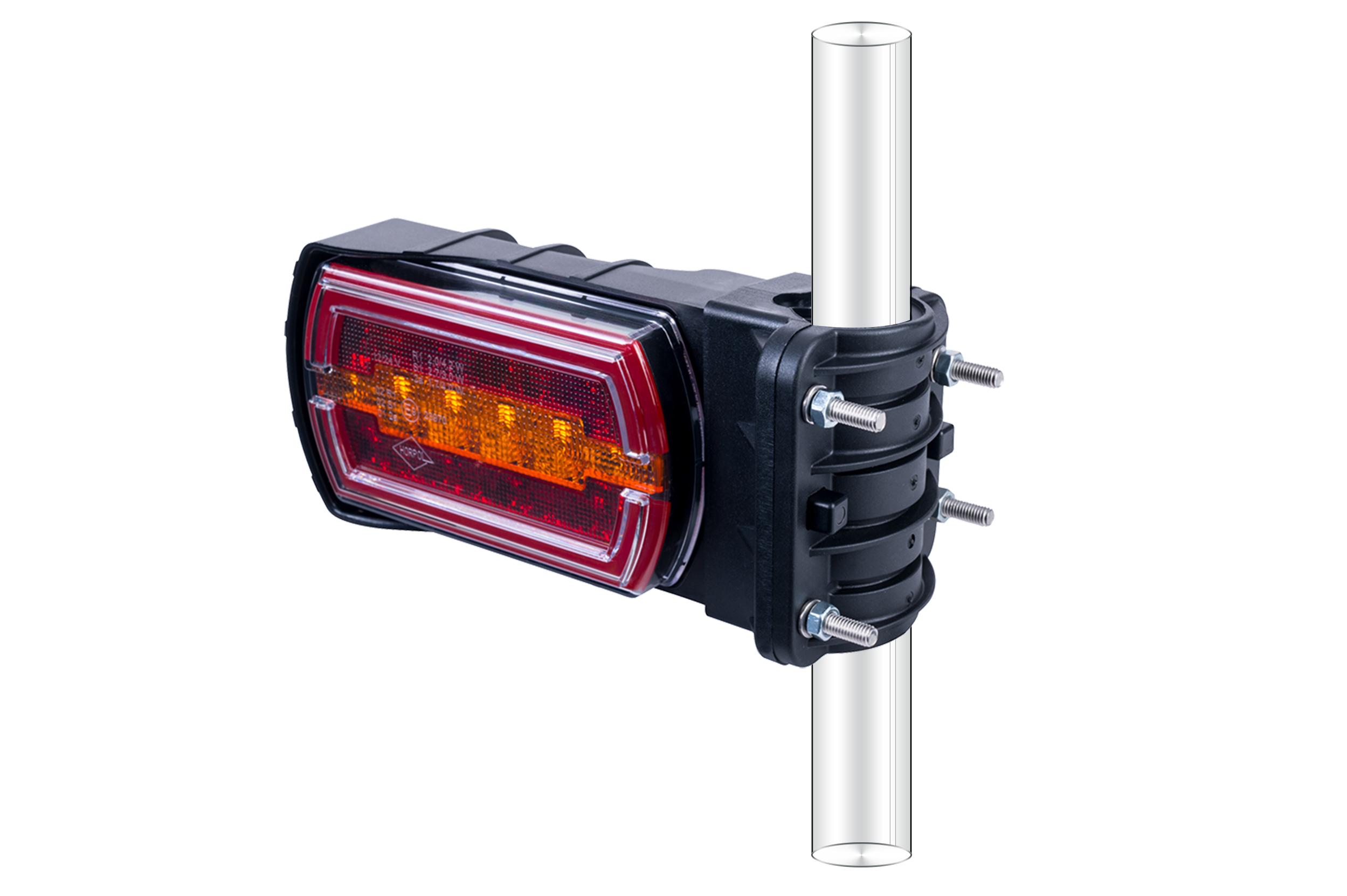

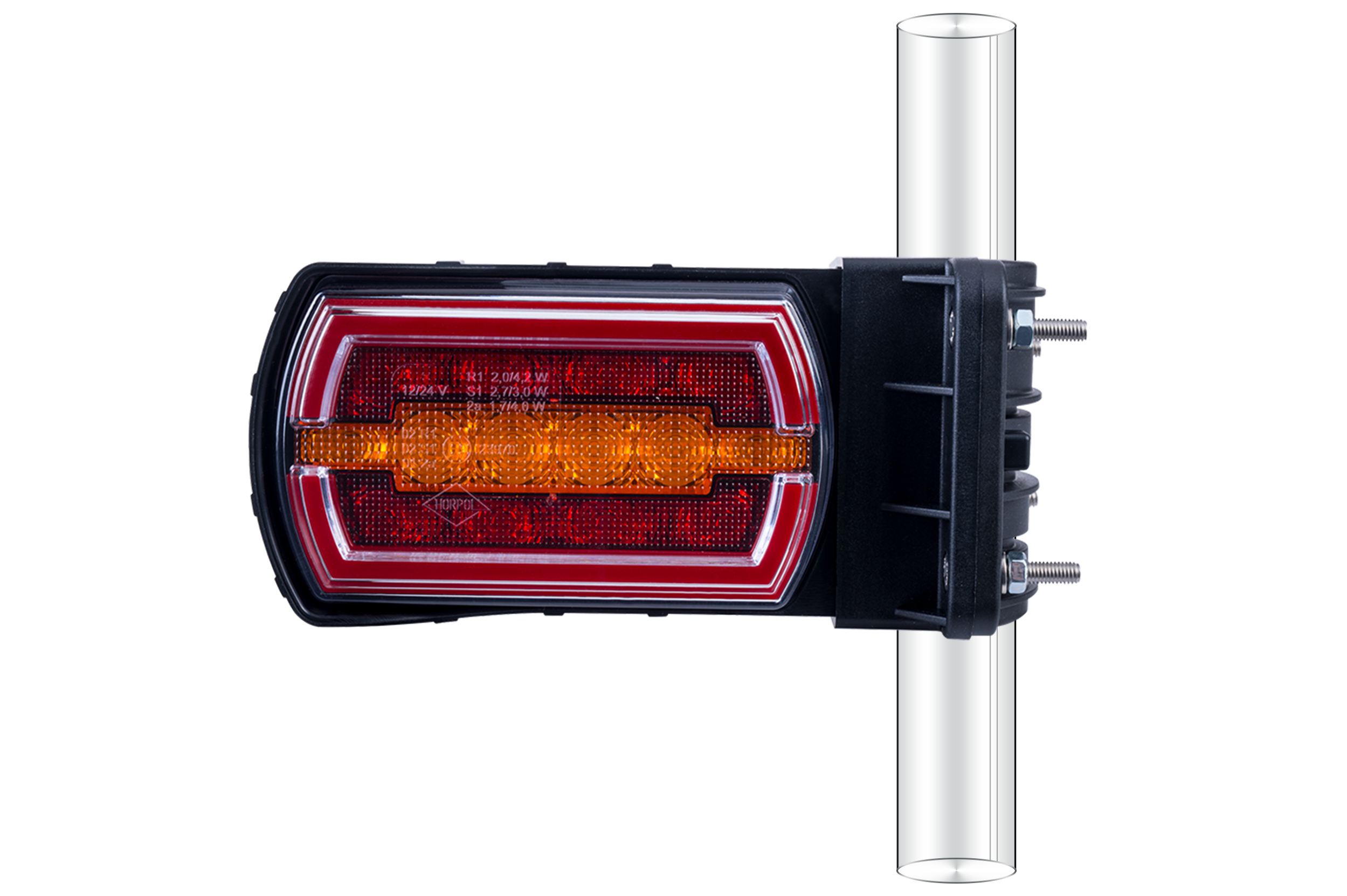

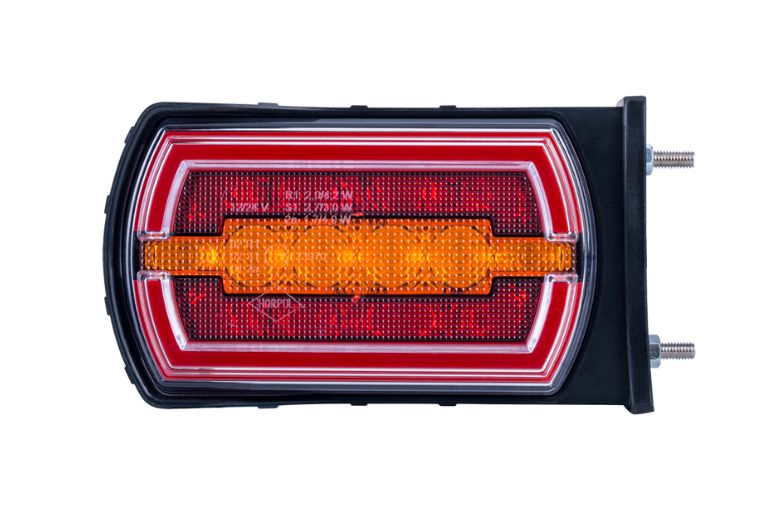

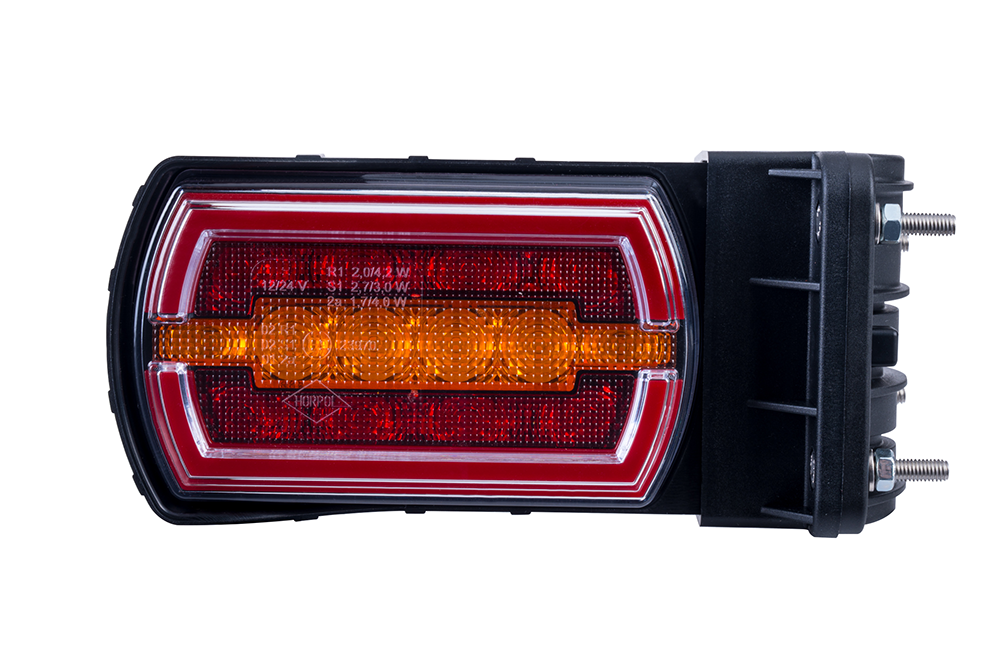

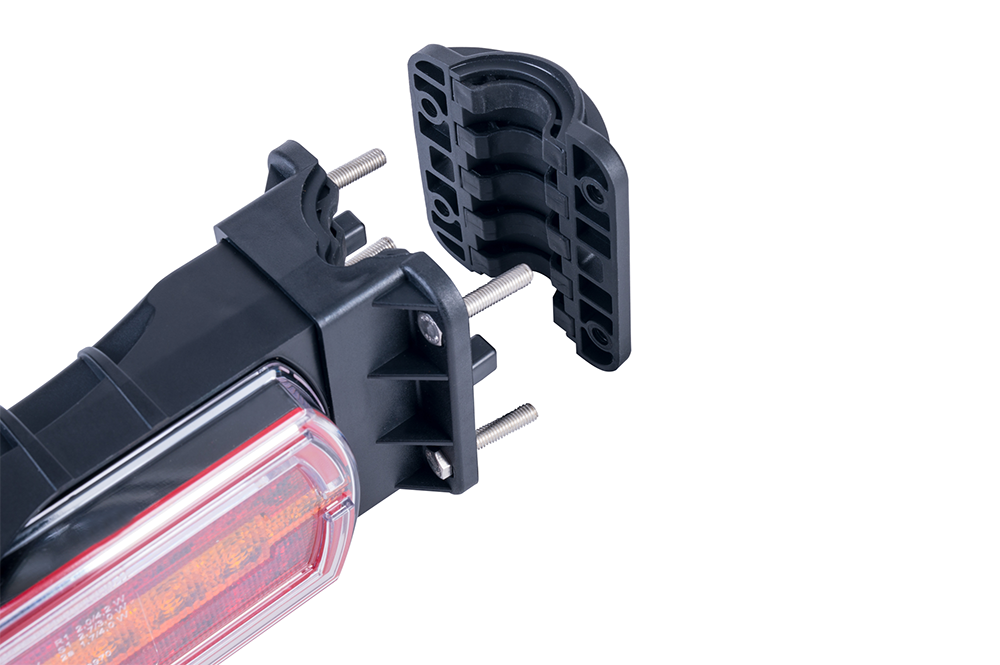

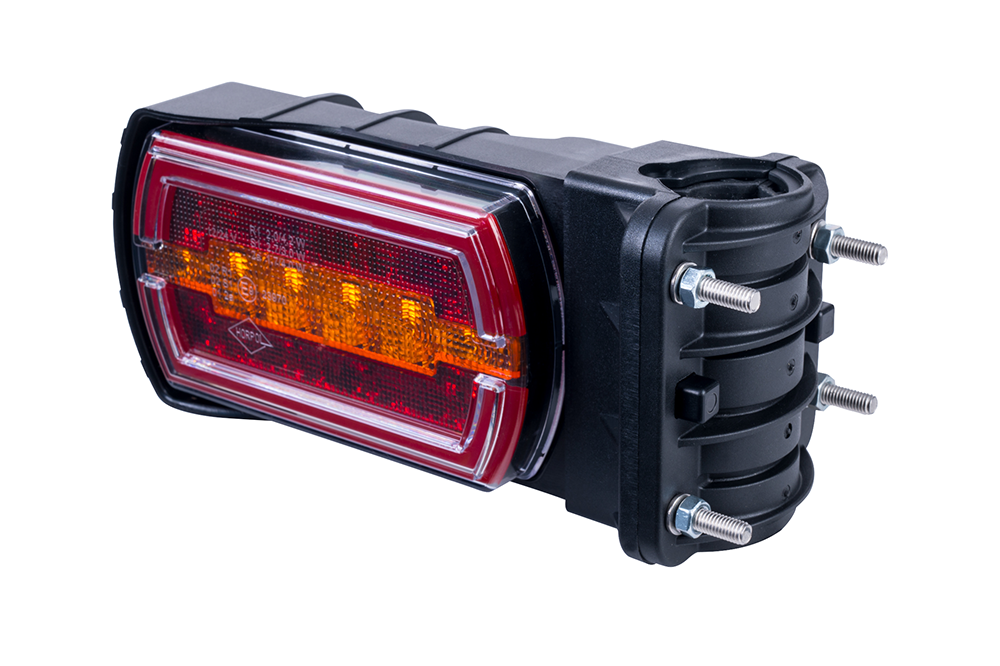

Our range includes also CLEO rear multifunction lights in side mount LZD 2790/W2 and tube mount LZD 2790/R2 versions.

Technical data

Light group
HOR 115N
LED quantity
32
Light category
multifunction rear
Rear position light
yes
Supply voltage
12/24 V
Operating temperature range
from -30°C to +50°C
Cable
4×0,5 mm2; cable length 1 m
Side
universal
Brake light
yes
Rear direction indicator
yes
LED light
yes
Ingress protection rating
IP 68

Download

Rear multifunction light CLEO LZD 2790_B (technical drawings) (lampa-zespolona-tylna-lzd-2790_b-rysunek-techniczny-en.ZIP)
Download
Rear multifunction light CLEO HOR 115N (approval 2a) (lampa-zespolona-tylna-hor-115n-homologacja-2a-en.ZIP)
Download
Rear multifunction light CLEO HOR 115N (drawings 2a) (lampa-zespolona-tylna-hor-115n-rysunki-2a-en.ZIP)
Download
Rear multifunction light CLEO HOR 115N (approval R1-S1) (lampa-zespolona-tylna-hor-115n-homologacja-r1-s1-en.ZIP)
Download
Rear multifunction light CLEO HOR 115N (drawings R1-S1) (lampa-zespolona-tylna-hor-115n-rysunki-r1-s1-en.ZIP)
Download
Rear multifunction light CLEO HOR 115N (approval R10) (lampa-zespolona-tylna-hor-115n-homologacja-r10-en.ZIP)
Download
Page content (lzd-2790-b.ZIP)
